Isuzu WW
▶
PICKUP
▶
TFR
▶
50964 - TFR/TFS-LHD
▶
3 - Brakes, Brake System
▶

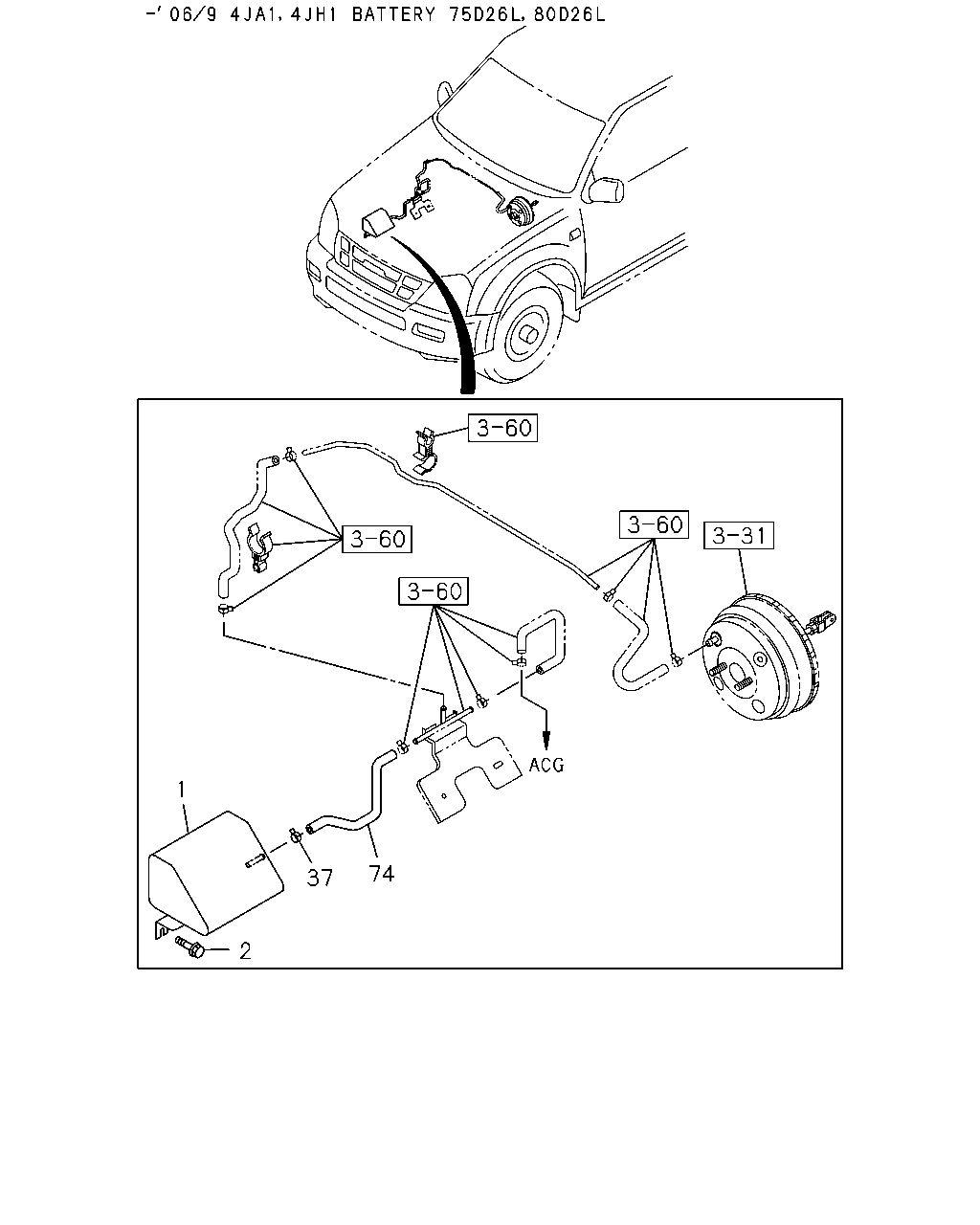

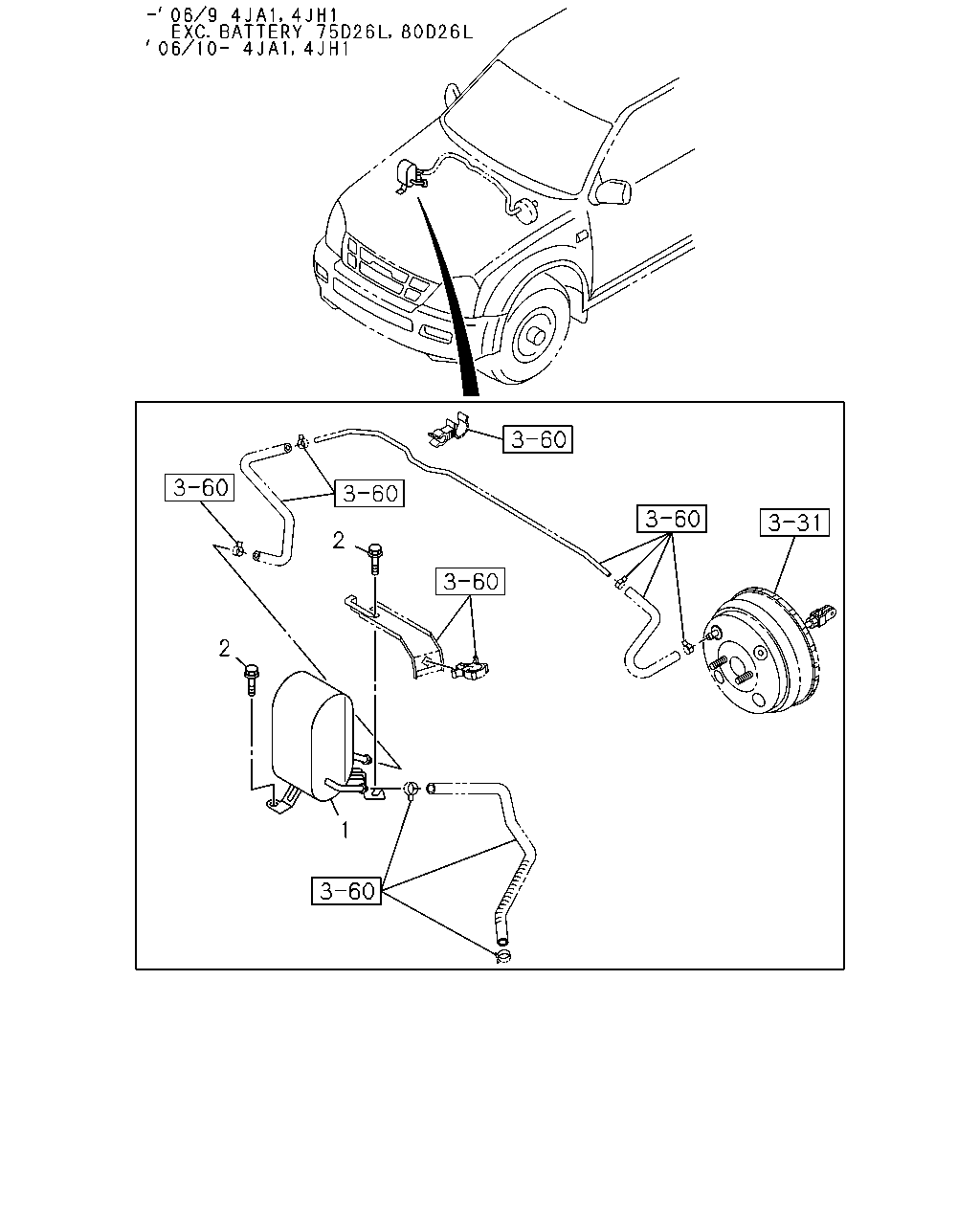

3-21 - VACUUM TANK
▶
3-21 — VACUUM TANK
(#73975) — 12 parça
Tümü
A - TFB6CF
B - TFB6SF
C - TFB6WF
D - TFS6CF
E - TFS6SF
F - TFS6WF
◀
[321A] NO.1 (5 parça)
[321A] NO.2 (7 parça)
▶
2
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
04.902 TANK; VAC,MAIN
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU)
8-97326-490-0
01
1
0306-0609
●
●
●
●
●
●
1
04.902 TANK; VAC,MAIN
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
8-97326-490-0
01
1
0610-
●
●
●
●
●
●
1
04.902 TANK; VAC,MAIN
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)
8-97363-796-0
01
1
0306-0609
●
●
●
●
2
04.902 BOLT; VAC TANK
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 02.334 M6X16 W/PL WASHER
8-97803-781-0
03
1
0306-0609
●
●
●
●
●
●
2
04.902 BOLT; VAC TANK
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M6X16 W/PL WASHER
8-98008-142-0
03
1
0610-
●
●
●
●
●
●
1
74
37
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
04.902 TANK; VAC,MAIN
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU)
8-97326-490-0
01
1
0306-0609
●
●
●
●
●
●
1
04.902 TANK; VAC,MAIN
4JA1-T ENG(LP0),4JH1-TC ENG(RDM)
8-97326-490-0
01
1
0610-
●
●
●
●
●
●
1
04.902 TANK; VAC,MAIN
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)
8-97363-796-0
01
1
0306-0609
●
●
●
●
2
04.902 BOLT; VAC TANK
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 02.334 M6X16 W/PL WASHER
8-97803-781-0
03
1
0306-0609
●
●
●
●
●
●
2
04.902 BOLT; VAC TANK
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M6X16 W/PL WASHER
8-98008-142-0
03
1
0610-
●
●
●
●
●
●
37
04.902 CLIP; RUBBER HOSE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 ID=15.5
8-94367-944-0
01
1
0306-0609
●
●
●
●
74
04.902 HOSE; VACUUM
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)
8-97332-986-0
01
1
0306-0609
●
●
●
●
