3-11 — PARKING BRAKE CONTROL (#73974) — 120 parça

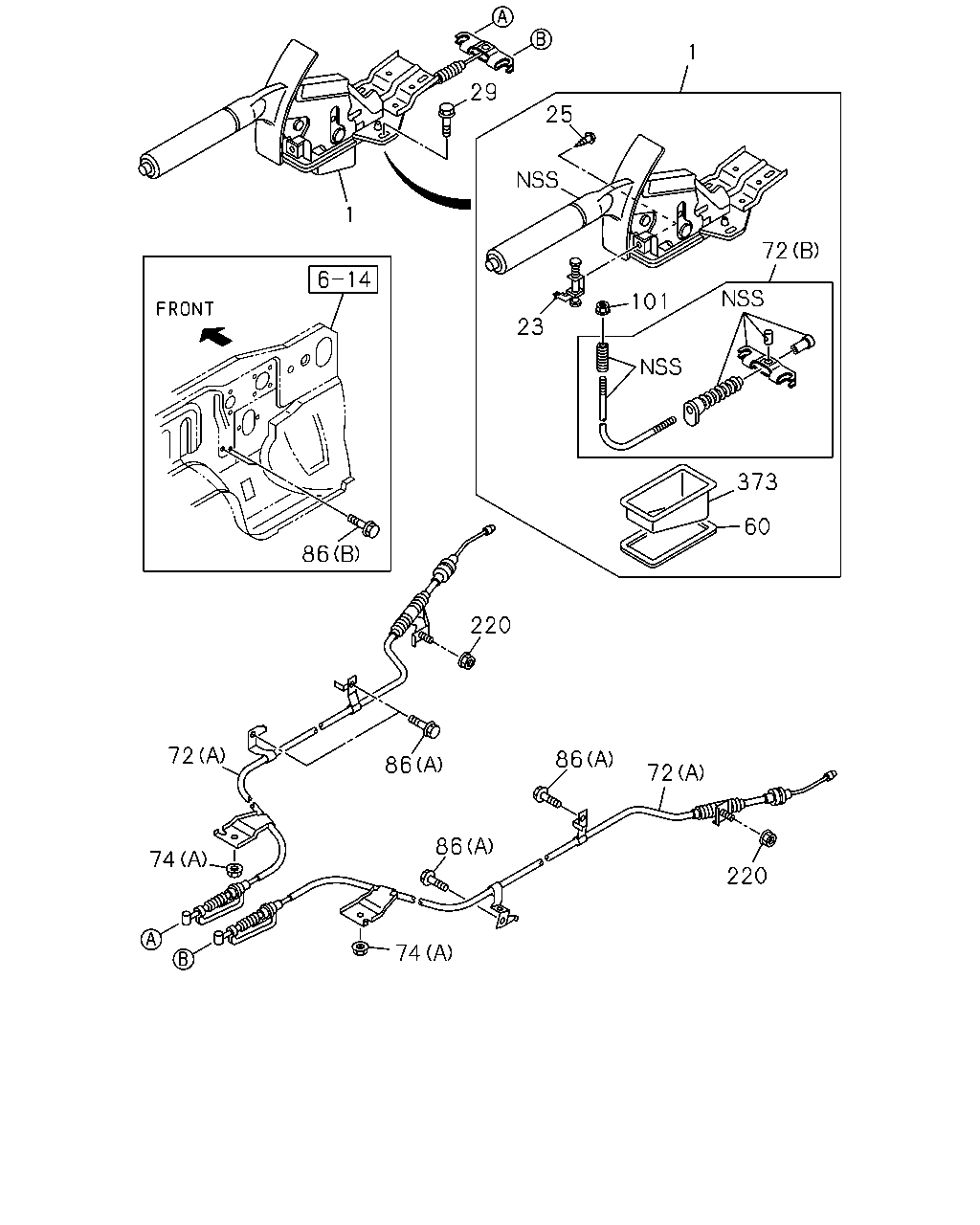

1 29 25 1 72 101 23 373 60 86 220 72 86 86 72 86 74 220 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.592 STEM ASM; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97363-082-0	01	1	0306-0609	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-98007-034-0	01	1	0610-	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97235-285-0	01	1	0306-0609	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-98007-033-0	01	1	0610-	●	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97301-436-0	01	1	0306-0609	●	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-98017-627-0	01	1	0610-	●	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97031-820-0	01	1	0306-0609	●	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-98017-626-0	01	1	0610-	●	●	●	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	0306-0609	●	●	●	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98017-655-0	01	1	0610-	●	●	●	●	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0306-	●	●	●	●	●	●
60	04.595 GASKET; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97355-931-0	01	1	0306-	●	●	●	●	●	●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION(7YC) (A)	8-97363-346-0	01	1	0306-0609	●	●	●
72	04.779 CABLE; PARKING BRK (A)	8-97363-346-0	01	1	0306-0609				●	●	●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION(7YC) (A)	8-98007-011-1	01	1	0610-	●	●	●
72	04.779 CABLE; PARKING BRK (A)	8-98007-011-1	01	1	0610-				●	●	●
72	04.779 CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97363-343-0	01	1	0306-0609	●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98008-158-1	01	1	0610-1007		●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98008-158-1	01	1	1008-		●
72	04.779 CABLE; PARKING BRK 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98008-158-1	01	1	1008-			●
72	04.779 CABLE; PARKING BRK 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A)	8-97368-068-0	01	1	0306-0609	●	●	●
72	04.779 CABLE; PARKING BRK 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A)	8-97368-068-0	01	1	0306-0609				●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A)	8-98007-010-1	01	1	0610-1007	●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) (A)	8-98007-010-1	01	1	0610-1007				●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A)	8-98007-010-1	01	1	1008-	●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) (A)	8-98007-010-1	01	1	1008-				●	●	●
72	04.779 CABLE; PARKING BRK 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97368-066-0	01	1	0306-0609	●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98007-007-1	01	1	0610-	●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98007-008-1	01	1	0610-	●	●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (B)	8-97374-294-0	01	1	0306-0609	●	●	●	●	●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (B)	8-98017-629-0	01	1	0610-	●	●	●	●	●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) HIGH RIDE SUSPENSION(7YC) (A)	8-97368-069-0	01	1	0306-0609		●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) (A)	8-97368-069-0	01	1	0306-0609					●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) (A)	8-98007-012-1	01	1	0610-0709		●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1) (A)	8-98007-012-1	01	1	0610-0709					●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) HIGH RIDE SUSPENSION(7YC) (A)	8-98007-012-1	01	1	0710-1003		●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) (A)	8-98007-012-1	01	1	0710-1003					●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) (A)	8-98007-012-1	01	1	1004-1007		●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1) (A)	8-98007-012-1	01	1	1004-1007					●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) HIGH RIDE SUSPENSION(7YC) (A)	8-98007-012-1	01	1	1008-		●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) (A)	8-98007-012-1	01	1	1008-					●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97368-067-0	01	1	0306-0609		●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98007-009-1	01	1	0610-		●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98008-159-1	01	1	0610-1007		●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98008-159-1	01	1	1008-		●
72	04.779 CABLE; PARKING BRK 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98008-159-1	01	1	1008-			●
74	04.785 NUT; CONT WIRE (A)	8-97136-404-0	02	1	0306-0609	●	●	●	●	●	●
74	04.785 NUT; CONT WIRE (A)	8-98008-071-0	02	1	0610-	●	●	●	●	●	●
74	04.785 NUT; CONT WIRE EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE	0-91303-606-0	01	1	0306-0605	●	●	●	●	●	●
74	04.785 NUT; CONT WIRE EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE	0-91380-006-0	01	1	0606-	●	●	●	●	●	●
86	04.785 BOLT 03.162 (A) M6X20 FLANGE	0-28650-620-0	04	1	0306-	●	●	●	●	●	●
86	04.785 BOLT 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	0306-	●	●	●	●	●	●
101	04.785 NUT; CABLE TO LEVER PARKING BRAKE FLOOR<7XW>	8-97355-929-0	01	1	0306-0609	●	●	●	●	●	●
101	04.785 NUT; CABLE TO LEVER PARKING BRAKE FLOOR<7XW>	8-98017-654-0	01	1	0610-	●	●	●	●	●	●
220	04.785 NUT; CLIP,PARKING CONT CABLE 01.062 M6 FLANGE	0-91180-106-0	02	1	0306-	●	●	●	●	●	●
373	04.594 COVER; BOTTOM,PARKING BRK LEVER PARKING BRAKE FLOOR<7XW>	8-97355-930-0	01	1	0306-	●	●	●	●	●	●

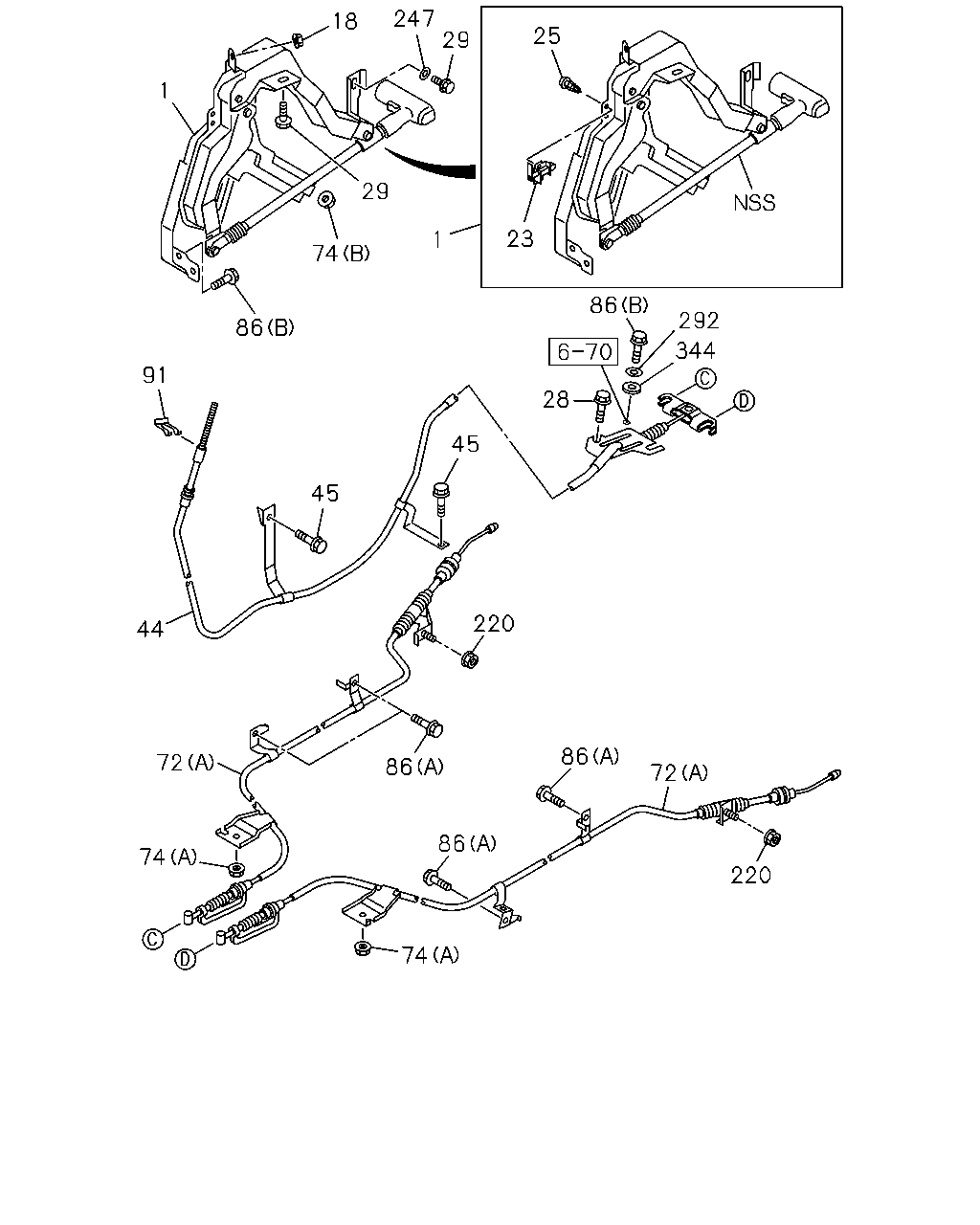

247 29 18 25 1 29 23 74 86 292 86 344 91 28 45 45 220 44 86 72 86 72 86 74 220 74 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.592 STEM ASM; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97363-082-0	01	1	0306-0609	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-98007-034-0	01	1	0610-	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97235-285-0	01	1	0306-0609	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-98007-033-0	01	1	0610-	●	●	●	●	●	●
18	04.589 NUT; STEM EXC. PARKING BRAKE FLOOR<7XW> 01.062 M8 FLANGE	0-91180-108-0	01	1	0306-	●	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97301-436-0	01	1	0306-0609	●	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-98017-627-0	01	1	0610-	●	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97031-820-0	01	1	0306-0609	●	●	●	●	●	●
23	04.589 SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-98017-626-0	01	1	0610-	●	●	●	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-97103-556-0	01	1	0306-0609	●	●	●	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98017-655-0	01	1	0610-	●	●	●	●	●	●
28	04.594 BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0306-	●	●	●	●	●	●
29	04.595 BOLT; PARKING BRK LEVER TO BODY 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0306-	●	●	●	●	●	●
44	04.779 CABLE; PARKING BRK,FRT EXC. PARKING BRAKE FLOOR<7XW>	8-97358-478-0	01	1	0306-0609	●	●	●	●	●	●
44	04.779 CABLE; PARKING BRK,FRT EXC. PARKING BRAKE FLOOR<7XW>	8-98006-947-0	01	1	0610-	●	●	●	●	●	●
45	04.785 BOLT; CABLE TO FLOOR EXC. PARKING BRAKE FLOOR<7XW> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0306-	●	●	●	●	●	●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION(7YC) (A)	8-97363-346-0	01	1	0306-0609	●	●	●
72	04.779 CABLE; PARKING BRK (A)	8-97363-346-0	01	1	0306-0609				●	●	●
72	04.779 CABLE; PARKING BRK HIGH RIDE SUSPENSION(7YC) (A)	8-98007-011-1	01	1	0610-	●	●	●
72	04.779 CABLE; PARKING BRK (A)	8-98007-011-1	01	1	0610-				●	●	●
72	04.779 CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97363-343-0	01	1	0306-0609	●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98008-158-1	01	1	0610-1007		●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98008-158-1	01	1	1008-		●
72	04.779 CABLE; PARKING BRK 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98008-158-1	01	1	1008-			●
72	04.779 CABLE; PARKING BRK 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A)	8-97368-068-0	01	1	0306-0609	●	●	●
72	04.779 CABLE; PARKING BRK 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) (A)	8-97368-068-0	01	1	0306-0609				●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A)	8-98007-010-1	01	1	0610-1007	●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) (A)	8-98007-010-1	01	1	0610-1007				●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A)	8-98007-010-1	01	1	1008-	●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) (A)	8-98007-010-1	01	1	1008-				●	●	●
72	04.779 CABLE; PARKING BRK 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97368-066-0	01	1	0306-0609	●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98007-007-1	01	1	0610-	●	●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98007-008-1	01	1	0610-	●	●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (B)	8-97374-294-0	01	1	0306-0609	●	●	●	●	●	●
72	04.779 CABLE; PARKING BRK PARKING BRAKE FLOOR<7XW> (B)	8-98017-629-0	01	1	0610-	●	●	●	●	●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) HIGH RIDE SUSPENSION(7YC) (A)	8-97368-069-0	01	1	0306-0609		●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) (A)	8-97368-069-0	01	1	0306-0609					●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) (A)	8-98007-012-1	01	1	0610-0709		●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1) (A)	8-98007-012-1	01	1	0610-0709					●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) HIGH RIDE SUSPENSION(7YC) (A)	8-98007-012-1	01	1	0710-1003		●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) (A)	8-98007-012-1	01	1	0710-1003					●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) (A)	8-98007-012-1	01	1	1004-1007		●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1) (A)	8-98007-012-1	01	1	1004-1007					●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) HIGH RIDE SUSPENSION(7YC) (A)	8-98007-012-1	01	1	1008-		●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) (A)	8-98007-012-1	01	1	1008-					●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1),6VE1 ENG(LX5) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97368-067-0	01	1	0306-0609		●	●
72	04.779 CABLE; PARKING BRK C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98007-009-1	01	1	0610-		●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98008-159-1	01	1	0610-1007		●	●
72	04.779 CABLE; PARKING BRK 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98008-159-1	01	1	1008-		●
72	04.779 CABLE; PARKING BRK 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-98008-159-1	01	1	1008-			●
74	04.785 NUT; CONT WIRE (A)	8-97136-404-0	02	1	0306-0609	●	●	●	●	●	●
74	04.785 NUT; CONT WIRE (A)	8-98008-071-0	02	1	0610-	●	●	●	●	●	●
74	04.785 NUT; CONT WIRE EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE	0-91303-606-0	01	1	0306-0605	●	●	●	●	●	●
74	04.785 NUT; CONT WIRE EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE	0-91380-006-0	01	1	0606-	●	●	●	●	●	●
86	04.785 BOLT 03.162 (A) M6X20 FLANGE	0-28650-620-0	04	1	0306-	●	●	●	●	●	●
86	04.785 BOLT 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	0306-	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> 04.681	5-09709-039-0	01	1	0306-0609	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. PARKING BRAKE FLOOR<7XW>	8-98007-093-0	01	1	0610-	●	●	●	●	●	●
220	04.785 NUT; CLIP,PARKING CONT CABLE 01.062 M6 FLANGE	0-91180-106-0	02	1	0306-	●	●	●	●	●	●
247	04.595 WASHER; PL EXC. PARKING BRAKE FLOOR<7XW> 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0306-0606	●	●	●	●	●	●
247	04.595 WASHER; PL EXC. PARKING BRAKE FLOOR<7XW> ID=8.4 OD=22	0-91610-708-0	01	1	0607-	●	●	●	●	●	●
292	04.589 WASHER; PARK BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0306-0606	●	●	●	●	●	●
292	04.589 WASHER; PARK BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0607-	●	●	●	●	●	●
344	04.595 GASKET; DASH LWR EXC. PARKING BRAKE FLOOR<7XW> 04.591	8-94334-899-1	01	1	0306-0410	●	●	●	●	●	●
