◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-66 - MANUAL TRANSFER GEAR; OUTPUT ▶
2-66 — MANUAL TRANSFER GEAR; OUTPUT (#73970) — 30 parça

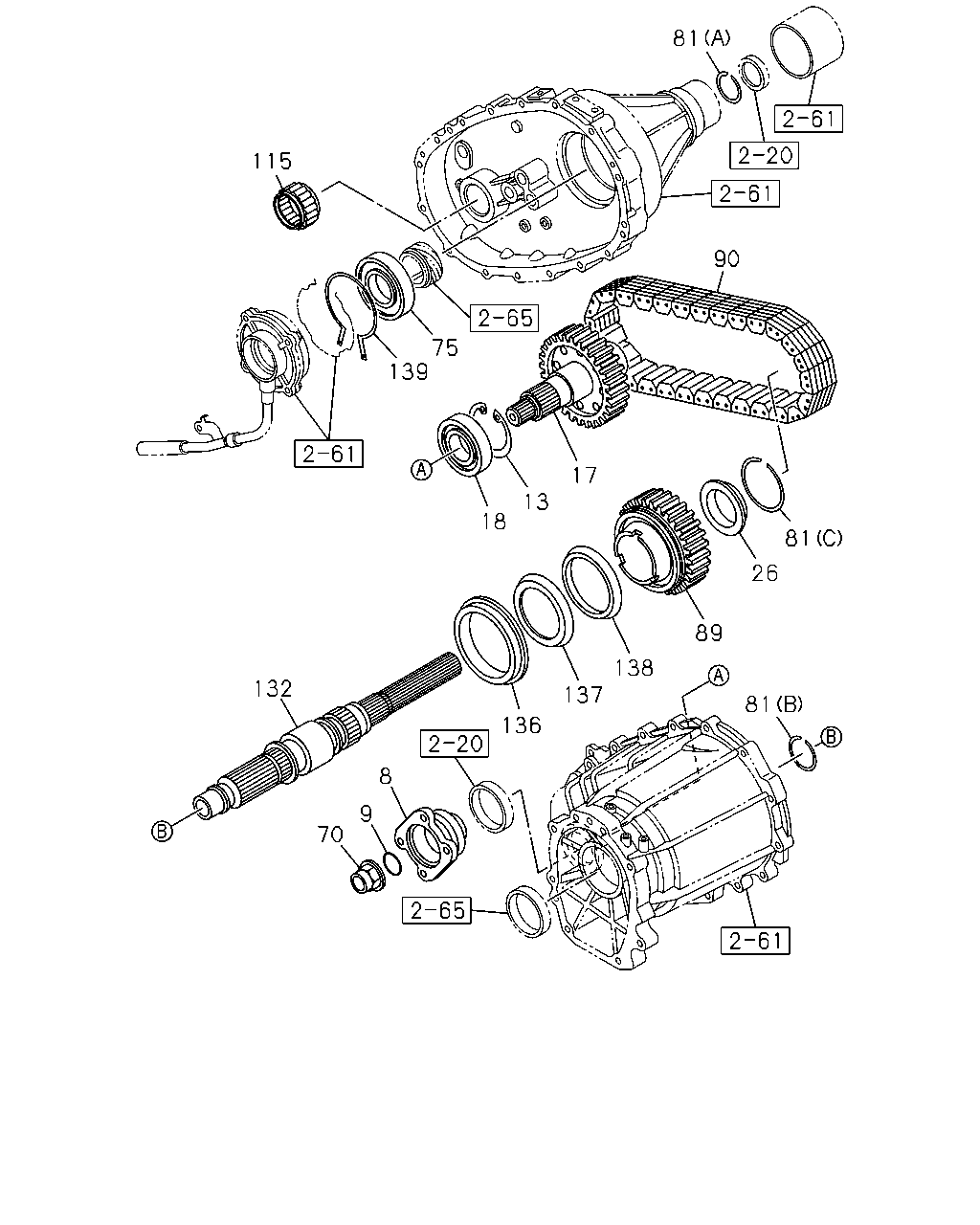

çizim 114271
81 90 81 26 89 17 13 18 75 139 115 132 8 9 70 136 137 138 81
BalonParca AdiParca NoAdetTipApplied Date A B C
8 04.535 FLANGE; OUTPUT 8-97319-825-2 01 1 0306- ● ● ●
9 04.164 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 04.552 ID=29.7 OD=36.1 		8-94483-035-0 01 1 0306- ● ● ●
13 04.545 RING; SNAP,OUTPUT,FRT
ID=67 		8-97305-402-0 01 1 0306- ● ● ●
17 04.555 SHAFT; OUTPUT 8-97231-853-0 01 1 0306- ● ● ●
18 04.520 BEARING; BALL,OUTPUT,FRT
NSK 		8-94422-172-1 01 1 0306- ● ● ●
26 04.533 WASHER; THRUST 8-97239-774-0 01 1 0306- ● ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER 8-97305-605-0 01 1 0306-0603 ● ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
M36 FLANGE 		8-97358-603-0 01 1 0604- ● ● ●
75 04.520 BEARING; BALL,RR OUTPUT 8-97234-737-0 01 1 0306- ● ● ●
81 04.545 RING; SNAP
(A) T=1.9 		8-97305-404-1 01 1 0306- ● ● ●
81 04.545 RING; SNAP
(B) T=1.4 		8-97305-405-0 01 1 0306- ● ● ●
81 04.545 RING; SNAP
(C) T=2.15 RED 		8-97305-407-0 01 1 0306- ● ● ●
81 04.545 RING; SNAP
(C) T=2.10 NON COLOR 		8-97305-408-0 01 1 0306- ● ● ●
81 04.545 RING; SNAP
(C) T=2.05 BLUE 		8-97305-409-0 01 1 0306- ● ● ●
81 04.545 RING; SNAP
(C) T=2.00 WHITE 		8-97305-410-0 01 1 0306- ● ● ●
89 04.535 SPROCKET; DRIVE 8-97231-852-0 01 1 0306-0506 ● ● ●
89 04.535 SPROCKET; DRIVE
Z=48 		8-98013-525-0 01 1 0507- ● ● ●
90 04.535 CHAIN; DRIVE 8-97323-177-0 01 1 0306- ● ● ●
115 04.520 BEARING; NEEDLE 8-97234-747-0 01 1 0306- ● ● ●
132 05.544 SHAFT; MAIN,TRANSFER 8-97231-833-3 01 1 0306-0609 ● ● ●
132 05.544 SHAFT; MAIN,TRANSFER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97231-833-3 01 1 0610-0709 ● ● ●
132 05.544 SHAFT; MAIN,TRANSFER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) 		8-97231-833-3 01 1 0710-1003 ● ● ●
132 05.544 SHAFT; MAIN,TRANSFER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97231-833-3 01 1 1004-1007 ● ● ●
132 05.544 SHAFT; MAIN,TRANSFER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),6VE1 ENG(LX5),4JH1-TC ENG(RDM) 		8-97231-833-3 01 1 1008- ● ● ●
132 05.544 SHAFT; MAIN,TRANSFER
4JJ1-TCX ENG(LS0) Z=34-36-26-27 		8-98013-925-0 01 1 0610-1007 ● ●
132 05.544 SHAFT; MAIN,TRANSFER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) Z=34-36-26-27 		8-98013-925-1 01 1 1008- ● ●
136 04.545 BLOCK RING; 2-4
04.383 Z=48 		8-94363-054-1 01 1 0306- ● ● ●
137 04.545 RING; OUTSIDE,2-4
04.383 OD=90.0 		8-94363-055-1 01 1 0306- ● ● ●
138 04.545 RING; INSIDE,2-4
04.383 OD=95.8 		8-94363-056-0 01 1 0306- ● ● ●
139 04.545 RING; RETAINING,RR OUTPUT
ID=76 		8-97305-012-0 01 1 0306- ● ● ●
