2-81B — POWER TAKE OFF; TRANSMISSION SIDE (#7397) — 28 parça

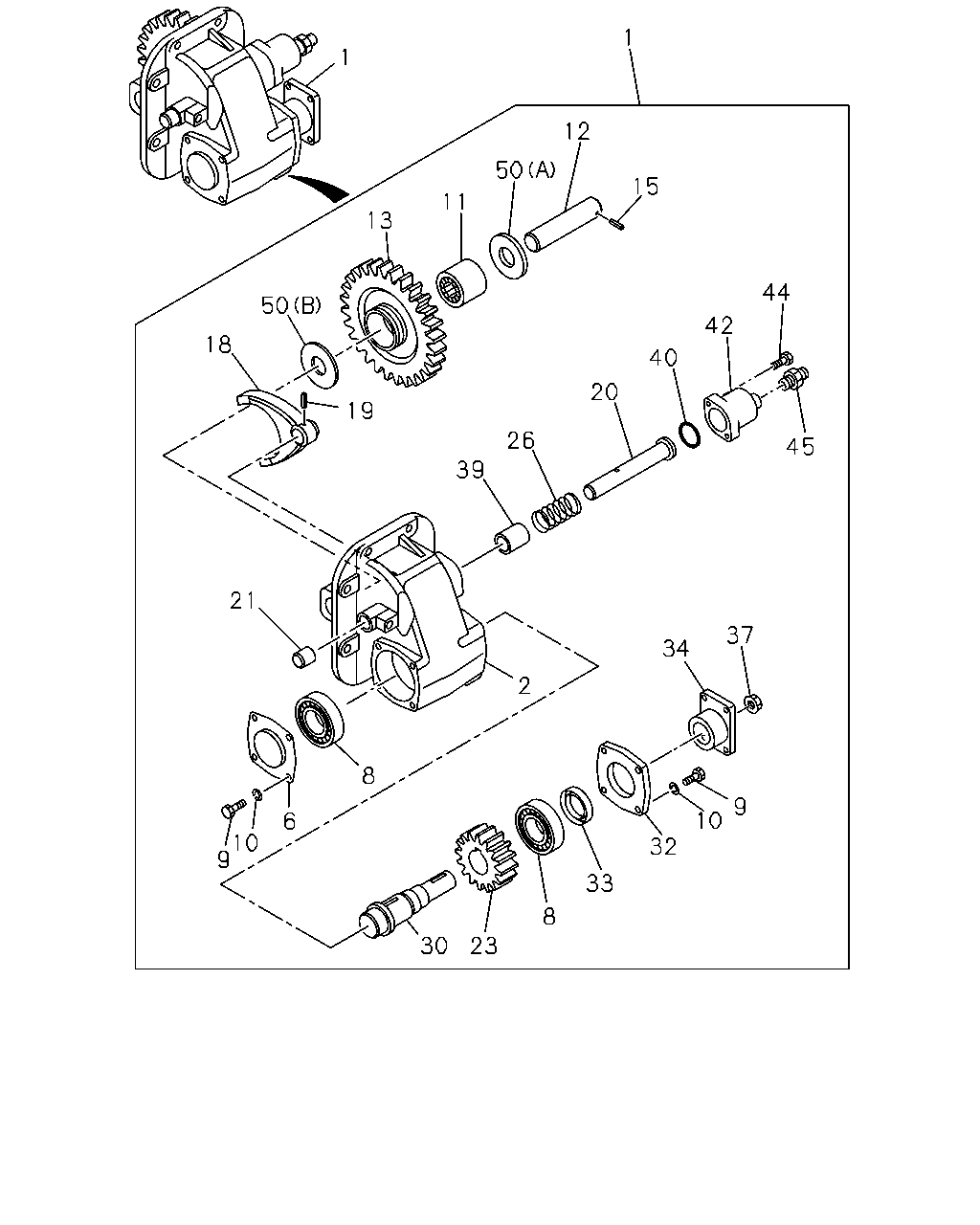

çizim 42918
1 1 12 50 15 11 13 44 50 42 18 40 20 19 26 45 39 21 37 34 2 8 9 10 6 10 9 32 33 8 30 23
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38000-328-0 01 1 9905-
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38111-057-1 01 1 9905-
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38151-006-0 01 1 9905-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		5-00098-057-0 02 1 9905-
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10X16 		9-02341-016-0 08 1 9905-
10 WASHER; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=10.2 		9-09150-510-0 08 1 9905-
11 BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-09811-144-0 01 1 9905-
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38211-024-0 01 1 9905-
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) Z=36 		1-38241-065-0 01 1 9905-
15 PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=16 		9-09878-613-0 01 1 9905-
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38361-025-0 01 1 9905-
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-09748-019-0 01 1 9905-
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38371-027-1 01 1 9905-
21 COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		9-33545-001-0 01 1 9905-
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) Z=21 		1-38241-087-0 01 1 9905-
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38121-004-0 01 1 9905-
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38211-030-0 01 1 9905-
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38152-016-0 01 1 9905-
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38119-040-0 01 1 9905-
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38512-019-0 01 1 9905-
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M16 		1-38119-036-0 01 1 9905-
39 STOPPER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38379-006-0 01 1 9905-
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		9-09561-324-0 01 1 9905-
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-38377-003-0 01 1 9905-
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10X25 FLANGE 		0-28181-025-0 02 1 9905-
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9905-
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) 		1-38226-045-0 01 1 9905-
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 		1-38226-052-0 01 1 9905-
