◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#73966) — 43 parça

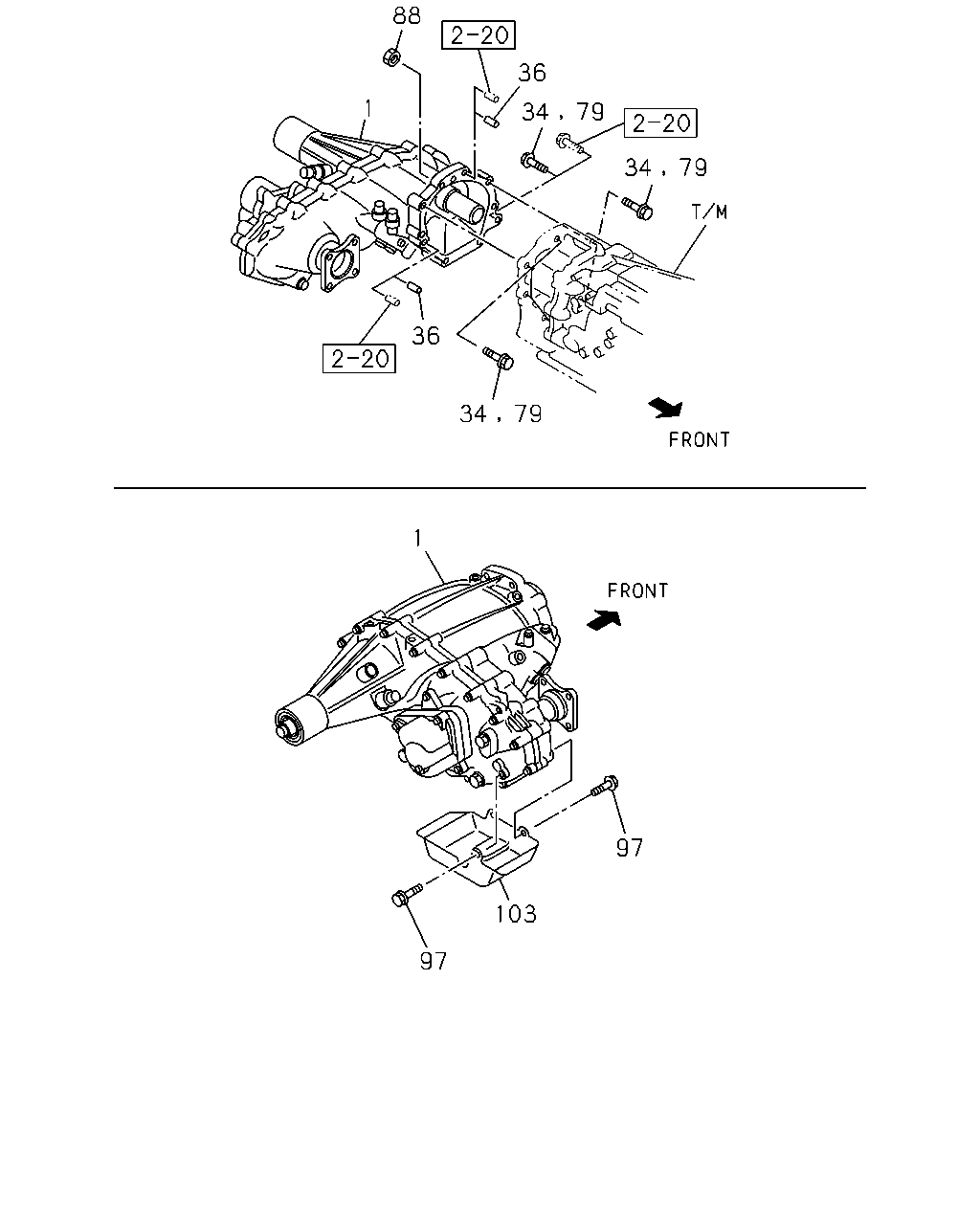

çizim 114298
88 36 1 34 79 34 79 36 34 79 1 97 103 97
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.505 TRANSFER ASM
6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) 		8-98028-764-0 01 1 1008- ●
1 04.505 TRANSFER ASM
6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) 		8-98028-764-0 01 1 1008- ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-97368-283-0 01 1 0306-0402 ● ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-97376-877-0 01 1 0403-0609 ● ● ●
1 04.505 TRANSFER ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-98028-762-0 01 1 0610- ● ●
1 04.505 TRANSFER ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-98028-762-0 01 1 0610- ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 43/9(GT2),FINAL GEARRATIO 41/9(GT3),FINAL GEAR RATIO 41/ 8(HC3) 		8-97368-282-0 01 1 0306-0312 ● ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/9(GT3) 		8-97368-282-0 01 1 0401-0402 ● ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/9(GT3) 		8-97376-876-0 01 1 0403-0609 ● ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) FINAL GEAR RATIO 41/9(GT3) 		8-98028-761-0 01 1 0610- ● ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(QCQ) 		8-98028-761-0 01 1 0610- ● ● ●
1 04.505 TRANSFER ASM
C24SE ENG(LG1),6VE1 ENG(LX5) FINAL GEAR RATIO 43/9(GT2),FINAL GEARRATIO 41/9(GT3),FINAL GEAR RATIO 41/ 8(HC3) 		8-97315-973-0 01 1 0306-0402 ● ●
1 04.505 TRANSFER ASM
C24SE ENG(LG1),6VE1 ENG(LX5) FINAL GEAR RATIO 43/9(GT2),FINAL GEARRATIO 41/9(GT3),FINAL GEAR RATIO 41/ 8(HC3) 		8-97376-878-0 01 1 0403-0609 ● ●
1 04.505 TRANSFER ASM
C24SE ENG(LG1) FINAL GEAR RATIO 43/9(GT2),FINAL GEARRATIO 41/9(GT3),FINAL GEAR RATIO 41/ 8(HC3) 		8-98028-763-0 01 1 0610-0709 ● ●
1 04.505 TRANSFER ASM
6VE1 ENG(LX5) A/T AISIN(RMD) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(QCQ) 		8-98028-763-0 01 1 0710-1003 ● ●
1 04.505 TRANSFER ASM
6VE1 ENG(LX5) A/T AISIN(RMD) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) 		8-98028-763-0 01 1 0710-1003 ● ●
1 04.505 TRANSFER ASM
C24SE ENG(LG1) FINAL GEAR RATIO 43/9(GT2),FINAL GEARRATIO 41/9(GT3),FINAL GEAR RATIO 41/ 8(HC3) 		8-98028-763-0 01 1 0710-1003 ● ●
1 04.505 TRANSFER ASM
C24SE ENG(LG1) FINAL GEAR RATIO 43/9(GT2),FINAL GEARRATIO 41/9(GT3) 		8-98028-763-0 01 1 1004-1007 ● ●
1 04.505 TRANSFER ASM
C24SE ENG(LG1) FINAL GEAR RATIO 43/9(GT2),FINAL GEARRATIO 41/9(GT3),FINAL GEAR RATIO 41/ 8(HC3) 		8-98028-763-0 01 1 1008- ● ●
1 04.505 TRANSFER ASM
6VE1 ENG(LX5) A/T AISIN(RMD) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(QCQ) 		8-98028-763-0 01 1 1008- ●
1 04.505 TRANSFER ASM
6VE1 ENG(LX5) A/T AISIN(RMD) FINAL GEAR RATIO 41/9(GT3) FRT&RR 225/75R15C(BZC) 		8-98028-763-0 01 1 1008- ●
1 04.505 TRANSFER ASM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98028-766-0 01 1 0610-1007 ● ●
1 04.505 TRANSFER ASM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98028-766-0 01 1 1008- ●
1 04.505 TRANSFER ASM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98028-766-0 01 1 1008- ●
1 04.505 TRANSFER ASM
6VE1 ENG(LX5) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-97315-974-0 01 1 0306-0402 ● ●
1 04.505 TRANSFER ASM
6VE1 ENG(LX5) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-97376-879-0 01 1 0403-0609 ● ●
1 04.505 TRANSFER ASM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98028-765-0 01 1 0610-1007 ● ●
1 04.505 TRANSFER ASM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 		8-98028-765-0 01 1 1008- ● ●
1 04.505 TRANSFER ASM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) 		8-98028-765-0 01 1 1008- ●
1 04.505 TRANSFER ASM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ISRAEL EQUIPMENT(2G1) EXC. CHEVROLET EQUIPMENT(8JF) 		8-98028-765-0 01 1 1008- ●
1 04.505 TRANSFER ASM
6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) 		8-98028-764-0 01 1 0710-1003 ● ●
1 04.505 TRANSFER ASM
6VE1 ENG(LX5) M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) 		8-98028-764-0 01 1 0710-1003 ● ●
34 04.510 BOLT; TRANSFER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) M10X35 FLANGE 		0-28051-035-0 07 1 0306-0609 ● ● ●
34 04.510 BOLT; TRANSFER
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) M10X35 FLANGE 		0-28051-035-0 06 1 0306-0609 ● ● ●
36 04.510 PIN; KNOCK,TRANSFER
OD=10 L=20 		8-97135-423-0 02 1 0306-0609 ● ● ●
79 04.512 BOLT; STOPPER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 04.510 M10X35 FLANGE 		0-28051-035-0 07 1 0610-1007 ● ● ●
79 04.512 BOLT; STOPPER
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 04.510 M10X35 FLANGE 		0-28051-035-0 06 1 0610-0703 ● ● ●
79 04.512 BOLT; STOPPER
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 04.510 M10X35 FLANGE 		0-28051-035-0 06 1 0704-1003 ● ● ●
79 04.512 BOLT; STOPPER
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 04.510 M10X35 FLANGE 		0-28051-035-0 06 1 0704-1003 ● ●
79 04.512 BOLT; STOPPER
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 04.510 M10X35 FLANGE 		0-28051-035-0 06 1 1004-1007 ● ● ●
88 04.512 NUT
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0306-0609 ● ● ●
97 04.512 BOLT
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0306- ● ● ●
103 04.510 GUARD; TRANSFER 8-97234-751-0 01 1 0306- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
