◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-56 - AUTO TRANS CONTROL LINK ▶
2-56 — AUTO TRANS CONTROL LINK (#73965) — 85 parça

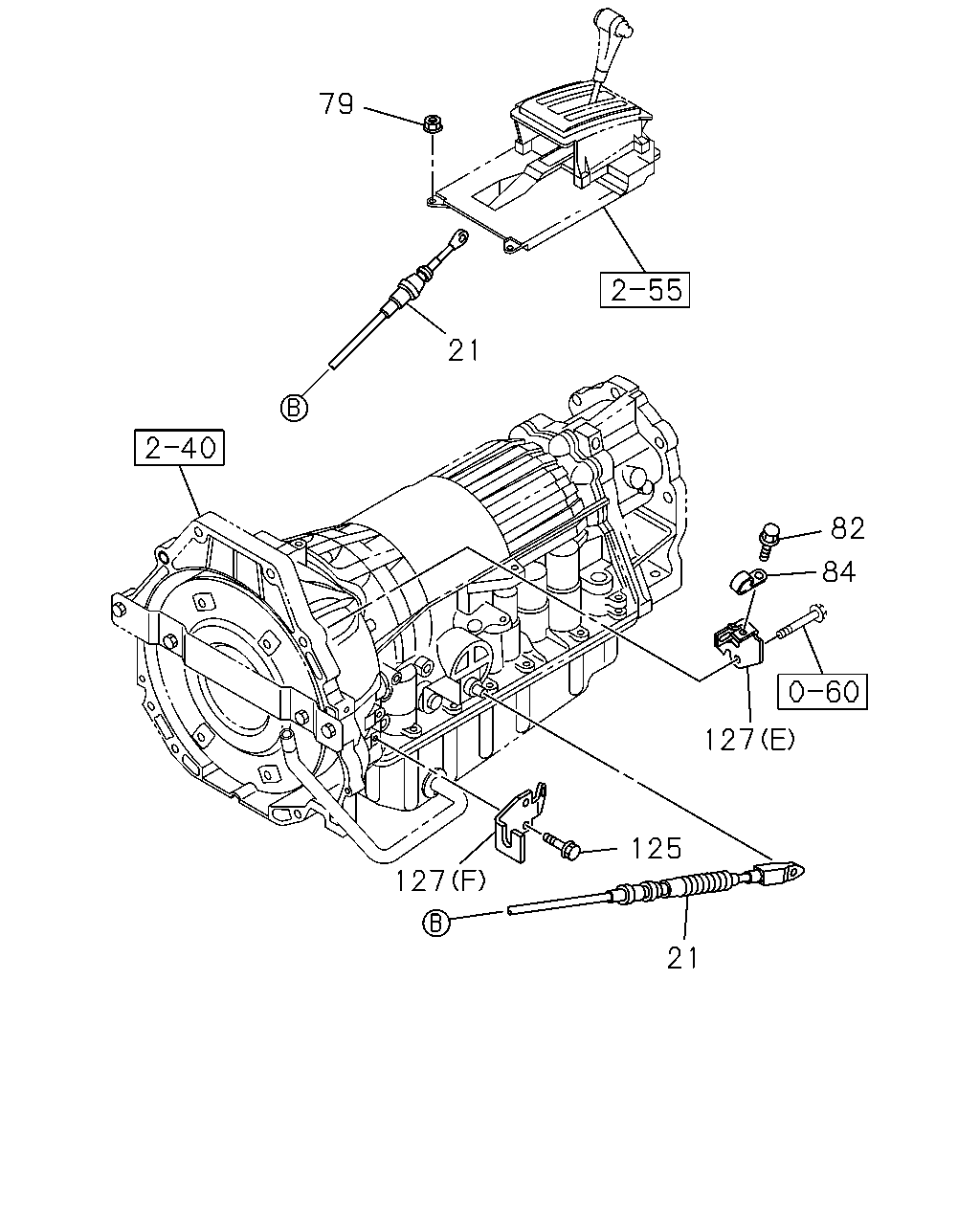

çizim 114673
79 21 127 82 84 125 21 127
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 04.047 CABLE; A/T
6VE1 ENG(LX5) 		8-97307-472-2 01 1 1008- ●
21 04.047 CABLE; A/T 8-97307-472-2 01 1 0306-0609 ●
21 04.047 CABLE; A/T
4JJ1-TCX ENG(LS0) 		8-97388-319-0 01 1 0610- ●
21 04.047 CABLE; A/T
6VE1 ENG(LX5) 		8-97307-472-2 01 1 0710-1003 ●
21 04.047 CABLE; A/T 8-97363-357-0 01 1 0306- ●
79 04.047 NUT; CONT CABLE
07.833 M6 FLANGE 		8-97063-399-0 04 1 0306-0609 ● ●
79 04.047 NUT; CONT CABLE
08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ●
82 04.047 BOLT; A/T CONT CABLE
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0306- ● ●
84 04.047 CLIP; A/T CONT CABLE
ID=11 L=28 		8-97367-952-0 01 1 0306-0609 ● ●
84 04.047 CLIP; A/T CONT CABLE
ID=11 L=28 		0-95235-052-0 01 1 0610- ● ●
125 04.047 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0306- ● ●
127 04.047 BRACKET; A/T CONT CABLE
6VE1 ENG(LX5) (A) 		8-97307-474-1 01 1 1008- ●
127 04.047 BRACKET; A/T CONT CABLE
6VE1 ENG(LX5) (B) 		8-97307-475-0 01 1 1008- ●
127 04.047 BRACKET; A/T CONT CABLE
(A) 		8-97307-474-1 01 1 0306-0609 ●
127 04.047 BRACKET; A/T CONT CABLE
4JJ1-TCX ENG(LS0) (E) 		8-97388-320-1 01 1 0610- ●
127 04.047 BRACKET; A/T CONT CABLE
(B) 		8-97307-475-0 01 1 0306-0609 ●
127 04.047 BRACKET; A/T CONT CABLE
4JJ1-TCX ENG(LS0) (F) 		8-97388-321-1 01 1 0610- ●
127 04.047 BRACKET; A/T CONT CABLE
6VE1 ENG(LX5) (A) 		8-97307-474-1 01 1 0710-1003 ●
127 04.047 BRACKET; A/T CONT CABLE
6VE1 ENG(LX5) (B) 		8-97307-475-0 01 1 0710-1003 ●
127 04.047 BRACKET; A/T CONT CABLE
(C) 		8-97236-021-1 01 1 0306- ●
127 04.047 BRACKET; A/T CONT CABLE
(D) 		8-97301-831-1 01 1 0306- ●
146 04.047 NUT; BRKT
4JJ1-TCX ENG(LS0) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0610-1007 ●

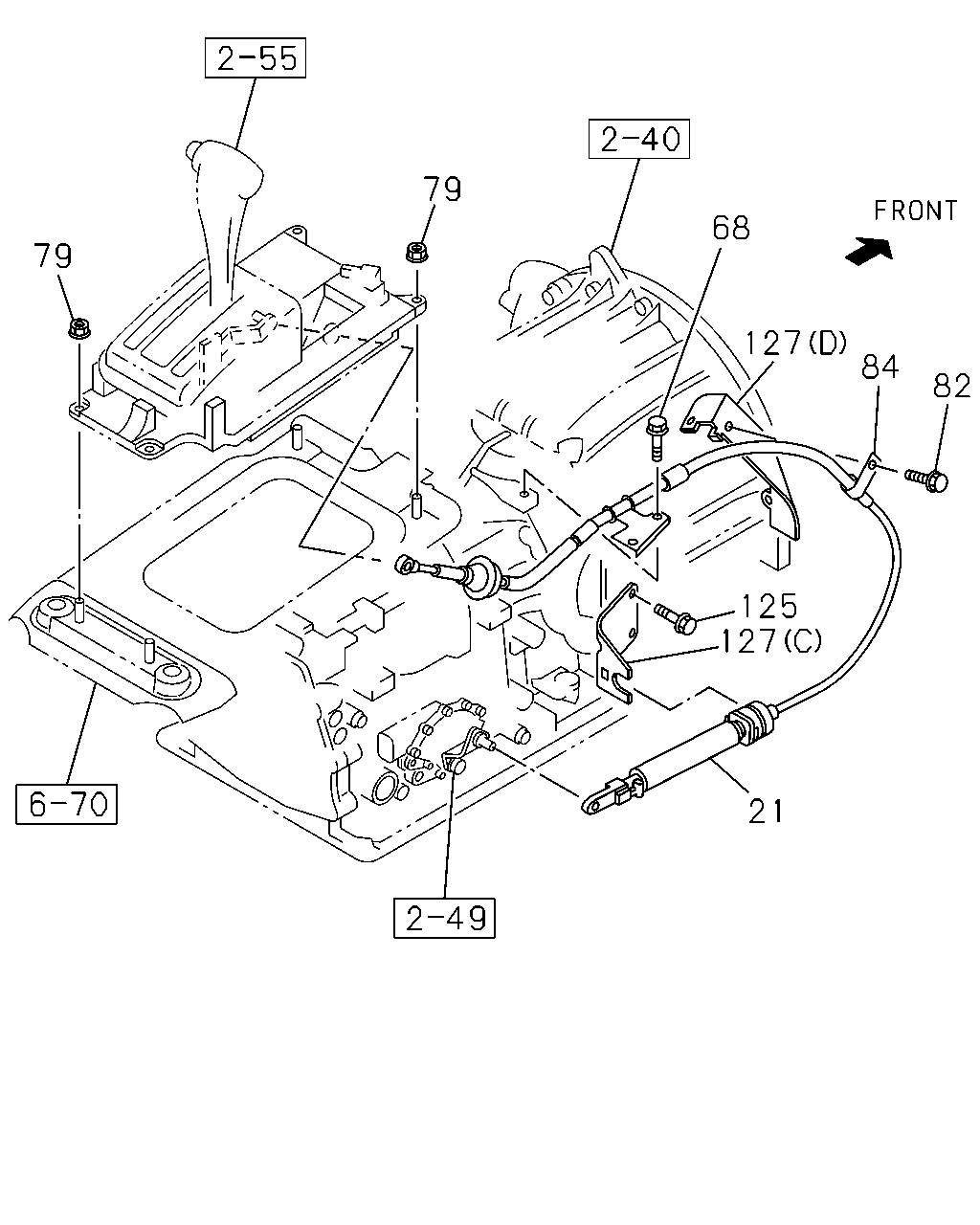

çizim 114708
79 68 79 127 84 82 125 127 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 04.047 CABLE; A/T
6VE1 ENG(LX5) 		8-97307-472-2 01 1 1008- ●
21 04.047 CABLE; A/T 8-97307-472-2 01 1 0306-0609 ●
21 04.047 CABLE; A/T
4JJ1-TCX ENG(LS0) 		8-97388-319-0 01 1 0610- ●
21 04.047 CABLE; A/T
6VE1 ENG(LX5) 		8-97307-472-2 01 1 0710-1003 ●
21 04.047 CABLE; A/T 8-97363-357-0 01 1 0306- ●
68 04.047 BOLT; A/T CONT CABLE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0306- ●
79 04.047 NUT; CONT CABLE
07.833 M6 FLANGE 		8-97063-399-0 04 1 0306-0609 ● ●
79 04.047 NUT; CONT CABLE
08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ●
82 04.047 BOLT; A/T CONT CABLE
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0306- ● ●
84 04.047 CLIP; A/T CONT CABLE
ID=11 L=28 		8-97367-952-0 01 1 0306-0609 ● ●
84 04.047 CLIP; A/T CONT CABLE
ID=11 L=28 		0-95235-052-0 01 1 0610- ● ●
125 04.047 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0306- ● ●
127 04.047 BRACKET; A/T CONT CABLE
6VE1 ENG(LX5) (A) 		8-97307-474-1 01 1 1008- ●
127 04.047 BRACKET; A/T CONT CABLE
6VE1 ENG(LX5) (B) 		8-97307-475-0 01 1 1008- ●
127 04.047 BRACKET; A/T CONT CABLE
(A) 		8-97307-474-1 01 1 0306-0609 ●
127 04.047 BRACKET; A/T CONT CABLE
4JJ1-TCX ENG(LS0) (E) 		8-97388-320-1 01 1 0610- ●
127 04.047 BRACKET; A/T CONT CABLE
(B) 		8-97307-475-0 01 1 0306-0609 ●
127 04.047 BRACKET; A/T CONT CABLE
4JJ1-TCX ENG(LS0) (F) 		8-97388-321-1 01 1 0610- ●
127 04.047 BRACKET; A/T CONT CABLE
6VE1 ENG(LX5) (A) 		8-97307-474-1 01 1 0710-1003 ●
127 04.047 BRACKET; A/T CONT CABLE
6VE1 ENG(LX5) (B) 		8-97307-475-0 01 1 0710-1003 ●
127 04.047 BRACKET; A/T CONT CABLE
(C) 		8-97236-021-1 01 1 0306- ●
127 04.047 BRACKET; A/T CONT CABLE
(D) 		8-97301-831-1 01 1 0306- ●
146 04.047 NUT; BRKT
4JJ1-TCX ENG(LS0) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0610-1007 ●

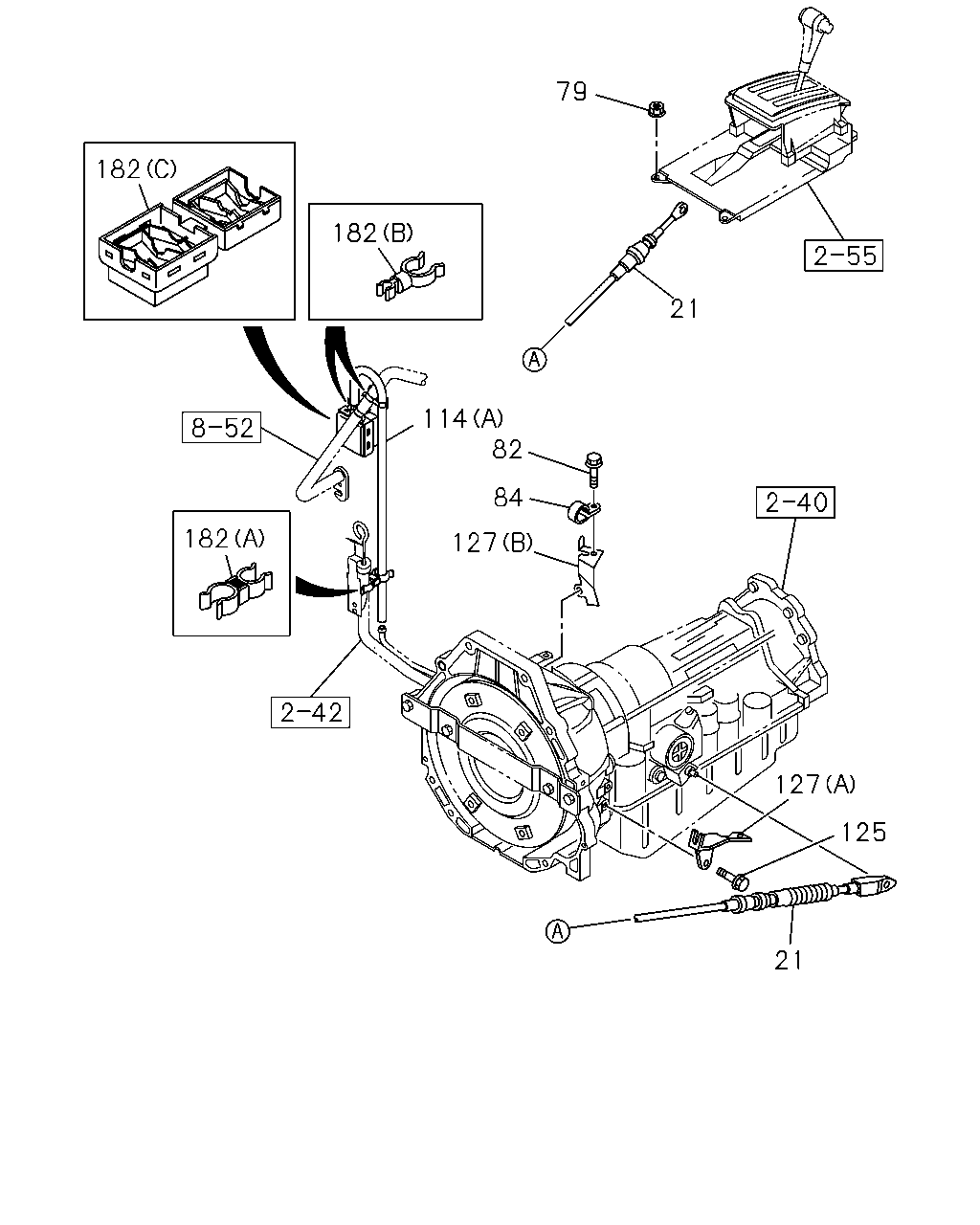

çizim 185176
79 182 182 21 114 82 84 182 127 127 125 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 04.047 CABLE; A/T
6VE1 ENG(LX5) 		8-97307-472-2 01 1 1008- ●
21 04.047 CABLE; A/T 8-97307-472-2 01 1 0306-0609 ●
21 04.047 CABLE; A/T
4JJ1-TCX ENG(LS0) 		8-97388-319-0 01 1 0610- ●
21 04.047 CABLE; A/T
6VE1 ENG(LX5) 		8-97307-472-2 01 1 0710-1003 ●
21 04.047 CABLE; A/T 8-97363-357-0 01 1 0306- ●
79 04.047 NUT; CONT CABLE
07.833 M6 FLANGE 		8-97063-399-0 04 1 0306-0609 ● ●
79 04.047 NUT; CONT CABLE
08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ●
82 04.047 BOLT; A/T CONT CABLE
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0306- ● ●
84 04.047 CLIP; A/T CONT CABLE
ID=11 L=28 		8-97367-952-0 01 1 0306-0609 ● ●
84 04.047 CLIP; A/T CONT CABLE
ID=11 L=28 		0-95235-052-0 01 1 0610- ● ●
114 08.962 HOSE; BREATHER
6VE1 ENG(LX5) 04.104 (A) L=440 SERVICED BY L=3000 		0-02857-300-0 01 1 1008- ●
114 08.962 HOSE; BREATHER
4X4(TFS***) 04.510 (B) 		8-97326-218-0 01 1 0306- ● ● ● ●
114 08.962 HOSE; BREATHER
(A) 		8-97322-934-1 01 1 0306-0308 ●
114 08.962 HOSE; BREATHER
04.104 (A) L=440 SERVICED BY L=3000 		0-02857-300-0 01 1 0309-0609 ●
114 08.962 HOSE; BREATHER
6VE1 ENG(LX5) 04.104 (A) L=440 SERVICED BY L=3000 		0-02857-300-0 01 1 0710-1003 ●
125 04.047 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0306- ● ●
127 04.047 BRACKET; A/T CONT CABLE
6VE1 ENG(LX5) (A) 		8-97307-474-1 01 1 1008- ●
127 04.047 BRACKET; A/T CONT CABLE
6VE1 ENG(LX5) (B) 		8-97307-475-0 01 1 1008- ●
127 04.047 BRACKET; A/T CONT CABLE
(A) 		8-97307-474-1 01 1 0306-0609 ●
127 04.047 BRACKET; A/T CONT CABLE
4JJ1-TCX ENG(LS0) (E) 		8-97388-320-1 01 1 0610- ●
127 04.047 BRACKET; A/T CONT CABLE
(B) 		8-97307-475-0 01 1 0306-0609 ●
127 04.047 BRACKET; A/T CONT CABLE
4JJ1-TCX ENG(LS0) (F) 		8-97388-321-1 01 1 0610- ●
127 04.047 BRACKET; A/T CONT CABLE
6VE1 ENG(LX5) (A) 		8-97307-474-1 01 1 0710-1003 ●
127 04.047 BRACKET; A/T CONT CABLE
6VE1 ENG(LX5) (B) 		8-97307-475-0 01 1 0710-1003 ●
127 04.047 BRACKET; A/T CONT CABLE
(C) 		8-97236-021-1 01 1 0306- ●
127 04.047 BRACKET; A/T CONT CABLE
(D) 		8-97301-831-1 01 1 0306- ●
146 04.047 NUT; BRKT
4JJ1-TCX ENG(LS0) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0610-1007 ●
182 04.104 CLIP; BREATHER HOSE
6VE1 ENG(LX5) 03.162 (A) ID=13.2 & 11.5 		8-97230-081-0 01 1 1008- ●
182 04.104 CLIP; BREATHER HOSE
6VE1 ENG(LX5) (C) 		8-97368-422-0 01 1 1008- ●
182 04.104 CLIP; BREATHER HOSE
03.162 (A) ID=13.2 & 11.5 		8-97230-081-0 01 1 0306-0609 ●
182 04.104 CLIP; BREATHER HOSE
(B) ID=11.8 & ID=18.6 		8-97333-094-0 02 1 0306-0308 ●
182 04.104 CLIP; BREATHER HOSE
(C) 		8-97368-422-0 01 1 0309-0609 ●
182 04.104 CLIP; BREATHER HOSE
6VE1 ENG(LX5) 03.162 (A) ID=13.2 & 11.5 		8-97230-081-0 01 1 0710-1003 ●
182 04.104 CLIP; BREATHER HOSE
6VE1 ENG(LX5) (C) 		8-97368-422-0 01 1 0710-1003 ●

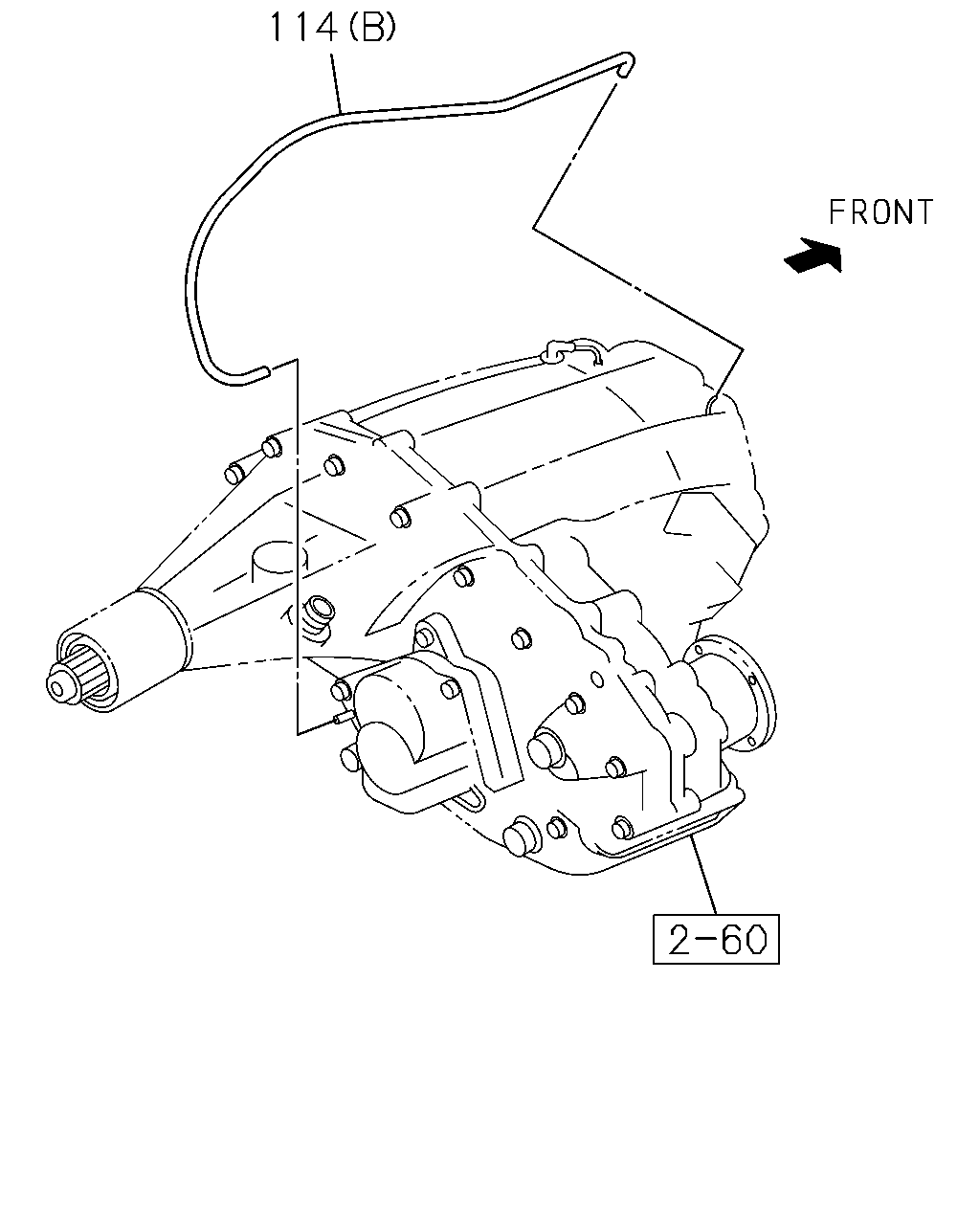

çizim 185355
114
BalonParca AdiParca NoAdetTipApplied Date A B C D
114 08.962 HOSE; BREATHER
6VE1 ENG(LX5) 04.104 (A) L=440 SERVICED BY L=3000 		0-02857-300-0 01 1 1008- ●
114 08.962 HOSE; BREATHER
4X4(TFS***) 04.510 (B) 		8-97326-218-0 01 1 0306- ● ● ● ●
114 08.962 HOSE; BREATHER
(A) 		8-97322-934-1 01 1 0306-0308 ●
114 08.962 HOSE; BREATHER
04.104 (A) L=440 SERVICED BY L=3000 		0-02857-300-0 01 1 0309-0609 ●
114 08.962 HOSE; BREATHER
6VE1 ENG(LX5) 04.104 (A) L=440 SERVICED BY L=3000 		0-02857-300-0 01 1 0710-1003 ●
146 04.047 NUT; BRKT
4JJ1-TCX ENG(LS0) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0610-1007 ●
