◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-55 - AUTO TRANS SHIFT CONTROL LEVER ▶

2-55 — AUTO TRANS SHIFT CONTROL LEVER (#73964) — 135 parça

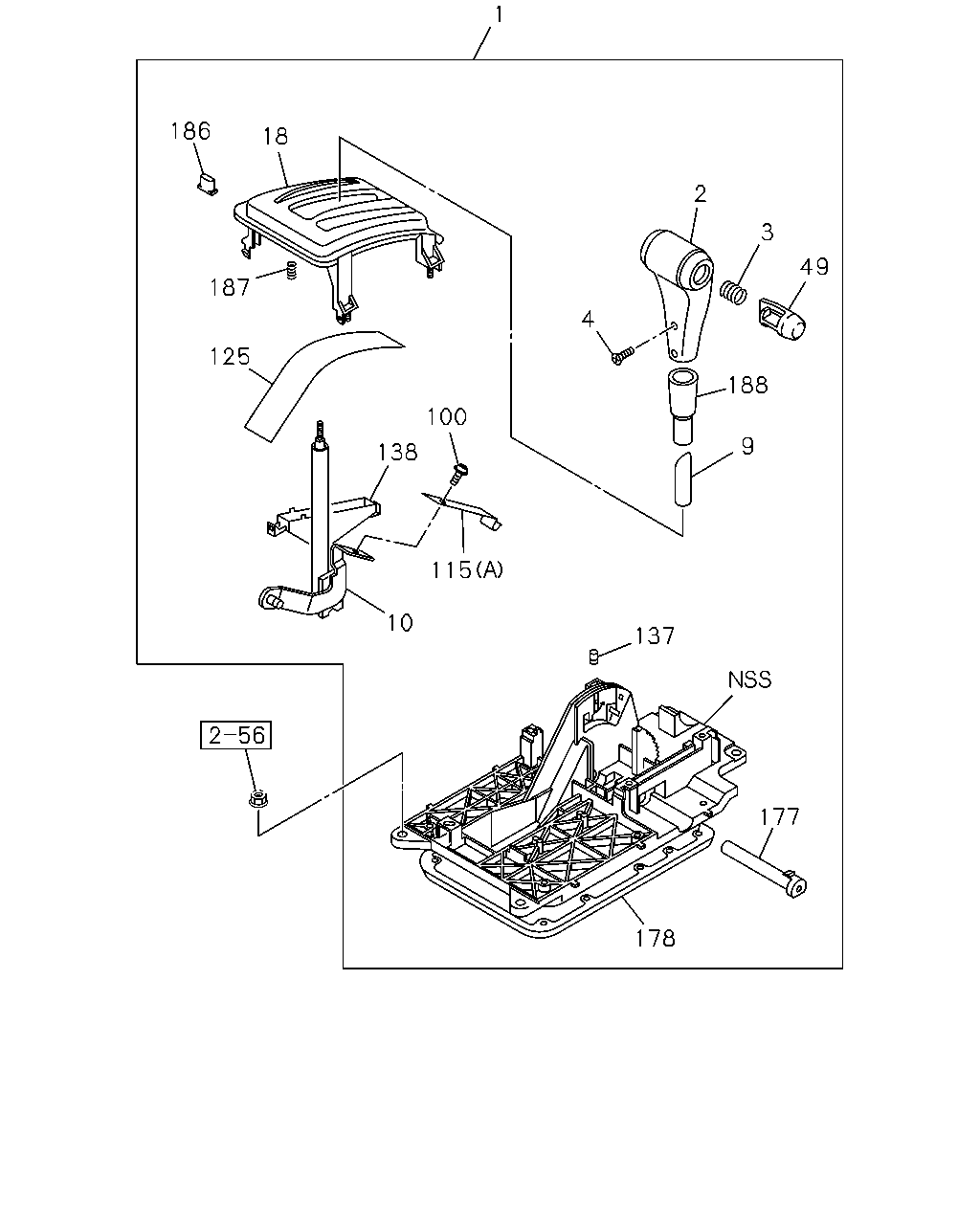

1 2 3 49 188 9 4 100 138 115 10 137 177 178 125 187 186 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97391-004-1	01	1	0306-0511	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-465-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-656-1	01	1	0610-1003	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7>	8-97418-606-0	01	1	1004-1007	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> EXC. CHEVROLET EQUIPMENT(8JF)	8-97418-606-0	01	1	1008-	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97391-001-1	01	1	0306-0511	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-464-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-642-0	01	1	0610-1003	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7>	8-97418-605-0	01	1	1004-1007	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7>, CHEVROLET EQUIPMENT(8JF)	8-97418-605-0	01	1	1008-	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97391-005-1	01	1	0306-0511		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-467-0	01	1	0512-0609		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-672-1	01	1	0610-1003		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97418-507-0	01	1	1004-1007		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> EXC. CHEVROLET EQUIPMENT(8JF) LIGHT GRAY	8-97418-507-0	01	1	1008-		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97391-002-1	01	1	0306-0511		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-466-0	01	1	0512-0609		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-643-0	01	1	0610-1003		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97418-607-0	01	1	1004-1007		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7>, CHEVROLET EQUIPMENT(8JF) LIGHT GRAY	8-97418-607-0	01	1	1008-		●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97394-407-0	01	1	0306-0609	●	●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97408-716-0	01	1	0610-1007	●	●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY	8-97408-716-0	01	1	1008-	●	●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97394-406-0	01	1	0306-0609	●	●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7>, CHEVROLET EQUIPMENT(8JF) DARK GRAY	8-97422-099-0	01	1	1008-	●	●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97422-099-0	01	1	0610-1007	●	●
3	04.008 SPRING; RETURN,KNOB	8-97332-979-0	01	1	0306-1007	●	●
3	04.008 SPRING; RETURN,KNOB EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-979-0	01	1	1008-	●	●
4	04.006 SCREW; KNOB TO LEVER	8-97332-950-0	02	1	0306-1007	●	●
4	04.006 SCREW; KNOB TO LEVER EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-950-0	02	1	1008-	●	●
9	04.006 SLEEVE; KNOB,SHIFT LEVER	8-97332-980-0	01	1	0306-1007	●	●
9	04.006 SLEEVE; KNOB,SHIFT LEVER EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-980-0	01	1	1008-	●	●
10	04.006 LEVER; A/T CONT	8-97332-987-0	01	1	0306-0609	●	●
10	04.006 LEVER; A/T CONT	8-98032-565-0	01	1	0610-1007	●	●
10	04.006 LEVER; A/T CONT EXC. CHEVROLET EQUIPMENT(8JF)	8-98032-565-0	01	1	1008-	●	●
18	04.020 COVER; INDICATOR,UPR DARK GRAY	8-97394-404-0	01	1	0306-0609	●	●
18	04.020 COVER; INDICATOR,UPR LIGHT GRAY	8-97407-871-0	01	1	0610-1007	●	●
18	04.020 COVER; INDICATOR,UPR EXC. CHEVROLET EQUIPMENT(8JF) LIGHT GRAY	8-97407-871-0	01	1	1008-	●	●
49	04.006 BUTTON; PUSH,KNOB DARK GRAY	8-97394-405-0	01	1	0306-0609	●	●
49	04.006 BUTTON; PUSH,KNOB SHIFT KNOB LEATHER<VY7>	8-98032-542-0	01	1	0610-1007	●	●
49	04.006 BUTTON; PUSH,KNOB SHIFT KNOB LEATHER<VY7> EXC. CHEVROLET EQUIPMENT(8JF)	8-98032-542-0	01	1	1008-	●	●
49	04.006 BUTTON; PUSH,KNOB EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97418-669-0	01	1	0610-1007	●	●
49	04.006 BUTTON; PUSH,KNOB EXC. SHIFT KNOB LEATHER<VY7>, CHEVROLET EQUIPMENT(8JF) DARK GRAY	8-97418-669-0	01	1	1008-	●	●
100	04.012 SCREW	8-97332-953-0	01	1	0306-1007	●	●
100	04.012 SCREW EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-953-0	01	1	1008-	●	●
115	04.008 PLATE; SPR,LEVER (A)	8-97332-936-0	01	1	0306-1007	●	●
115	04.008 PLATE; SPR,LEVER EXC. CHEVROLET EQUIPMENT(8JF) (A)	8-97332-936-0	01	1	1008-	●	●
115	04.008 PLATE; SPR,LEVER (B)	8-97332-939-0	01	1	0306-0609		●
125	04.020 COVER; SHIFT LEVER	8-97332-934-0	01	1	0306-0609	●	●
125	04.020 COVER; SHIFT LEVER EXC. SHIFT KNOB LEATHER<VY7>	8-97332-934-0	01	1	0610-1007	●	●
125	04.020 COVER; SHIFT LEVER EXC. SHIFT KNOB LEATHER<VY7>, CHEVROLET EQUIPMENT(8JF)	8-97332-934-0	01	1	1008-	●	●
125	04.020 COVER; SHIFT LEVER SHIFT KNOB LEATHER<VY7>	8-98052-035-0	01	1	0610-1007	●	●
125	04.020 COVER; SHIFT LEVER SHIFT KNOB LEATHER<VY7> EXC. CHEVROLET EQUIPMENT(8JF)	8-98052-035-0	01	1	1008-	●	●
137	04.010 CUSHION	8-97332-938-0	03	1	0306-1007	●	●
137	04.010 CUSHION EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-938-0	03	1	1008-	●	●
138	04.030 BOX; LAMP	8-97332-976-0	01	1	0306-0609	●	●
138	04.030 BOX; LAMP	8-98032-537-0	01	1	0610-1007	●	●
138	04.030 BOX; LAMP EXC. CHEVROLET EQUIPMENT(8JF)	8-98032-537-0	01	1	1008-	●	●
177	04.040 SHAFT; SHIFT LEVER,A/T	8-97332-952-0	01	1	0306-1007	●	●
177	04.040 SHAFT; SHIFT LEVER,A/T EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-952-0	01	1	1008-	●	●
178	04.008 SHEET; SHIFT LEVER	8-97332-935-0	01	1	0306-1007	●	●
178	04.008 SHEET; SHIFT LEVER EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-935-0	01	1	1008-	●	●
186	04.006 BUTTON; SHIFT LOCK DARK GRAY	8-97407-872-0	01	1	0610-1007	●	●
186	04.006 BUTTON; SHIFT LOCK EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY	8-97407-872-0	01	1	1008-	●	●
187	04.008 SPRING; RETURN,SHIFT	8-98032-566-0	01	1	0610-1007	●	●
187	04.008 SPRING; RETURN,SHIFT EXC. CHEVROLET EQUIPMENT(8JF)	8-98032-566-0	01	1	1008-	●	●
188	04.008 COVER; KNOB SHIFT KNOB LEATHER<VY7>	8-98032-557-0	01	1	0610-1007	●	●
188	04.008 COVER; KNOB SHIFT KNOB LEATHER<VY7> EXC. CHEVROLET EQUIPMENT(8JF)	8-98032-557-0	01	1	1008-	●	●

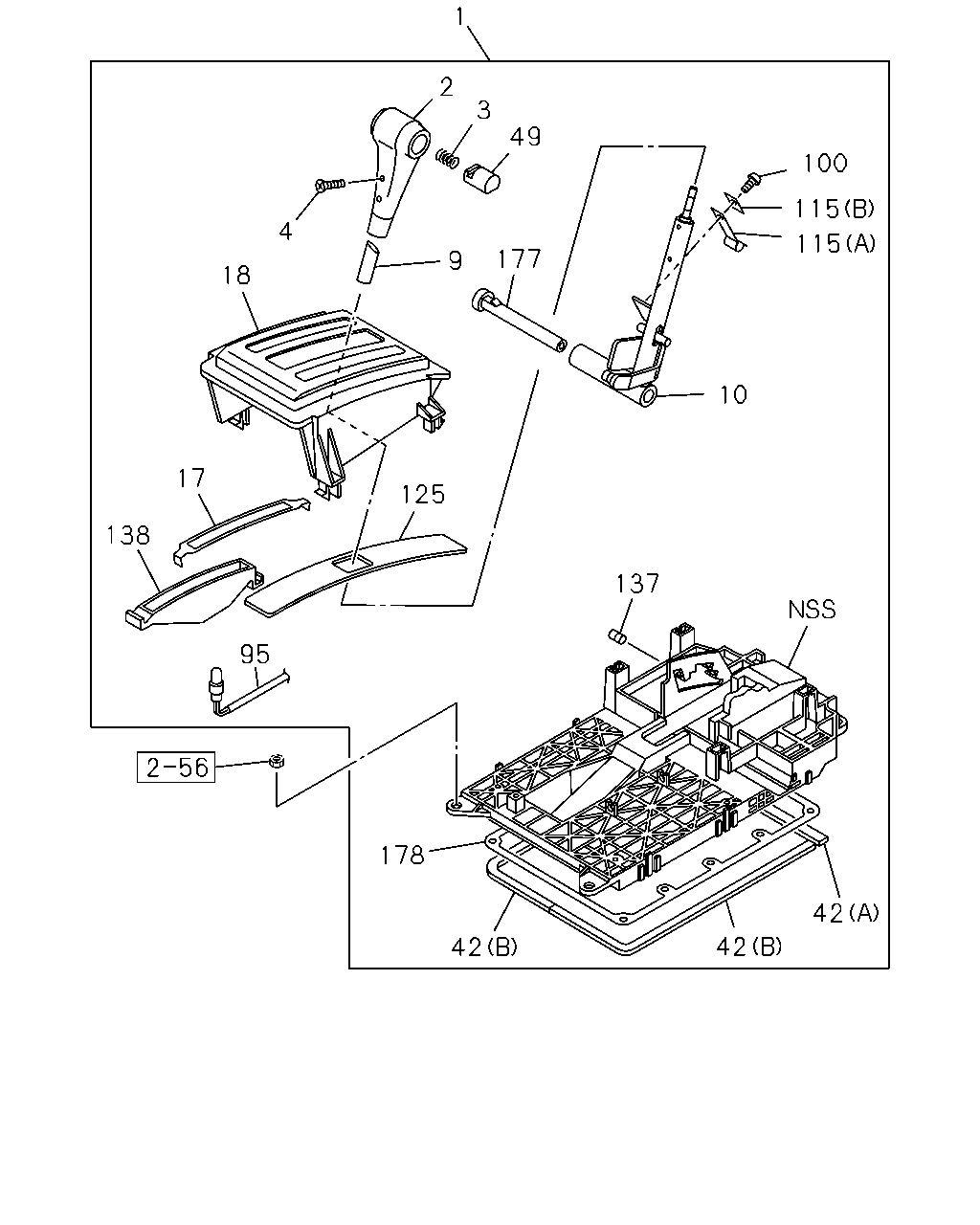

1 2 3 49 177 9 4 18 17 138 95 125 137 178 42 42 42 10 115 115 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97391-004-1	01	1	0306-0511	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-465-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-656-1	01	1	0610-1003	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7>	8-97418-606-0	01	1	1004-1007	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> EXC. CHEVROLET EQUIPMENT(8JF)	8-97418-606-0	01	1	1008-	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97391-001-1	01	1	0306-0511	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-464-0	01	1	0512-0609	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-642-0	01	1	0610-1003	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7>	8-97418-605-0	01	1	1004-1007	●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7>, CHEVROLET EQUIPMENT(8JF)	8-97418-605-0	01	1	1008-	●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97391-005-1	01	1	0306-0511		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-467-0	01	1	0512-0609		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-672-1	01	1	0610-1003		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97418-507-0	01	1	1004-1007		●
1	04.006 LEVER; SHIFT,A/T SHIFT KNOB LEATHER<VY7> EXC. CHEVROLET EQUIPMENT(8JF) LIGHT GRAY	8-97418-507-0	01	1	1008-		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97391-002-1	01	1	0306-0511		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97404-466-0	01	1	0512-0609		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97403-643-0	01	1	0610-1003		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY	8-97418-607-0	01	1	1004-1007		●
1	04.006 LEVER; SHIFT,A/T EXC. SHIFT KNOB LEATHER<VY7>, CHEVROLET EQUIPMENT(8JF) LIGHT GRAY	8-97418-607-0	01	1	1008-		●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97394-407-0	01	1	0306-0609	●	●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97408-716-0	01	1	0610-1007	●	●
2	04.006 KNOB ASM; AUTO CONT LEVER SHIFT KNOB LEATHER<VY7> EXC. CHEVROLET EQUIPMENT(8JF) DARK GRAY	8-97408-716-0	01	1	1008-	●	●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97394-406-0	01	1	0306-0609	●	●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7>, CHEVROLET EQUIPMENT(8JF) DARK GRAY	8-97422-099-0	01	1	1008-	●	●
2	04.006 KNOB ASM; AUTO CONT LEVER EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97422-099-0	01	1	0610-1007	●	●
3	04.008 SPRING; RETURN,KNOB	8-97332-979-0	01	1	0306-1007	●	●
3	04.008 SPRING; RETURN,KNOB EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-979-0	01	1	1008-	●	●
4	04.006 SCREW; KNOB TO LEVER	8-97332-950-0	02	1	0306-1007	●	●
4	04.006 SCREW; KNOB TO LEVER EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-950-0	02	1	1008-	●	●
9	04.006 SLEEVE; KNOB,SHIFT LEVER	8-97332-980-0	01	1	0306-1007	●	●
9	04.006 SLEEVE; KNOB,SHIFT LEVER EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-980-0	01	1	1008-	●	●
10	04.006 LEVER; A/T CONT	8-97332-987-0	01	1	0306-0609	●	●
10	04.006 LEVER; A/T CONT	8-98032-565-0	01	1	0610-1007	●	●
10	04.006 LEVER; A/T CONT EXC. CHEVROLET EQUIPMENT(8JF)	8-98032-565-0	01	1	1008-	●	●
17	04.020 PLATE; INDICATOR	8-97332-933-0	01	1	0306-0609	●	●
18	04.020 COVER; INDICATOR,UPR DARK GRAY	8-97394-404-0	01	1	0306-0609	●	●
18	04.020 COVER; INDICATOR,UPR LIGHT GRAY	8-97407-871-0	01	1	0610-1007	●	●
18	04.020 COVER; INDICATOR,UPR EXC. CHEVROLET EQUIPMENT(8JF) LIGHT GRAY	8-97407-871-0	01	1	1008-	●	●
42	04.057 SEAL; RUBBER (A)	8-97332-954-0	01	1	0306-0511	●	●
42	04.057 SEAL; RUBBER (B)	8-97332-955-0	02	1	0306-0511	●	●
49	04.006 BUTTON; PUSH,KNOB DARK GRAY	8-97394-405-0	01	1	0306-0609	●	●
49	04.006 BUTTON; PUSH,KNOB SHIFT KNOB LEATHER<VY7>	8-98032-542-0	01	1	0610-1007	●	●
49	04.006 BUTTON; PUSH,KNOB SHIFT KNOB LEATHER<VY7> EXC. CHEVROLET EQUIPMENT(8JF)	8-98032-542-0	01	1	1008-	●	●
49	04.006 BUTTON; PUSH,KNOB EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY	8-97418-669-0	01	1	0610-1007	●	●
49	04.006 BUTTON; PUSH,KNOB EXC. SHIFT KNOB LEATHER<VY7>, CHEVROLET EQUIPMENT(8JF) DARK GRAY	8-97418-669-0	01	1	1008-	●	●
95	04.006 LAMP; INDICATOR	8-97355-622-0	01	1	0306-0609	●
95	04.006 LAMP; INDICATOR	8-97332-981-0	01	1	0306-0609		●
100	04.012 SCREW	8-97332-953-0	01	1	0306-1007	●	●
100	04.012 SCREW EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-953-0	01	1	1008-	●	●
115	04.008 PLATE; SPR,LEVER (A)	8-97332-936-0	01	1	0306-1007	●	●
115	04.008 PLATE; SPR,LEVER EXC. CHEVROLET EQUIPMENT(8JF) (A)	8-97332-936-0	01	1	1008-	●	●
115	04.008 PLATE; SPR,LEVER (B)	8-97332-939-0	01	1	0306-0609		●
125	04.020 COVER; SHIFT LEVER	8-97332-934-0	01	1	0306-0609	●	●
125	04.020 COVER; SHIFT LEVER EXC. SHIFT KNOB LEATHER<VY7>	8-97332-934-0	01	1	0610-1007	●	●
125	04.020 COVER; SHIFT LEVER EXC. SHIFT KNOB LEATHER<VY7>, CHEVROLET EQUIPMENT(8JF)	8-97332-934-0	01	1	1008-	●	●
125	04.020 COVER; SHIFT LEVER SHIFT KNOB LEATHER<VY7>	8-98052-035-0	01	1	0610-1007	●	●
125	04.020 COVER; SHIFT LEVER SHIFT KNOB LEATHER<VY7> EXC. CHEVROLET EQUIPMENT(8JF)	8-98052-035-0	01	1	1008-	●	●
137	04.010 CUSHION	8-97332-938-0	03	1	0306-1007	●	●
137	04.010 CUSHION EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-938-0	03	1	1008-	●	●
138	04.030 BOX; LAMP	8-97332-976-0	01	1	0306-0609	●	●
138	04.030 BOX; LAMP	8-98032-537-0	01	1	0610-1007	●	●
138	04.030 BOX; LAMP EXC. CHEVROLET EQUIPMENT(8JF)	8-98032-537-0	01	1	1008-	●	●
177	04.040 SHAFT; SHIFT LEVER,A/T	8-97332-952-0	01	1	0306-1007	●	●
177	04.040 SHAFT; SHIFT LEVER,A/T EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-952-0	01	1	1008-	●	●
178	04.008 SHEET; SHIFT LEVER	8-97332-935-0	01	1	0306-1007	●	●
178	04.008 SHEET; SHIFT LEVER EXC. CHEVROLET EQUIPMENT(8JF)	8-97332-935-0	01	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
