2-53 — TRANSMISSION OIL COOLER SYSTEM (#73963) — 172 parça

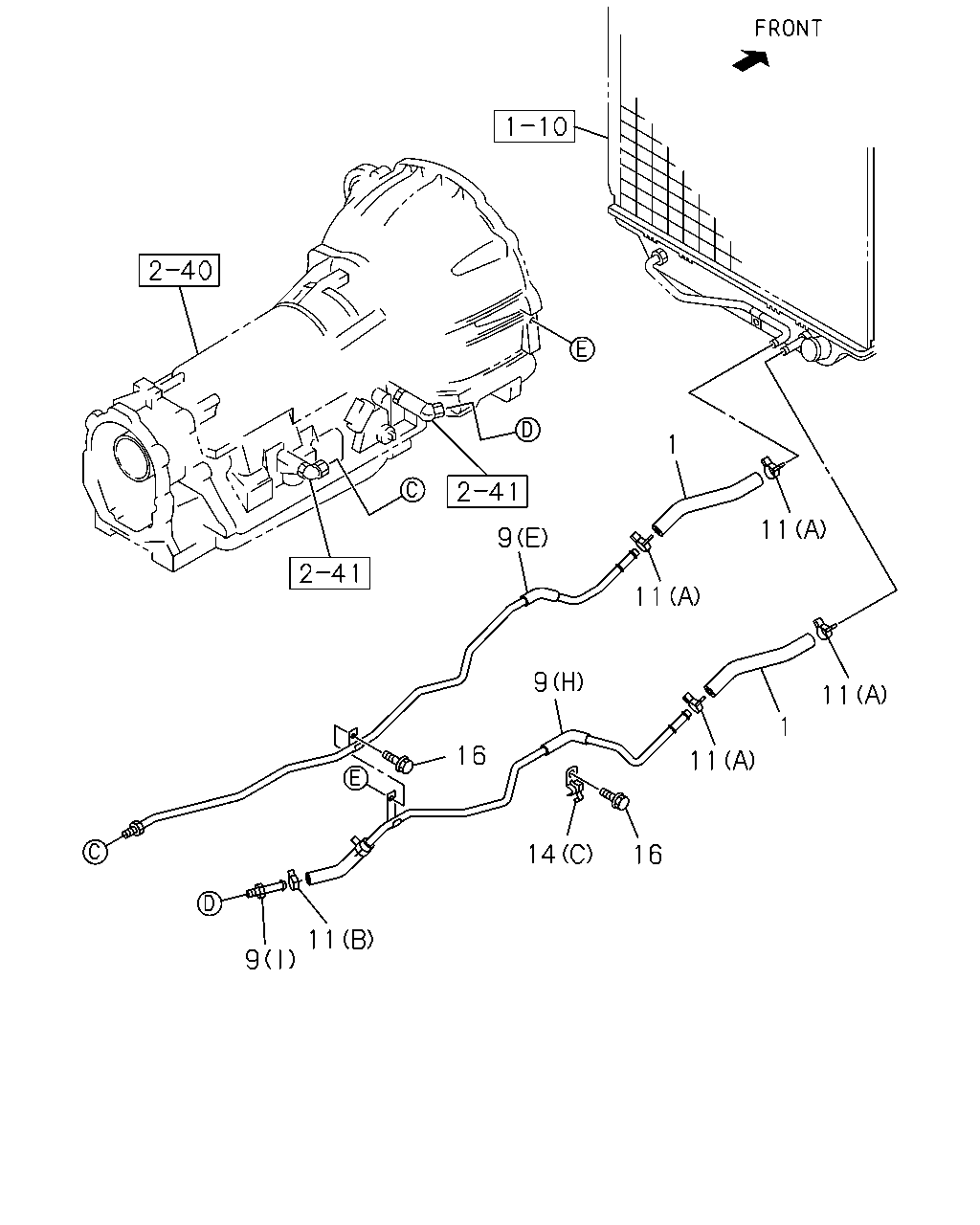

1 11 9 11 9 11 1 16 11 14 16 11 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0306-	●	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (A)	8-97941-535-2	01	1	1008-	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (B)	8-97941-536-2	01	1	1008-	●
9	04.128 PIPE; ATF,INL,A/T (A)	8-97941-535-2	01	1	0306-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (E)	8-98048-111-0	01	1	0610-0707	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (E)	8-98085-689-0	01	1	0708-	●
9	04.128 PIPE; ATF,INL,A/T (B)	8-97941-536-2	01	1	0306-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (I)	8-98036-273-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98061-107-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (A)	8-97941-535-2	01	1	0710-1003	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (B)	8-97941-536-2	01	1	0710-1003	●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97941-850-0	01	1	0306-0306		●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97368-297-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (C)	8-97368-297-0	01	1	0610-0710		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (C)	8-97946-405-0	01	1	0711-		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97941-851-2	01	1	0306-0306		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97368-298-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (D)	8-97368-298-0	01	1	0610-0710		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (D)	8-97946-406-0	01	1	0711-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (G)	8-97363-584-1	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (G)	8-97946-403-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (F)	8-97363-585-2	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (F)	8-97946-404-0	01	1	0801-		●
11	04.128 CLIP; PIPE 4JJ1-TCX ENG(LS0) 01.762 (B) ID=16	8-98030-682-0	01	1	0610-	●
11	04.128 CLIP; PIPE 00.034 (A) ID=13.5	8-97015-754-1	04	1	0306-0609	●	●
11	04.128 CLIP; PIPE (A)	8-98008-165-0	04	1	0610-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE 6VE1 ENG(LX5) (A)	8-97062-040-0	03	1	1008-	●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	03	1	0306-0609	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG(LS0) (C)	8-98008-163-0	01	1	0610-	●
14	04.128 CLIP; PIPE TO ENG SIDE 6VE1 ENG(LX5) (A)	8-97062-040-0	03	1	0710-1003	●
14	04.128 CLIP; PIPE TO ENG SIDE (B)	8-94334-345-1	01	1	0306-0609		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-TC ENG(RDM) (B)	8-94334-345-1	01	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	02	1	0306-0609		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-TC ENG(RDM) (A)	8-97062-040-0	02	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG(LFB) (C)	8-98008-163-0	03	1	0610-		●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0306-0609	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-0709	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-1003	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1004-1007	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1008-	●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0306-		●

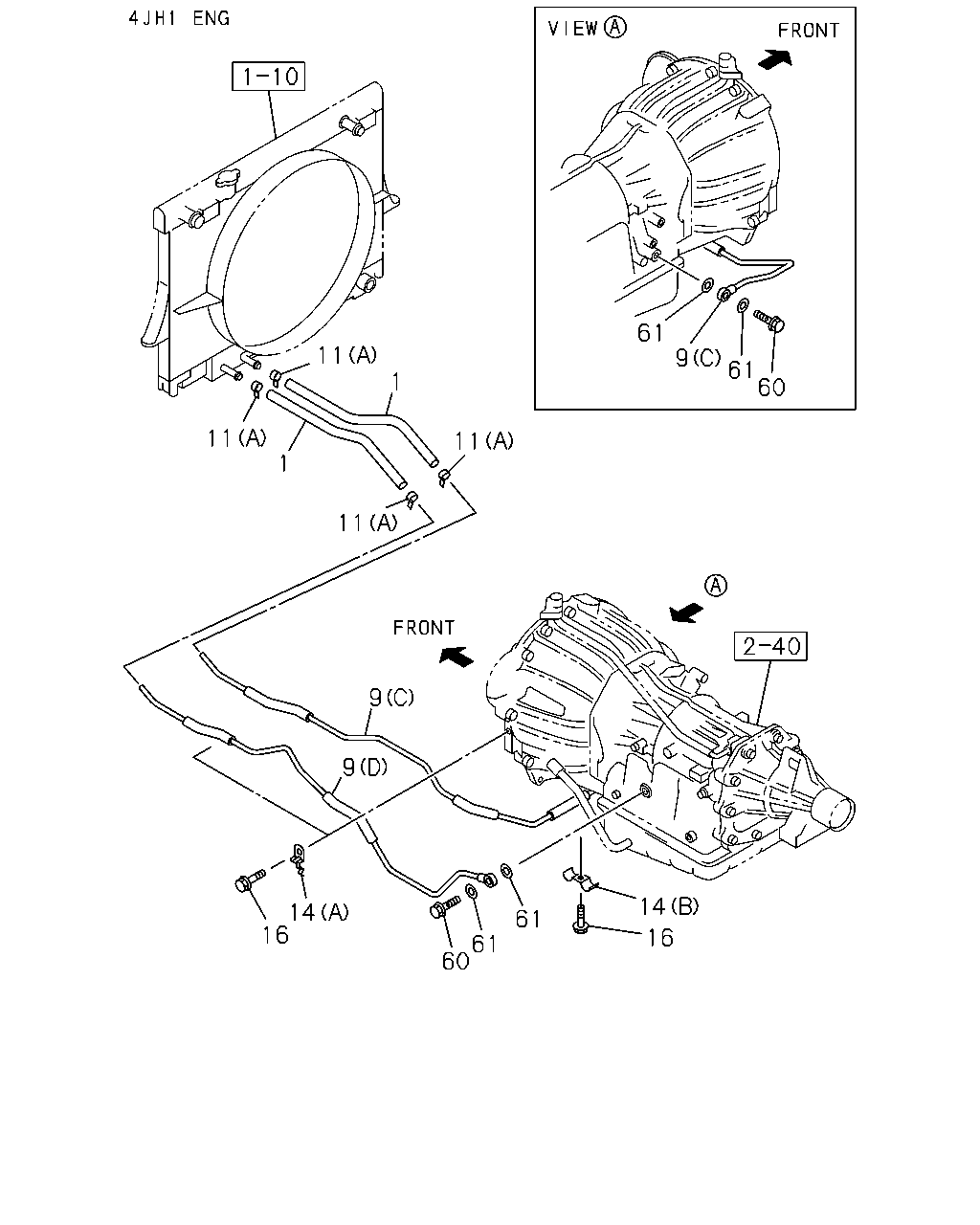

61 11 9 61 60 1 11 11 1 11 9 9 14 14 16 61 16 61 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0306-	●	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (A)	8-97941-535-2	01	1	1008-	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (B)	8-97941-536-2	01	1	1008-	●
9	04.128 PIPE; ATF,INL,A/T (A)	8-97941-535-2	01	1	0306-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (E)	8-98048-111-0	01	1	0610-0707	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (E)	8-98085-689-0	01	1	0708-	●
9	04.128 PIPE; ATF,INL,A/T (B)	8-97941-536-2	01	1	0306-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (I)	8-98036-273-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98061-107-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (A)	8-97941-535-2	01	1	0710-1003	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (B)	8-97941-536-2	01	1	0710-1003	●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97941-850-0	01	1	0306-0306		●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97368-297-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (C)	8-97368-297-0	01	1	0610-0710		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (C)	8-97946-405-0	01	1	0711-		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97941-851-2	01	1	0306-0306		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97368-298-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (D)	8-97368-298-0	01	1	0610-0710		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (D)	8-97946-406-0	01	1	0711-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (G)	8-97363-584-1	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (G)	8-97946-403-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (F)	8-97363-585-2	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (F)	8-97946-404-0	01	1	0801-		●
11	04.128 CLIP; PIPE 4JJ1-TCX ENG(LS0) 01.762 (B) ID=16	8-98030-682-0	01	1	0610-	●
11	04.128 CLIP; PIPE 00.034 (A) ID=13.5	8-97015-754-1	04	1	0306-0609	●	●
11	04.128 CLIP; PIPE (A)	8-98008-165-0	04	1	0610-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE 6VE1 ENG(LX5) (A)	8-97062-040-0	03	1	1008-	●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	03	1	0306-0609	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG(LS0) (C)	8-98008-163-0	01	1	0610-	●
14	04.128 CLIP; PIPE TO ENG SIDE 6VE1 ENG(LX5) (A)	8-97062-040-0	03	1	0710-1003	●
14	04.128 CLIP; PIPE TO ENG SIDE (B)	8-94334-345-1	01	1	0306-0609		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-TC ENG(RDM) (B)	8-94334-345-1	01	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	02	1	0306-0609		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-TC ENG(RDM) (A)	8-97062-040-0	02	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG(LFB) (C)	8-98008-163-0	03	1	0610-		●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0306-0609	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-0709	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-1003	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1004-1007	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1008-	●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0306-		●
60	04.128 BOLT; EYE,ATF PIPE	1-09675-033-0	02	1	0306-		●
61	04.128 GASKET; EYE BOLT,ATF PIPE 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0306-		●

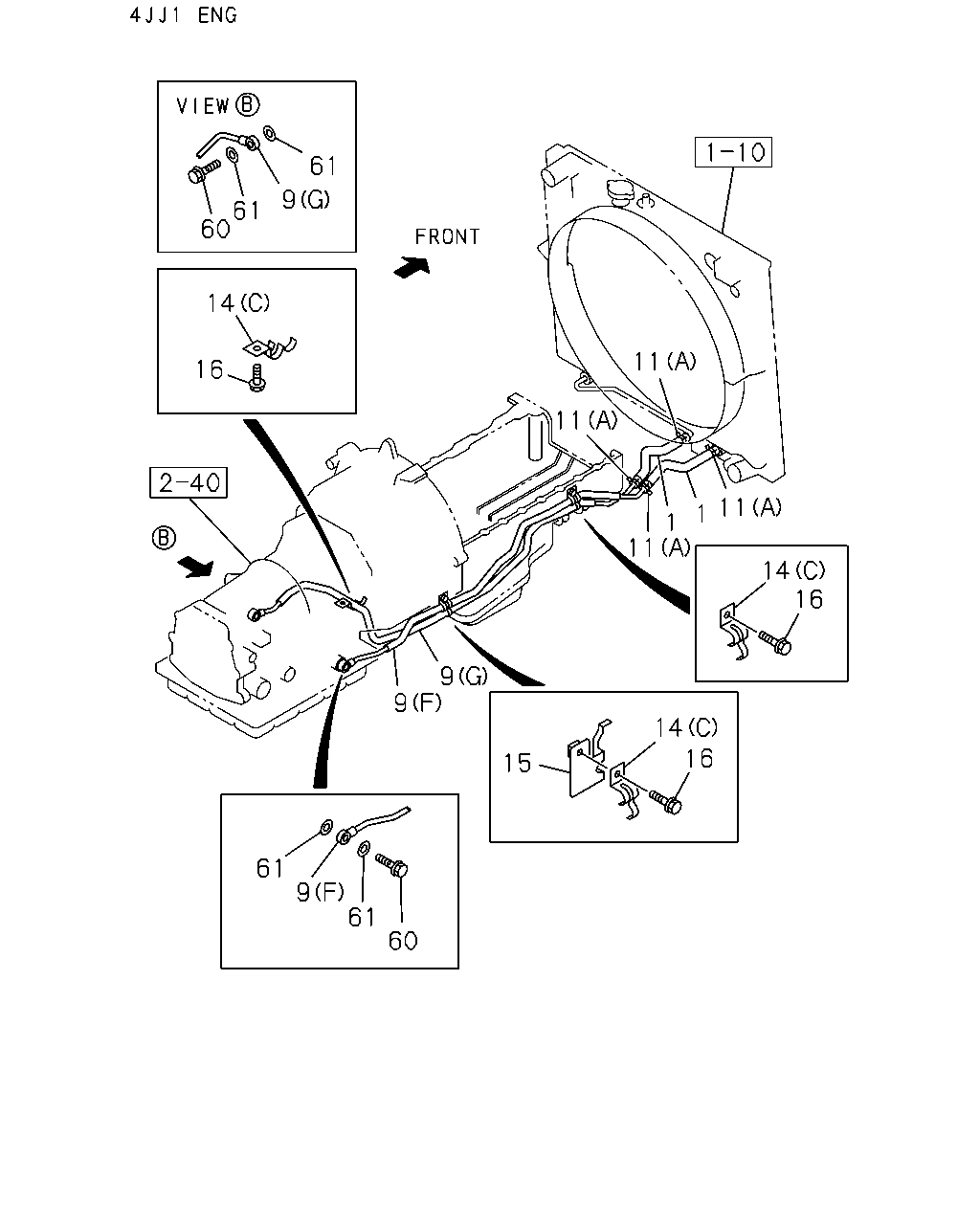

61 9 61 60 14 11 16 11 11 1 1 11 14 16 9 9 14 16 15 61 9 61 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0306-	●	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (A)	8-97941-535-2	01	1	1008-	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (B)	8-97941-536-2	01	1	1008-	●
9	04.128 PIPE; ATF,INL,A/T (A)	8-97941-535-2	01	1	0306-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (E)	8-98048-111-0	01	1	0610-0707	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (E)	8-98085-689-0	01	1	0708-	●
9	04.128 PIPE; ATF,INL,A/T (B)	8-97941-536-2	01	1	0306-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (I)	8-98036-273-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98061-107-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (A)	8-97941-535-2	01	1	0710-1003	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (B)	8-97941-536-2	01	1	0710-1003	●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97941-850-0	01	1	0306-0306		●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97368-297-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (C)	8-97368-297-0	01	1	0610-0710		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (C)	8-97946-405-0	01	1	0711-		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97941-851-2	01	1	0306-0306		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97368-298-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (D)	8-97368-298-0	01	1	0610-0710		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (D)	8-97946-406-0	01	1	0711-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (G)	8-97363-584-1	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (G)	8-97946-403-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (F)	8-97363-585-2	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (F)	8-97946-404-0	01	1	0801-		●
11	04.128 CLIP; PIPE 4JJ1-TCX ENG(LS0) 01.762 (B) ID=16	8-98030-682-0	01	1	0610-	●
11	04.128 CLIP; PIPE 00.034 (A) ID=13.5	8-97015-754-1	04	1	0306-0609	●	●
11	04.128 CLIP; PIPE (A)	8-98008-165-0	04	1	0610-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE 6VE1 ENG(LX5) (A)	8-97062-040-0	03	1	1008-	●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	03	1	0306-0609	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG(LS0) (C)	8-98008-163-0	01	1	0610-	●
14	04.128 CLIP; PIPE TO ENG SIDE 6VE1 ENG(LX5) (A)	8-97062-040-0	03	1	0710-1003	●
14	04.128 CLIP; PIPE TO ENG SIDE (B)	8-94334-345-1	01	1	0306-0609		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-TC ENG(RDM) (B)	8-94334-345-1	01	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	02	1	0306-0609		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-TC ENG(RDM) (A)	8-97062-040-0	02	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG(LFB) (C)	8-98008-163-0	03	1	0610-		●
15	04.128 BRACKET; ATF PIPE 4JJ1-TCS ENG(LFB)	8-98050-694-0	01	1	0610-		●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0306-0609	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-0709	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-1003	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1004-1007	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1008-	●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0306-		●
60	04.128 BOLT; EYE,ATF PIPE	1-09675-033-0	02	1	0306-		●
61	04.128 GASKET; EYE BOLT,ATF PIPE 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0306-		●

11 1 9 11 11 1 9 11 14 14 16 14 16 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF L=250 SERVICED BY L=3000	0-02259-300-0	02	1	0306-	●	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (A)	8-97941-535-2	01	1	1008-	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (B)	8-97941-536-2	01	1	1008-	●
9	04.128 PIPE; ATF,INL,A/T (A)	8-97941-535-2	01	1	0306-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (E)	8-98048-111-0	01	1	0610-0707	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (E)	8-98085-689-0	01	1	0708-	●
9	04.128 PIPE; ATF,INL,A/T (B)	8-97941-536-2	01	1	0306-0609	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (I)	8-98036-273-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCX ENG(LS0) (H)	8-98061-107-0	01	1	0610-	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (A)	8-97941-535-2	01	1	0710-1003	●
9	04.128 PIPE; ATF,INL,A/T 6VE1 ENG(LX5) (B)	8-97941-536-2	01	1	0710-1003	●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97941-850-0	01	1	0306-0306		●
9	04.128 PIPE; ATF,INL,A/T (C)	8-97368-297-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (C)	8-97368-297-0	01	1	0610-0710		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (C)	8-97946-405-0	01	1	0711-		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97941-851-2	01	1	0306-0306		●
9	04.128 PIPE; ATF,INL,A/T (D)	8-97368-298-0	01	1	0307-0609		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (D)	8-97368-298-0	01	1	0610-0710		●
9	04.128 PIPE; ATF,INL,A/T 4JH1-TC ENG(RDM) (D)	8-97946-406-0	01	1	0711-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (G)	8-97363-584-1	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (G)	8-97946-403-0	01	1	0801-		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (F)	8-97363-585-2	01	1	0610-0712		●
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCS ENG(LFB) (F)	8-97946-404-0	01	1	0801-		●
11	04.128 CLIP; PIPE 4JJ1-TCX ENG(LS0) 01.762 (B) ID=16	8-98030-682-0	01	1	0610-	●
11	04.128 CLIP; PIPE 00.034 (A) ID=13.5	8-97015-754-1	04	1	0306-0609	●	●
11	04.128 CLIP; PIPE (A)	8-98008-165-0	04	1	0610-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE 6VE1 ENG(LX5) (A)	8-97062-040-0	03	1	1008-	●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	03	1	0306-0609	●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCX ENG(LS0) (C)	8-98008-163-0	01	1	0610-	●
14	04.128 CLIP; PIPE TO ENG SIDE 6VE1 ENG(LX5) (A)	8-97062-040-0	03	1	0710-1003	●
14	04.128 CLIP; PIPE TO ENG SIDE (B)	8-94334-345-1	01	1	0306-0609		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-TC ENG(RDM) (B)	8-94334-345-1	01	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-97062-040-0	02	1	0306-0609		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JH1-TC ENG(RDM) (A)	8-97062-040-0	02	1	0610-		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCS ENG(LFB) (C)	8-98008-163-0	03	1	0610-		●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0306-0609	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-0709	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-1003	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1004-1007	●
16	04.128 BOLT; CLIP,ENG SIDE 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1008-	●
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0306-		●
108	04.128 NUT; PIPE CLIP 6VE1 ENG(LX5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-	●
108	04.128 NUT; PIPE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0306-0609	●
108	04.128 NUT; PIPE CLIP 6VE1 ENG(LX5) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-1003	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
