2-49 — AUTO TRANS INHIBITOR SWITCH (#73960) — 183 parça

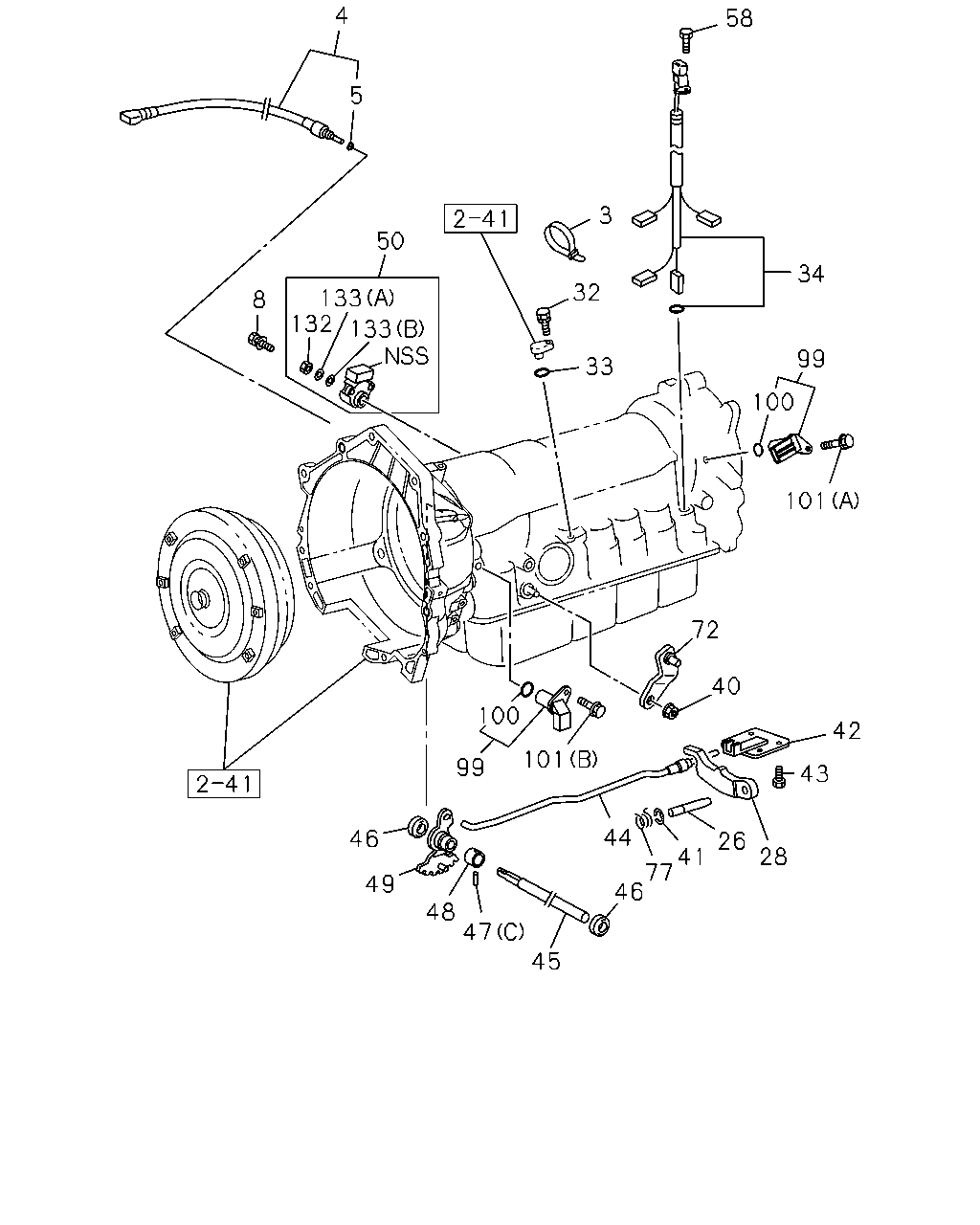

4 58 5 3 50 34 32 133 32 8 133 99 33 100 101 72 40 100 42 101 99 43 44 46 26 28 41 77 46 49 48 47 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	04.054 CLIP; INHIBITOR SW,A/T	8-94473-565-0	01	1	0306-	●
4	04.054 SENSOR; THERMO,A/T OIL 04.050	8-97331-531-0	01	1	0306-	●
5	04.054 GASKET; OIL THERMO SENSOR,A/T	8-94479-726-0	01	1	0306-	●
8	04.054 BOLT; NEUTRAL START SW,A/T M8X30	8-97130-929-0	01	1	0306-	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-94479-975-0	01	1	0306-	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-97331-117-0	01	1	0306-		●
28	04.294 PAWL; PARKING,A/T	8-97143-087-0	01	1	0306-	●
28	04.294 PAWL; PARKING,A/T	8-97331-119-0	01	1	0306-0711		●
28	04.294 PAWL; PARKING,A/T	8-98126-855-0	01	1	0712-		●
32	04.050 BOLT; THROTTLE CABLE M6X16	8-94479-712-0	01	1	0306-0609	●
32	04.050 BOLT; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0) M6X16	8-94479-712-0	01	1	0610-0709	●
32	04.050 BOLT; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) M6X16	8-94479-712-0	01	1	0710-1003	●
32	04.050 BOLT; THROTTLE CABLE 4X4(TFS***) 6VE1 ENG(LX5) M6X16	8-94479-712-0	01	1	0710-1003	●
32	04.050 BOLT; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0) M6X16	8-94479-712-0	01	1	1004-1007	●
32	04.050 BOLT; THROTTLE CABLE 6VE1 ENG(LX5) M6X16	8-94479-712-0	01	1	1008-	●
33	04.050 GASKET; THROTTLE CABLE	8-94364-922-0	01	1	0306-0609	●
33	04.050 GASKET; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-94364-922-0	01	1	0610-0709	●
33	04.050 GASKET; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-94364-922-0	01	1	0710-1003	●
33	04.050 GASKET; THROTTLE CABLE 4X4(TFS***) 6VE1 ENG(LX5)	8-94364-922-0	01	1	0710-1003	●
33	04.050 GASKET; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-94364-922-0	01	1	1004-1007	●
33	04.050 GASKET; THROTTLE CABLE 6VE1 ENG(LX5)	8-94364-922-0	01	1	1008-	●
34	04.265 SOLENOID ASM; A/T 6VE1 ENG(LX5)	8-97232-108-0	01	1	1008-	●
34	04.265 SOLENOID ASM; A/T	8-97232-108-0	01	1	0306-0609	●
34	04.265 SOLENOID ASM; A/T	8-98050-495-0	01	1	0610-0709	●
34	04.265 SOLENOID ASM; A/T 4JJ1-TCX ENG(LS0)	8-98050-495-0	01	1	0710-	●
34	04.265 SOLENOID ASM; A/T 6VE1 ENG(LX5)	8-97232-108-0	01	1	0710-1003	●
40	04.037 NUT; LEVER TO SHAFT 01.062 M8 FLANGE	0-91180-108-0	01	1	0306-0609	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-0709	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-1003	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1004-1007	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-	●
40	04.037 NUT; LEVER TO SHAFT 03.162 M10 FLANGE	0-91180-110-0	01	1	0306-		●
41	04.290 RETAINER; SPR,SHAFT	5-34488-002-0	01	1	0306-	●
42	04.290 BRACKET; PARKING LOCK	8-97126-815-0	01	1	0306-	●
43	04.290 BOLT; BRKT M6X14	8-94479-978-0	03	1	0306-	●
44	04.290 ROD ASM; PARKING PAWL 6VE1 ENG(LX5)	8-97126-814-0	01	1	1008-	●
44	04.290 ROD ASM; PARKING PAWL	8-97126-814-0	01	1	0306-0609	●
44	04.290 ROD ASM; PARKING PAWL	8-98050-534-0	01	1	0610-0709	●
44	04.290 ROD ASM; PARKING PAWL 4JJ1-TCX ENG(LS0)	8-98050-534-0	01	1	0710-	●
44	04.290 ROD ASM; PARKING PAWL 6VE1 ENG(LX5)	8-97126-814-0	01	1	0710-1003	●
45	04.275 SHAFT; VALVE LEVER	8-97025-848-0	01	1	0306-	●
46	04.282 SEAL; OIL 04.027 OD=22	8-94479-740-0	02	1	0306-	●
46	04.282 SEAL; OIL	8-97330-908-0	01	1	0306-		●
47	04.275 PIN; ROLL SHAFT 04.052 (C) D=4	8-94257-081-0	01	1	0306-	●
47	04.275 PIN; ROLL SHAFT (A)	8-97331-125-0	01	1	0306-		●
47	04.275 PIN; ROLL SHAFT (B)	8-97331-126-0	01	1	0306-		●
48	04.008 COVER; SLEEVE 6VE1 ENG(LX5)	8-94479-761-0	01	1	1008-	●
48	04.008 COVER; SLEEVE	8-94479-761-0	01	1	0306-0609	●
48	04.008 COVER; SLEEVE	8-97362-483-0	01	1	0610-0709	●
48	04.008 COVER; SLEEVE 4JJ1-TCX ENG(LS0)	8-97362-483-0	01	1	0710-	●
48	04.008 COVER; SLEEVE 6VE1 ENG(LX5)	8-94479-761-0	01	1	0710-1003	●
49	04.279 LEVER ASM; CAM	8-97331-535-0	01	1	0306-	●
50	04.054 SWITCH; NEUTRAL,A/T	8-97207-138-0	01	1	0306-	●
58	04.260 BOLT; SOLENOID TO A/T 04.050 M6X16	8-94479-712-0	01	1	0306-	●
72	04.035 LEVER; SELECT CONT 6VE1 ENG(LX5)	8-97249-948-1	01	1	1008-	●
72	04.035 LEVER; SELECT CONT	8-97249-948-1	01	1	0306-0609	●
72	04.035 LEVER; SELECT CONT 4JJ1-TCX ENG(LS0)	8-98005-235-0	01	1	0610-	●
72	04.035 LEVER; SELECT CONT 6VE1 ENG(LX5)	8-97249-948-1	01	1	0710-1003	●
72	04.035 LEVER; SELECT CONT	8-97231-904-1	01	1	0306-		●
77	04.295 SPRING; TORSION,PARKING BRK LK,A	8-94479-976-0	01	1	0306-	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(QCQ)	8-97027-383-0	02	1	0610-0709	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97027-383-0	02	1	0710-1003	●
99	04.329 SENSOR; SPD 6VE1 ENG(LX5)	8-97027-383-0	02	1	0710-1003	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(QCQ)	8-97027-383-0	02	1	1004-1007	●
99	04.329 SENSOR; SPD	8-97027-383-0	02	1	1008-	●
99	04.329 SENSOR; SPD	8-97027-383-0	02	1	0306-0609	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-97027-383-0	01	1	0610-0709	●
99	04.329 SENSOR; SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97027-383-0	01	1	0610-0709	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97027-383-0	01	1	0710-1007	●
99	04.329 SENSOR; SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97027-383-0	01	1	0710-1007	●
100	04.239 GASKET; SPD SENSOR	8-97027-197-0	02	1	0306-	●
101	04.329 BOLT; SPD SENSOR 04.050 (A) M6X16	8-94479-712-0	01	1	0306-	●
101	04.329 BOLT; SPD SENSOR 04.290 (B) M6X14	8-94479-978-0	01	1	0306-	●
133	04.248 WASHER; SWITCH (B)	8-97354-888-0	01	1	0306-	●
133	04.248 WASHER; SWITCH (A) ID=16	8-97354-889-0	01	1	0306-	●

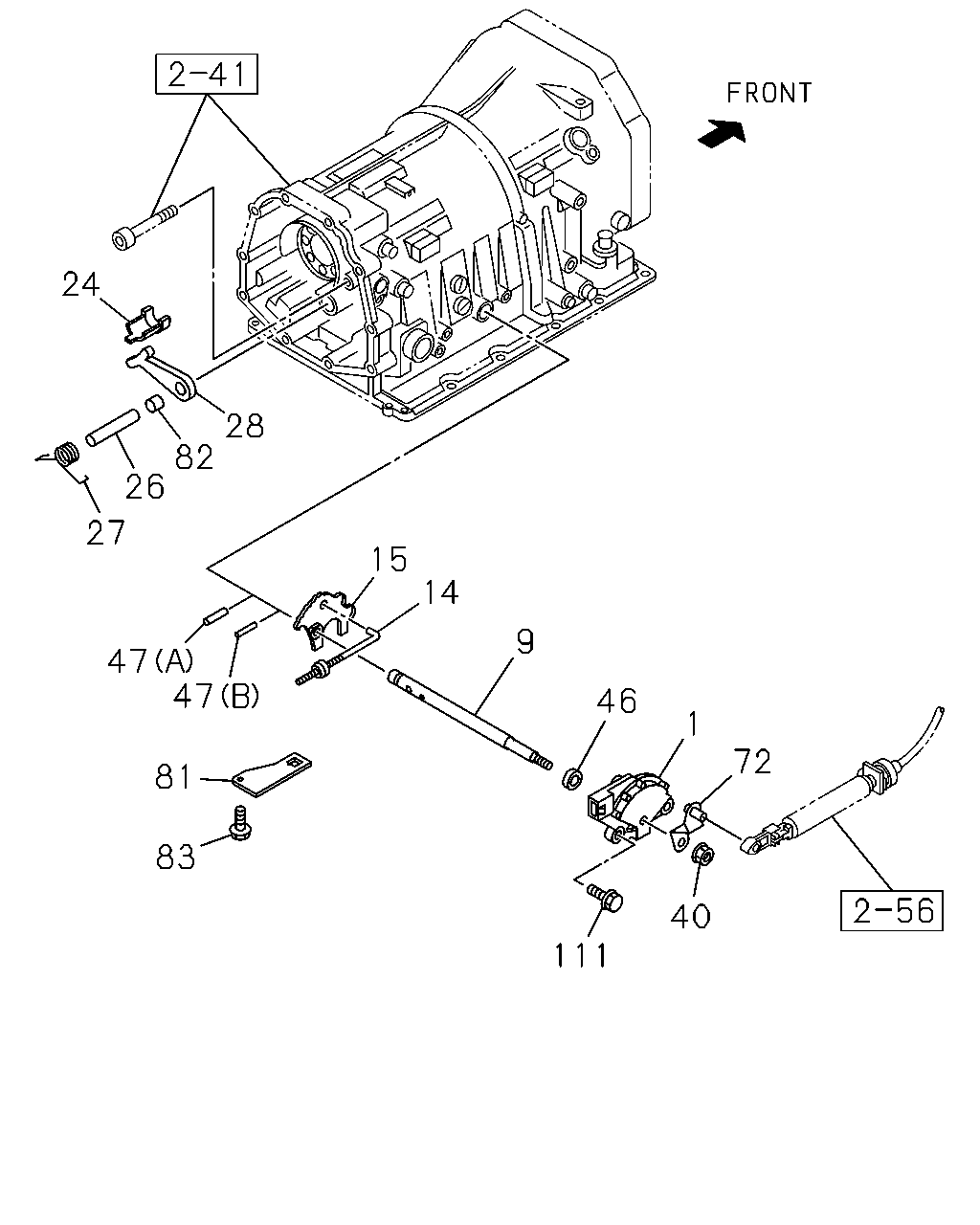

24 28 82 26 27 15 14 9 47 47 46 1 72 81 83 40 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.054 SWITCH; INHIBITOR,A/T	8-97331-105-0	01	1	0306-		●
9	04.275 SHAFT; MANUAL,A/T	8-97331-106-0	01	1	0306-		●
14	04.290 ROD ASM; PARKING,A/T	8-97331-114-0	01	1	0306-		●
15	04.275 PLATE; MANUAL SHAFT,A/T	8-97331-107-0	01	1	0306-		●
24	04.290 SUPPORT; ACTUATOR,A/T	8-97331-116-0	01	1	0306-0711		●
24	04.290 SUPPORT; ACTUATOR,A/T	8-98126-857-0	01	1	0712-		●
26	04.294 SHAFT; PARKING PAWL,A/T	8-94479-975-0	01	1	0306-	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-97331-117-0	01	1	0306-		●
27	04.295 SPRING; PAWL RETURN,A/T	8-97331-118-0	01	1	0306-		●
28	04.294 PAWL; PARKING,A/T	8-97143-087-0	01	1	0306-	●
28	04.294 PAWL; PARKING,A/T	8-97331-119-0	01	1	0306-0711		●
28	04.294 PAWL; PARKING,A/T	8-98126-855-0	01	1	0712-		●
40	04.037 NUT; LEVER TO SHAFT 01.062 M8 FLANGE	0-91180-108-0	01	1	0306-0609	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-0709	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-1003	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1004-1007	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-	●
40	04.037 NUT; LEVER TO SHAFT 03.162 M10 FLANGE	0-91180-110-0	01	1	0306-		●
46	04.282 SEAL; OIL 04.027 OD=22	8-94479-740-0	02	1	0306-	●
46	04.282 SEAL; OIL	8-97330-908-0	01	1	0306-		●
47	04.275 PIN; ROLL SHAFT 04.052 (C) D=4	8-94257-081-0	01	1	0306-	●
47	04.275 PIN; ROLL SHAFT (A)	8-97331-125-0	01	1	0306-		●
47	04.275 PIN; ROLL SHAFT (B)	8-97331-126-0	01	1	0306-		●
72	04.035 LEVER; SELECT CONT 6VE1 ENG(LX5)	8-97249-948-1	01	1	1008-	●
72	04.035 LEVER; SELECT CONT	8-97249-948-1	01	1	0306-0609	●
72	04.035 LEVER; SELECT CONT 4JJ1-TCX ENG(LS0)	8-98005-235-0	01	1	0610-	●
72	04.035 LEVER; SELECT CONT 6VE1 ENG(LX5)	8-97249-948-1	01	1	0710-1003	●
72	04.035 LEVER; SELECT CONT	8-97231-904-1	01	1	0306-		●
81	04.293 SPRING; DETENT,MANUAL CONT PLATE	8-97331-113-0	01	1	0306-		●
82	02.559 SPACER; DETENT SPRING	8-97330-950-0	01	1	0306-		●
83	04.169 SCREW; DETENT SPRING,MANUAL CONT	8-97331-124-0	01	1	0306-0711		●
111	02.559 BOLT; INHIBITOR SW	8-97331-127-0	02	1	0306-		●

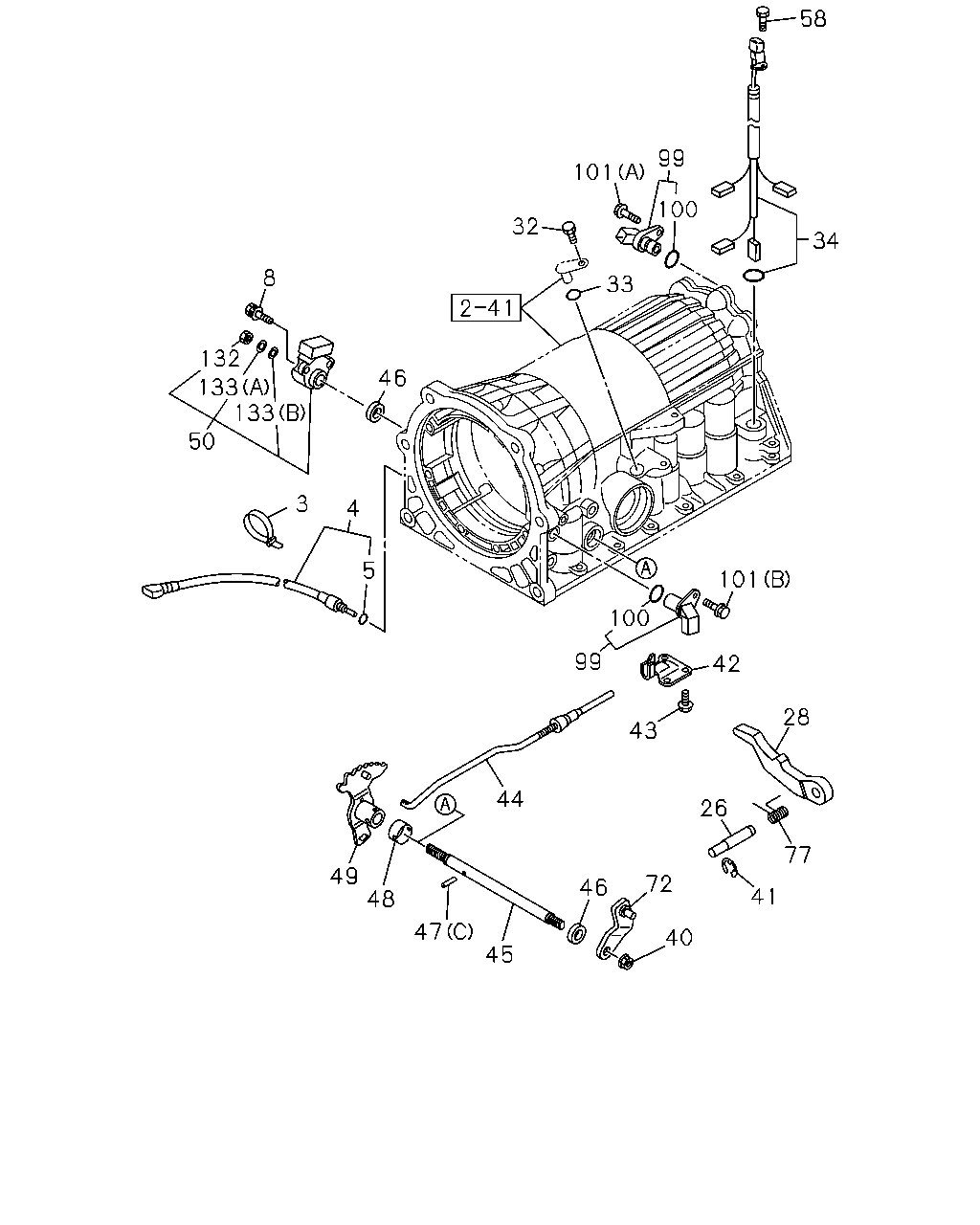

58 99 101 100 32 34 8 33 132 46 133 133 50 3 4 5 101 100 99 42 28 43 44 26 77 49 48 72 46 41 47 40 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	04.054 CLIP; INHIBITOR SW,A/T	8-94473-565-0	01	1	0306-	●
4	04.054 SENSOR; THERMO,A/T OIL 04.050	8-97331-531-0	01	1	0306-	●
5	04.054 GASKET; OIL THERMO SENSOR,A/T	8-94479-726-0	01	1	0306-	●
8	04.054 BOLT; NEUTRAL START SW,A/T M8X30	8-97130-929-0	01	1	0306-	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-94479-975-0	01	1	0306-	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-97331-117-0	01	1	0306-		●
28	04.294 PAWL; PARKING,A/T	8-97143-087-0	01	1	0306-	●
28	04.294 PAWL; PARKING,A/T	8-97331-119-0	01	1	0306-0711		●
28	04.294 PAWL; PARKING,A/T	8-98126-855-0	01	1	0712-		●
32	04.050 BOLT; THROTTLE CABLE M6X16	8-94479-712-0	01	1	0306-0609	●
32	04.050 BOLT; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0) M6X16	8-94479-712-0	01	1	0610-0709	●
32	04.050 BOLT; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) M6X16	8-94479-712-0	01	1	0710-1003	●
32	04.050 BOLT; THROTTLE CABLE 4X4(TFS***) 6VE1 ENG(LX5) M6X16	8-94479-712-0	01	1	0710-1003	●
32	04.050 BOLT; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0) M6X16	8-94479-712-0	01	1	1004-1007	●
32	04.050 BOLT; THROTTLE CABLE 6VE1 ENG(LX5) M6X16	8-94479-712-0	01	1	1008-	●
33	04.050 GASKET; THROTTLE CABLE	8-94364-922-0	01	1	0306-0609	●
33	04.050 GASKET; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-94364-922-0	01	1	0610-0709	●
33	04.050 GASKET; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-94364-922-0	01	1	0710-1003	●
33	04.050 GASKET; THROTTLE CABLE 4X4(TFS***) 6VE1 ENG(LX5)	8-94364-922-0	01	1	0710-1003	●
33	04.050 GASKET; THROTTLE CABLE 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-94364-922-0	01	1	1004-1007	●
33	04.050 GASKET; THROTTLE CABLE 6VE1 ENG(LX5)	8-94364-922-0	01	1	1008-	●
34	04.265 SOLENOID ASM; A/T 6VE1 ENG(LX5)	8-97232-108-0	01	1	1008-	●
34	04.265 SOLENOID ASM; A/T	8-97232-108-0	01	1	0306-0609	●
34	04.265 SOLENOID ASM; A/T	8-98050-495-0	01	1	0610-0709	●
34	04.265 SOLENOID ASM; A/T 4JJ1-TCX ENG(LS0)	8-98050-495-0	01	1	0710-	●
34	04.265 SOLENOID ASM; A/T 6VE1 ENG(LX5)	8-97232-108-0	01	1	0710-1003	●
40	04.037 NUT; LEVER TO SHAFT 01.062 M8 FLANGE	0-91180-108-0	01	1	0306-0609	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-0709	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-1003	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1004-1007	●
40	04.037 NUT; LEVER TO SHAFT 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1008-	●
40	04.037 NUT; LEVER TO SHAFT 03.162 M10 FLANGE	0-91180-110-0	01	1	0306-		●
41	04.290 RETAINER; SPR,SHAFT	5-34488-002-0	01	1	0306-	●
42	04.290 BRACKET; PARKING LOCK	8-97126-815-0	01	1	0306-	●
43	04.290 BOLT; BRKT M6X14	8-94479-978-0	03	1	0306-	●
44	04.290 ROD ASM; PARKING PAWL 6VE1 ENG(LX5)	8-97126-814-0	01	1	1008-	●
44	04.290 ROD ASM; PARKING PAWL	8-97126-814-0	01	1	0306-0609	●
44	04.290 ROD ASM; PARKING PAWL	8-98050-534-0	01	1	0610-0709	●
44	04.290 ROD ASM; PARKING PAWL 4JJ1-TCX ENG(LS0)	8-98050-534-0	01	1	0710-	●
44	04.290 ROD ASM; PARKING PAWL 6VE1 ENG(LX5)	8-97126-814-0	01	1	0710-1003	●
45	04.275 SHAFT; VALVE LEVER	8-97025-848-0	01	1	0306-	●
46	04.282 SEAL; OIL 04.027 OD=22	8-94479-740-0	02	1	0306-	●
46	04.282 SEAL; OIL	8-97330-908-0	01	1	0306-		●
47	04.275 PIN; ROLL SHAFT 04.052 (C) D=4	8-94257-081-0	01	1	0306-	●
47	04.275 PIN; ROLL SHAFT (A)	8-97331-125-0	01	1	0306-		●
47	04.275 PIN; ROLL SHAFT (B)	8-97331-126-0	01	1	0306-		●
48	04.008 COVER; SLEEVE 6VE1 ENG(LX5)	8-94479-761-0	01	1	1008-	●
48	04.008 COVER; SLEEVE	8-94479-761-0	01	1	0306-0609	●
48	04.008 COVER; SLEEVE	8-97362-483-0	01	1	0610-0709	●
48	04.008 COVER; SLEEVE 4JJ1-TCX ENG(LS0)	8-97362-483-0	01	1	0710-	●
48	04.008 COVER; SLEEVE 6VE1 ENG(LX5)	8-94479-761-0	01	1	0710-1003	●
49	04.279 LEVER ASM; CAM	8-97331-535-0	01	1	0306-	●
50	04.054 SWITCH; NEUTRAL,A/T	8-97207-138-0	01	1	0306-	●
58	04.260 BOLT; SOLENOID TO A/T 04.050 M6X16	8-94479-712-0	01	1	0306-	●
72	04.035 LEVER; SELECT CONT 6VE1 ENG(LX5)	8-97249-948-1	01	1	1008-	●
72	04.035 LEVER; SELECT CONT	8-97249-948-1	01	1	0306-0609	●
72	04.035 LEVER; SELECT CONT 4JJ1-TCX ENG(LS0)	8-98005-235-0	01	1	0610-	●
72	04.035 LEVER; SELECT CONT 6VE1 ENG(LX5)	8-97249-948-1	01	1	0710-1003	●
72	04.035 LEVER; SELECT CONT	8-97231-904-1	01	1	0306-		●
77	04.295 SPRING; TORSION,PARKING BRK LK,A	8-94479-976-0	01	1	0306-	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(QCQ)	8-97027-383-0	02	1	0610-0709	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97027-383-0	02	1	0710-1003	●
99	04.329 SENSOR; SPD 6VE1 ENG(LX5)	8-97027-383-0	02	1	0710-1003	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(QCQ)	8-97027-383-0	02	1	1004-1007	●
99	04.329 SENSOR; SPD	8-97027-383-0	02	1	1008-	●
99	04.329 SENSOR; SPD	8-97027-383-0	02	1	0306-0609	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-97027-383-0	01	1	0610-0709	●
99	04.329 SENSOR; SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97027-383-0	01	1	0610-0709	●
99	04.329 SENSOR; SPD 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97027-383-0	01	1	0710-1007	●
99	04.329 SENSOR; SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97027-383-0	01	1	0710-1007	●
100	04.239 GASKET; SPD SENSOR	8-97027-197-0	02	1	0306-	●
101	04.329 BOLT; SPD SENSOR 04.050 (A) M6X16	8-94479-712-0	01	1	0306-	●
101	04.329 BOLT; SPD SENSOR 04.290 (B) M6X14	8-94479-978-0	01	1	0306-	●
132	04.248 NUT; SWITCH M16	8-97354-883-0	01	1	0306-	●
133	04.248 WASHER; SWITCH (B)	8-97354-888-0	01	1	0306-	●
133	04.248 WASHER; SWITCH (A) ID=16	8-97354-889-0	01	1	0306-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
