Sayfa 2-47 - Isuzu EPC

2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#73958) — 277 parça

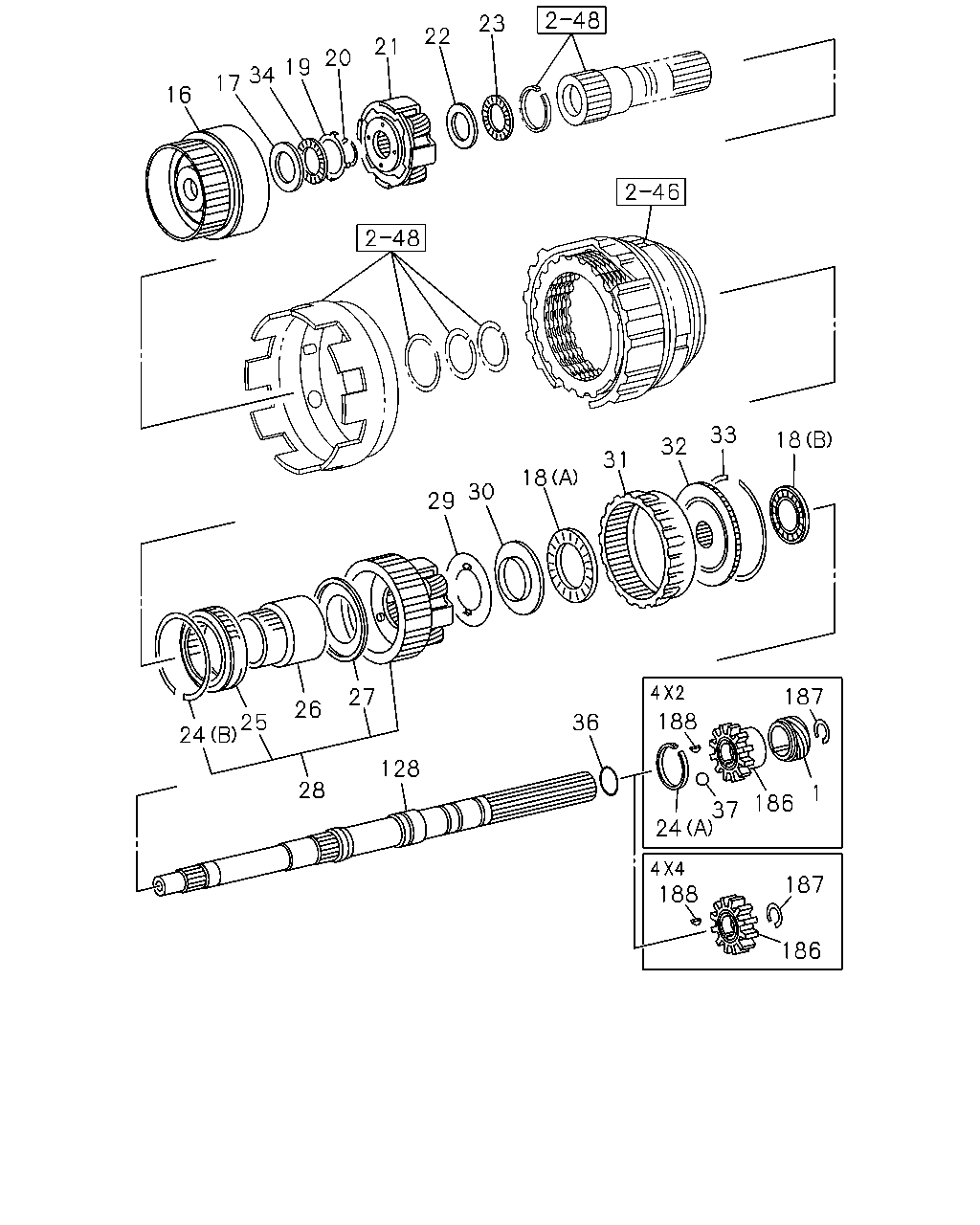

23 22 21 20 19 34 17 16 33 18 32 31 18 30 29 187 27 26 188 25 24 36 128 28 1 186 37 24 188 187 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.337 GEAR; SPEEDOMETER DRIVE,A/T 4X2(TFB***) 6VE1 ENG(LX5)	8-97181-547-0	01	1	1008-	●
1	04.337 GEAR; SPEEDOMETER DRIVE,A/T 4X2(TFB***) 6VE1 ENG(LX5)	8-97181-547-0	01	1	0306-0609	●
1	04.337 GEAR; SPEEDOMETER DRIVE,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98056-393-0	01	1	0610-	●
1	04.337 GEAR; SPEEDOMETER DRIVE,A/T 4X2(TFB***) 6VE1 ENG(LX5)	8-97181-547-0	01	1	0710-1003	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T 6VE1 ENG(LX5)	8-98112-184-0	01	1	1008-	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T	8-97143-082-0	01	1	0306-0609	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T	8-98050-544-0	01	1	0610-0709	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T 4JJ1-TCX ENG(LS0)	8-98050-544-0	01	1	0710-0801	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T 4JJ1-TCX ENG(LS0)	8-98112-185-0	01	1	0802-	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T 6VE1 ENG(LX5)	8-97143-082-0	01	1	0710-0801	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T 6VE1 ENG(LX5)	8-98112-184-0	01	1	0802-1003	●
17	04.167 RACE; THRUST BRG,PLANETARY SHAFT 6VE1 ENG(LX5)	8-94479-836-0	01	1	1008-	●
17	04.167 RACE; THRUST BRG,PLANETARY SHAFT	8-94479-836-0	01	1	0306-0609	●
17	04.167 RACE; THRUST BRG,PLANETARY SHAFT	8-98050-545-0	01	1	0610-0709	●
17	04.167 RACE; THRUST BRG,PLANETARY SHAFT 4JJ1-TCX ENG(LS0)	8-98050-545-0	01	1	0710-	●
17	04.167 RACE; THRUST BRG,PLANETARY SHAFT 6VE1 ENG(LX5)	8-94479-836-0	01	1	0710-1003	●
18	04.187 BEARING; THRUST,RR PLANETARY GEA (B)	8-97249-735-0	01	1	0306-	●
18	04.187 BEARING; THRUST,RR PLANETARY GEA (A)	8-97331-548-0	01	1	0306-	●
19	04.167 RACE; THRUST BRG,PLANETARY SHAFT 6VE1 ENG(LX5)	8-94479-837-0	01	1	1008-	●
19	04.167 RACE; THRUST BRG,PLANETARY SHAFT	8-94479-837-0	01	1	0306-0609	●
19	04.167 RACE; THRUST BRG,PLANETARY SHAFT	8-98050-546-0	01	1	0610-0709	●
19	04.167 RACE; THRUST BRG,PLANETARY SHAFT 4JJ1-TCX ENG(LS0)	8-98050-546-0	01	1	0710-	●
19	04.167 RACE; THRUST BRG,PLANETARY SHAFT 6VE1 ENG(LX5)	8-94479-837-0	01	1	0710-1003	●
20	04.164 RING; RET,PLANETARY GEAR,A/T	8-94479-842-0	01	1	0306-	●
21	04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 6VE1 ENG(LX5)	8-94479-839-0	01	1	1008-	●
21	04.158 GEAR; PLANETARY,INTERNAL FRT,A/T	8-94479-839-0	01	1	0306-0609	●
21	04.158 GEAR; PLANETARY,INTERNAL FRT,A/T	8-98050-547-0	01	1	0610-0709	●
21	04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 4JJ1-TCX ENG(LS0)	8-98050-547-0	01	1	0710-	●
21	04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 6VE1 ENG(LX5)	8-94479-839-0	01	1	0710-1003	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S 6VE1 ENG(LX5)	8-94479-840-0	01	1	1008-	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S	8-94479-840-0	01	1	0306-0609	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S	8-98050-548-0	01	1	0610-0709	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S 4JJ1-TCX ENG(LS0)	8-98050-548-0	01	1	0710-	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S 6VE1 ENG(LX5)	8-94479-840-0	01	1	0710-1003	●
23	04.164 BEARING; THRUST,PLANETARY SHAFT, 6VE1 ENG(LX5)	8-94479-841-0	01	1	1008-	●
23	04.164 BEARING; THRUST,PLANETARY SHAFT,	8-94479-841-0	01	1	0306-0609	●
23	04.164 BEARING; THRUST,PLANETARY SHAFT,	8-98050-549-0	01	1	0610-0709	●
23	04.164 BEARING; THRUST,PLANETARY SHAFT, 4JJ1-TCX ENG(LS0)	8-98050-549-0	01	1	0710-	●
23	04.164 BEARING; THRUST,PLANETARY SHAFT, 6VE1 ENG(LX5)	8-94479-841-0	01	1	0710-1003	●
24	04.164 RING; RET,FRT PLANETARY,A/T (B)	8-97143-129-0	01	1	0306-	●
24	04.164 RING; RET,FRT PLANETARY,A/T 4X2(TFB***) 6VE1 ENG(LX5) 04.338 (A)	8-97069-457-0	01	1	0306-0609	●
24	04.164 RING; RET,FRT PLANETARY,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) 04.338 (A)	8-97069-457-0	01	1	0610-0709	●
24	04.164 RING; RET,FRT PLANETARY,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 04.338 (A)	8-97069-457-0	01	1	0710-1003	●
24	04.164 RING; RET,FRT PLANETARY,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) 04.338 (A)	8-97069-457-0	01	1	1004-1007	●
24	04.164 RING; RET,FRT PLANETARY,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 04.338 (A)	8-97069-457-0	01	1	1008-	●
25	04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY	8-94364-924-0	01	1	0306-	●
26	04.168 RACE; ONEWAY CLU,A/T	8-97019-542-0	01	1	0306-	●
27	04.256 WASHER; THRUST,FRT PLANETARY,A/T 6VE1 ENG(LX5)	8-94313-577-0	01	1	1008-	●
27	04.256 WASHER; THRUST,FRT PLANETARY,A/T	8-94313-577-0	01	1	0306-0609	●
27	04.256 WASHER; THRUST,FRT PLANETARY,A/T	8-98050-550-0	01	1	0610-0709	●
27	04.256 WASHER; THRUST,FRT PLANETARY,A/T 4JJ1-TCX ENG(LS0)	8-98050-550-0	01	1	0710-	●
27	04.256 WASHER; THRUST,FRT PLANETARY,A/T 6VE1 ENG(LX5)	8-94313-577-0	01	1	0710-1003	●
28	04.187 GEAR ASM; RR PLANETARY,A/T 4JJ1-TCX ENG(LS0)	8-98065-077-0	01	1	1008-	●
28	04.187 GEAR ASM; RR PLANETARY,A/T	8-97232-050-0	01	1	0306-1007	●
28	04.187 GEAR ASM; RR PLANETARY,A/T 6VE1 ENG(LX5)	8-97232-050-0	01	1	1008-	●
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 6VE1 ENG(LX5) 04.164	8-94479-851-0	01	1	1008-	●
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 04.164	8-94479-851-0	01	1	0306-0609	●
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T	8-98050-551-0	01	1	0610-0709	●
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 4JJ1-TCX ENG(LS0)	8-98050-551-0	01	1	0710-	●
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 6VE1 ENG(LX5) 04.164	8-94479-851-0	01	1	0710-1003	●
30	04.180 RACE; THRUST BRG,RR PLANETARY FL	8-97331-549-0	01	1	0306-	●
31	04.175 GEAR ASM; INTERNAL,PLANETARY,A/T	8-94479-854-0	01	1	0306-	●
31	04.175 GEAR ASM; INTERNAL,PLANETARY,A/T	8-97330-953-0	01	1	0306-		●
32	04.164 FLANGE; RING GEAR,RR PLANETARY,A	8-94479-852-0	01	1	0306-	●
33	04.166 RING; RET,PLANETARY GEAR,A/T	8-94479-853-0	01	1	0306-	●
34	04.164 BEARING; THRUST,FRT PLANETARY SH 6VE1 ENG(LX5) 04.187	8-94479-838-0	01	1	1008-	●
34	04.164 BEARING; THRUST,FRT PLANETARY SH 04.187	8-94479-838-0	01	1	0306-0609	●
34	04.164 BEARING; THRUST,FRT PLANETARY SH 6VE1 ENG(LX5) 04.187	8-94479-838-0	01	1	0710-1003	●
36	04.164 RING; SEALING,FRT PLANETARY SHAF	8-94479-902-0	01	1	0306-	●
37	04.256 BALL; SPD DRIVE 4X2(TFB***) 6VE1 ENG(LX5)	8-94167-674-0	01	1	1008-	●
37	04.256 BALL; SPD DRIVE 4X2(TFB***) 6VE1 ENG(LX5)	8-94167-674-0	01	1	0710-1003	●
37	04.256 BALL; SPD DRIVE 4X2(TFB***) 6VE1 ENG(LX5)	8-94167-674-0	01	1	0306-0609	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98065-079-0	01	1	1008-	●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***) 6VE1 ENG(LX5)	8-97069-456-0	01	1	1008-	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 6VE1 ENG(LX5)	8-97184-427-0	01	1	0306-0609	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97184-427-0	01	1	0610-0709	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97184-427-0	01	1	0710-1003	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97184-427-0	01	1	1004-1007	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 6VE1 ENG(LX5)	8-97184-427-0	01	1	1008-	●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***) 6VE1 ENG(LX5)	8-97069-456-0	01	1	0306-0609	●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98050-557-0	01	1	0610-	●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***) 6VE1 ENG(LX5)	8-97069-456-0	01	1	0710-1003	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***)	8-97330-960-0	01	1	0306-		●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***)	8-97330-961-0	01	1	0306-		●
186	04.329 ROTOR; SPEED SENSOR 4X2(TFB***) 6VE1 ENG(LX5)	8-97331-552-0	01	1	0306-0609	●
186	04.329 ROTOR; SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97331-552-0	01	1	0610-0709	●
186	04.329 ROTOR; SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97331-552-0	01	1	0710-1003	●
186	04.329 ROTOR; SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97331-552-0	01	1	1004-1007	●
186	04.329 ROTOR; SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97331-552-0	01	1	1008-	●
186	04.329 ROTOR; SPEED SENSOR 4X4(TFS***) 6VE1 ENG(LX5)	8-97331-553-0	01	1	0306-0609	●
186	04.329 ROTOR; SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97331-553-0	01	1	0610-0709	●
186	04.329 ROTOR; SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97331-553-0	01	1	0710-1003	●
186	04.329 ROTOR; SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97331-553-0	01	1	1004-1007	●
186	04.329 ROTOR; SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97331-553-0	01	1	1008-	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X2(TFB***) 6VE1 ENG(LX5)	8-97069-451-0	01	1	0306-0609	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97069-451-0	01	1	0610-0709	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97069-451-0	01	1	0710-1003	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97069-451-0	01	1	1004-1007	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97069-451-0	01	1	1008-	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X4(TFS***) 6VE1 ENG(LX5) 04.337	8-94479-905-0	01	1	0306-0609	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0) 04.337	8-94479-905-0	01	1	0610-0709	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 04.337	8-94479-905-0	01	1	0710-1003	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0) 04.337	8-94479-905-0	01	1	1004-1007	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 04.337	8-94479-905-0	01	1	1008-	●
188	04.330 KEY; SPEED SENSOR ROTOR 04.337	8-94479-904-0	01	1	0306-	●

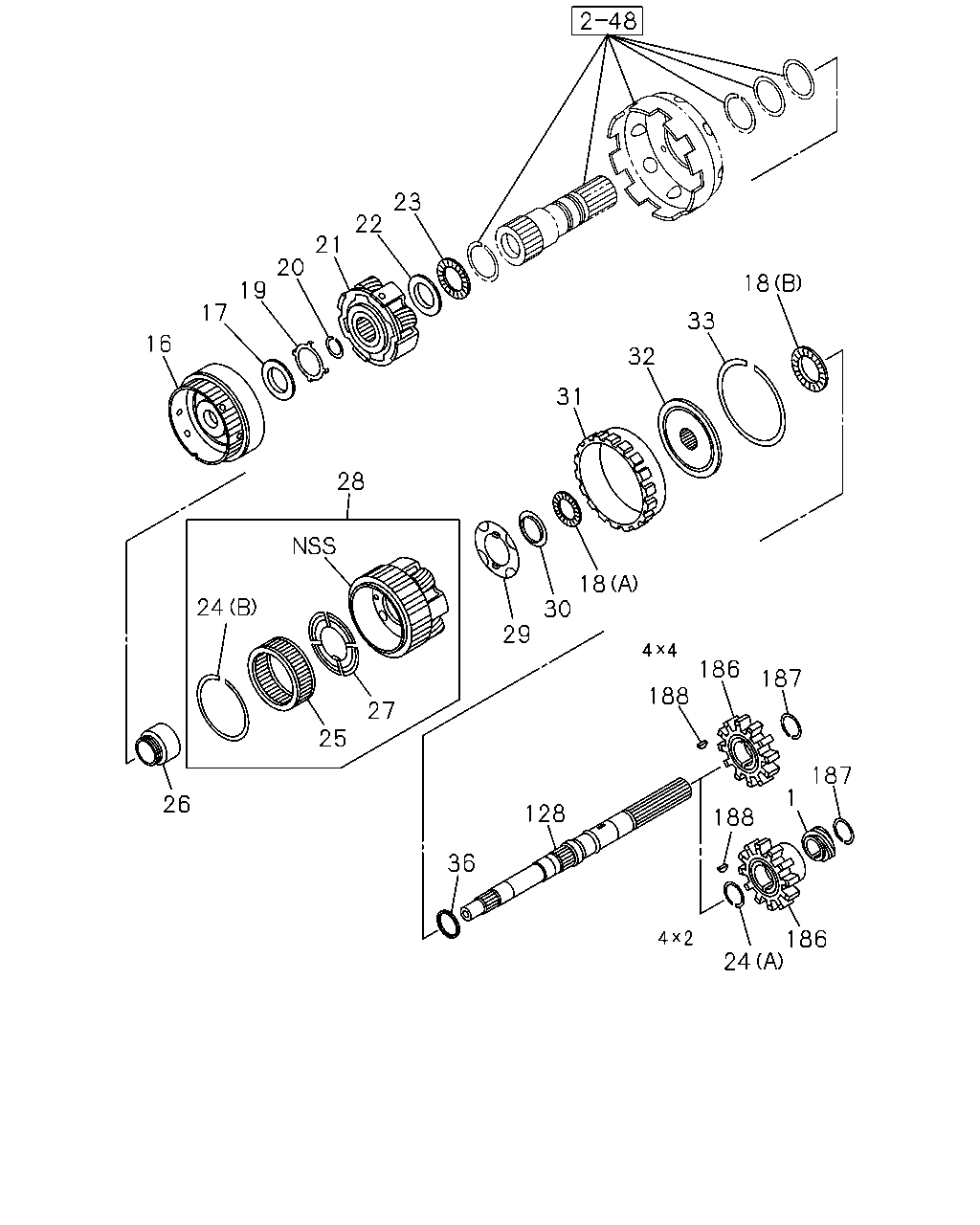

23 22 21 20 18 19 17 33 16 32 31 28 18 30 24 29 186 187 188 27 25 187 1 26 128 188 36 186 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.337 GEAR; SPEEDOMETER DRIVE,A/T 4X2(TFB***) 6VE1 ENG(LX5)	8-97181-547-0	01	1	1008-	●
1	04.337 GEAR; SPEEDOMETER DRIVE,A/T 4X2(TFB***) 6VE1 ENG(LX5)	8-97181-547-0	01	1	0306-0609	●
1	04.337 GEAR; SPEEDOMETER DRIVE,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98056-393-0	01	1	0610-	●
1	04.337 GEAR; SPEEDOMETER DRIVE,A/T 4X2(TFB***) 6VE1 ENG(LX5)	8-97181-547-0	01	1	0710-1003	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T 6VE1 ENG(LX5)	8-98112-184-0	01	1	1008-	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T	8-97143-082-0	01	1	0306-0609	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T	8-98050-544-0	01	1	0610-0709	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T 4JJ1-TCX ENG(LS0)	8-98050-544-0	01	1	0710-0801	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T 4JJ1-TCX ENG(LS0)	8-98112-185-0	01	1	0802-	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T 6VE1 ENG(LX5)	8-97143-082-0	01	1	0710-0801	●
16	04.256 GEAR ASM; FRT PLANETARY,A/T 6VE1 ENG(LX5)	8-98112-184-0	01	1	0802-1003	●
17	04.167 RACE; THRUST BRG,PLANETARY SHAFT 6VE1 ENG(LX5)	8-94479-836-0	01	1	1008-	●
17	04.167 RACE; THRUST BRG,PLANETARY SHAFT	8-94479-836-0	01	1	0306-0609	●
17	04.167 RACE; THRUST BRG,PLANETARY SHAFT	8-98050-545-0	01	1	0610-0709	●
17	04.167 RACE; THRUST BRG,PLANETARY SHAFT 4JJ1-TCX ENG(LS0)	8-98050-545-0	01	1	0710-	●
17	04.167 RACE; THRUST BRG,PLANETARY SHAFT 6VE1 ENG(LX5)	8-94479-836-0	01	1	0710-1003	●
18	04.187 BEARING; THRUST,RR PLANETARY GEA (B)	8-97249-735-0	01	1	0306-	●
18	04.187 BEARING; THRUST,RR PLANETARY GEA (A)	8-97331-548-0	01	1	0306-	●
19	04.167 RACE; THRUST BRG,PLANETARY SHAFT 6VE1 ENG(LX5)	8-94479-837-0	01	1	1008-	●
19	04.167 RACE; THRUST BRG,PLANETARY SHAFT	8-94479-837-0	01	1	0306-0609	●
19	04.167 RACE; THRUST BRG,PLANETARY SHAFT	8-98050-546-0	01	1	0610-0709	●
19	04.167 RACE; THRUST BRG,PLANETARY SHAFT 4JJ1-TCX ENG(LS0)	8-98050-546-0	01	1	0710-	●
19	04.167 RACE; THRUST BRG,PLANETARY SHAFT 6VE1 ENG(LX5)	8-94479-837-0	01	1	0710-1003	●
20	04.164 RING; RET,PLANETARY GEAR,A/T	8-94479-842-0	01	1	0306-	●
21	04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 6VE1 ENG(LX5)	8-94479-839-0	01	1	1008-	●
21	04.158 GEAR; PLANETARY,INTERNAL FRT,A/T	8-94479-839-0	01	1	0306-0609	●
21	04.158 GEAR; PLANETARY,INTERNAL FRT,A/T	8-98050-547-0	01	1	0610-0709	●
21	04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 4JJ1-TCX ENG(LS0)	8-98050-547-0	01	1	0710-	●
21	04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 6VE1 ENG(LX5)	8-94479-839-0	01	1	0710-1003	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S 6VE1 ENG(LX5)	8-94479-840-0	01	1	1008-	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S	8-94479-840-0	01	1	0306-0609	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S	8-98050-548-0	01	1	0610-0709	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S 4JJ1-TCX ENG(LS0)	8-98050-548-0	01	1	0710-	●
22	04.167 RACE; THRUST BRG,FRT PLANETARY S 6VE1 ENG(LX5)	8-94479-840-0	01	1	0710-1003	●
23	04.164 BEARING; THRUST,PLANETARY SHAFT, 6VE1 ENG(LX5)	8-94479-841-0	01	1	1008-	●
23	04.164 BEARING; THRUST,PLANETARY SHAFT,	8-94479-841-0	01	1	0306-0609	●
23	04.164 BEARING; THRUST,PLANETARY SHAFT,	8-98050-549-0	01	1	0610-0709	●
23	04.164 BEARING; THRUST,PLANETARY SHAFT, 4JJ1-TCX ENG(LS0)	8-98050-549-0	01	1	0710-	●
23	04.164 BEARING; THRUST,PLANETARY SHAFT, 6VE1 ENG(LX5)	8-94479-841-0	01	1	0710-1003	●
24	04.164 RING; RET,FRT PLANETARY,A/T (B)	8-97143-129-0	01	1	0306-	●
24	04.164 RING; RET,FRT PLANETARY,A/T 4X2(TFB***) 6VE1 ENG(LX5) 04.338 (A)	8-97069-457-0	01	1	0306-0609	●
24	04.164 RING; RET,FRT PLANETARY,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) 04.338 (A)	8-97069-457-0	01	1	0610-0709	●
24	04.164 RING; RET,FRT PLANETARY,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 04.338 (A)	8-97069-457-0	01	1	0710-1003	●
24	04.164 RING; RET,FRT PLANETARY,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) 04.338 (A)	8-97069-457-0	01	1	1004-1007	●
24	04.164 RING; RET,FRT PLANETARY,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 04.338 (A)	8-97069-457-0	01	1	1008-	●
25	04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY	8-94364-924-0	01	1	0306-	●
26	04.168 RACE; ONEWAY CLU,A/T	8-97019-542-0	01	1	0306-	●
27	04.256 WASHER; THRUST,FRT PLANETARY,A/T 6VE1 ENG(LX5)	8-94313-577-0	01	1	1008-	●
27	04.256 WASHER; THRUST,FRT PLANETARY,A/T	8-94313-577-0	01	1	0306-0609	●
27	04.256 WASHER; THRUST,FRT PLANETARY,A/T	8-98050-550-0	01	1	0610-0709	●
27	04.256 WASHER; THRUST,FRT PLANETARY,A/T 4JJ1-TCX ENG(LS0)	8-98050-550-0	01	1	0710-	●
27	04.256 WASHER; THRUST,FRT PLANETARY,A/T 6VE1 ENG(LX5)	8-94313-577-0	01	1	0710-1003	●
28	04.187 GEAR ASM; RR PLANETARY,A/T 4JJ1-TCX ENG(LS0)	8-98065-077-0	01	1	1008-	●
28	04.187 GEAR ASM; RR PLANETARY,A/T	8-97232-050-0	01	1	0306-1007	●
28	04.187 GEAR ASM; RR PLANETARY,A/T 6VE1 ENG(LX5)	8-97232-050-0	01	1	1008-	●
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 6VE1 ENG(LX5) 04.164	8-94479-851-0	01	1	1008-	●
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 04.164	8-94479-851-0	01	1	0306-0609	●
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T	8-98050-551-0	01	1	0610-0709	●
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 4JJ1-TCX ENG(LS0)	8-98050-551-0	01	1	0710-	●
29	04.158 WASHER; THRUST,FRT PLANETARY,A/T 6VE1 ENG(LX5) 04.164	8-94479-851-0	01	1	0710-1003	●
30	04.180 RACE; THRUST BRG,RR PLANETARY FL	8-97331-549-0	01	1	0306-	●
31	04.175 GEAR ASM; INTERNAL,PLANETARY,A/T	8-94479-854-0	01	1	0306-	●
31	04.175 GEAR ASM; INTERNAL,PLANETARY,A/T	8-97330-953-0	01	1	0306-		●
32	04.164 FLANGE; RING GEAR,RR PLANETARY,A	8-94479-852-0	01	1	0306-	●
33	04.166 RING; RET,PLANETARY GEAR,A/T	8-94479-853-0	01	1	0306-	●
36	04.164 RING; SEALING,FRT PLANETARY SHAF	8-94479-902-0	01	1	0306-	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98065-079-0	01	1	1008-	●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***) 6VE1 ENG(LX5)	8-97069-456-0	01	1	1008-	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 6VE1 ENG(LX5)	8-97184-427-0	01	1	0306-0609	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97184-427-0	01	1	0610-0709	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97184-427-0	01	1	0710-1003	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97184-427-0	01	1	1004-1007	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 6VE1 ENG(LX5)	8-97184-427-0	01	1	1008-	●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***) 6VE1 ENG(LX5)	8-97069-456-0	01	1	0306-0609	●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98050-557-0	01	1	0610-	●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***) 6VE1 ENG(LX5)	8-97069-456-0	01	1	0710-1003	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***)	8-97330-960-0	01	1	0306-		●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***)	8-97330-961-0	01	1	0306-		●
186	04.329 ROTOR; SPEED SENSOR 4X2(TFB***) 6VE1 ENG(LX5)	8-97331-552-0	01	1	0306-0609	●
186	04.329 ROTOR; SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97331-552-0	01	1	0610-0709	●
186	04.329 ROTOR; SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97331-552-0	01	1	0710-1003	●
186	04.329 ROTOR; SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97331-552-0	01	1	1004-1007	●
186	04.329 ROTOR; SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97331-552-0	01	1	1008-	●
186	04.329 ROTOR; SPEED SENSOR 4X4(TFS***) 6VE1 ENG(LX5)	8-97331-553-0	01	1	0306-0609	●
186	04.329 ROTOR; SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97331-553-0	01	1	0610-0709	●
186	04.329 ROTOR; SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97331-553-0	01	1	0710-1003	●
186	04.329 ROTOR; SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97331-553-0	01	1	1004-1007	●
186	04.329 ROTOR; SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97331-553-0	01	1	1008-	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X2(TFB***) 6VE1 ENG(LX5)	8-97069-451-0	01	1	0306-0609	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97069-451-0	01	1	0610-0709	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97069-451-0	01	1	0710-1003	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97069-451-0	01	1	1004-1007	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97069-451-0	01	1	1008-	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X4(TFS***) 6VE1 ENG(LX5) 04.337	8-94479-905-0	01	1	0306-0609	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0) 04.337	8-94479-905-0	01	1	0610-0709	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 04.337	8-94479-905-0	01	1	0710-1003	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0) 04.337	8-94479-905-0	01	1	1004-1007	●
187	04.338 RING; SNAP,ROTOR,SPEED SENSOR 4X4(TFS***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5) 04.337	8-94479-905-0	01	1	1008-	●
188	04.330 KEY; SPEED SENSOR ROTOR 04.337	8-94479-904-0	01	1	0306-	●

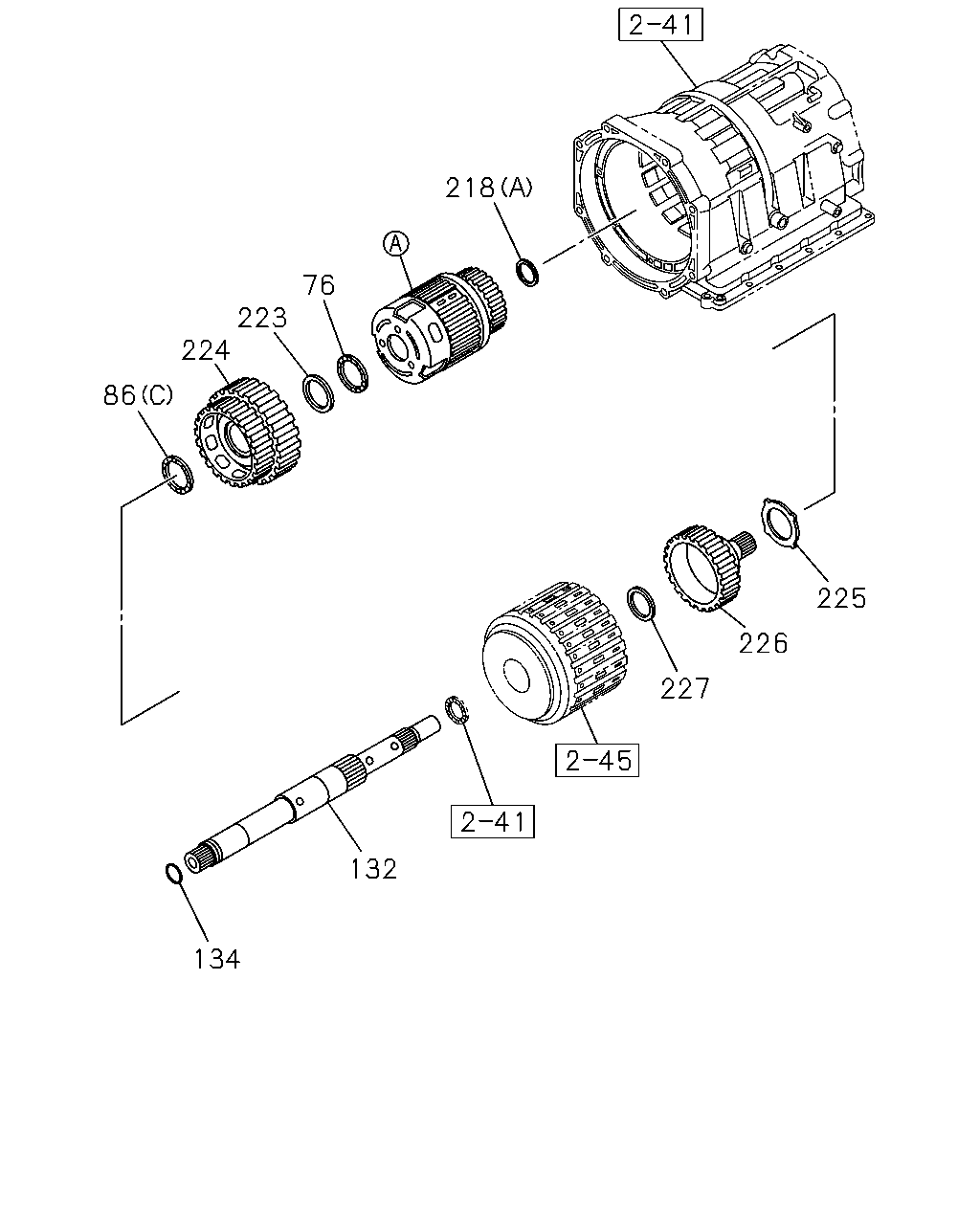

218 76 223 224 86 225 226 227 132 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
76	04.164 BEARING; THRUST,CARRIER	8-97330-927-0	01	1	0306-	●
86	04.166 BEARING; THRUST,SUN GEAR (A)	8-97330-919-0	01	1	0306-	●
86	04.166 BEARING; THRUST,SUN GEAR (B)	8-97330-920-0	01	1	0306-	●
86	04.166 BEARING; THRUST,SUN GEAR (C)	8-97330-926-0	01	1	0306-0711	●
86	04.166 BEARING; THRUST,SUN GEAR (C)	8-97374-016-0	01	1	0712-	●
132	04.123 SHAFT; INPUT,A/T	8-97330-931-0	01	1	0306-	●
134	04.166 SEAL; INPUT SHAFT,FRT	8-97331-697-0	01	1	0306-	●
218	04.164 BEARING; THRUST,INTERNAL GEAR (A)	8-97330-928-0	01	1	0306-	●
218	04.164 BEARING; THRUST,INTERNAL GEAR (B)	8-97330-938-0	01	1	0306-	●
223	04.164 RACE; BRG,CARRIER	8-97330-946-0	01	1	0306-	●
224	04.164 GEAR ASM; SUN,FRT	8-97357-796-0	01	1	0306-0711	●
224	04.164 GEAR ASM; SUN,FRT	8-97374-015-0	01	1	0712-	●
225	04.164 RACE; BRG,SUN GEAR	8-97330-949-0	01	1	0306-	●
226	04.164 HUB; HIGH CLUTCH	8-97331-038-0	01	1	0306-	●
227	04.164 BEARING; HUB,HIGH CLUTCH	8-97330-925-0	01	1	0306-	●

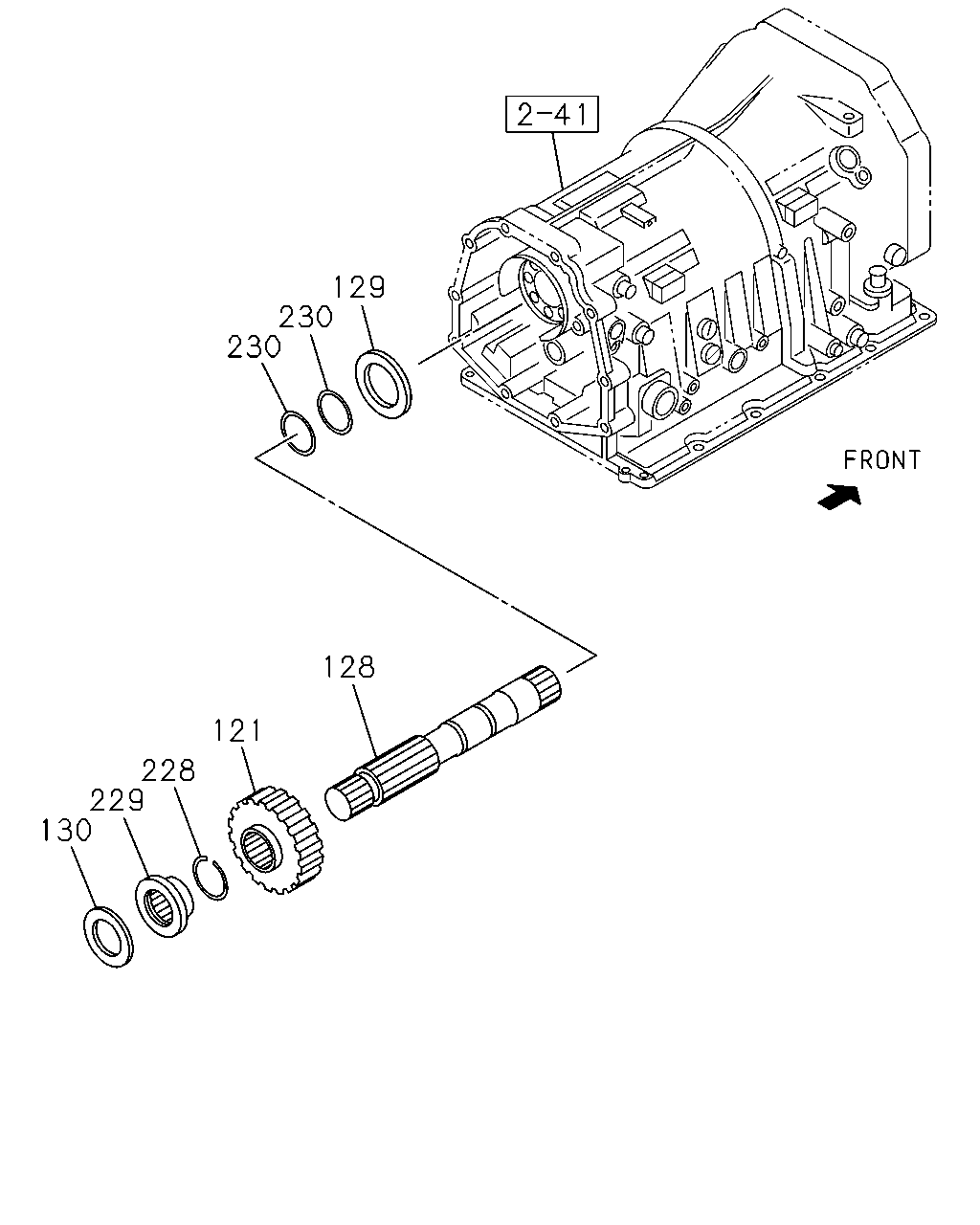

129 230 230 128 121 228 229 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
121	04.162 GEAR; PARKING LK,A/T	8-97330-962-0	01	1	0306-		●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98065-079-0	01	1	1008-	●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***) 6VE1 ENG(LX5)	8-97069-456-0	01	1	1008-	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 6VE1 ENG(LX5)	8-97184-427-0	01	1	0306-0609	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97184-427-0	01	1	0610-0709	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5)	8-97184-427-0	01	1	0710-1003	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-97184-427-0	01	1	1004-1007	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***) 6VE1 ENG(LX5)	8-97184-427-0	01	1	1008-	●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***) 6VE1 ENG(LX5)	8-97069-456-0	01	1	0306-0609	●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98050-557-0	01	1	0610-	●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***) 6VE1 ENG(LX5)	8-97069-456-0	01	1	0710-1003	●
128	04.175 SHAFT; OUTPUT,A/T 4X2(TFB***)	8-97330-960-0	01	1	0306-		●
128	04.175 SHAFT; OUTPUT,A/T 4X4(TFS***)	8-97330-961-0	01	1	0306-		●
129	04.176 BEARING; OUTPUT SHAFT,FRT,A/T	8-97330-918-0	01	1	0306-		●
130	04.176 BEARING; OUTPUT SHAFT,RR,A/T	8-97330-918-0	01	1	0306-		●
228	04.166 RING; SNAP,OUTPUT SHAFT 4X2(TFB***)	8-97330-963-0	02	1	0306-		●
228	04.166 RING; SNAP,OUTPUT SHAFT 4X4(TFS***)	8-97330-963-0	01	1	0306-		●
229	04.176 SPACER; OUTPUT SHAFT	8-97330-951-0	01	1	0306-		●
230	04.166 RING; SEAL,OUTPUT SHAFT	8-97330-983-0	02	1	0306-		●

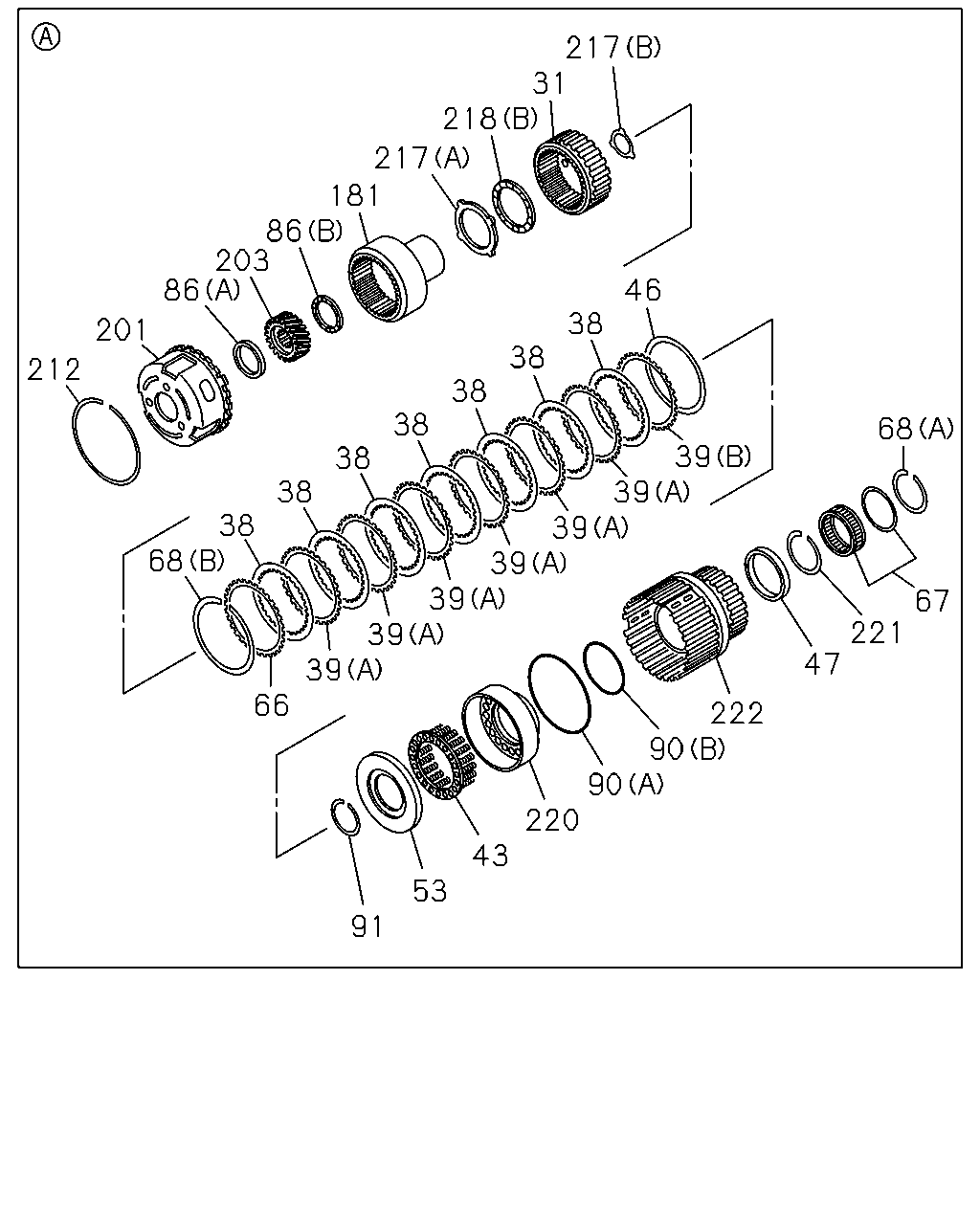

217 31 218 217 181 86 203 86 46 38 201 38 212 38 38 68 39 39 39 39 39 39 39 38 38 38 68 67 221 47 66 222 90 90 220 43 53 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	04.175 GEAR ASM; INTERNAL,PLANETARY,A/T	8-94479-854-0	01	1	0306-	●
31	04.175 GEAR ASM; INTERNAL,PLANETARY,A/T	8-97330-953-0	01	1	0306-		●
38	04.163 PLATE; DRIVE,LOW & REV,A/T	8-97330-998-0	07	1	0306-0711		●
38	04.163 PLATE; DRIVE,LOW & REV,A/T	8-98126-848-0	07	1	0712-		●
39	04.163 PLATE; DRIVEN,LOW & REV,A/T (A)	8-97331-005-0	06	1	0306-0711		●
39	04.163 PLATE; DRIVEN,LOW & REV,A/T (A)	8-97331-005-0	07	1	0712-		●
39	04.163 PLATE; DRIVEN,LOW & REV,A/T (B)	8-97331-008-0	01	1	0306-0711		●
43	04.164 SPRING; PISTON RETURN,A/T	8-97330-981-0	01	1	0306-		●
46	04.164 PLATE; DISHED,LOW & REV,A/T	8-97331-004-0	01	1	0306-		●
47	04.176 BEARING; NEEDLE,LOW & REV	8-97330-954-0	01	1	0306-		●
53	04.180 RETAINER; LOW & REV,CLU SPR	8-97331-041-0	01	1	0306-		●
66	04.163 PLATE; RET,CLU,LOW & REV,A/T T=3.8	8-97331-010-0	01	1	0306-		●
66	04.163 PLATE; RET,CLU,LOW & REV,A/T T=4.0	8-97331-011-0	01	1	0306-		●
66	04.163 PLATE; RET,CLU,LOW & REV,A/T T=4.2	8-97331-012-0	01	1	0306-		●
66	04.163 PLATE; RET,CLU,LOW & REV,A/T T=4.4	8-97331-013-0	01	1	0306-		●
66	04.163 PLATE; RET,CLU,LOW & REV,A/T T=4.6	8-97331-014-0	01	1	0306-		●
66	04.163 PLATE; RET,CLU,LOW & REV,A/T T=4.8	8-97331-024-0	01	1	0306-		●
67	04.164 CLUTCH ASM; ONEWAY,LOW & REV,A/T	8-97330-959-0	01	1	0306-		●
68	04.164 RING; SNAP,CLU,LOW & REV,A/T (A)	8-97330-965-0	01	1	0306-		●
68	04.164 RING; SNAP,CLU,LOW & REV,A/T (B)	8-97330-966-0	01	1	0306-		●
86	04.166 BEARING; THRUST,SUN GEAR (A)	8-97330-919-0	01	1	0306-		●
86	04.166 BEARING; THRUST,SUN GEAR (B)	8-97330-920-0	01	1	0306-		●
86	04.166 BEARING; THRUST,SUN GEAR (C)	8-97330-926-0	01	1	0306-0711		●
86	04.166 BEARING; THRUST,SUN GEAR (C)	8-97374-016-0	01	1	0712-		●
90	04.166 SEAL; PISTON,LOW & REV (A)	8-97330-990-0	01	1	0306-		●
90	04.166 SEAL; PISTON,LOW & REV (B)	8-97330-991-0	01	1	0306-		●
91	04.166 RING; SNAP,SPRING RET	8-97330-969-0	01	1	0306-		●
181	04.176 CARRIER ASM; RR PLANETARY,A/T	8-97330-952-0	01	1	0306-		●
201	04.176 CARRIER; PLANETARY	8-97357-797-0	01	1	0306-		●
203	04.166 GEAR; SUN	8-97330-956-0	01	1	0306-		●
212	04.166 RING; SNAP,PLANETARY CARRIER	8-97330-967-0	01	1	0306-		●
217	04.164 RACE; THRUST BRG,INTERNAL GEAR (A)	8-97330-939-0	01	1	0306-		●
217	04.164 RACE; THRUST BRG,INTERNAL GEAR (B)	8-97330-947-0	01	1	0306-		●
218	04.164 BEARING; THRUST,INTERNAL GEAR (A)	8-97330-928-0	01	1	0306-		●
218	04.164 BEARING; THRUST,INTERNAL GEAR (B)	8-97330-938-0	01	1	0306-		●
220	04.264 PISTON; LOW CLUTCH	8-97331-040-0	01	1	0306-0711		●
220	04.264 PISTON; LOW CLUTCH	8-97374-932-0	01	1	0712-		●
221	04.166 RING; SNAP,BRG,LOW CLUTCH 04.180	8-94483-379-0	01	1	0306-		●
222	04.164 DRUM; LOW CLUTCH	8-97331-039-0	01	1	0306-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
