2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#73953) — 133 parça

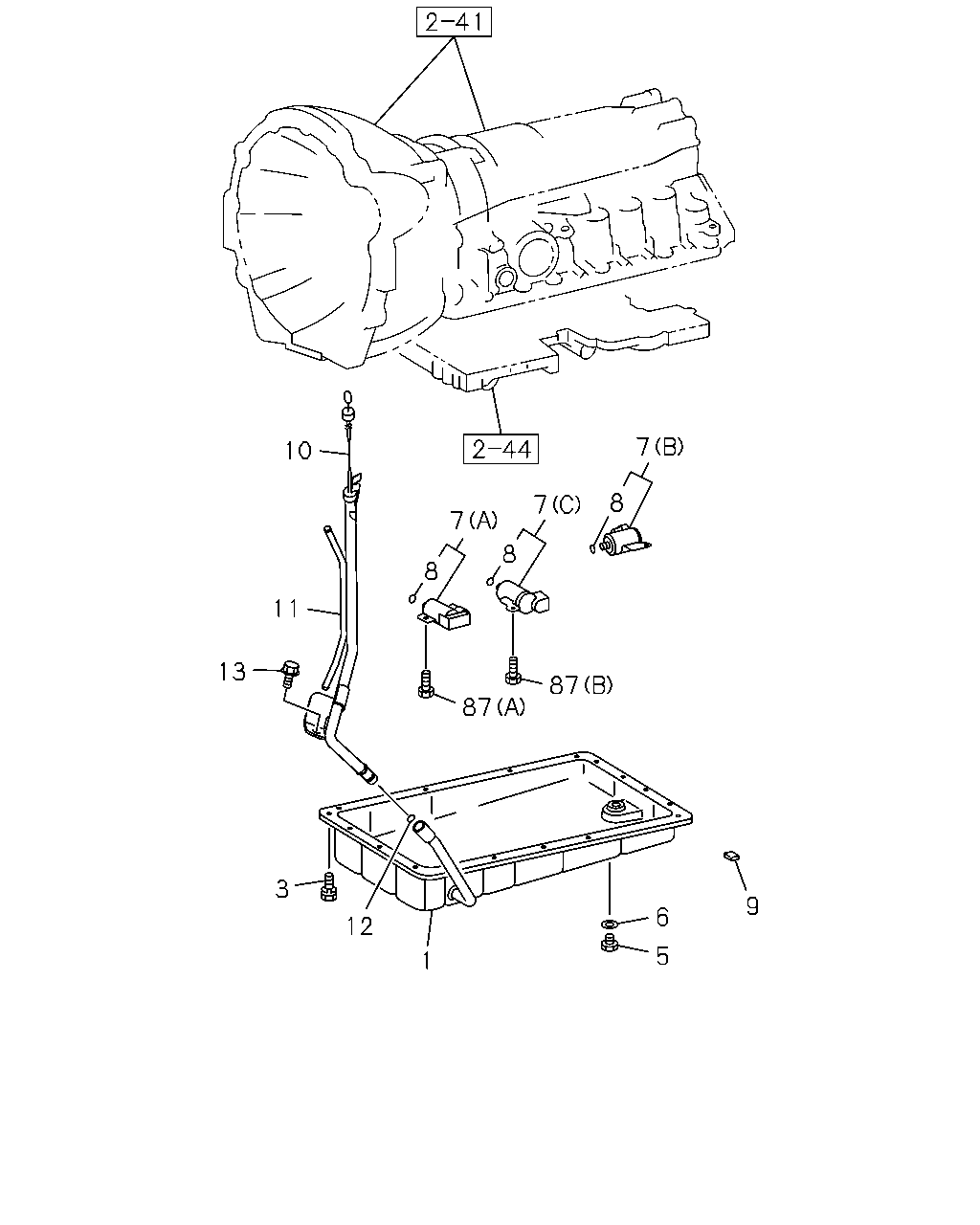

çizim 114392
7 10 8 7 7 8 8 11 13 87 87 3 9 6 12 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.195 PAN ASM; OIL,A/T
6VE1 ENG(LX5) 		8-97331-554-0 01 1 1008- ●
1 04.195 PAN ASM; OIL,A/T 8-97331-554-0 01 1 0306-0609 ●
1 04.195 PAN ASM; OIL,A/T 8-98050-558-0 01 1 0610-0709 ●
1 04.195 PAN ASM; OIL,A/T
4JJ1-TCX ENG(LS0) 		8-98050-558-0 01 1 0710- ●
1 04.195 PAN ASM; OIL,A/T
6VE1 ENG(LX5) 		8-97331-554-0 01 1 0710-1003 ●
1 04.195 PAN ASM; OIL,A/T 8-97330-915-0 01 1 0306- ●
3 04.196 BOLT; OIL PAN TO CASE 8-97130-928-0 19 1 0306- ●
3 04.196 BOLT; OIL PAN TO CASE 8-97330-911-0 19 1 0306- ●
5 04.195 PLUG; OIL PAN
6VE1 ENG(LX5) 		8-97355-016-0 01 1 1008- ●
5 04.195 PLUG; OIL PAN 8-97355-016-0 01 1 0306-0609 ●
5 04.195 PLUG; OIL PAN
M10X9 		8-97367-573-0 01 1 0610-0709 ●
5 04.195 PLUG; OIL PAN
4JJ1-TCX ENG(LS0) M10X9 		8-97367-573-0 01 1 0710- ●
5 04.195 PLUG; OIL PAN
6VE1 ENG(LX5) 		8-97355-016-0 01 1 0710-1003 ●
5 04.195 PLUG; OIL PAN 8-97131-023-0 01 1 0306- ●
6 04.195 GASKET; OIL PAN TO PLUG
6VE1 ENG(LX5) 		8-97355-015-0 01 1 1008- ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97355-015-0 01 1 0306-0609 ●
6 04.195 GASKET; OIL PAN TO PLUG
ID=12 		5-34132-002-0 01 1 0610-0709 ●
6 04.195 GASKET; OIL PAN TO PLUG
4JJ1-TCX ENG(LS0) ID=12 		5-34132-002-0 01 1 0710- ●
6 04.195 GASKET; OIL PAN TO PLUG
6VE1 ENG(LX5) 		8-97355-015-0 01 1 0710-1003 ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97044-671-0 01 1 0306- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(A) 		8-97214-539-0 01 1 0306- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(B) 		8-97218-986-0 01 1 0306- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(C) 		8-97218-987-0 01 1 0306- ●
8 04.265 GASKET; DOWN SHIFT SOLENOID,A/T
ID=6.1 		8-94480-101-0 03 1 0306- ●
9 04.195 MAGNET; OIL PAN 5-34138-004-0 04 1 0306- ●
9 04.195 MAGNET; OIL PAN 8-94140-738-0 01 1 0306- ●
10 04.197 GAUGE; OIL LEVEL
6VE1 ENG(LX5) 		8-97194-827-2 01 1 1008- ●
10 04.197 GAUGE; OIL LEVEL 8-97194-827-2 01 1 0306-0609 ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCX ENG(LS0) 		8-98043-896-0 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL
6VE1 ENG(LX5) 		8-97194-827-2 01 1 0710-1003 ●
10 04.197 GAUGE; OIL LEVEL 8-97261-073-2 01 1 0306-0609 ●
10 04.197 GAUGE; OIL LEVEL
4JH1-TC ENG(RDM) 		8-97261-073-2 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCS ENG(LFB) 		8-97371-037-0 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
6VE1 ENG(LX5) 		8-97326-283-4 01 1 1008- ●
11 04.197 TUBE; OIL FILLER 8-97326-283-4 01 1 0306-0609 ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCX ENG(LS0) 		8-98005-234-2 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
6VE1 ENG(LX5) 		8-97326-283-4 01 1 0710-1003 ●
11 04.197 TUBE; OIL FILLER 8-97231-903-1 01 1 0306-0609 ●
11 04.197 TUBE; OIL FILLER
4JH1-TC ENG(RDM) 		8-97231-903-1 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCS ENG(LFB) 		8-97380-513-0 01 1 0610- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 0306- ● ●
13 04.197 BOLT; OIL FILLER
6VE1 ENG(LX5) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1008- ●
13 04.197 BOLT; OIL FILLER
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0306-0609 ●
13 04.197 BOLT; OIL FILLER
6VE1 ENG(LX5) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0710-1003 ●
87 04.265 BOLT; SOLENOID
04.197 (B) M5X12 		8-94405-335-0 01 1 0306- ●
87 04.265 BOLT; SOLENOID
(A) M6X12 		8-94479-927-0 01 1 0306- ●

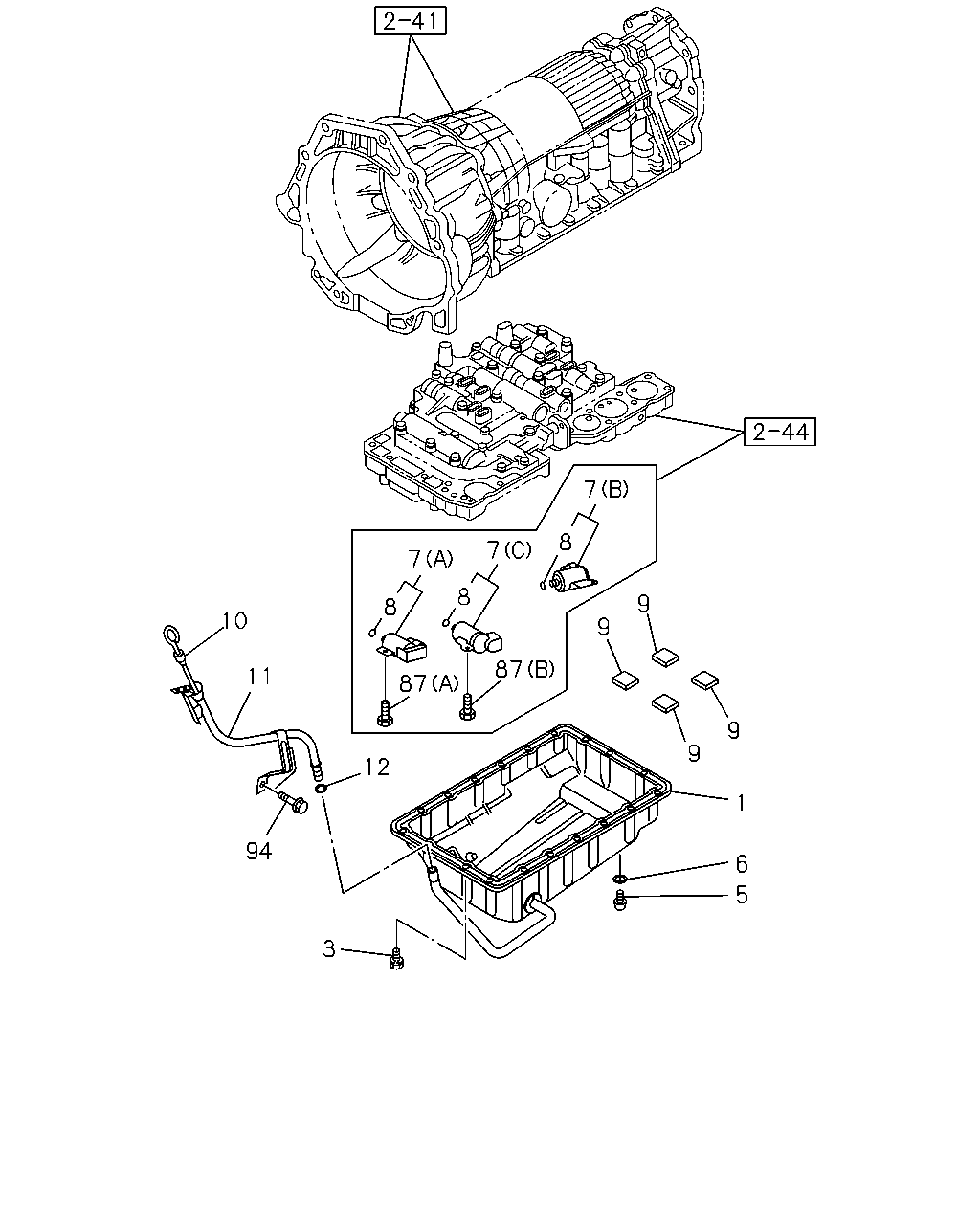

çizim 114554
7 8 7 7 8 9 8 10 9 87 11 87 9 9 12 1 94 6 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.195 PAN ASM; OIL,A/T
6VE1 ENG(LX5) 		8-97331-554-0 01 1 1008- ●
1 04.195 PAN ASM; OIL,A/T 8-97331-554-0 01 1 0306-0609 ●
1 04.195 PAN ASM; OIL,A/T 8-98050-558-0 01 1 0610-0709 ●
1 04.195 PAN ASM; OIL,A/T
4JJ1-TCX ENG(LS0) 		8-98050-558-0 01 1 0710- ●
1 04.195 PAN ASM; OIL,A/T
6VE1 ENG(LX5) 		8-97331-554-0 01 1 0710-1003 ●
1 04.195 PAN ASM; OIL,A/T 8-97330-915-0 01 1 0306- ●
3 04.196 BOLT; OIL PAN TO CASE 8-97130-928-0 19 1 0306- ●
3 04.196 BOLT; OIL PAN TO CASE 8-97330-911-0 19 1 0306- ●
5 04.195 PLUG; OIL PAN
6VE1 ENG(LX5) 		8-97355-016-0 01 1 1008- ●
5 04.195 PLUG; OIL PAN 8-97355-016-0 01 1 0306-0609 ●
5 04.195 PLUG; OIL PAN
M10X9 		8-97367-573-0 01 1 0610-0709 ●
5 04.195 PLUG; OIL PAN
4JJ1-TCX ENG(LS0) M10X9 		8-97367-573-0 01 1 0710- ●
5 04.195 PLUG; OIL PAN
6VE1 ENG(LX5) 		8-97355-016-0 01 1 0710-1003 ●
5 04.195 PLUG; OIL PAN 8-97131-023-0 01 1 0306- ●
6 04.195 GASKET; OIL PAN TO PLUG
6VE1 ENG(LX5) 		8-97355-015-0 01 1 1008- ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97355-015-0 01 1 0306-0609 ●
6 04.195 GASKET; OIL PAN TO PLUG
ID=12 		5-34132-002-0 01 1 0610-0709 ●
6 04.195 GASKET; OIL PAN TO PLUG
4JJ1-TCX ENG(LS0) ID=12 		5-34132-002-0 01 1 0710- ●
6 04.195 GASKET; OIL PAN TO PLUG
6VE1 ENG(LX5) 		8-97355-015-0 01 1 0710-1003 ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97044-671-0 01 1 0306- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(A) 		8-97214-539-0 01 1 0306- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(B) 		8-97218-986-0 01 1 0306- ●
7 04.265 SOLENOID; DOWN SHIFT,A/T
(C) 		8-97218-987-0 01 1 0306- ●
8 04.265 GASKET; DOWN SHIFT SOLENOID,A/T
ID=6.1 		8-94480-101-0 03 1 0306- ●
9 04.195 MAGNET; OIL PAN 5-34138-004-0 04 1 0306- ●
9 04.195 MAGNET; OIL PAN 8-94140-738-0 01 1 0306- ●
10 04.197 GAUGE; OIL LEVEL
6VE1 ENG(LX5) 		8-97194-827-2 01 1 1008- ●
10 04.197 GAUGE; OIL LEVEL 8-97194-827-2 01 1 0306-0609 ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCX ENG(LS0) 		8-98043-896-0 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL
6VE1 ENG(LX5) 		8-97194-827-2 01 1 0710-1003 ●
10 04.197 GAUGE; OIL LEVEL 8-97261-073-2 01 1 0306-0609 ●
10 04.197 GAUGE; OIL LEVEL
4JH1-TC ENG(RDM) 		8-97261-073-2 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCS ENG(LFB) 		8-97371-037-0 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
6VE1 ENG(LX5) 		8-97326-283-4 01 1 1008- ●
11 04.197 TUBE; OIL FILLER 8-97326-283-4 01 1 0306-0609 ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCX ENG(LS0) 		8-98005-234-2 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
6VE1 ENG(LX5) 		8-97326-283-4 01 1 0710-1003 ●
11 04.197 TUBE; OIL FILLER 8-97231-903-1 01 1 0306-0609 ●
11 04.197 TUBE; OIL FILLER
4JH1-TC ENG(RDM) 		8-97231-903-1 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCS ENG(LFB) 		8-97380-513-0 01 1 0610- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 0306- ● ●
87 04.265 BOLT; SOLENOID
04.197 (B) M5X12 		8-94405-335-0 01 1 0306- ●
87 04.265 BOLT; SOLENOID
(A) M6X12 		8-94479-927-0 01 1 0306- ●
94 04.197 BOLT; OIL FILLER TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0306-0609 ●
94 04.197 BOLT; OIL FILLER TUBE
4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610- ●
94 04.197 BOLT; OIL FILLER TUBE
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610- ●

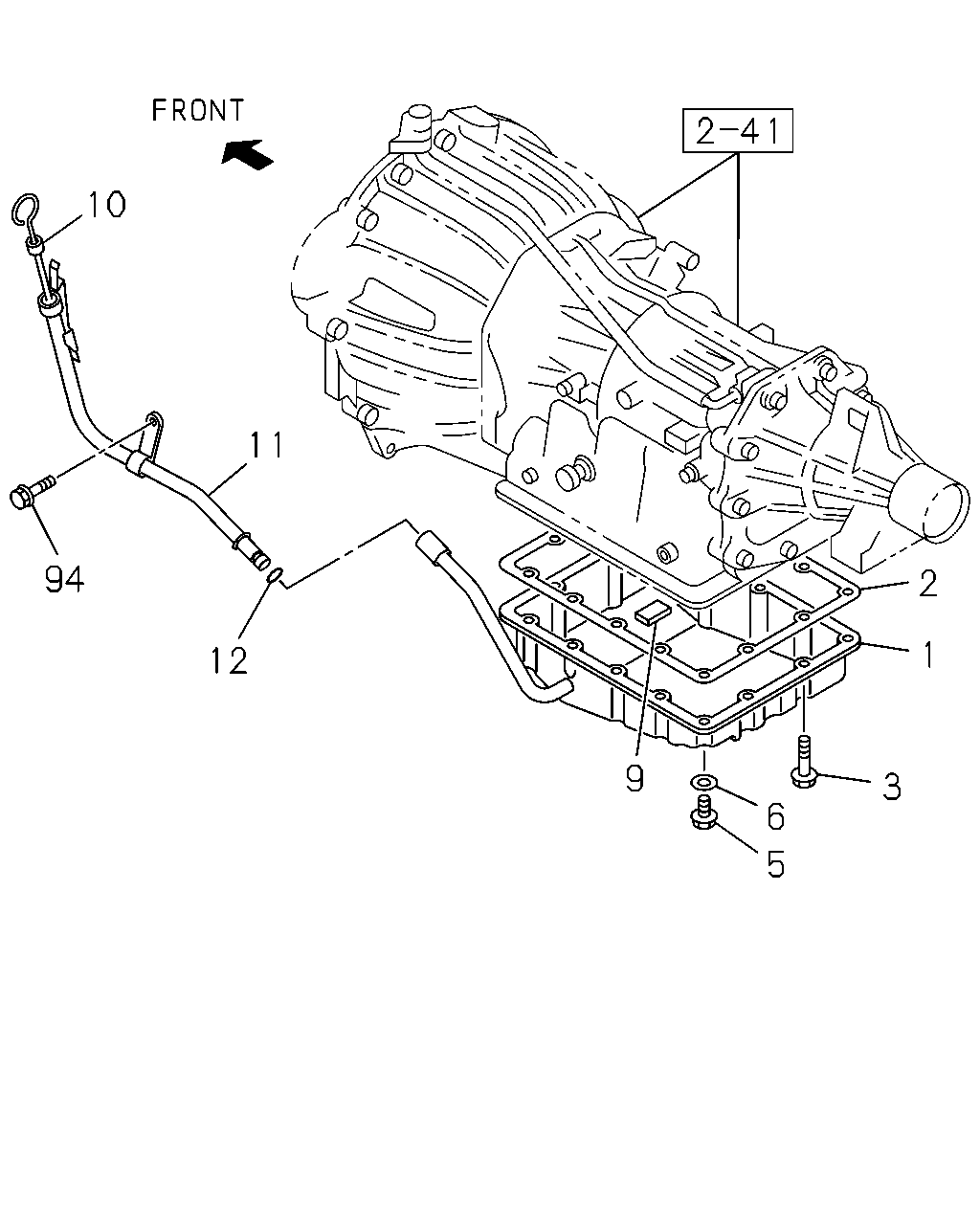

çizim 114592
10 11 2 94 1 12 9 3 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.195 PAN ASM; OIL,A/T
6VE1 ENG(LX5) 		8-97331-554-0 01 1 1008- ●
1 04.195 PAN ASM; OIL,A/T 8-97331-554-0 01 1 0306-0609 ●
1 04.195 PAN ASM; OIL,A/T 8-98050-558-0 01 1 0610-0709 ●
1 04.195 PAN ASM; OIL,A/T
4JJ1-TCX ENG(LS0) 		8-98050-558-0 01 1 0710- ●
1 04.195 PAN ASM; OIL,A/T
6VE1 ENG(LX5) 		8-97331-554-0 01 1 0710-1003 ●
1 04.195 PAN ASM; OIL,A/T 8-97330-915-0 01 1 0306- ●
2 04.196 GASKET; OIL PAN,A/T 8-97330-916-0 01 1 0306- ●
3 04.196 BOLT; OIL PAN TO CASE 8-97130-928-0 19 1 0306- ●
3 04.196 BOLT; OIL PAN TO CASE 8-97330-911-0 19 1 0306- ●
5 04.195 PLUG; OIL PAN
6VE1 ENG(LX5) 		8-97355-016-0 01 1 1008- ●
5 04.195 PLUG; OIL PAN 8-97355-016-0 01 1 0306-0609 ●
5 04.195 PLUG; OIL PAN
M10X9 		8-97367-573-0 01 1 0610-0709 ●
5 04.195 PLUG; OIL PAN
4JJ1-TCX ENG(LS0) M10X9 		8-97367-573-0 01 1 0710- ●
5 04.195 PLUG; OIL PAN
6VE1 ENG(LX5) 		8-97355-016-0 01 1 0710-1003 ●
5 04.195 PLUG; OIL PAN 8-97131-023-0 01 1 0306- ●
6 04.195 GASKET; OIL PAN TO PLUG
6VE1 ENG(LX5) 		8-97355-015-0 01 1 1008- ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97355-015-0 01 1 0306-0609 ●
6 04.195 GASKET; OIL PAN TO PLUG
ID=12 		5-34132-002-0 01 1 0610-0709 ●
6 04.195 GASKET; OIL PAN TO PLUG
4JJ1-TCX ENG(LS0) ID=12 		5-34132-002-0 01 1 0710- ●
6 04.195 GASKET; OIL PAN TO PLUG
6VE1 ENG(LX5) 		8-97355-015-0 01 1 0710-1003 ●
6 04.195 GASKET; OIL PAN TO PLUG 8-97044-671-0 01 1 0306- ●
9 04.195 MAGNET; OIL PAN 5-34138-004-0 04 1 0306- ●
9 04.195 MAGNET; OIL PAN 8-94140-738-0 01 1 0306- ●
10 04.197 GAUGE; OIL LEVEL
6VE1 ENG(LX5) 		8-97194-827-2 01 1 1008- ●
10 04.197 GAUGE; OIL LEVEL 8-97194-827-2 01 1 0306-0609 ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCX ENG(LS0) 		8-98043-896-0 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL
6VE1 ENG(LX5) 		8-97194-827-2 01 1 0710-1003 ●
10 04.197 GAUGE; OIL LEVEL 8-97261-073-2 01 1 0306-0609 ●
10 04.197 GAUGE; OIL LEVEL
4JH1-TC ENG(RDM) 		8-97261-073-2 01 1 0610- ●
10 04.197 GAUGE; OIL LEVEL
4JJ1-TCS ENG(LFB) 		8-97371-037-0 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
6VE1 ENG(LX5) 		8-97326-283-4 01 1 1008- ●
11 04.197 TUBE; OIL FILLER 8-97326-283-4 01 1 0306-0609 ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCX ENG(LS0) 		8-98005-234-2 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
6VE1 ENG(LX5) 		8-97326-283-4 01 1 0710-1003 ●
11 04.197 TUBE; OIL FILLER 8-97231-903-1 01 1 0306-0609 ●
11 04.197 TUBE; OIL FILLER
4JH1-TC ENG(RDM) 		8-97231-903-1 01 1 0610- ●
11 04.197 TUBE; OIL FILLER
4JJ1-TCS ENG(LFB) 		8-97380-513-0 01 1 0610- ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
04.133 ID=9.8 		9-09561-110-0 01 1 0306- ● ●
94 04.197 BOLT; OIL FILLER TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0306-0609 ●
94 04.197 BOLT; OIL FILLER TUBE
4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610- ●
94 04.197 BOLT; OIL FILLER TUBE
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610- ●
