2-30 — GEAR SHIFTER AND QUADRANT BOX (#73949) — 693 parça

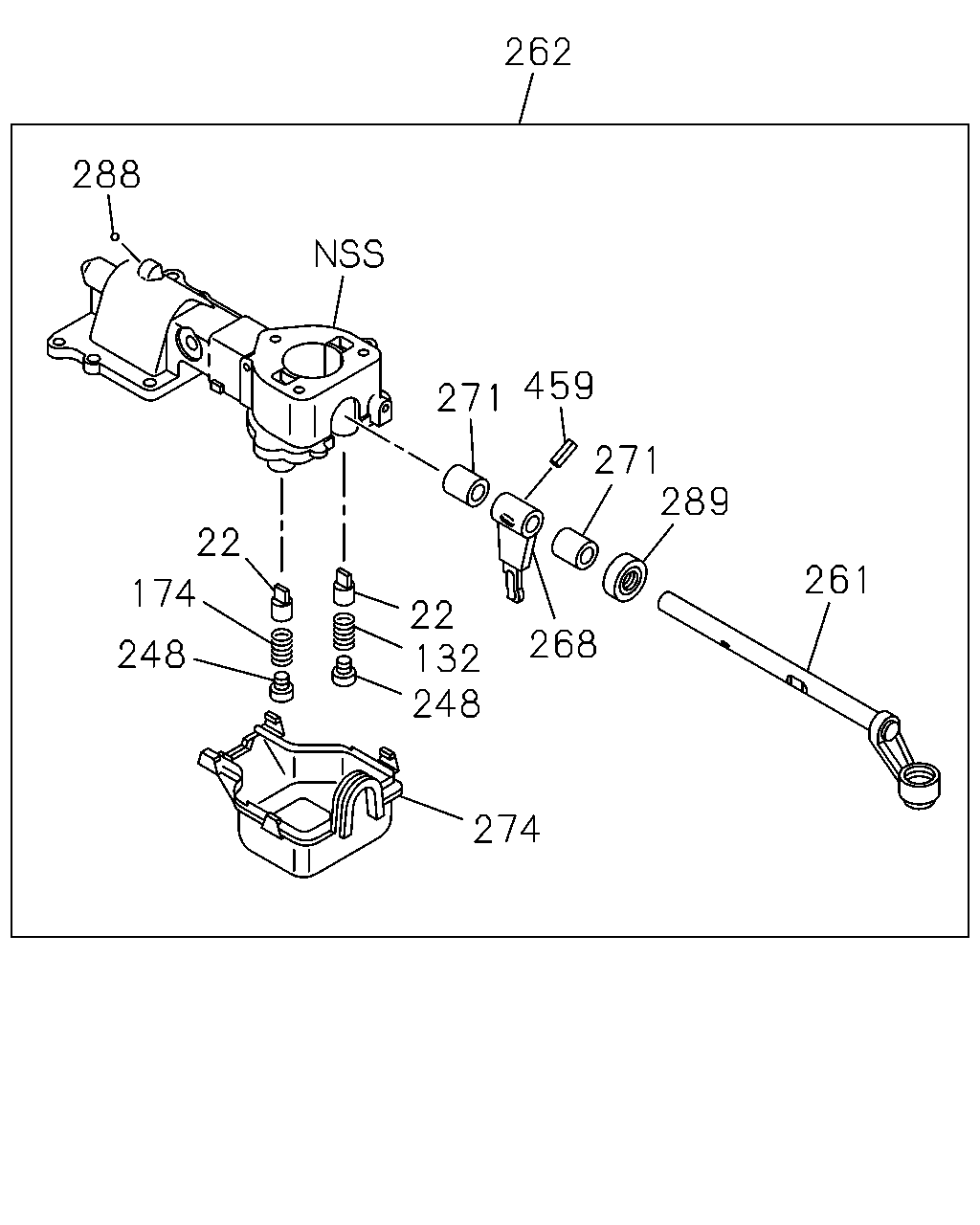

çizim 113376
262 288 459 271 271 289 22 261 174 22 132 248 268 248 274
BalonParca AdiParca NoAdetTipApplied Date A B C D E
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0306-0609 ● ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0610-1003 ● ● ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97181-326-0 02 1 1004-1007 ● ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 1008- ● ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 0306-0609 ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 0610-1003 ● ● ● ●
132 04.027 SPRING; SELECT STOP
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97181-395-0 01 1 1004-1007 ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 1008- ● ● ● ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 0306-0609 ● ● ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 0610-1003 ● ● ● ●
174 04.307 SPRING; REV
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97181-394-0 01 1 1004-1007 ● ● ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 1008- ● ● ● ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 0306-0609 ● ● ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 0610-1003 ● ● ● ●
248 04.105 RETAINER; CONT BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.307 		8-97181-325-0 02 1 1004-1007 ● ● ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 1008-1211 ● ● ● ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1212- ● ● ● ●
261 04.309 ROD; GEAR CONT 8-97257-825-0 01 1 0306- ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-909-0 01 1 0306-0609 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0306-0609 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1) 		8-97257-909-0 01 1 0610-0709 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0610-0709 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-909-0 01 1 0710-1003 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0710-1003 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1) 		8-97257-909-0 01 1 1004-1007 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-909-0 01 1 1008- ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 1008- ●
261 04.309 ROD; GEAR CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 0306-0609 ●
261 04.309 ROD; GEAR CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 0610-1007 ●
261 04.309 ROD; GEAR CONT
4JJ1-TCS ENG(LFB) 		8-97257-911-0 01 1 0610-1007 ●
261 04.309 ROD; GEAR CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 1008- ● ●
261 04.309 ROD; GEAR CONT
4JJ1-TCX ENG(LS0) 		8-97362-444-0 01 1 0610- ●
262 04.105 BOX ASM; SHIFT CONT 8-97201-493-1 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-735-0 01 1 0604-1204 ●
262 04.105 BOX ASM; SHIFT CONT 8-98203-266-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-824-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT 8-97257-824-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1) 		8-98017-739-0 01 1 0610-0709 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0610-0709 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 0710-1003 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0710-1003 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1) 		8-98017-739-0 01 1 1004-1007 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 1008-1204 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 1008-1204 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98203-265-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT 8-98203-265-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97180-891-2 01 1 0306-0306 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97357-040-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 0610-1007 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) 		8-98017-729-0 01 1 0610-1007 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 1008-1204 ● ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-98203-264-0 01 1 1205- ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-894-0 01 1 0306- ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0306-0609 ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0610-1003 ● ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 1004-1007 ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 1008- ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-97203-909-0 02 1 0306-0603 ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 0604-0609 ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 0610-1003 ● ● ● ●
271 04.105 BUSHING; QUAD BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) ID=14 L=12 		8-98017-908-0 02 1 1004-1007 ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 1008- ● ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0306-0609 ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0610-1003 ● ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97181-324-1 01 1 1004-1007 ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 1008- ● ● ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 0306-0609 ●
288 04.307 PLUG; AIR BREATHER
C24SE ENG(LG1),6VE1 ENG(LX5) 		9-00097-517-0 01 1 0306-0609 ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 0610-0709 ●
288 04.307 PLUG; AIR BREATHER
C24SE ENG(LG1) 		9-00097-517-0 01 1 0610-0709 ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 0710-1003 ●
288 04.307 PLUG; AIR BREATHER
C24SE ENG(LG1),6VE1 ENG(LX5) 		9-00097-517-0 01 1 0710-1003 ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 1004-1007 ●
288 04.307 PLUG; AIR BREATHER
C24SE ENG(LG1) 		9-00097-517-0 01 1 1004-1007 ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 1008- ●
288 04.307 PLUG; AIR BREATHER
C24SE ENG(LG1),6VE1 ENG(LX5) 		9-00097-517-0 01 1 1008- ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97181-327-0 01 1 0306-0603 ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 0604-0609 ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 0610-1003 ● ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-98017-744-0 01 1 1004-1007 ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 1008- ● ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0306-0609 ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0610-1003 ● ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) OD=5 		8-97184-905-0 01 1 1004-1007 ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 1008- ● ● ● ●

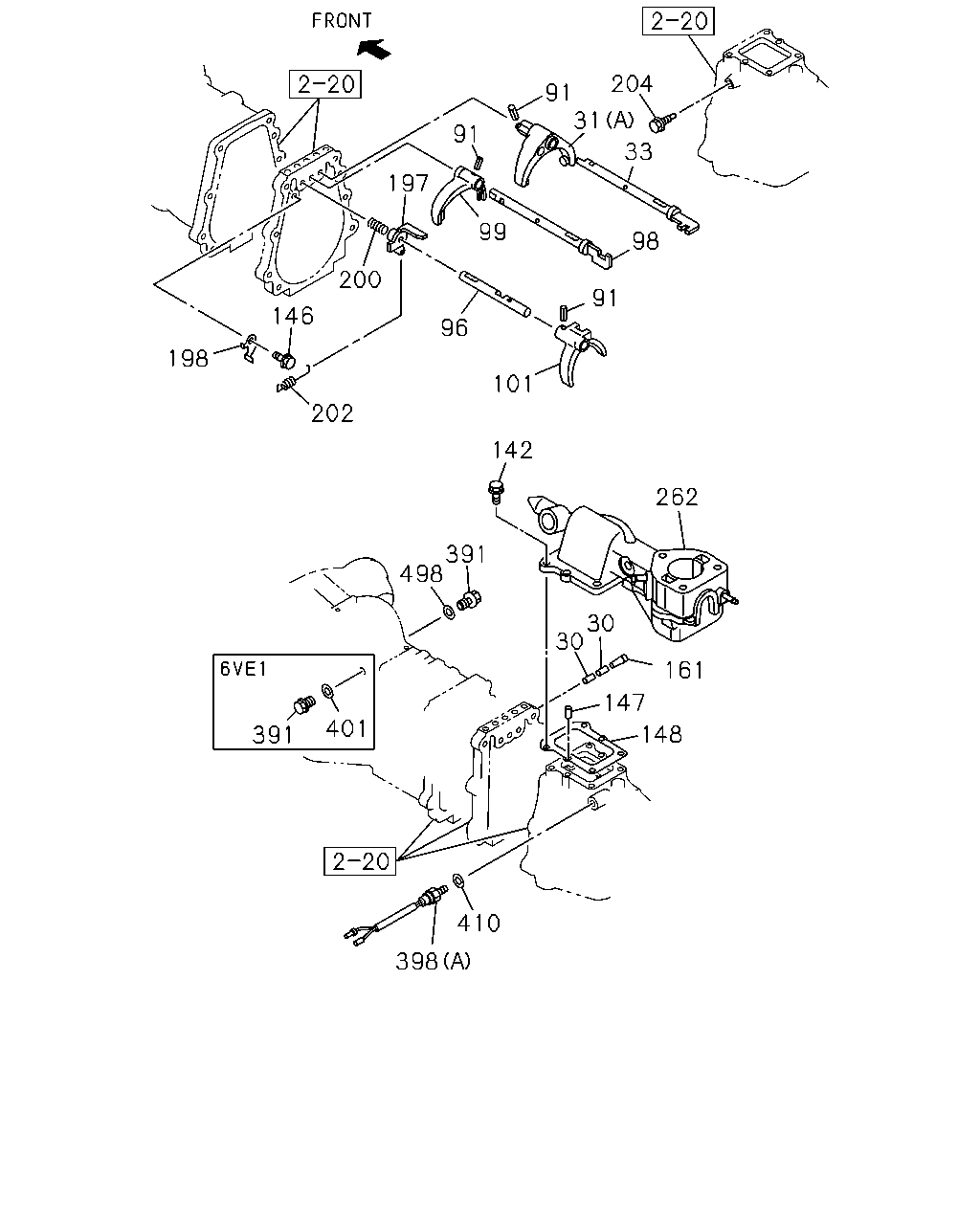

çizim 113425
204 91 31 91 33 197 99 98 200 91 146 96 198 101 202 142 262 391 498 30 30 161 147 401 148 391 410 398
BalonParca AdiParca NoAdetTipApplied Date A B C D E
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 0306-0609 ● ● ●
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 0610-1003 ● ● ● ●
30 04.307 PIN; INTER LK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) OD=5.5 L=10 		5-33534-002-1 02 1 1004-1007 ● ● ●
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 1008- ● ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-97024-503-1 01 1 0306-0902 ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-97024-503-1 01 1 0903- ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-94421-912-2 01 1 0306-0609 ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-94421-912-2 01 1 0610-1003 ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-94421-912-2 01 1 1004-1007 ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-94421-912-2 01 1 1008- ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
4JJ1-TCX ENG(LS0) (B) 		8-97362-435-0 01 1 0610- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97213-047-0 01 1 0306- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 0306-0609 ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 0610-1003 ● ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1004-1007 ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1008- ● ● ●
33 04.309 ROD; SHIFT,LOW & 2ND
4JJ1-TCX ENG(LS0) 		8-97362-441-0 01 1 0610- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 0306-0609 ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 0610-1003 ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.303 D=4.2 L=25 		8-94171-541-0 03 1 1004-1007 ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 1008- ● ● ● ●
96 04.309 ROD; SHIFT,5TH
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97232-886-0 01 1 0806- ●
96 04.309 ROD; SHIFT,5TH 8-94440-079-1 01 1 0306-0609 ● ●
96 04.309 ROD; SHIFT,5TH 8-94440-079-1 01 1 0610-0805 ● ● ●
96 04.309 ROD; SHIFT,5TH
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-94440-079-1 01 1 0806- ● ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97213-045-0 01 1 0306- ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 0306-0609 ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 0610-1003 ● ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 1004-1007 ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 1008- ● ● ●
99 04.302 ARM; SHIFT,4TH & 3RD
4JJ1-TCX ENG(LS0) 04.303 		8-97362-439-2 01 1 0610- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 0306- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 0306-0609 ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 0610-1003 ● ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 1004-1007 ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 1008- ● ● ●
101 04.302 ARM; SHIFT,REV & 5TH
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97232-894-0 01 1 0806- ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94455-851-3 01 1 0306- ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94448-755-2 01 1 0306-0609 ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94448-755-2 01 1 0610-0805 ● ● ●
101 04.302 ARM; SHIFT,REV & 5TH
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-94448-755-2 01 1 0806- ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 0306-0604 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0605-0609 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0610-1003 ● ● ● ●
142 04.012 BOLT; QUAD BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1004-1007 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1008- ● ● ● ●
142 04.012 BOLT; QUAD BOX
4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 0610- ●
146 04.032 BOLT; REV INHIBITOR
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0806- ●
146 04.032 BOLT; REV INHIBITOR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 0306-0512 ● ●
146 04.032 BOLT; REV INHIBITOR
04.338 M8X20 FLANGE 		0-28050-820-0 01 1 0601-0609 ● ●
146 04.032 BOLT; REV INHIBITOR
04.338 M8X20 FLANGE 		0-28050-820-0 01 1 0610-0805 ● ● ●
146 04.032 BOLT; REV INHIBITOR
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 04.338 M8X20 FLANGE 		0-28050-820-0 01 1 0806- ● ● ●
147 04.020 PIN; KNOCK
04.510 OD=6 L=12 		9-08150-612-0 02 1 0306-0609 ● ●
147 04.020 PIN; KNOCK
04.510 OD=6 L=12 		9-08150-612-0 02 1 0610-1003 ● ● ●
147 04.020 PIN; KNOCK
04.510 OD=6 L=12 		9-08150-612-0 02 1 1004-1007 ● ●
147 04.020 PIN; KNOCK
04.510 OD=6 L=12 		9-08150-612-0 02 1 1008- ● ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 0306- ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 0306-0609 ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 0610-1003 ● ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 1004-1007 ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 1008- ● ● ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0306-0609 ● ● ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0610-1003 ● ● ● ●
161 04.307 PLUG; INTER LK HOLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-94239-543-1 01 1 1004-1007 ● ● ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 1008- ● ● ● ●
197 04.309 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 0306-0609 ● ●
197 04.309 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 0610-1003 ● ● ●
197 04.309 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 1004-1007 ● ●
197 04.309 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 1008- ● ● ●
198 04.309 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 0306-0609 ● ●
198 04.309 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 0610-1003 ● ● ●
198 04.309 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 1004-1007 ● ●
198 04.309 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 1008- ● ● ●
200 04.309 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 0306-0609 ● ●
200 04.309 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 0610-1003 ● ● ●
200 04.309 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 1004-1007 ● ●
200 04.309 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 1008- ● ● ●
202 04.309 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 0306-0609 ● ●
202 04.309 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 0610-1003 ● ● ●
202 04.309 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 1004-1007 ● ●
202 04.309 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 1008- ● ● ●
204 04.309 STOPPER; REV INHIBITOR 8-94479-434-2 01 1 0306-0604 ● ●
204 04.309 STOPPER; REV INHIBITOR 8-98035-673-0 01 1 0605-0609 ● ●
204 04.309 STOPPER; REV INHIBITOR 8-98035-673-0 01 1 0610-1003 ● ● ●
204 04.309 STOPPER; REV INHIBITOR 8-98035-673-0 01 1 1004-1007 ● ●
204 04.309 STOPPER; REV INHIBITOR 8-98035-673-0 01 1 1008- ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-97201-493-1 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-735-0 01 1 0604-1204 ●
262 04.105 BOX ASM; SHIFT CONT 8-98203-266-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-824-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT 8-97257-824-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1) 		8-98017-739-0 01 1 0610-0709 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0610-0709 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 0710-1003 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0710-1003 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1) 		8-98017-739-0 01 1 1004-1007 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 1008-1204 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 1008-1204 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98203-265-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT 8-98203-265-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97180-891-2 01 1 0306-0306 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97357-040-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 0610-1007 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) 		8-98017-729-0 01 1 0610-1007 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 1008-1204 ● ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-98203-264-0 01 1 1205- ● ●
391 04.104 PLUG; SW HOLE
6VE1 ENG(LX5) M14X11 		8-98035-674-0 02 1 1010- ●
391 04.104 PLUG; SW HOLE
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) M14X11 		8-94252-142-0 01 1 0306-0604 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),6VE1 ENG(LX5) M14X11 		8-94252-142-0 01 1 0306-0604 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) M14X11 		8-94252-142-0 01 1 0306-0604 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-94252-142-0 01 1 0605-0609 ● ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11 		8-94252-142-0 01 1 0610-0709 ● ● ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 0605-0609 ●
391 04.104 PLUG; SW HOLE
4X4(TFS***) 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 0605-0609 ●
391 04.104 PLUG; SW HOLE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 0610-0709 ●
391 04.104 PLUG; SW HOLE
4JJ1-TCS ENG(LFB) M14X11 		8-98035-674-0 01 1 0610-0709 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) M14X11 		8-98035-674-0 01 1 0710-0809 ● ● ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 0810-1003 ● ● ●
391 04.104 PLUG; SW HOLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 0810-1003 ● ●
391 04.104 PLUG; SW HOLE
6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 0810-1003 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11 		8-98035-674-0 01 1 1004-1007 ● ●
391 04.104 PLUG; SW HOLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 1004-1007 ● ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1008-1008 ● ●
391 04.104 PLUG; SW HOLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 1008-1008 ● ●
391 04.104 PLUG; SW HOLE
6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1008-1008 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1009-1009 ● ● ●
391 04.104 PLUG; SW HOLE
6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1009-1009 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1010- ● ● ●
398 02.698 SWITCH; REV LAMP
04.439 (A) 		8-94411-366-1 01 1 0306-0602 ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98042-851-0 01 1 0603-0609 ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-679-0 01 1 0610-0709 ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98042-851-0 01 1 0710- ●
398 02.698 SWITCH; REV LAMP
(A) 		8-97138-635-0 01 1 0306-0604 ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-681-0 01 1 0605-0609 ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-681-0 01 1 0610-1003 ● ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-681-0 01 1 1004-1007 ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-681-0 01 1 1008-1405 ● ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98181-802-0 01 1 1406- ● ● ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCX ENG(LS0) (B) 		8-98037-159-0 01 1 0610-1405 ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCX ENG(LS0) (B) 		8-98181-801-0 01 1 1406- ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCX ENG(LS0) (C) 		8-98037-160-0 01 1 0610-1405 ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCX ENG(LS0) (C) 		8-98180-973-0 01 1 1406- ●
401 04.075 GASKET; SWITCH,TOP & 3RD
6VE1 ENG(LX5) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1008- ●
401 04.075 GASKET; SWITCH,TOP & 3RD
6VE1 ENG(LX5) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0306-0609 ●
401 04.075 GASKET; SWITCH,TOP & 3RD
6VE1 ENG(LX5) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0710-1003 ●
410 04.054 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0306-0609 ● ●
410 04.054 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0610-1003 ● ● ●
410 04.054 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1004-1007 ● ●
410 04.054 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1008- ● ● ●
498 04.075 GASKET; SWITCH,1ST & 2ND
6VE1 ENG(LX5) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1010- ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0306-0609 ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0610-0709 ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4JJ1-TCS ENG(LFB) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0610-0709 ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0710-1003 ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4JJ1-TCS ENG(LFB) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0710-1003 ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1004-1007 ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4JJ1-TCS ENG(LFB) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1004-1007 ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1008-1008 ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1008-1008 ●

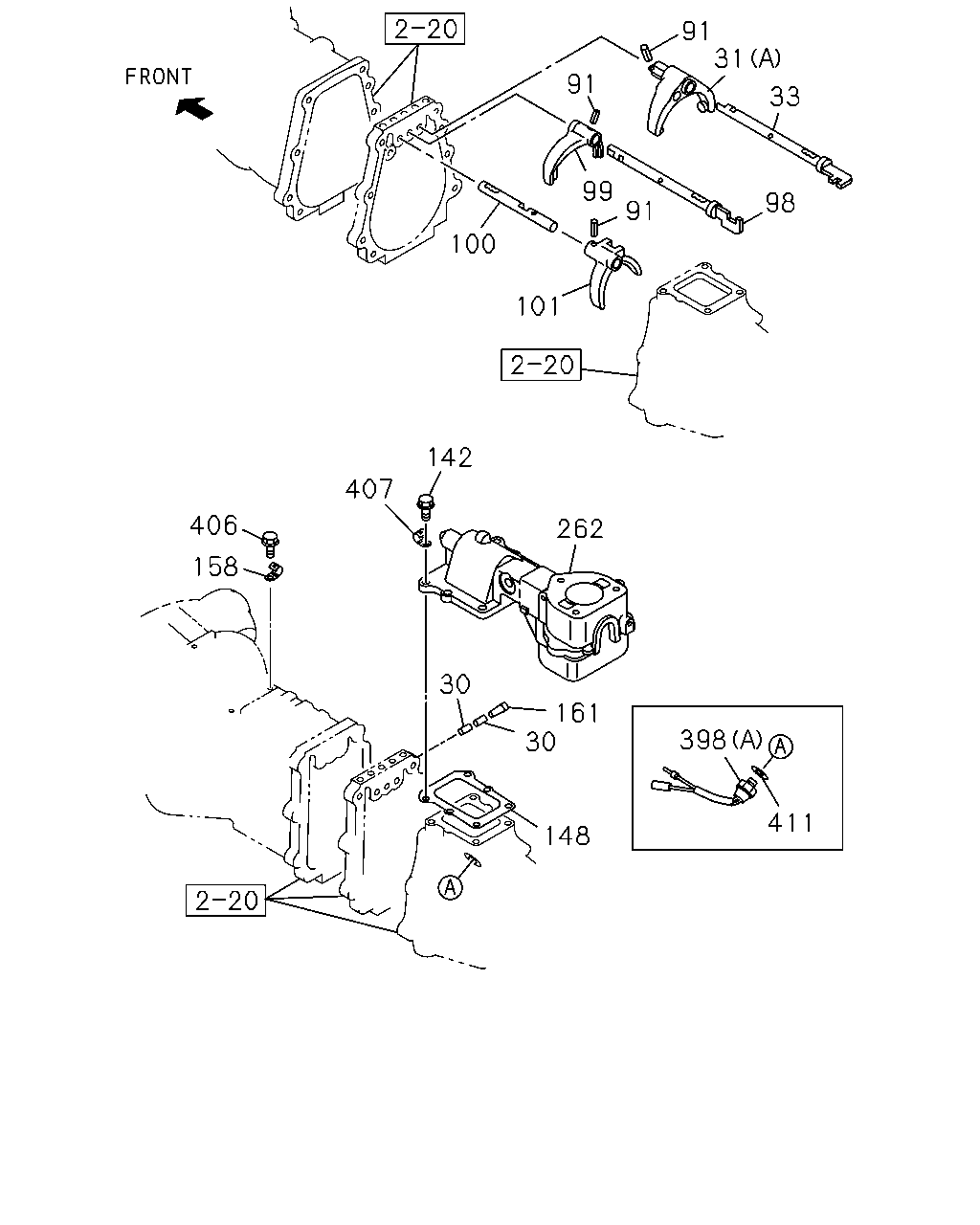

çizim 113432
91 31 91 33 99 98 91 100 101 142 407 406 262 158 30 161 30 398 411 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 0306-0609 ● ● ●
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 0610-1003 ● ● ● ●
30 04.307 PIN; INTER LK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) OD=5.5 L=10 		5-33534-002-1 02 1 1004-1007 ● ● ●
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 1008- ● ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-97024-503-1 01 1 0306-0902 ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-97024-503-1 01 1 0903- ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-94421-912-2 01 1 0306-0609 ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-94421-912-2 01 1 0610-1003 ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-94421-912-2 01 1 1004-1007 ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-94421-912-2 01 1 1008- ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
4JJ1-TCX ENG(LS0) (B) 		8-97362-435-0 01 1 0610- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97213-047-0 01 1 0306- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 0306-0609 ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 0610-1003 ● ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1004-1007 ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1008- ● ● ●
33 04.309 ROD; SHIFT,LOW & 2ND
4JJ1-TCX ENG(LS0) 		8-97362-441-0 01 1 0610- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 0306-0609 ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 0610-1003 ● ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.303 D=4.2 L=25 		8-94171-541-0 03 1 1004-1007 ● ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 1008- ● ● ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97213-045-0 01 1 0306- ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 0306-0609 ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 0610-1003 ● ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 1004-1007 ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 1008- ● ● ●
99 04.302 ARM; SHIFT,4TH & 3RD
4JJ1-TCX ENG(LS0) 04.303 		8-97362-439-2 01 1 0610- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 0306- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 0306-0609 ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 0610-1003 ● ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 1004-1007 ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 1008- ● ● ●
100 04.309 ROD; SHIFT,REV & 5TH 8-97115-185-0 01 1 0306-0902 ●
100 04.309 ROD; SHIFT,REV & 5TH 8-97232-885-0 01 1 0903- ●
101 04.302 ARM; SHIFT,REV & 5TH
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97232-894-0 01 1 0806- ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94455-851-3 01 1 0306- ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94448-755-2 01 1 0306-0609 ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-94448-755-2 01 1 0610-0805 ● ● ●
101 04.302 ARM; SHIFT,REV & 5TH
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-94448-755-2 01 1 0806- ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 0306-0604 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0605-0609 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0610-1003 ● ● ● ●
142 04.012 BOLT; QUAD BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1004-1007 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1008- ● ● ● ●
142 04.012 BOLT; QUAD BOX
4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 0610- ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 0306- ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 0306-0609 ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 0610-1003 ● ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 1004-1007 ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 1008- ● ● ●
158 04.105 CLIP; HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 02 1 0306-0604 ●
158 04.105 CLIP; HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 0605- ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0306-0609 ● ● ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0610-1003 ● ● ● ●
161 04.307 PLUG; INTER LK HOLE
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-94239-543-1 01 1 1004-1007 ● ● ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 1008- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT 8-97201-493-1 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-735-0 01 1 0604-1204 ●
262 04.105 BOX ASM; SHIFT CONT 8-98203-266-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-824-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT 8-97257-824-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1) 		8-98017-739-0 01 1 0610-0709 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0610-0709 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 0710-1003 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0710-1003 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1) 		8-98017-739-0 01 1 1004-1007 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 1008-1204 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 1008-1204 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98203-265-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT 8-98203-265-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97180-891-2 01 1 0306-0306 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97357-040-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 0610-1007 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) 		8-98017-729-0 01 1 0610-1007 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 1008-1204 ● ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-98203-264-0 01 1 1205- ● ●
398 02.698 SWITCH; REV LAMP
04.439 (A) 		8-94411-366-1 01 1 0306-0602 ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98042-851-0 01 1 0603-0609 ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-679-0 01 1 0610-0709 ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98042-851-0 01 1 0710- ●
398 02.698 SWITCH; REV LAMP
(A) 		8-97138-635-0 01 1 0306-0604 ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-681-0 01 1 0605-0609 ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-681-0 01 1 0610-1003 ● ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-681-0 01 1 1004-1007 ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-681-0 01 1 1008-1405 ● ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98181-802-0 01 1 1406- ● ● ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCX ENG(LS0) (B) 		8-98037-159-0 01 1 0610-1405 ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCX ENG(LS0) (B) 		8-98181-801-0 01 1 1406- ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCX ENG(LS0) (C) 		8-98037-160-0 01 1 0610-1405 ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCX ENG(LS0) (C) 		8-98180-973-0 01 1 1406- ●
406 02.559 BOLT; HARNESS CLIP
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0306-0512 ●
406 02.559 BOLT; HARNESS CLIP
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
407 02.698 CLIP; SWITCH HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0306-0609 ●
407 02.698 CLIP; SWITCH HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0610- ●
411 02.698 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 0306- ●

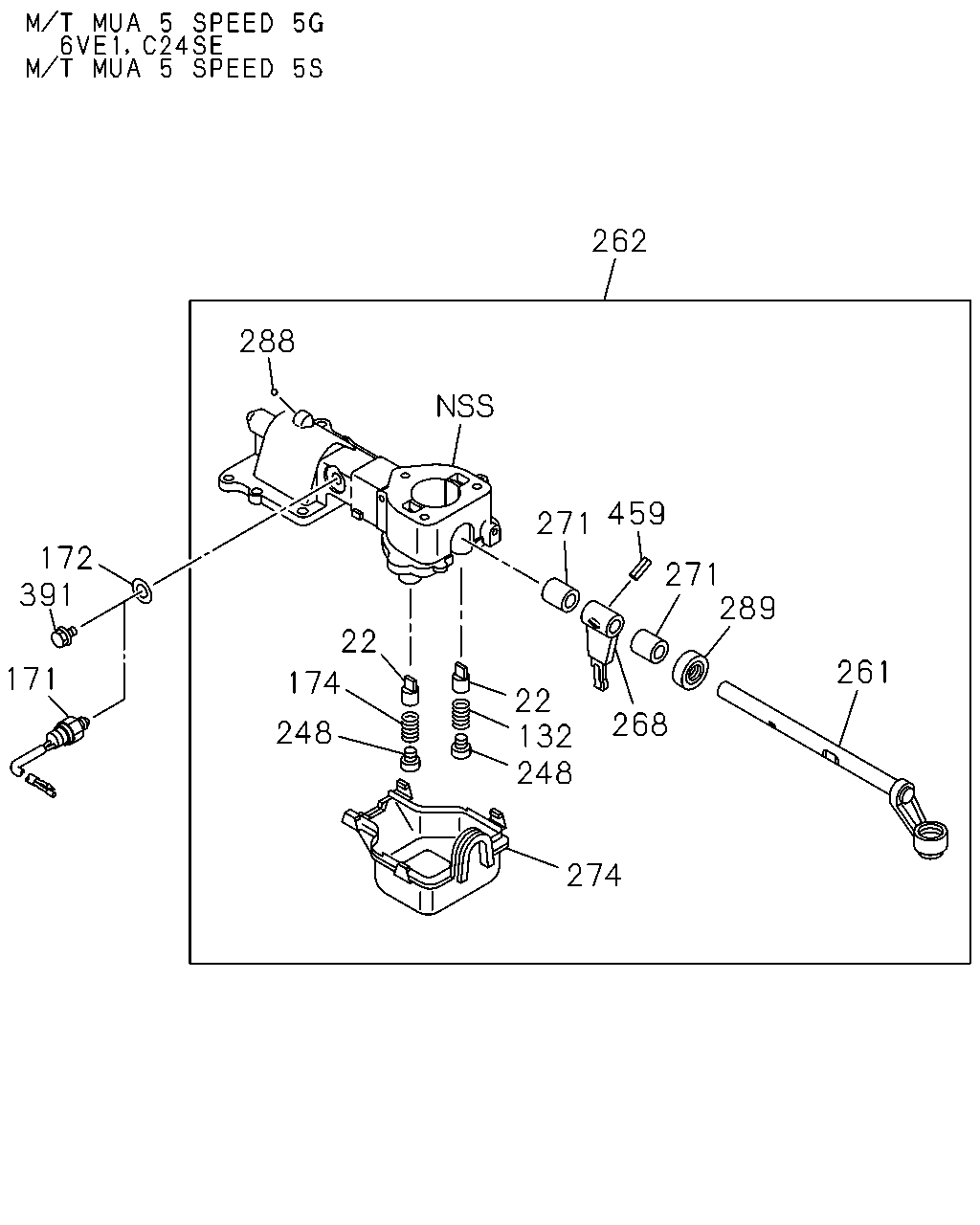

çizim 113868
262 288 459 271 172 391 271 289 22 261 171 174 22 132 248 268 248 274
BalonParca AdiParca NoAdetTipApplied Date A B C D E
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0306-0609 ● ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0610-1003 ● ● ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97181-326-0 02 1 1004-1007 ● ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 1008- ● ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 0306-0609 ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 0610-1003 ● ● ● ●
132 04.027 SPRING; SELECT STOP
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97181-395-0 01 1 1004-1007 ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 1008- ● ● ● ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-97138-631-0 01 1 0306-0609 ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97138-631-0 01 1 0306-0609 ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-97138-631-0 01 1 0610-0612 ● ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97138-631-0 01 1 0610-0612 ● ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-98035-680-0 01 1 0701-1003 ● ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-98035-680-0 01 1 0701-1003 ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-98035-680-0 01 1 1004-1007 ● ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-98035-680-0 01 1 1004-1007 ● ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-98035-680-0 01 1 1008- ● ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-98035-680-0 01 1 1008- ● ●
171 04.054 SWITCH; NEUTRAL
4JJ1-TCX ENG(LS0) 04.075 		8-97358-606-0 01 1 0610-1405 ●
171 04.054 SWITCH; NEUTRAL
4JJ1-TCX ENG(LS0) 		8-98180-974-0 01 1 1406- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 0306-0609 ● ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 0610-1003 ● ● ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1004-1007 ● ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1008- ● ● ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 0306-0609 ● ● ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 0610-1003 ● ● ● ●
174 04.307 SPRING; REV
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97181-394-0 01 1 1004-1007 ● ● ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 1008- ● ● ● ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 0306-0609 ● ● ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 0610-1003 ● ● ● ●
248 04.105 RETAINER; CONT BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.307 		8-97181-325-0 02 1 1004-1007 ● ● ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 1008-1211 ● ● ● ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1212- ● ● ● ●
261 04.309 ROD; GEAR CONT 8-97257-825-0 01 1 0306- ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-909-0 01 1 0306-0609 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0306-0609 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1) 		8-97257-909-0 01 1 0610-0709 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0610-0709 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-909-0 01 1 0710-1003 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0710-1003 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1) 		8-97257-909-0 01 1 1004-1007 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-909-0 01 1 1008- ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 1008- ●
261 04.309 ROD; GEAR CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 0306-0609 ●
261 04.309 ROD; GEAR CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 0610-1007 ●
261 04.309 ROD; GEAR CONT
4JJ1-TCS ENG(LFB) 		8-97257-911-0 01 1 0610-1007 ●
261 04.309 ROD; GEAR CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 1008- ● ●
261 04.309 ROD; GEAR CONT
4JJ1-TCX ENG(LS0) 		8-97362-444-0 01 1 0610- ●
262 04.105 BOX ASM; SHIFT CONT 8-97201-493-1 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-735-0 01 1 0604-1204 ●
262 04.105 BOX ASM; SHIFT CONT 8-98203-266-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-824-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT 8-97257-824-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1) 		8-98017-739-0 01 1 0610-0709 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0610-0709 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 0710-1003 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0710-1003 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1) 		8-98017-739-0 01 1 1004-1007 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 1008-1204 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 1008-1204 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98203-265-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT 8-98203-265-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97180-891-2 01 1 0306-0306 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97357-040-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 0610-1007 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) 		8-98017-729-0 01 1 0610-1007 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 1008-1204 ● ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-98203-264-0 01 1 1205- ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-894-0 01 1 0306- ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0306-0609 ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0610-1003 ● ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 1004-1007 ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 1008- ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-97203-909-0 02 1 0306-0603 ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 0604-0609 ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 0610-1003 ● ● ● ●
271 04.105 BUSHING; QUAD BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) ID=14 L=12 		8-98017-908-0 02 1 1004-1007 ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 1008- ● ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0306-0609 ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0610-1003 ● ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97181-324-1 01 1 1004-1007 ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 1008- ● ● ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 0306-0609 ●
288 04.307 PLUG; AIR BREATHER
C24SE ENG(LG1),6VE1 ENG(LX5) 		9-00097-517-0 01 1 0306-0609 ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 0610-0709 ●
288 04.307 PLUG; AIR BREATHER
C24SE ENG(LG1) 		9-00097-517-0 01 1 0610-0709 ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 0710-1003 ●
288 04.307 PLUG; AIR BREATHER
C24SE ENG(LG1),6VE1 ENG(LX5) 		9-00097-517-0 01 1 0710-1003 ● ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 1004-1007 ●
288 04.307 PLUG; AIR BREATHER
C24SE ENG(LG1) 		9-00097-517-0 01 1 1004-1007 ●
288 04.307 PLUG; AIR BREATHER 9-00097-517-0 01 1 1008- ●
288 04.307 PLUG; AIR BREATHER
C24SE ENG(LG1),6VE1 ENG(LX5) 		9-00097-517-0 01 1 1008- ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97181-327-0 01 1 0306-0603 ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 0604-0609 ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 0610-1003 ● ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-98017-744-0 01 1 1004-1007 ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 1008- ● ● ● ●
391 04.104 PLUG; SW HOLE
6VE1 ENG(LX5) M14X11 		8-98035-674-0 02 1 1010- ●
391 04.104 PLUG; SW HOLE
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) M14X11 		8-94252-142-0 01 1 0306-0604 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),6VE1 ENG(LX5) M14X11 		8-94252-142-0 01 1 0306-0604 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) M14X11 		8-94252-142-0 01 1 0306-0604 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-94252-142-0 01 1 0605-0609 ● ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11 		8-94252-142-0 01 1 0610-0709 ● ● ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 0605-0609 ●
391 04.104 PLUG; SW HOLE
4X4(TFS***) 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 0605-0609 ●
391 04.104 PLUG; SW HOLE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 0610-0709 ●
391 04.104 PLUG; SW HOLE
4JJ1-TCS ENG(LFB) M14X11 		8-98035-674-0 01 1 0610-0709 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) M14X11 		8-98035-674-0 01 1 0710-0809 ● ● ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 0810-1003 ● ● ●
391 04.104 PLUG; SW HOLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 0810-1003 ● ●
391 04.104 PLUG; SW HOLE
6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 0810-1003 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11 		8-98035-674-0 01 1 1004-1007 ● ●
391 04.104 PLUG; SW HOLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 1004-1007 ● ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1008-1008 ● ●
391 04.104 PLUG; SW HOLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 1008-1008 ● ●
391 04.104 PLUG; SW HOLE
6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1008-1008 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1009-1009 ● ● ●
391 04.104 PLUG; SW HOLE
6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1009-1009 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1010- ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0306-0609 ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0610-1003 ● ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) OD=5 		8-97184-905-0 01 1 1004-1007 ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 1008- ● ● ● ●

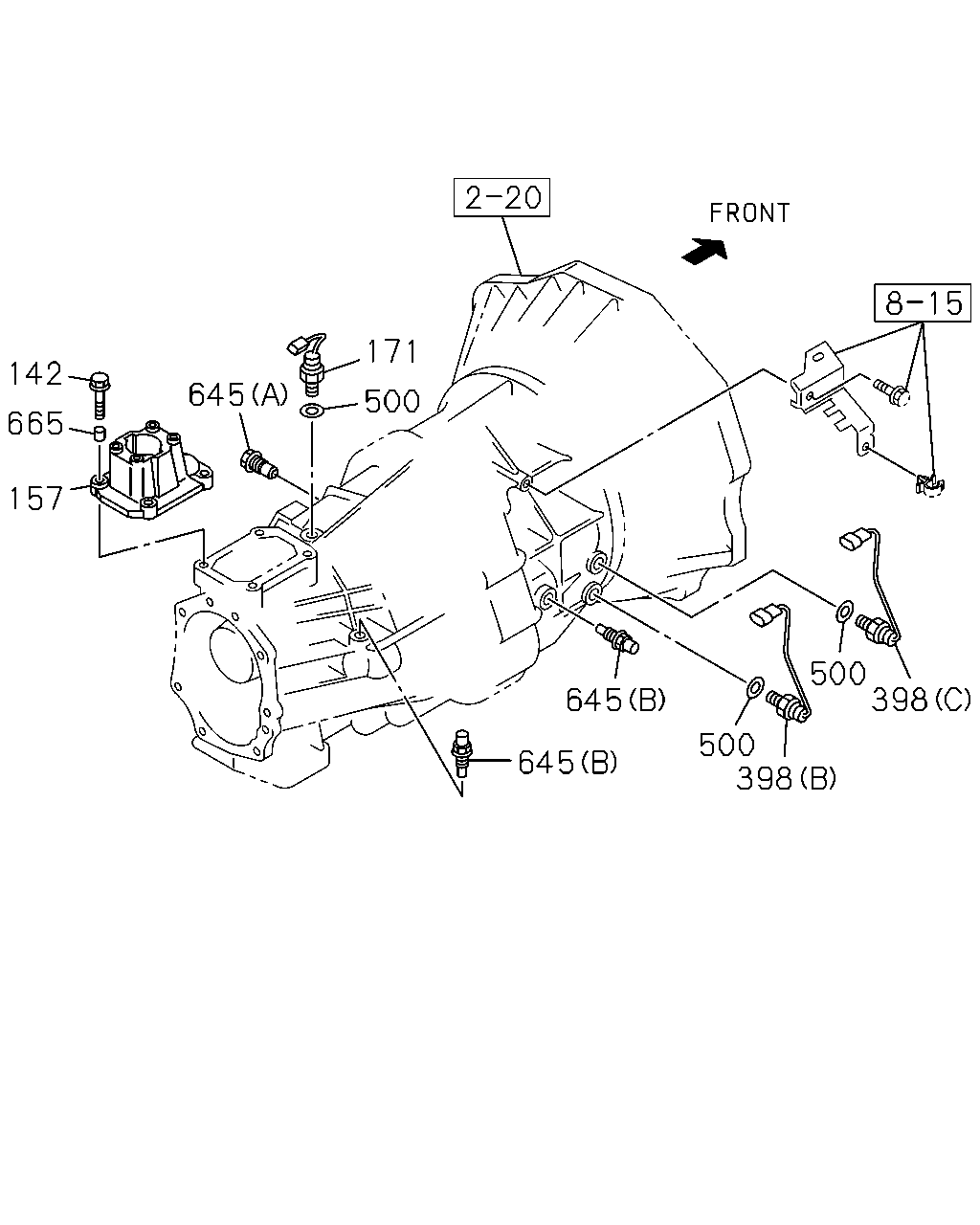

çizim 114048
171 142 645 500 665 157 500 398 645 500 398 645
BalonParca AdiParca NoAdetTipApplied Date A B C D E
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 0306-0604 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0605-0609 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0610-1003 ● ● ● ●
142 04.012 BOLT; QUAD BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1004-1007 ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1008- ● ● ● ●
142 04.012 BOLT; QUAD BOX
4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 0610- ●
157 04.105 BOX; QUAD,TRANS
4JJ1-TCX ENG(LS0) 		8-97362-383-0 01 1 0610- ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-97138-631-0 01 1 0306-0609 ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97138-631-0 01 1 0306-0609 ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-97138-631-0 01 1 0610-0612 ● ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97138-631-0 01 1 0610-0612 ● ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-98035-680-0 01 1 0701-1003 ● ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-98035-680-0 01 1 0701-1003 ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-98035-680-0 01 1 1004-1007 ● ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-98035-680-0 01 1 1004-1007 ● ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-98035-680-0 01 1 1008- ● ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-98035-680-0 01 1 1008- ● ●
171 04.054 SWITCH; NEUTRAL
4JJ1-TCX ENG(LS0) 04.075 		8-97358-606-0 01 1 0610-1405 ●
171 04.054 SWITCH; NEUTRAL
4JJ1-TCX ENG(LS0) 		8-98180-974-0 01 1 1406- ●
398 02.698 SWITCH; REV LAMP
04.439 (A) 		8-94411-366-1 01 1 0306-0602 ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98042-851-0 01 1 0603-0609 ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-679-0 01 1 0610-0709 ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98042-851-0 01 1 0710- ●
398 02.698 SWITCH; REV LAMP
(A) 		8-97138-635-0 01 1 0306-0604 ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-681-0 01 1 0605-0609 ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-681-0 01 1 0610-1003 ● ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-681-0 01 1 1004-1007 ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98035-681-0 01 1 1008-1405 ● ● ●
398 02.698 SWITCH; REV LAMP
(A) 		8-98181-802-0 01 1 1406- ● ● ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCX ENG(LS0) (B) 		8-98037-159-0 01 1 0610-1405 ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCX ENG(LS0) (B) 		8-98181-801-0 01 1 1406- ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCX ENG(LS0) (C) 		8-98037-160-0 01 1 0610-1405 ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCX ENG(LS0) (C) 		8-98180-973-0 01 1 1406- ●
500 04.075 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 03 1 0610- ●
645 04.311 DETENT ASM
4JJ1-TCX ENG(LS0) (A) 		8-97362-469-2 01 1 0610- ●
645 04.311 DETENT ASM
4JJ1-TCX ENG(LS0) 04.307 (B) 		8-98019-536-0 02 1 0610- ●
665 00.206 DOWEL
4JJ1-TCX ENG(LS0) OD=11 L=8 		9-11229-058-1 02 1 0610- ●

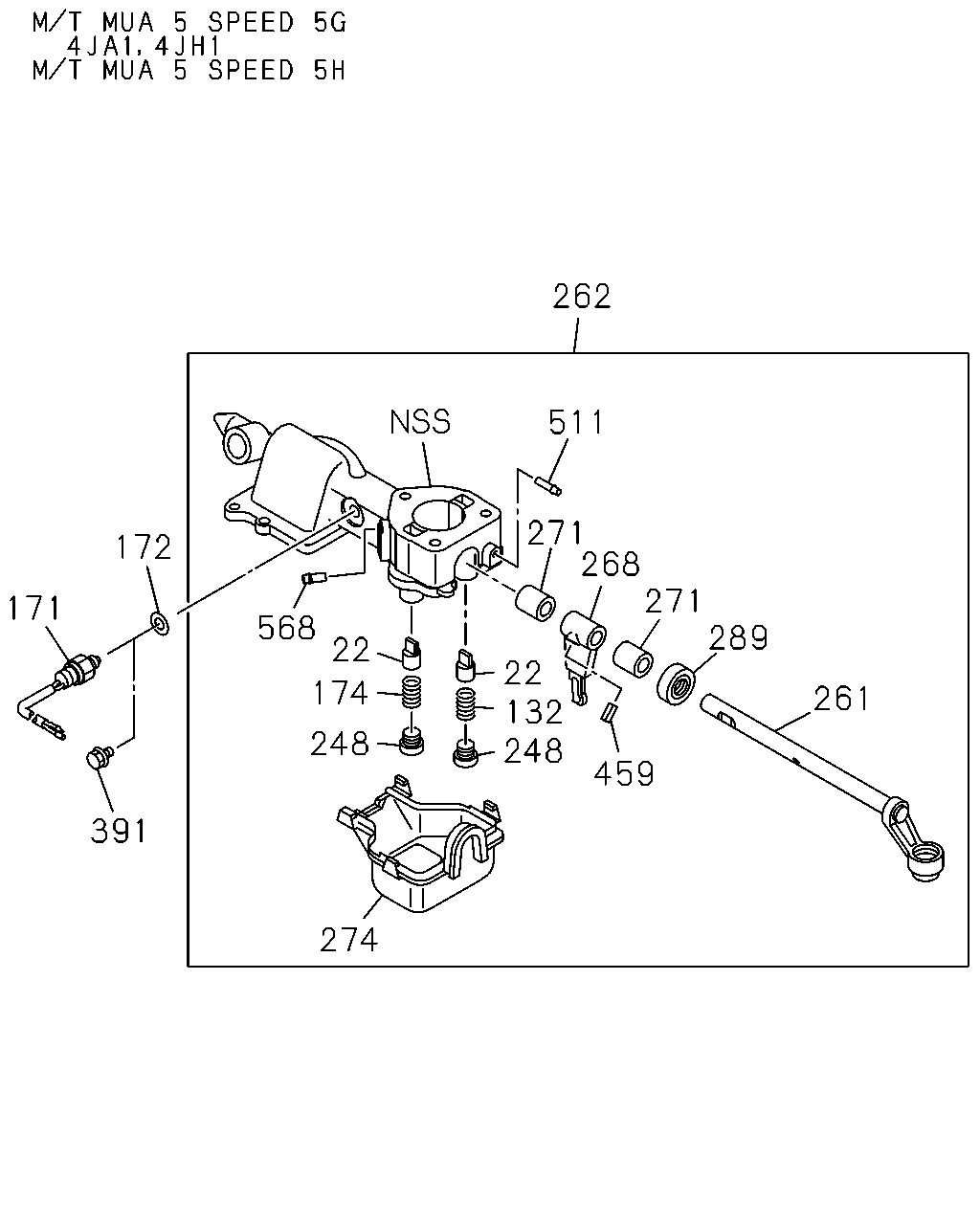

çizim 185270
262 511 271 268 271 289 172 171 568 22 22 132 248 174 261 248 459 391 274
BalonParca AdiParca NoAdetTipApplied Date A B C D E
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0306-0609 ● ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0610-1003 ● ● ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97181-326-0 02 1 1004-1007 ● ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 1008- ● ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 0306-0609 ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 0610-1003 ● ● ● ●
132 04.027 SPRING; SELECT STOP
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97181-395-0 01 1 1004-1007 ● ● ●
132 04.027 SPRING; SELECT STOP 8-97181-395-0 01 1 1008- ● ● ● ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-97138-631-0 01 1 0306-0609 ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97138-631-0 01 1 0306-0609 ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-97138-631-0 01 1 0610-0612 ● ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97138-631-0 01 1 0610-0612 ● ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-98035-680-0 01 1 0701-1003 ● ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-98035-680-0 01 1 0701-1003 ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-98035-680-0 01 1 1004-1007 ● ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-98035-680-0 01 1 1004-1007 ● ●
171 04.054 SWITCH; NEUTRAL
4X4(TFS***) 		8-98035-680-0 01 1 1008- ● ● ●
171 04.054 SWITCH; NEUTRAL
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-98035-680-0 01 1 1008- ● ●
171 04.054 SWITCH; NEUTRAL
4JJ1-TCX ENG(LS0) 04.075 		8-97358-606-0 01 1 0610-1405 ●
171 04.054 SWITCH; NEUTRAL
4JJ1-TCX ENG(LS0) 		8-98180-974-0 01 1 1406- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 0306-0609 ● ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 0610-1003 ● ● ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1004-1007 ● ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 1008- ● ● ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 0306-0609 ● ● ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 0610-1003 ● ● ● ●
174 04.307 SPRING; REV
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97181-394-0 01 1 1004-1007 ● ● ●
174 04.307 SPRING; REV 8-97181-394-0 01 1 1008- ● ● ● ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 0306-0609 ● ● ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 0610-1003 ● ● ● ●
248 04.105 RETAINER; CONT BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 04.307 		8-97181-325-0 02 1 1004-1007 ● ● ●
248 04.105 RETAINER; CONT BOX
04.307 		8-97181-325-0 02 1 1008-1211 ● ● ● ●
248 04.105 RETAINER; CONT BOX 8-98210-983-0 02 1 1212- ● ● ● ●
261 04.309 ROD; GEAR CONT 8-97257-825-0 01 1 0306- ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-909-0 01 1 0306-0609 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0306-0609 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1) 		8-97257-909-0 01 1 0610-0709 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0610-0709 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-909-0 01 1 0710-1003 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0710-1003 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1) 		8-97257-909-0 01 1 1004-1007 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-909-0 01 1 1008- ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 1008- ●
261 04.309 ROD; GEAR CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 0306-0609 ●
261 04.309 ROD; GEAR CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 0610-1007 ●
261 04.309 ROD; GEAR CONT
4JJ1-TCS ENG(LFB) 		8-97257-911-0 01 1 0610-1007 ●
261 04.309 ROD; GEAR CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 1008- ● ●
261 04.309 ROD; GEAR CONT
4JJ1-TCX ENG(LS0) 		8-97362-444-0 01 1 0610- ●
262 04.105 BOX ASM; SHIFT CONT 8-97201-493-1 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-735-0 01 1 0604-1204 ●
262 04.105 BOX ASM; SHIFT CONT 8-98203-266-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-824-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT 8-97257-824-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1) 		8-98017-739-0 01 1 0610-0709 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0610-0709 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 0710-1003 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 0710-1003 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1) 		8-98017-739-0 01 1 1004-1007 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98017-739-0 01 1 1008-1204 ●
262 04.105 BOX ASM; SHIFT CONT 8-98017-739-0 01 1 1008-1204 ●
262 04.105 BOX ASM; SHIFT CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-98203-265-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT 8-98203-265-0 01 1 1205- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97180-891-2 01 1 0306-0306 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97357-040-0 01 1 0306-0603 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 0604-0609 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 0610-1007 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB) 		8-98017-729-0 01 1 0610-1007 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-98017-729-0 01 1 1008-1204 ● ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-98203-264-0 01 1 1205- ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-894-0 01 1 0306- ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0306-0609 ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0610-1003 ● ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 1004-1007 ● ●
268 04.302 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 1008- ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-97203-909-0 02 1 0306-0603 ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 0604-0609 ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 0610-1003 ● ● ● ●
271 04.105 BUSHING; QUAD BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) ID=14 L=12 		8-98017-908-0 02 1 1004-1007 ● ● ●
271 04.105 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 1008- ● ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0306-0609 ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0610-1003 ● ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97181-324-1 01 1 1004-1007 ● ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 1008- ● ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97181-327-0 01 1 0306-0603 ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 0604-0609 ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 0610-1003 ● ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-98017-744-0 01 1 1004-1007 ● ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98017-744-0 01 1 1008- ● ● ● ●
391 04.104 PLUG; SW HOLE
6VE1 ENG(LX5) M14X11 		8-98035-674-0 02 1 1010- ●
391 04.104 PLUG; SW HOLE
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) M14X11 		8-94252-142-0 01 1 0306-0604 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),6VE1 ENG(LX5) M14X11 		8-94252-142-0 01 1 0306-0604 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) M14X11 		8-94252-142-0 01 1 0306-0604 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-94252-142-0 01 1 0605-0609 ● ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11 		8-94252-142-0 01 1 0610-0709 ● ● ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) 6VE1 ENG(LX5),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 0605-0609 ●
391 04.104 PLUG; SW HOLE
4X4(TFS***) 4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 0605-0609 ●
391 04.104 PLUG; SW HOLE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 0610-0709 ●
391 04.104 PLUG; SW HOLE
4JJ1-TCS ENG(LFB) M14X11 		8-98035-674-0 01 1 0610-0709 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) M14X11 		8-98035-674-0 01 1 0710-0809 ● ● ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 0810-1003 ● ● ●
391 04.104 PLUG; SW HOLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 6VE1 ENG(LX5),4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 0810-1003 ● ●
391 04.104 PLUG; SW HOLE
6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 0810-1003 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11 		8-98035-674-0 01 1 1004-1007 ● ●
391 04.104 PLUG; SW HOLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 1004-1007 ● ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1008-1008 ● ●
391 04.104 PLUG; SW HOLE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) M14X11 		8-98035-674-0 01 1 1008-1008 ● ●
391 04.104 PLUG; SW HOLE
6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1008-1008 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1009-1009 ● ● ●
391 04.104 PLUG; SW HOLE
6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1009-1009 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M14X11 		8-98035-674-0 01 1 1010- ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0306-0609 ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0610-1003 ● ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) OD=5 		8-97184-905-0 01 1 1004-1007 ● ● ●
459 04.302 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 1008- ● ● ● ●
511 04.302 PIPE; AIR
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.510 		8-97173-545-0 01 1 0306-0306 ●
568 04.302 PIPE; BREATHER
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 04.510 		8-97173-544-0 01 1 0306-0306 ●
çizim 185352
195 666 95 476 234 672 234 195 99 51 673 234 89 673 476 93 234 476 33 195 90 476 552 668 579 90 580 31 78 561 211 551 674 163 261 551 580 163 90 672 580
BalonParca AdiParca NoAdetTipApplied Date A B C D E
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-97024-503-1 01 1 0306-0902 ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-97024-503-1 01 1 0903- ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-94421-912-2 01 1 0306-0609 ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-94421-912-2 01 1 0610-1003 ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-94421-912-2 01 1 1004-1007 ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
(A) 		8-94421-912-2 01 1 1008- ● ● ●
31 04.302 ARM; SHIFT,LOW & 2ND
4JJ1-TCX ENG(LS0) (B) 		8-97362-435-0 01 1 0610- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97213-047-0 01 1 0306- ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 0306-0609 ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 0610-1003 ● ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1004-1007 ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 1008- ● ● ●
33 04.309 ROD; SHIFT,LOW & 2ND
4JJ1-TCX ENG(LS0) 		8-97362-441-0 01 1 0610- ●
51 04.303 BLOCK; SHIFT,1ST & 2ND
4JJ1-TCX ENG(LS0) 04.302 		8-97362-445-2 01 1 0610-1102 ●
51 04.303 BLOCK; SHIFT,1ST & 2ND
4JJ1-TCX ENG(LS0) 04.302 		8-98186-703-0 01 1 1103- ●
78 04.302 ARM; SHIFT,REV
4JJ1-TCX ENG(LS0) 		8-97362-434-1 01 1 0610- ●
89 04.309 ROD; SHIFT,REV
4JJ1-TCX ENG(LS0) 		8-97362-440-1 01 1 0610- ●
90 04.307 RING; SNAP,SHIFT ROD
4JJ1-TCX ENG(LS0) ID=12 		8-94460-357-0 03 1 0610- ●
93 04.303 BLOCK; SHIFT,REV & 5TH
4JJ1-TCX ENG(LS0) 04.302 		8-98004-541-1 01 1 0610- ●
95 04.302 ARM; SHIFT,5TH
4JJ1-TCX ENG(LS0) 		8-97362-436-1 01 1 0610- ●
99 04.302 ARM; SHIFT,4TH & 3RD
4JJ1-TCX ENG(LS0) 04.303 		8-97362-439-2 01 1 0610- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 0306- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 0306-0609 ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 0610-1003 ● ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 1004-1007 ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 1008- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL
4JJ1-TCX ENG(LS0) 		8-98052-461-0 02 1 0610- ●
195 04.105 BOLT
4JJ1-TCX ENG(LS0) (A) M8X8.5 TAPER 		8-97250-975-0 01 1 0610- ●
195 04.105 BOLT
4JJ1-TCX ENG(LS0) (B) M8X30 FLANGE 		8-98034-764-0 04 1 0610- ●
211 04.307 SEAT; BALL
4JJ1-TCX ENG(LS0) 		8-98042-833-1 01 1 0610-0612 ●
211 04.307 SEAT; BALL
4JJ1-TCX ENG(LS0) 		8-98073-812-0 01 1 0701- ●
234 04.311 RING; SNAP
4JJ1-TCX ENG(LS0) 04.307 ID=12 		8-94460-357-0 04 1 0610- ●
261 04.309 ROD; GEAR CONT 8-97257-825-0 01 1 0306- ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-909-0 01 1 0306-0609 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0306-0609 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1) 		8-97257-909-0 01 1 0610-0709 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0610-0709 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-909-0 01 1 0710-1003 ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 0710-1003 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1) 		8-97257-909-0 01 1 1004-1007 ●
261 04.309 ROD; GEAR CONT
C24SE ENG(LG1),6VE1 ENG(LX5) 		8-97257-909-0 01 1 1008- ●
261 04.309 ROD; GEAR CONT 8-97257-909-0 01 1 1008- ●
261 04.309 ROD; GEAR CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 0306-0609 ●
261 04.309 ROD; GEAR CONT
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 0610-1007 ●
261 04.309 ROD; GEAR CONT
4JJ1-TCS ENG(LFB) 		8-97257-911-0 01 1 0610-1007 ●
261 04.309 ROD; GEAR CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97257-911-0 01 1 1008- ● ●
261 04.309 ROD; GEAR CONT
4JJ1-TCX ENG(LS0) 		8-97362-444-0 01 1 0610- ●
476 04.311 PIN; SHIFT ROD
4JJ1-TCX ENG(LS0) 04.303 D=4.2 L=25 		8-94171-541-0 04 1 0610- ●
551 04.303 PIN; SPRING
4JJ1-TCX ENG(LS0) D=4.2 L=25 		8-94171-541-0 02 1 0610- ●
552 04.105 BRACKET
4JJ1-TCX ENG(LS0) 		8-97362-465-1 01 1 0610- ●
561 04.309 ROD; SHIFT
4JJ1-TCX ENG(LS0) 		8-98052-463-0 01 1 0610- ●
579 04.303 BLOCK; SHIFT,ROD GUIDE
4JJ1-TCX ENG(LS0) 		8-97362-447-2 01 1 0610- ●
580 04.303 BLOCK; INTERLOCK
4JJ1-TCX ENG(LS0) (A) 		8-97362-461-1 01 1 0610- ●
580 04.303 BLOCK; INTERLOCK
4JJ1-TCX ENG(LS0) (C) 		8-97362-463-1 01 1 0610-1102 ●
580 04.303 BLOCK; INTERLOCK
4JJ1-TCX ENG(LS0) (C) 		8-98186-700-0 01 1 1103- ●
580 04.303 BLOCK; INTERLOCK
4JJ1-TCX ENG(LS0) (B) 		8-98052-462-0 01 1 0610- ●
666 04.309 ROD; GEAR SHIFT,3RD,4TH & 4TH
4JJ1-TCX ENG(LS0) 		8-97362-442-2 01 1 0610- ●
668 04.309 BRACKET; SHIFT ROD
4JJ1-TCX ENG(LS0) 04.105 		8-97362-465-1 01 1 0610- ●
672 04.303 BLOCK; SHIFT,T/M CONTROL
4JJ1-TCX ENG(LS0) (A) 		8-97362-467-0 01 1 0610- ●
672 04.303 BLOCK; SHIFT,T/M CONTROL
4JJ1-TCX ENG(LS0) (B) 		8-97362-470-1 01 1 0610-0707 ●
672 04.303 BLOCK; SHIFT,T/M CONTROL
4JJ1-TCX ENG(LS0) (B) 		8-98083-873-0 01 1 0708- ●
673 04.309 BEARING; SHIFT ARM
4JJ1-TCX ENG(LS0) 00.683 		8-97362-853-0 02 1 1008- ●
673 04.309 BEARING; SHIFT ARM
4JJ1-TCX ENG(LS0) 00.683 		8-97362-853-0 02 1 0610-1007 ●
674 04.302 LEVER; CONT
4JJ1-TCX ENG(LS0) 		8-97362-466-0 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
