◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#73948) — 1545 parça

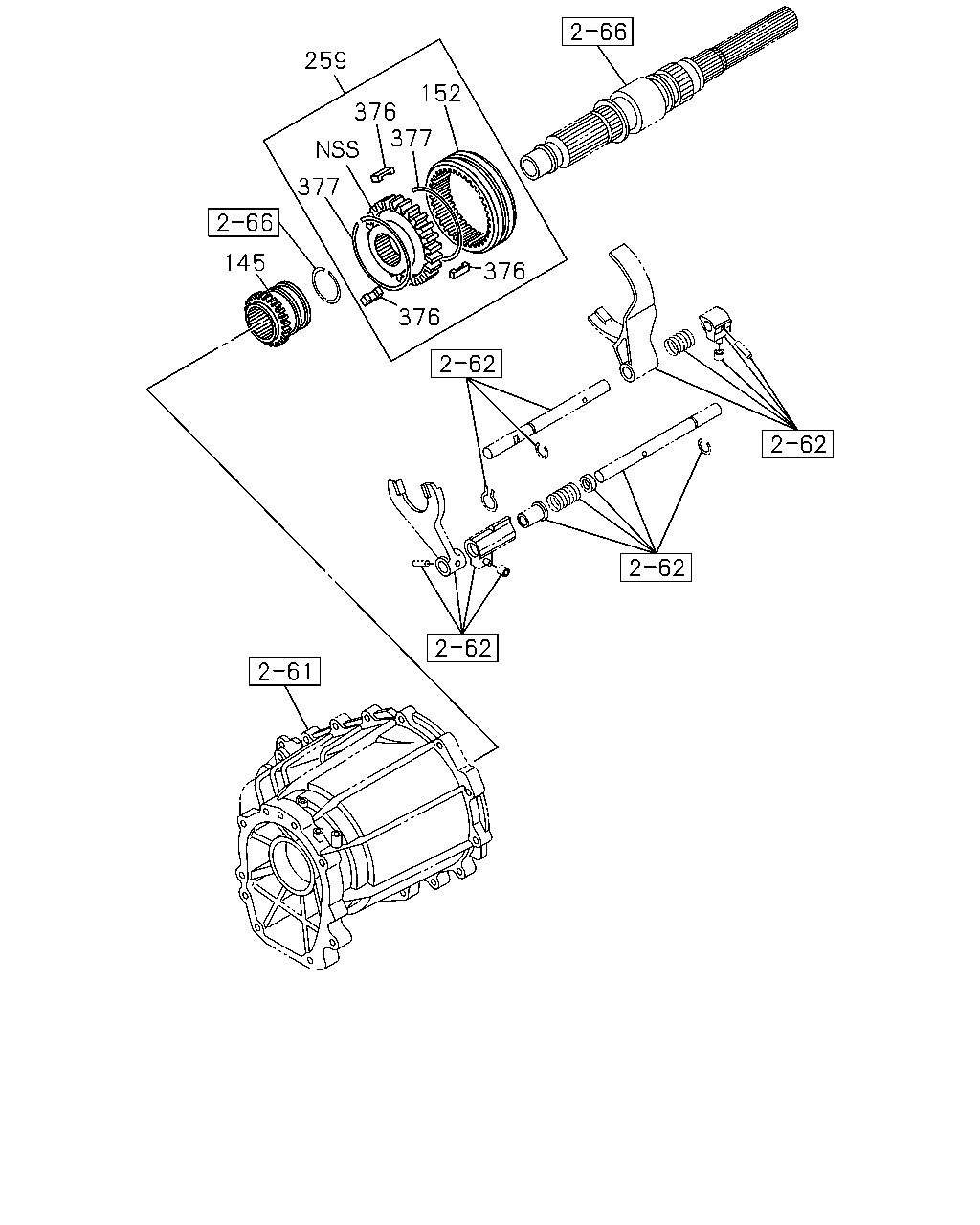

çizim 109807
259 152 376 377 377 145 376 376
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***) 		8-97358-245-0 01 1 0306-0609 ● ● ● ●
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***) 		8-97358-245-0 01 1 0610-1003 ● ● ● ● ● ●
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***) 		8-97358-245-0 01 1 1004-1007 ● ● ● ● ●
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***) 		8-97358-245-0 01 1 1008-1109 ● ● ● ● ● ●
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***) 		8-98063-369-1 01 1 1110- ● ● ● ● ● ●
152 04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***) 		8-94363-060-0 01 1 0306-0609 ● ● ● ●
152 04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***) 		8-94363-060-0 01 1 0610-1003 ● ● ● ● ● ●
152 04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***) 		8-94363-060-0 01 1 1004-1007 ● ● ● ● ●
152 04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***) 		8-94363-060-0 01 1 1008- ● ● ● ● ● ●
259 04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***) 		8-97234-225-0 01 1 0306-0609 ● ● ● ●
259 04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***) 		8-97234-225-0 01 1 0610-1003 ● ● ● ● ● ●
259 04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***) 		8-97234-225-0 01 1 1004-1007 ● ● ● ● ●
259 04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***) 		8-97234-225-0 01 1 1008- ● ● ● ● ● ●
376 04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***) 		8-97238-590-0 03 1 0306-0609 ● ● ● ●
376 04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***) 		8-97238-590-0 03 1 0610-1003 ● ● ● ● ● ●
376 04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***) 		8-97238-590-0 03 1 1004-1007 ● ● ● ● ●
376 04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***) 		8-97238-590-0 03 1 1008- ● ● ● ● ● ●
377 04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***) 		8-94448-045-0 02 1 0306-0609 ● ● ● ●
377 04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***) 		8-94448-045-0 02 1 0610-1003 ● ● ● ● ● ●
377 04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***) 		8-94448-045-0 02 1 1004-1007 ● ● ● ● ●
377 04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***) 		8-94448-045-0 02 1 1008- ● ● ● ● ● ●

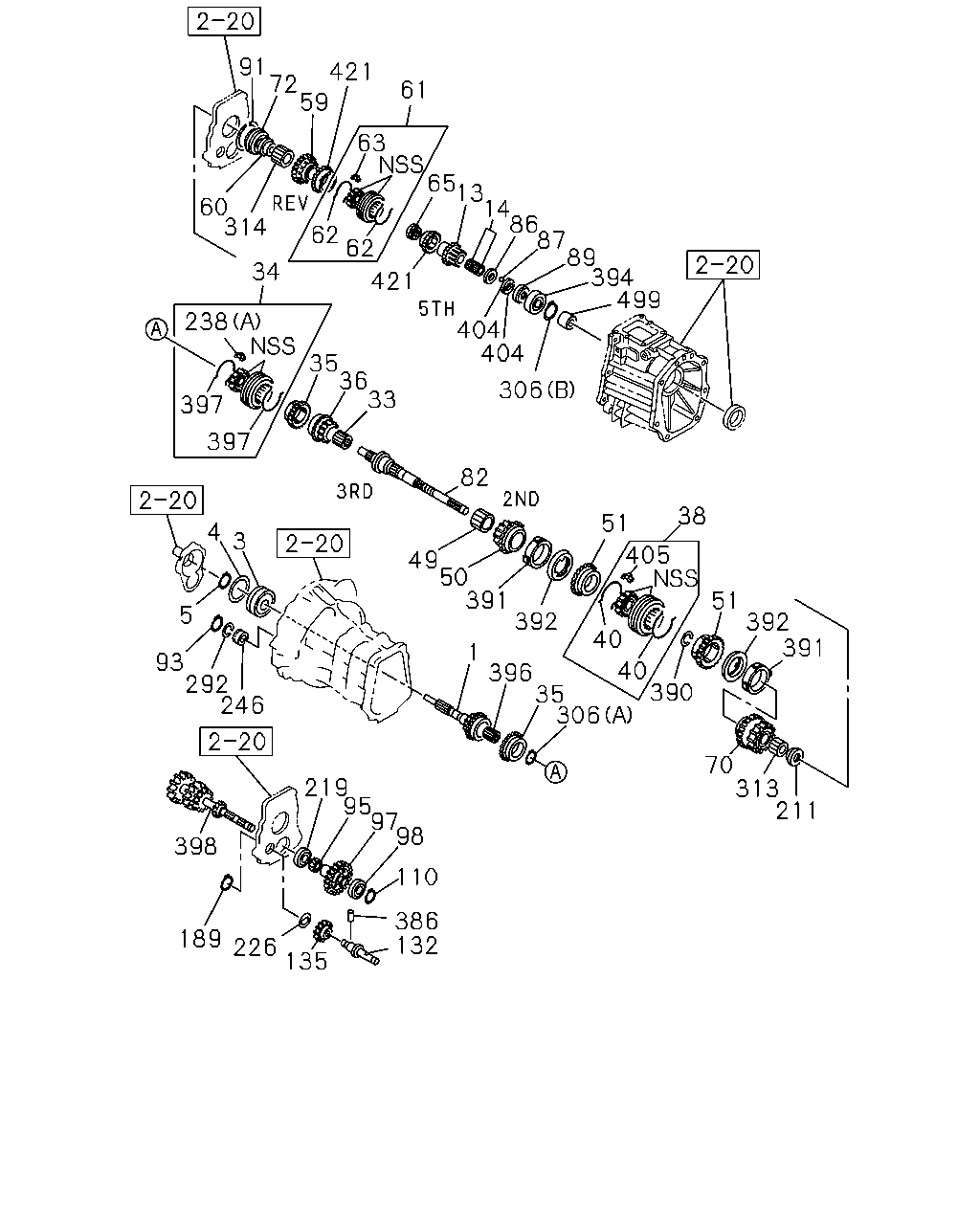

çizim 185164
91 72 59 421 61 63 65 13 4 86 87 89 394 499 60 314 62 62 34 421 404 404 238 35 36 33 306 397 397 82 38 51 4 3 405 49 50 391 392 51 5 392 391 40 1 93 292 246 40 390 396 35 306 70 313 211 219 95 97 98 398 110 386 132 135 189 226
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-97182-214-1 01 1 1008-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-98210-242-0 01 1 1205- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-97300-948-1 01 1 0806-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-98210-225-0 01 1 1205-1307 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-98210-225-0 01 1 1308- ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=23 		8-94435-160-2 01 1 0306- ●
1 04.351 SHAFT; TOP GEAR,TRANS
C24SE ENG(LG1) Z=26 		8-97300-950-1 01 1 0306-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
C24SE ENG(LG1) Z=26 		8-98210-246-0 01 1 1205- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 0306-0609 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 0610-0709 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) Z=26 		8-97300-948-1 01 1 0610-0709 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 0710-1003 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-97300-948-1 01 1 0710-1003 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 1004-1007 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-97300-948-1 01 1 1004-1007 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 1008-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-97300-948-1 01 1 1008-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) Z=26 		8-98210-225-0 01 1 1205- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-98210-225-0 01 1 1205- ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-97182-214-1 01 1 0306-1003 ●
3 04.403 BEARING; TOP GEAR SHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-97943-879-0 01 1 0806- ●
3 04.403 BEARING; TOP GEAR SHAFT
04.355 NSK 		8-94167-637-0 01 1 0306-0902 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97943-882-0 01 1 0903- ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-94380-015-1 01 1 0306-0609 ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-94380-015-1 01 1 0610-0805 ● ● ●
3 04.403 BEARING; TOP GEAR SHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-94380-015-1 01 1 0806- ● ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.376 NSK 		8-94206-485-0 01 1 0306- ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 0306-0609 ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 0610-1003 ● ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 1004-1007 ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 1008- ● ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
08.934 ID=37.0 		9-09180-040-0 01 1 0306- ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 0306-0609 ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 0610-1003 ● ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 1004-1007 ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 1008- ● ● ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-97104-023-3 01 1 0806-1204 ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-98210-227-0 01 1 1205-1302 ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-98210-227-0 01 1 1303- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=25 		8-94161-912-3 01 1 0306- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=24 		8-97216-153-1 01 1 0306-1204 ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=24 		8-98210-254-0 01 1 1205- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=22 		8-97104-023-2 01 1 0306-0609 ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=22 		8-97104-023-2 01 1 0610-0809 ● ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=22 		8-97104-023-2 01 1 0810-1003 ●
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-97104-023-2 01 1 0810-1003 ●
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-97104-023-3 01 1 1004-1204 ●
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-98210-227-0 01 1 1205- ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 0306-0609 ● ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 0610-1003 ● ● ● ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 1004-1007 ● ● ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 1008- ● ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97977-991-0 01 1 1402- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-94161-860-0 01 1 0306- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97188-798-0 01 1 0306-0609 ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 0610-1003 ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 1004-1007 ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 1008-1401 ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97104-027-0 01 1 1402- ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
4JJ1-TCX ENG(LS0) 		8-97362-474-3 01 1 0610- ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=30 		8-94463-830-1 02 1 0306- ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 0306-0609 ● ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 0610-1003 ● ● ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 1004-1007 ● ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 1008- ● ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97104-021-2 01 1 1008-1204 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-98210-249-0 01 1 1205- ●
36 04.415 GEAR; 3RD,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-97301-180-1 01 1 0806-1204 ●
36 04.415 GEAR; 3RD,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-98210-230-0 01 1 1205-1302 ●
36 04.415 GEAR; 3RD,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-98233-597-0 01 1 1303- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=29 		8-94161-137-1 01 1 0306- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-97216-150-1 01 1 0306-0609 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-97216-150-1 01 1 0610-0809 ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-97216-150-1 01 1 0810-1003 ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-97216-150-1 01 1 0810-1003 ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-97216-150-1 01 1 1004-1007 ● ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-97216-150-1 01 1 1008-1204 ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-97216-150-1 01 1 1008-1204 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-98210-226-0 01 1 1205- ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-98210-226-0 01 1 1205- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97104-021-2 01 1 0306-1003 ●
38 04.384 SYNCHRONIZER; LOW & 2ND
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97977-989-0 01 1 1402- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94435-140-0 01 1 0306- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97188-799-0 01 1 0306-0609 ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 0610-1003 ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 1004-1007 ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 1008-1401 ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-94363-059-1 01 1 1402- ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
4JJ1-TCX ENG(LS0) 		8-97362-503-1 01 1 0610- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94152-558-1 02 1 0306- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 0306-0609 ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 0610-1003 ● ● ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1004-1007 ● ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1008- ● ● ● ●
49 04.352 BEARING; NEEDLE,2ND GEAR
JTEKT 		9-00096-625-0 01 1 0306-0609 ● ●
49 04.352 BEARING; NEEDLE,2ND GEAR
JTEKT 		9-00096-625-0 01 1 0610-1003 ● ● ●
49 04.352 BEARING; NEEDLE,2ND GEAR
JTEKT 		9-00096-625-0 01 1 1004-1007 ● ●
49 04.352 BEARING; NEEDLE,2ND GEAR
JTEKT 		9-00096-625-0 01 1 1008- ● ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=34 		8-97301-183-1 01 1 0806- ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=31 		8-94311-564-1 01 1 0306- ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=34 		8-97300-953-1 01 1 0306-0609 ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=34 		8-97300-953-1 01 1 0610-0805 ● ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=34 		8-97300-953-1 01 1 0806- ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
PHILIPPINE ISLANDS EQUIPMENT(B15) Z=36 		8-98115-804-0 02 1 1105-1106 ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1105-1106 ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1107- ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=45 		8-94151-510-3 02 1 0306- ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 0306-0609 ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 0610-1003 ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 1004-1007 ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 1008-1104 ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=48 		8-94363-054-1 02 1 1105-1106 ● ● ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-97104-025-2 01 1 0806-1205 ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-98210-228-0 01 1 1206-1302 ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-98210-228-0 01 1 1303- ●
59 04.417 GEAR; REV MAINSHAFT
Z=37 		8-94310-158-1 01 1 0306- ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97104-025-2 01 1 0306-0609 ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97104-025-2 01 1 0610-0805 ● ● ●
59 04.417 GEAR; REV MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-97104-025-2 01 1 0806-1205 ● ● ●
59 04.417 GEAR; REV MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-98210-228-0 01 1 1206- ● ● ●
60 04.419 COLLAR; REV MAIN 8-97031-079-0 01 1 0306-0609 ● ●
60 04.419 COLLAR; REV MAIN 8-97031-079-0 01 1 0610-1003 ● ● ●
60 04.419 COLLAR; REV MAIN 8-97031-079-0 01 1 1004-1007 ● ●
60 04.419 COLLAR; REV MAIN 8-97031-079-0 01 1 1008- ● ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 5-33260-010-0 01 1 0306- ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97188-800-0 01 1 0306-0609 ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97030-106-1 01 1 0610-1003 ● ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97030-106-1 01 1 1004-1007 ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97030-106-1 01 1 1008- ● ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-010-0 02 1 0306- ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 0306-0609 ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 0610-1003 ● ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 1004-1007 ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 1008- ● ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-002-3 03 1 0306- ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 0306-0609 ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 0610-1003 ● ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 1004-1007 ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 1008- ● ● ●
65 04.356 NUT; MAINSHAFT
M32 		8-94238-094-1 01 1 0306- ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 0306-0609 ● ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 0610-1003 ● ● ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 1004-1007 ● ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 1008- ● ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=45 		8-97301-182-1 01 1 0806- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=41 		8-94310-154-1 01 1 0306- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97300-952-1 01 1 0306-0609 ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97300-952-1 01 1 0610-0805 ● ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=45 		8-97300-952-1 01 1 0806- ● ● ●
72 04.352 BEARING; BALL,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-94380-017-1 01 1 0806- ●
72 04.352 BEARING; BALL,MAINSHAFT
NSK 		8-94380-017-1 01 1 0306-0609 ● ●
72 04.352 BEARING; BALL,MAINSHAFT
NSK 		8-94380-017-1 01 1 0610-0805 ● ● ●
72 04.352 BEARING; BALL,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-94380-017-1 01 1 0806- ● ● ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-24-27 		8-94435-162-3 01 1 0306- ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 0306-0609 ● ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 0610-1003 ● ● ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 1004-1007 ● ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 1008- ● ● ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 0306-0609 ● ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 0610-1003 ● ● ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 1004-1007 ● ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 1008- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=7.80 		8-94238-099-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=7.90 		8-94238-100-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=8.00 		8-94238-101-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=8.10 		8-94238-102-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=8.20 		8-94238-103-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=8.30 		8-94238-104-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 0306-0609 ● ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 0610-1003 ● ● ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 1004-1007 ● ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 1008- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 0306-0609 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 0610-1003 ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 1004-1007 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 1008- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 0306-0609 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 0610-1003 ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 1004-1007 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 1008- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 0306-0609 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 0610-1003 ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 1004-1007 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 1008- ● ● ●
87 04.416 BALL; THRUST WASHER 8-94201-356-0 01 1 0306-0609 ● ● ●
87 04.416 BALL; THRUST WASHER 8-94201-356-0 01 1 0610-1003 ● ● ● ●
87 04.416 BALL; THRUST WASHER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-94201-356-0 01 1 1004-1007 ● ● ●
87 04.416 BALL; THRUST WASHER 8-94201-356-0 01 1 1008- ● ● ● ●
89 04.416 RING; RET,THRUST RING
ID=31.8 		8-94422-395-0 01 1 0306-0609 ● ●
89 04.416 RING; RET,THRUST RING
ID=31.8 		8-94422-395-0 01 1 0610-1003 ● ● ●
89 04.416 RING; RET,THRUST RING
ID=31.8 		8-94422-395-0 01 1 1004-1007 ● ●
89 04.416 RING; RET,THRUST RING
ID=31.8 		8-94422-395-0 01 1 1008- ● ● ●
91 04.416 RING; SNAP,CENTER BRG,MAINSHAFT
ID=76.2 		8-94322-411-0 01 1 0306-0609 ● ●
91 04.416 RING; SNAP,CENTER BRG,MAINSHAFT
ID=76.2 		8-94322-411-0 01 1 0610-1003 ● ● ●
91 04.416 RING; SNAP,CENTER BRG,MAINSHAFT
ID=76.2 		8-94322-411-0 01 1 1004-1007 ● ●
91 04.416 RING; SNAP,CENTER BRG,MAINSHAFT
ID=76.2 		8-94322-411-0 01 1 1008- ● ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
08.934 ID=23.2 		9-09180-025-0 01 1 0306-0609 ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
08.934 ID=23.2 		9-09180-025-0 01 1 0610-1003 ● ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
08.934 ID=23.2 		9-09180-025-0 01 1 1004-1007 ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
08.934 ID=23.2 		9-09180-025-0 01 1 1008- ● ● ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=19 		8-94377-433-0 01 1 0806-1302 ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=19 		8-94377-433-0 01 1 1303- ●
95 04.417 GEAR; REV,COUNTER
Z=16 		8-94161-120-1 01 1 0306- ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 0306-0609 ● ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 0610-0805 ● ● ●
95 04.417 GEAR; REV,COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=19 		8-94377-433-0 01 1 0806- ● ● ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCX ENG(LS0) Z=41 		8-97362-499-0 01 1 0610-1204 ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCX ENG(LS0) Z=41 		8-98210-237-0 01 1 1205- ●
97 04.415 GEAR; 5TH,COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=50 		8-94377-434-0 01 1 0806- ●
97 04.415 GEAR; 5TH,COUNTER
Z=47 		8-94161-098-2 01 1 0306- ●
97 04.415 GEAR; 5TH,COUNTER
Z=49 		8-97216-154-0 01 1 0306- ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 0306-0609 ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 0610-0809 ● ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 0810-1003 ●
97 04.415 GEAR; 5TH,COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=50 		8-94377-434-0 01 1 0810-1003 ●
97 04.415 GEAR; 5TH,COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=50 		8-94377-434-0 01 1 1004- ●
97 04.415 GEAR; 5TH,COUNTER
4JJ1-TCX ENG(LS0) Z=27 		8-98040-114-0 01 1 0610- ●
98 04.422 BEARING; BALL,COUNTER END
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-97018-535-1 01 1 0806- ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-97359-571-0 01 1 0306-0601 ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-98019-664-0 01 1 0602- ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-97018-535-1 01 1 0306-0609 ● ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-97018-535-1 01 1 0610-0805 ● ● ●
98 04.422 BEARING; BALL,COUNTER END
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-97018-535-1 01 1 0806- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.10 WHITE 		8-94422-103-0 01 1 0306-0609 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.10 WHITE 		8-94422-103-0 01 1 0610-1003 ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.10 WHITE 		8-94422-103-0 01 1 1004-1007 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.10 WHITE 		8-94422-103-0 01 1 1008- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.20 YELLOW 		8-94422-104-0 01 1 0306-0609 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.20 YELLOW 		8-94422-104-0 01 1 0610-1003 ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.20 YELLOW 		8-94422-104-0 01 1 1004-1007 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.20 YELLOW 		8-94422-104-0 01 1 1008- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.30 BLUE 		8-94422-105-0 01 1 0306-0609 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.30 BLUE 		8-94422-105-0 01 1 0610-1003 ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.30 BLUE 		8-94422-105-0 01 1 1004-1007 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.30 BLUE 		8-94422-105-0 01 1 1008- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.40 PINK 		8-94422-106-0 01 1 0306-0609 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.40 PINK 		8-94422-106-0 01 1 0610-1003 ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.40 PINK 		8-94422-106-0 01 1 1004-1007 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.40 PINK 		8-94422-106-0 01 1 1008- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.50 GREEN 		8-94422-107-0 01 1 0306-0609 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.50 GREEN 		8-94422-107-0 01 1 0610-1003 ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.50 GREEN 		8-94422-107-0 01 1 1004-1007 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.50 GREEN 		8-94422-107-0 01 1 1008- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.60 BROWN 		8-94422-108-0 01 1 0306-0609 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.60 BROWN 		8-94422-108-0 01 1 0610-1003 ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.60 BROWN 		8-94422-108-0 01 1 1004-1007 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.60 BROWN 		8-94422-108-0 01 1 1008- ● ● ●
132 04.433 SHAFT; REV
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98249-849-0 01 1 1309- ● ● ●
132 04.433 SHAFT; REV 8-94435-146-0 01 1 0306- ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 0306-0609 ● ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 0610-1003 ● ● ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1004-1007 ● ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1008-1308 ● ● ●
132 04.433 SHAFT; REV
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98245-493-0 01 1 1309- ●
132 04.433 SHAFT; REV
4JJ1-TCX ENG(LS0) 		8-98023-113-0 01 1 0610- ●
135 04.430 GEAR; REV IDLER
4X4(TFS***) 4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98080-125-0 01 1 0810-0810 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98080-125-0 01 1 0810-1003 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98146-727-1 01 1 1004-1302 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98233-606-0 01 1 1303- ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98082-803-0 01 1 0806-0809 ●
135 04.430 GEAR; REV IDLER
4X2(TFB***) Z=33 		8-98082-803-0 01 1 0810-0810 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-94161-118-1 01 1 0306-0705 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-98080-126-0 01 1 0706-0708 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-98082-807-0 01 1 0709-0809 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-98080-126-0 01 1 0810-1003 ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98146-724-0 01 1 1004- ●
135 04.430 GEAR; REV IDLER
Z=33 		8-94377-435-1 01 1 0306-0609 ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-94377-435-1 01 1 0610-0705 ● ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98080-125-0 01 1 0706-0708 ● ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98082-803-0 01 1 0709-0805 ● ● ●
135 04.430 GEAR; REV IDLER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98082-803-0 01 1 0806-0809 ● ● ●
135 04.430 GEAR; REV IDLER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98080-125-0 01 1 0810-1003 ● ● ●
135 04.430 GEAR; REV IDLER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98146-726-1 01 1 1004- ● ● ●
135 04.430 GEAR; REV IDLER
4JJ1-TCX ENG(LS0) Z=32 		8-97362-513-1 01 1 0610-1302 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCX ENG(LS0) Z=32 		8-98233-615-0 01 1 1303- ●
189 04.435 RING; SNAP,REV,GEAR
T=1.20 WHITE 		8-94422-100-0 01 1 0306-0609 ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.20 WHITE 		8-94422-100-0 01 1 0610-1003 ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.20 WHITE 		8-94422-100-0 01 1 1004-1007 ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.20 WHITE 		8-94422-100-0 01 1 1008- ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.30 YELLOW 		8-94422-101-0 01 1 0306-0609 ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.30 YELLOW 		8-94422-101-0 01 1 0610-1003 ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.30 YELLOW 		8-94422-101-0 01 1 1004-1007 ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.30 YELLOW 		8-94422-101-0 01 1 1008- ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.40 BLUE 		8-94422-102-0 01 1 0306-0609 ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.40 BLUE 		8-94422-102-0 01 1 0610-1003 ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.40 BLUE 		8-94422-102-0 01 1 1004-1007 ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.40 BLUE 		8-94422-102-0 01 1 1008- ● ● ●
211 04.419 BEARING; THRUST NEEDLE,1ST GEAR
NSK 		8-94148-935-0 01 1 0306-0609 ● ●
211 04.419 BEARING; THRUST NEEDLE,1ST GEAR
NSK 		8-94148-935-0 01 1 0610-1003 ● ● ●
211 04.419 BEARING; THRUST NEEDLE,1ST GEAR
NSK 		8-94148-935-0 01 1 1004-1007 ● ●
211 04.419 BEARING; THRUST NEEDLE,1ST GEAR
NSK 		8-94148-935-0 01 1 1008- ● ● ●
219 04.422 BEARING; BALL,CLUSTER,RR
NSK 		8-94436-929-0 01 1 0306-0609 ● ●
219 04.422 BEARING; BALL,CLUSTER,RR
NSK 		8-94436-929-0 01 1 0610-1003 ● ● ●
219 04.422 BEARING; BALL,CLUSTER,RR
NSK 		8-94436-929-0 01 1 1004-1007 ● ●
219 04.422 BEARING; BALL,CLUSTER,RR
NSK 		8-94436-929-0 01 1 1008- ● ● ●
226 04.437 WASHER; THRUST,REV GEAR,COUNTER
ID=30.0 		8-94223-069-1 01 1 0306-0609 ● ●
226 04.437 WASHER; THRUST,REV GEAR,COUNTER
ID=30.0 		8-94223-069-1 01 1 0610-1003 ● ● ●
226 04.437 WASHER; THRUST,REV GEAR,COUNTER
ID=30.0 		8-94223-069-1 01 1 1004-1007 ● ●
226 04.437 WASHER; THRUST,REV GEAR,COUNTER
ID=30.0 		8-94223-069-1 01 1 1008- ● ● ●
238 04.384 INSERT
(A) 		8-94448-202-2 03 1 0306-0609 ● ●
238 04.384 INSERT
(A) 		8-94448-202-2 03 1 0610-1003 ● ● ●
238 04.384 INSERT
(A) 		8-94448-202-2 03 1 1004-1007 ● ●
238 04.384 INSERT
(A) 		8-94448-202-2 03 1 1008- ● ● ●
238 04.384 INSERT
4JJ1-TCX ENG(LS0) (B) 		8-94249-576-2 03 1 0610- ●
238 04.384 INSERT
4JJ1-TCX ENG(LS0) (C) 		8-98004-522-0 06 1 0610- ●
246 04.422 BEARING; ROLLER,COUNTER SHAFT FR
NSK 		8-97029-600-4 01 1 0306-0609 ● ●
246 04.422 BEARING; ROLLER,COUNTER SHAFT FR
NSK 		8-97029-600-4 01 1 0610-1003 ● ● ●
246 04.422 BEARING; ROLLER,COUNTER SHAFT FR
NSK 		8-97029-600-4 01 1 1004-1007 ● ●
246 04.422 BEARING; ROLLER,COUNTER SHAFT FR
NSK 		8-97029-600-4 01 1 1008- ● ● ●
292 04.422 RING; SNAP,BRG OUTER
NSK 		8-94422-081-0 01 1 0306-0609 ● ●
292 04.422 RING; SNAP,BRG OUTER
NSK 		8-94422-081-0 01 1 0610-1003 ● ● ●
292 04.422 RING; SNAP,BRG OUTER
NSK 		8-94422-081-0 01 1 1004-1007 ● ●
292 04.422 RING; SNAP,BRG OUTER
NSK 		8-94422-081-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.50 		5-09588-020-1 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.55 		5-09588-021-1 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.60 		5-09588-022-1 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.65 		5-09588-023-1 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE 		8-97129-615-0 01 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE 		8-97129-615-0 01 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE 		8-97129-615-0 01 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE 		8-97129-615-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW 		8-97129-616-0 01 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW 		8-97129-616-0 01 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW 		8-97129-616-0 01 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW 		8-97129-616-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE 		8-97129-617-0 01 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE 		8-97129-617-0 01 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE 		8-97129-617-0 01 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE 		8-97129-617-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 1008- ● ● ●
313 04.419 BEARING; NEEDLE,LOW GEAR
NSK 		1-09811-028-1 01 1 0306-0609 ● ●
313 04.419 BEARING; NEEDLE,LOW GEAR
NSK 		1-09811-028-1 01 1 0610-1003 ● ● ●
313 04.419 BEARING; NEEDLE,LOW GEAR
NSK 		1-09811-028-1 01 1 1004-1007 ● ●
313 04.419 BEARING; NEEDLE,LOW GEAR
NSK 		1-09811-028-1 01 1 1008- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 0306-0609 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 0610-1003 ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 1004-1007 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 1008- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 0306-0609 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 0610-1003 ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 1004-1007 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 1008- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
4JJ1-TCX ENG(LS0) NSK 		8-97362-719-0 01 1 0610- ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 0306-0609 ● ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 0610-1003 ● ● ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 1004-1007 ● ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 1008- ● ● ●
386 04.435 PIN; REV SHAFT
4JJ1-TCX ENG(LS0) 00.662 OD=4 L=8 		9-08160-408-0 01 1 0610- ●
390 04.383 RING; SNAP,CLU HUB
T=1.80 WHITE 		8-94422-088-2 01 1 0306-0609 ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.80 WHITE 		8-94422-088-2 01 1 0610-1003 ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.80 WHITE 		8-94422-088-2 01 1 1004-1007 ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.80 WHITE 		8-94422-088-2 01 1 1008- ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.85 YELLOW 		8-94422-089-1 01 1 0306-0609 ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.85 YELLOW 		8-94422-089-1 01 1 0610-1003 ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.85 YELLOW 		8-94422-089-1 01 1 1004-1007 ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.85 YELLOW 		8-94422-089-1 01 1 1008- ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.90 BLUE 		8-94422-090-2 01 1 0306-0609 ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.90 BLUE 		8-94422-090-2 01 1 0610-1003 ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.90 BLUE 		8-94422-090-2 01 1 1004-1007 ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.90 BLUE 		8-94422-090-2 01 1 1008- ● ● ●
391 04.383 RING; INSIDE,SYN
OD=95.8 		8-94363-056-0 02 1 0306-0609 ● ●
391 04.383 RING; INSIDE,SYN
OD=95.8 		8-94363-056-0 02 1 0610-1003 ● ● ●
391 04.383 RING; INSIDE,SYN
OD=95.8 		8-94363-056-0 02 1 1004-1007 ● ●
391 04.383 RING; INSIDE,SYN
OD=95.8 		8-94363-056-0 02 1 1008- ● ● ●
392 04.383 RING; OUTSIDE,SYN
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) OD=90.0 		8-98115-793-0 02 1 1105-1106 ●
392 04.383 RING; OUTSIDE,SYN
OD=90.0 		8-98115-793-0 02 1 1107- ● ● ●
392 04.383 RING; OUTSIDE,SYN
OD=90.0 		8-94363-055-1 02 1 0306-0609 ● ●
392 04.383 RING; OUTSIDE,SYN
OD=90.0 		8-94363-055-1 02 1 0610-1003 ● ● ●
392 04.383 RING; OUTSIDE,SYN
OD=90.0 		8-94363-055-1 02 1 1004-1007 ● ●
392 04.383 RING; OUTSIDE,SYN
OD=90.0 		8-94363-055-1 02 1 1008-1104 ● ● ●
392 04.383 RING; OUTSIDE,SYN
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) OD=90.0 		8-94363-055-1 02 1 1105-1106 ● ● ●
394 04.419 BEARING; BALL,MAINSHAFT RR
4X4(TFS***) 4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 04.352 NSK 		8-97018-921-1 01 1 0806- ●
394 04.419 BEARING; BALL,MAINSHAFT RR
4X4(TFS***) 04.352 NSK 		8-97018-921-1 01 1 0306-0609 ● ●
394 04.419 BEARING; BALL,MAINSHAFT RR
4X4(TFS***) 04.352 NSK 		8-97018-921-1 01 1 0610-0805 ● ● ●
394 04.419 BEARING; BALL,MAINSHAFT RR
4X4(TFS***) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 04.352 NSK 		8-97018-921-1 01 1 0806-1003 ● ● ●
394 04.419 BEARING; BALL,MAINSHAFT RR
4X4(TFS***) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 04.352 NSK 		8-97018-921-1 01 1 1004-1007 ● ●
394 04.419 BEARING; BALL,MAINSHAFT RR
4X4(TFS***) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 04.352 NSK 		8-97018-921-1 01 1 1008- ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
JTEKT 		9-00096-100-1 01 1 0306- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-94422-068-1 01 1 0306-0609 ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-94422-068-1 01 1 0610-1003 ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-94422-068-1 01 1 1004-1007 ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-94422-068-1 01 1 1008-1102 ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-98172-355-0 01 1 1103- ● ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 5-33264-010-0 02 1 0306- ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 0306-0609 ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 0610-1003 ● ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 1004-1007 ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 1008- ● ● ●
398 04.421 GEAR; COUNTER
Z=46-38-25-19 		8-97104-161-1 01 1 1008- ●
398 04.421 GEAR; COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 0806-1101 ●
398 04.421 GEAR; COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97301-186-2 01 1 1102- ●
398 04.421 GEAR; COUNTER
Z=37-31-20-16 		8-94469-524-1 01 1 0306- ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 0306-0609 ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 0610-0809 ● ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 0810-1003 ●
398 04.421 GEAR; COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 0810-1003 ●
398 04.421 GEAR; COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 1004-1007 ● ● ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 1008- ●
398 04.421 GEAR; COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 1008- ●
398 04.421 GEAR; COUNTER
Z=46-38-25-19 		8-97104-161-1 01 1 0306-1003 ●
398 04.421 GEAR; COUNTER
4JJ1-TCX ENG(LS0) Z=26 		8-98023-110-1 01 1 0610-0703 ●
398 04.421 GEAR; COUNTER
4JJ1-TCX ENG(LS0) Z=26 		8-98079-114-0 01 1 0704-1204 ●
398 04.421 GEAR; COUNTER
4X2(TFB***) Z=26 		8-98079-114-0 01 1 1205-1205 ●
398 04.421 GEAR; COUNTER
4JJ1-TCX ENG(LS0) Z=26 		8-98079-114-0 01 1 1206- ●
404 04.307 PLATE; THRUST 8-94421-892-0 02 1 0306-0609 ● ●
404 04.307 PLATE; THRUST 8-94421-892-0 02 1 0610-1003 ● ● ●
404 04.307 PLATE; THRUST 8-94421-892-0 02 1 1004-1007 ● ●
404 04.307 PLATE; THRUST 8-94421-892-0 02 1 1008- ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94152-557-1 03 1 0306- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 0306-0609 ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 0610-1003 ● ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1004-1007 ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1008- ● ● ● ●
421 04.383 RING; BLOCK,REV & 5TH
Z=36 		8-97071-688-0 02 1 0306-0609 ● ●
421 04.383 RING; BLOCK,REV & 5TH
Z=36 		8-97071-688-0 02 1 0610-1003 ● ● ●
421 04.383 RING; BLOCK,REV & 5TH
Z=36 		8-97071-688-0 02 1 1004-1007 ● ●
421 04.383 RING; BLOCK,REV & 5TH
Z=36 		8-97071-688-0 02 1 1008- ● ● ●
499 04.419 COLLAR; OIL SEAL
4X4(TFS***) 4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97300-954-0 01 1 0806- ●
499 04.419 COLLAR; OIL SEAL
4X4(TFS***) 		8-97300-954-0 01 1 0306-0609 ● ●
499 04.419 COLLAR; OIL SEAL
4X4(TFS***) 		8-97300-954-0 01 1 0610-0805 ● ● ●
499 04.419 COLLAR; OIL SEAL
4X4(TFS***) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97300-954-0 01 1 0806-1003 ● ● ●
499 04.419 COLLAR; OIL SEAL
4X4(TFS***) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97300-954-0 01 1 1004-1007 ● ●
499 04.419 COLLAR; OIL SEAL
4X4(TFS***) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97300-954-0 01 1 1008- ● ● ●

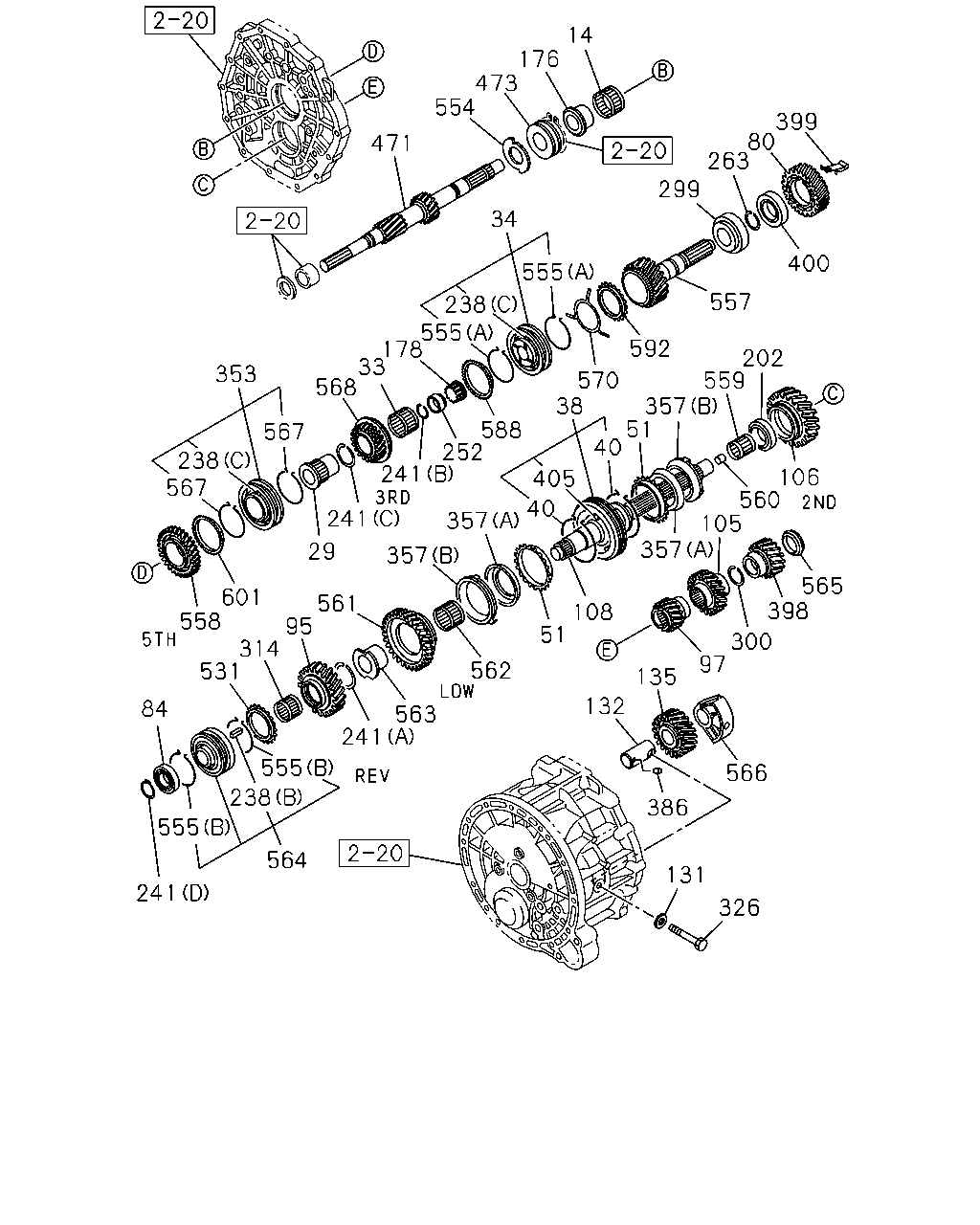

çizim 185166
326 131 386 566 565 398 300 97 135 132 564 241 106 560 105 357 108 51 562 563 241 555 238 555 202 559 357 51 40 405 40 357 357 561 95 314 531 84 400 557 592 570 38 588 252 241 241 29 601 558 399 80 263 299 555 238 555 178 33 568 567 238 567 34 353 14 176 473 554 471
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-94161-994-0 01 1 0306- ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97029-341-0 01 1 0306-0609 ● ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97029-341-0 01 1 0610-1003 ● ● ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97029-341-0 01 1 1004-1007 ● ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97029-341-0 01 1 1008-1102 ● ● ●
14 04.419 BEARING; NEEDLE,5TH
NTN 		8-98172-356-0 01 1 1103- ● ● ●
14 04.419 BEARING; NEEDLE,5TH
4JJ1-TCX ENG(LS0) NSK 		8-97362-728-0 01 1 0610- ●
29 04.416 COLLAR; 3RD GEAR
4JJ1-TCX ENG(LS0) 		8-97362-568-1 01 1 0610- ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 0306-0609 ● ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 0610-1003 ● ● ● ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 1004-1007 ● ● ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 1008- ● ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97977-991-0 01 1 1402- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-94161-860-0 01 1 0306- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97188-798-0 01 1 0306-0609 ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 0610-1003 ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 1004-1007 ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 1008-1401 ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97104-027-0 01 1 1402- ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
4JJ1-TCX ENG(LS0) 		8-97362-474-3 01 1 0610- ●
38 04.384 SYNCHRONIZER; LOW & 2ND
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97977-989-0 01 1 1402- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94435-140-0 01 1 0306- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97188-799-0 01 1 0306-0609 ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 0610-1003 ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 1004-1007 ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 1008-1401 ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-94363-059-1 01 1 1402- ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
4JJ1-TCX ENG(LS0) 		8-97362-503-1 01 1 0610- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94152-558-1 02 1 0306- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 0306-0609 ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 0610-1003 ● ● ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1004-1007 ● ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1008- ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
PHILIPPINE ISLANDS EQUIPMENT(B15) Z=36 		8-98115-804-0 02 1 1105-1106 ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1105-1106 ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1107- ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=45 		8-94151-510-3 02 1 0306- ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 0306-0609 ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 0610-1003 ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 1004-1007 ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 1008-1104 ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=48 		8-94363-054-1 02 1 1105-1106 ● ● ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-94161-085-1 01 1 0306- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) C24SE ENG(LG1),4JH1-TC ENG(RDM) Z=5 		8-94472-606-1 01 1 0306-0609 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=5 		8-94472-606-1 01 1 0306-0609 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) C24SE ENG(LG1) Z=5 		8-94472-606-1 01 1 0610-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=5 		8-94472-606-1 01 1 0610-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) C24SE ENG(LG1) Z=5 		8-94472-606-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) C24SE ENG(LG1) Z=5 		8-94472-606-1 01 1 1008- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=5 		8-94472-606-1 01 1 1008- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 0306-0609 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 0610-0709 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=6 		8-94472-608-1 01 1 0610-0709 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-94472-608-1 01 1 0610-0709 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 6VE1 ENG(LX5),4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 0710-0809 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=6 		8-94472-608-1 01 1 0710-0809 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-94472-608-1 01 1 0710-0809 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 6VE1 ENG(LX5),4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 0810-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6 		8-94472-608-1 01 1 0810-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-94472-608-1 01 1 0810-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=6 		8-94472-608-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2 REGULAR CAB(TFB*S*) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6 		8-94472-608-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) Z=6 		8-94472-608-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 6VE1 ENG(LX5),4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 1008-1110 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) Z=6 		8-94472-608-1 01 1 1008-1110 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-94472-608-1 01 1 1008-1110 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 CREW CAB(TFB*W*) 6VE1 ENG(LX5) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 CREW CAB(TFB*W*) 6VE1 ENG(LX5) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 REGULAR CAB(TFB*S*) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 REGULAR CAB(TFB*S*) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 CREW CAB(TFB*W*) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(QCQ) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6 		8-97227-220-0 01 1 0610-0809 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) ,FRT&RR 195R15C(QZO) Z=6 		8-97227-220-0 01 1 0810-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) ,FRT&RR 195R15C(QZO) Z=6 		8-97227-220-0 01 1 1008-1101 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6 		8-97227-220-0 01 1 1008-1101 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=6 		8-97227-220-0 01 1 1008-1101 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6 		8-97227-220-0 01 1 1102- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R15C(QZO) Z=6 		8-97227-220-0 01 1 1102- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=6 		8-97227-220-0 01 1 1102- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=7 		8-98004-532-0 01 1 0610- ●
84 04.422 BEARING; COUNTER SHAFT,FRT
NSK ID=20 OD=47 		8-97063-365-0 01 1 0306- ●
84 04.422 BEARING; COUNTER SHAFT,FRT
4JJ1-TCX ENG(LS0) 		8-97362-724-0 01 1 0610- ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=19 		8-94377-433-0 01 1 0806-1302 ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=19 		8-94377-433-0 01 1 1303- ●
95 04.417 GEAR; REV,COUNTER
Z=16 		8-94161-120-1 01 1 0306- ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 0306-0609 ● ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 0610-0805 ● ● ●
95 04.417 GEAR; REV,COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=19 		8-94377-433-0 01 1 0806- ● ● ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCX ENG(LS0) Z=41 		8-97362-499-0 01 1 0610-1204 ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCX ENG(LS0) Z=41 		8-98210-237-0 01 1 1205- ●
97 04.415 GEAR; 5TH,COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=50 		8-94377-434-0 01 1 0806- ●
97 04.415 GEAR; 5TH,COUNTER
Z=47 		8-94161-098-2 01 1 0306- ●
97 04.415 GEAR; 5TH,COUNTER
Z=49 		8-97216-154-0 01 1 0306- ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 0306-0609 ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 0610-0809 ● ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 0810-1003 ●
97 04.415 GEAR; 5TH,COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=50 		8-94377-434-0 01 1 0810-1003 ●
97 04.415 GEAR; 5TH,COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=50 		8-94377-434-0 01 1 1004- ●
97 04.415 GEAR; 5TH,COUNTER
4JJ1-TCX ENG(LS0) Z=27 		8-98040-114-0 01 1 0610- ●
105 04.415 GEAR; 3RD,COUNTER
4JJ1-TCX ENG(LS0) Z=31 		8-98023-109-0 01 1 0610-1302 ●
105 04.415 GEAR; 3RD,COUNTER
4JJ1-TCX ENG(LS0) Z=31 		8-98233-612-0 01 1 1303- ●
106 04.395 GEAR; 2ND,COUNTER
4JJ1-TCX ENG(LS0) Z=38 		8-97362-505-0 01 1 0610-1204 ●
106 04.395 GEAR; 2ND,COUNTER
4JJ1-TCX ENG(LS0) Z=38 		8-98210-236-0 01 1 1205- ●
108 04.428 SHAFT; COUNTER
4JJ1-TCX ENG(LS0) Z=26-34-26-26 		8-98023-108-1 01 1 0610- ●
131 04.435 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) 08.955 ID=12.2 		9-09571-412-0 01 1 0610- ●
132 04.433 SHAFT; REV
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98249-849-0 01 1 1309- ● ● ●
132 04.433 SHAFT; REV 8-94435-146-0 01 1 0306- ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 0306-0609 ● ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 0610-1003 ● ● ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1004-1007 ● ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1008-1308 ● ● ●
132 04.433 SHAFT; REV
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98245-493-0 01 1 1309- ●
132 04.433 SHAFT; REV
4JJ1-TCX ENG(LS0) 		8-98023-113-0 01 1 0610- ●
135 04.430 GEAR; REV IDLER
4X4(TFS***) 4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98080-125-0 01 1 0810-0810 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98080-125-0 01 1 0810-1003 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98146-727-1 01 1 1004-1302 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98233-606-0 01 1 1303- ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98082-803-0 01 1 0806-0809 ●
135 04.430 GEAR; REV IDLER
4X2(TFB***) Z=33 		8-98082-803-0 01 1 0810-0810 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-94161-118-1 01 1 0306-0705 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-98080-126-0 01 1 0706-0708 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-98082-807-0 01 1 0709-0809 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-98080-126-0 01 1 0810-1003 ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98146-724-0 01 1 1004- ●
135 04.430 GEAR; REV IDLER
Z=33 		8-94377-435-1 01 1 0306-0609 ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-94377-435-1 01 1 0610-0705 ● ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98080-125-0 01 1 0706-0708 ● ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98082-803-0 01 1 0709-0805 ● ● ●
135 04.430 GEAR; REV IDLER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98082-803-0 01 1 0806-0809 ● ● ●
135 04.430 GEAR; REV IDLER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98080-125-0 01 1 0810-1003 ● ● ●
135 04.430 GEAR; REV IDLER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98146-726-1 01 1 1004- ● ● ●
135 04.430 GEAR; REV IDLER
4JJ1-TCX ENG(LS0) Z=32 		8-97362-513-1 01 1 0610-1302 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCX ENG(LS0) Z=32 		8-98233-615-0 01 1 1303- ●
176 04.415 COLLAR; 5TH GEAR
4JJ1-TCX ENG(LS0) 		8-97362-567-0 01 1 0610- ●
178 04.352 BEARING; NEEDLE,MAINSHAFT
4JJ1-TCX ENG(LS0) 		8-97362-869-0 01 1 0610- ●
202 04.422 BEARING; COUNTER GEAR
4JJ1-TCX ENG(LS0) 		8-97362-725-0 01 1 0610- ●
238 04.384 INSERT
(A) 		8-94448-202-2 03 1 0306-0609 ● ●
238 04.384 INSERT
(A) 		8-94448-202-2 03 1 0610-1003 ● ● ●
238 04.384 INSERT
(A) 		8-94448-202-2 03 1 1004-1007 ● ●
238 04.384 INSERT
(A) 		8-94448-202-2 03 1 1008- ● ● ●
238 04.384 INSERT
4JJ1-TCX ENG(LS0) (B) 		8-94249-576-2 03 1 0610- ●
238 04.384 INSERT
4JJ1-TCX ENG(LS0) (C) 		8-98004-522-0 06 1 0610- ●
241 04.416 RING; SNAP
4JJ1-TCX ENG(LS0) 04.422 (A) ID=34.4 T=1.9 		8-97254-735-0 01 1 0610- ●
241 04.416 RING; SNAP
4JJ1-TCX ENG(LS0) (B) ID=27.1 T=1.9 		8-97362-871-0 01 1 0610- ●
241 04.416 RING; SNAP
4JJ1-TCX ENG(LS0) (B) ID=27.1 T=2.1 		8-97362-872-0 01 1 0610- ●
241 04.416 RING; SNAP
4JJ1-TCX ENG(LS0) (B) ID=27.1 T=2.3 		8-97362-873-0 01 1 0610- ●
241 04.416 RING; SNAP
4JJ1-TCX ENG(LS0) (C) ID=37 T=1.95 		8-98004-523-1 01 1 0610- ●
241 04.416 RING; SNAP
4JJ1-TCX ENG(LS0) (C) ID=37 T=2.1 		8-98004-524-1 01 1 0610- ●
241 04.416 RING; SNAP
4JJ1-TCX ENG(LS0) (D) ID=27.9 		9-09180-030-0 01 1 0610- ●
252 04.412 SPACER
4JJ1-TCX ENG(LS0) 		8-98024-456-0 01 1 0610- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
4JJ1-TCX ENG(LS0) ID=30.7 T=2.1 		8-98004-525-0 01 1 0610- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
4JJ1-TCX ENG(LS0) ID=30.7 T=2.2 		8-98004-526-0 01 1 0610- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
4JJ1-TCX ENG(LS0) ID=30.7 T=2.3 		8-98004-527-0 01 1 0610- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
4JJ1-TCX ENG(LS0) ID=30.7 T=2.4 		8-98004-528-0 01 1 0610- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
4JJ1-TCX ENG(LS0) ID=30.7 T=2.5 		8-98004-529-0 01 1 0610- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
4JJ1-TCX ENG(LS0) ID=30.7 T=2.6 		8-98004-530-0 01 1 0610- ●
299 04.422 BEARING; OUTPUT SHAFT FRT
4JJ1-TCX ENG(LS0) 		8-97362-722-0 01 1 0610- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
4JJ1-TCX ENG(LS0) ID=29 T=2.3 		8-98024-222-1 01 1 0610- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
4JJ1-TCX ENG(LS0) ID=29 T=2.5 		8-98024-223-1 01 1 0610- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
4JJ1-TCX ENG(LS0) ID=29 T=2.7 		8-98024-224-1 01 1 0610- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 0306-0609 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 0610-1003 ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 1004-1007 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 1008- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 0306-0609 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 0610-1003 ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 1004-1007 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 1008- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
4JJ1-TCX ENG(LS0) NSK 		8-97362-719-0 01 1 0610- ●
326 04.412 BOLT; REV SHAFT
4JJ1-TCX ENG(LS0) 04.439 M12X70 		9-92621-270-0 01 1 0610- ●
353 04.380 SYNCHRONIZER; 5TH
4JJ1-TCX ENG(LS0) 		8-98004-511-1 01 1 0610- ●
357 04.383 RING
4JJ1-TCX ENG(LS0) (A) OD=90.0 		8-94363-055-1 02 1 0610-1104 ●
357 04.383 RING
4JJ1-TCX ENG(LS0) (A) OD=90.0 		8-98115-793-0 02 1 1105- ●
357 04.383 RING
4JJ1-TCX ENG(LS0) (B) OD=95.8 		8-94363-056-0 02 1 0610- ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 0306-0609 ● ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 0610-1003 ● ● ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 1004-1007 ● ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 1008- ● ● ●
386 04.435 PIN; REV SHAFT
4JJ1-TCX ENG(LS0) 00.662 OD=4 L=8 		9-08160-408-0 01 1 0610- ●
398 04.421 GEAR; COUNTER
Z=46-38-25-19 		8-97104-161-1 01 1 1008- ●
398 04.421 GEAR; COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 0806-1101 ●
398 04.421 GEAR; COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97301-186-2 01 1 1102- ●
398 04.421 GEAR; COUNTER
Z=37-31-20-16 		8-94469-524-1 01 1 0306- ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 0306-0609 ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 0610-0809 ● ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 0810-1003 ●
398 04.421 GEAR; COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 0810-1003 ●
398 04.421 GEAR; COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 1004-1007 ● ● ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 1008- ●
398 04.421 GEAR; COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 1008- ●
398 04.421 GEAR; COUNTER
Z=46-38-25-19 		8-97104-161-1 01 1 0306-1003 ●
398 04.421 GEAR; COUNTER
4JJ1-TCX ENG(LS0) Z=26 		8-98023-110-1 01 1 0610-0703 ●
398 04.421 GEAR; COUNTER
4JJ1-TCX ENG(LS0) Z=26 		8-98079-114-0 01 1 0704-1204 ●
398 04.421 GEAR; COUNTER
4X2(TFB***) Z=26 		8-98079-114-0 01 1 1205-1205 ●
398 04.421 GEAR; COUNTER
4JJ1-TCX ENG(LS0) Z=26 		8-98079-114-0 01 1 1206- ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR
4X2(TFB***) 		8-94310-229-0 01 1 0306-0609 ● ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR
4X2(TFB***) 		8-94310-229-0 01 1 0610-1003 ● ● ● ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR
4X2(TFB***) 		8-94310-229-0 01 1 1004-1007 ● ● ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR
4X2(TFB***) 		8-94310-229-0 01 1 1008- ● ● ● ●
400 04.408 BEARING; OUTPUT SHAFT RR
4JJ1-TCX ENG(LS0) 		8-97362-723-0 01 1 0610- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94152-557-1 03 1 0306- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 0306-0609 ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 0610-1003 ● ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1004-1007 ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1008- ● ● ● ●
471 04.530 SHAFT; INPUT
4JJ1-TCX ENG(LS0) 		8-98049-345-1 01 1 0610- ●
473 04.352 BEARING; INPUT SHAFT
4JJ1-TCX ENG(LS0) 		8-97362-721-1 01 1 0610- ●
531 04.383 RING; BLOCK,REV
4JJ1-TCX ENG(LS0) OD=74 		8-98037-846-0 01 1 0610- ●
554 04.422 IMPELLER; OIL
4JJ1-TCX ENG(LS0) 		8-97362-730-0 01 1 0610- ●
555 04.384 SPRING; INSERT
4JJ1-TCX ENG(LS0) (A) 		5-33264-012-0 02 1 0610- ●
555 04.384 SPRING; INSERT
4JJ1-TCX ENG(LS0) (B) 		8-97109-690-0 02 1 0610- ●
557 04.535 GEAR; OUTPUT
4X2(TFB***) Z=35-27 		8-98210-259-0 01 1 1206- ●
557 04.535 GEAR; OUTPUT
4X2(TFB***) Z=35-27 		8-97362-492-2 01 1 0610-0703 ●
557 04.535 GEAR; OUTPUT
4X2(TFB***) Z=35-27 		8-98079-113-0 01 1 0704-1205 ●
557 04.535 GEAR; OUTPUT
4X4(TFS***) Z=35-27 		8-97362-488-2 01 1 0610-0703 ●
557 04.535 GEAR; OUTPUT
4X4(TFS***) Z=35-27 		8-98079-111-0 01 1 0704-1205 ●
557 04.535 GEAR; OUTPUT
4X4(TFS***) Z=35-27 		8-98210-258-0 01 1 1206- ●
558 04.415 GEAR; 5TH,INPUT SHAFT
4JJ1-TCX ENG(LS0) Z=46 		8-98040-112-0 01 1 0610-1205 ●
558 04.415 GEAR; 5TH,INPUT SHAFT
4JJ1-TCX ENG(LS0) Z=46 		8-98210-234-0 01 1 1206-1302 ●
558 04.415 GEAR; 5TH,INPUT SHAFT
4JJ1-TCX ENG(LS0) Z=46 		8-98233-610-0 01 1 1303- ●
559 04.352 BEARING; NEEDLE,LOW & 2ND
4JJ1-TCX ENG(LS0) 		8-97362-727-0 01 1 0610- ●
560 04.416 RING; DUM
4JJ1-TCX ENG(LS0) 		8-97078-729-1 01 1 0610- ●
561 04.395 GEAR; LOW,COUNTER
4JJ1-TCX ENG(LS0) Z=45 		8-97362-501-0 01 1 0610-1204 ●
561 04.395 GEAR; LOW,COUNTER
4JJ1-TCX ENG(LS0) Z=45 		8-98210-235-0 01 1 1205- ●
562 04.422 BEARING; NEEDLE,LOW & 2ND
4JJ1-TCX ENG(LS0) 04.352 		8-97362-727-0 01 1 0610- ●
563 04.419 COLLAR; 1ST GEAR
4JJ1-TCX ENG(LS0) 		8-97362-569-1 01 1 0610- ●
564 04.380 SYNCHRONIZER; REV
4JJ1-TCX ENG(LS0) 		8-97362-496-1 01 1 0610- ●
565 04.338 SEAL; RUBBER
4JJ1-TCX ENG(LS0) 		8-98024-457-0 01 1 0610-0910 ●
566 04.342 BRACKET; REV IDLER
4JJ1-TCX ENG(LS0) 		8-97362-516-0 01 1 0610- ●
567 04.384 SPRING; INSERT,5TH
4JJ1-TCX ENG(LS0) 		5-33264-012-0 02 1 0610- ●
568 04.415 GEAR; 3RD,INPUT SHAFT
4JJ1-TCX ENG(LS0) Z=28 		8-97362-480-0 01 1 0610-1205 ●
568 04.415 GEAR; 3RD,INPUT SHAFT
4JJ1-TCX ENG(LS0) Z=28 		8-98210-233-0 01 1 1206-1302 ●
568 04.415 GEAR; 3RD,INPUT SHAFT
4JJ1-TCX ENG(LS0) Z=28 		8-98233-608-0 01 1 1303- ●
570 04.422 SPRING; PLATE
4JJ1-TCX ENG(LS0) 		8-98057-960-0 01 1 0610-0611 ●
570 04.422 SPRING; PLATE
4JJ1-TCX ENG(LS0) 		8-98072-467-2 01 1 0612- ●
588 04.383 RING; BLOCK,3RD
4JJ1-TCX ENG(LS0) Z=36 		8-98052-559-0 01 1 0610- ●
592 04.383 RING; BLOCK,4TH
4JJ1-TCX ENG(LS0) Z=36 		8-98052-559-0 01 1 0610-1106 ●
592 04.383 RING; BLOCK,4TH
4JJ1-TCX ENG(LS0) 		8-98197-460-0 01 1 1107- ●
601 04.383 RING; BLOCK,5TH
4JJ1-TCX ENG(LS0) 		8-98283-241-0 01 1 0610- ●
çizim 185271
72 60 61 63 421 91 314 59 13 87 86 89 404 399 90 421 62 62 65 306 14 404 38 80 149 51 405 306 390 51 391 70 313 211 49 50 391 392 5 4 3 40 40 392 1 34 396 35 238 35 36 33 93 292 246 397 306 82 397 219 97 98 398 110 189 95 386 132 226 135
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-97182-214-1 01 1 1008-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-98210-242-0 01 1 1205- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-97300-948-1 01 1 0806-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-98210-225-0 01 1 1205-1307 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-98210-225-0 01 1 1308- ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=23 		8-94435-160-2 01 1 0306- ●
1 04.351 SHAFT; TOP GEAR,TRANS
C24SE ENG(LG1) Z=26 		8-97300-950-1 01 1 0306-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
C24SE ENG(LG1) Z=26 		8-98210-246-0 01 1 1205- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 0306-0609 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 0610-0709 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) Z=26 		8-97300-948-1 01 1 0610-0709 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 0710-1003 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-97300-948-1 01 1 0710-1003 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 1004-1007 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-97300-948-1 01 1 1004-1007 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 1008-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-97300-948-1 01 1 1008-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) Z=26 		8-98210-225-0 01 1 1205- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-98210-225-0 01 1 1205- ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-97182-214-1 01 1 0306-1003 ●
3 04.403 BEARING; TOP GEAR SHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-97943-879-0 01 1 0806- ●
3 04.403 BEARING; TOP GEAR SHAFT
04.355 NSK 		8-94167-637-0 01 1 0306-0902 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97943-882-0 01 1 0903- ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-94380-015-1 01 1 0306-0609 ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-94380-015-1 01 1 0610-0805 ● ● ●
3 04.403 BEARING; TOP GEAR SHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-94380-015-1 01 1 0806- ● ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.376 NSK 		8-94206-485-0 01 1 0306- ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 0306-0609 ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 0610-1003 ● ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 1004-1007 ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 1008- ● ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
08.934 ID=37.0 		9-09180-040-0 01 1 0306- ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 0306-0609 ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 0610-1003 ● ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 1004-1007 ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 1008- ● ● ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-97104-023-3 01 1 0806-1204 ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-98210-227-0 01 1 1205-1302 ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-98210-227-0 01 1 1303- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=25 		8-94161-912-3 01 1 0306- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=24 		8-97216-153-1 01 1 0306-1204 ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=24 		8-98210-254-0 01 1 1205- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=22 		8-97104-023-2 01 1 0306-0609 ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=22 		8-97104-023-2 01 1 0610-0809 ● ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=22 		8-97104-023-2 01 1 0810-1003 ●
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-97104-023-2 01 1 0810-1003 ●
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-97104-023-3 01 1 1004-1204 ●
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-98210-227-0 01 1 1205- ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-94161-994-0 01 1 0306- ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97029-341-0 01 1 0306-0609 ● ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97029-341-0 01 1 0610-1003 ● ● ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97029-341-0 01 1 1004-1007 ● ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97029-341-0 01 1 1008-1102 ● ● ●
14 04.419 BEARING; NEEDLE,5TH
NTN 		8-98172-356-0 01 1 1103- ● ● ●
14 04.419 BEARING; NEEDLE,5TH
4JJ1-TCX ENG(LS0) NSK 		8-97362-728-0 01 1 0610- ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 0306-0609 ● ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 0610-1003 ● ● ● ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 1004-1007 ● ● ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 1008- ● ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97977-991-0 01 1 1402- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-94161-860-0 01 1 0306- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97188-798-0 01 1 0306-0609 ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 0610-1003 ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 1004-1007 ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 1008-1401 ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97104-027-0 01 1 1402- ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
4JJ1-TCX ENG(LS0) 		8-97362-474-3 01 1 0610- ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=30 		8-94463-830-1 02 1 0306- ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 0306-0609 ● ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 0610-1003 ● ● ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 1004-1007 ● ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 1008- ● ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97104-021-2 01 1 1008-1204 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-98210-249-0 01 1 1205- ●
36 04.415 GEAR; 3RD,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-97301-180-1 01 1 0806-1204 ●
36 04.415 GEAR; 3RD,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-98210-230-0 01 1 1205-1302 ●
36 04.415 GEAR; 3RD,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-98233-597-0 01 1 1303- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=29 		8-94161-137-1 01 1 0306- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-97216-150-1 01 1 0306-0609 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-97216-150-1 01 1 0610-0809 ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-97216-150-1 01 1 0810-1003 ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-97216-150-1 01 1 0810-1003 ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-97216-150-1 01 1 1004-1007 ● ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-97216-150-1 01 1 1008-1204 ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-97216-150-1 01 1 1008-1204 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-98210-226-0 01 1 1205- ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-98210-226-0 01 1 1205- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97104-021-2 01 1 0306-1003 ●
38 04.384 SYNCHRONIZER; LOW & 2ND
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97977-989-0 01 1 1402- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94435-140-0 01 1 0306- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97188-799-0 01 1 0306-0609 ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 0610-1003 ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 1004-1007 ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 1008-1401 ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-94363-059-1 01 1 1402- ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
4JJ1-TCX ENG(LS0) 		8-97362-503-1 01 1 0610- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94152-558-1 02 1 0306- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 0306-0609 ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 0610-1003 ● ● ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1004-1007 ● ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1008- ● ● ● ●
49 04.352 BEARING; NEEDLE,2ND GEAR
JTEKT 		9-00096-625-0 01 1 0306-0609 ● ●
49 04.352 BEARING; NEEDLE,2ND GEAR
JTEKT 		9-00096-625-0 01 1 0610-1003 ● ● ●
49 04.352 BEARING; NEEDLE,2ND GEAR
JTEKT 		9-00096-625-0 01 1 1004-1007 ● ●
49 04.352 BEARING; NEEDLE,2ND GEAR
JTEKT 		9-00096-625-0 01 1 1008- ● ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=34 		8-97301-183-1 01 1 0806- ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=31 		8-94311-564-1 01 1 0306- ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=34 		8-97300-953-1 01 1 0306-0609 ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=34 		8-97300-953-1 01 1 0610-0805 ● ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=34 		8-97300-953-1 01 1 0806- ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
PHILIPPINE ISLANDS EQUIPMENT(B15) Z=36 		8-98115-804-0 02 1 1105-1106 ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1105-1106 ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1107- ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=45 		8-94151-510-3 02 1 0306- ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 0306-0609 ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 0610-1003 ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 1004-1007 ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 1008-1104 ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=48 		8-94363-054-1 02 1 1105-1106 ● ● ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-97104-025-2 01 1 0806-1205 ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-98210-228-0 01 1 1206-1302 ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-98210-228-0 01 1 1303- ●
59 04.417 GEAR; REV MAINSHAFT
Z=37 		8-94310-158-1 01 1 0306- ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97104-025-2 01 1 0306-0609 ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97104-025-2 01 1 0610-0805 ● ● ●
59 04.417 GEAR; REV MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-97104-025-2 01 1 0806-1205 ● ● ●
59 04.417 GEAR; REV MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-98210-228-0 01 1 1206- ● ● ●
60 04.419 COLLAR; REV MAIN 8-97031-079-0 01 1 0306-0609 ● ●
60 04.419 COLLAR; REV MAIN 8-97031-079-0 01 1 0610-1003 ● ● ●
60 04.419 COLLAR; REV MAIN 8-97031-079-0 01 1 1004-1007 ● ●
60 04.419 COLLAR; REV MAIN 8-97031-079-0 01 1 1008- ● ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 5-33260-010-0 01 1 0306- ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97188-800-0 01 1 0306-0609 ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97030-106-1 01 1 0610-1003 ● ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97030-106-1 01 1 1004-1007 ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97030-106-1 01 1 1008- ● ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-010-0 02 1 0306- ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 0306-0609 ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 0610-1003 ● ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 1004-1007 ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 1008- ● ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-002-3 03 1 0306- ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 0306-0609 ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 0610-1003 ● ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 1004-1007 ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 1008- ● ● ●
65 04.356 NUT; MAINSHAFT
M32 		8-94238-094-1 01 1 0306- ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 0306-0609 ● ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 0610-1003 ● ● ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 1004-1007 ● ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 1008- ● ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=45 		8-97301-182-1 01 1 0806- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=41 		8-94310-154-1 01 1 0306- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97300-952-1 01 1 0306-0609 ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97300-952-1 01 1 0610-0805 ● ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=45 		8-97300-952-1 01 1 0806- ● ● ●
72 04.352 BEARING; BALL,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-94380-017-1 01 1 0806- ●
72 04.352 BEARING; BALL,MAINSHAFT
NSK 		8-94380-017-1 01 1 0306-0609 ● ●
72 04.352 BEARING; BALL,MAINSHAFT
NSK 		8-94380-017-1 01 1 0610-0805 ● ● ●
72 04.352 BEARING; BALL,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-94380-017-1 01 1 0806- ● ● ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-94161-085-1 01 1 0306- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) C24SE ENG(LG1),4JH1-TC ENG(RDM) Z=5 		8-94472-606-1 01 1 0306-0609 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=5 		8-94472-606-1 01 1 0306-0609 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) C24SE ENG(LG1) Z=5 		8-94472-606-1 01 1 0610-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=5 		8-94472-606-1 01 1 0610-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) C24SE ENG(LG1) Z=5 		8-94472-606-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) C24SE ENG(LG1) Z=5 		8-94472-606-1 01 1 1008- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=5 		8-94472-606-1 01 1 1008- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 0306-0609 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 0610-0709 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=6 		8-94472-608-1 01 1 0610-0709 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-94472-608-1 01 1 0610-0709 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 6VE1 ENG(LX5),4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 0710-0809 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=6 		8-94472-608-1 01 1 0710-0809 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-94472-608-1 01 1 0710-0809 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 6VE1 ENG(LX5),4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 0810-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6 		8-94472-608-1 01 1 0810-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-94472-608-1 01 1 0810-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=6 		8-94472-608-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2 REGULAR CAB(TFB*S*) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6 		8-94472-608-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) Z=6 		8-94472-608-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 6VE1 ENG(LX5),4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 1008-1110 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) Z=6 		8-94472-608-1 01 1 1008-1110 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-94472-608-1 01 1 1008-1110 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 CREW CAB(TFB*W*) 6VE1 ENG(LX5) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 CREW CAB(TFB*W*) 6VE1 ENG(LX5) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 REGULAR CAB(TFB*S*) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 REGULAR CAB(TFB*S*) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 CREW CAB(TFB*W*) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(QCQ) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6 		8-97227-220-0 01 1 0610-0809 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) ,FRT&RR 195R15C(QZO) Z=6 		8-97227-220-0 01 1 0810-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) ,FRT&RR 195R15C(QZO) Z=6 		8-97227-220-0 01 1 1008-1101 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6 		8-97227-220-0 01 1 1008-1101 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=6 		8-97227-220-0 01 1 1008-1101 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6 		8-97227-220-0 01 1 1102- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R15C(QZO) Z=6 		8-97227-220-0 01 1 1102- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=6 		8-97227-220-0 01 1 1102- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=7 		8-98004-532-0 01 1 0610- ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-24-27 		8-94435-162-3 01 1 0306- ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 0306-0609 ● ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 0610-1003 ● ● ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 1004-1007 ● ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 1008- ● ● ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 0306-0609 ● ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 0610-1003 ● ● ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 1004-1007 ● ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 1008- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=7.80 		8-94238-099-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=7.90 		8-94238-100-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=8.00 		8-94238-101-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=8.10 		8-94238-102-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=8.20 		8-94238-103-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=8.30 		8-94238-104-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 0306-0609 ● ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 0610-1003 ● ● ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 1004-1007 ● ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 1008- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 0306-0609 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 0610-1003 ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 1004-1007 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 1008- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 0306-0609 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 0610-1003 ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 1004-1007 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 1008- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 0306-0609 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 0610-1003 ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 1004-1007 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 1008- ● ● ●
87 04.416 BALL; THRUST WASHER 8-94201-356-0 01 1 0306-0609 ● ● ●
87 04.416 BALL; THRUST WASHER 8-94201-356-0 01 1 0610-1003 ● ● ● ●
87 04.416 BALL; THRUST WASHER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-94201-356-0 01 1 1004-1007 ● ● ●
87 04.416 BALL; THRUST WASHER 8-94201-356-0 01 1 1008- ● ● ● ●
89 04.416 RING; RET,THRUST RING
ID=31.8 		8-94422-395-0 01 1 0306-0609 ● ●
89 04.416 RING; RET,THRUST RING
ID=31.8 		8-94422-395-0 01 1 0610-1003 ● ● ●
89 04.416 RING; RET,THRUST RING
ID=31.8 		8-94422-395-0 01 1 1004-1007 ● ●
89 04.416 RING; RET,THRUST RING
ID=31.8 		8-94422-395-0 01 1 1008- ● ● ●
90 04.416 RING; SNAP,THRUST RING
08.934 ID=37.0 		9-09180-040-0 01 1 0306- ●
90 04.416 RING; SNAP,THRUST RING
4X2(TFB***) 04.422 ID=29.6 		9-09180-032-0 01 1 0306-0609 ● ●
90 04.416 RING; SNAP,THRUST RING
4X2(TFB***) 04.422 ID=29.6 		9-09180-032-0 01 1 0610-1003 ● ● ●
90 04.416 RING; SNAP,THRUST RING
4X2(TFB***) 04.422 ID=29.6 		9-09180-032-0 01 1 1004-1007 ● ●
90 04.416 RING; SNAP,THRUST RING
4X2(TFB***) 04.422 ID=29.6 		9-09180-032-0 01 1 1008- ● ● ●
91 04.416 RING; SNAP,CENTER BRG,MAINSHAFT
ID=76.2 		8-94322-411-0 01 1 0306-0609 ● ●
91 04.416 RING; SNAP,CENTER BRG,MAINSHAFT
ID=76.2 		8-94322-411-0 01 1 0610-1003 ● ● ●
91 04.416 RING; SNAP,CENTER BRG,MAINSHAFT
ID=76.2 		8-94322-411-0 01 1 1004-1007 ● ●
91 04.416 RING; SNAP,CENTER BRG,MAINSHAFT
ID=76.2 		8-94322-411-0 01 1 1008- ● ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
08.934 ID=23.2 		9-09180-025-0 01 1 0306-0609 ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
08.934 ID=23.2 		9-09180-025-0 01 1 0610-1003 ● ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
08.934 ID=23.2 		9-09180-025-0 01 1 1004-1007 ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
08.934 ID=23.2 		9-09180-025-0 01 1 1008- ● ● ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=19 		8-94377-433-0 01 1 0806-1302 ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=19 		8-94377-433-0 01 1 1303- ●
95 04.417 GEAR; REV,COUNTER
Z=16 		8-94161-120-1 01 1 0306- ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 0306-0609 ● ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 0610-0805 ● ● ●
95 04.417 GEAR; REV,COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=19 		8-94377-433-0 01 1 0806- ● ● ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCX ENG(LS0) Z=41 		8-97362-499-0 01 1 0610-1204 ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCX ENG(LS0) Z=41 		8-98210-237-0 01 1 1205- ●
97 04.415 GEAR; 5TH,COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=50 		8-94377-434-0 01 1 0806- ●
97 04.415 GEAR; 5TH,COUNTER
Z=47 		8-94161-098-2 01 1 0306- ●
97 04.415 GEAR; 5TH,COUNTER
Z=49 		8-97216-154-0 01 1 0306- ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 0306-0609 ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 0610-0809 ● ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 0810-1003 ●
97 04.415 GEAR; 5TH,COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=50 		8-94377-434-0 01 1 0810-1003 ●
97 04.415 GEAR; 5TH,COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=50 		8-94377-434-0 01 1 1004- ●
97 04.415 GEAR; 5TH,COUNTER
4JJ1-TCX ENG(LS0) Z=27 		8-98040-114-0 01 1 0610- ●
98 04.422 BEARING; BALL,COUNTER END
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-97018-535-1 01 1 0806- ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-97359-571-0 01 1 0306-0601 ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-98019-664-0 01 1 0602- ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-97018-535-1 01 1 0306-0609 ● ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-97018-535-1 01 1 0610-0805 ● ● ●
98 04.422 BEARING; BALL,COUNTER END
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-97018-535-1 01 1 0806- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.10 WHITE 		8-94422-103-0 01 1 0306-0609 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.10 WHITE 		8-94422-103-0 01 1 0610-1003 ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.10 WHITE 		8-94422-103-0 01 1 1004-1007 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.10 WHITE 		8-94422-103-0 01 1 1008- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.20 YELLOW 		8-94422-104-0 01 1 0306-0609 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.20 YELLOW 		8-94422-104-0 01 1 0610-1003 ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.20 YELLOW 		8-94422-104-0 01 1 1004-1007 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.20 YELLOW 		8-94422-104-0 01 1 1008- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.30 BLUE 		8-94422-105-0 01 1 0306-0609 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.30 BLUE 		8-94422-105-0 01 1 0610-1003 ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.30 BLUE 		8-94422-105-0 01 1 1004-1007 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.30 BLUE 		8-94422-105-0 01 1 1008- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.40 PINK 		8-94422-106-0 01 1 0306-0609 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.40 PINK 		8-94422-106-0 01 1 0610-1003 ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.40 PINK 		8-94422-106-0 01 1 1004-1007 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.40 PINK 		8-94422-106-0 01 1 1008- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.50 GREEN 		8-94422-107-0 01 1 0306-0609 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.50 GREEN 		8-94422-107-0 01 1 0610-1003 ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.50 GREEN 		8-94422-107-0 01 1 1004-1007 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.50 GREEN 		8-94422-107-0 01 1 1008- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.60 BROWN 		8-94422-108-0 01 1 0306-0609 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.60 BROWN 		8-94422-108-0 01 1 0610-1003 ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.60 BROWN 		8-94422-108-0 01 1 1004-1007 ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.60 BROWN 		8-94422-108-0 01 1 1008- ● ● ●
132 04.433 SHAFT; REV
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98249-849-0 01 1 1309- ● ● ●
132 04.433 SHAFT; REV 8-94435-146-0 01 1 0306- ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 0306-0609 ● ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 0610-1003 ● ● ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1004-1007 ● ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1008-1308 ● ● ●
132 04.433 SHAFT; REV
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98245-493-0 01 1 1309- ●
132 04.433 SHAFT; REV
4JJ1-TCX ENG(LS0) 		8-98023-113-0 01 1 0610- ●
135 04.430 GEAR; REV IDLER
4X4(TFS***) 4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98080-125-0 01 1 0810-0810 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98080-125-0 01 1 0810-1003 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98146-727-1 01 1 1004-1302 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98233-606-0 01 1 1303- ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98082-803-0 01 1 0806-0809 ●
135 04.430 GEAR; REV IDLER
4X2(TFB***) Z=33 		8-98082-803-0 01 1 0810-0810 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-94161-118-1 01 1 0306-0705 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-98080-126-0 01 1 0706-0708 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-98082-807-0 01 1 0709-0809 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-98080-126-0 01 1 0810-1003 ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98146-724-0 01 1 1004- ●
135 04.430 GEAR; REV IDLER
Z=33 		8-94377-435-1 01 1 0306-0609 ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-94377-435-1 01 1 0610-0705 ● ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98080-125-0 01 1 0706-0708 ● ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98082-803-0 01 1 0709-0805 ● ● ●
135 04.430 GEAR; REV IDLER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98082-803-0 01 1 0806-0809 ● ● ●
135 04.430 GEAR; REV IDLER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98080-125-0 01 1 0810-1003 ● ● ●
135 04.430 GEAR; REV IDLER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98146-726-1 01 1 1004- ● ● ●
135 04.430 GEAR; REV IDLER
4JJ1-TCX ENG(LS0) Z=32 		8-97362-513-1 01 1 0610-1302 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCX ENG(LS0) Z=32 		8-98233-615-0 01 1 1303- ●
149 04.352 BEARING; NEEDLE,MAINSHAFT,RR
4X2(TFB***) 04.422 		8-94173-863-0 01 1 0806-0809 ●
149 04.352 BEARING; NEEDLE,MAINSHAFT,RR
4X2(TFB***) PHILIPPINE ISLANDS EQUIPMENT(B15) 04.422 		8-94173-863-0 01 1 0810- ●
149 04.352 BEARING; NEEDLE,MAINSHAFT,RR
4X2(TFB***) 04.422 NSK 		8-94173-863-0 01 1 0306-0609 ● ●
149 04.352 BEARING; NEEDLE,MAINSHAFT,RR
4X2(TFB***) 04.422 NSK 		8-94173-863-0 01 1 0610-0809 ● ● ●
149 04.352 BEARING; NEEDLE,MAINSHAFT,RR
4X2(TFB***) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 04.422 NSK 		8-94173-863-0 01 1 0810-1003 ● ● ●
149 04.352 BEARING; NEEDLE,MAINSHAFT,RR
4X2(TFB***) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 04.422 NSK 		8-94173-863-0 01 1 1004-1007 ● ●
149 04.352 BEARING; NEEDLE,MAINSHAFT,RR
4X2(TFB***) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 04.422 NSK 		8-94173-863-0 01 1 1008- ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.20 WHITE 		8-94422-100-0 01 1 0306-0609 ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.20 WHITE 		8-94422-100-0 01 1 0610-1003 ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.20 WHITE 		8-94422-100-0 01 1 1004-1007 ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.20 WHITE 		8-94422-100-0 01 1 1008- ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.30 YELLOW 		8-94422-101-0 01 1 0306-0609 ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.30 YELLOW 		8-94422-101-0 01 1 0610-1003 ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.30 YELLOW 		8-94422-101-0 01 1 1004-1007 ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.30 YELLOW 		8-94422-101-0 01 1 1008- ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.40 BLUE 		8-94422-102-0 01 1 0306-0609 ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.40 BLUE 		8-94422-102-0 01 1 0610-1003 ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.40 BLUE 		8-94422-102-0 01 1 1004-1007 ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.40 BLUE 		8-94422-102-0 01 1 1008- ● ● ●
211 04.419 BEARING; THRUST NEEDLE,1ST GEAR
NSK 		8-94148-935-0 01 1 0306-0609 ● ●
211 04.419 BEARING; THRUST NEEDLE,1ST GEAR
NSK 		8-94148-935-0 01 1 0610-1003 ● ● ●
211 04.419 BEARING; THRUST NEEDLE,1ST GEAR
NSK 		8-94148-935-0 01 1 1004-1007 ● ●
211 04.419 BEARING; THRUST NEEDLE,1ST GEAR
NSK 		8-94148-935-0 01 1 1008- ● ● ●
219 04.422 BEARING; BALL,CLUSTER,RR
NSK 		8-94436-929-0 01 1 0306-0609 ● ●
219 04.422 BEARING; BALL,CLUSTER,RR
NSK 		8-94436-929-0 01 1 0610-1003 ● ● ●
219 04.422 BEARING; BALL,CLUSTER,RR
NSK 		8-94436-929-0 01 1 1004-1007 ● ●
219 04.422 BEARING; BALL,CLUSTER,RR
NSK 		8-94436-929-0 01 1 1008- ● ● ●
226 04.437 WASHER; THRUST,REV GEAR,COUNTER
ID=30.0 		8-94223-069-1 01 1 0306-0609 ● ●
226 04.437 WASHER; THRUST,REV GEAR,COUNTER
ID=30.0 		8-94223-069-1 01 1 0610-1003 ● ● ●
226 04.437 WASHER; THRUST,REV GEAR,COUNTER
ID=30.0 		8-94223-069-1 01 1 1004-1007 ● ●
226 04.437 WASHER; THRUST,REV GEAR,COUNTER
ID=30.0 		8-94223-069-1 01 1 1008- ● ● ●
238 04.384 INSERT
(A) 		8-94448-202-2 03 1 0306-0609 ● ●
238 04.384 INSERT
(A) 		8-94448-202-2 03 1 0610-1003 ● ● ●
238 04.384 INSERT
(A) 		8-94448-202-2 03 1 1004-1007 ● ●
238 04.384 INSERT
(A) 		8-94448-202-2 03 1 1008- ● ● ●
238 04.384 INSERT
4JJ1-TCX ENG(LS0) (B) 		8-94249-576-2 03 1 0610- ●
238 04.384 INSERT
4JJ1-TCX ENG(LS0) (C) 		8-98004-522-0 06 1 0610- ●
246 04.422 BEARING; ROLLER,COUNTER SHAFT FR
NSK 		8-97029-600-4 01 1 0306-0609 ● ●
246 04.422 BEARING; ROLLER,COUNTER SHAFT FR
NSK 		8-97029-600-4 01 1 0610-1003 ● ● ●
246 04.422 BEARING; ROLLER,COUNTER SHAFT FR
NSK 		8-97029-600-4 01 1 1004-1007 ● ●
246 04.422 BEARING; ROLLER,COUNTER SHAFT FR
NSK 		8-97029-600-4 01 1 1008- ● ● ●
292 04.422 RING; SNAP,BRG OUTER
NSK 		8-94422-081-0 01 1 0306-0609 ● ●
292 04.422 RING; SNAP,BRG OUTER
NSK 		8-94422-081-0 01 1 0610-1003 ● ● ●
292 04.422 RING; SNAP,BRG OUTER
NSK 		8-94422-081-0 01 1 1004-1007 ● ●
292 04.422 RING; SNAP,BRG OUTER
NSK 		8-94422-081-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.50 		5-09588-020-1 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.55 		5-09588-021-1 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.60 		5-09588-022-1 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.65 		5-09588-023-1 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE 		8-97129-615-0 01 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE 		8-97129-615-0 01 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE 		8-97129-615-0 01 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE 		8-97129-615-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW 		8-97129-616-0 01 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW 		8-97129-616-0 01 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW 		8-97129-616-0 01 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW 		8-97129-616-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE 		8-97129-617-0 01 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE 		8-97129-617-0 01 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE 		8-97129-617-0 01 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE 		8-97129-617-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 1008- ● ● ●
313 04.419 BEARING; NEEDLE,LOW GEAR
NSK 		1-09811-028-1 01 1 0306-0609 ● ●
313 04.419 BEARING; NEEDLE,LOW GEAR
NSK 		1-09811-028-1 01 1 0610-1003 ● ● ●
313 04.419 BEARING; NEEDLE,LOW GEAR
NSK 		1-09811-028-1 01 1 1004-1007 ● ●
313 04.419 BEARING; NEEDLE,LOW GEAR
NSK 		1-09811-028-1 01 1 1008- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 0306-0609 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 0610-1003 ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 1004-1007 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 1008- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 0306-0609 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 0610-1003 ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 1004-1007 ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 1008- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
4JJ1-TCX ENG(LS0) NSK 		8-97362-719-0 01 1 0610- ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 0306-0609 ● ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 0610-1003 ● ● ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 1004-1007 ● ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 1008- ● ● ●
386 04.435 PIN; REV SHAFT
4JJ1-TCX ENG(LS0) 00.662 OD=4 L=8 		9-08160-408-0 01 1 0610- ●
390 04.383 RING; SNAP,CLU HUB
T=1.80 WHITE 		8-94422-088-2 01 1 0306-0609 ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.80 WHITE 		8-94422-088-2 01 1 0610-1003 ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.80 WHITE 		8-94422-088-2 01 1 1004-1007 ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.80 WHITE 		8-94422-088-2 01 1 1008- ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.85 YELLOW 		8-94422-089-1 01 1 0306-0609 ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.85 YELLOW 		8-94422-089-1 01 1 0610-1003 ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.85 YELLOW 		8-94422-089-1 01 1 1004-1007 ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.85 YELLOW 		8-94422-089-1 01 1 1008- ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.90 BLUE 		8-94422-090-2 01 1 0306-0609 ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.90 BLUE 		8-94422-090-2 01 1 0610-1003 ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.90 BLUE 		8-94422-090-2 01 1 1004-1007 ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.90 BLUE 		8-94422-090-2 01 1 1008- ● ● ●
391 04.383 RING; INSIDE,SYN
OD=95.8 		8-94363-056-0 02 1 0306-0609 ● ●
391 04.383 RING; INSIDE,SYN
OD=95.8 		8-94363-056-0 02 1 0610-1003 ● ● ●
391 04.383 RING; INSIDE,SYN
OD=95.8 		8-94363-056-0 02 1 1004-1007 ● ●
391 04.383 RING; INSIDE,SYN
OD=95.8 		8-94363-056-0 02 1 1008- ● ● ●
392 04.383 RING; OUTSIDE,SYN
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) OD=90.0 		8-98115-793-0 02 1 1105-1106 ●
392 04.383 RING; OUTSIDE,SYN
OD=90.0 		8-98115-793-0 02 1 1107- ● ● ●
392 04.383 RING; OUTSIDE,SYN
OD=90.0 		8-94363-055-1 02 1 0306-0609 ● ●
392 04.383 RING; OUTSIDE,SYN
OD=90.0 		8-94363-055-1 02 1 0610-1003 ● ● ●
392 04.383 RING; OUTSIDE,SYN
OD=90.0 		8-94363-055-1 02 1 1004-1007 ● ●
392 04.383 RING; OUTSIDE,SYN
OD=90.0 		8-94363-055-1 02 1 1008-1104 ● ● ●
392 04.383 RING; OUTSIDE,SYN
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) OD=90.0 		8-94363-055-1 02 1 1105-1106 ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
JTEKT 		9-00096-100-1 01 1 0306- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-94422-068-1 01 1 0306-0609 ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-94422-068-1 01 1 0610-1003 ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-94422-068-1 01 1 1004-1007 ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-94422-068-1 01 1 1008-1102 ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-98172-355-0 01 1 1103- ● ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 5-33264-010-0 02 1 0306- ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 0306-0609 ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 0610-1003 ● ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 1004-1007 ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 1008- ● ● ●
398 04.421 GEAR; COUNTER
Z=46-38-25-19 		8-97104-161-1 01 1 1008- ●
398 04.421 GEAR; COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 0806-1101 ●
398 04.421 GEAR; COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97301-186-2 01 1 1102- ●
398 04.421 GEAR; COUNTER
Z=37-31-20-16 		8-94469-524-1 01 1 0306- ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 0306-0609 ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 0610-0809 ● ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 0810-1003 ●
398 04.421 GEAR; COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 0810-1003 ●
398 04.421 GEAR; COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 1004-1007 ● ● ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 1008- ●
398 04.421 GEAR; COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 1008- ●
398 04.421 GEAR; COUNTER
Z=46-38-25-19 		8-97104-161-1 01 1 0306-1003 ●
398 04.421 GEAR; COUNTER
4JJ1-TCX ENG(LS0) Z=26 		8-98023-110-1 01 1 0610-0703 ●
398 04.421 GEAR; COUNTER
4JJ1-TCX ENG(LS0) Z=26 		8-98079-114-0 01 1 0704-1204 ●
398 04.421 GEAR; COUNTER
4X2(TFB***) Z=26 		8-98079-114-0 01 1 1205-1205 ●
398 04.421 GEAR; COUNTER
4JJ1-TCX ENG(LS0) Z=26 		8-98079-114-0 01 1 1206- ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR
4X2(TFB***) 		8-94310-229-0 01 1 0306-0609 ● ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR
4X2(TFB***) 		8-94310-229-0 01 1 0610-1003 ● ● ● ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR
4X2(TFB***) 		8-94310-229-0 01 1 1004-1007 ● ● ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR
4X2(TFB***) 		8-94310-229-0 01 1 1008- ● ● ● ●
404 04.307 PLATE; THRUST 8-94421-892-0 02 1 0306-0609 ● ●
404 04.307 PLATE; THRUST 8-94421-892-0 02 1 0610-1003 ● ● ●
404 04.307 PLATE; THRUST 8-94421-892-0 02 1 1004-1007 ● ●
404 04.307 PLATE; THRUST 8-94421-892-0 02 1 1008- ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94152-557-1 03 1 0306- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 0306-0609 ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 0610-1003 ● ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1004-1007 ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1008- ● ● ● ●
421 04.383 RING; BLOCK,REV & 5TH
Z=36 		8-97071-688-0 02 1 0306-0609 ● ●
421 04.383 RING; BLOCK,REV & 5TH
Z=36 		8-97071-688-0 02 1 0610-1003 ● ● ●
421 04.383 RING; BLOCK,REV & 5TH
Z=36 		8-97071-688-0 02 1 1004-1007 ● ●
421 04.383 RING; BLOCK,REV & 5TH
Z=36 		8-97071-688-0 02 1 1008- ● ● ●
çizim 185272
396 306 5 4 3 82 1 34 64 65 66 13 14 86 87 88 90 397 387 397 37 50 40 405 38 276 151 35 88 35 36 37 51 40 393 70 53 52 80 217 84 71 51 398 85 393 71 59 52 53 62 63 61 95 97 98 140 132 62 224 128 135 136 99 137 215 401
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-97182-214-1 01 1 1008-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-98210-242-0 01 1 1205- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-97300-948-1 01 1 0806-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-98210-225-0 01 1 1205-1307 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-98210-225-0 01 1 1308- ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=23 		8-94435-160-2 01 1 0306- ●
1 04.351 SHAFT; TOP GEAR,TRANS
C24SE ENG(LG1) Z=26 		8-97300-950-1 01 1 0306-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
C24SE ENG(LG1) Z=26 		8-98210-246-0 01 1 1205- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 0306-0609 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 0610-0709 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) Z=26 		8-97300-948-1 01 1 0610-0709 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 0710-1003 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-97300-948-1 01 1 0710-1003 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 1004-1007 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-97300-948-1 01 1 1004-1007 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) Z=26 		8-97300-948-1 01 1 1008-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-97300-948-1 01 1 1008-1204 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) Z=26 		8-98210-225-0 01 1 1205- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=26 		8-98210-225-0 01 1 1205- ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-97182-214-1 01 1 0306-1003 ●
3 04.403 BEARING; TOP GEAR SHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-97943-879-0 01 1 0806- ●
3 04.403 BEARING; TOP GEAR SHAFT
04.355 NSK 		8-94167-637-0 01 1 0306-0902 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97943-882-0 01 1 0903- ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-94380-015-1 01 1 0306-0609 ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-94380-015-1 01 1 0610-0805 ● ● ●
3 04.403 BEARING; TOP GEAR SHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-94380-015-1 01 1 0806- ● ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.376 NSK 		8-94206-485-0 01 1 0306- ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 0306-0609 ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 0610-1003 ● ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 1004-1007 ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 1008- ● ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
08.934 ID=37.0 		9-09180-040-0 01 1 0306- ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 0306-0609 ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 0610-1003 ● ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 1004-1007 ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 1008- ● ● ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-97104-023-3 01 1 0806-1204 ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-98210-227-0 01 1 1205-1302 ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-98210-227-0 01 1 1303- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=25 		8-94161-912-3 01 1 0306- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=24 		8-97216-153-1 01 1 0306-1204 ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=24 		8-98210-254-0 01 1 1205- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=22 		8-97104-023-2 01 1 0306-0609 ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=22 		8-97104-023-2 01 1 0610-0809 ● ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=22 		8-97104-023-2 01 1 0810-1003 ●
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-97104-023-2 01 1 0810-1003 ●
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-97104-023-3 01 1 1004-1204 ●
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=22 		8-98210-227-0 01 1 1205- ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-94161-994-0 01 1 0306- ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97029-341-0 01 1 0306-0609 ● ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97029-341-0 01 1 0610-1003 ● ● ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97029-341-0 01 1 1004-1007 ● ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97029-341-0 01 1 1008-1102 ● ● ●
14 04.419 BEARING; NEEDLE,5TH
NTN 		8-98172-356-0 01 1 1103- ● ● ●
14 04.419 BEARING; NEEDLE,5TH
4JJ1-TCX ENG(LS0) NSK 		8-97362-728-0 01 1 0610- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97977-991-0 01 1 1402- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-94161-860-0 01 1 0306- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97188-798-0 01 1 0306-0609 ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 0610-1003 ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 1004-1007 ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 1008-1401 ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97104-027-0 01 1 1402- ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
4JJ1-TCX ENG(LS0) 		8-97362-474-3 01 1 0610- ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=30 		8-94463-830-1 02 1 0306- ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 0306-0609 ● ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 0610-1003 ● ● ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 1004-1007 ● ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 1008- ● ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97104-021-2 01 1 1008-1204 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-98210-249-0 01 1 1205- ●
36 04.415 GEAR; 3RD,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-97301-180-1 01 1 0806-1204 ●
36 04.415 GEAR; 3RD,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-98210-230-0 01 1 1205-1302 ●
36 04.415 GEAR; 3RD,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-98233-597-0 01 1 1303- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=29 		8-94161-137-1 01 1 0306- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-97216-150-1 01 1 0306-0609 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-97216-150-1 01 1 0610-0809 ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-97216-150-1 01 1 0810-1003 ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-97216-150-1 01 1 0810-1003 ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-97216-150-1 01 1 1004-1007 ● ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-97216-150-1 01 1 1008-1204 ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-97216-150-1 01 1 1008-1204 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=27 		8-98210-226-0 01 1 1205- ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=27 		8-98210-226-0 01 1 1205- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97104-021-2 01 1 0306-1003 ●
37 04.352 BEARING; NEEDLE,2ND & 3RD
NSK 		8-94161-989-0 02 1 0306- ●
38 04.384 SYNCHRONIZER; LOW & 2ND
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-97977-989-0 01 1 1402- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94435-140-0 01 1 0306- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97188-799-0 01 1 0306-0609 ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 0610-1003 ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 1004-1007 ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 1008-1401 ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-94363-059-1 01 1 1402- ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
4JJ1-TCX ENG(LS0) 		8-97362-503-1 01 1 0610- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94152-558-1 02 1 0306- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 0306-0609 ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 0610-1003 ● ● ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1004-1007 ● ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1008- ● ● ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=34 		8-97301-183-1 01 1 0806- ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=31 		8-94311-564-1 01 1 0306- ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=34 		8-97300-953-1 01 1 0306-0609 ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=34 		8-97300-953-1 01 1 0610-0805 ● ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=34 		8-97300-953-1 01 1 0806- ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
PHILIPPINE ISLANDS EQUIPMENT(B15) Z=36 		8-98115-804-0 02 1 1105-1106 ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1105-1106 ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1107- ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=45 		8-94151-510-3 02 1 0306- ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 0306-0609 ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 0610-1003 ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 1004-1007 ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=48 		8-94363-054-1 02 1 1008-1104 ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=48 		8-94363-054-1 02 1 1105-1106 ● ● ●
52 04.419 COLLAR; NEEDLE BRG,LOW 8-94248-620-1 02 1 0306-0902 ●
52 04.419 COLLAR; NEEDLE BRG,LOW 8-97238-834-0 02 1 0903- ●
53 04.419 BEARING; NEEDLE,LOW & REV
NSK 		8-94161-991-0 02 1 0306- ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-97104-025-2 01 1 0806-1205 ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-98210-228-0 01 1 1206-1302 ●
59 04.417 GEAR; REV MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-98210-228-0 01 1 1303- ●
59 04.417 GEAR; REV MAINSHAFT
Z=37 		8-94310-158-1 01 1 0306- ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97104-025-2 01 1 0306-0609 ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97104-025-2 01 1 0610-0805 ● ● ●
59 04.417 GEAR; REV MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-97104-025-2 01 1 0806-1205 ● ● ●
59 04.417 GEAR; REV MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=41 		8-98210-228-0 01 1 1206- ● ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 5-33260-010-0 01 1 0306- ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97188-800-0 01 1 0306-0609 ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97030-106-1 01 1 0610-1003 ● ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97030-106-1 01 1 1004-1007 ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97030-106-1 01 1 1008- ● ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-010-0 02 1 0306- ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 0306-0609 ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 0610-1003 ● ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 1004-1007 ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 1008- ● ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-002-3 03 1 0306- ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 0306-0609 ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 0610-1003 ● ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 1004-1007 ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 1008- ● ● ●
64 04.419 WASHER; LK,LOW
04.412 		8-94238-095-0 01 1 0306- ●
65 04.356 NUT; MAINSHAFT
M32 		8-94238-094-1 01 1 0306- ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 0306-0609 ● ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 0610-1003 ● ● ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 1004-1007 ● ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 1008- ● ● ●
66 04.383 RING; BLOCK,SYN
Z=30 		8-94463-830-1 01 1 0306- ●
70 04.417 GEAR; 1ST,MAINSHAFT
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=45 		8-97301-182-1 01 1 0806- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=41 		8-94310-154-1 01 1 0306- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97300-952-1 01 1 0306-0609 ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97300-952-1 01 1 0610-0805 ● ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=45 		8-97300-952-1 01 1 0806- ● ● ●
71 04.406 WASHER; THRUST,LOW
ID=32.0 		5-33239-043-3 02 1 0306- ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-94161-085-1 01 1 0306- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) C24SE ENG(LG1),4JH1-TC ENG(RDM) Z=5 		8-94472-606-1 01 1 0306-0609 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=5 		8-94472-606-1 01 1 0306-0609 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) C24SE ENG(LG1) Z=5 		8-94472-606-1 01 1 0610-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=5 		8-94472-606-1 01 1 0610-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) C24SE ENG(LG1) Z=5 		8-94472-606-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) C24SE ENG(LG1) Z=5 		8-94472-606-1 01 1 1008- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=5 		8-94472-606-1 01 1 1008- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 0306-0609 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 0610-0709 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=6 		8-94472-608-1 01 1 0610-0709 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-94472-608-1 01 1 0610-0709 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 6VE1 ENG(LX5),4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 0710-0809 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C BRIDGESTONE TIRE(QBQ) Z=6 		8-94472-608-1 01 1 0710-0809 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-94472-608-1 01 1 0710-0809 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 6VE1 ENG(LX5),4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 0810-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6 		8-94472-608-1 01 1 0810-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-94472-608-1 01 1 0810-1003 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=6 		8-94472-608-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2 REGULAR CAB(TFB*S*) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6 		8-94472-608-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) Z=6 		8-94472-608-1 01 1 1004-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 6VE1 ENG(LX5),4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 1008-1110 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) Z=6 		8-94472-608-1 01 1 1008-1110 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4),FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) Z=6 		8-94472-608-1 01 1 1008-1110 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JA1-T ENG(LP0) FINAL GEAR RATIO 43/10(GY2) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 CREW CAB(TFB*W*) 6VE1 ENG(LX5) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JH1-TC ENG(RDM) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 CREW CAB(TFB*W*) 6VE1 ENG(LX5) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 REGULAR CAB(TFB*S*) 4JA1-T ENG(LP0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 195R14C(CNU) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 REGULAR CAB(TFB*S*) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2 CREW CAB(TFB*W*) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(QCQ) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(QCQ) Z=6 		8-94472-608-1 01 1 1111- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6 		8-97227-220-0 01 1 0610-0809 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) ,FRT&RR 195R15C(QZO) Z=6 		8-97227-220-0 01 1 0810-1007 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) ,FRT&RR 195R15C(QZO) Z=6 		8-97227-220-0 01 1 1008-1101 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6 		8-97227-220-0 01 1 1008-1101 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=6 		8-97227-220-0 01 1 1008-1101 ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6 		8-97227-220-0 01 1 1102- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R15C(QZO) Z=6 		8-97227-220-0 01 1 1102- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=6 		8-97227-220-0 01 1 1102- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=7 		8-98004-532-0 01 1 0610- ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-24-27 		8-94435-162-3 01 1 0306- ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 0306-0609 ● ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 0610-1003 ● ● ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 1004-1007 ● ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 1008- ● ● ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 0306-0609 ● ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 0610-1003 ● ● ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 1004-1007 ● ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 1008- ● ● ●
84 04.422 BEARING; COUNTER SHAFT,FRT
NSK ID=20 OD=47 		8-97063-365-0 01 1 0306- ●
84 04.422 BEARING; COUNTER SHAFT,FRT
4JJ1-TCX ENG(LS0) 		8-97362-724-0 01 1 0610- ●
85 04.422 BEARING; ANGULAR BALL,CLUSTER
NSK ID=25 OD=52 		8-94124-766-0 01 1 0306-0306 ●
85 04.422 BEARING; ANGULAR BALL,CLUSTER
NSK ID=25 OD=52 		8-97365-931-0 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=7.80 		8-94238-099-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=7.90 		8-94238-100-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=8.00 		8-94238-101-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=8.10 		8-94238-102-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=8.20 		8-94238-103-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=8.30 		8-94238-104-4 01 1 0306- ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 0306-0609 ● ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 0610-1003 ● ● ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 1004-1007 ● ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 1008- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 0306-0609 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 0610-1003 ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 1004-1007 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 1008- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 0306-0609 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 0610-1003 ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 1004-1007 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 1008- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 0306-0609 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 0610-1003 ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 1004-1007 ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 1008- ● ● ●
87 04.416 BALL; THRUST WASHER 8-94201-356-0 01 1 0306-0609 ● ● ●
87 04.416 BALL; THRUST WASHER 8-94201-356-0 01 1 0610-1003 ● ● ● ●
87 04.416 BALL; THRUST WASHER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-94201-356-0 01 1 1004-1007 ● ● ●
87 04.416 BALL; THRUST WASHER 8-94201-356-0 01 1 1008- ● ● ● ●
88 04.416 RING; THRUST,THRUST WASHER 8-94473-936-2 02 1 0306- ●
90 04.416 RING; SNAP,THRUST RING
08.934 ID=37.0 		9-09180-040-0 01 1 0306- ●
90 04.416 RING; SNAP,THRUST RING
4X2(TFB***) 04.422 ID=29.6 		9-09180-032-0 01 1 0306-0609 ● ●
90 04.416 RING; SNAP,THRUST RING
4X2(TFB***) 04.422 ID=29.6 		9-09180-032-0 01 1 0610-1003 ● ● ●
90 04.416 RING; SNAP,THRUST RING
4X2(TFB***) 04.422 ID=29.6 		9-09180-032-0 01 1 1004-1007 ● ●
90 04.416 RING; SNAP,THRUST RING
4X2(TFB***) 04.422 ID=29.6 		9-09180-032-0 01 1 1008- ● ● ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=19 		8-94377-433-0 01 1 0806-1302 ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=19 		8-94377-433-0 01 1 1303- ●
95 04.417 GEAR; REV,COUNTER
Z=16 		8-94161-120-1 01 1 0306- ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 0306-0609 ● ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 0610-0805 ● ● ●
95 04.417 GEAR; REV,COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=19 		8-94377-433-0 01 1 0806- ● ● ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCX ENG(LS0) Z=41 		8-97362-499-0 01 1 0610-1204 ●
95 04.417 GEAR; REV,COUNTER
4JJ1-TCX ENG(LS0) Z=41 		8-98210-237-0 01 1 1205- ●
97 04.415 GEAR; 5TH,COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=50 		8-94377-434-0 01 1 0806- ●
97 04.415 GEAR; 5TH,COUNTER
Z=47 		8-94161-098-2 01 1 0306- ●
97 04.415 GEAR; 5TH,COUNTER
Z=49 		8-97216-154-0 01 1 0306- ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 0306-0609 ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 0610-0809 ● ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 0810-1003 ●
97 04.415 GEAR; 5TH,COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=50 		8-94377-434-0 01 1 0810-1003 ●
97 04.415 GEAR; 5TH,COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=50 		8-94377-434-0 01 1 1004- ●
97 04.415 GEAR; 5TH,COUNTER
4JJ1-TCX ENG(LS0) Z=27 		8-98040-114-0 01 1 0610- ●
98 04.422 BEARING; BALL,COUNTER END
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-97018-535-1 01 1 0806- ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-97359-571-0 01 1 0306-0601 ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-98019-664-0 01 1 0602- ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-97018-535-1 01 1 0306-0609 ● ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-97018-535-1 01 1 0610-0805 ● ● ●
98 04.422 BEARING; BALL,COUNTER END
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) NSK 		8-97018-535-1 01 1 0806- ● ● ●
99 04.429 WASHER; PL,COUNTER 5TH GEAR
04.027 ID=17 		9-09160-516-0 01 1 0306-0605 ●
99 04.429 WASHER; PL,COUNTER 5TH GEAR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ●
128 04.437 WASHER; THRUST,REV SHAFT
ID=22.0 		5-33363-004-0 01 1 0306- ●
132 04.433 SHAFT; REV
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98249-849-0 01 1 1309- ● ● ●
132 04.433 SHAFT; REV 8-94435-146-0 01 1 0306- ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 0306-0609 ● ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 0610-1003 ● ● ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1004-1007 ● ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1008-1308 ● ● ●
132 04.433 SHAFT; REV
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) 		8-98245-493-0 01 1 1309- ●
132 04.433 SHAFT; REV
4JJ1-TCX ENG(LS0) 		8-98023-113-0 01 1 0610- ●
135 04.430 GEAR; REV IDLER
4X4(TFS***) 4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98080-125-0 01 1 0810-0810 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98080-125-0 01 1 0810-1003 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98146-727-1 01 1 1004-1302 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98233-606-0 01 1 1303- ●
135 04.430 GEAR; REV IDLER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98082-803-0 01 1 0806-0809 ●
135 04.430 GEAR; REV IDLER
4X2(TFB***) Z=33 		8-98082-803-0 01 1 0810-0810 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-94161-118-1 01 1 0306-0705 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-98080-126-0 01 1 0706-0708 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-98082-807-0 01 1 0709-0809 ●
135 04.430 GEAR; REV IDLER
Z=23 		8-98080-126-0 01 1 0810-1003 ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98146-724-0 01 1 1004- ●
135 04.430 GEAR; REV IDLER
Z=33 		8-94377-435-1 01 1 0306-0609 ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-94377-435-1 01 1 0610-0705 ● ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98080-125-0 01 1 0706-0708 ● ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98082-803-0 01 1 0709-0805 ● ● ●
135 04.430 GEAR; REV IDLER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98082-803-0 01 1 0806-0809 ● ● ●
135 04.430 GEAR; REV IDLER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98080-125-0 01 1 0810-1003 ● ● ●
135 04.430 GEAR; REV IDLER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=33 		8-98146-726-1 01 1 1004- ● ● ●
135 04.430 GEAR; REV IDLER
4JJ1-TCX ENG(LS0) Z=32 		8-97362-513-1 01 1 0610-1302 ●
135 04.430 GEAR; REV IDLER
4JJ1-TCX ENG(LS0) Z=32 		8-98233-615-0 01 1 1303- ●
136 04.437 WASHER; THRUST,REV IDLE,RR
ID=16.2 		5-33363-003-3 01 1 0306- ●
137 04.429 NUT; REV GEAR
M16 		9-09844-195-0 01 1 0306-0604 ●
137 04.429 NUT; REV GEAR
M16 		8-98035-678-0 01 1 0605- ●
140 04.435 BOLT; LK PIECE
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0306-0512 ●
140 04.435 BOLT; LK PIECE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
151 04.345 KEY; FEATHER,SPD DRIVE GEAR
08.960 		9-08020-510-0 01 1 0306- ●
215 04.416 RING; SNAP,BALL BRG
ID=27.9 		9-09180-030-0 01 1 0306- ●
217 04.376 RING; SNAP,COUNTER FRT BRG
04.422 ID=18.5 		9-09180-020-0 01 1 0306- ●
224 04.429 NUT; SELF LK,COUNTER
M16 		9-09844-195-0 01 1 0306-0604 ●
224 04.429 NUT; SELF LK,COUNTER
M16 		8-98035-678-0 01 1 0605- ●
276 04.419 SPACER; BRG TO DRIVE GEAR
04.423 		8-94161-087-0 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.50 		5-09588-020-1 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.55 		5-09588-021-1 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.60 		5-09588-022-1 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.65 		5-09588-023-1 01 1 0306- ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE 		8-97129-615-0 01 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE 		8-97129-615-0 01 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE 		8-97129-615-0 01 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE 		8-97129-615-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW 		8-97129-616-0 01 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW 		8-97129-616-0 01 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW 		8-97129-616-0 01 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW 		8-97129-616-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE 		8-97129-617-0 01 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE 		8-97129-617-0 01 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE 		8-97129-617-0 01 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE 		8-97129-617-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 1008- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 0306-0609 ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 0610-1003 ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 1004-1007 ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 1008- ● ● ●
387 04.384 INSERT; SYN,4TH & 3RD 9-33263-048-2 03 1 0306- ●
393 04.352 BEARING; MAINSHAFT END
04.422 (A) 		8-94173-863-0 01 1 0306-0902 ●
393 04.352 BEARING; MAINSHAFT END
04.422 (A) 		8-94173-863-0 01 1 0903- ●
393 04.352 BEARING; MAINSHAFT END
04.408 (B) 		8-94173-866-0 01 1 0306-0902 ●
393 04.352 BEARING; MAINSHAFT END
04.408 (B) 		8-94173-866-0 01 1 0903- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
JTEKT 		9-00096-100-1 01 1 0306- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-94422-068-1 01 1 0306-0609 ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-94422-068-1 01 1 0610-1003 ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-94422-068-1 01 1 1004-1007 ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-94422-068-1 01 1 1008-1102 ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-98172-355-0 01 1 1103- ● ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 5-33264-010-0 02 1 0306- ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 0306-0609 ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 0610-1003 ● ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 1004-1007 ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 1008- ● ● ●
398 04.421 GEAR; COUNTER
Z=46-38-25-19 		8-97104-161-1 01 1 1008- ●
398 04.421 GEAR; COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 0806-1101 ●
398 04.421 GEAR; COUNTER
4JJ1-TCS ENG(LFB) PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97301-186-2 01 1 1102- ●
398 04.421 GEAR; COUNTER
Z=37-31-20-16 		8-94469-524-1 01 1 0306- ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 0306-0609 ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 0610-0809 ● ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 0810-1003 ●
398 04.421 GEAR; COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 0810-1003 ●
398 04.421 GEAR; COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 1004-1007 ● ● ●
398 04.421 GEAR; COUNTER
Z=44-32-25-19 		8-97216-164-1 01 1 1008- ●
398 04.421 GEAR; COUNTER
EXC. PHILIPPINE ISLANDS EQUIPMENT(B15) Z=44-32-25-19 		8-97216-164-1 01 1 1008- ●
398 04.421 GEAR; COUNTER
Z=46-38-25-19 		8-97104-161-1 01 1 0306-1003 ●
398 04.421 GEAR; COUNTER
4JJ1-TCX ENG(LS0) Z=26 		8-98023-110-1 01 1 0610-0703 ●
398 04.421 GEAR; COUNTER
4JJ1-TCX ENG(LS0) Z=26 		8-98079-114-0 01 1 0704-1204 ●
398 04.421 GEAR; COUNTER
4X2(TFB***) Z=26 		8-98079-114-0 01 1 1205-1205 ●
398 04.421 GEAR; COUNTER
4JJ1-TCX ENG(LS0) Z=26 		8-98079-114-0 01 1 1206- ●
401 04.345 RING; SNAP,SPD DRIVE GEAR
04.416 ID=27.9 		9-09180-030-0 01 1 0306- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94152-557-1 03 1 0306- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 0306-0609 ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 0610-1003 ● ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1004-1007 ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1008- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
