◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#73943) — 300 parça

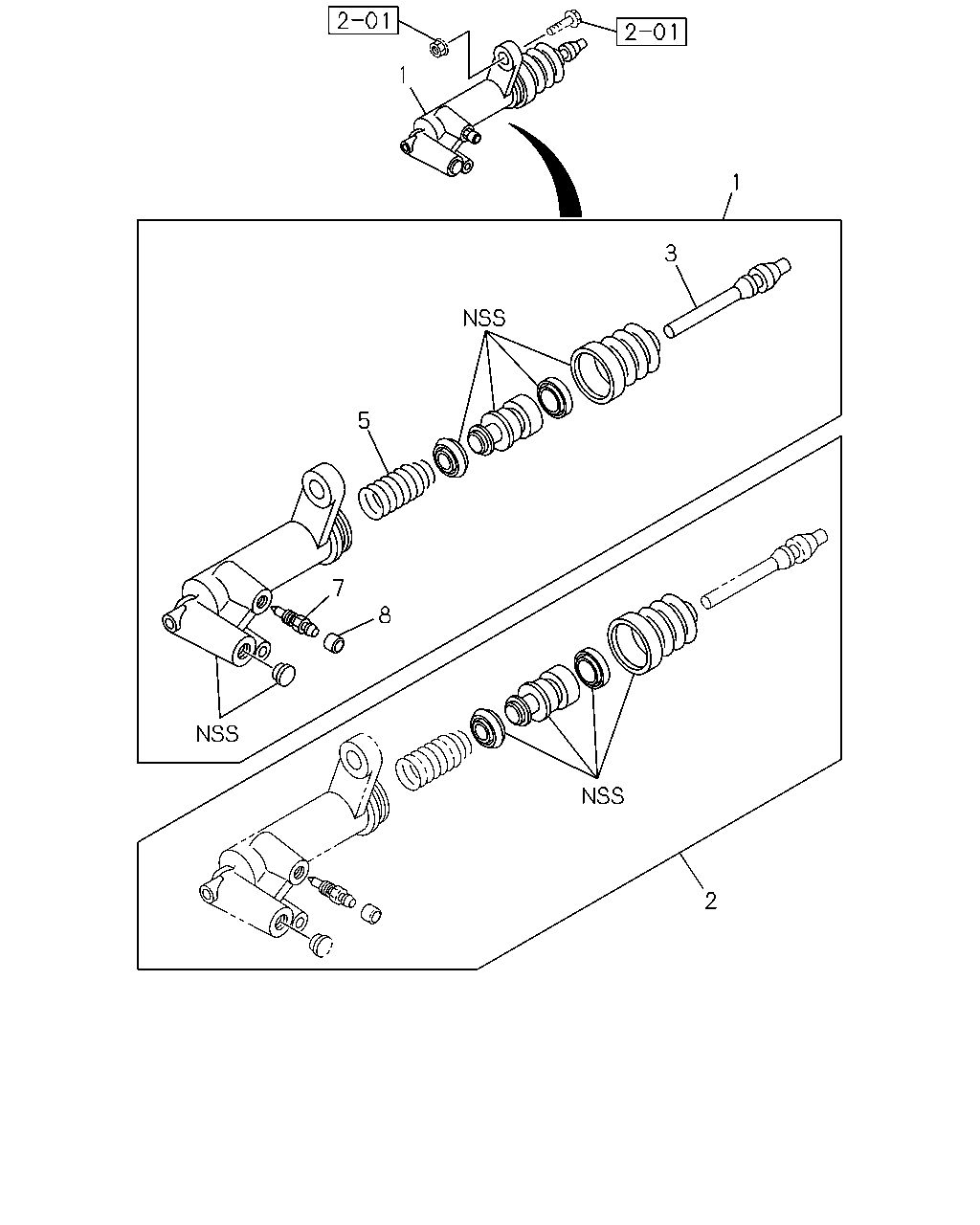

çizim 102371
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 1008- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-296-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0610- ● ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-322-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0610-1003 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 1004-1007 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 1008- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97941-515-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0610-1007 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 1008- ● ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97944-513-3 01 1 0610-1108 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97947-765-0 01 1 1109- ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0710-1003 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-264-0 01 1 1103- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-049-0 01 1 0306-0609 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0610-1003 ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 1004-1007 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 1008- ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0610-1007 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 1008- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0610-0709 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 0710-1003 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0710-1003 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 1004-1007 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 1008-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 1008-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 1008- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97942-803-0 01 1 0306-0609 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-803-0 01 1 0306-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 0610-1003 ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 1004-1007 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 1008- ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 0306-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 0610-1007 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 1008- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 0710-1003 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-721-0 01 1 0610-1108 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97947-769-0 01 1 1109- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-802-0 01 1 0306-0609 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0610-1003 ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 1004-1007 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 1008- ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0610-1007 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 1008- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0610-0709 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 0710-1003 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0710-1003 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 1004-1007 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 1008- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 1008- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0306-0609 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 0610-0709 ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M8X16.5 		8-94115-113-0 01 1 0710-1003 ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 1004-1007 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M8X16.5 		8-94115-113-0 01 1 1008- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 0610-1003 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0610-1003 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 1004-1007 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1004-1007 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 1008- ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1008- ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0306-0609 ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0610-1003 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1004-1007 ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1008- ● ● ● ● ●

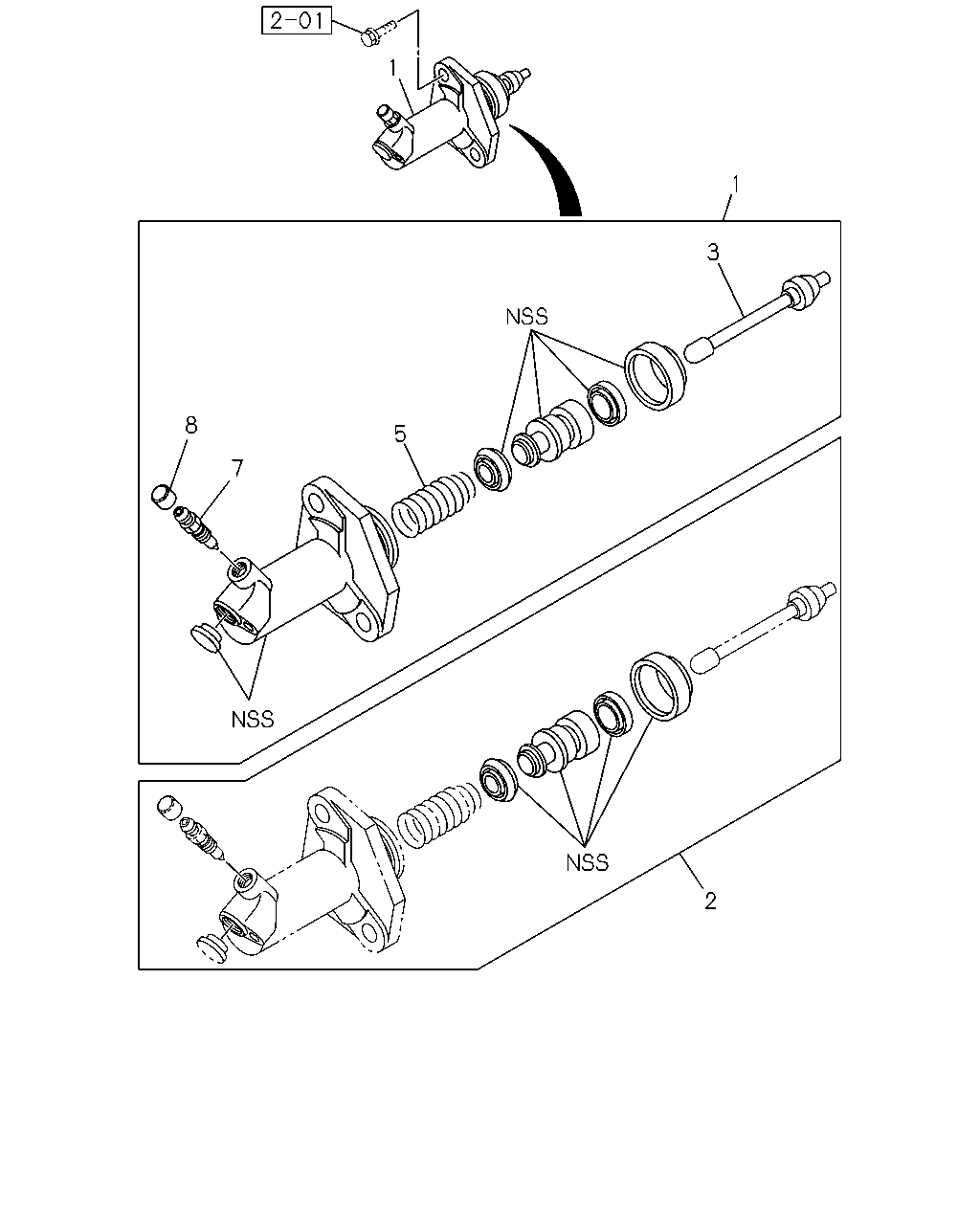

çizim 102542
1 1 3 8 5 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 1008- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-296-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0610- ● ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-322-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0610-1003 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 1004-1007 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 1008- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97941-515-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0610-1007 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 1008- ● ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97944-513-3 01 1 0610-1108 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97947-765-0 01 1 1109- ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0710-1003 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-264-0 01 1 1103- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-049-0 01 1 0306-0609 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0610-1003 ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 1004-1007 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 1008- ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0610-1007 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 1008- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0610-0709 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 0710-1003 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0710-1003 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 1004-1007 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 1008-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 1008-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 1008- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97942-803-0 01 1 0306-0609 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-803-0 01 1 0306-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 0610-1003 ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 1004-1007 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 1008- ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 0306-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 0610-1007 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 1008- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 0710-1003 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-721-0 01 1 0610-1108 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97947-769-0 01 1 1109- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-802-0 01 1 0306-0609 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0610-1003 ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 1004-1007 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 1008- ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0610-1007 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 1008- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0610-0709 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 0710-1003 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0710-1003 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 1004-1007 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 1008- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 1008- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0306-0609 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 0610-0709 ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M8X16.5 		8-94115-113-0 01 1 0710-1003 ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 1004-1007 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M8X16.5 		8-94115-113-0 01 1 1008- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 0610-1003 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0610-1003 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 1004-1007 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1004-1007 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 1008- ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1008- ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0306-0609 ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0610-1003 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1004-1007 ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1008- ● ● ● ● ●

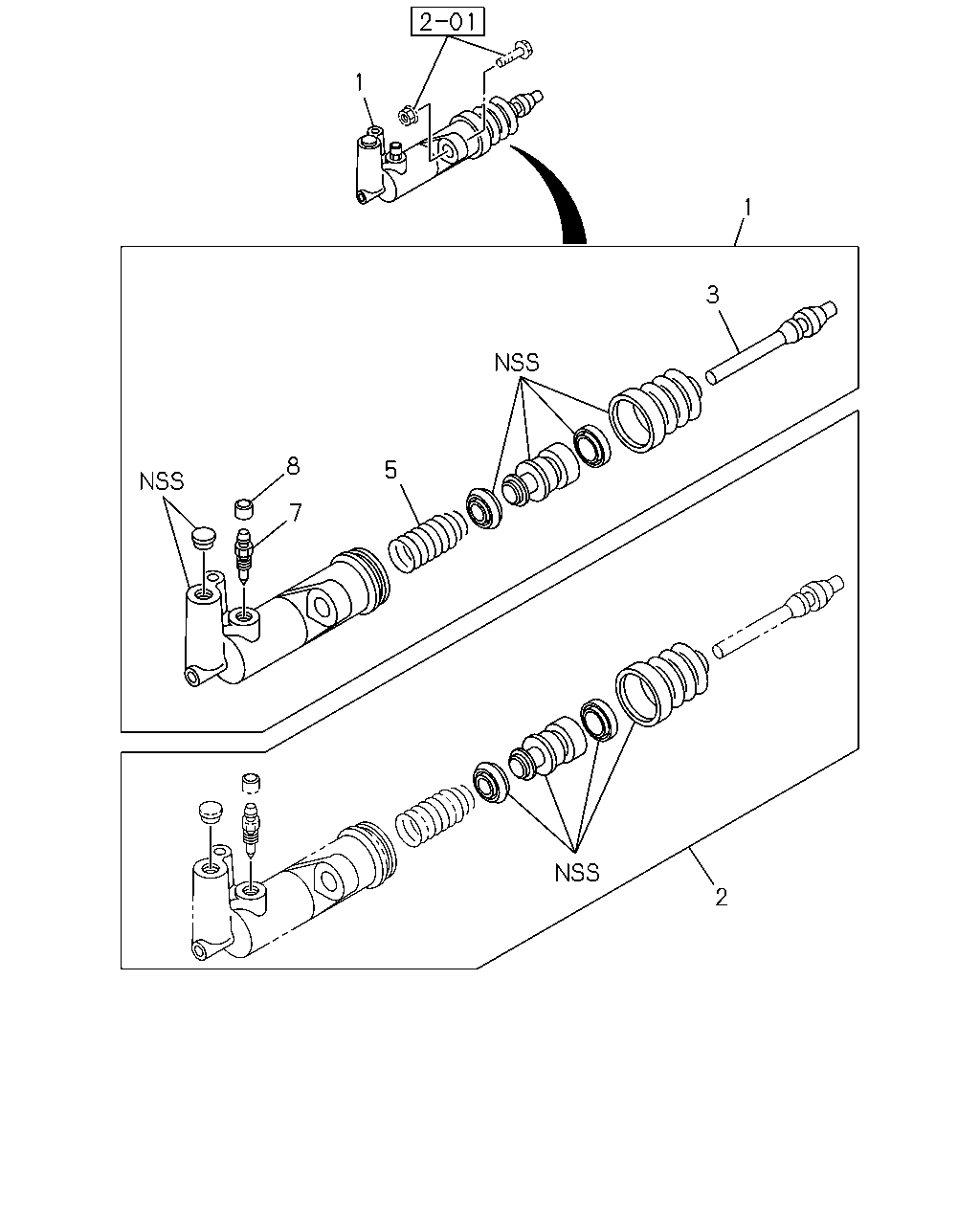

çizim 103037
1 1 3 8 5 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 1008- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-296-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0610- ● ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-322-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0610-1003 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 1004-1007 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 1008- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97941-515-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0610-1007 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 1008- ● ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97944-513-3 01 1 0610-1108 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97947-765-0 01 1 1109- ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0710-1003 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-264-0 01 1 1103- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-049-0 01 1 0306-0609 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0610-1003 ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 1004-1007 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 1008- ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0610-1007 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 1008- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0610-0709 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 0710-1003 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0710-1003 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 1004-1007 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 1008-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 1008-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 1008- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97942-803-0 01 1 0306-0609 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-803-0 01 1 0306-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 0610-1003 ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 1004-1007 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 1008- ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 0306-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 0610-1007 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 1008- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 0710-1003 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-721-0 01 1 0610-1108 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97947-769-0 01 1 1109- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-802-0 01 1 0306-0609 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0610-1003 ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 1004-1007 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 1008- ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0610-1007 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 1008- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0610-0709 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 0710-1003 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0710-1003 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 1004-1007 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 1008- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 1008- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0306-0609 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 0610-0709 ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M8X16.5 		8-94115-113-0 01 1 0710-1003 ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 1004-1007 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M8X16.5 		8-94115-113-0 01 1 1008- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 0610-1003 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0610-1003 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 1004-1007 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1004-1007 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 1008- ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1008- ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0306-0609 ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0610-1003 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1004-1007 ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1008- ● ● ● ● ●

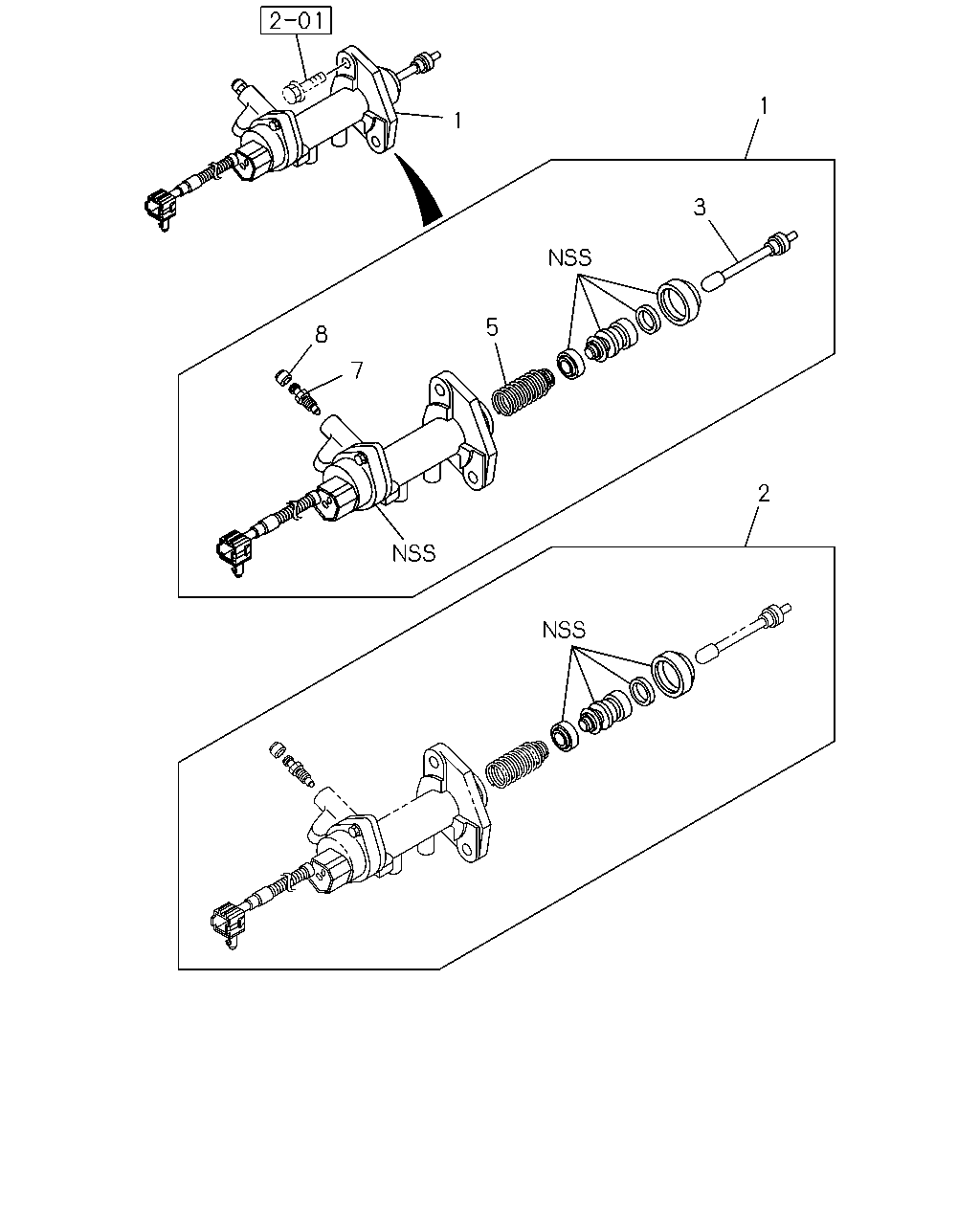

çizim 185333
1 1 3 5 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 1008- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-296-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0610- ● ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97942-322-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0610-1003 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 1004-1007 ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 1008- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97941-515-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 0610-1007 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-177-0 01 1 1008- ● ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97944-513-3 01 1 0610-1108 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97947-765-0 01 1 1109- ●
1 00.780 CYLINDER; SLAVE,CLU
6VE1 ENG(LX5) 		8-97941-519-0 01 1 0710-1003 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-264-0 01 1 1103- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-049-0 01 1 0306-0609 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0610-1003 ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 1004-1007 ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 1008- ● ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 0610-1007 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		5-87832-048-0 01 1 1008- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0610-0709 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 0710-1003 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0710-1003 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 1004-1007 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 1008-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 1008-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
6VE1 ENG(LX5) 		5-87832-067-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 1008- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97942-803-0 01 1 0306-0609 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-803-0 01 1 0306-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 0610-1003 ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 1004-1007 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 1008- ● ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 0306-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 0610-1007 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97945-722-0 01 1 1008- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
6VE1 ENG(LX5) 		8-97062-923-0 01 1 0710-1003 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-721-0 01 1 0610-1108 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97947-769-0 01 1 1109- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-802-0 01 1 0306-0609 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0610-1003 ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 1004-1007 ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 1008- ● ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 0610-1007 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) 		8-97942-801-0 01 1 1008- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0610-0709 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 0710-1003 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0710-1003 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 1004-1007 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
6VE1 ENG(LX5) 		8-97028-736-0 01 1 1008- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 1008- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0306-0609 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 0610-0709 ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M8X16.5 		8-94115-113-0 01 1 0710-1003 ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 1004-1007 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0),6VE1 ENG(LX5) M8X16.5 		8-94115-113-0 01 1 1008- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 0610-1003 ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0610-1003 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 1004-1007 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1004-1007 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JH1-TC ENG(RDM) M8X10 		8-98020-477-0 01 1 1008- ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 1008- ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0306-0609 ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0610-1003 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1004-1007 ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 1008- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
