2-05 — CLUTCH PIPING (#73942) — 260 parça

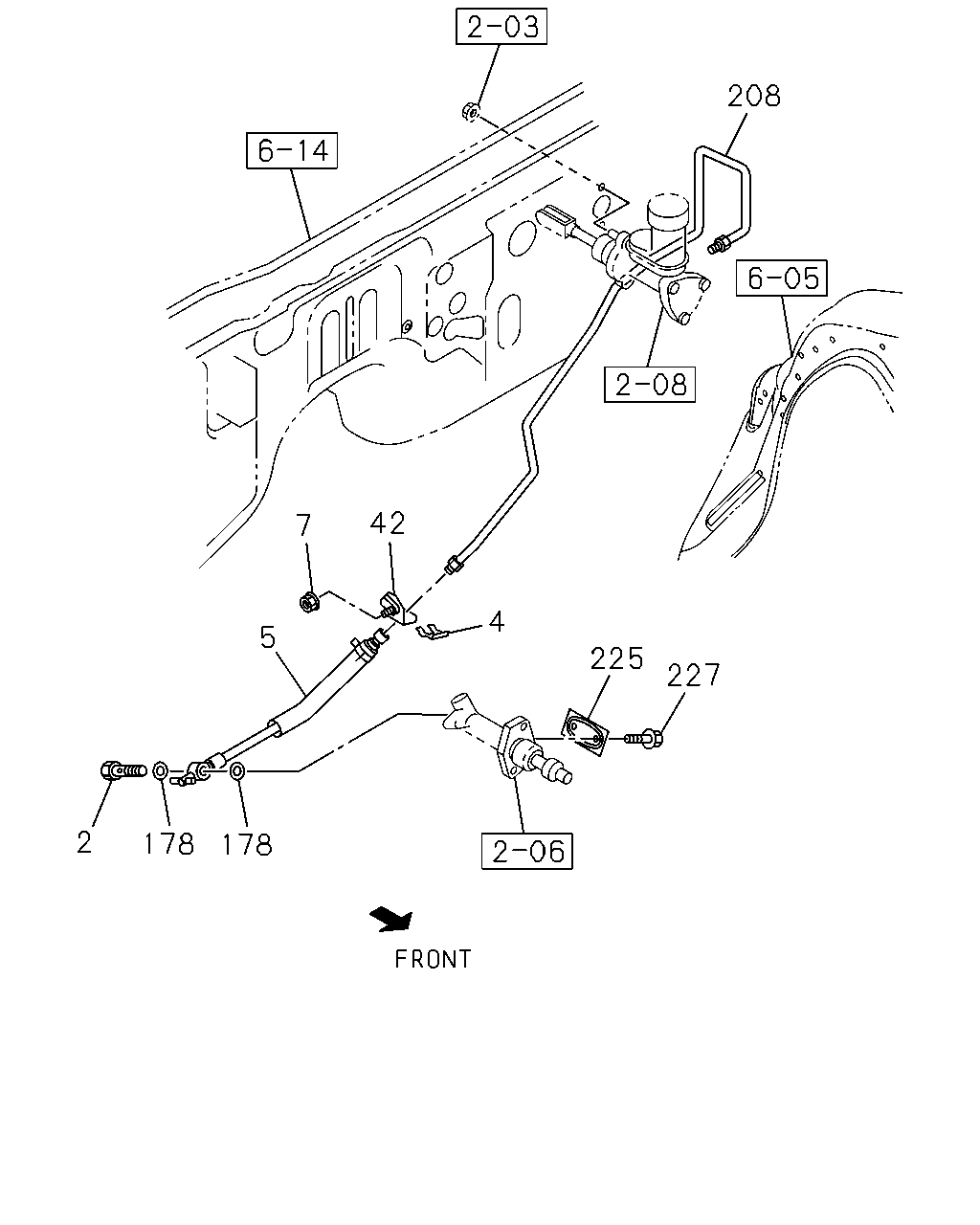

çizim 102388
208 42 7 4 5 225 227 2 178 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0306-0609 ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0610-1003 ● ● ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 1004-1007 ● ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 1008- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94436-216-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0610-0703 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 0704-0709 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 0710-1003 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 1004-1007 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 6VE1 ENG(LX5),4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 1008- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-97320-575-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0610-1003 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 1004-1007 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 1008- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) 		8-97943-158-0 01 1 1008- ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 0610-1003 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 0610-1003 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 1004-1007 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 1004-1007 ● ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 1008- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 1008- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-605-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 0610-1003 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 1004-1007 ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 1008- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) 		8-97943-158-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB) 		8-97945-178-0 01 1 0610-1007 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-178-0 01 1 1008- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) 		8-97943-158-0 01 1 0710-1003 ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97944-870-0 01 1 0610- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0306-0609 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0306-0609 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610-0709 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-1003 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1004-1007 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 6VE1 ENG(LX5),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1008- ● ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
6VE1 ENG(LX5) 		8-97320-576-0 01 1 1008- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97943-412-0 01 1 0306-0306 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97943-412-0 01 1 0306-0306 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97943-835-0 01 1 0306-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97943-835-0 01 1 0306-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97943-835-0 01 1 0610-1003 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) 		8-97943-835-0 01 1 0610-1003 ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) 		8-97943-835-0 01 1 1004-1007 ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97943-835-0 01 1 1008- ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
6VE1 ENG(LX5) 		8-97320-576-0 01 1 0306-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97944-508-0 01 1 0610- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
6VE1 ENG(LX5) 		8-97320-576-0 01 1 0710-1003 ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0306-0609 ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-1003 ● ● ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 1004-1007 ● ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 1008- ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
6VE1 ENG(LX5) 		8-97944-799-0 01 1 1008- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97362-454-0 01 1 0306-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97362-454-0 01 1 0306-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97944-798-0 01 1 0610-1003 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97944-798-0 01 1 0610-1003 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97944-798-0 01 1 1004-1007 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97944-798-0 01 1 1004-1007 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97944-798-0 01 1 1008- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97944-798-0 01 1 1008- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97361-549-0 01 1 0306-0508 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97361-549-0 01 1 0306-0508 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97361-549-0 01 1 0509-0609 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-797-0 01 1 0610-1003 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-797-0 01 1 1004-1007 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-797-0 01 1 1008- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
6VE1 ENG(LX5) 		8-97362-911-0 01 1 0306-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB) 		8-97944-800-1 01 1 0610- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
6VE1 ENG(LX5) 		8-97944-799-0 01 1 0710-1003 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCX ENG(LS0) 		8-97945-228-0 01 1 0610-1007 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97945-228-0 01 1 1008- ● ●
225 00.785 PROTECTOR; HEAT
6VE1 ENG(LX5) 		8-97331-184-0 01 1 1008- ●
225 00.785 PROTECTOR; HEAT
6VE1 ENG(LX5) 		8-97331-184-0 01 1 0306-0609 ●
225 00.785 PROTECTOR; HEAT
6VE1 ENG(LX5) 		8-97331-184-0 01 1 0710-1003 ●
227 00.785 BOLT; HEAT PROTECTOR
6VE1 ENG(LX5) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1008- ●
227 00.785 BOLT; HEAT PROTECTOR
6VE1 ENG(LX5) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0306-0609 ●
227 00.785 BOLT; HEAT PROTECTOR
6VE1 ENG(LX5) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0710-1003 ●

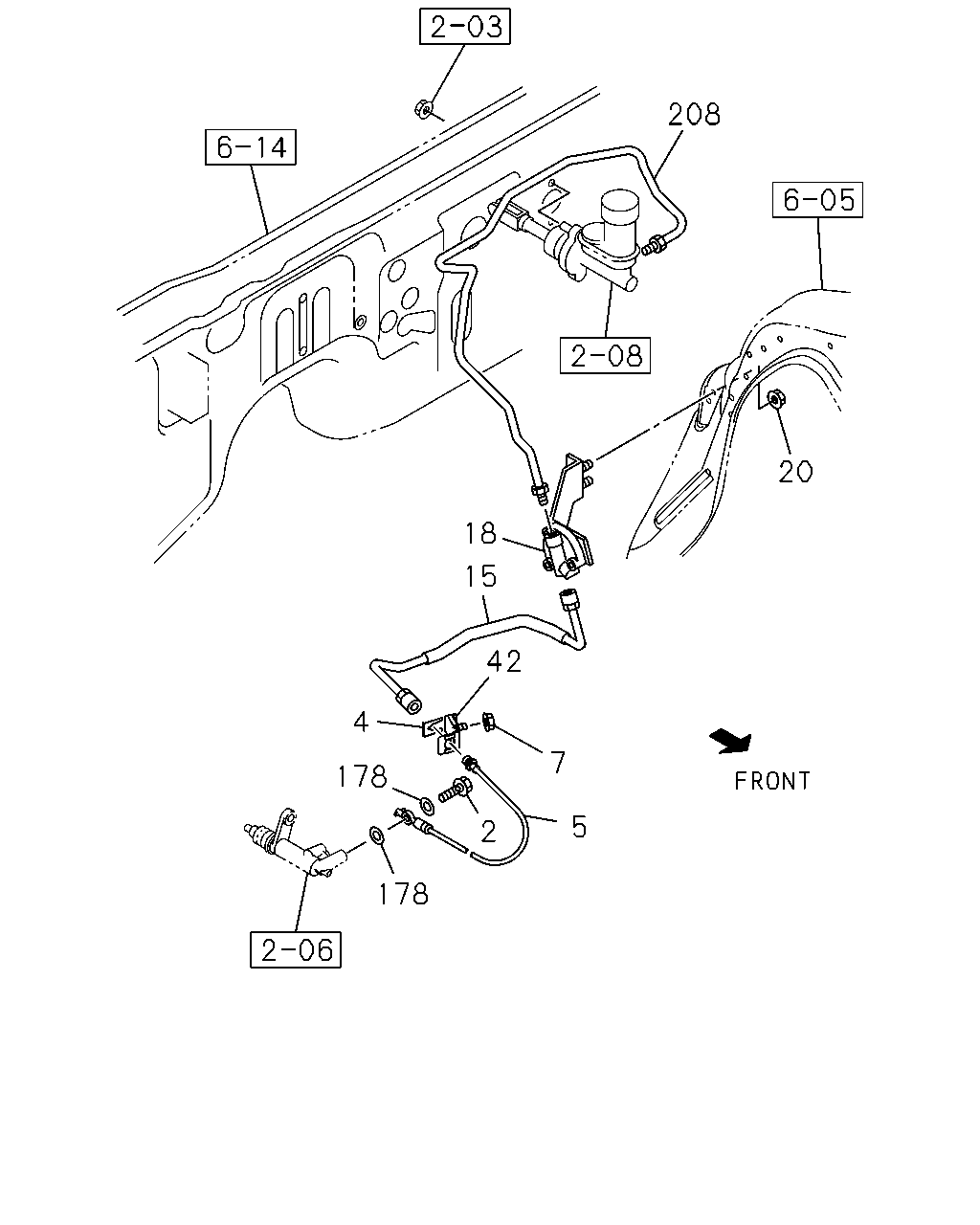

çizim 102410
208 20 18 15 42 4 7 178 5 2 178
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0306-0609 ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0610-1003 ● ● ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 1004-1007 ● ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 1008- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94436-216-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0610-0703 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 0704-0709 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 0710-1003 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 1004-1007 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 6VE1 ENG(LX5),4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 1008- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-97320-575-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0610-1003 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 1004-1007 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 1008- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) 		8-97943-158-0 01 1 1008- ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 0610-1003 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 0610-1003 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 1004-1007 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 1004-1007 ● ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 1008- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 1008- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-605-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 0610-1003 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 1004-1007 ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 1008- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) 		8-97943-158-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB) 		8-97945-178-0 01 1 0610-1007 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-178-0 01 1 1008- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) 		8-97943-158-0 01 1 0710-1003 ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97944-870-0 01 1 0610- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0306-0609 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0306-0609 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0610-0709 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-1003 ● ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1004-1007 ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 6VE1 ENG(LX5),4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1008- ● ● ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE 8-97333-992-1 01 1 0306-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97333-992-1 01 1 0306-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE 8-97944-804-0 01 1 0610-1003 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97944-804-0 01 1 0610-1003 ● ●
15 00.785 PIPE; CLU,FLEX HOSE 8-97944-804-0 01 1 1004-1007 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97944-804-0 01 1 1004-1007 ●
15 00.785 PIPE; CLU,FLEX HOSE 8-97944-804-0 01 1 1008- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97944-804-0 01 1 1008- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB) 		8-97944-808-0 01 1 0610-1007 ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97944-808-0 01 1 1008- ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCX ENG(LS0) 		8-97944-807-0 01 1 0610- ●
18 00.830 DAMPER ASM; CLU OIL 8-97943-172-0 01 1 0306-0609 ●
18 00.830 DAMPER ASM; CLU OIL
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97943-172-0 01 1 0306-0609 ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97945-175-0 01 1 0610-1003 ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97945-175-0 01 1 1004-1007 ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-97945-175-0 01 1 1008- ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97353-667-0 01 1 0306-0609 ●
18 00.830 DAMPER ASM; CLU OIL 8-97353-667-0 01 1 0306-0609 ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 0610-1003 ● ● ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 1004-1007 ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 1008- ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0306-0609 ● ●
20 00.837 NUT; CLU OIL DAMPER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0306-0609 ●
20 00.837 NUT; CLU OIL DAMPER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1003 ● ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1004-1007 ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
6VE1 ENG(LX5) 		8-97320-576-0 01 1 1008- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97943-412-0 01 1 0306-0306 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97943-412-0 01 1 0306-0306 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97943-835-0 01 1 0306-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97943-835-0 01 1 0306-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97943-835-0 01 1 0610-1003 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) 		8-97943-835-0 01 1 0610-1003 ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JH1-TC ENG(RDM) 		8-97943-835-0 01 1 1004-1007 ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JH1-TC ENG(RDM) 		8-97943-835-0 01 1 1008- ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
6VE1 ENG(LX5) 		8-97320-576-0 01 1 0306-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97944-508-0 01 1 0610- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
6VE1 ENG(LX5) 		8-97320-576-0 01 1 0710-1003 ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0306-0609 ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-1003 ● ● ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 1004-1007 ● ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 1008- ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
6VE1 ENG(LX5) 		8-97944-799-0 01 1 1008- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97362-454-0 01 1 0306-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97362-454-0 01 1 0306-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97944-798-0 01 1 0610-1003 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97944-798-0 01 1 0610-1003 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97944-798-0 01 1 1004-1007 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97944-798-0 01 1 1004-1007 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97944-798-0 01 1 1008- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97944-798-0 01 1 1008- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97361-549-0 01 1 0306-0508 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97361-549-0 01 1 0306-0508 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97361-549-0 01 1 0509-0609 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-797-0 01 1 0610-1003 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-797-0 01 1 1004-1007 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-797-0 01 1 1008- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
6VE1 ENG(LX5) 		8-97362-911-0 01 1 0306-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB) 		8-97944-800-1 01 1 0610- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
6VE1 ENG(LX5) 		8-97944-799-0 01 1 0710-1003 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCX ENG(LS0) 		8-97945-228-0 01 1 0610-1007 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97945-228-0 01 1 1008- ● ●

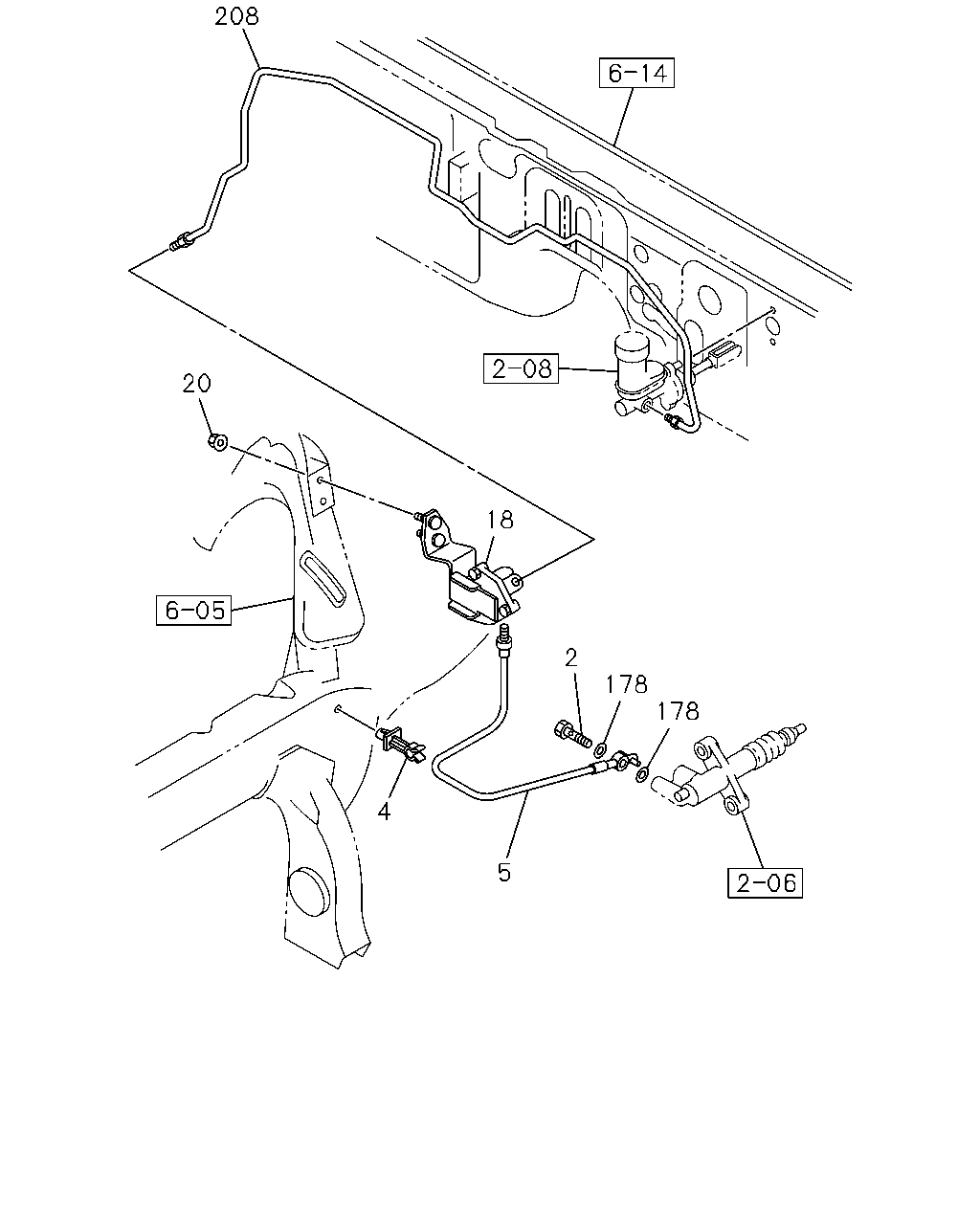

çizim 185266
208 20 18 2 178 178 4 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0306-0609 ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0610-1003 ● ● ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 1004-1007 ● ● ● ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 1008- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94436-216-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JA1-T ENG(LP0),6VE1 ENG(LX5), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-94436-216-0 01 1 0610-0703 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 0704-0709 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),6VE1 ENG(LX5), 4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 0710-1003 ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 1004-1007 ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 6VE1 ENG(LX5),4JH1-TC ENG(RDM) 		8-97946-552-0 01 1 1008- ● ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-97320-575-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 0610-1003 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 1004-1007 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
C24SE ENG(LG1) 		8-97320-575-0 01 1 1008- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) 		8-97943-158-0 01 1 1008- ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 0610-1003 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 0610-1003 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 1004-1007 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 1004-1007 ● ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 1008- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97942-498-0 01 1 1008- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-605-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 0610-1003 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 1004-1007 ●
5 00.785 HOSE; FLEX,CLU PIPE
C24SE ENG(LG1) 		8-97942-605-0 01 1 1008- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) 		8-97943-158-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB) 		8-97945-178-0 01 1 0610-1007 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-178-0 01 1 1008- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
6VE1 ENG(LX5) 		8-97943-158-0 01 1 0710-1003 ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97944-870-0 01 1 0610- ●
18 00.830 DAMPER ASM; CLU OIL 8-97943-172-0 01 1 0306-0609 ●
18 00.830 DAMPER ASM; CLU OIL
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97943-172-0 01 1 0306-0609 ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97945-175-0 01 1 0610-1003 ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 		8-97945-175-0 01 1 1004-1007 ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 		8-97945-175-0 01 1 1008- ● ● ● ● ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97353-667-0 01 1 0306-0609 ●
18 00.830 DAMPER ASM; CLU OIL 8-97353-667-0 01 1 0306-0609 ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 0610-1003 ● ● ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 1004-1007 ●
18 00.830 DAMPER ASM; CLU OIL
C24SE ENG(LG1) 		8-97945-453-0 01 1 1008- ● ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0306-0609 ● ●
20 00.837 NUT; CLU OIL DAMPER
C24SE ENG(LG1),4JA1-T ENG(LP0), 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0306-0609 ●
20 00.837 NUT; CLU OIL DAMPER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1003 ● ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0), 4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1004-1007 ● ● ● ●
20 00.837 NUT; CLU OIL DAMPER
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ● ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0306-0609 ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-1003 ● ● ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 1004-1007 ● ● ● ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 1008- ● ● ● ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
6VE1 ENG(LX5) 		8-97944-799-0 01 1 1008- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97362-454-0 01 1 0306-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) 		8-97362-454-0 01 1 0306-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97944-798-0 01 1 0610-1003 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97944-798-0 01 1 0610-1003 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97944-798-0 01 1 1004-1007 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97944-798-0 01 1 1004-1007 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97944-798-0 01 1 1008- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JA1-T ENG(LP0),4JH1-TC ENG(RDM) 		8-97944-798-0 01 1 1008- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97361-549-0 01 1 0306-0508 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97361-549-0 01 1 0306-0508 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97361-549-0 01 1 0509-0609 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-797-0 01 1 0610-1003 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-797-0 01 1 1004-1007 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
C24SE ENG(LG1) 		8-97944-797-0 01 1 1008- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
6VE1 ENG(LX5) 		8-97362-911-0 01 1 0306-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCS ENG(LFB) 		8-97944-800-1 01 1 0610- ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
6VE1 ENG(LX5) 		8-97944-799-0 01 1 0710-1003 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JJ1-TCX ENG(LS0) 		8-97945-228-0 01 1 0610-1007 ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97945-228-0 01 1 1008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
