Sayfa 1-35 - Isuzu EPC

1-35 — CHARGE AIR COOLER (#73935) — 282 parça

1 40 35 40 40 35 35 40 40 40 35 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.374 COOLER; CHARGE AIR CHEVROLET EQUIPMENT(8JF)	8-98000-193-0	01	1	1008-1107	●
1	03.374 COOLER; CHARGE AIR	8-97234-910-4	01	1	0306-0310		●	●
1	03.374 COOLER; CHARGE AIR	8-97375-015-0	01	1	0311-0412		●	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0501-0508		●	●
1	03.374 COOLER; CHARGE AIR EXC. FACE LIFT MODEL<TX7>	8-98000-192-0	01	1	0509-0609		●	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0610-0712			●
1	03.374 COOLER; CHARGE AIR EXC. CHEVROLET EQUIPMENT(8JF)	8-98000-192-0	01	1	0610-0712	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0801-			●
1	03.374 COOLER; CHARGE AIR FACE LIFT MODEL<TX7>	8-98000-270-0	01	1	0509-0609		●	●
1	03.374 COOLER; CHARGE AIR	8-97389-185-4	01	1	0610-0802				●
1	03.374 COOLER; CHARGE AIR	8-98114-815-0	01	1	0803-1007				●
1	03.374 COOLER; CHARGE AIR	8-98114-815-0	01	1	1008-				●	●
1	03.374 COOLER; CHARGE AIR CHEVROLET EQUIPMENT(8JF)	8-98000-193-0	01	1	0610-1003	●
1	03.374 COOLER; CHARGE AIR EXC. CHEVROLET EQUIPMENT(8JF)	8-98088-684-0	01	1	0801-	●
35	01.540 HOSE; CONNECTING (D)	8-97352-075-0	01	1	0306-0609		●
35	01.540 HOSE; CONNECTING (G)	8-97370-538-1	01	1	0610-0707	●
35	01.540 HOSE; CONNECTING (G)	8-98092-322-0	01	1	0708-	●
35	01.540 HOSE; CONNECTING (A)	8-97362-177-0	01	1	0306-0609		●
35	01.540 HOSE; CONNECTING (H)	8-97370-563-1	01	1	0610-	●
35	01.540 HOSE; CONNECTING (B)	8-97367-626-0	01	1	0306-0609		●
35	01.540 HOSE; CONNECTING (I)	8-97385-978-0	01	1	0610-	●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0306-0609		●	●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0610-0809	●		●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0810-0910	●		●
35	01.540 HOSE; CONNECTING HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R> (C)	8-97320-881-2	01	1	0911-						●
35	01.540 HOSE; CONNECTING (E)	8-97363-522-0	01	1	0306-0609		●	●
35	01.540 HOSE; CONNECTING (E)	8-97363-522-0	01	1	0610-			●
35	01.540 HOSE; CONNECTING (D)	8-97320-883-3	01	1	0306-0609			●
35	01.540 HOSE; CONNECTING (D)	8-97320-883-3	01	1	0610-			●
35	01.540 HOSE; CONNECTING (A)	8-97365-438-0	01	1	0306-0609			●
35	01.540 HOSE; CONNECTING (A)	8-97365-438-0	01	1	0610-			●
35	01.540 HOSE; CONNECTING (B)	8-97365-478-0	01	1	0306-0310			●
35	01.540 HOSE; CONNECTING (B)	8-97374-359-0	01	1	0311-0609			●
35	01.540 HOSE; CONNECTING (B)	8-97374-359-0	01	1	0610-			●
35	01.540 HOSE; CONNECTING (F)	8-98002-516-0	01	1	0610-	●
35	01.540 HOSE; CONNECTING (J)	8-98003-588-2	01	1	0610-0807				●
35	01.540 HOSE; CONNECTING (J)	8-98099-947-0	01	1	0808-1007				●
35	01.540 HOSE; CONNECTING (J)	8-98160-197-0	01	1	1008-				●	●
35	01.540 HOSE; CONNECTING (K)	8-98031-469-0	01	1	0610-0706				●
35	01.540 HOSE; CONNECTING (K)	8-98076-084-0	01	1	0707-1007				●
35	01.540 HOSE; CONNECTING (K)	8-98076-084-0	01	1	1008-				●	●
40	03.162 CLIP; RUBBER HOSE (A) ID=55-75	8-98141-459-0	01	1	0903-0911	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	04	1	0912-	●		●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=60-65	8-98096-418-0	02	1	0804-1007				●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=60-65	8-98096-418-0	02	1	1008-				●	●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=50-69	1-09707-135-0	05	1	0306-0501		●	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	05	1	0502-0609		●	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	05	1	0610-0902	●		●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	05	1	0903-0911	●		●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	01	1	0912-	●		●
40	03.162 CLIP; RUBBER HOSE 01.166 (B) ID=44-60	8-94175-940-0	02	1	0306-0501		●	●
40	03.162 CLIP; RUBBER HOSE (B) ID=44-56	8-98000-116-0	02	1	0502-0609		●	●
40	03.162 CLIP; RUBBER HOSE (B) ID=44-56	8-98000-116-0	02	1	0610-0902			●
40	03.162 CLIP; RUBBER HOSE (B)	8-98133-395-0	02	1	0903-			●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	02	1	0610-0803	●
40	03.162 CLIP; RUBBER HOSE 4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) (A) ID=50-65	8-98000-117-0	02	1	0610-0803				●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	02	1	0804-0902	●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	01	1	0903-0911	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	02	1	0912-	●

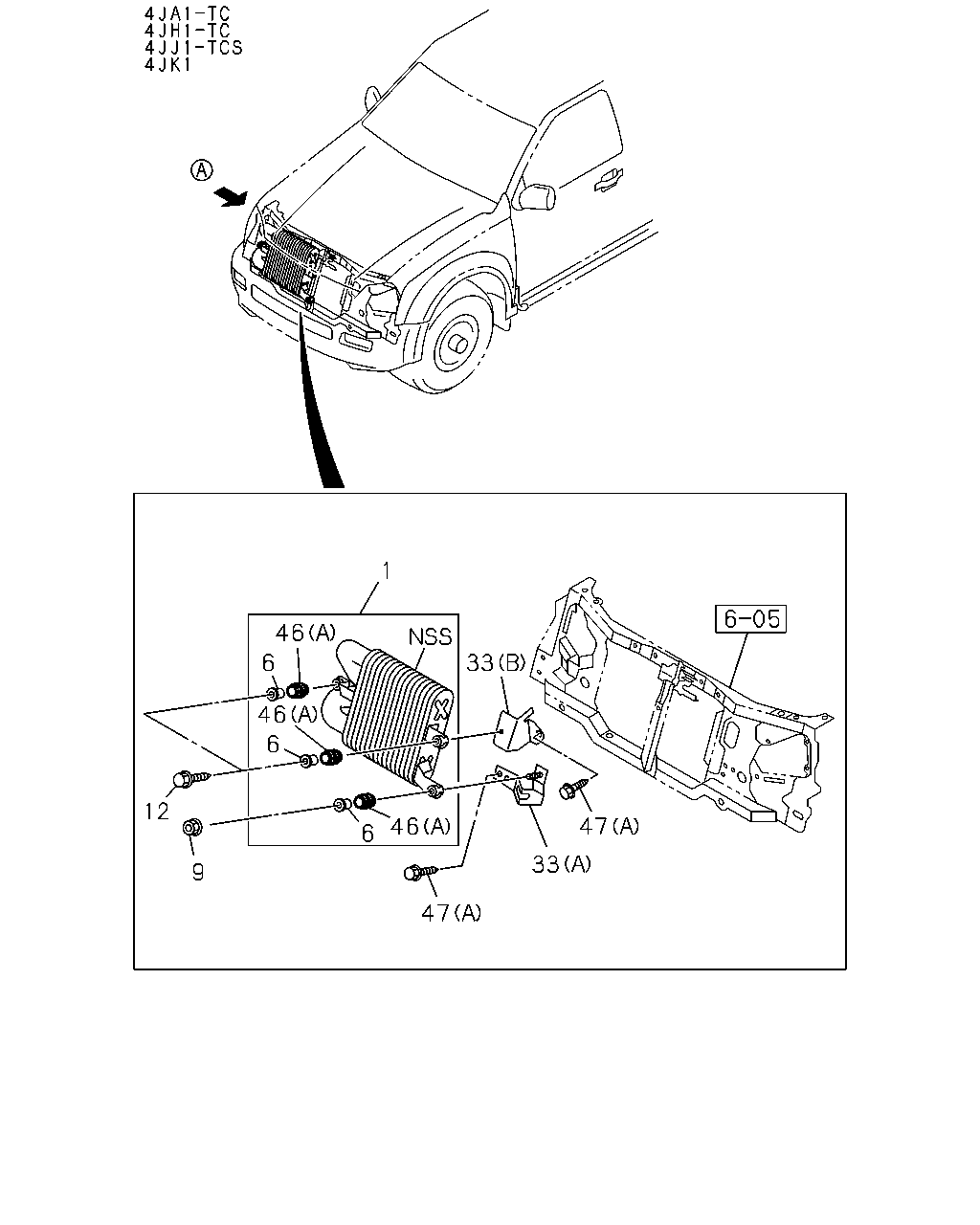

1 46 33 6 46 6 12 47 46 6 33 9 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.374 COOLER; CHARGE AIR CHEVROLET EQUIPMENT(8JF)	8-98000-193-0	01	1	1008-1107	●
1	03.374 COOLER; CHARGE AIR	8-97234-910-4	01	1	0306-0310		●	●
1	03.374 COOLER; CHARGE AIR	8-97375-015-0	01	1	0311-0412		●	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0501-0508		●	●
1	03.374 COOLER; CHARGE AIR EXC. FACE LIFT MODEL<TX7>	8-98000-192-0	01	1	0509-0609		●	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0610-0712			●
1	03.374 COOLER; CHARGE AIR EXC. CHEVROLET EQUIPMENT(8JF)	8-98000-192-0	01	1	0610-0712	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0801-			●
1	03.374 COOLER; CHARGE AIR FACE LIFT MODEL<TX7>	8-98000-270-0	01	1	0509-0609		●	●
1	03.374 COOLER; CHARGE AIR	8-97389-185-4	01	1	0610-0802				●
1	03.374 COOLER; CHARGE AIR	8-98114-815-0	01	1	0803-1007				●
1	03.374 COOLER; CHARGE AIR	8-98114-815-0	01	1	1008-				●	●
1	03.374 COOLER; CHARGE AIR CHEVROLET EQUIPMENT(8JF)	8-98000-193-0	01	1	0610-1003	●
1	03.374 COOLER; CHARGE AIR EXC. CHEVROLET EQUIPMENT(8JF)	8-98088-684-0	01	1	0801-	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405	8-97942-932-0	03	1	0306-0508		●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER EXC. FACE LIFT MODEL<TX7> 03.405	8-97942-932-0	03	1	0509-0609		●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405	8-97942-932-0	03	1	0610-	●		●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER FACE LIFT MODEL<TX7>	8-97386-100-0	03	1	0509-0609		●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER	8-97107-898-0	04	1	0610-1007				●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER	8-97107-898-0	04	1	1008-				●	●
9	01.540 NUT; CHARGE AIR COOLER M8 FLANGE	0-91180-208-0	01	1	0306-0508		●	●
9	01.540 NUT; CHARGE AIR COOLER EXC. FACE LIFT MODEL<TX7> M8 FLANGE	0-91180-208-0	01	1	0509-0609		●	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-1007				●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	02	1	1008-				●	●
9	01.540 NUT; CHARGE AIR COOLER FACE LIFT MODEL<TX7> 07.633 M8 FLANGE	0-91150-108-0	01	1	0509-0603		●	●
9	01.540 NUT; CHARGE AIR COOLER FACE LIFT MODEL<TX7> 01.062 M8 FLANGE	0-91180-108-0	01	1	0604-0609		●	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-0809	●		●
9	01.540 NUT; CHARGE AIR COOLER HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R> 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-						●
12	01.540 BOLT; CHARGE AIR COOLER	8-97943-079-0	02	1	0306-0609		●	●
12	01.540 BOLT; CHARGE AIR COOLER	8-97943-079-0	02	1	0610-0812	●		●
12	01.540 BOLT; CHARGE AIR COOLER M8X32.5 W/PL WASHER	8-98136-077-0	02	1	0901-	●		●
12	01.540 BOLT; CHARGE AIR COOLER	8-98044-006-0	02	1	0610-1007				●
12	01.540 BOLT; CHARGE AIR COOLER	8-98044-006-0	02	1	1008-				●	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT CHEVROLET EQUIPMENT(8JF) (B)	8-97374-407-1	01	1	1008-1107	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (A)	8-97326-994-0	01	1	0306-0609		●	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (A)	8-97326-994-0	01	1	0610-0809	●		●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R> (A)	8-97326-994-0	01	1	0810-						●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT CHEVROLET EQUIPMENT(8JF) (B)	8-97374-407-1	01	1	0610-1003	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (C)	8-97389-214-2	01	1	0610-1007				●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (C)	8-97389-214-2	01	1	1008-				●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406 (A)	8-97942-930-0	03	1	0306-0609		●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406 (A)	8-97942-930-0	03	1	0610-	●		●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (B)	8-97181-886-0	04	1	0610-1007				●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (B)	8-97181-886-0	04	1	1008-				●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C)	8-97232-774-0	04	1	0610-1007				●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C)	8-97232-774-0	04	1	1008-				●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT CHEVROLET EQUIPMENT(8JF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1107	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0306-0609		●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0809	●		●
47	01.540 BOLT; CHARGE AIR COOLER BRKT HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0810-						●
47	01.540 BOLT; CHARGE AIR COOLER BRKT CHEVROLET EQUIPMENT(8JF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-1003	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0610-1007				●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1008-				●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0610-1007				●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	1008-				●	●

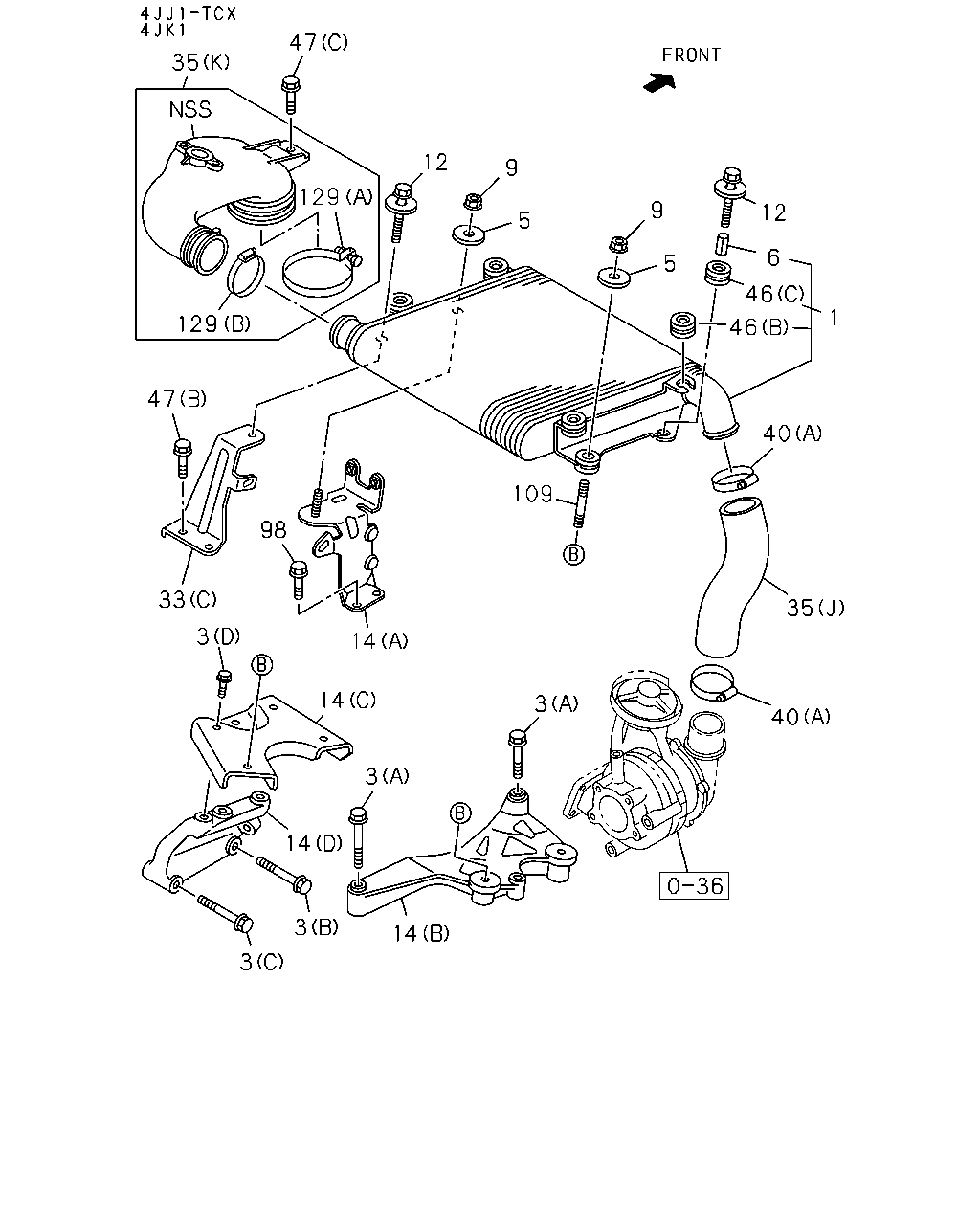

47 35 12 9 129 9 12 5 6 5 46 1 129 46 47 40 109 98 33 35 3 14 14 3 40 3 14 3 14 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.374 COOLER; CHARGE AIR CHEVROLET EQUIPMENT(8JF)	8-98000-193-0	01	1	1008-1107	●
1	03.374 COOLER; CHARGE AIR	8-97234-910-4	01	1	0306-0310		●	●
1	03.374 COOLER; CHARGE AIR	8-97375-015-0	01	1	0311-0412		●	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0501-0508		●	●
1	03.374 COOLER; CHARGE AIR EXC. FACE LIFT MODEL<TX7>	8-98000-192-0	01	1	0509-0609		●	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0610-0712			●
1	03.374 COOLER; CHARGE AIR EXC. CHEVROLET EQUIPMENT(8JF)	8-98000-192-0	01	1	0610-0712	●
1	03.374 COOLER; CHARGE AIR	8-98000-192-0	01	1	0801-			●
1	03.374 COOLER; CHARGE AIR FACE LIFT MODEL<TX7>	8-98000-270-0	01	1	0509-0609		●	●
1	03.374 COOLER; CHARGE AIR	8-97389-185-4	01	1	0610-0802				●
1	03.374 COOLER; CHARGE AIR	8-98114-815-0	01	1	0803-1007				●
1	03.374 COOLER; CHARGE AIR	8-98114-815-0	01	1	1008-				●	●
1	03.374 COOLER; CHARGE AIR CHEVROLET EQUIPMENT(8JF)	8-98000-193-0	01	1	0610-1003	●
1	03.374 COOLER; CHARGE AIR EXC. CHEVROLET EQUIPMENT(8JF)	8-98088-684-0	01	1	0801-	●
3	01.540 BOLT; CHARGE AIR COOLER EURO3 SPECIFICATION<NT3> 01.652 (C) M6X45 FLANGE	0-28050-645-0	01	1	1008-				●
3	01.540 BOLT; CHARGE AIR COOLER EURO3 SPECIFICATION<NT3> 04.338 (D) M8X20 FLANGE	0-28050-820-0	03	1	1008-				●
3	01.540 BOLT; CHARGE AIR COOLER EURO3 SPECIFICATION<NT3> 09.181 (B) M10X45 FLANGE	0-28151-045-0	01	1	1008-				●
3	01.540 BOLT; CHARGE AIR COOLER 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	0610-1007				●
3	01.540 BOLT; CHARGE AIR COOLER EURO4 SPECIFICATION<NT4> 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	1008-				●	●
3	01.540 BOLT; CHARGE AIR COOLER 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	0610-1007				●
3	01.540 BOLT; CHARGE AIR COOLER EURO4 SPECIFICATION<NT4> 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	1008-				●	●
5	01.540 WASHER; PL,CHARGE AIR COOLER 03.405 ID=8.5 OD=36	8-94221-082-0	02	1	0610-1007				●
5	01.540 WASHER; PL,CHARGE AIR COOLER 03.405 ID=8.5 OD=36	8-94221-082-0	02	1	1008-				●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405	8-97942-932-0	03	1	0306-0508		●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER EXC. FACE LIFT MODEL<TX7> 03.405	8-97942-932-0	03	1	0509-0609		●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER 03.405	8-97942-932-0	03	1	0610-	●		●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER FACE LIFT MODEL<TX7>	8-97386-100-0	03	1	0509-0609		●	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER	8-97107-898-0	04	1	0610-1007				●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER	8-97107-898-0	04	1	1008-				●	●
9	01.540 NUT; CHARGE AIR COOLER M8 FLANGE	0-91180-208-0	01	1	0306-0508		●	●
9	01.540 NUT; CHARGE AIR COOLER EXC. FACE LIFT MODEL<TX7> M8 FLANGE	0-91180-208-0	01	1	0509-0609		●	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-1007				●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	02	1	1008-				●	●
9	01.540 NUT; CHARGE AIR COOLER FACE LIFT MODEL<TX7> 07.633 M8 FLANGE	0-91150-108-0	01	1	0509-0603		●	●
9	01.540 NUT; CHARGE AIR COOLER FACE LIFT MODEL<TX7> 01.062 M8 FLANGE	0-91180-108-0	01	1	0604-0609		●	●
9	01.540 NUT; CHARGE AIR COOLER 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-0809	●		●
9	01.540 NUT; CHARGE AIR COOLER HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R> 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-						●
12	01.540 BOLT; CHARGE AIR COOLER	8-97943-079-0	02	1	0306-0609		●	●
12	01.540 BOLT; CHARGE AIR COOLER	8-97943-079-0	02	1	0610-0812	●		●
12	01.540 BOLT; CHARGE AIR COOLER M8X32.5 W/PL WASHER	8-98136-077-0	02	1	0901-	●		●
12	01.540 BOLT; CHARGE AIR COOLER	8-98044-006-0	02	1	0610-1007				●
12	01.540 BOLT; CHARGE AIR COOLER	8-98044-006-0	02	1	1008-				●	●
14	01.540 BRACKET; CHARGE AIR COOLER EURO3 SPECIFICATION<NT3> (C)	8-98156-390-1	01	1	1008-				●
14	01.540 BRACKET; CHARGE AIR COOLER EURO3 SPECIFICATION<NT3> (D)	8-98156-391-1	01	1	1008-				●
14	01.540 BRACKET; CHARGE AIR COOLER (A)	8-98012-016-3	01	1	0610-1007				●
14	01.540 BRACKET; CHARGE AIR COOLER (A)	8-98012-016-3	01	1	1008-				●	●
14	01.540 BRACKET; CHARGE AIR COOLER (B)	8-98039-405-0	01	1	0610-1007				●
14	01.540 BRACKET; CHARGE AIR COOLER EURO4 SPECIFICATION<NT4> (B)	8-98039-405-0	01	1	1008-				●	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT CHEVROLET EQUIPMENT(8JF) (B)	8-97374-407-1	01	1	1008-1107	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (A)	8-97326-994-0	01	1	0306-0609		●	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (A)	8-97326-994-0	01	1	0610-0809	●		●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R> (A)	8-97326-994-0	01	1	0810-						●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT CHEVROLET EQUIPMENT(8JF) (B)	8-97374-407-1	01	1	0610-1003	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (C)	8-97389-214-2	01	1	0610-1007				●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT (C)	8-97389-214-2	01	1	1008-				●	●
35	01.540 HOSE; CONNECTING (D)	8-97352-075-0	01	1	0306-0609		●
35	01.540 HOSE; CONNECTING (G)	8-97370-538-1	01	1	0610-0707	●
35	01.540 HOSE; CONNECTING (G)	8-98092-322-0	01	1	0708-	●
35	01.540 HOSE; CONNECTING (A)	8-97362-177-0	01	1	0306-0609		●
35	01.540 HOSE; CONNECTING (H)	8-97370-563-1	01	1	0610-	●
35	01.540 HOSE; CONNECTING (B)	8-97367-626-0	01	1	0306-0609		●
35	01.540 HOSE; CONNECTING (I)	8-97385-978-0	01	1	0610-	●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0306-0609		●	●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0610-0809	●		●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0810-0910	●		●
35	01.540 HOSE; CONNECTING HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R> (C)	8-97320-881-2	01	1	0911-						●
35	01.540 HOSE; CONNECTING (E)	8-97363-522-0	01	1	0306-0609		●	●
35	01.540 HOSE; CONNECTING (E)	8-97363-522-0	01	1	0610-			●
35	01.540 HOSE; CONNECTING (D)	8-97320-883-3	01	1	0306-0609			●
35	01.540 HOSE; CONNECTING (D)	8-97320-883-3	01	1	0610-			●
35	01.540 HOSE; CONNECTING (A)	8-97365-438-0	01	1	0306-0609			●
35	01.540 HOSE; CONNECTING (A)	8-97365-438-0	01	1	0610-			●
35	01.540 HOSE; CONNECTING (B)	8-97365-478-0	01	1	0306-0310			●
35	01.540 HOSE; CONNECTING (B)	8-97374-359-0	01	1	0311-0609			●
35	01.540 HOSE; CONNECTING (B)	8-97374-359-0	01	1	0610-			●
35	01.540 HOSE; CONNECTING (F)	8-98002-516-0	01	1	0610-	●
35	01.540 HOSE; CONNECTING (J)	8-98003-588-2	01	1	0610-0807				●
35	01.540 HOSE; CONNECTING (J)	8-98099-947-0	01	1	0808-1007				●
35	01.540 HOSE; CONNECTING (J)	8-98160-197-0	01	1	1008-				●	●
35	01.540 HOSE; CONNECTING (K)	8-98031-469-0	01	1	0610-0706				●
35	01.540 HOSE; CONNECTING (K)	8-98076-084-0	01	1	0707-1007				●
35	01.540 HOSE; CONNECTING (K)	8-98076-084-0	01	1	1008-				●	●
40	03.162 CLIP; RUBBER HOSE (A) ID=55-75	8-98141-459-0	01	1	0903-0911	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	04	1	0912-	●		●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=60-65	8-98096-418-0	02	1	0804-1007				●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=60-65	8-98096-418-0	02	1	1008-				●	●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=50-69	1-09707-135-0	05	1	0306-0501		●	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	05	1	0502-0609		●	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	05	1	0610-0902	●		●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	05	1	0903-0911	●		●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	01	1	0912-	●		●
40	03.162 CLIP; RUBBER HOSE 01.166 (B) ID=44-60	8-94175-940-0	02	1	0306-0501		●	●
40	03.162 CLIP; RUBBER HOSE (B) ID=44-56	8-98000-116-0	02	1	0502-0609		●	●
40	03.162 CLIP; RUBBER HOSE (B) ID=44-56	8-98000-116-0	02	1	0610-0902			●
40	03.162 CLIP; RUBBER HOSE (B)	8-98133-395-0	02	1	0903-			●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	02	1	0610-0803	●
40	03.162 CLIP; RUBBER HOSE 4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) (A) ID=50-65	8-98000-117-0	02	1	0610-0803				●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	02	1	0804-0902	●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	01	1	0903-0911	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	02	1	0912-	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406 (A)	8-97942-930-0	03	1	0306-0609		●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER 03.406 (A)	8-97942-930-0	03	1	0610-	●		●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (B)	8-97181-886-0	04	1	0610-1007				●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (B)	8-97181-886-0	04	1	1008-				●	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C)	8-97232-774-0	04	1	0610-1007				●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C)	8-97232-774-0	04	1	1008-				●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT CHEVROLET EQUIPMENT(8JF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1107	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0306-0609		●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0809	●		●
47	01.540 BOLT; CHARGE AIR COOLER BRKT HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0810-						●
47	01.540 BOLT; CHARGE AIR COOLER BRKT CHEVROLET EQUIPMENT(8JF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-1003	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0610-1007				●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1008-				●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0610-1007				●
47	01.540 BOLT; CHARGE AIR COOLER BRKT 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	1008-				●	●
98	01.540 BOLT; BRKT TO CHARGE AIR COOLER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0610-1007				●
98	01.540 BOLT; BRKT TO CHARGE AIR COOLER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1008-				●	●
109	01.540 STUD; BRKT M8X40 L=52	0-41010-840-0	01	1	0610-1007				●
109	01.540 STUD; BRKT M8X40 L=52	0-41010-840-0	01	1	1008-				●	●
129	01.159 CLAMP; HOSE (A)	8-98080-783-0	01	1	0707-1007				●
129	01.159 CLAMP; HOSE (A)	8-98080-783-0	01	1	1008-				●	●
129	01.159 CLAMP; HOSE (B)	8-98080-785-0	01	1	0707-1007				●
129	01.159 CLAMP; HOSE (B)	8-98080-785-0	01	1	1008-				●	●

40 35 40 40 40 35 35 40 40 35 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
35	01.540 HOSE; CONNECTING (D)	8-97352-075-0	01	1	0306-0609		●
35	01.540 HOSE; CONNECTING (G)	8-97370-538-1	01	1	0610-0707	●
35	01.540 HOSE; CONNECTING (G)	8-98092-322-0	01	1	0708-	●
35	01.540 HOSE; CONNECTING (A)	8-97362-177-0	01	1	0306-0609		●
35	01.540 HOSE; CONNECTING (H)	8-97370-563-1	01	1	0610-	●
35	01.540 HOSE; CONNECTING (B)	8-97367-626-0	01	1	0306-0609		●
35	01.540 HOSE; CONNECTING (I)	8-97385-978-0	01	1	0610-	●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0306-0609		●	●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0610-0809	●		●
35	01.540 HOSE; CONNECTING (C)	8-97320-881-2	01	1	0810-0910	●		●
35	01.540 HOSE; CONNECTING HEAVY DUTY AIR CLEANER<K46>,AIR CLEANER DRY ELEMENT<S9R> (C)	8-97320-881-2	01	1	0911-						●
35	01.540 HOSE; CONNECTING (E)	8-97363-522-0	01	1	0306-0609		●	●
35	01.540 HOSE; CONNECTING (E)	8-97363-522-0	01	1	0610-			●
35	01.540 HOSE; CONNECTING (D)	8-97320-883-3	01	1	0306-0609			●
35	01.540 HOSE; CONNECTING (D)	8-97320-883-3	01	1	0610-			●
35	01.540 HOSE; CONNECTING (A)	8-97365-438-0	01	1	0306-0609			●
35	01.540 HOSE; CONNECTING (A)	8-97365-438-0	01	1	0610-			●
35	01.540 HOSE; CONNECTING (B)	8-97365-478-0	01	1	0306-0310			●
35	01.540 HOSE; CONNECTING (B)	8-97374-359-0	01	1	0311-0609			●
35	01.540 HOSE; CONNECTING (B)	8-97374-359-0	01	1	0610-			●
35	01.540 HOSE; CONNECTING (F)	8-98002-516-0	01	1	0610-	●
35	01.540 HOSE; CONNECTING (J)	8-98003-588-2	01	1	0610-0807				●
35	01.540 HOSE; CONNECTING (J)	8-98099-947-0	01	1	0808-1007				●
35	01.540 HOSE; CONNECTING (J)	8-98160-197-0	01	1	1008-				●	●
35	01.540 HOSE; CONNECTING (K)	8-98031-469-0	01	1	0610-0706				●
35	01.540 HOSE; CONNECTING (K)	8-98076-084-0	01	1	0707-1007				●
35	01.540 HOSE; CONNECTING (K)	8-98076-084-0	01	1	1008-				●	●
40	03.162 CLIP; RUBBER HOSE (A) ID=55-75	8-98141-459-0	01	1	0903-0911	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	04	1	0912-	●		●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=60-65	8-98096-418-0	02	1	0804-1007				●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=60-65	8-98096-418-0	02	1	1008-				●	●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=50-69	1-09707-135-0	05	1	0306-0501		●	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	05	1	0502-0609		●	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	05	1	0610-0902	●		●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	05	1	0903-0911	●		●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	01	1	0912-	●		●
40	03.162 CLIP; RUBBER HOSE 01.166 (B) ID=44-60	8-94175-940-0	02	1	0306-0501		●	●
40	03.162 CLIP; RUBBER HOSE (B) ID=44-56	8-98000-116-0	02	1	0502-0609		●	●
40	03.162 CLIP; RUBBER HOSE (B) ID=44-56	8-98000-116-0	02	1	0610-0902			●
40	03.162 CLIP; RUBBER HOSE (B)	8-98133-395-0	02	1	0903-			●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	02	1	0610-0803	●
40	03.162 CLIP; RUBBER HOSE 4X2 REGULAR CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) (A) ID=50-65	8-98000-117-0	02	1	0610-0803				●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-65	8-98000-117-0	02	1	0804-0902	●
40	03.162 CLIP; RUBBER HOSE (A) ID=45-65	8-98133-396-0	01	1	0903-0911	●
40	03.162 CLIP; RUBBER HOSE (A) ID=50-70	8-98141-460-0	02	1	0912-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
