1-11 — RADIATOR HOSE AND SUB TANK (#73932) — 120 parça

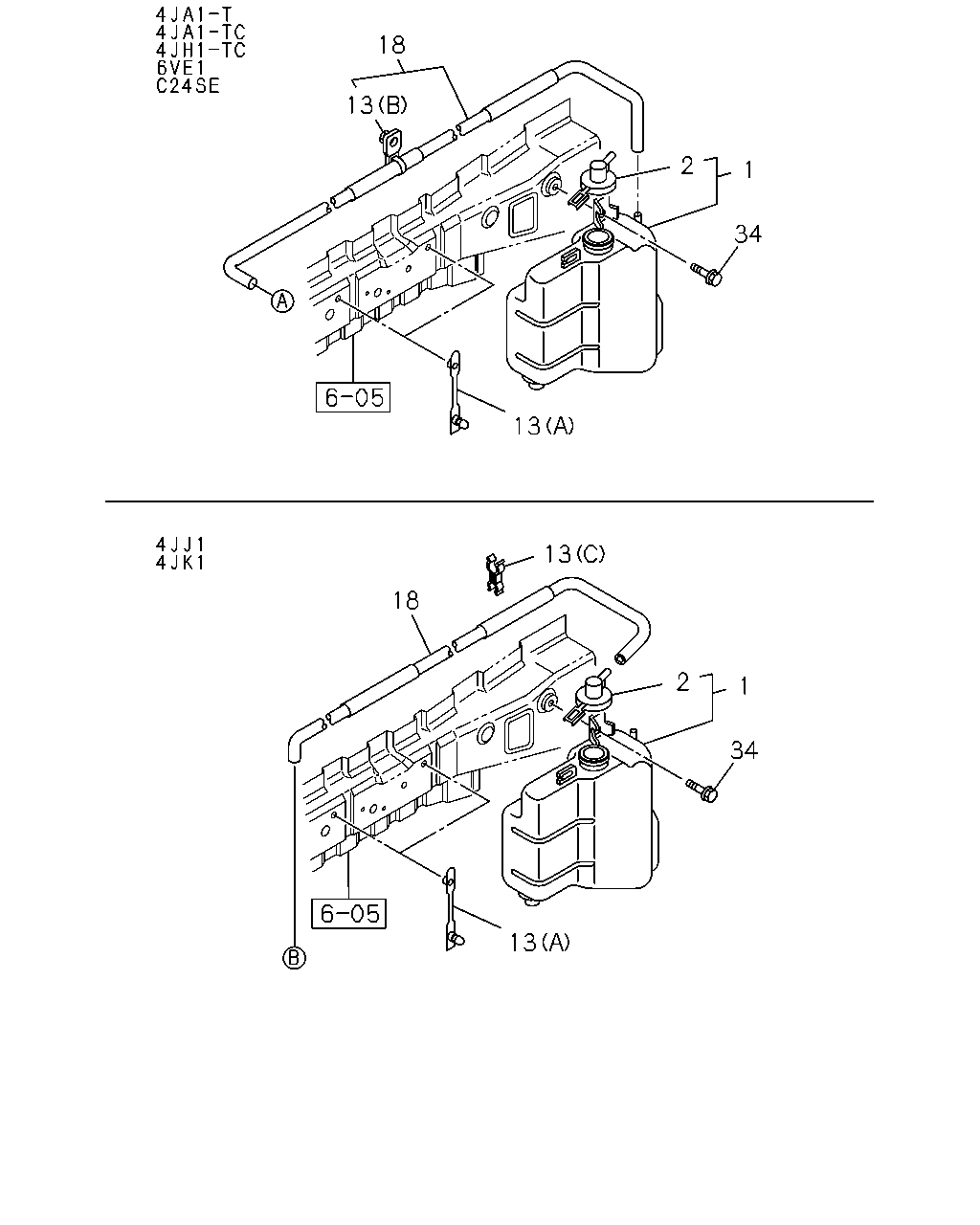

çizim 89265
18 13 2 1 34 13 13 18 2 1 34 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.219 TANK; SURGE,RAD 8-97941-501-3 01 1 0306-0609 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-97941-501-3 01 1 0610-0709 ● ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-97941-501-3 01 1 0710-1007 ● ● ● ● ● ●
1 01.219 TANK; SURGE,RAD 8-97941-501-3 01 1 1008- ● ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97333-354-0 01 1 0306-0609 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97333-354-0 01 1 0610-0709 ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97333-354-0 01 1 0710-1007 ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK 8-97333-354-0 01 1 1008- ● ● ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 		8-94239-338-0 02 1 0306-0609 ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 		8-94239-338-0 02 1 0610-0709 ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 		8-94239-338-0 02 1 0710-1003 ● ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 		8-94239-338-0 02 1 1004-1007 ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (A) L=88 		8-94239-338-0 02 1 1008- ● ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) 		8-94373-241-0 01 1 0306-0402 ● ● ● ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) 		8-94373-241-0 01 1 0403-0508 ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) 		8-94373-241-0 01 1 0509-0609 ● ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) 		8-94373-241-0 01 1 0610-0709 ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) 		8-94373-241-0 01 1 0710-1003 ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) 		8-94373-241-0 01 1 1004-1007 ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(B) 		8-94373-241-0 01 1 1008- ● ● ● ●
13 01.240 CLIP; HOSE,SURGE TANK
03.145 (C) ID=25 & 11 		8-97068-799-0 01 1 0610-1007 ● ●
13 01.240 CLIP; HOSE,SURGE TANK
03.145 (C) ID=25 & 11 		8-97068-799-0 01 1 1008- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97362-955-0 01 1 0306-0402 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY 80D26L-DUAL(8HU) 		8-97362-955-0 01 1 0306-0402 ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97362-955-0 01 1 0403-0508 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY 80D26L-DUAL(8HU) 		8-97362-955-0 01 1 0403-0508 ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY 80D26L-DUAL(8HU) 		8-97362-955-0 01 1 0509-0609 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97362-955-0 01 1 0610-0709 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97362-955-0 01 1 0710-1003 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97362-955-0 01 1 1004-1007 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97362-955-0 01 1 1008- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-97941-508-3 01 1 0306-0508 ●
18 01.240 HOSE; RAD TO SURGE TANK
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-97941-508-3 01 1 0509-0609 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY 80D26L-DUAL(8HU) 		8-97373-405-0 01 1 0610-1007 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY 80D26L-DUAL(8HU) 		8-97373-405-0 01 1 1008- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-98035-946-0 01 1 0610-1007 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-98035-946-0 01 1 1008- ● ● ●
34 01.203 BOLT; RESERVE TANK
08.015 M6X20 W/WASHER 		8-94112-987-1 01 1 0306-0609 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
08.015 M6X20 W/WASHER 		8-94112-987-1 01 1 0610-0611 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 01 1 0612-1007 ● ● ● ● ●
34 01.203 BOLT; RESERVE TANK
09.744 M6X20 W/WASHER 		8-98056-282-0 01 1 1008- ● ● ● ● ● ● ●

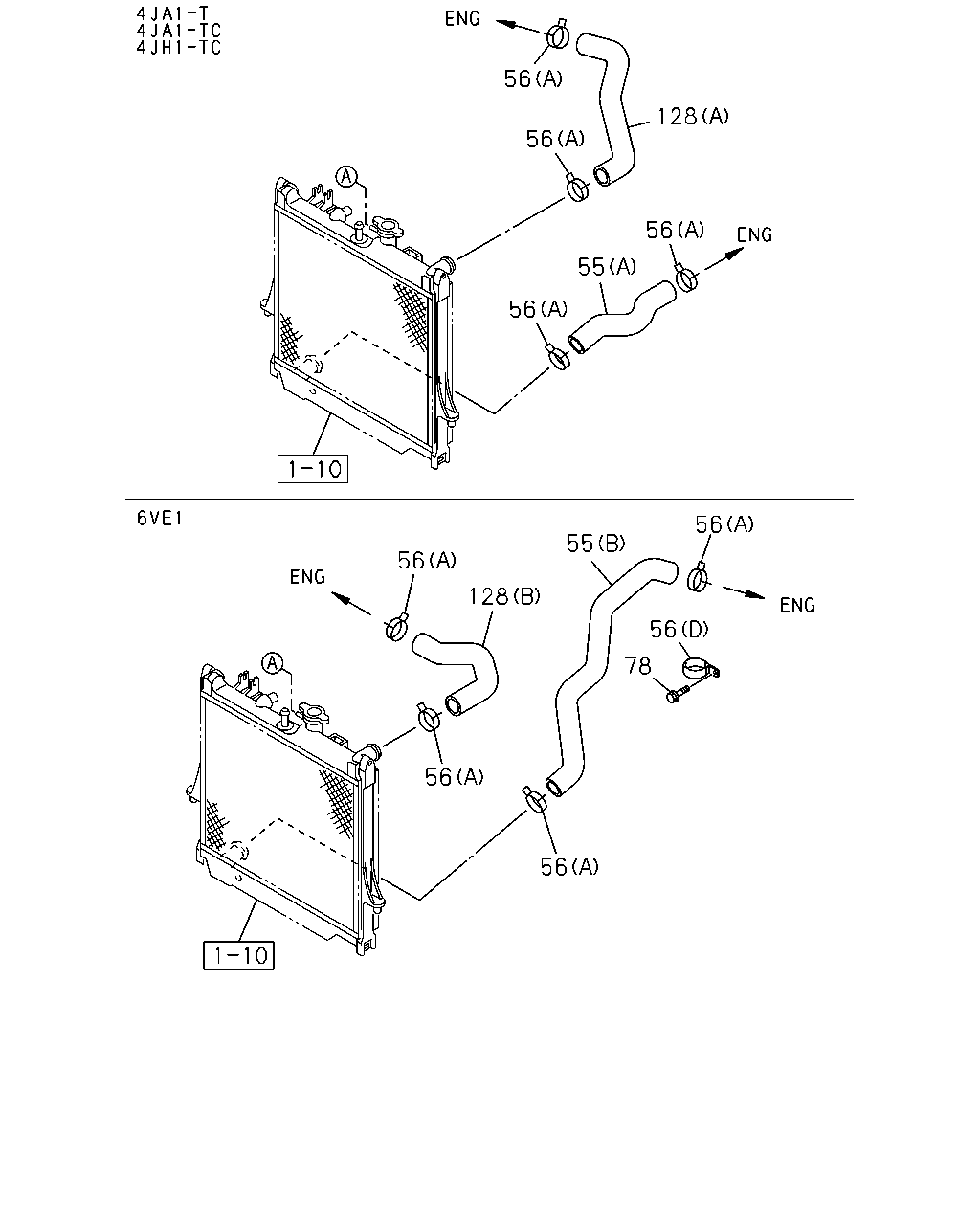

çizim 89550
56 128 56 56 55 56 56 55 56 128 56 78 56 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-97248-430-1 01 1 1008- ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-97248-432-2 01 1 0306-0412 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98003-995-0 01 1 0501-0609 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98003-995-0 01 1 0610- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-97248-430-1 01 1 0306-0609 ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-1 01 1 0610-1007 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-1 01 1 1008- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-97248-430-1 01 1 0710-1003 ●
55 01.173 HOSE; WATER,RAD OUTLET
(D) 		8-97248-431-3 01 1 0306- ●
56 01.166 CLIP; WATER HOSE,RAD
(D) ID=46 		8-94362-266-0 01 1 1008- ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0306-0508 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0306-0508 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0509-0609 ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0509-0609 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0610-0709 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0610-0709 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0710-1003 ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0710-1003 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1004-1007 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1004-1007 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1008- ● ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1008- ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(D) ID=46 		8-94362-266-0 01 1 0306-0609 ●
56 01.166 CLIP; WATER HOSE,RAD
(D) ID=46 		8-94362-266-0 01 1 0710-1003 ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=36.5 		8-97135-907-1 01 1 0306- ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=36 		8-97262-976-0 01 1 0306- ●
78 01.159 BOLT; CLIP,HOSE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1008- ●
78 01.159 BOLT; CLIP,HOSE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0306-0609 ●
78 01.159 BOLT; CLIP,HOSE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0710-1003 ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-97248-427-1 01 1 1008- ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-97941-505-2 01 1 0306-0412 ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98003-996-0 01 1 0501-0609 ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98003-996-0 01 1 0610- ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-97248-429-2 01 1 0306-0412 ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98003-994-0 01 1 0501-0609 ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98003-994-0 01 1 0610- ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-97248-427-1 01 1 0306-0609 ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-1 01 1 0610-1007 ● ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-1 01 1 1008- ● ● ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-97248-427-1 01 1 0710-1003 ●
128 01.159 HOSE; WATER,RAD INL
(D) 		8-97248-428-2 01 1 0306- ●

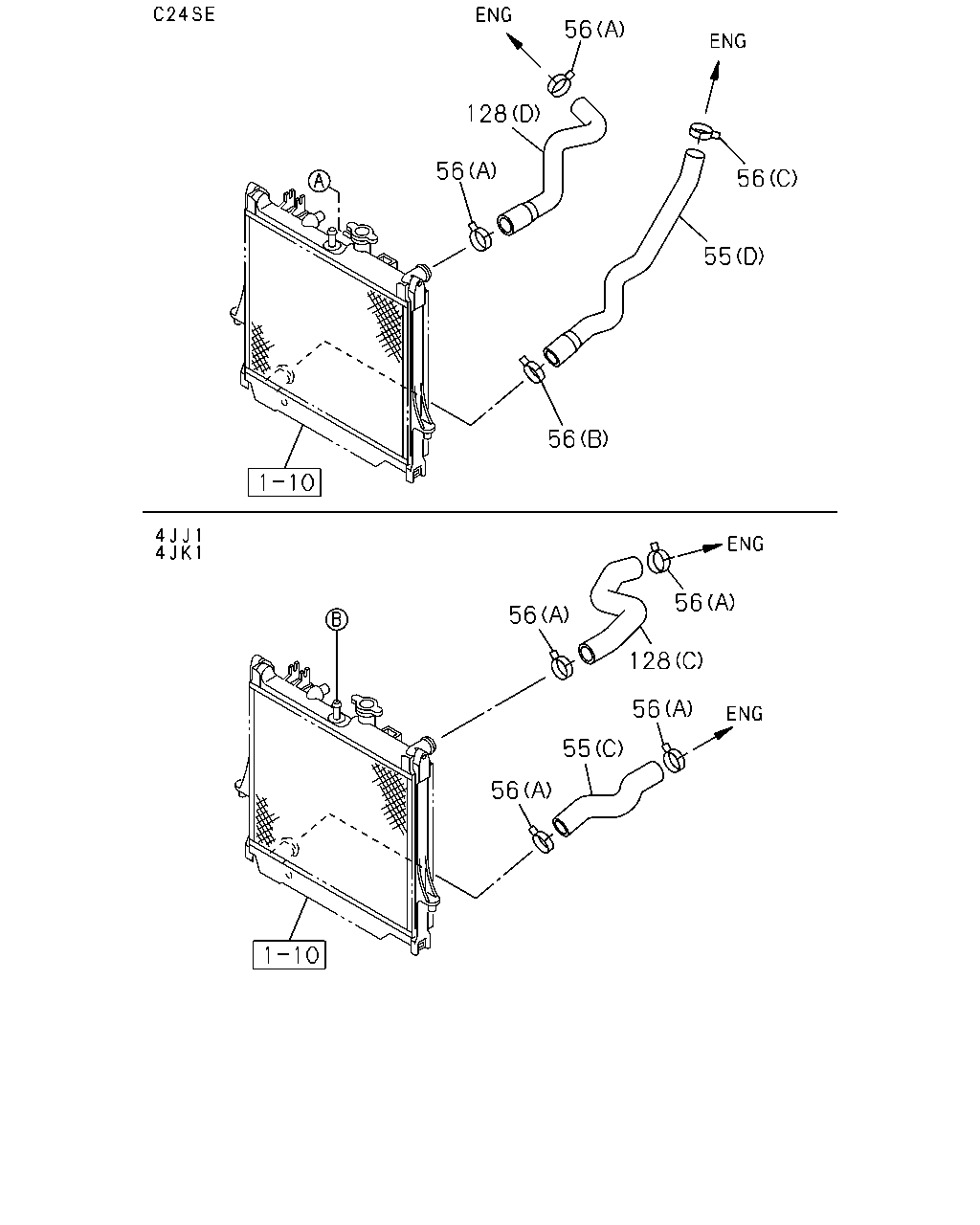

çizim 185326
56 128 56 56 55 56 56 56 128 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-97248-430-1 01 1 1008- ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-97248-432-2 01 1 0306-0412 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98003-995-0 01 1 0501-0609 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98003-995-0 01 1 0610- ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-97248-430-1 01 1 0306-0609 ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-1 01 1 0610-1007 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(C) 		8-97363-605-1 01 1 1008- ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-97248-430-1 01 1 0710-1003 ●
55 01.173 HOSE; WATER,RAD OUTLET
(D) 		8-97248-431-3 01 1 0306- ●
56 01.166 CLIP; WATER HOSE,RAD
(D) ID=46 		8-94362-266-0 01 1 1008- ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0306-0508 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0306-0508 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0509-0609 ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0509-0609 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0610-0709 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0610-0709 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0710-1003 ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 0710-1003 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1004-1007 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1004-1007 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1008- ● ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=40.5 		8-97313-472-0 02 1 1008- ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(D) ID=46 		8-94362-266-0 01 1 0306-0609 ●
56 01.166 CLIP; WATER HOSE,RAD
(D) ID=46 		8-94362-266-0 01 1 0710-1003 ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=36.5 		8-97135-907-1 01 1 0306- ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=36 		8-97262-976-0 01 1 0306- ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-97248-427-1 01 1 1008- ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-97941-505-2 01 1 0306-0412 ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98003-996-0 01 1 0501-0609 ● ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98003-996-0 01 1 0610- ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-97248-429-2 01 1 0306-0412 ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98003-994-0 01 1 0501-0609 ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98003-994-0 01 1 0610- ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-97248-427-1 01 1 0306-0609 ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-1 01 1 0610-1007 ● ●
128 01.159 HOSE; WATER,RAD INL
(C) 		8-97363-604-1 01 1 1008- ● ● ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-97248-427-1 01 1 0710-1003 ●
128 01.159 HOSE; WATER,RAD INL
(D) 		8-97248-428-2 01 1 0306- ●
