1-01 — ACCELERATOR PEDAL AND CONTROL (#73930) — 139 parça

54 54 659

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	1008-	●
54	03.430 CABLE; ENG CONT (A)	8-97369-008-0	01	1	0306-		●
54	03.430 CABLE; ENG CONT (B)	8-97315-968-2	01	1	0306-0609			●	●
54	03.430 CABLE; ENG CONT (B)	8-97315-968-2	01	1	0610-				●
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	0306-0609	●
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	0710-1003	●
54	03.430 CABLE; ENG CONT (C)	8-97362-949-0	01	1	0306-					●
659	03.483 CLIP; ACCEL CONT CABLE 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0306-		●
659	03.483 CLIP; ACCEL CONT CABLE (B) ID=16 L=28	8-97367-951-0	01	1	0306-0609			●	●
659	03.483 CLIP; ACCEL CONT CABLE (B) ID=16 L=28	8-97367-951-0	01	1	0610-0907				●
659	03.483 CLIP; ACCEL CONT CABLE 02.559 (B) ID=11 L=20	0-95235-035-0	01	1	0908-				●
659	03.483 CLIP; ACCEL CONT CABLE (C) ID=6 & 11	8-97368-292-0	01	1	0306-0609			●	●
659	03.483 CLIP; ACCEL CONT CABLE (C) ID=6 & 11	8-97368-292-0	01	1	0610-				●

10 243 14 242 850

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
10	03.451 PEDAL ASM; ACCEL	8-98055-654-0	01	1	0610-1007						●	●
10	03.451 PEDAL ASM; ACCEL	8-98055-654-0	01	1	1008-						●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97257-598-0	01	1	0306-0609	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97257-598-0	01	1	0610-0709		●		●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97257-598-0	01	1	0710-1003	●	●		●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97257-598-0	01	1	1004-1007		●		●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97257-598-0	01	1	1008-		●		●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 01.062 M6 FLANGE	0-91180-106-0	02	1	0306-0609	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 01.062 M6 FLANGE	0-91180-106-0	02	1	0610-1007		●		●	●	●	●
242	03.483 NUT; ACCEL PEDAL 01.062 M6 FLANGE	0-91180-106-0	02	1	1008-	●	●		●	●	●	●	●
243	03.425 SENSOR; ACCEL	8-97193-713-0	01	1	0610-1007						●	●
243	03.425 SENSOR; ACCEL	8-97193-713-0	01	1	1008-						●	●	●
850	03.425 PLUG; HOLE 12.804	8-94147-164-1	01	1	0610-1007						●	●
850	03.425 PLUG; HOLE 12.804	8-94147-164-1	01	1	1008-						●	●	●

314 175 54 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	1008-	●
54	03.430 CABLE; ENG CONT (A)	8-97369-008-0	01	1	0306-		●
54	03.430 CABLE; ENG CONT (B)	8-97315-968-2	01	1	0306-0609			●	●
54	03.430 CABLE; ENG CONT (B)	8-97315-968-2	01	1	0610-				●
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	0306-0609	●
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	0710-1003	●
54	03.430 CABLE; ENG CONT (C)	8-97362-949-0	01	1	0306-					●
175	03.483 BOLT; BRKT,ACCEL CABLE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1008-	●
175	03.483 BOLT; BRKT,ACCEL CABLE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0306-0512	●
175	03.483 BOLT; BRKT,ACCEL CABLE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0609	●
175	03.483 BOLT; BRKT,ACCEL CABLE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0710-1003	●
314	03.481 BRACKET; ACCEL CABLE (A)	8-97248-496-0	01	1	1008-	●
314	03.481 BRACKET; ACCEL CABLE (B)	8-97316-020-1	01	1	1008-	●
314	03.481 BRACKET; ACCEL CABLE (A)	8-97248-496-0	01	1	0306-0609	●
314	03.481 BRACKET; ACCEL CABLE (B)	8-97316-020-1	01	1	0306-0609	●
314	03.481 BRACKET; ACCEL CABLE (A)	8-97248-496-0	01	1	0710-1003	●
314	03.481 BRACKET; ACCEL CABLE (B)	8-97316-020-1	01	1	0710-1003	●
314	03.481 BRACKET; ACCEL CABLE (C)	8-97316-019-1	01	1	0306-0805					●
314	03.481 BRACKET; ACCEL CABLE (C)	8-98120-984-0	01	1	0806-					●

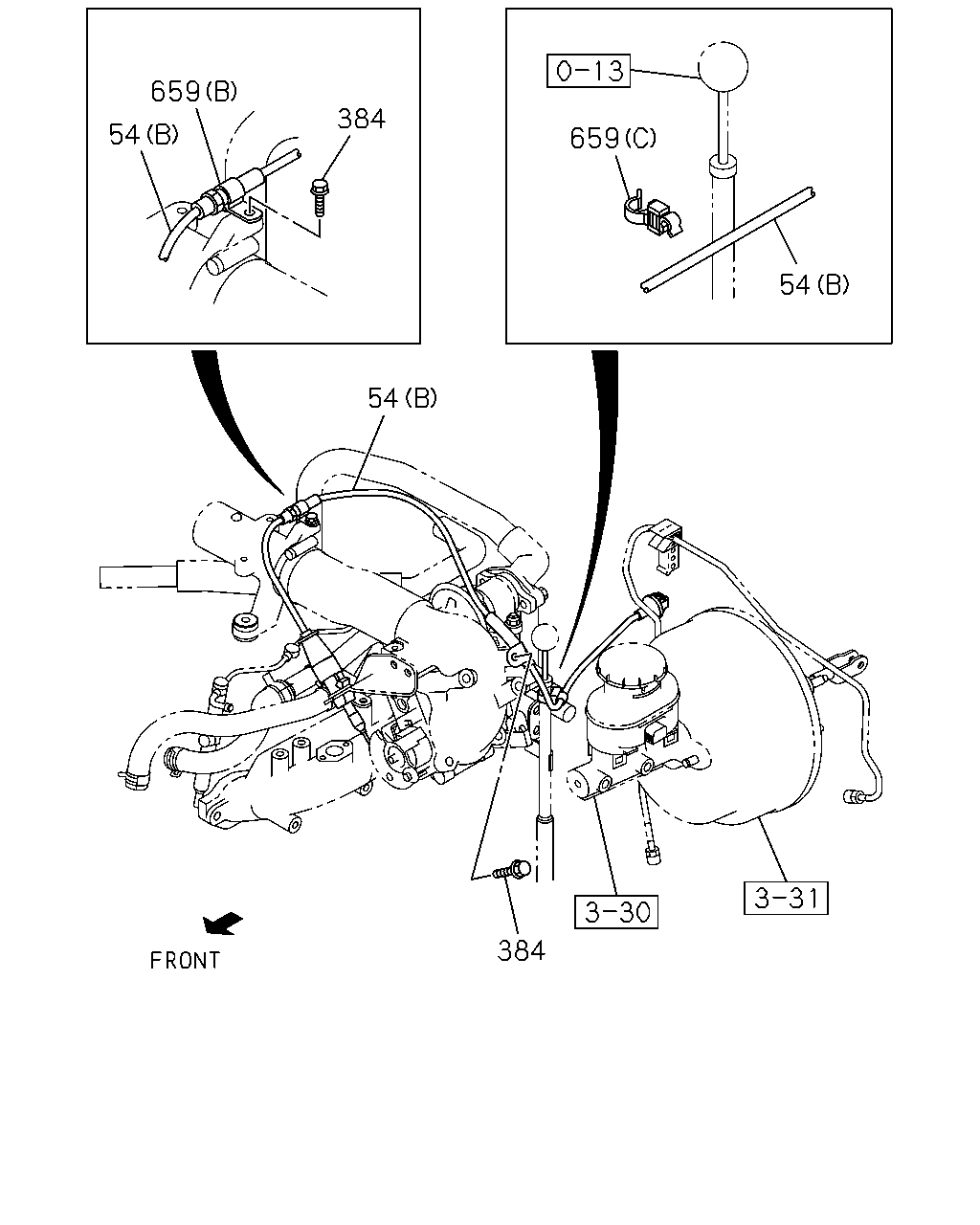

659 384 54 659 54 54 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	1008-	●
54	03.430 CABLE; ENG CONT (A)	8-97369-008-0	01	1	0306-		●
54	03.430 CABLE; ENG CONT (B)	8-97315-968-2	01	1	0306-0609			●	●
54	03.430 CABLE; ENG CONT (B)	8-97315-968-2	01	1	0610-				●
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	0306-0609	●
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	0710-1003	●
54	03.430 CABLE; ENG CONT (C)	8-97362-949-0	01	1	0306-					●
384	03.483 BOLT; CLIP,CONT CABLE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0306-0609			●	●
384	03.483 BOLT; CLIP,CONT CABLE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0610-				●
659	03.483 CLIP; ACCEL CONT CABLE 02.559 (A) ID=10 & 11	8-94438-996-0	01	1	0306-		●
659	03.483 CLIP; ACCEL CONT CABLE (B) ID=16 L=28	8-97367-951-0	01	1	0306-0609			●	●
659	03.483 CLIP; ACCEL CONT CABLE (B) ID=16 L=28	8-97367-951-0	01	1	0610-0907				●
659	03.483 CLIP; ACCEL CONT CABLE 02.559 (B) ID=11 L=20	0-95235-035-0	01	1	0908-				●
659	03.483 CLIP; ACCEL CONT CABLE (C) ID=6 & 11	8-97368-292-0	01	1	0306-0609			●	●
659	03.483 CLIP; ACCEL CONT CABLE (C) ID=6 & 11	8-97368-292-0	01	1	0610-				●

54 314 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	1008-	●
54	03.430 CABLE; ENG CONT (A)	8-97369-008-0	01	1	0306-		●
54	03.430 CABLE; ENG CONT (B)	8-97315-968-2	01	1	0306-0609			●	●
54	03.430 CABLE; ENG CONT (B)	8-97315-968-2	01	1	0610-				●
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	0306-0609	●
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	0710-1003	●
54	03.430 CABLE; ENG CONT (C)	8-97362-949-0	01	1	0306-					●
314	03.481 BRACKET; ACCEL CABLE (A)	8-97248-496-0	01	1	1008-	●
314	03.481 BRACKET; ACCEL CABLE (B)	8-97316-020-1	01	1	1008-	●
314	03.481 BRACKET; ACCEL CABLE (A)	8-97248-496-0	01	1	0306-0609	●
314	03.481 BRACKET; ACCEL CABLE (B)	8-97316-020-1	01	1	0306-0609	●
314	03.481 BRACKET; ACCEL CABLE (A)	8-97248-496-0	01	1	0710-1003	●
314	03.481 BRACKET; ACCEL CABLE (B)	8-97316-020-1	01	1	0710-1003	●
314	03.481 BRACKET; ACCEL CABLE (C)	8-97316-019-1	01	1	0306-0805					●
314	03.481 BRACKET; ACCEL CABLE (C)	8-98120-984-0	01	1	0806-					●
385	03.481 NUT; CLIP 01.540 M6 FLANGE	0-91180-206-0	01	1	0306-					●

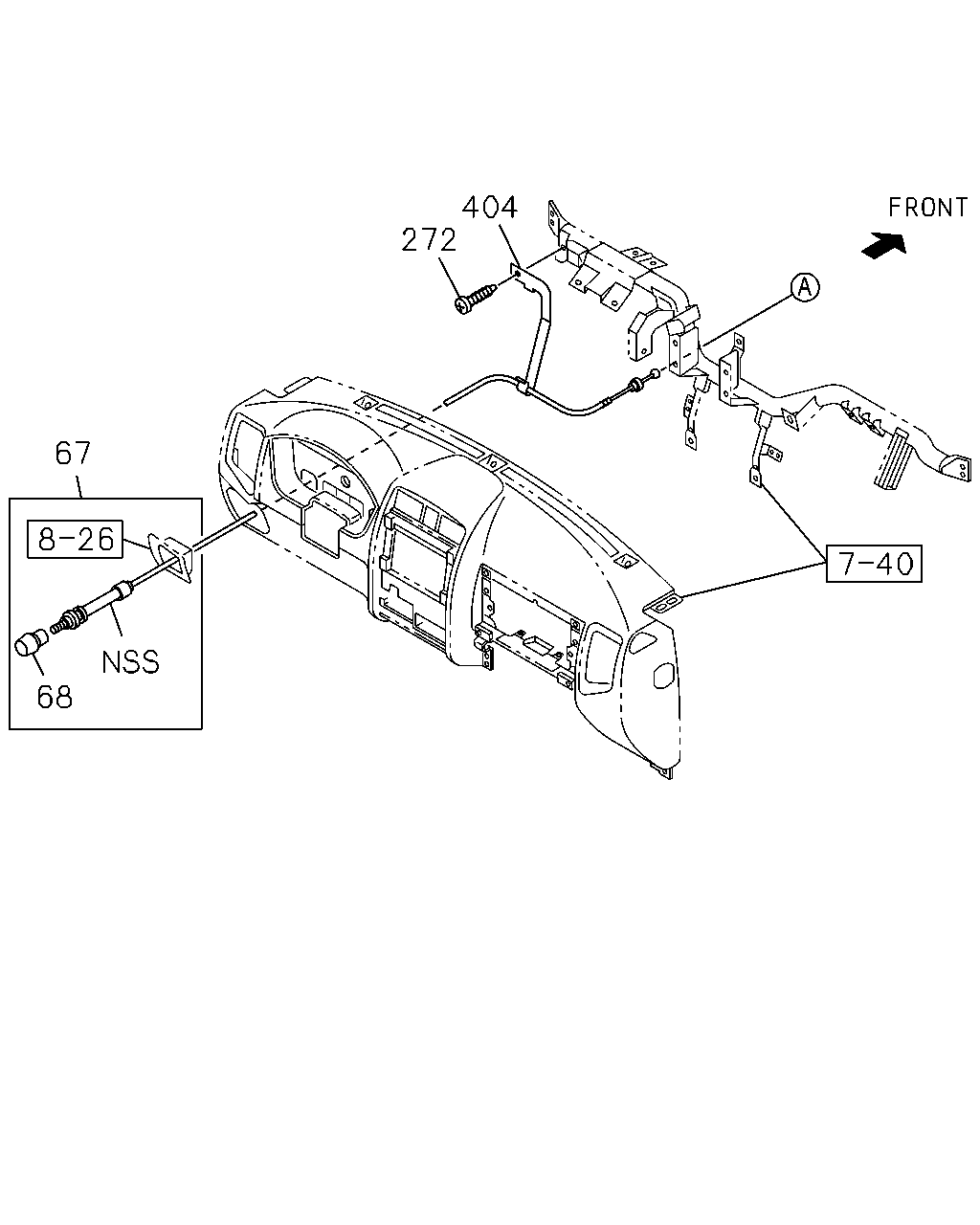

404 272 67 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
67	03.480 CABLE ASM; IDLE CONT INTERIOR COLOR IN MED.CASHMERE(136)	8-97415-934-0	01	1	1008-1204	●
67	03.480 CABLE ASM; IDLE CONT INTERIOR COLOR IN MED.CASHMERE(136)	8-97423-264-0	01	1	1205-	●
67	03.480 CABLE ASM; IDLE CONT INTERIOR COLOR IN MED.CASHMERE(136)	8-97415-934-0	01	1	0810-1003	●
67	03.480 CABLE ASM; IDLE CONT	8-97395-613-0	01	1	0306-0609	●
67	03.480 CABLE ASM; IDLE CONT	8-97403-637-0	01	1	0610-0809	●
67	03.480 CABLE ASM; IDLE CONT INTERIOR COLOR IN VERY DARK GRAY(116)	8-97403-637-0	01	1	0810-0910	●
67	03.480 CABLE ASM; IDLE CONT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116)	8-97403-637-0	01	1	0911-1204	●
67	03.480 CABLE ASM; IDLE CONT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116)	8-97423-263-0	01	1	1205-	●
68	03.480 KNOB; IDLE CONT	8-97942-472-0	01	1	0306-1003	●
68	03.480 KNOB; IDLE CONT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116)	8-97942-472-0	01	1	1004-1007	●
68	03.480 KNOB; IDLE CONT	8-97942-472-0	01	1	1008-	●
272	03.454 BOLT; LEVER 16.115 M5X16	8-94279-312-0	01	1	0306-0612	●
272	03.454 BOLT; LEVER 09.744 M5X16 TAPPING	8-98061-683-0	01	1	0701-1004	●
272	03.454 BOLT; LEVER 16.100 M5X16 TAPPING	8-98167-214-0	01	1	1005-	●
404	03.483 CLIP; CABLE	8-97332-780-1	01	1	0306-0805	●
404	03.483 CLIP; CABLE	8-98121-199-0	01	1	0806-	●

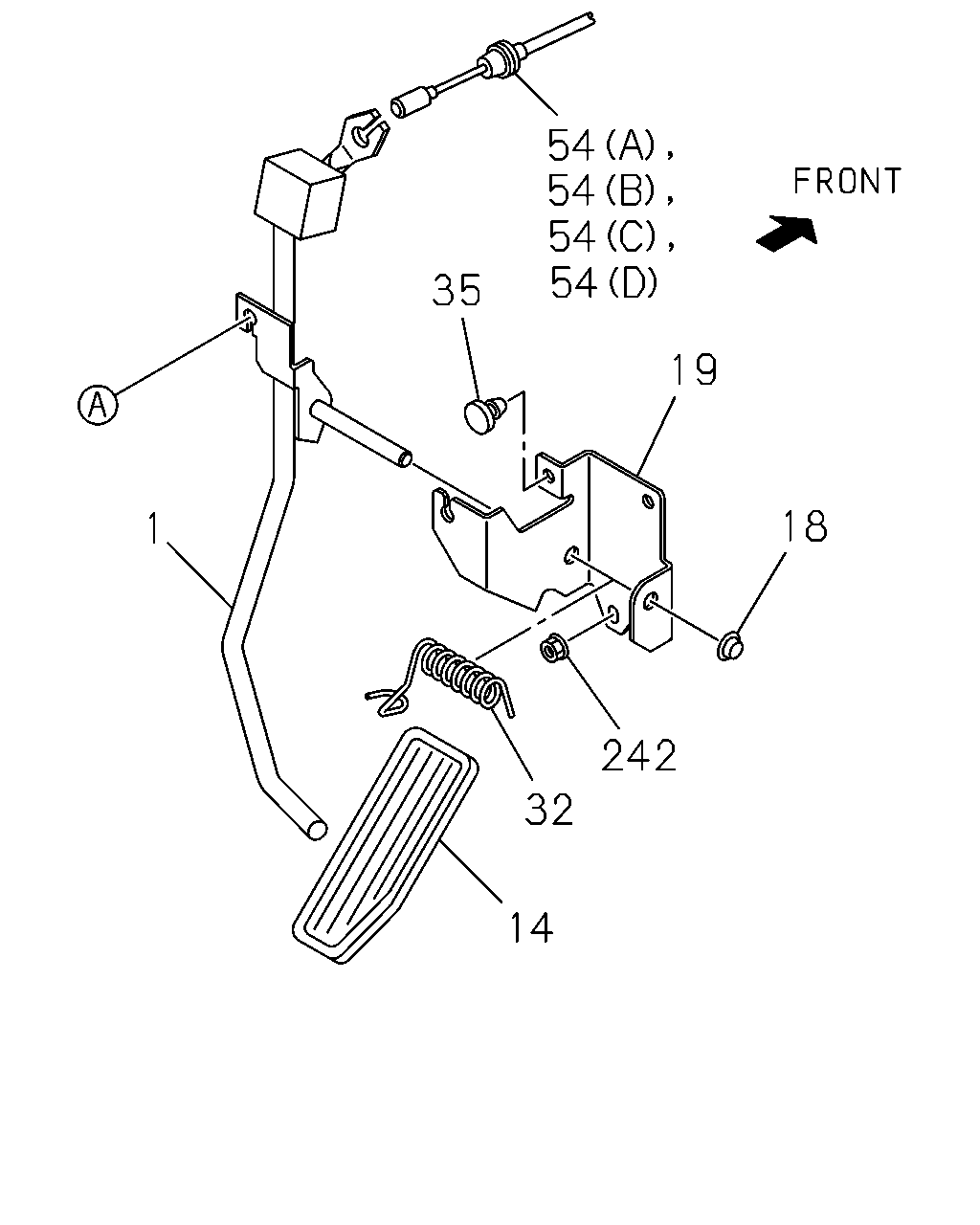

54 54 54 54 35 19 18 1 242 32 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	03.451 LEVER; PEDAL SIDE	8-97355-962-1	01	1	0306-0609		●	●	●
1	03.451 LEVER; PEDAL SIDE	8-97355-962-1	01	1	0610-		●		●
1	03.451 LEVER; PEDAL SIDE	8-97332-609-1	01	1	0306-0609	●				●
1	03.451 LEVER; PEDAL SIDE	8-97332-609-1	01	1	0610-0709					●
1	03.451 LEVER; PEDAL SIDE	8-97332-609-1	01	1	0710-1003	●				●
1	03.451 LEVER; PEDAL SIDE	8-97332-609-1	01	1	1004-1007					●
1	03.451 LEVER; PEDAL SIDE	8-97332-609-1	01	1	1008-	●				●
14	03.451 PAD; PEDAL,ACCEL	8-97257-598-0	01	1	0306-0609	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97257-598-0	01	1	0610-0709		●		●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97257-598-0	01	1	0710-1003	●	●		●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97257-598-0	01	1	1004-1007		●		●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97257-598-0	01	1	1008-		●		●	●	●	●	●
18	03.459 NUT; JOINT LK 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0306-0609	●	●	●	●	●
18	03.459 NUT; JOINT LK 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0610-0709		●		●	●
18	03.459 NUT; JOINT LK 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0710-1003	●	●		●	●
18	03.459 NUT; JOINT LK 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1004-1007		●		●	●
18	03.459 NUT; JOINT LK 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1008-	●	●		●	●
19	03.452 BRACKET; ACCEL PEDAL	8-97332-614-1	01	1	0306-0609		●	●	●
19	03.452 BRACKET; ACCEL PEDAL	8-97332-614-1	01	1	0610-		●		●
19	03.452 BRACKET; ACCEL PEDAL	8-97332-613-1	01	1	0306-0609	●				●
19	03.452 BRACKET; ACCEL PEDAL	8-97332-613-1	01	1	0610-0709					●
19	03.452 BRACKET; ACCEL PEDAL	8-97332-613-1	01	1	0710-1003	●				●
19	03.452 BRACKET; ACCEL PEDAL	8-97332-613-1	01	1	1004-1007					●
19	03.452 BRACKET; ACCEL PEDAL	8-97332-613-1	01	1	1008-	●				●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97332-616-0	01	1	1008-	●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97332-617-0	01	1	0306-		●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97332-618-1	01	1	0306-0609			●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97332-618-1	01	1	0610-				●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97332-616-0	01	1	0306-0609	●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97332-616-0	01	1	0710-1003	●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97332-615-1	01	1	0306-					●
35	03.459 STOPPER; ACCEL PEDAL 04.634	8-97302-035-0	01	1	0306-0609	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 04.634	8-97302-035-0	01	1	0610-0709		●		●	●
35	03.459 STOPPER; ACCEL PEDAL 04.634	8-97302-035-0	01	1	0710-1003	●	●		●	●
35	03.459 STOPPER; ACCEL PEDAL 04.634	8-97302-035-0	01	1	1004-1007		●		●	●
35	03.459 STOPPER; ACCEL PEDAL 04.634	8-97302-035-0	01	1	1008-	●	●		●	●
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	1008-	●
54	03.430 CABLE; ENG CONT (A)	8-97369-008-0	01	1	0306-		●
54	03.430 CABLE; ENG CONT (B)	8-97315-968-2	01	1	0306-0609			●	●
54	03.430 CABLE; ENG CONT (B)	8-97315-968-2	01	1	0610-				●
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	0306-0609	●
54	03.430 CABLE; ENG CONT (D)	8-97315-965-1	01	1	0710-1003	●
54	03.430 CABLE; ENG CONT (C)	8-97362-949-0	01	1	0306-					●
242	03.483 NUT; ACCEL PEDAL 01.062 M6 FLANGE	0-91180-106-0	02	1	0306-0609	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 01.062 M6 FLANGE	0-91180-106-0	02	1	0610-1007		●		●	●	●	●
242	03.483 NUT; ACCEL PEDAL 01.062 M6 FLANGE	0-91180-106-0	02	1	1008-	●	●		●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
