2-39B — POWER ASSISTOR (#7393) — 68 parça

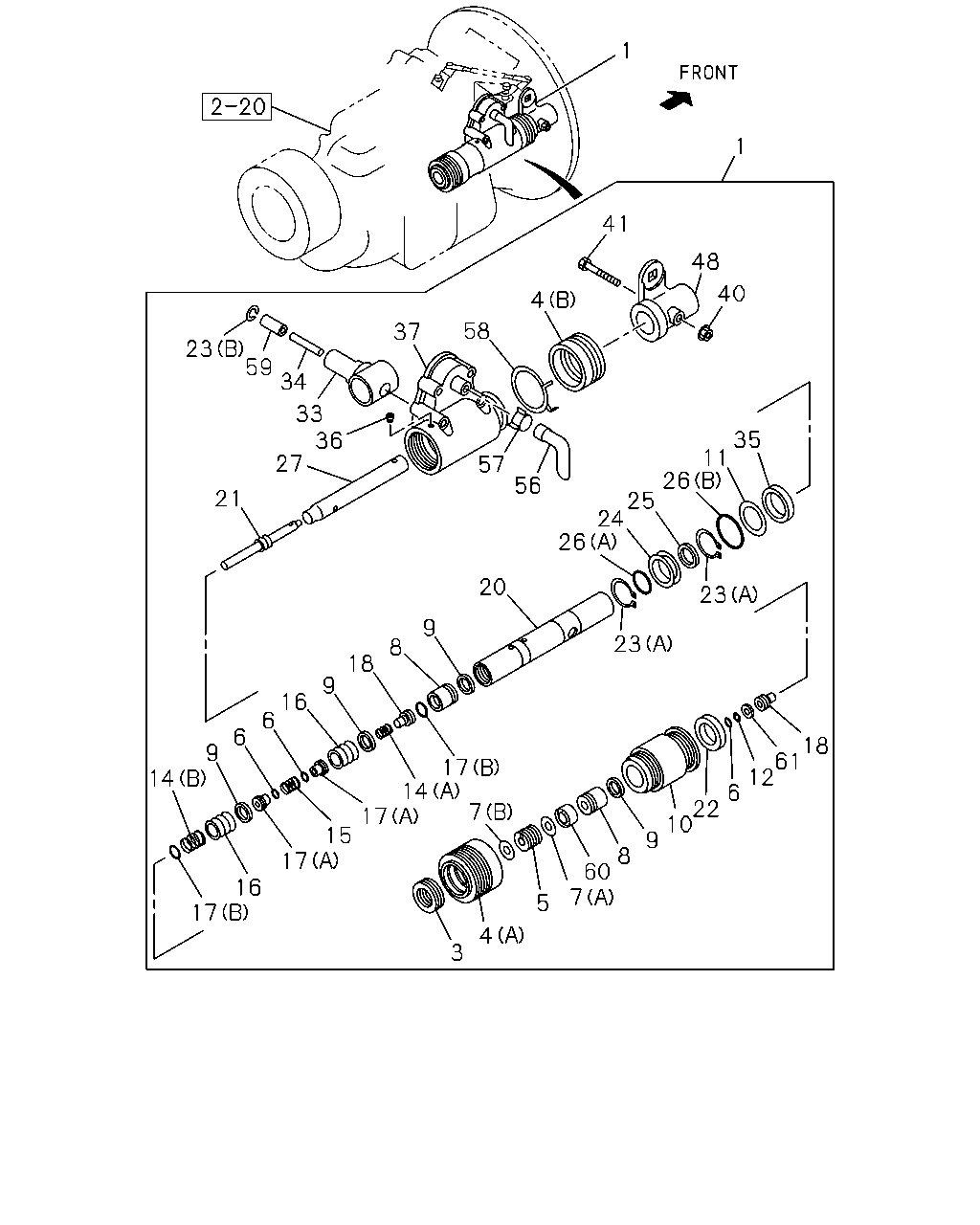

çizim 6987
1 1 41 48 40 4 58 37 23 59 34 33 36 35 11 26 25 24 26 27 57 56 21 20 23 9 23 8 18 9 16 6 6 18 61 12 9 14 17 14 7 17 6 22 10 15 17 9 8 60 7 16 17 5 4 3
BalonParca AdiParca NoAdetTipApplied Date
1 ASSISTOR ASM; POWER,SHIFT 1-33730-225-0 01 1 9905-0003
1 ASSISTOR ASM; POWER,SHIFT 1-33730-260-0 01 1 0004-0004
1 ASSISTOR ASM; POWER,SHIFT 1-33730-269-0 01 1 0005-
3 NUT; LK,ROD 1-33739-025-0 01 1 9905-
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9905-
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9905-
5 CONNECTOR; CYL 1-33739-596-0 01 1 9905-
6 GASKET 1-33739-013-0 03 1 9905-
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 9905-
7 FILTER; AIR
(B) 		1-33738-036-0 01 1 0004-
8 TUBE 1-33739-560-0 02 1 9905-
9 RING; SQUARE 1-33739-086-0 04 1 9905-
10 CYLINDER; POWER SHIFTER 1-33739-352-0 01 1 9905-
11 PLATE; CYL 1-33739-108-0 01 1 9905-
12 RING; RET 1-33739-016-0 01 1 9905-
14 SPRING; VALVE LIFTER
(A) 		1-33739-347-0 01 1 9905-
14 SPRING; VALVE LIFTER
(B) 		1-33739-354-0 01 1 9905-
15 SPRING; VALVE SEAL 1-33739-014-0 01 1 9905-
16 SEAT; VALVE 1-33739-067-0 02 1 9905-
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 9905-
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 9905-
18 LIFTER; VALVE 1-33739-586-0 02 1 9905-
20 ROD ASM; W/CAP 1-33739-599-0 01 1 9905-
21 PIPE; AIR,POWER SHIFTER 1-33739-598-0 01 1 9905-
22 SEAL; OIL 1-33739-353-0 01 1 9905-
23 RING; RET
(A) 		1-33739-022-0 02 1 9905-
23 RING; RET
(B) 		1-33739-944-0 01 1 9905-0004
23 RING; RET
(B) 		1-33739-564-0 01 1 0005-
24 PISTON 1-33739-499-0 01 1 9905-
25 RING; "X",PISTON 1-33739-350-0 01 1 9905-
26 GASKET
(B) 		1-33739-122-0 01 1 9905-
26 GASKET
(A) 		1-33739-124-0 01 1 9905-
27 ROD; POWER SHIFTER 1-33739-597-0 01 1 9905-
33 STRIKER; POWER SHIFTER 1-33739-943-0 01 1 9905-0004
33 STRIKER; POWER SHIFTER 1-33739-609-0 01 1 0005-
34 PIN; STRAIGHT,POWER SHIFTER 1-33739-575-0 01 1 9905-
35 GASKET; CUP 1-33739-073-0 01 1 9905-
36 SCREW; SET 1-33739-040-0 01 1 9905-
37 HOUSING; POWER SHIFTER 1-33739-606-0 01 1 9905-
40 NUT; LEVER 1-33739-940-0 01 1 9905-
41 BOLT; SET,LEVER 1-33739-939-0 01 1 9905-
48 LEVER; CONT,CABLE 1-33739-591-1 01 1 9905-
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9905-
57 CLAMP; HOSE 1-33739-569-0 01 1 9905-
58 CLAMP; BOOT 1-33739-562-0 01 1 9905-
59 SHIM; POWER SHIFTER 1-33739-563-0 01 1 0005-
60 COLLAR; CYL 1-33739-595-0 01 1 9905-
61 PLATE; VLV LIFTER 1-33739-581-0 01 1 9905-

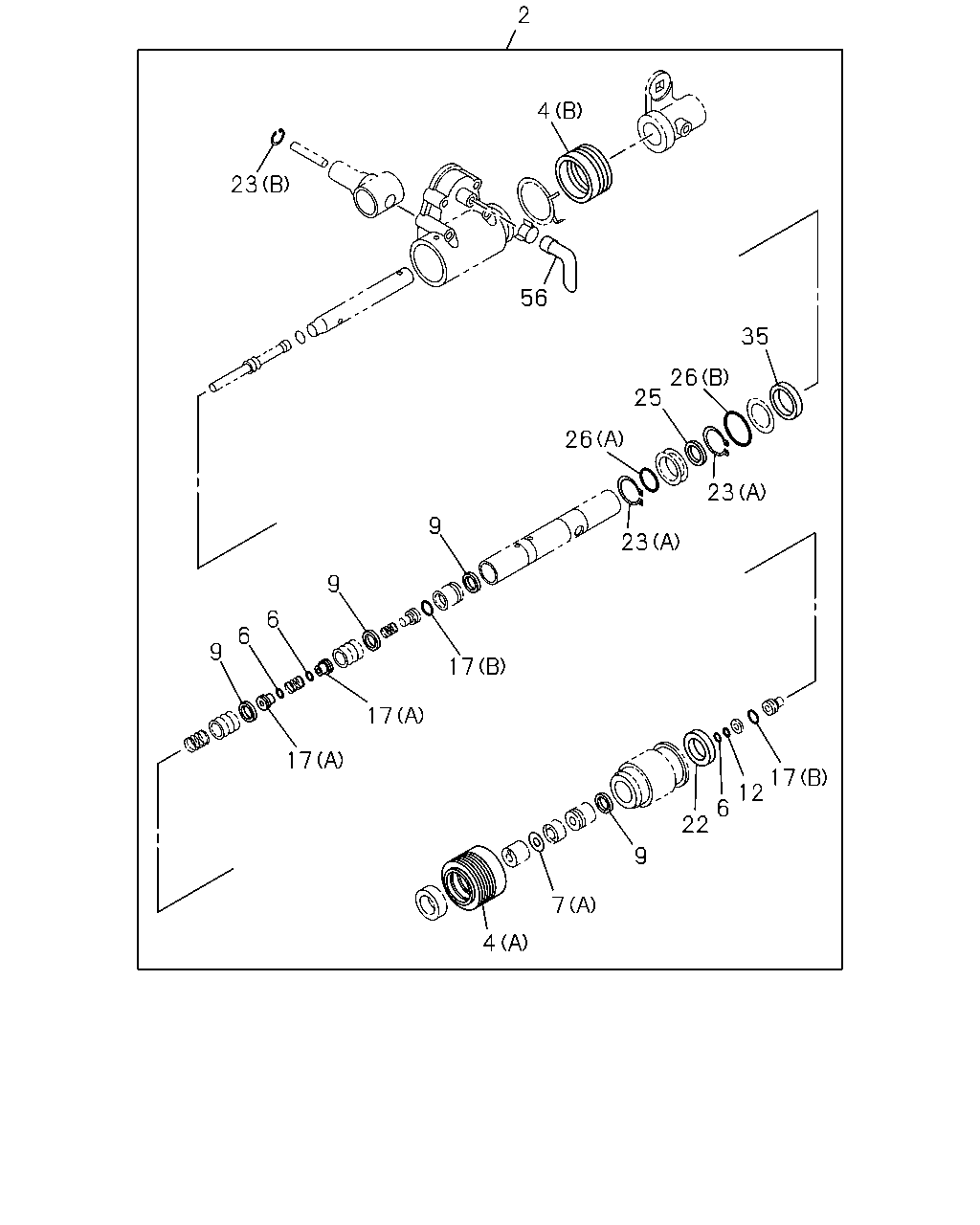

çizim 42993
2 4 23 56 35 26 25 26 23 9 23 9 6 6 9 17 17 17 17 12 6 22 9 7 4
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER SHIFTER 1-33739-945-0 01 1 9905-0004
2 REPAIR KIT; POWER SHIFTER 1-33739-608-0 01 1 0005-
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 9905-
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 9905-
6 GASKET 1-33739-013-0 03 1 9905-
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 9905-
7 FILTER; AIR
(B) 		1-33738-036-0 01 1 0004-
9 RING; SQUARE 1-33739-086-0 04 1 9905-
12 RING; RET 1-33739-016-0 01 1 9905-
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 9905-
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 9905-
22 SEAL; OIL 1-33739-353-0 01 1 9905-
23 RING; RET
(A) 		1-33739-022-0 02 1 9905-
23 RING; RET
(B) 		1-33739-944-0 01 1 9905-0004
23 RING; RET
(B) 		1-33739-564-0 01 1 0005-
25 RING; "X",PISTON 1-33739-350-0 01 1 9905-
26 GASKET
(B) 		1-33739-122-0 01 1 9905-
26 GASKET
(A) 		1-33739-124-0 01 1 9905-
35 GASKET; CUP 1-33739-073-0 01 1 9905-
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 9905-
