1 |

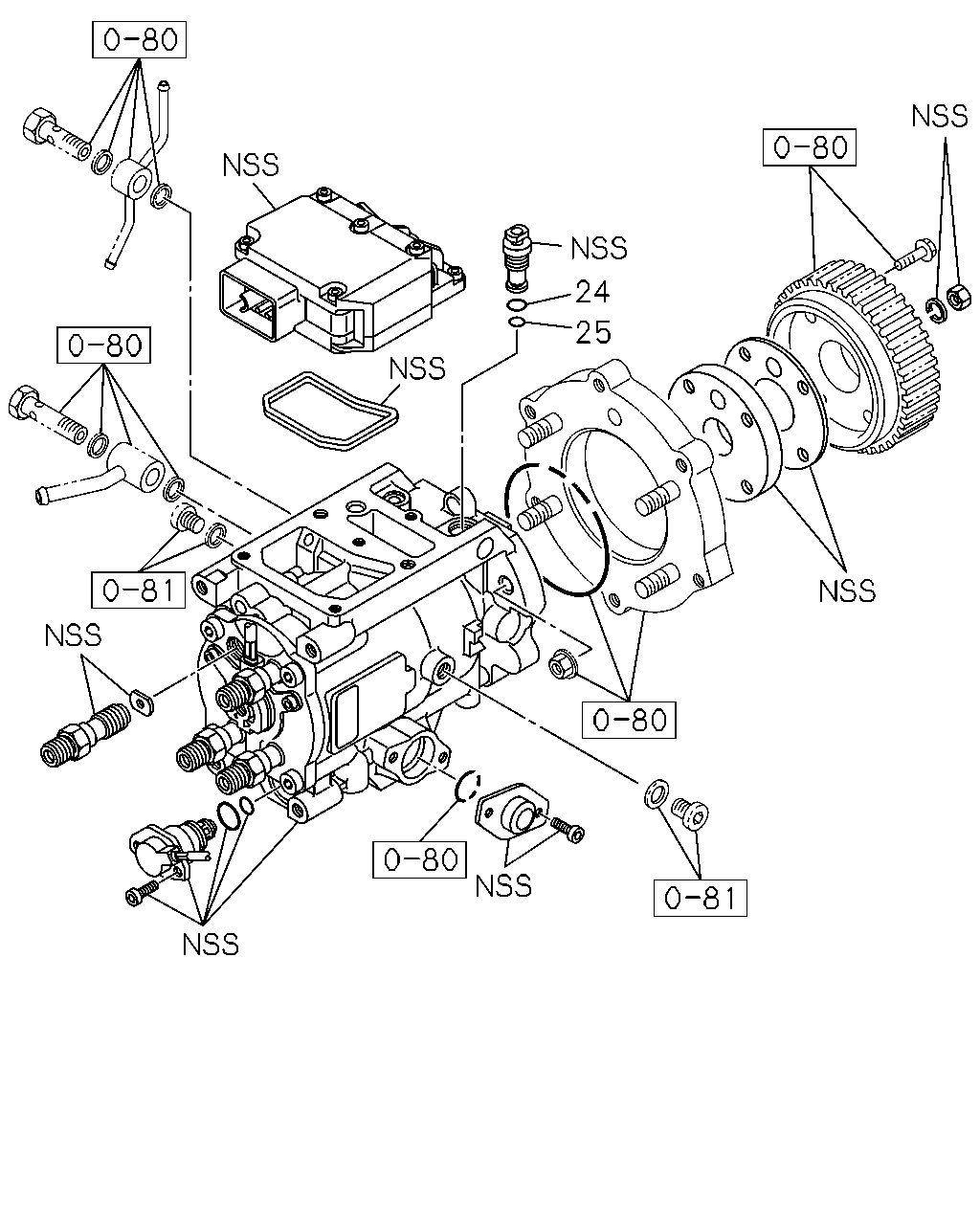

03.900 PUMP ASM; FUEL FEED,INJ PUMP
03.340
ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394,
E = 8-97350-395-3, 97350395, F = 8-97350-396-4, 97350396,
G = 8-97350-398-3, 97350398, H = 8-97350-399-3, 97350399,
I = 8-98002-137-1, 98002137, J = 8-98002-138-0, 98002138,
K = 8-98110-563-1, 98110563, L = 8-98110-564-0, 98110564,
M = 8-98180-717-0, 98180717, N = 8-98180-718-0, 98180718,
O = 8-98180-719-0, 98180719, P = 8-98180-720-0, 98180720
|
8-94227-477-0 |
01 |
1 |
- |
| |
22 |

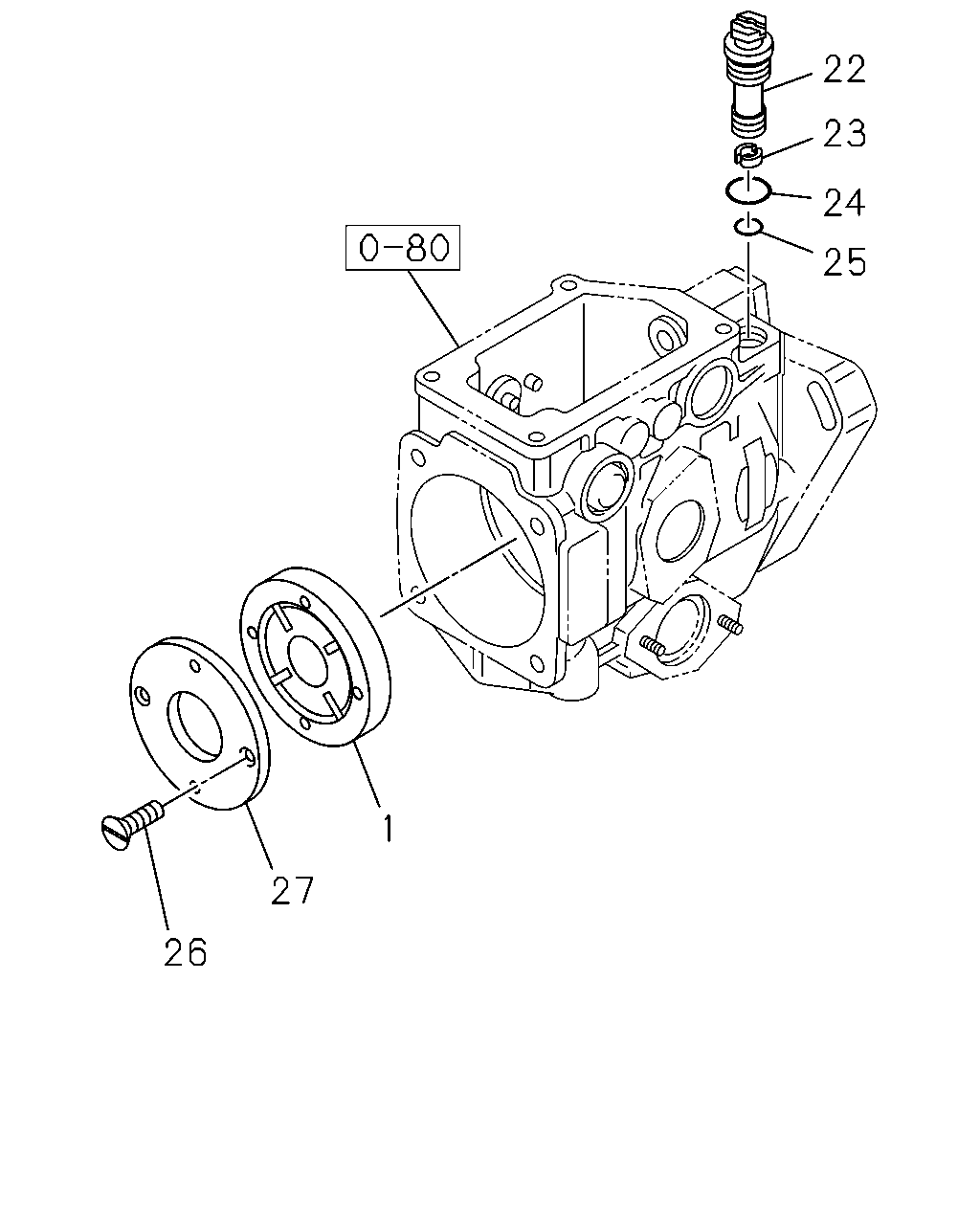

03.901 VALVE; REGULATING,INJ PUMP
STAMP 06
ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394,
E = 8-97350-395-3, 97350395, F = 8-97350-396-4, 97350396,
G = 8-97350-398-3, 97350398, H = 8-97350-399-3, 97350399,
I = 8-98002-137-1, 98002137, J = 8-98002-138-0, 98002138,
K = 8-98110-563-1, 98110563, L = 8-98110-564-0, 98110564,
M = 8-98180-717-0, 98180717, N = 8-98180-718-0, 98180718,
O = 8-98180-719-0, 98180719, P = 8-98180-720-0, 98180720
|
8-94174-819-0 |
01 |
1 |
- |
| |
23 |
03.901 RING; SPRING,REGULATING VLV,INJ
03.320
ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394,
E = 8-97350-395-3, 97350395, F = 8-97350-396-4, 97350396,
G = 8-97350-398-3, 97350398, H = 8-97350-399-3, 97350399,
I = 8-98002-137-1, 98002137, J = 8-98002-138-0, 98002138,
K = 8-98110-563-1, 98110563, L = 8-98110-564-0, 98110564,
M = 8-98180-717-0, 98180717, N = 8-98180-718-0, 98180718,
O = 8-98180-719-0, 98180719, P = 8-98180-720-0, 98180720
|
8-94227-643-0 |
01 |
1 |
- |
| |
24 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394,
E = 8-97350-395-3, 97350395, F = 8-97350-396-4, 97350396,
G = 8-97350-398-3, 97350398, H = 8-97350-399-3, 97350399,
I = 8-98002-137-1, 98002137, J = 8-98002-138-0, 98002138,
K = 8-98110-563-1, 98110563, L = 8-98110-564-0, 98110564,
M = 8-98180-717-0, 98180717, N = 8-98180-718-0, 98180718,
O = 8-98180-719-0, 98180719, P = 8-98180-720-0, 98180720
|
8-94227-641-0 |
01 |
1 |
- |
| |
24 |
03.904 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97249-238-4, 97249238, B = 8-97326-739-3, 97326739
|
8-97372-191-0 |
01 |
1 |
- |
| |
25 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394,
E = 8-97350-395-3, 97350395, F = 8-97350-396-4, 97350396,
G = 8-97350-398-3, 97350398, H = 8-97350-399-3, 97350399,
I = 8-98002-137-1, 98002137, J = 8-98002-138-0, 98002138,
K = 8-98110-563-1, 98110563, L = 8-98110-564-0, 98110564,
M = 8-98180-717-0, 98180717, N = 8-98180-718-0, 98180718,
O = 8-98180-719-0, 98180719, P = 8-98180-720-0, 98180720
|
8-94227-640-0 |
01 |
1 |
- |
| |
25 |
03.904 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97249-238-4, 97249238, B = 8-97326-739-3, 97326739
|
8-97372-190-0 |
01 |
1 |
- |
| |
26 |
03.901 SCREW; COVER FIX,FUEL FEED PUMP
03.330
ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394,
E = 8-97350-395-3, 97350395, F = 8-97350-396-4, 97350396,
G = 8-97350-398-3, 97350398, H = 8-97350-399-3, 97350399,
I = 8-98002-137-1, 98002137, J = 8-98002-138-0, 98002138,
K = 8-98110-563-1, 98110563, L = 8-98110-564-0, 98110564,
M = 8-98180-717-0, 98180717, N = 8-98180-718-0, 98180718,
O = 8-98180-719-0, 98180719, P = 8-98180-720-0, 98180720
|
8-94227-479-0 |
02 |
1 |
- |
| |
27 |
03.910 COVER; FUEL FEED PUMP
ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394,
E = 8-97350-395-3, 97350395, F = 8-97350-396-4, 97350396,
H = 8-97350-399-3, 97350399
|
8-97218-959-0 |
01 |
1 |
-0407 |
| |
27 |
03.910 COVER; FUEL FEED PUMP
ASM PART: G = 8-97350-398-3, 97350398
|
8-97218-959-0 |
01 |
1 |
-0406 |
| |
27 |
03.910 COVER; FUEL FEED PUMP
ASM PART: I = 8-98002-137-1, 98002137
|
8-97385-180-0 |
01 |
1 |
-0805 |
| |
27 |
03.910 COVER; FUEL FEED PUMP
ASM PART: J = 8-98002-138-0, 98002138, K = 8-98110-563-1, 98110563,
L = 8-98110-564-0, 98110564, M = 8-98180-717-0, 98180717,
N = 8-98180-718-0, 98180718, O = 8-98180-719-0, 98180719,
P = 8-98180-720-0, 98180720
|
8-97386-241-0 |
01 |
1 |
- |
| |
27 |
03.910 COVER; FUEL FEED PUMP
ASM PART: I = 8-98002-137-1, 98002137
|
8-97386-241-0 |
01 |
1 |
0806- |
| |
27 |
03.910 COVER; FUEL FEED PUMP
ASM PART: G = 8-97350-398-3, 97350398
|
8-97386-241-0 |
01 |
1 |
0407- |
| |
27 |
03.910 COVER; FUEL FEED PUMP
ASM PART: C = 8-97350-393-4, 97350393, D = 8-97350-394-3, 97350394,
E = 8-97350-395-3, 97350395, F = 8-97350-396-4, 97350396,
H = 8-97350-399-3, 97350399
|
8-97386-241-0 |
01 |
1 |
0408- |
