Sayfa 0-65 - Isuzu EPC

0-65 — STARTER (#73923) — 225 parça

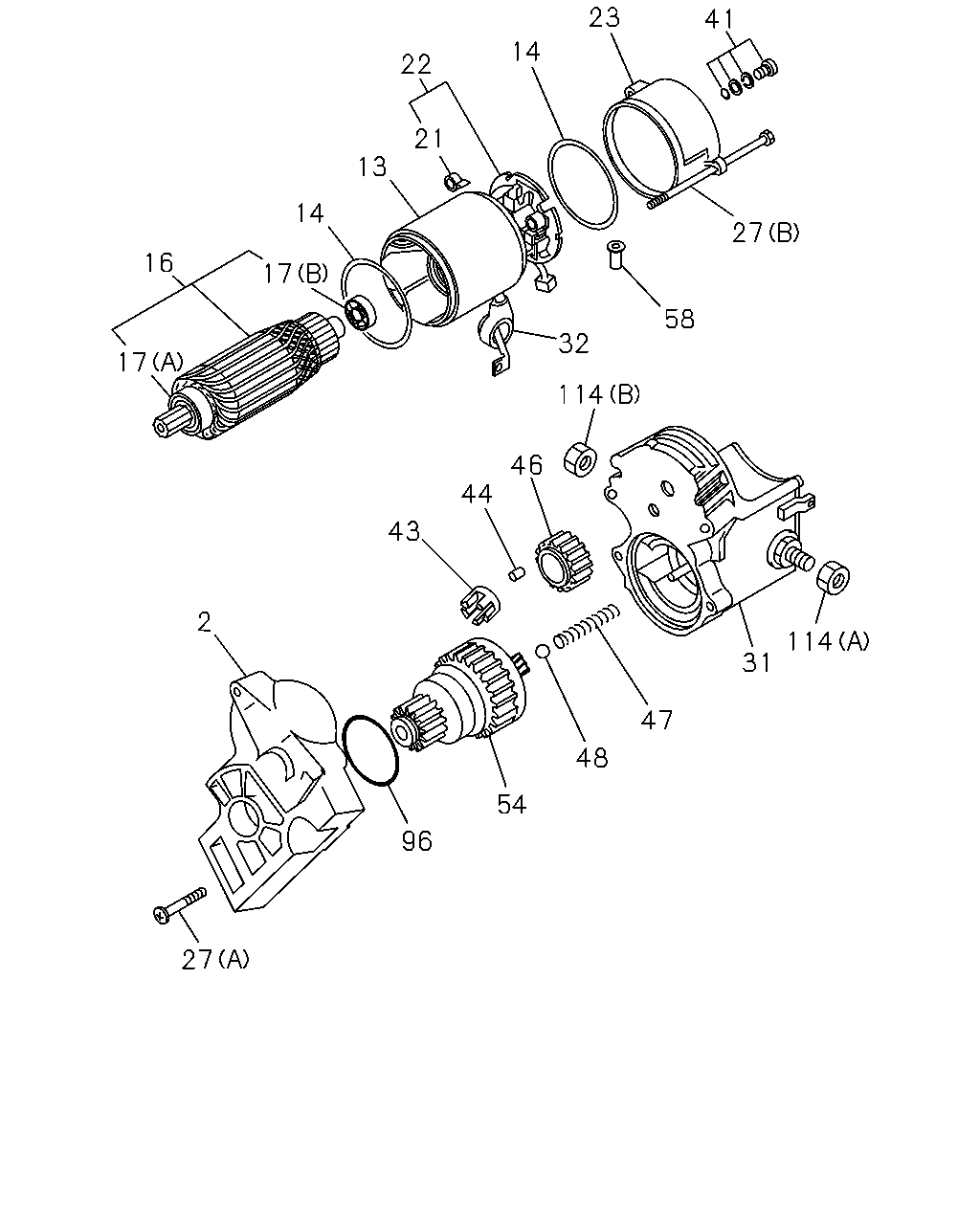

23 41 14 22 21 13 14 27 16 17 58 32 17 114 46 44 43 114 31 47 48 54 96 27 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-364-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-426-1	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97368-562-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-668-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-254-0	01	1	-
14	02.087 GASKET; YOKE,STARTER 02.049 ASM PART: B = 8-94384-314-1, 94384314	8-94170-214-0	02	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-322-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-253-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97262-027-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-656-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (E) ASM PART: E = 8-98028-199-0, 98028199	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (F) ASM PART: E = 8-98028-199-0, 98028199	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-94377-241-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-657-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (D) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-658-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-333-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198, E = 8-98028-199-0, 98028199	8-94242-064-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-244-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-326-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-424-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97112-559-1	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-663-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-327-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-423-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (D) ASM PART: A = 8-92065-921-0, 92065921	8-92143-353-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-97041-422-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97262-497-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (E) ASM PART: E = 8-98028-199-0, 98028199	8-97319-423-0	02	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-366-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-425-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97365-923-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97368-561-1	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-420-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94170-216-0	02	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-246-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-669-0	01	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314	5-81129-099-0	05	1	-
46	02.086 GEAR; CLU STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-247-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-245-0	01	1	-
48	02.108 BALL; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-93170-383-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97078-002-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97229-911-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-665-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER 02.067 ASM PART: B = 8-94384-314-1, 94384314	8-97041-421-0	01	1	-
96	02.104 GASKET; FRT CASE ASM PART: B = 8-94384-314-1, 94384314	8-97078-001-0	01	1	-
114	02.055 NUT; TERMINAL 02.102, (B) ASM PART: B = 8-94384-314-1, 94384314	8-94109-763-0	01	1	-
114	02.055 NUT; TERMINAL (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-238-0	01	1	-

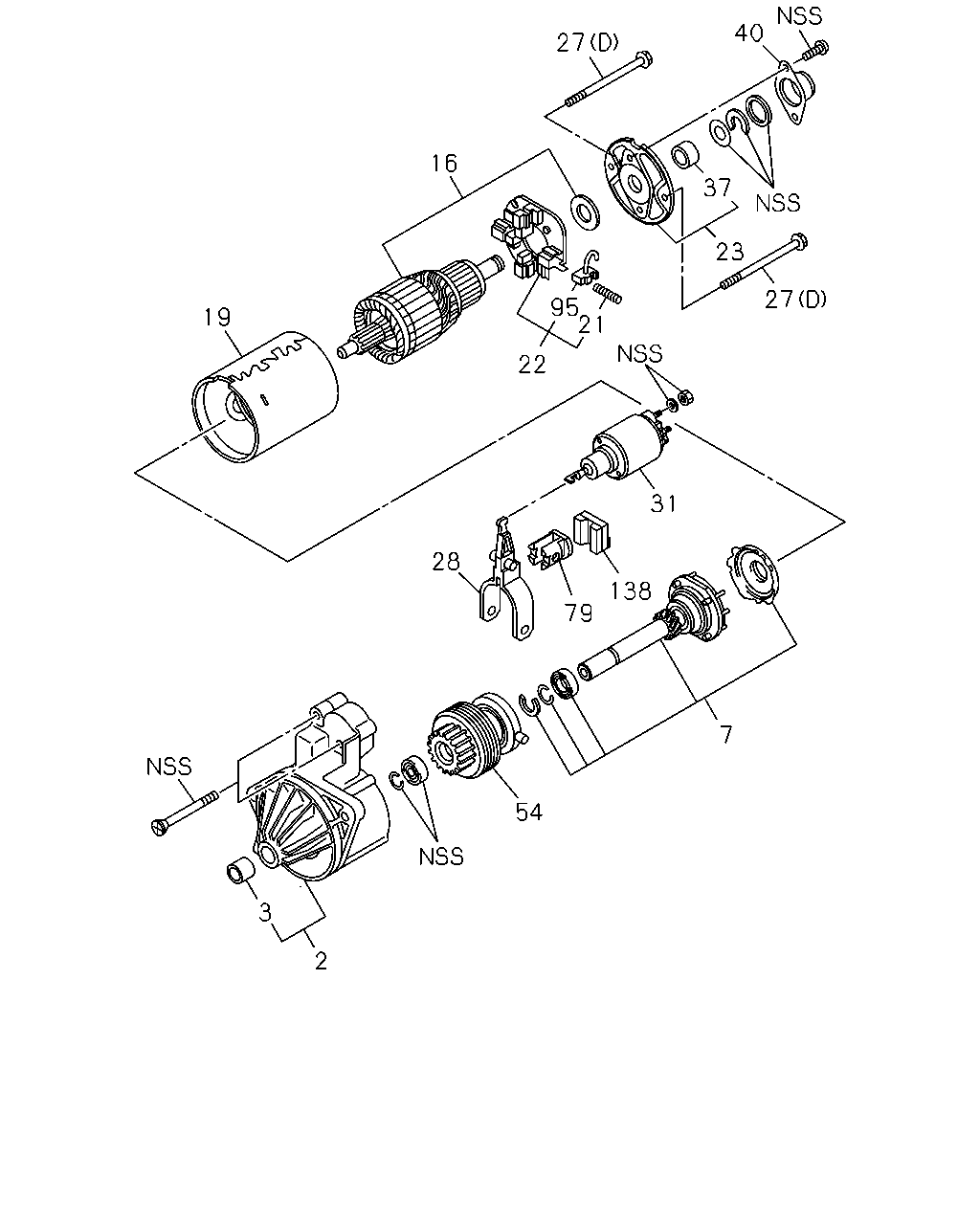

40 27 16 37 23 27 95 21 19 22 31 28 138 79 7 54 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-364-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-426-1	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97368-562-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-668-0	01	1	-
3	02.083 METAL; PINION CASE STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92140-484-0	02	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92145-123-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97229-910-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-664-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-322-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-253-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97262-027-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-656-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92145-122-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97357-783-1	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97376-957-1	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-333-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198, E = 8-98028-199-0, 98028199	8-94242-064-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-244-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-326-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-424-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97112-559-1	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-663-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-327-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-423-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (D) ASM PART: A = 8-92065-921-0, 92065921	8-92143-353-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-97041-422-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97262-497-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (E) ASM PART: E = 8-98028-199-0, 98028199	8-97319-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92140-255-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97351-967-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-670-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-366-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-425-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97365-923-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97368-561-1	01	1	-
37	02.083 METAL; RR COVER STARTER ASM PART: A = 8-92065-921-0, 92065921	8-90141-625-0	01	1	-
40	02.049 COVER; DUST,RR COVER,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-328-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-93170-383-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97078-002-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97229-911-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-665-0	01	1	-
79	02.055 HOLDER; SHIFT LEVER ASM PART: A = 8-92065-921-0, 92065921	8-92143-365-0	01	1	-
95	02.051 BRUSH ASM; STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-329-0	01	1	-
138	02.041 SEAL; STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-350-0	01	1	-

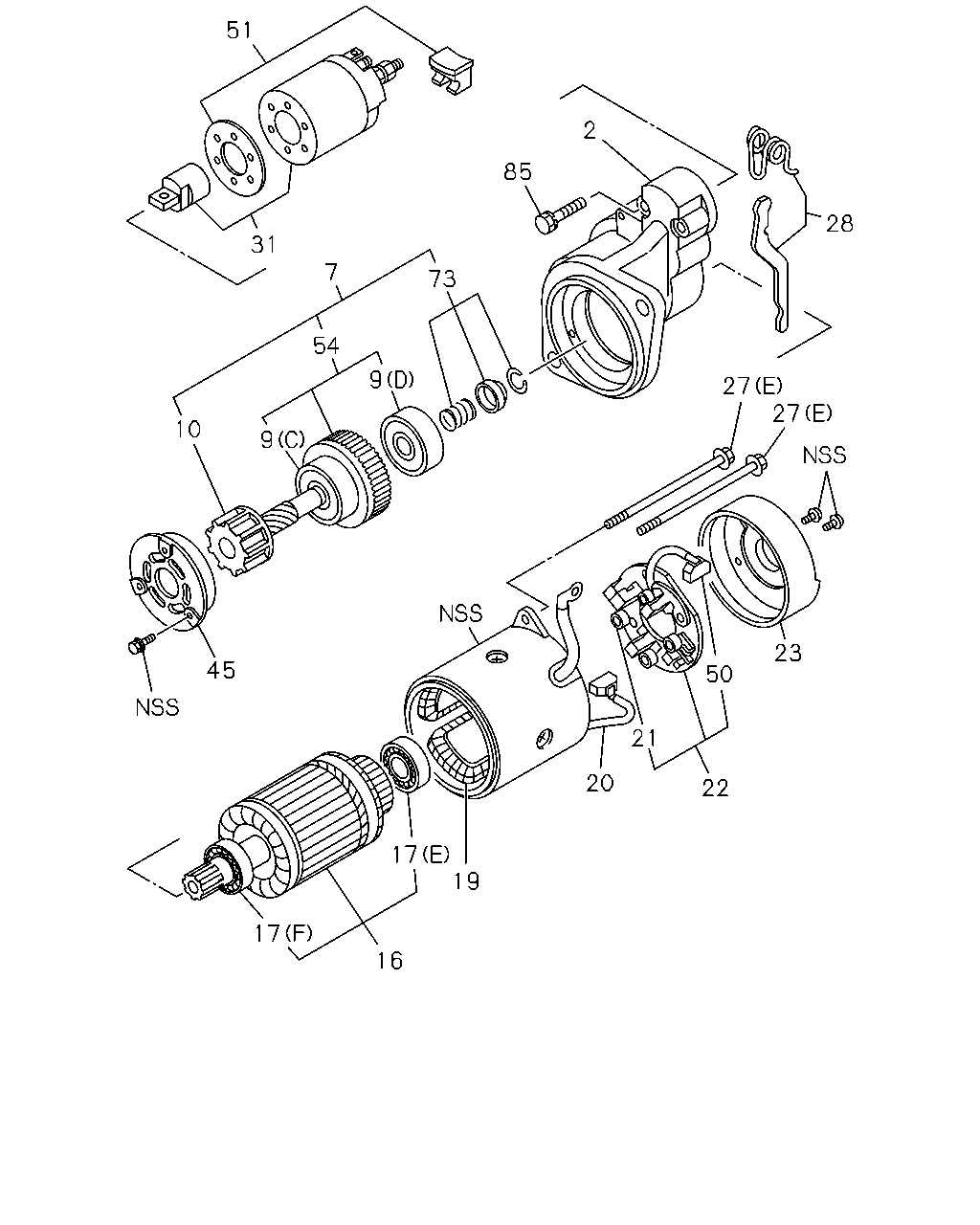

51 2 28 27 27 85 73 85 7 31 54 9 9 10 43 17 17 19 20 21 22 23 50 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-364-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-426-1	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97368-562-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-668-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92145-123-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97229-910-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-664-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: E = 8-98028-199-0, 98028199	8-97047-549-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (D) ASM PART: E = 8-98028-199-0, 98028199	8-97047-550-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-659-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-660-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198, E = 8-98028-199-0, 98028199	8-97130-189-1	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-322-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-253-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97262-027-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-656-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (E) ASM PART: E = 8-98028-199-0, 98028199	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (F) ASM PART: E = 8-98028-199-0, 98028199	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-94377-241-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-657-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (D) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-658-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92145-122-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97357-783-1	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97376-957-1	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97112-557-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97113-286-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-333-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198, E = 8-98028-199-0, 98028199	8-94242-064-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-244-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-326-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-424-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97112-559-1	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-663-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-327-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-423-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (D) ASM PART: A = 8-92065-921-0, 92065921	8-92143-353-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-97041-422-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97262-497-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (E) ASM PART: E = 8-98028-199-0, 98028199	8-97319-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92140-255-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97351-967-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-670-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-366-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-425-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97365-923-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97368-561-1	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-246-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-669-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97112-557-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97113-286-0	02	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: E = 8-98028-199-0, 98028199	8-97368-563-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-671-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-93170-383-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97078-002-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97229-911-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-665-0	01	1	-
73	02.063 STOPPER SET; PINION ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198, E = 8-98028-199-0, 98028199	8-94228-450-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-94408-500-0	02	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-672-0	02	1	-

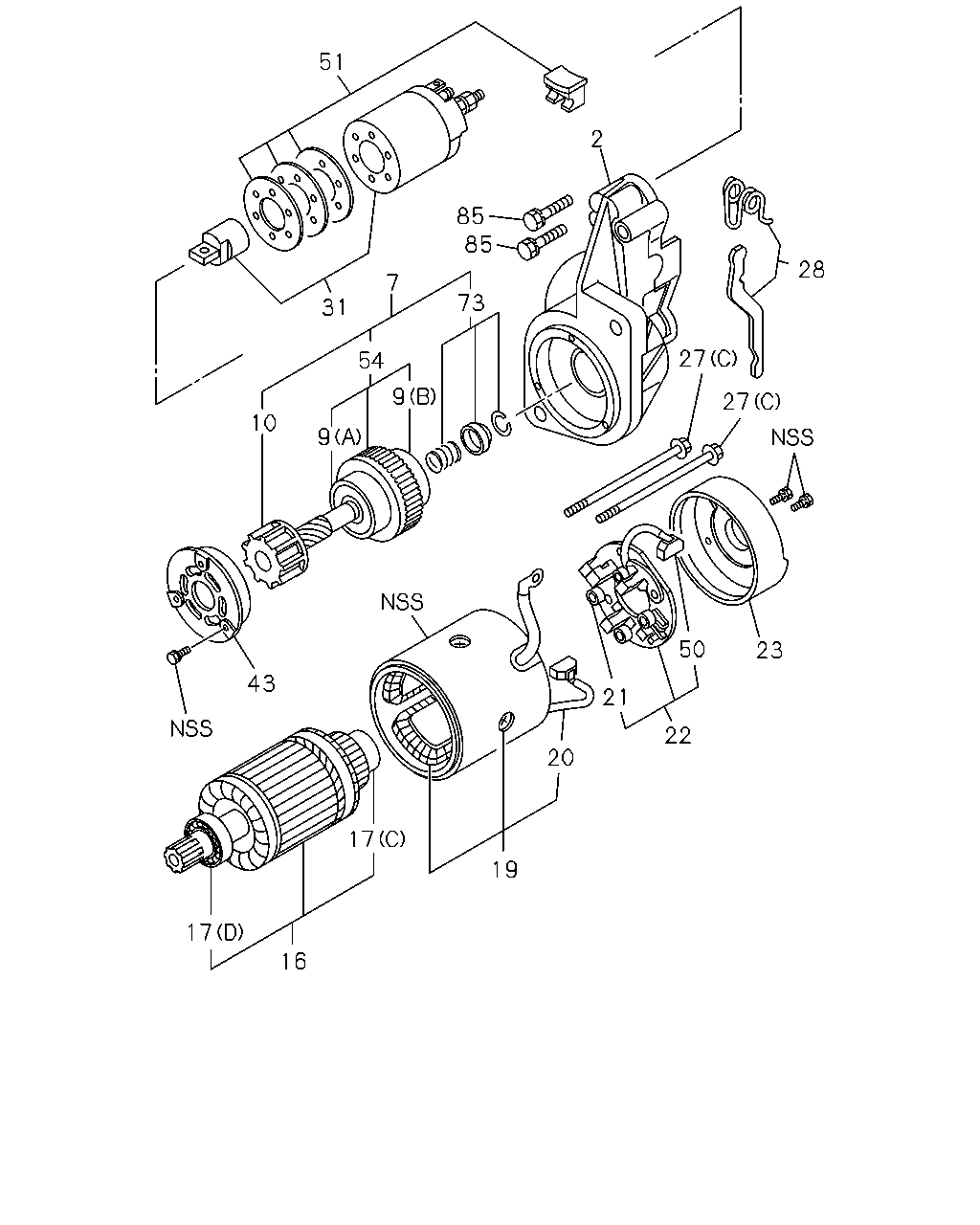

51 31 54 7 73 9 9 10 45 17 16 19 17 20 22 21 50 23 27 27 28 2 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-364-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-426-1	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97368-562-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-668-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92145-123-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97229-910-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-664-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: E = 8-98028-199-0, 98028199	8-97047-549-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (D) ASM PART: E = 8-98028-199-0, 98028199	8-97047-550-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-659-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-660-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198, E = 8-98028-199-0, 98028199	8-97130-189-1	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-322-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-253-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97262-027-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-656-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (E) ASM PART: E = 8-98028-199-0, 98028199	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (F) ASM PART: E = 8-98028-199-0, 98028199	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-94377-241-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (C) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-657-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (D) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-658-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92145-122-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97357-783-1	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97376-957-1	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97112-557-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97113-286-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-333-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198, E = 8-98028-199-0, 98028199	8-94242-064-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-244-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-326-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-424-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97112-559-1	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-663-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-327-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-423-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (D) ASM PART: A = 8-92065-921-0, 92065921	8-92143-353-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-97041-422-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (C) ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97262-497-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (E) ASM PART: E = 8-98028-199-0, 98028199	8-97319-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92140-255-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97351-967-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-670-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-366-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-425-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97365-923-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97368-561-1	01	1	-
45	02.042 RETAINER; BEARING,STARTER 02.086 ASM PART: E = 8-98028-199-0, 98028199	8-94435-570-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97112-557-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97113-286-0	02	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: E = 8-98028-199-0, 98028199	8-97368-563-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-671-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-92065-921-0, 92065921	8-93170-383-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97078-002-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-97229-911-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-665-0	01	1	-
73	02.063 STOPPER SET; PINION ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198, E = 8-98028-199-0, 98028199	8-94228-450-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: E = 8-98028-199-0, 98028199	8-94408-500-0	02	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: C = 8-97365-824-0, 97365824, D = 8-98028-198-0, 98028198	8-97941-672-0	02	1	-

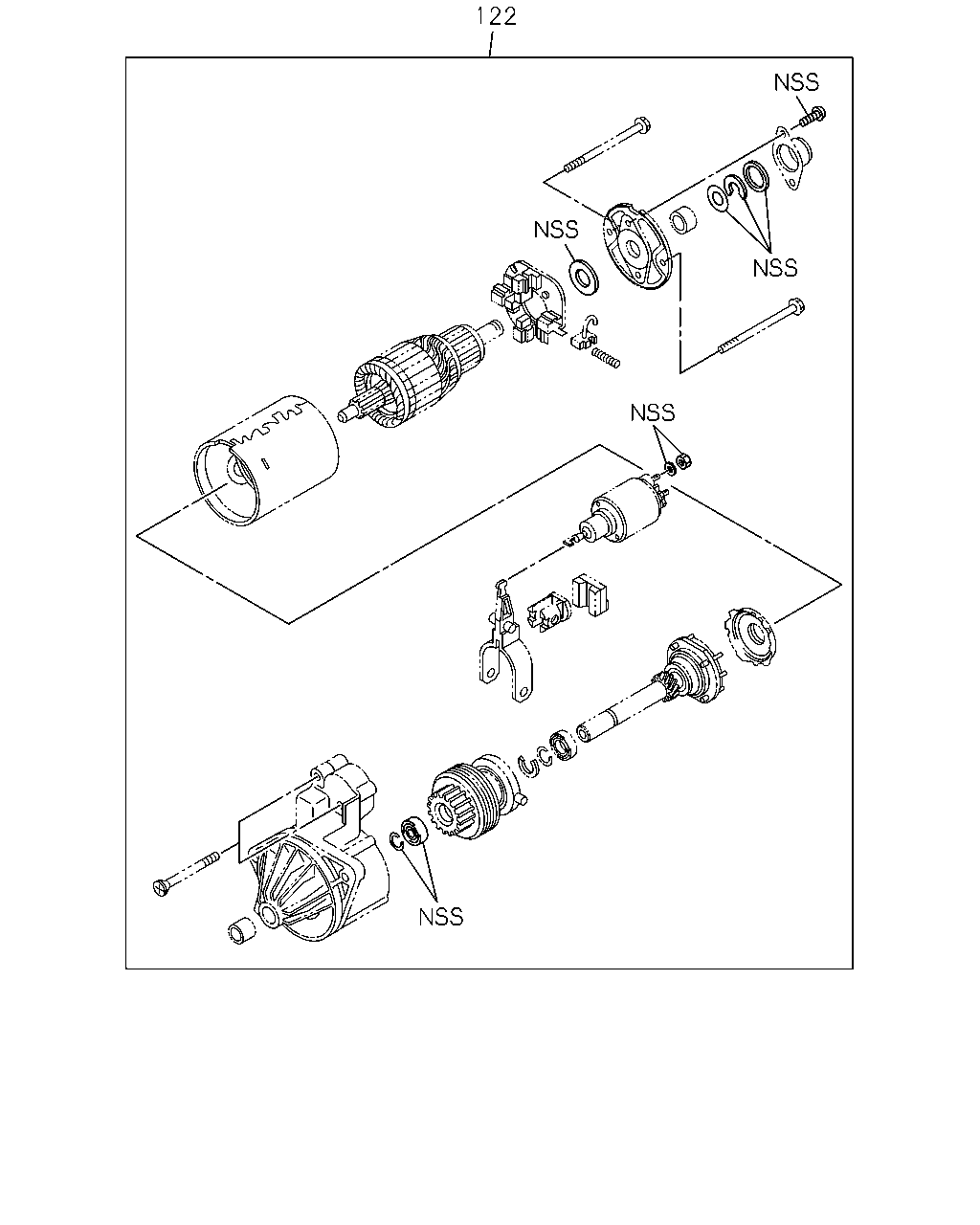

122

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	122	02.041 REPAIR KIT; STARTER ASM PART: A = 8-92065-921-0, 92065921	8-92143-334-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
