◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#73921) — 1936 parça

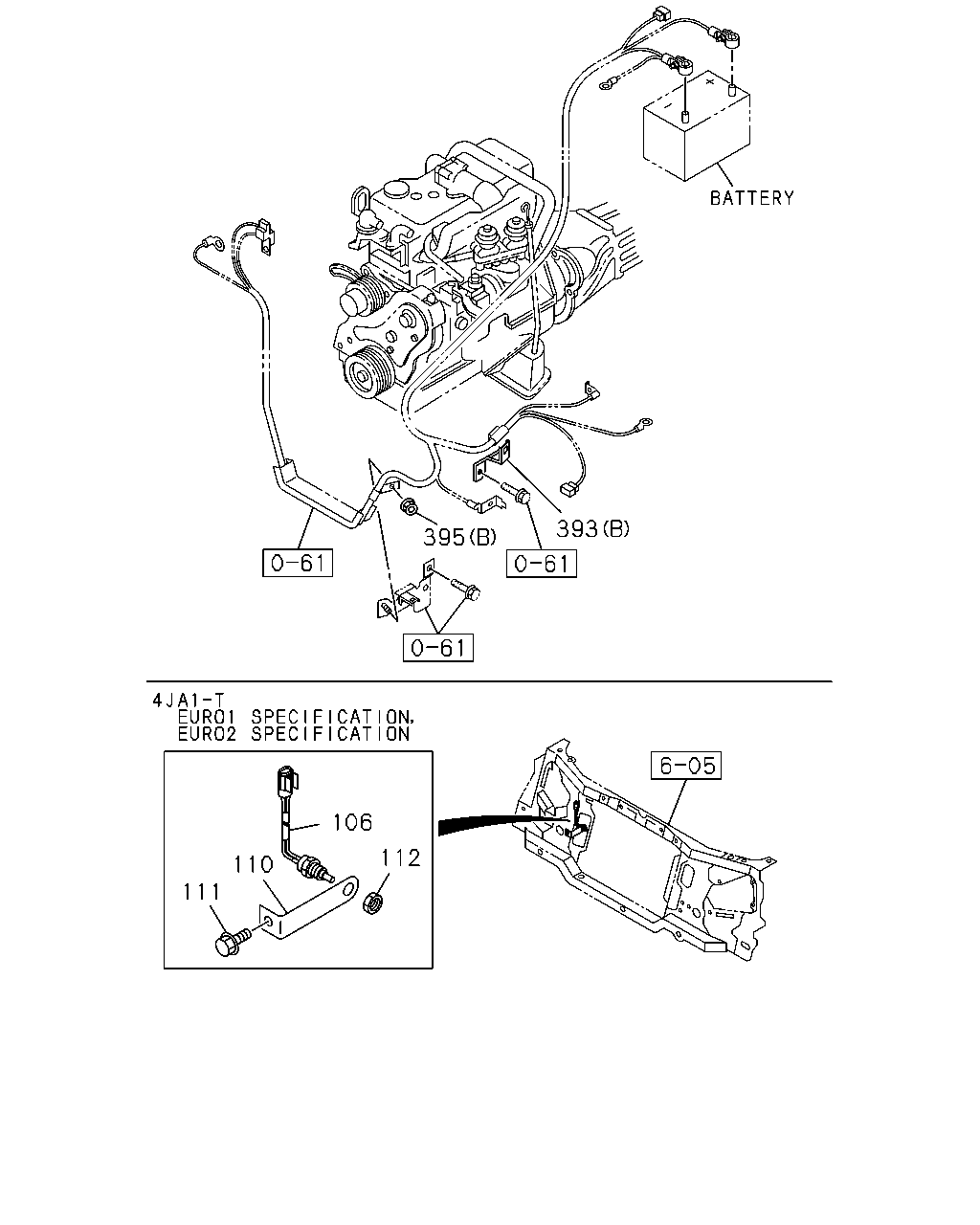

çizim 72608
393 395 106 112 110 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
106 01.150 SWITCH; THERMO,AIR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97043-749-0 01 1 0306- ●
110 01.251 BRACKET; THERMO SW CONNECTOR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97351-380-0 01 1 0306- ●
111 01.251 BOLT; SWITCH BRKT
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0306- ●
112 01.251 NUT; SWITCH BRKT
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 04.681 M16 		9-99111-416-0 01 1 0306-0602 ●
112 01.251 NUT; SWITCH BRKT
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 00.785 M16 		0-91111-516-0 01 1 0603- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98073-210-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98073-211-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98073-212-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0306-0608 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0609-0609 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0306-0608 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0609-0609 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-162-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98050-833-0 01 1 0610-1007 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98050-833-0 01 1 1008- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97249-301-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(I) 		8-98050-884-0 01 1 0610-1007 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(I) 		8-98050-884-0 01 1 1008- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-97311-081-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98073-210-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98073-211-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98073-212-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-97236-167-0 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(G) 		8-97351-001-0 01 1 0306-0608 ●
393 02.343 BRACKET; HARNESS TO BODY
(G) 		8-98050-829-0 01 1 0609- ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0306-0609 ● ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0610-0709 ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0710- ● ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0306-0603 ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ● ● ● ●
395 02.343 NUT; BRKT FIX
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●
395 02.343 NUT; BRKT FIX
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●

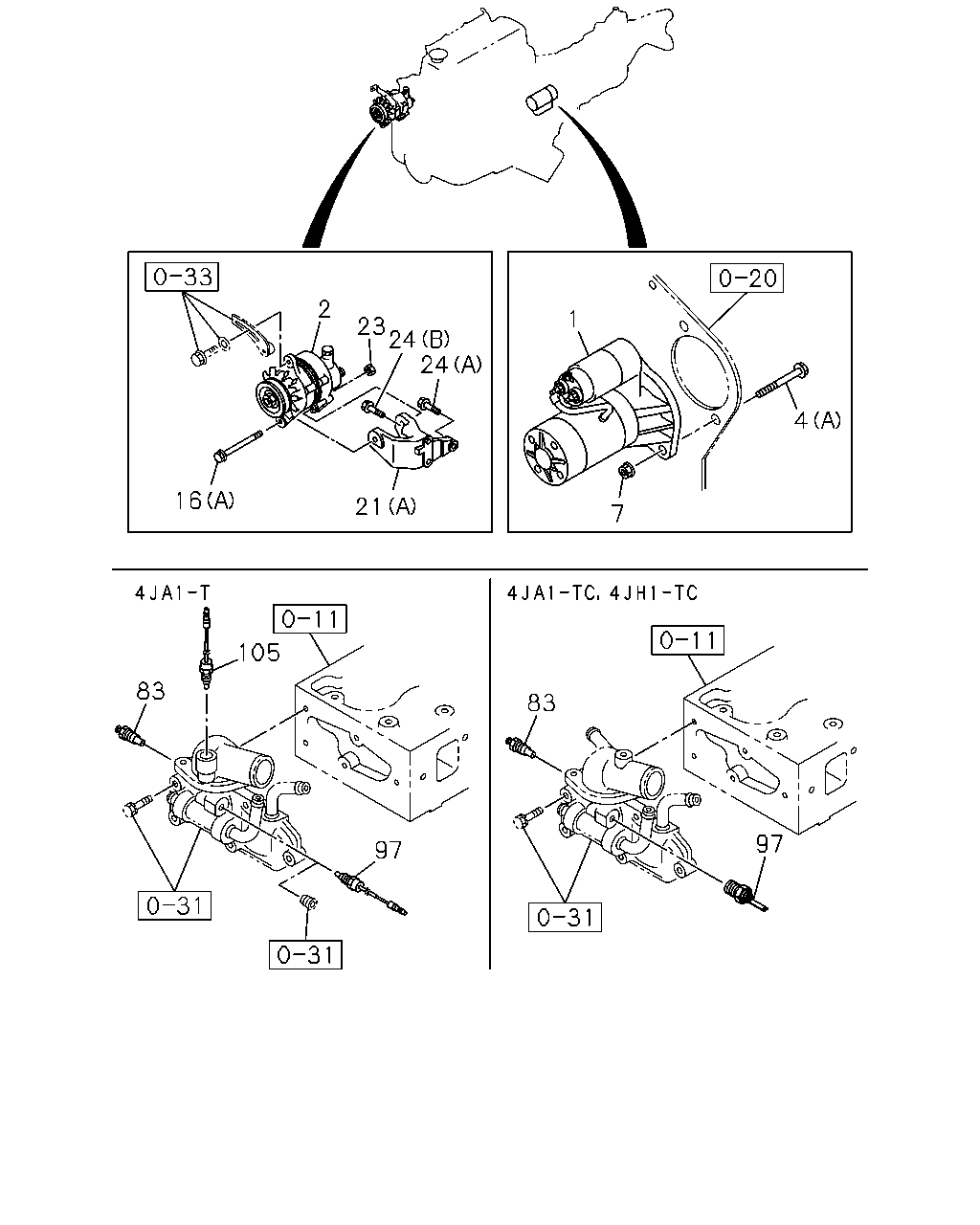

çizim 72889
2 1 23 24 24 4 16 21 7 105 83 83 97 97
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 1008- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97365-824-0 01 1 0306-0604 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0605-0609 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0610- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0306-0609 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0610-0611 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 2.3KW 		8-98028-199-0 01 1 0612-0612 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0612-0612 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0612-1007 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1008- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0710-1003 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0306-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EGYPT EQUIPMENT(B09) 12V 90A 		8-98229-071-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98196-585-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1107-1108 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1109-1209 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98196-585-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1210-1211 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 1008- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 1008-1011 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EGYPT EQUIPMENT(B09) 12V 90A 		8-98153-004-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1012-1012 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1101-1106 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EGYPT EQUIPMENT(B09) 12V 90A 		8-98153-004-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0306-0609 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0610- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0306-0609 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0610- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 0306-0609 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0610-0611 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98006-084-0 01 1 0612-0612 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0612-0612 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0612-1007 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1008-1011 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98006-084-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 0710-1003 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 100A 		8-92064-568-0 01 1 0306-0310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97360-782-1 01 1 0311- ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1008- ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 1008- ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0306-0609 ● ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0610-0611 ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0612-1003 ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SP EED 5S(RSQ) EGYPT EQUIPMENT(B09) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0612-1003 ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1004-1007 ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SP EED 5S(RSQ) EGYPT EQUIPMENT(B09) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ● ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0306-0609 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-0 02 1 0610-0611 ● ●
4 02.042 BOLT; STARTER
EXC. EGYPT EQUIPMENT(B09) (A) M12X60 		8-97161-846-1 02 1 0612-1003 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 0612-1003 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1004-1007 ● ●
4 02.042 BOLT; STARTER
EXC. EGYPT EQUIPMENT(B09) (A) M12X60 		8-97161-846-1 02 1 1008-1402 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1008-1402 ● ●
4 02.042 BOLT; STARTER
EXC. EGYPT EQUIPMENT(B09), IDENTIFICATION LABEL FOR KD<6UT> (A) M12X60 		8-97161-846-1 02 1 1403- ● ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1403- ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 0306-0609 ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0710-1003 ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 0710-1003 ●
4 02.042 BOLT; STARTER
(D) M10X25 FLANGE 		0-28151-025-0 01 1 0306- ●
4 02.042 BOLT; STARTER
(E) 		8-11073-352-0 01 1 0306- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 1008- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0306-0609 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0610-0611 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0612-0905 ● ●
7 02.042 NUT; STARTER
EXC. EGYPT EQUIPMENT(B09) M12 FLANGE 		0-91180-112-0 02 1 0612-0905 ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0306-0609 ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0710-1003 ●
7 02.042 NUT; STARTER
EGYPT EQUIPMENT(B09) M12 FLANGE 		0-91180-112-0 01 1 0612-0905 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0906-1007 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1008- ● ● ● ● ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 1008- ●
16 02.277 BOLT; GEN
01.060 (C) M8X35 FLANGE 		0-28650-835-0 01 1 1008- ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0306-0609 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0610- ● ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 0306-0609 ●
16 02.277 BOLT; GEN
(F) M10X125 FLANGE 		8-97226-470-0 01 1 0610-0611 ● ●
16 02.277 BOLT; GEN
EXC. EGYPT EQUIPMENT(B09) (F) M10X125 FLANGE 		8-97226-470-0 01 1 0612-0612 ●
16 02.277 BOLT; GEN
(F) M10X125 FLANGE 		8-97226-470-0 01 1 0612-0612 ●
16 02.277 BOLT; GEN
(F) M10X125 FLANGE 		8-97226-470-1 01 1 0612-1007 ● ●
16 02.277 BOLT; GEN
(C) M10X125 FLANGE 		8-97226-470-1 01 1 1008- ● ● ●
16 02.277 BOLT; GEN
01.060 (C) M8X35 FLANGE 		0-28650-835-0 01 1 0306-0609 ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 0710-1003 ●
16 02.277 BOLT; GEN
01.060 (C) M8X35 FLANGE 		0-28650-835-0 01 1 0710-1003 ●
16 02.277 BOLT; GEN
(D) 		8-11098-091-0 01 1 0306- ●
16 02.277 BOLT; GEN
(E) 		8-92138-526-0 01 1 0306- ●
21 02.277 BRACKET; GEN
(C) 		8-97245-424-0 01 1 1008- ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 1008- ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0306-0402 ● ● ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0403-0609 ● ●

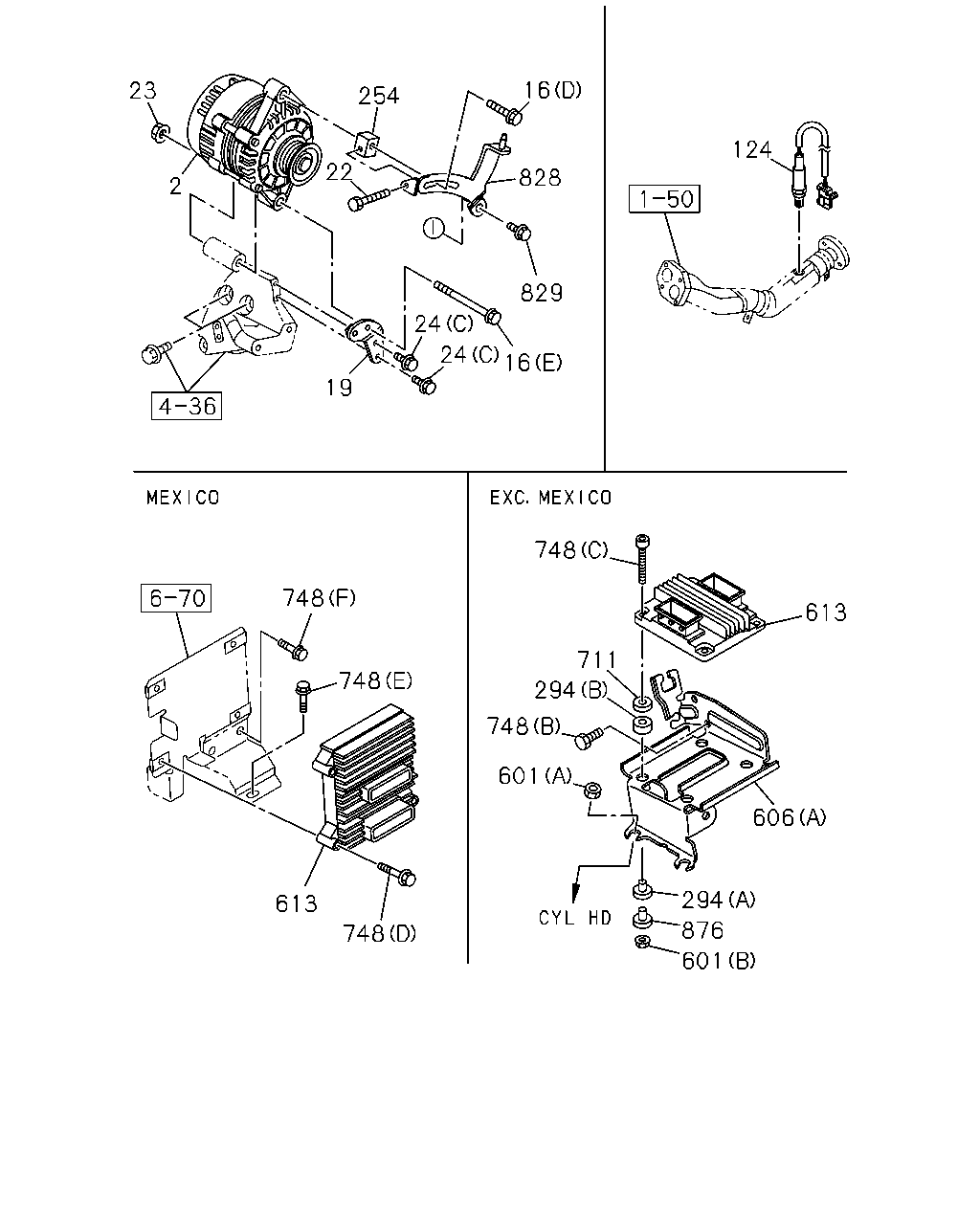

21 02.277 BRACKET; GEN
EXC. TURKEY EQUIPMENT(B11) (A) 		8-94437-276-2 01 1 0403-0609 ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0610- ● ●
21 02.277 BRACKET; GEN
TURKEY EQUIPMENT(B11) (A) 		8-97912-659-0 01 1 0403-0609 ●
21 02.277 BRACKET; GEN
(C) 		8-97245-424-0 01 1 0306-0609 ●
21 02.277 BRACKET; GEN
(D) 		8-97356-020-1 01 1 0610-1007 ● ●
21 02.277 BRACKET; GEN
(D) 		8-97356-020-1 01 1 1008- ● ● ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0306-0609 ●
21 02.277 BRACKET; GEN
(C) 		8-97245-424-0 01 1 0710-1003 ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0710-1003 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0306-0609 ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0610-0611 ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0612-0612 ● ●
23 02.277 NUT; GEN
EXC. EGYPT EQUIPMENT(B09) 04.085 M10 FLANGE 		0-91180-210-0 01 1 0612-0612 ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0612-1007 ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1008- ● ● ● ● ●
23 02.277 NUT; GEN
06.672 M10 FLANGE 		0-91280-210-0 01 1 0306- ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0306-0402 ● ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0403-0512 ● ●
24 02.277 BOLT; GEN BRKT
EXC. TURKEY EQUIPMENT(B11) 09.171 (A) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0403-0512 ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0306-0609 ● ● ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0610-0909 ● ●
24 02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER 		0-50541-070-0 02 1 0910- ● ●
24 02.277 BOLT; GEN BRKT
TURKEY EQUIPMENT(B11) 09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0403-0512 ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0601-0609 ● ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0610- ● ●
24 02.277 BOLT; GEN BRKT
(C) 		8-11090-683-0 02 1 0306- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 1008- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0306-0609 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0610- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0306-0609 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0610- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 0306-0609 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 0710-1003 ●
97 01.150 SWITCH; THERMO,EGR CONT
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-94457-511-0 01 1 0306- ●
97 01.150 SWITCH; THERMO,EGR CONT 8-97069-786-1 01 1 0306-0609 ● ●
97 01.150 SWITCH; THERMO,EGR CONT 8-97069-786-1 01 1 0610- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0306- ●

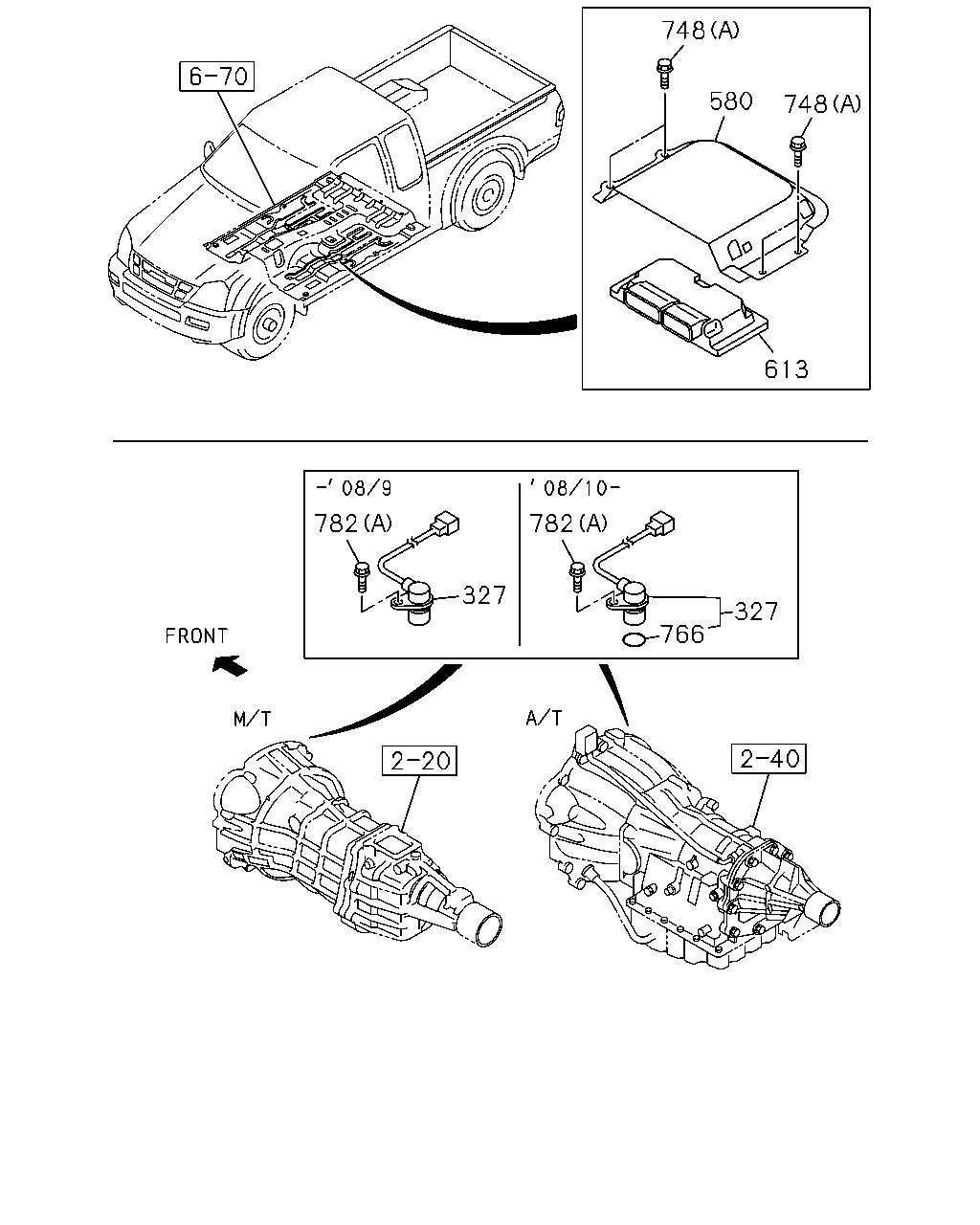

çizim 72902
748 580 748 613 782 782 327 327 766
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H

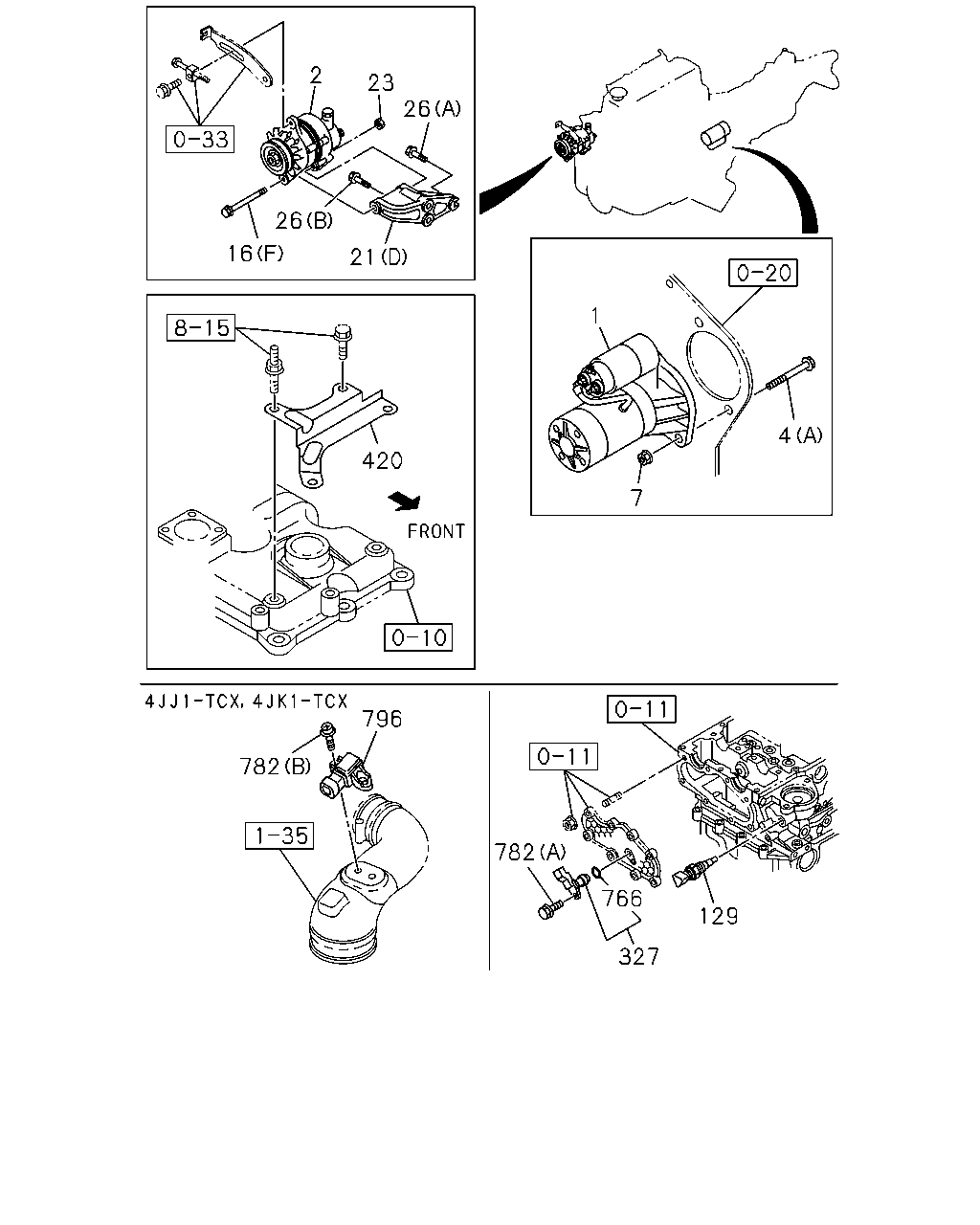

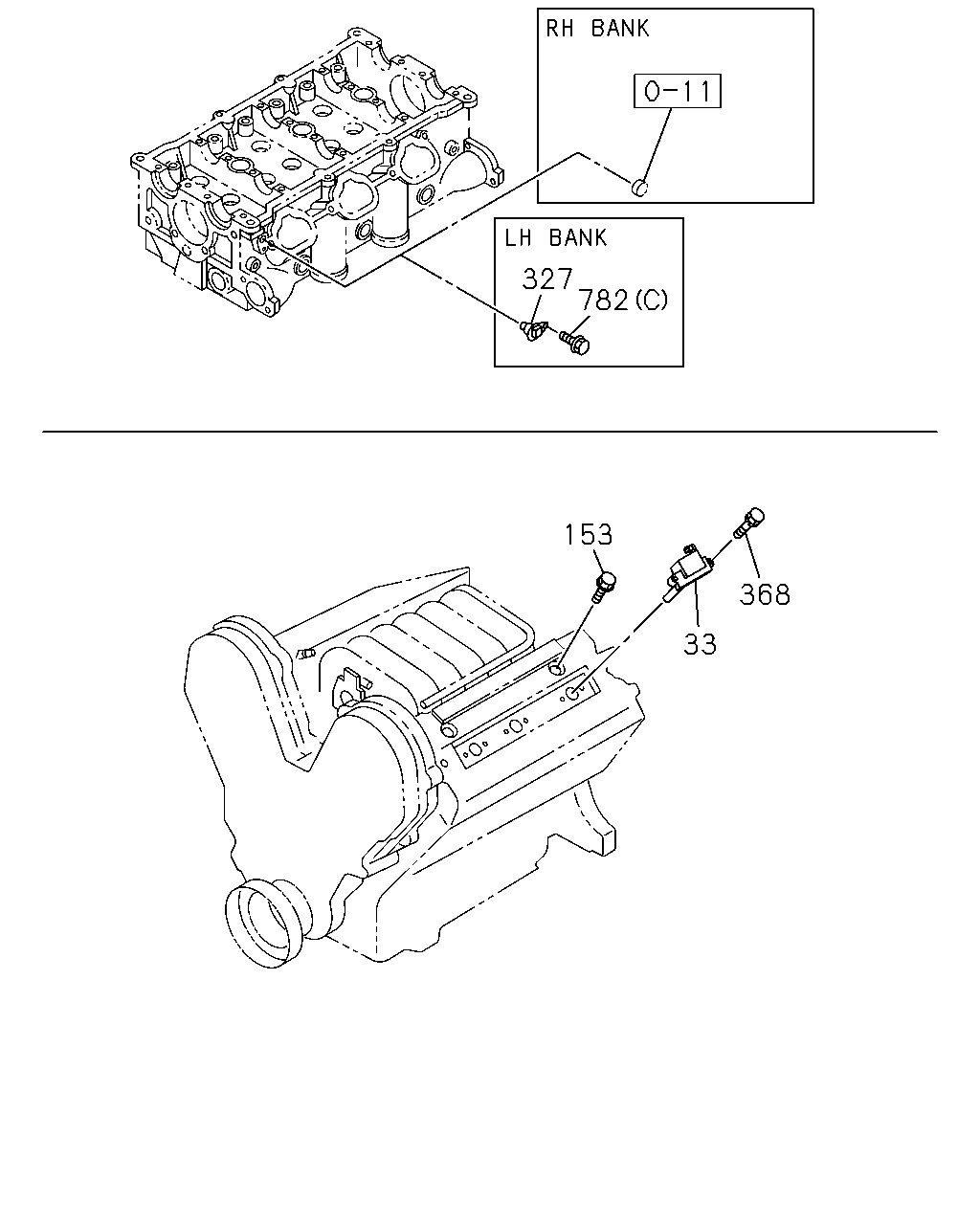

327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 1008- ●
327 02.361 SENSOR; CAMSHAFT POSITION
03.670 		8-97324-402-1 01 1 0306-0609 ● ●
327 02.361 SENSOR; CAMSHAFT POSITION
03.670 		8-97324-402-2 01 1 0610- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 0306-0609 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0610-1007 ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1008- ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 0710-1003 ●
580 04.115 COVER; CONT UNIT 8-97319-493-1 01 1 0306-0609 ● ●
580 04.115 COVER; CONT UNIT 8-97319-493-1 01 1 0610- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98135-380-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,CHEVROLET EQUIPMENT (8JF) 		8-98195-242-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98135-381-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98195-241-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98194-778-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98160-158-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 		8-98160-158-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98160-141-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98160-141-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-137-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-137-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-142-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-142-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98169-614-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) CHILE EQUIPMENT(KE1) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98169-614-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-145-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-145-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> EXC. CHILE EQUIPMENT(KE1),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98160-146-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> EXC. CHILE EQUIPMENT(KE1),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98160-146-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98160-159-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 		8-98160-159-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98160-143-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98160-143-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-139-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-139-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-144-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-144-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98097-108-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98126-978-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98135-370-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98152-106-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-106-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98170-820-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98170-820-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98097-110-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98126-980-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98097-111-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-981-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-372-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-109-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-109-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-823-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-823-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98097-112-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-982-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-376-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-110-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-110-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-827-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-827-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98097-109-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98126-979-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98135-374-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98152-107-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-107-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98170-825-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98170-825-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98102-102-0 01 1 0711-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98126-984-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98135-355-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98152-112-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-112-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98160-151-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98160-151-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) IMMOBILIZER SYSTEM<7KC> 		8-97361-894-1 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98017-338-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98079-708-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98079-708-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98099-163-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98099-163-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98099-163-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98195-239-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 0306-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 0710-0905 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 0906-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20>, IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-892-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-350-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-718-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98071-298-2 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),AUTO CRUISE CONT<K30> 		8-98071-298-2 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPM ENT(E06),ECUADOR EQUIPMENT(E46), IMMOBILIZER SYSTEM<7KC> 		8-97361-886-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98017-336-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98079-706-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98079-706-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98099-161-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98099-161-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98099-161-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,CHEVROLET EQUIPMENT (8JF) 		8-98195-240-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> 		8-97361-888-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-335-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-705-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-705-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98099-160-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-160-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-160-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98135-378-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-97361-882-1 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> 		8-98017-351-6 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-395-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-951-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-350-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-079-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-079-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-809-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-809-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-885-0 01 1 0306-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>, IMMOBILIZER SYSTEM<7KC> 		8-97361-885-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 0306-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 0710-0905 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 0906-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20>, IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-893-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98017-353-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98079-720-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98057-411-3 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZE R SYSTEM<7KC> 		8-98057-411-3 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPM ENT(E06),ECUADOR EQUIPMENT(E46), IMMOBILIZER SYSTEM<7KC> 		8-97361-887-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> 		8-98017-349-6 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98069-519-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98069-519-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> 		8-97361-889-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-352-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-719-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98071-300-2 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),AUTO CRUISE CONT<K30> 		8-98071-300-2 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO3 SPECIFICATION<NT3> EXC. CHILE EQUIPMENT(KE1), IMMOBILIZER SYSTEM<7KC> 		8-97361-884-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-337-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-707-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-707-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98099-162-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-162-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-162-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98135-379-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-97361-883-1 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98017-354-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98079-721-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98057-396-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98126-952-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98135-351-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98152-080-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-080-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98170-810-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98170-810-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-519-0 01 1 0306-0905 ●
613 03.670 CONTROL UNIT; ENG
COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-519-0 01 1 0906-1003 ●
613 03.670 CONTROL UNIT; ENG
COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) EMISSION SYSTEM FEDERAL,TIER 0<NA5> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-519-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 0306-0709 ●
613 03.670 CONTROL UNIT; ENG
CHILE EQUIPMENT(KE1) EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 0306-0709 ●
613 03.670 CONTROL UNIT; ENG
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 0710-1003 ●
613 03.670 CONTROL UNIT; ENG
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
CHILE EQUIPMENT(KE1) EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHIL E EQUIPMENT(KE1),IMMOBILIZER SYSTEM<7KC> 		8-09387-539-0 01 1 0306-0905 ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1),IMMOBILIZER SYSTEM<7KC> 		8-09387-539-0 01 1 0906-1003 ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. SAUDI ARABIA EQUIPMENT(GH3), CHILE EQUIPMENT(KE1),IMMOBILIZER SYST EM<7KC> 		8-09387-539-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1),IMMOBILIZER SYSTEM<7KC> 		8-09387-539-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
MEXICO EQUIPMENT(E11) EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-92187-518-0 01 1 0610-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98057-412-3 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZE R SYSTEM<7KC> 		8-98057-412-3 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-397-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-953-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-352-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-081-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-081-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-811-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-811-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98057-398-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98126-954-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98135-353-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98152-082-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-082-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98170-812-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98170-812-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98028-993-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98079-723-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98079-723-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98099-173-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98099-173-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98017-345-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98017-345-8 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98079-526-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98079-526-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98057-402-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98057-407-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98126-963-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98152-091-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98152-091-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98160-154-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 		8-98160-154-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-401-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-957-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-357-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-085-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-085-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-157-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98160-157-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-408-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-964-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-092-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-092-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-155-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98160-155-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-340-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-710-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-710-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98099-165-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-165-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-527-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98079-527-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98028-992-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98079-722-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98079-722-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98099-172-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98099-172-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98017-343-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98017-343-8 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98079-524-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98079-524-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98057-400-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98057-405-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98126-961-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98152-089-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98152-089-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98160-152-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 		8-98160-152-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-399-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-955-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-354-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-083-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-083-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-156-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-156-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98160-156-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-406-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-962-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-090-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-090-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-153-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98160-153-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-339-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-709-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-709-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98099-164-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-164-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-525-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98079-525-0 01 1 0810-1003 ●
748 02.500 BOLT; CONT UNIT
CHEVROLET EQUIPMENT(8JF) 01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 1008-1109 ● ● ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 1110- ● ● ●
748 02.500 BOLT; CONT UNIT
(A) M6X10 FLANGE 		0-28080-610-0 04 1 0306-0601 ● ●
748 02.500 BOLT; CONT UNIT
03.671 (A) M6X10 FLANGE 		0-28050-610-0 04 1 0602-0609 ● ●
748 02.500 BOLT; CONT UNIT
03.671 (A) M6X10 FLANGE 		0-28050-610-0 04 1 0610- ●
748 02.500 BOLT; CONT UNIT
(C) 		8-92065-435-0 04 1 0306-0609 ●
748 02.500 BOLT; CONT UNIT
EXC. MEXICO EQUIPMENT(E11) (C) 		8-92065-435-0 04 1 0610-0809 ●
748 02.500 BOLT; CONT UNIT
(C) 		8-92065-435-0 04 1 0810- ●
748 02.500 BOLT; CONT UNIT
(B) 		8-92138-695-0 02 1 0306-0611 ●
748 02.500 BOLT; CONT UNIT
(B) 		8-98064-521-0 02 1 0612- ●
748 02.500 BOLT; CONT UNIT
MEXICO EQUIPMENT(E11) 04.866 (D) M6X40 FLANGE 		0-28050-640-0 04 1 0610-0809 ●
748 02.500 BOLT; CONT UNIT
MEXICO EQUIPMENT(E11) 03.162 (E) M6X20 FLANGE 		0-28650-620-0 01 1 0610-0809 ●
748 02.500 BOLT; CONT UNIT
MEXICO EQUIPMENT(E11) 01.531 (F) M8X20 FLANGE 		0-28650-820-0 02 1 0610-0809 ●
748 02.500 BOLT; CONT UNIT
03.162 (G) M6X20 FLANGE 		0-28650-620-0 03 1 0610-1007 ● ●
748 02.500 BOLT; CONT UNIT
03.162 (G) M6X20 FLANGE 		0-28650-620-0 03 1 1008- ● ● ●
748 02.500 BOLT; CONT UNIT
01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0610-0709 ● ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0710-0809 ● ●
748 02.500 BOLT; CONT UNIT
CHEVROLET EQUIPMENT(8JF) 01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0810-1003 ● ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0809 ● ●
748 02.500 BOLT; CONT UNIT
EXC. CHEVROLET EQUIPMENT(8JF) 02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 0810-1003 ● ●
748 02.500 BOLT; CONT UNIT
02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 1004-1007 ● ●
748 02.500 BOLT; CONT UNIT
EXC. CHEVROLET EQUIPMENT(8JF) 02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 1008-1109 ● ● ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> EXC. CHEVROLET EQUIPMENT(8JF) 02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 1110- ● ● ●
766 02.363 GASKET; SENSOR 8-98158-639-0 01 1 0810- ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 0306- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0610-1007 ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1008- ● ● ●
782 02.510 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 1008- ●
782 02.510 BOLT; SENSOR
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0306-0601 ● ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0602-0609 ● ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0610- ●
782 02.510 BOLT; SENSOR
01.428 (C) M6X12 FLANGE 		0-28080-612-0 01 1 0306-0512 ●
782 02.510 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0601-0609 ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0610-1007 ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1008- ● ●
782 02.510 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0710-1003 ●
782 02.510 BOLT; SENSOR
(D) 		8-11093-881-0 01 1 0306- ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0610-1007 ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 1008- ● ● ●
çizim 73179
16 23 254 124 22 828 2 829 24 24 16 19 748 748 613 711 748 294 748 601 606 294 613 876 748 601
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EGYPT EQUIPMENT(B09) 12V 90A 		8-98229-071-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98196-585-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1107-1108 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1109-1209 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98196-585-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1210-1211 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 1008- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 1008-1011 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EGYPT EQUIPMENT(B09) 12V 90A 		8-98153-004-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1012-1012 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1101-1106 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EGYPT EQUIPMENT(B09) 12V 90A 		8-98153-004-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0306-0609 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0610- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0306-0609 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0610- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 0306-0609 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0610-0611 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98006-084-0 01 1 0612-0612 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0612-0612 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0612-1007 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1008-1011 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98006-084-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 0710-1003 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 100A 		8-92064-568-0 01 1 0306-0310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97360-782-1 01 1 0311- ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 1008- ●
16 02.277 BOLT; GEN
01.060 (C) M8X35 FLANGE 		0-28650-835-0 01 1 1008- ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0306-0609 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0610- ● ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 0306-0609 ●
16 02.277 BOLT; GEN
(F) M10X125 FLANGE 		8-97226-470-0 01 1 0610-0611 ● ●
16 02.277 BOLT; GEN
EXC. EGYPT EQUIPMENT(B09) (F) M10X125 FLANGE 		8-97226-470-0 01 1 0612-0612 ●
16 02.277 BOLT; GEN
(F) M10X125 FLANGE 		8-97226-470-0 01 1 0612-0612 ●
16 02.277 BOLT; GEN
(F) M10X125 FLANGE 		8-97226-470-1 01 1 0612-1007 ● ●
16 02.277 BOLT; GEN
(C) M10X125 FLANGE 		8-97226-470-1 01 1 1008- ● ● ●
16 02.277 BOLT; GEN
01.060 (C) M8X35 FLANGE 		0-28650-835-0 01 1 0306-0609 ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 0710-1003 ●
16 02.277 BOLT; GEN
01.060 (C) M8X35 FLANGE 		0-28650-835-0 01 1 0710-1003 ●
16 02.277 BOLT; GEN
(D) 		8-11098-091-0 01 1 0306- ●
16 02.277 BOLT; GEN
(E) 		8-92138-526-0 01 1 0306- ●
19 02.277 BRACKET; GEN 8-92063-352-0 01 1 0306- ●
22 09.008 BOLT; GEN 8-92066-080-0 01 1 0306-0609 ●
22 09.008 BOLT; GEN 8-92066-080-0 01 1 0610- ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0306-0609 ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0610-0611 ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0612-0612 ● ●
23 02.277 NUT; GEN
EXC. EGYPT EQUIPMENT(B09) 04.085 M10 FLANGE 		0-91180-210-0 01 1 0612-0612 ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0612-1007 ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1008- ● ● ● ● ●
23 02.277 NUT; GEN
06.672 M10 FLANGE 		0-91280-210-0 01 1 0306- ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0306-0402 ● ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0403-0512 ● ●
24 02.277 BOLT; GEN BRKT
EXC. TURKEY EQUIPMENT(B11) 09.171 (A) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0403-0512 ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0306-0609 ● ● ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0610-0909 ● ●
24 02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER 		0-50541-070-0 02 1 0910- ● ●
24 02.277 BOLT; GEN BRKT
TURKEY EQUIPMENT(B11) 09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0403-0512 ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0601-0609 ● ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0610- ● ●
24 02.277 BOLT; GEN BRKT
(C) 		8-11090-683-0 02 1 0306- ●
124 01.150 SENSOR; OXYGEN 8-97287-352-0 02 1 0306-0609 ●
124 01.150 SENSOR; OXYGEN 8-97287-352-0 02 1 0710-1003 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECIFICATION<NT1>,EURO2 SP ECIFICATION<NT2> 		8-25327-985-0 01 1 0306-0609 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. MEXICO EQUIPMENT(E11) 		8-25327-985-0 01 1 0610-0709 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-25327-985-0 01 1 0610-0709 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECIFICATION<NT1>,EURO2 SP ECIFICATION<NT2> EXC. MEXICO EQUIPMENT(E11) 		8-25327-985-0 01 1 0710-0809 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECIFICATION<NT1>,EURO2 SP ECIFICATION<NT2> 		8-25327-985-0 01 1 0810-1003 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 1<NF2> ,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-25327-985-0 01 1 1004-1007 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-25327-985-0 01 1 1008- ●
124 01.150 SENSOR; OXYGEN
EURO3 SPECIFICATION<NT3> 		8-25327-985-0 02 1 0601-0609 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 1<NF2> MEXICO EQUIPMENT(E11) 		8-25327-985-0 02 1 0610-0709 ●
124 01.150 SENSOR; OXYGEN
EURO3 SPECIFICATION<NT3> 		8-25327-985-0 02 1 0610-0709 ●
124 01.150 SENSOR; OXYGEN
MEXICO EQUIPMENT(E11) EMISSION SYSTEM FEDERAL,TIER 1<NF2> 		8-25327-985-0 02 1 0710-0809 ●
124 01.150 SENSOR; OXYGEN
EURO3 SPECIFICATION<NT3> 		8-25327-985-0 02 1 0710-0809 ●
124 01.150 SENSOR; OXYGEN
EURO3 SPECIFICATION<NT3> 		8-25327-985-0 02 1 0810-1007 ●
124 01.150 SENSOR; OXYGEN 8-97287-352-0 02 1 1008- ●
254 02.277 NUT; GEN BRKT
02.275 		8-92066-081-1 01 1 0306-0609 ●
254 02.277 NUT; GEN BRKT
02.275 		8-92066-081-1 01 1 0610- ●
294 02.042 INSULATOR; SPACER
(A) 		8-92065-516-0 04 1 0306-0609 ●
294 02.042 INSULATOR; SPACER
EXC. MEXICO EQUIPMENT(E11) (A) 		8-92065-516-0 04 1 0610-0809 ●
294 02.042 INSULATOR; SPACER
(A) 		8-92065-516-0 04 1 0810- ●
294 02.042 INSULATOR; SPACER
02.510 (B) 		8-92065-517-0 04 1 0306-0609 ●
294 02.042 INSULATOR; SPACER
EXC. MEXICO EQUIPMENT(E11) 02.510 (B) 		8-92065-517-0 04 1 0610-0809 ●
294 02.042 INSULATOR; SPACER
02.510 (B) 		8-92065-517-0 04 1 0810- ●
601 03.670 NUT; UNIT
03.901 (A) 		8-11013-127-0 02 1 0306- ●
601 03.670 NUT; UNIT
02.042 (B) M6 		8-11094-425-0 04 1 0306-0609 ●
601 03.670 NUT; UNIT
EXC. MEXICO EQUIPMENT(E11) 02.042 (B) M6 		8-11094-425-0 04 1 0610-0809 ●
601 03.670 NUT; UNIT
02.042 (B) M6 		8-11094-425-0 04 1 0810- ●
601 03.670 NUT; UNIT
01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0610-1007 ● ●
601 03.670 NUT; UNIT
01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 1008- ● ● ●
606 03.680 BRACKET; CONT UNIT
CHEVROLET EQUIPMENT(8JF) (C) 		8-97364-729-2 01 1 1008-1109 ● ● ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (C) 		8-97364-729-2 01 1 1110- ● ● ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-92066-169-0 01 1 0306- ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-97364-729-2 01 1 0610-0709 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (C) 		8-97364-729-2 01 1 0710-0809 ● ●
606 03.680 BRACKET; CONT UNIT
CHEVROLET EQUIPMENT(8JF) (C) 		8-97364-729-2 01 1 0810-1003 ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (D) 		8-98064-201-2 01 1 0710-0809 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98113-306-0 01 1 0810-1003 ● ●
606 03.680 BRACKET; CONT UNIT
(D) 		8-98113-306-0 01 1 1004-1007 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98113-306-0 01 1 1008-1109 ● ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (D) 		8-98113-306-0 01 1 1110- ● ● ●
606 03.680 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-97380-199-0 01 1 0610-0709 ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98073-335-0 01 1 0710-0809 ● ●
606 03.680 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98073-335-0 01 1 0810-1003 ● ●
606 03.680 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98073-335-0 01 1 1004-1007 ● ●
606 03.680 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98073-335-0 01 1 1008-1109 ● ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98073-335-0 01 1 1110- ● ● ●
606 03.680 BRACKET; CONT UNIT
EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (B) 		8-97364-731-2 01 1 0610-0709 ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (E) 		8-98064-202-0 01 1 0710-0809 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY>,CHEVROLET EQUIPMENT(8JF) (E) 		8-98064-202-0 01 1 0810-1003 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (E) 		8-98064-202-0 01 1 1004-1007 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY>,CHEVROLET EQUIPMENT(8JF) (E) 		8-98064-202-0 01 1 1008-1109 ● ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (E) 		8-98064-202-0 01 1 1110- ● ● ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98135-380-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,CHEVROLET EQUIPMENT (8JF) 		8-98195-242-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98135-381-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98195-241-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98194-778-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98160-158-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 		8-98160-158-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98160-141-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98160-141-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-137-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-137-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-142-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-142-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98169-614-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) CHILE EQUIPMENT(KE1) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98169-614-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-145-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-145-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> EXC. CHILE EQUIPMENT(KE1),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98160-146-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> EXC. CHILE EQUIPMENT(KE1),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98160-146-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98160-159-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 		8-98160-159-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98160-143-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98160-143-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-139-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-139-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-144-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-144-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98097-108-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98126-978-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98135-370-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98152-106-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-106-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98170-820-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98170-820-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98097-110-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98126-980-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98097-111-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-981-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-372-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-109-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-109-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-823-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-823-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98097-112-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-982-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-376-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-110-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-110-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-827-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-827-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98097-109-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98126-979-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98135-374-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98152-107-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-107-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98170-825-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98170-825-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98102-102-0 01 1 0711-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98126-984-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98135-355-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98152-112-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-112-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98160-151-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98160-151-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) IMMOBILIZER SYSTEM<7KC> 		8-97361-894-1 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98017-338-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98079-708-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98079-708-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98099-163-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98099-163-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98099-163-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98195-239-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 0306-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 0710-0905 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 0906-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20>, IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-892-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-350-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-718-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98071-298-2 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),AUTO CRUISE CONT<K30> 		8-98071-298-2 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPM ENT(E06),ECUADOR EQUIPMENT(E46), IMMOBILIZER SYSTEM<7KC> 		8-97361-886-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98017-336-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98079-706-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98079-706-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98099-161-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98099-161-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98099-161-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,CHEVROLET EQUIPMENT (8JF) 		8-98195-240-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> 		8-97361-888-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-335-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-705-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-705-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98099-160-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-160-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-160-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98135-378-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-97361-882-1 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> 		8-98017-351-6 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-395-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-951-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-350-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-079-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-079-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-809-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-809-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-885-0 01 1 0306-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>, IMMOBILIZER SYSTEM<7KC> 		8-97361-885-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 0306-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 0710-0905 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 0906-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20>, IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-893-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98017-353-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98079-720-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98057-411-3 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZE R SYSTEM<7KC> 		8-98057-411-3 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPM ENT(E06),ECUADOR EQUIPMENT(E46), IMMOBILIZER SYSTEM<7KC> 		8-97361-887-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> 		8-98017-349-6 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98069-519-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98069-519-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> 		8-97361-889-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-352-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-719-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98071-300-2 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),AUTO CRUISE CONT<K30> 		8-98071-300-2 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO3 SPECIFICATION<NT3> EXC. CHILE EQUIPMENT(KE1), IMMOBILIZER SYSTEM<7KC> 		8-97361-884-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-337-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-707-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-707-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98099-162-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-162-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-162-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98135-379-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-97361-883-1 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98017-354-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98079-721-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98057-396-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98126-952-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98135-351-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98152-080-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-080-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98170-810-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98170-810-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-519-0 01 1 0306-0905 ●
613 03.670 CONTROL UNIT; ENG
COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-519-0 01 1 0906-1003 ●
613 03.670 CONTROL UNIT; ENG
COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) EMISSION SYSTEM FEDERAL,TIER 0<NA5> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-519-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 0306-0709 ●
613 03.670 CONTROL UNIT; ENG
CHILE EQUIPMENT(KE1) EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 0306-0709 ●
613 03.670 CONTROL UNIT; ENG
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 0710-1003 ●
613 03.670 CONTROL UNIT; ENG
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
CHILE EQUIPMENT(KE1) EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHIL E EQUIPMENT(KE1),IMMOBILIZER SYSTEM<7KC> 		8-09387-539-0 01 1 0306-0905 ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1),IMMOBILIZER SYSTEM<7KC> 		8-09387-539-0 01 1 0906-1003 ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. SAUDI ARABIA EQUIPMENT(GH3), CHILE EQUIPMENT(KE1),IMMOBILIZER SYST EM<7KC> 		8-09387-539-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1),IMMOBILIZER SYSTEM<7KC> 		8-09387-539-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
MEXICO EQUIPMENT(E11) EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-92187-518-0 01 1 0610-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98057-412-3 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZE R SYSTEM<7KC> 		8-98057-412-3 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-397-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-953-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-352-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-081-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-081-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-811-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-811-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98057-398-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98126-954-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98135-353-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98152-082-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-082-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98170-812-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98170-812-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98028-993-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98079-723-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98079-723-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98099-173-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98099-173-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98017-345-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98017-345-8 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98079-526-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98079-526-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98057-402-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98057-407-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98126-963-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98152-091-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98152-091-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98160-154-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 		8-98160-154-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-401-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-957-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-357-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-085-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-085-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-157-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98160-157-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-408-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-964-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-092-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-092-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-155-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98160-155-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-340-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-710-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-710-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98099-165-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-165-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-527-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98079-527-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98028-992-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98079-722-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98079-722-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98099-172-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98099-172-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98017-343-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98017-343-8 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98079-524-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98079-524-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98057-400-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98057-405-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98126-961-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98152-089-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98152-089-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98160-152-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 		8-98160-152-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-399-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-955-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-354-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-083-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-083-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-156-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-156-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98160-156-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-406-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-962-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-090-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-090-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-153-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98160-153-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-339-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-709-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-709-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98099-164-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-164-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-525-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98079-525-0 01 1 0810-1003 ●
711 02.510 WASHER; PL,CONT UNIT
00.206 		8-90220-983-0 04 1 0306-0609 ●
711 02.510 WASHER; PL,CONT UNIT
EXC. MEXICO EQUIPMENT(E11) 00.206 		8-90220-983-0 04 1 0610-0809 ●
711 02.510 WASHER; PL,CONT UNIT
00.206 		8-90220-983-0 04 1 0810- ●
748 02.500 BOLT; CONT UNIT
CHEVROLET EQUIPMENT(8JF) 01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 1008-1109 ● ● ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 1110- ● ● ●
748 02.500 BOLT; CONT UNIT
(A) M6X10 FLANGE 		0-28080-610-0 04 1 0306-0601 ● ●
748 02.500 BOLT; CONT UNIT
03.671 (A) M6X10 FLANGE 		0-28050-610-0 04 1 0602-0609 ● ●
748 02.500 BOLT; CONT UNIT
03.671 (A) M6X10 FLANGE 		0-28050-610-0 04 1 0610- ●
748 02.500 BOLT; CONT UNIT
(C) 		8-92065-435-0 04 1 0306-0609 ●
748 02.500 BOLT; CONT UNIT
EXC. MEXICO EQUIPMENT(E11) (C) 		8-92065-435-0 04 1 0610-0809 ●
748 02.500 BOLT; CONT UNIT
(C) 		8-92065-435-0 04 1 0810- ●
748 02.500 BOLT; CONT UNIT
(B) 		8-92138-695-0 02 1 0306-0611 ●
748 02.500 BOLT; CONT UNIT
(B) 		8-98064-521-0 02 1 0612- ●
748 02.500 BOLT; CONT UNIT
MEXICO EQUIPMENT(E11) 04.866 (D) M6X40 FLANGE 		0-28050-640-0 04 1 0610-0809 ●
748 02.500 BOLT; CONT UNIT
MEXICO EQUIPMENT(E11) 03.162 (E) M6X20 FLANGE 		0-28650-620-0 01 1 0610-0809 ●
748 02.500 BOLT; CONT UNIT
MEXICO EQUIPMENT(E11) 01.531 (F) M8X20 FLANGE 		0-28650-820-0 02 1 0610-0809 ●
748 02.500 BOLT; CONT UNIT
03.162 (G) M6X20 FLANGE 		0-28650-620-0 03 1 0610-1007 ● ●
748 02.500 BOLT; CONT UNIT
03.162 (G) M6X20 FLANGE 		0-28650-620-0 03 1 1008- ● ● ●
748 02.500 BOLT; CONT UNIT
01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0610-0709 ● ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0710-0809 ● ●
748 02.500 BOLT; CONT UNIT
CHEVROLET EQUIPMENT(8JF) 01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0810-1003 ● ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0809 ● ●
748 02.500 BOLT; CONT UNIT
EXC. CHEVROLET EQUIPMENT(8JF) 02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 0810-1003 ● ●
748 02.500 BOLT; CONT UNIT
02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 1004-1007 ● ●
748 02.500 BOLT; CONT UNIT
EXC. CHEVROLET EQUIPMENT(8JF) 02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 1008-1109 ● ● ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> EXC. CHEVROLET EQUIPMENT(8JF) 02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 1110- ● ● ●
828 02.277 SHACKLE; GEN 8-92066-079-0 01 1 0306- ●
829 02.510 BOLT; SHACKLE
01.516 M8X20 FLANGE 		8-11097-731-0 01 1 0306-1009 ●
829 02.510 BOLT; SHACKLE
01.153 		8-11090-684-0 02 1 1010- ●
876 02.500 SPACER; CONT UNIT 8-92065-515-0 04 1 0306-0609 ●
876 02.500 SPACER; CONT UNIT
EXC. MEXICO EQUIPMENT(E11) 		8-92065-515-0 04 1 0610-0809 ●
876 02.500 SPACER; CONT UNIT 8-92065-515-0 04 1 0810- ●
çizim 73215
393 393 393 784 124 784 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
124 01.150 SENSOR; OXYGEN 8-97287-352-0 02 1 0306-0609 ●
124 01.150 SENSOR; OXYGEN 8-97287-352-0 02 1 0710-1003 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECIFICATION<NT1>,EURO2 SP ECIFICATION<NT2> 		8-25327-985-0 01 1 0306-0609 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. MEXICO EQUIPMENT(E11) 		8-25327-985-0 01 1 0610-0709 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-25327-985-0 01 1 0610-0709 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECIFICATION<NT1>,EURO2 SP ECIFICATION<NT2> EXC. MEXICO EQUIPMENT(E11) 		8-25327-985-0 01 1 0710-0809 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2>,EURO1 SPECIFICATION<NT1>,EURO2 SP ECIFICATION<NT2> 		8-25327-985-0 01 1 0810-1003 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 1<NF2> ,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-25327-985-0 01 1 1004-1007 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-25327-985-0 01 1 1008- ●
124 01.150 SENSOR; OXYGEN
EURO3 SPECIFICATION<NT3> 		8-25327-985-0 02 1 0601-0609 ●
124 01.150 SENSOR; OXYGEN
EMISSION SYSTEM FEDERAL,TIER 1<NF2> MEXICO EQUIPMENT(E11) 		8-25327-985-0 02 1 0610-0709 ●
124 01.150 SENSOR; OXYGEN
EURO3 SPECIFICATION<NT3> 		8-25327-985-0 02 1 0610-0709 ●
124 01.150 SENSOR; OXYGEN
MEXICO EQUIPMENT(E11) EMISSION SYSTEM FEDERAL,TIER 1<NF2> 		8-25327-985-0 02 1 0710-0809 ●
124 01.150 SENSOR; OXYGEN
EURO3 SPECIFICATION<NT3> 		8-25327-985-0 02 1 0710-0809 ●
124 01.150 SENSOR; OXYGEN
EURO3 SPECIFICATION<NT3> 		8-25327-985-0 02 1 0810-1007 ●
124 01.150 SENSOR; OXYGEN 8-97287-352-0 02 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98073-210-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98073-211-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98073-212-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0306-0608 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0609-0609 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0306-0608 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0609-0609 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-162-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98050-833-0 01 1 0610-1007 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98050-833-0 01 1 1008- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97249-301-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(I) 		8-98050-884-0 01 1 0610-1007 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(I) 		8-98050-884-0 01 1 1008- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-97311-081-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98073-210-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98073-211-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98073-212-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-97236-167-0 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(G) 		8-97351-001-0 01 1 0306-0608 ●
393 02.343 BRACKET; HARNESS TO BODY
(G) 		8-98050-829-0 01 1 0609- ●
784 02.363 RETAINER
A/T AISIN(RMD) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 1008- ●
784 02.363 RETAINER
04.342 (A) ID=7 		5-09707-053-0 01 1 1008- ●
784 02.363 RETAINER
04.342 (A) ID=7 		5-09707-053-0 01 1 0306-0609 ●
784 02.363 RETAINER
04.342 (A) ID=7 		5-09707-053-0 01 1 0710-1003 ●
784 02.363 RETAINER
A/T AISIN(RMD) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0306-0609 ●
784 02.363 RETAINER
A/T AISIN(RMD) 02.559 (B) ID=6.5 		8-94257-639-0 01 1 0710-1003 ●
çizim 73300
393 10 424 395
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
10 02.100 RELAY; STARTER
M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1110- ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0911-1007 ● ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 1008- ● ● ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0306-0609 ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ● ● ● ●
10 02.100 RELAY; STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0508 ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0509-0609 ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0710-1003 ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1004-1007 ●
10 02.100 RELAY; STARTER
A/T AISIN(RMD) 02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> 02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0509-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98073-210-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98073-211-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98073-212-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0306-0608 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0609-0609 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0306-0608 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0609-0609 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-162-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98050-833-0 01 1 0610-1007 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98050-833-0 01 1 1008- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97249-301-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(I) 		8-98050-884-0 01 1 0610-1007 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(I) 		8-98050-884-0 01 1 1008- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-97311-081-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98073-210-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98073-211-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98073-212-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-97236-167-0 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(G) 		8-97351-001-0 01 1 0306-0608 ●
393 02.343 BRACKET; HARNESS TO BODY
(G) 		8-98050-829-0 01 1 0609- ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0306-0609 ● ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0610-0709 ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0710- ● ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0306-0603 ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ● ● ● ●
395 02.343 NUT; BRKT FIX
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●
395 02.343 NUT; BRKT FIX
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1008-1109 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1008-1109 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1008-1109 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRONIC CONTROL<K20>,HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRONIC CONTROL<K20>,HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRONIC CONTROL<K20>,HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0406-0508 ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0509-0609 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0610-0709 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) CHEVROLET EQUIPMENT(8JF) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0610-0709 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0710-1003 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
CHEVROLET EQUIPMENT(8JF) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0710-1003 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1004-1007 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1008- ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
12V OMRON 		8-97125-441-1 01 1 0509-0609 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) EXC. CHEVROLET EQUIPMENT(8JF) 02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) 02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ●
424 02.510 RELAY; SAFETY,STARTER
EXC. CHEVROLET EQUIPMENT(8JF) 02.575 12V OMRON 		8-98005-407-0 01 1 0710-1003 ●
424 02.510 RELAY; SAFETY,STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1004- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-294-0 01 1 0509-0609 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 12V OMRON 		8-97125-441-1 01 1 0710-0910 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 12V OMRON 		8-97125-441-1 01 1 0710-0910 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> 12V OMRON 		8-97125-441-1 01 1 0710-0910 ●
424 02.510 RELAY; SAFETY,STARTER
4X2 CREW CAB LONG(TFB6WF) 4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 0911-1003 ●
424 02.510 RELAY; SAFETY,STARTER
4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 03.670 12V YAZAKI 		8-98146-834-0 01 1 0911-1003 ●
çizim 73301
2 23 26 26 16 21 1 4 420 7 796 782 782 766 129 327
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 1008- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97365-824-0 01 1 0306-0604 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0605-0609 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0610- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0306-0609 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0610-0611 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 2.3KW 		8-98028-199-0 01 1 0612-0612 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0612-0612 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0612-1007 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1008- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0710-1003 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0306-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EGYPT EQUIPMENT(B09) 12V 90A 		8-98229-071-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98196-585-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1107-1108 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1109-1209 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98196-585-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1210-1211 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 1008- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 1008-1011 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EGYPT EQUIPMENT(B09) 12V 90A 		8-98153-004-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1012-1012 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1101-1106 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EGYPT EQUIPMENT(B09) 12V 90A 		8-98153-004-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0306-0609 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0610- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0306-0609 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0610- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 0306-0609 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0610-0611 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98006-084-0 01 1 0612-0612 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0612-0612 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0612-1007 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1008-1011 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98006-084-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 0710-1003 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 100A 		8-92064-568-0 01 1 0306-0310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97360-782-1 01 1 0311- ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1008- ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 1008- ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0306-0609 ● ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0610-0611 ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0612-1003 ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SP EED 5S(RSQ) EGYPT EQUIPMENT(B09) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0612-1003 ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1004-1007 ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SP EED 5S(RSQ) EGYPT EQUIPMENT(B09) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ● ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0306-0609 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-0 02 1 0610-0611 ● ●
4 02.042 BOLT; STARTER
EXC. EGYPT EQUIPMENT(B09) (A) M12X60 		8-97161-846-1 02 1 0612-1003 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 0612-1003 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1004-1007 ● ●
4 02.042 BOLT; STARTER
EXC. EGYPT EQUIPMENT(B09) (A) M12X60 		8-97161-846-1 02 1 1008-1402 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1008-1402 ● ●
4 02.042 BOLT; STARTER
EXC. EGYPT EQUIPMENT(B09), IDENTIFICATION LABEL FOR KD<6UT> (A) M12X60 		8-97161-846-1 02 1 1403- ● ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1403- ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 0306-0609 ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0710-1003 ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 0710-1003 ●
4 02.042 BOLT; STARTER
(D) M10X25 FLANGE 		0-28151-025-0 01 1 0306- ●
4 02.042 BOLT; STARTER
(E) 		8-11073-352-0 01 1 0306- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 1008- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0306-0609 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0610-0611 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0612-0905 ● ●
7 02.042 NUT; STARTER
EXC. EGYPT EQUIPMENT(B09) M12 FLANGE 		0-91180-112-0 02 1 0612-0905 ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0306-0609 ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0710-1003 ●
7 02.042 NUT; STARTER
EGYPT EQUIPMENT(B09) M12 FLANGE 		0-91180-112-0 01 1 0612-0905 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0906-1007 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1008- ● ● ● ● ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 1008- ●
16 02.277 BOLT; GEN
01.060 (C) M8X35 FLANGE 		0-28650-835-0 01 1 1008- ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0306-0609 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0610- ● ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 0306-0609 ●
16 02.277 BOLT; GEN
(F) M10X125 FLANGE 		8-97226-470-0 01 1 0610-0611 ● ●
16 02.277 BOLT; GEN
EXC. EGYPT EQUIPMENT(B09) (F) M10X125 FLANGE 		8-97226-470-0 01 1 0612-0612 ●
16 02.277 BOLT; GEN
(F) M10X125 FLANGE 		8-97226-470-0 01 1 0612-0612 ●
16 02.277 BOLT; GEN
(F) M10X125 FLANGE 		8-97226-470-1 01 1 0612-1007 ● ●
16 02.277 BOLT; GEN
(C) M10X125 FLANGE 		8-97226-470-1 01 1 1008- ● ● ●
16 02.277 BOLT; GEN
01.060 (C) M8X35 FLANGE 		0-28650-835-0 01 1 0306-0609 ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 0710-1003 ●
16 02.277 BOLT; GEN
01.060 (C) M8X35 FLANGE 		0-28650-835-0 01 1 0710-1003 ●
16 02.277 BOLT; GEN
(D) 		8-11098-091-0 01 1 0306- ●
16 02.277 BOLT; GEN
(E) 		8-92138-526-0 01 1 0306- ●
21 02.277 BRACKET; GEN
(C) 		8-97245-424-0 01 1 1008- ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 1008- ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0306-0402 ● ● ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0403-0609 ● ●
21 02.277 BRACKET; GEN
EXC. TURKEY EQUIPMENT(B11) (A) 		8-94437-276-2 01 1 0403-0609 ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0610- ● ●
21 02.277 BRACKET; GEN
TURKEY EQUIPMENT(B11) (A) 		8-97912-659-0 01 1 0403-0609 ●
21 02.277 BRACKET; GEN
(C) 		8-97245-424-0 01 1 0306-0609 ●
21 02.277 BRACKET; GEN
(D) 		8-97356-020-1 01 1 0610-1007 ● ●
21 02.277 BRACKET; GEN
(D) 		8-97356-020-1 01 1 1008- ● ● ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0306-0609 ●
21 02.277 BRACKET; GEN
(C) 		8-97245-424-0 01 1 0710-1003 ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0710-1003 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0306-0609 ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0610-0611 ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0612-0612 ● ●
23 02.277 NUT; GEN
EXC. EGYPT EQUIPMENT(B09) 04.085 M10 FLANGE 		0-91180-210-0 01 1 0612-0612 ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0612-1007 ● ● ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1008- ● ● ● ● ●
23 02.277 NUT; GEN
06.672 M10 FLANGE 		0-91280-210-0 01 1 0306- ●
26 02.277 BOLT; GEN BRKT
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0610-1007 ● ●
26 02.277 BOLT; GEN BRKT
(A) M10X35 FLANGE 		0-28651-035-0 01 1 1008- ● ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0610-1007 ● ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1008- ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0610-1007 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008- ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 1008- ●
327 02.361 SENSOR; CAMSHAFT POSITION
03.670 		8-97324-402-1 01 1 0306-0609 ● ●
327 02.361 SENSOR; CAMSHAFT POSITION
03.670 		8-97324-402-2 01 1 0610- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 0306-0609 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0610-1007 ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1008- ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 0710-1003 ●
420 02.183 BRACKET; HARNESS 8-98011-538-0 01 1 0610-1007 ● ●
420 02.183 BRACKET; HARNESS 8-98011-538-0 01 1 1008- ● ● ●
766 02.363 GASKET; SENSOR 8-98158-639-0 01 1 0810- ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 0306- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0610-1007 ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1008- ● ● ●
782 02.510 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 1008- ●
782 02.510 BOLT; SENSOR
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0306-0601 ● ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0602-0609 ● ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0610- ●
782 02.510 BOLT; SENSOR
01.428 (C) M6X12 FLANGE 		0-28080-612-0 01 1 0306-0512 ●
782 02.510 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0601-0609 ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0610-1007 ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1008- ● ●
782 02.510 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0710-1003 ●
782 02.510 BOLT; SENSOR
(D) 		8-11093-881-0 01 1 0306- ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0610-1007 ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 1008- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0610-1007 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1008- ● ●
çizim 73302
748 601 606 613 748 606 748 748 606 601 748 748 606 613
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
601 03.670 NUT; UNIT
03.901 (A) 		8-11013-127-0 02 1 0306- ●
601 03.670 NUT; UNIT
02.042 (B) M6 		8-11094-425-0 04 1 0306-0609 ●
601 03.670 NUT; UNIT
EXC. MEXICO EQUIPMENT(E11) 02.042 (B) M6 		8-11094-425-0 04 1 0610-0809 ●
601 03.670 NUT; UNIT
02.042 (B) M6 		8-11094-425-0 04 1 0810- ●
601 03.670 NUT; UNIT
01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0610-1007 ● ●
601 03.670 NUT; UNIT
01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 1008- ● ● ●
606 03.680 BRACKET; CONT UNIT
CHEVROLET EQUIPMENT(8JF) (C) 		8-97364-729-2 01 1 1008-1109 ● ● ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (C) 		8-97364-729-2 01 1 1110- ● ● ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-92066-169-0 01 1 0306- ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-97364-729-2 01 1 0610-0709 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (C) 		8-97364-729-2 01 1 0710-0809 ● ●
606 03.680 BRACKET; CONT UNIT
CHEVROLET EQUIPMENT(8JF) (C) 		8-97364-729-2 01 1 0810-1003 ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (D) 		8-98064-201-2 01 1 0710-0809 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98113-306-0 01 1 0810-1003 ● ●
606 03.680 BRACKET; CONT UNIT
(D) 		8-98113-306-0 01 1 1004-1007 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. CHEVROLET EQUIPMENT(8JF) (D) 		8-98113-306-0 01 1 1008-1109 ● ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (D) 		8-98113-306-0 01 1 1110- ● ● ●
606 03.680 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) 		8-97380-199-0 01 1 0610-0709 ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98073-335-0 01 1 0710-0809 ● ●
606 03.680 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98073-335-0 01 1 0810-1003 ● ●
606 03.680 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98073-335-0 01 1 1004-1007 ● ●
606 03.680 BRACKET; CONT UNIT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. CHEVROLET EQUIPMENT(8JF) (E) 		8-98073-335-0 01 1 1008-1109 ● ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (E) 		8-98073-335-0 01 1 1110- ● ● ●
606 03.680 BRACKET; CONT UNIT
EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (B) 		8-97364-731-2 01 1 0610-0709 ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (E) 		8-98064-202-0 01 1 0710-0809 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY>,CHEVROLET EQUIPMENT(8JF) (E) 		8-98064-202-0 01 1 0810-1003 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (E) 		8-98064-202-0 01 1 1004-1007 ● ●
606 03.680 BRACKET; CONT UNIT
EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY>,CHEVROLET EQUIPMENT(8JF) (E) 		8-98064-202-0 01 1 1008-1109 ● ● ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> EXC. REMOTE CONT DOOR LOCK W/ANTI T HEFT<7KY> (E) 		8-98064-202-0 01 1 1110- ● ● ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98135-380-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,CHEVROLET EQUIPMENT (8JF) 		8-98195-242-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98135-381-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98195-241-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98194-778-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98160-158-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 		8-98160-158-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98160-141-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98160-141-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-137-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-137-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-142-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-142-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) CHILE EQUIPMENT(KE1) EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98169-614-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) CHILE EQUIPMENT(KE1) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98169-614-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-145-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-145-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO4 SPECIFICATION<NT4> EXC. CHILE EQUIPMENT(KE1),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98160-146-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> EXC. CHILE EQUIPMENT(KE1),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98160-146-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98160-159-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 		8-98160-159-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98160-143-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98160-143-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-139-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-139-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-144-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98160-144-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98097-108-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98126-978-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98135-370-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98152-106-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-106-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98170-820-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98170-820-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98097-110-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98126-980-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98097-111-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-981-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-372-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-109-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-109-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-823-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-823-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98097-112-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-982-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-376-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-110-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-110-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-827-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-827-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98097-109-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98126-979-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98135-374-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98152-107-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-107-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98170-825-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98170-825-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98102-102-0 01 1 0711-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98126-984-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98135-355-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98152-112-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-112-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98160-151-2 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98160-151-2 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) IMMOBILIZER SYSTEM<7KC> 		8-97361-894-1 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98017-338-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98079-708-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98079-708-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98099-163-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98099-163-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98099-163-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT(8JF) 		8-98195-239-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 0306-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 0710-0905 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 0906-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20>, IMMOBILIZER SYSTEM<7KC> 		8-97361-890-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-892-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-350-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-718-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98071-298-2 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),AUTO CRUISE CONT<K30> 		8-98071-298-2 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPM ENT(E06),ECUADOR EQUIPMENT(E46), IMMOBILIZER SYSTEM<7KC> 		8-97361-886-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98017-336-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98079-706-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98079-706-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98099-161-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98099-161-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98099-161-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,CHEVROLET EQUIPMENT (8JF) 		8-98195-240-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> 		8-97361-888-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-335-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-705-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-705-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98099-160-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-160-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-160-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98135-378-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-97361-882-1 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> 		8-98017-351-6 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-395-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-951-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-350-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-079-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-079-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-809-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-809-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-885-0 01 1 0306-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> EXC. ELECTRONIC CONTROL<K20>, IMMOBILIZER SYSTEM<7KC> 		8-97361-885-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 0306-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 0710-0905 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 0906-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ELECTRONIC CONTROL<K20>, IMMOBILIZER SYSTEM<7KC> 		8-97361-891-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97361-893-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98017-353-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98079-720-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98057-411-3 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZE R SYSTEM<7KC> 		8-98057-411-3 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPM ENT(E06),ECUADOR EQUIPMENT(E46), IMMOBILIZER SYSTEM<7KC> 		8-97361-887-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> 		8-98017-349-6 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98069-519-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98069-519-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> IMMOBILIZER SYSTEM<7KC> 		8-97361-889-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-352-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-719-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98071-300-2 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> IMMOBILIZER SYSTEM<7KC> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),AUTO CRUISE CONT<K30> 		8-98071-300-2 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO3 SPECIFICATION<NT3> EXC. CHILE EQUIPMENT(KE1), IMMOBILIZER SYSTEM<7KC> 		8-97361-884-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-337-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-707-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-707-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98099-162-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-162-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-162-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98135-379-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-97361-883-1 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98017-354-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98079-721-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98057-396-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98126-952-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98135-351-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98152-080-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-080-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98170-810-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98170-810-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-519-0 01 1 0306-0905 ●
613 03.670 CONTROL UNIT; ENG
COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-519-0 01 1 0906-1003 ●
613 03.670 CONTROL UNIT; ENG
COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) EMISSION SYSTEM FEDERAL,TIER 0<NA5> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-519-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 0306-0709 ●
613 03.670 CONTROL UNIT; ENG
CHILE EQUIPMENT(KE1) EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 0306-0709 ●
613 03.670 CONTROL UNIT; ENG
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 0710-1003 ●
613 03.670 CONTROL UNIT; ENG
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
CHILE EQUIPMENT(KE1) EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
EGYPT EQUIPMENT(B09),SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-09387-459-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHIL E EQUIPMENT(KE1),IMMOBILIZER SYSTEM<7KC> 		8-09387-539-0 01 1 0306-0905 ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1),IMMOBILIZER SYSTEM<7KC> 		8-09387-539-0 01 1 0906-1003 ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. SAUDI ARABIA EQUIPMENT(GH3), CHILE EQUIPMENT(KE1),IMMOBILIZER SYST EM<7KC> 		8-09387-539-0 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
EMISSION SYSTEM R15-04<K75> EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1),IMMOBILIZER SYSTEM<7KC> 		8-09387-539-0 01 1 1008- ●
613 03.670 CONTROL UNIT; ENG
MEXICO EQUIPMENT(E11) EMISSION SYSTEM FEDERAL,TIER 1<NF2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-92187-518-0 01 1 0610-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZER SYSTEM<7KC> 		8-98057-412-3 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL),EGYPT EQUIPMENT(B09),AUTO CRUISE CONT<K30>,IMMOBILIZE R SYSTEM<7KC> 		8-98057-412-3 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-397-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-953-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-352-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-081-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-081-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-811-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98170-811-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98057-398-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98126-954-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98135-353-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98152-082-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC> 		8-98152-082-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98170-812-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30>, IMMOBILIZER SYSTEM<7KC>,CHEVROLET EQUIPMENT (8JF) 		8-98170-812-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98028-993-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98079-723-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98079-723-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98099-173-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98099-173-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98017-345-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98017-345-8 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98079-526-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98079-526-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98057-402-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98057-407-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98126-963-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98152-091-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98152-091-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98160-154-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 		8-98160-154-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-401-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-957-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-357-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-085-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-085-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-157-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98160-157-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-408-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-964-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-092-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-092-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-155-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98160-155-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-340-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-710-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-710-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98099-165-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-165-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98017-346-8 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-527-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T AISIN(RMD) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98079-527-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98028-992-6 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98079-722-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98079-722-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98099-172-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98099-172-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98017-343-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98017-343-8 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20> 		8-98079-524-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98079-524-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> 		8-98057-400-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98057-405-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98126-961-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. CHEVROLET EQUIPMENT(8JF) 		8-98152-089-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> 		8-98152-089-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) 		8-98160-152-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 		8-98160-152-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-399-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-955-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98135-354-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-083-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-083-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-156-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-156-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98160-156-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98057-406-3 01 1 0710-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98126-962-0 01 1 0810-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30>, CHEVROLET EQUIPMENT(8JF) 		8-98152-090-1 01 1 0910-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98152-090-1 01 1 1004-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98160-153-0 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98160-153-0 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-339-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98079-709-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-709-0 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98099-164-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION<NT3> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98099-164-0 01 1 0810-1003 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0610-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98017-344-8 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> EXC. ELECTRONIC CONTROL<K20>,AUTO CRUISE CONT<K30> 		8-98079-525-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUX 5 SPEED 5S(MZJ) EURO4 SPECIFICATION<NT4> IMMOBILIZER SYSTEM<7KC> CHEVROLET EQUIPMENT(8JF) EXC. AUTO CRUISE CONT<K30> 		8-98079-525-0 01 1 0810-1003 ●
748 02.500 BOLT; CONT UNIT
CHEVROLET EQUIPMENT(8JF) 01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 1008-1109 ● ● ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 1110- ● ● ●
748 02.500 BOLT; CONT UNIT
(A) M6X10 FLANGE 		0-28080-610-0 04 1 0306-0601 ● ●
748 02.500 BOLT; CONT UNIT
03.671 (A) M6X10 FLANGE 		0-28050-610-0 04 1 0602-0609 ● ●
748 02.500 BOLT; CONT UNIT
03.671 (A) M6X10 FLANGE 		0-28050-610-0 04 1 0610- ●
748 02.500 BOLT; CONT UNIT
(C) 		8-92065-435-0 04 1 0306-0609 ●
748 02.500 BOLT; CONT UNIT
EXC. MEXICO EQUIPMENT(E11) (C) 		8-92065-435-0 04 1 0610-0809 ●
748 02.500 BOLT; CONT UNIT
(C) 		8-92065-435-0 04 1 0810- ●
748 02.500 BOLT; CONT UNIT
(B) 		8-92138-695-0 02 1 0306-0611 ●
748 02.500 BOLT; CONT UNIT
(B) 		8-98064-521-0 02 1 0612- ●
748 02.500 BOLT; CONT UNIT
MEXICO EQUIPMENT(E11) 04.866 (D) M6X40 FLANGE 		0-28050-640-0 04 1 0610-0809 ●
748 02.500 BOLT; CONT UNIT
MEXICO EQUIPMENT(E11) 03.162 (E) M6X20 FLANGE 		0-28650-620-0 01 1 0610-0809 ●
748 02.500 BOLT; CONT UNIT
MEXICO EQUIPMENT(E11) 01.531 (F) M8X20 FLANGE 		0-28650-820-0 02 1 0610-0809 ●
748 02.500 BOLT; CONT UNIT
03.162 (G) M6X20 FLANGE 		0-28650-620-0 03 1 0610-1007 ● ●
748 02.500 BOLT; CONT UNIT
03.162 (G) M6X20 FLANGE 		0-28650-620-0 03 1 1008- ● ● ●
748 02.500 BOLT; CONT UNIT
01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0610-0709 ● ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0710-0809 ● ●
748 02.500 BOLT; CONT UNIT
CHEVROLET EQUIPMENT(8JF) 01.428 (H) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0810-1003 ● ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0809 ● ●
748 02.500 BOLT; CONT UNIT
EXC. CHEVROLET EQUIPMENT(8JF) 02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 0810-1003 ● ●
748 02.500 BOLT; CONT UNIT
02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 1004-1007 ● ●
748 02.500 BOLT; CONT UNIT
EXC. CHEVROLET EQUIPMENT(8JF) 02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 1008-1109 ● ● ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> EXC. CHEVROLET EQUIPMENT(8JF) 02.343 (I) M6X16 FLANGE 		0-28650-616-0 03 1 1110- ● ● ●
çizim 73303
46 424 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
10 02.100 RELAY; STARTER
M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1110- ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0911-1007 ● ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 1008- ● ● ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0306-0609 ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ● ● ● ●
10 02.100 RELAY; STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0508 ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0509-0609 ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0710-1003 ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1004-1007 ●
10 02.100 RELAY; STARTER
A/T AISIN(RMD) 02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> 02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0509-0609 ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0306-0609 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 0911-1007 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 1008- ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1008-1109 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1008-1109 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1008-1109 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRONIC CONTROL<K20>,HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRONIC CONTROL<K20>,HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRONIC CONTROL<K20>,HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0406-0508 ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0509-0609 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0610-0709 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) CHEVROLET EQUIPMENT(8JF) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0610-0709 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0710-1003 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
CHEVROLET EQUIPMENT(8JF) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0710-1003 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1004-1007 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1008- ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
12V OMRON 		8-97125-441-1 01 1 0509-0609 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) EXC. CHEVROLET EQUIPMENT(8JF) 02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) 02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ●
424 02.510 RELAY; SAFETY,STARTER
EXC. CHEVROLET EQUIPMENT(8JF) 02.575 12V OMRON 		8-98005-407-0 01 1 0710-1003 ●
424 02.510 RELAY; SAFETY,STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1004- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-294-0 01 1 0509-0609 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 12V OMRON 		8-97125-441-1 01 1 0710-0910 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 12V OMRON 		8-97125-441-1 01 1 0710-0910 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> 12V OMRON 		8-97125-441-1 01 1 0710-0910 ●
424 02.510 RELAY; SAFETY,STARTER
4X2 CREW CAB LONG(TFB6WF) 4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 0911-1003 ●
424 02.510 RELAY; SAFETY,STARTER
4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 03.670 12V YAZAKI 		8-98146-834-0 01 1 0911-1003 ●
çizim 73329
21 13 13 2 21 13 16 13 16 262 7 1 83 260 4 4 262
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 1008- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97365-824-0 01 1 0306-0604 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0605-0609 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0610- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0306-0609 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0610-0611 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 2.3KW 		8-98028-199-0 01 1 0612-0612 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0612-0612 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0612-1007 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1008- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0710-1003 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0306-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EGYPT EQUIPMENT(B09) 12V 90A 		8-98229-071-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98196-585-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1107-1108 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1109-1209 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98196-585-0 01 1 1210-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1210-1211 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 1008- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 1008-1011 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EGYPT EQUIPMENT(B09) 12V 90A 		8-98153-004-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1012-1012 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1101-1106 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EGYPT EQUIPMENT(B09) 12V 90A 		8-98153-004-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1107-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0306-0609 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0610- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0306-0609 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0610- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 0306-0609 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0610-0611 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98006-084-0 01 1 0612-0612 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0612-0612 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0612-1007 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1008-1011 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 90A 		8-98006-084-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 1012-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97210-373-0 01 1 0710-1003 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 100A 		8-92064-568-0 01 1 0306-0310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97360-782-1 01 1 0311- ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1008- ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 1008- ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0306-0609 ● ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0610-0611 ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0612-1003 ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SP EED 5S(RSQ) EGYPT EQUIPMENT(B09) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0612-1003 ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1004-1007 ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SP EED 5S(RSQ) EGYPT EQUIPMENT(B09) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ● ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0306-0609 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-0 02 1 0610-0611 ● ●
4 02.042 BOLT; STARTER
EXC. EGYPT EQUIPMENT(B09) (A) M12X60 		8-97161-846-1 02 1 0612-1003 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 0612-1003 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1004-1007 ● ●
4 02.042 BOLT; STARTER
EXC. EGYPT EQUIPMENT(B09) (A) M12X60 		8-97161-846-1 02 1 1008-1402 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1008-1402 ● ●
4 02.042 BOLT; STARTER
EXC. EGYPT EQUIPMENT(B09), IDENTIFICATION LABEL FOR KD<6UT> (A) M12X60 		8-97161-846-1 02 1 1403- ● ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1403- ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 0306-0609 ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0710-1003 ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 0710-1003 ●
4 02.042 BOLT; STARTER
(D) M10X25 FLANGE 		0-28151-025-0 01 1 0306- ●
4 02.042 BOLT; STARTER
(E) 		8-11073-352-0 01 1 0306- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 1008- ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0306-0609 ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0610-0611 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0612-0905 ● ●
7 02.042 NUT; STARTER
EXC. EGYPT EQUIPMENT(B09) M12 FLANGE 		0-91180-112-0 02 1 0612-0905 ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0306-0609 ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0710-1003 ●
7 02.042 NUT; STARTER
EGYPT EQUIPMENT(B09) M12 FLANGE 		0-91180-112-0 01 1 0612-0905 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0906-1007 ● ● ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1008- ● ● ● ● ●
13 02.100 BOLT; BRKT
(C) M8X90 FLANGE 		0-28050-890-0 02 1 1008- ●
13 02.100 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 01 1 1008- ●
13 02.100 BOLT; BRKT
01.251 (B) M8X40 FLANGE 		0-28660-840-0 02 1 1008- ●
13 02.100 BOLT; BRKT
(C) M8X90 FLANGE 		0-28050-890-0 02 1 0306-0609 ●
13 02.100 BOLT; BRKT
04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 0306-0512 ●
13 02.100 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0609 ●
13 02.100 BOLT; BRKT
16.545 (B) M8X40 FLANGE 		0-28690-840-0 02 1 0306-0512 ●
13 02.100 BOLT; BRKT
01.251 (B) M8X40 FLANGE 		0-28660-840-0 02 1 0601-0609 ●
13 02.100 BOLT; BRKT
(C) M8X90 FLANGE 		0-28050-890-0 02 1 0710-1003 ●
13 02.100 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1003 ●
13 02.100 BOLT; BRKT
01.251 (B) M8X40 FLANGE 		0-28660-840-0 02 1 0710-1003 ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 1008- ●
16 02.277 BOLT; GEN
01.060 (C) M8X35 FLANGE 		0-28650-835-0 01 1 1008- ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0306-0609 ● ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0610- ● ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 0306-0609 ●
16 02.277 BOLT; GEN
(F) M10X125 FLANGE 		8-97226-470-0 01 1 0610-0611 ● ●
16 02.277 BOLT; GEN
EXC. EGYPT EQUIPMENT(B09) (F) M10X125 FLANGE 		8-97226-470-0 01 1 0612-0612 ●
16 02.277 BOLT; GEN
(F) M10X125 FLANGE 		8-97226-470-0 01 1 0612-0612 ●
16 02.277 BOLT; GEN
(F) M10X125 FLANGE 		8-97226-470-1 01 1 0612-1007 ● ●
16 02.277 BOLT; GEN
(C) M10X125 FLANGE 		8-97226-470-1 01 1 1008- ● ● ●
16 02.277 BOLT; GEN
01.060 (C) M8X35 FLANGE 		0-28650-835-0 01 1 0306-0609 ●
16 02.277 BOLT; GEN
(B) M10X90 FLANGE 		0-28051-090-0 01 1 0710-1003 ●
16 02.277 BOLT; GEN
01.060 (C) M8X35 FLANGE 		0-28650-835-0 01 1 0710-1003 ●
16 02.277 BOLT; GEN
(D) 		8-11098-091-0 01 1 0306- ●
16 02.277 BOLT; GEN
(E) 		8-92138-526-0 01 1 0306- ●
21 02.277 BRACKET; GEN
(C) 		8-97245-424-0 01 1 1008- ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 1008- ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0306-0402 ● ● ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0403-0609 ● ●
21 02.277 BRACKET; GEN
EXC. TURKEY EQUIPMENT(B11) (A) 		8-94437-276-2 01 1 0403-0609 ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0610- ● ●
21 02.277 BRACKET; GEN
TURKEY EQUIPMENT(B11) (A) 		8-97912-659-0 01 1 0403-0609 ●
21 02.277 BRACKET; GEN
(C) 		8-97245-424-0 01 1 0306-0609 ●
21 02.277 BRACKET; GEN
(D) 		8-97356-020-1 01 1 0610-1007 ● ●
21 02.277 BRACKET; GEN
(D) 		8-97356-020-1 01 1 1008- ● ● ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0306-0609 ●
21 02.277 BRACKET; GEN
(C) 		8-97245-424-0 01 1 0710-1003 ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0710-1003 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 1008- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0306-0609 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0610- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0306-0609 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0610- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 0306-0609 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 0710-1003 ●
260 01.150 SENSOR; WATER TEMP
(C) 		8-15326-386-0 01 1 0306-0609 ●
260 01.150 SENSOR; WATER TEMP
(C) 		8-15326-386-0 01 1 0710-1003 ●
260 01.150 SENSOR; WATER TEMP
(C) 		8-15326-386-0 01 1 1008-1009 ●
260 01.150 SENSOR; WATER TEMP
(C) 		8-15326-386-0 01 1 1010- ● ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-12146-312-0 01 1 0306-1009 ●
260 01.150 SENSOR; WATER TEMP
(A) 		8-92063-893-0 01 1 0306- ●
262 02.559 CLIP; HARNESS
ID=12 		5-09700-331-0 02 1 0306-0609 ●
262 02.559 CLIP; HARNESS
ID=12 		5-09700-331-0 02 1 0710-0801 ●
262 02.559 CLIP; HARNESS
01.150 ID=12 		8-97367-983-1 02 1 0802-1003 ●
262 02.559 CLIP; HARNESS
01.150 ID=12 		8-97367-983-1 02 1 1008- ●
çizim 73507
31 417 31 377 31 53 31 53 53 377 377 53 31 260 782 766 832 260 812 539
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
31 02.251 CLIP; HIGH TENSION CABLE
(A) 		8-02965-736-0 01 1 0306-1009 ●
31 02.251 CLIP; HIGH TENSION CABLE
(B) 		8-90320-343-0 01 1 0306- ●
31 02.251 CLIP; HIGH TENSION CABLE
(C) 		8-90320-344-0 01 1 0306- ●
31 02.251 CLIP; HIGH TENSION CABLE
(D) 		8-90320-345-0 01 1 0306- ●
31 02.251 CLIP; HIGH TENSION CABLE
(E) 		8-90341-384-0 01 1 0306- ●
53 02.240 CABLE; IGN PLUG
(A) 		8-92066-027-0 01 1 0306- ●
53 02.240 CABLE; IGN PLUG
(B) 		8-92066-028-0 01 1 0306- ●
53 02.240 CABLE; IGN PLUG
(C) 		8-92066-029-0 01 1 0306- ●
53 02.240 CABLE; IGN PLUG
(D) 		8-92066-030-0 01 1 0306- ●
260 01.150 SENSOR; WATER TEMP
(C) 		8-15326-386-0 01 1 0306-0609 ●
260 01.150 SENSOR; WATER TEMP
(C) 		8-15326-386-0 01 1 0710-1003 ●
260 01.150 SENSOR; WATER TEMP
(C) 		8-15326-386-0 01 1 1008-1009 ●
260 01.150 SENSOR; WATER TEMP
(C) 		8-15326-386-0 01 1 1010- ● ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-12146-312-0 01 1 0306-1009 ●
260 01.150 SENSOR; WATER TEMP
(A) 		8-92063-893-0 01 1 0306- ●
377 02.183 BRACKET; HIGH TENSION CABLE
(A) 		8-90460-630-0 01 1 0306- ●
377 02.183 BRACKET; HIGH TENSION CABLE
(B) 		8-90460-631-0 01 1 0306- ●
377 02.183 BRACKET; HIGH TENSION CABLE
(C) 		8-90493-625-0 01 1 0306- ●
417 02.420 CLIP 8-92138-212-0 01 1 0306-1009 ●
417 02.420 CLIP 8-90044-312-0 01 1 1010- ●
539 02.510 SCREW; SENSOR 8-90280-051-0 03 1 0306- ●
766 02.363 GASKET; SENSOR 8-98158-639-0 01 1 0810- ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 0306- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0610-1007 ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1008- ● ● ●
782 02.510 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 1008- ●
782 02.510 BOLT; SENSOR
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0306-0601 ● ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0602-0609 ● ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0610- ●
782 02.510 BOLT; SENSOR
01.428 (C) M6X12 FLANGE 		0-28080-612-0 01 1 0306-0512 ●
782 02.510 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0601-0609 ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0610-1007 ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1008- ● ●
782 02.510 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0710-1003 ●
782 02.510 BOLT; SENSOR
(D) 		8-11093-881-0 01 1 0306- ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0610-1007 ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 1008- ● ● ●
812 02.510 ROTOR; SENSOR 8-90265-094-0 01 1 0306- ●
832 02.510 SENSOR; CRANK ANGLE & ENG SPD 8-10456-597-0 01 1 0306- ●
çizim 73567
520 46 644 424 10 819 393 130 309 640 133 395
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
10 02.100 RELAY; STARTER
M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1110- ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0911-1007 ● ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 1008- ● ● ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0306-0609 ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ● ● ● ●
10 02.100 RELAY; STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0508 ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0509-0609 ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0710-1003 ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1004-1007 ●
10 02.100 RELAY; STARTER
A/T AISIN(RMD) 02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> 02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0509-0609 ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0306-0609 ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 0911-1007 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 1008- ● ● ● ● ●
130 02.510 CONTROLLER; EGR
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97332-298-1 01 1 0306- ●
133 02.500 BOLT; EGR CONTROLLER
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 0306- ●
309 02.510 TIMER; AFTER GLOW,QOS 8-97361-319-3 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98073-210-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98073-211-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98073-212-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0306-0608 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0609-0609 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0306-0608 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0609-0609 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-162-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98050-833-0 01 1 0610-1007 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98050-833-0 01 1 1008- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97249-301-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(I) 		8-98050-884-0 01 1 0610-1007 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(I) 		8-98050-884-0 01 1 1008- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-97311-081-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98073-210-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98073-211-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98073-212-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-97236-167-0 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(G) 		8-97351-001-0 01 1 0306-0608 ●
393 02.343 BRACKET; HARNESS TO BODY
(G) 		8-98050-829-0 01 1 0609- ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0306-0609 ● ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0610-0709 ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0710- ● ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0306-0603 ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ● ● ● ●
395 02.343 NUT; BRKT FIX
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●
395 02.343 NUT; BRKT FIX
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1008-1109 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1008-1109 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1008-1109 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRONIC CONTROL<K20>,HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRONIC CONTROL<K20>,HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRONIC CONTROL<K20>,HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0406-0508 ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0509-0609 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0610-0709 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) CHEVROLET EQUIPMENT(8JF) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0610-0709 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0710-1003 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
CHEVROLET EQUIPMENT(8JF) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0710-1003 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1004-1007 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1008- ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
12V OMRON 		8-97125-441-1 01 1 0509-0609 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) EXC. CHEVROLET EQUIPMENT(8JF) 02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) 02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ●
424 02.510 RELAY; SAFETY,STARTER
EXC. CHEVROLET EQUIPMENT(8JF) 02.575 12V OMRON 		8-98005-407-0 01 1 0710-1003 ●
424 02.510 RELAY; SAFETY,STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1004- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-294-0 01 1 0509-0609 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 12V OMRON 		8-97125-441-1 01 1 0710-0910 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 12V OMRON 		8-97125-441-1 01 1 0710-0910 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> 12V OMRON 		8-97125-441-1 01 1 0710-0910 ●
424 02.510 RELAY; SAFETY,STARTER
4X2 CREW CAB LONG(TFB6WF) 4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 0911-1003 ●
424 02.510 RELAY; SAFETY,STARTER
4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 03.670 12V YAZAKI 		8-98146-834-0 01 1 0911-1003 ●
520 01.800 SENSOR; PRESSURE
COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97358-835-0 01 1 0306-0905 ●
520 01.800 SENSOR; PRESSURE
COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46),CHILE EQUIPMENT(KE1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97358-835-0 01 1 0906-1003 ●
520 01.800 SENSOR; PRESSURE
GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),CHILE EQUIPMENT(KE1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97358-835-0 01 1 1004-1007 ●
520 01.800 SENSOR; PRESSURE
COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46),CHILE EQUIPMENT(KE1) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97358-835-0 01 1 1008- ●
640 02.510 BOLT; BRKT,QOS GLOW TIMER
09.171 M6X16 FLANGE 		0-28450-616-0 02 1 0306- ●
644 02.510 RELAY; COLD START DEVICE
02.485 12V YAZAKI 		8-97309-294-0 01 1 0306-0508 ●
644 02.510 RELAY; COLD START DEVICE
02.485 12V YAZAKI 		8-97309-292-0 01 1 0509- ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
OUTSIDE TEMPERATURE GAGE<UJH> 		8-98008-687-0 01 1 0610- ● ● ●
çizim 185248
327 782 153 368 33
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 1008- ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 0306-0609 ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 0710-1003 ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 0306-1009 ●
33 02.170 COIL ASM; IGN 8-93363-483-0 01 1 1010- ●
153 02.510 BOLT; BRKT FIX
02.500 M6X10 FLANGE 		0-28080-610-0 05 1 0306-0512 ●
153 02.510 BOLT; BRKT FIX
03.671 M6X10 FLANGE 		0-28050-610-0 05 1 0601-0609 ●
153 02.510 BOLT; BRKT FIX
03.671 M6X10 FLANGE 		0-28050-610-0 05 1 0710-1003 ●
153 02.510 BOLT; BRKT FIX
03.671 M6X10 FLANGE 		0-28050-610-0 05 1 1008- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 1008- ●
327 02.361 SENSOR; CAMSHAFT POSITION
03.670 		8-97324-402-1 01 1 0306-0609 ● ●
327 02.361 SENSOR; CAMSHAFT POSITION
03.670 		8-97324-402-2 01 1 0610- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 0306-0609 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0610-1007 ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1008- ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 0710-1003 ●
368 02.240 BOLT; COIL HARNESS CLIP
03.162 M5X20 W/LK WASHER 		8-94428-007-0 12 1 1008- ●
368 02.240 BOLT; COIL HARNESS CLIP
03.162 M5X20 W/LK WASHER 		8-94428-007-0 12 1 0306-0609 ●
368 02.240 BOLT; COIL HARNESS CLIP
03.162 M5X20 W/LK WASHER 		8-94428-007-0 12 1 0710-1003 ●
782 02.510 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 1008- ●
782 02.510 BOLT; SENSOR
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0306-0601 ● ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0602-0609 ● ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0610- ●
782 02.510 BOLT; SENSOR
01.428 (C) M6X12 FLANGE 		0-28080-612-0 01 1 0306-0512 ●
782 02.510 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0601-0609 ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0610-1007 ●
782 02.510 BOLT; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1008- ● ●
782 02.510 BOLT; SENSOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 01 1 0710-1003 ●
782 02.510 BOLT; SENSOR
(D) 		8-11093-881-0 01 1 0306- ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0610-1007 ● ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 1008- ● ● ●
çizim 185249
10 424
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
10 02.100 RELAY; STARTER
M/T MUA 5 SPEED 5G(RSP) SAUDI ARABIA EQUIPMENT(GH3) EURO1 SPECIFICATION<NT1> CHEVROLET EQUIPMENT(8JF) EXC. ELECTRONIC CONTROL<K20> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1110- ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0911-1007 ● ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 1008- ● ● ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0306-0609 ● ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0610-0910 ● ● ● ●
10 02.100 RELAY; STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0508 ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0509-0609 ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0710-1003 ● ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1004-1007 ●
10 02.100 RELAY; STARTER
A/T AISIN(RMD) 02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> 02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1008- ●
10 02.100 RELAY; STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0509-0609 ● ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1008-1109 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1008-1109 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1008-1109 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRONIC CONTROL<K20>,HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRONIC CONTROL<K20>,HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRONIC CONTROL<K20>,HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 1110- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0406-0508 ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0509-0609 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0610-0709 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) CHEVROLET EQUIPMENT(8JF) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0610-0709 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0710-1003 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
CHEVROLET EQUIPMENT(8JF) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0710-1003 ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1004-1007 ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1008- ● ● ● ● ●
424 02.510 RELAY; SAFETY,STARTER
12V OMRON 		8-97125-441-1 01 1 0509-0609 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) EXC. CHEVROLET EQUIPMENT(8JF) 02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) 02.575 12V OMRON 		8-98005-407-0 01 1 0610-0709 ●
424 02.510 RELAY; SAFETY,STARTER
EXC. CHEVROLET EQUIPMENT(8JF) 02.575 12V OMRON 		8-98005-407-0 01 1 0710-1003 ●
424 02.510 RELAY; SAFETY,STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 1004- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-294-0 01 1 0509-0609 ●
424 02.510 RELAY; SAFETY,STARTER
4X2(TFB***) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 12V OMRON 		8-97125-441-1 01 1 0710-0910 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 12V OMRON 		8-97125-441-1 01 1 0710-0910 ●
424 02.510 RELAY; SAFETY,STARTER
4X4(TFS***) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> 12V OMRON 		8-97125-441-1 01 1 0710-0910 ●
424 02.510 RELAY; SAFETY,STARTER
4X2 CREW CAB LONG(TFB6WF) 4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) HEADLAMPS PROJECTOR BEAM<8LH> EXC. HEAD LAMP LEVELING MANUAL<T92> 03.670 12V YAZAKI 		8-98146-834-0 01 1 0911-1003 ●
424 02.510 RELAY; SAFETY,STARTER
4X4 REGULAR CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) M/T MUA 5 SPEED 5G(RSP) EXC. HEAD LAMP LEVELING MANUAL<T92> ,HEADLAMPS PROJECTOR BEAM<8LH> 03.670 12V YAZAKI 		8-98146-834-0 01 1 0911-1003 ●
çizim 185250
1 393
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 1008- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97365-824-0 01 1 0306-0604 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0605-0609 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0610- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0306-0609 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0610-0611 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 2.3KW 		8-98028-199-0 01 1 0612-0612 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0612-0612 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0612-1007 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1008- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0710-1003 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0306-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98073-210-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98073-211-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98073-212-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0306-0608 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0609-0609 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0306-0608 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0609-0609 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-162-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98050-833-0 01 1 0610-1007 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98050-833-0 01 1 1008- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97249-301-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(I) 		8-98050-884-0 01 1 0610-1007 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(I) 		8-98050-884-0 01 1 1008- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-97311-081-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98073-210-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98073-211-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98073-212-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-97236-167-0 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(G) 		8-97351-001-0 01 1 0306-0608 ●
393 02.343 BRACKET; HARNESS TO BODY
(G) 		8-98050-829-0 01 1 0609- ●
çizim 185251
4 1 4 385 35 33 37 385 385
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 1008- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97365-824-0 01 1 0306-0604 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0605-0609 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0610- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0306-0609 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0610-0611 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EGYPT EQUIPMENT(B09) 12V 2.3KW 		8-98028-199-0 01 1 0612-0612 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0612-0612 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0612-1007 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 1008- ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 0710-1003 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0306-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1008- ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 1008- ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0306-0609 ● ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0610-0611 ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 0612-1003 ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SP EED 5S(RSQ) EGYPT EQUIPMENT(B09) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0612-1003 ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1004-1007 ● ●
4 02.042 BOLT; STARTER
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SP EED 5S(RSQ) EGYPT EQUIPMENT(B09) (A) M12X60 FLANGE 		0-28051-260-0 02 1 1008- ● ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0306-0609 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-0 02 1 0610-0611 ● ●
4 02.042 BOLT; STARTER
EXC. EGYPT EQUIPMENT(B09) (A) M12X60 		8-97161-846-1 02 1 0612-1003 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 0612-1003 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1004-1007 ● ●
4 02.042 BOLT; STARTER
EXC. EGYPT EQUIPMENT(B09) (A) M12X60 		8-97161-846-1 02 1 1008-1402 ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1008-1402 ● ●
4 02.042 BOLT; STARTER
EXC. EGYPT EQUIPMENT(B09), IDENTIFICATION LABEL FOR KD<6UT> (A) M12X60 		8-97161-846-1 02 1 1403- ● ●
4 02.042 BOLT; STARTER
(A) M12X60 		8-97161-846-1 02 1 1403- ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 0306-0609 ●
4 02.042 BOLT; STARTER
(B) M10X50 FLANGE 		0-28151-050-0 01 1 0710-1003 ●
4 02.042 BOLT; STARTER
(C) M10X80 FLANGE 		0-28151-080-0 01 1 0710-1003 ●
4 02.042 BOLT; STARTER
(D) M10X25 FLANGE 		0-28151-025-0 01 1 0306- ●
4 02.042 BOLT; STARTER
(E) 		8-11073-352-0 01 1 0306- ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 1008- ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 0306-0609 ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 0710-1003 ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 0306-1009 ●
33 02.170 COIL ASM; IGN 8-93363-483-0 01 1 1010- ●
35 02.183 BRACKET; IGN COIL 8-92064-829-0 01 1 0306- ●
37 02.559 BOLT; IGN COIL
02.500 		8-92065-435-0 03 1 0306- ●
385 02.183 BOLT; BRKT,IGN COIL
03.670 (A) 		8-11041-103-0 01 1 0306-1009 ●
385 02.183 BOLT; BRKT,IGN COIL
(B) 		8-11094-881-0 01 1 0306- ●
385 02.183 BOLT; BRKT,IGN COIL
(C) 		8-92138-664-0 01 1 0306- ●
çizim 185336
819 897 867 393 395 393 991
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98073-210-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98073-211-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98073-212-0 01 1 1008- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0306-0608 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0609-0609 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0306-0608 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0609-0609 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-162-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98050-833-0 01 1 0610-1007 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98050-833-0 01 1 1008- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97249-301-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(I) 		8-98050-884-0 01 1 0610-1007 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(I) 		8-98050-884-0 01 1 1008- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-97311-081-0 01 1 0306-0609 ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98073-210-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98073-211-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98073-212-0 01 1 0710-1003 ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-97236-167-0 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(G) 		8-97351-001-0 01 1 0306-0608 ●
393 02.343 BRACKET; HARNESS TO BODY
(G) 		8-98050-829-0 01 1 0609- ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0306-0609 ● ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0610-0709 ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0710- ● ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0306-0603 ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ● ● ● ●
395 02.343 NUT; BRKT FIX
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●
395 02.343 NUT; BRKT FIX
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
OUTSIDE TEMPERATURE GAGE<UJH> 		8-98008-687-0 01 1 0610- ● ● ●
867 02.559 BOLT
ISRAEL EQUIPMENT(2G1) EURO4 SPECIFICATION<NT4> ISUZU BRAND<7WL> 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610-1007 ●
867 02.559 BOLT
ISRAEL EQUIPMENT(2G1) EURO4 SPECIFICATION<NT4> ISUZU BRAND<7WL> 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1008- ● ●
897 02.510 DRM
ISRAEL EQUIPMENT(2G1) EURO4 SPECIFICATION<NT4> ISUZU BRAND<7WL> 		8-98031-641-1 01 1 0610-0711 ●
897 02.510 DRM
ISRAEL EQUIPMENT(2G1) EURO4 SPECIFICATION<NT4> ISUZU BRAND<7WL> 		8-98090-009-0 01 1 0712-1002 ●
897 02.510 DRM
ISRAEL EQUIPMENT(2G1) EURO4 SPECIFICATION<NT4> ISUZU BRAND<7WL> 		8-98166-134-0 01 1 1003-1007 ●
897 02.510 DRM
ISRAEL EQUIPMENT(2G1) EURO4 SPECIFICATION<NT4> ISUZU BRAND<7WL> 		8-98166-134-3 01 1 1008- ● ●
991 02.100 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 0710-0809 ● ●
991 02.100 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 0810-1007 ● ●
991 02.100 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 1008- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
