2-37C — MANUAL TRANSMISSION CONT; MISSION SIDE (#7392) — 44 parça

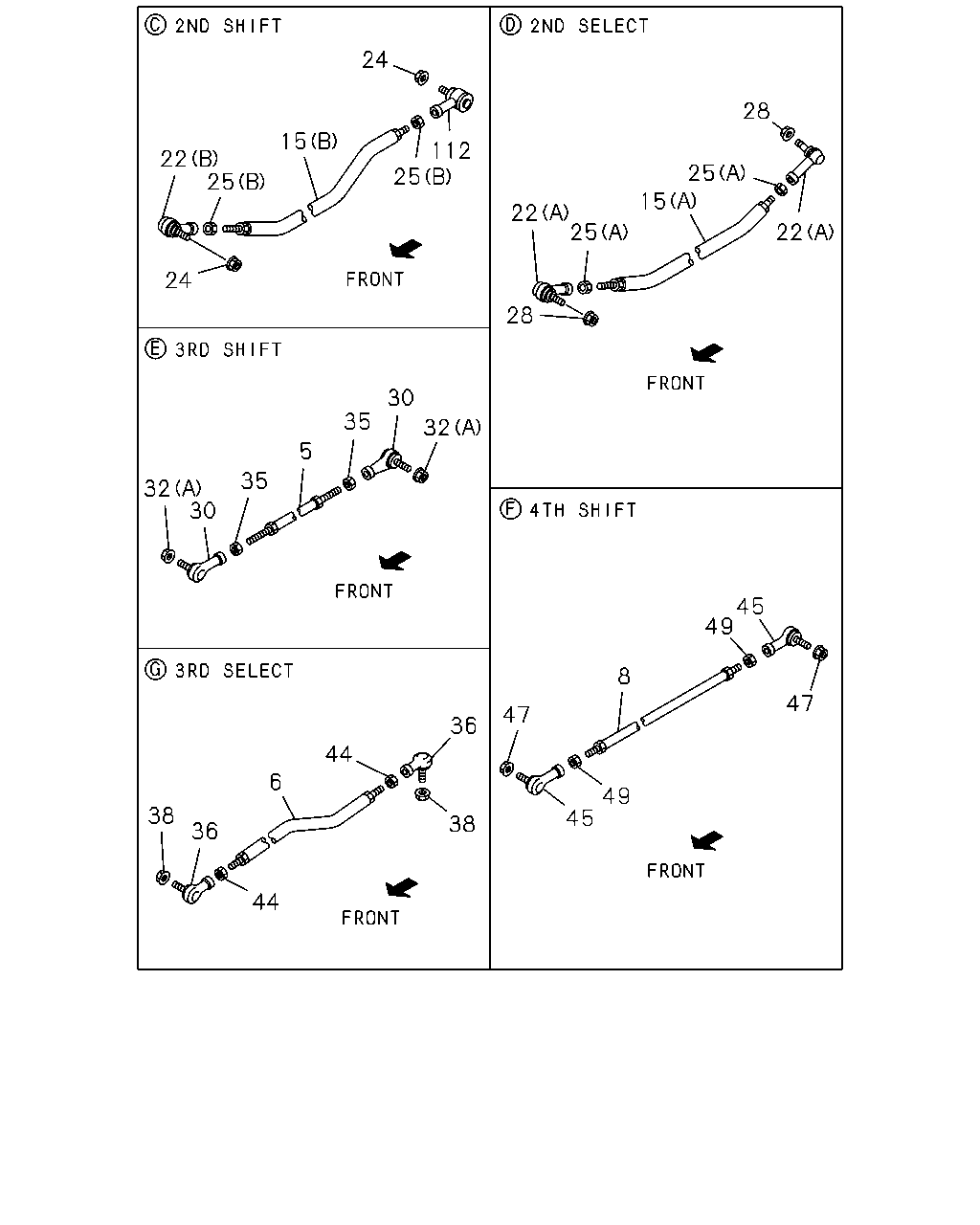

24 28 15 112 25 22 25 25 15 22 5 22 24 28 30 35 32 5 35 32 30 45 49 8 47 47 36 44 6 49 45 38 38 36 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	ROD; LINK,3RD SHIFT EXC. CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	9812-	●	●
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> L=1120	1-33652-603-0	01	1	9812-	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> L=1623	1-33652-808-0	01	1	9905-	●	●
6	ROD; LINK,3RD SELECT EXC. CAB UP +110MM<TGG> L=1613	1-33652-729-0	01	1	9905-	●	●
8	ROD; LINK,4TH SHIFT L=480	1-33652-730-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-0	01	1	9902-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (A) L=423	1-33652-804-1	01	1	9902-	●	●
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	9812-	●	●
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-0	01	1	9812-	●	●
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (A) L=428	1-33652-781-1	01	1	9812-	●	●
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-109-0	02	1	9902-	●	●
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-125-0	01	1	9902-	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9812-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	02	1	9902-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M12	9-99111-412-0	02	1	9902-	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	9812-	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	9812-	●	●
32	NUT; 3RD LINK ROD (A) M10 FLANGE	1-09440-061-0	02	1	9812-	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9812-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-109-0	02	1	9905-	●	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	02	1	9905-9912	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9905-	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	9905-	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	9812-	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9905-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9905-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9905-	●	●

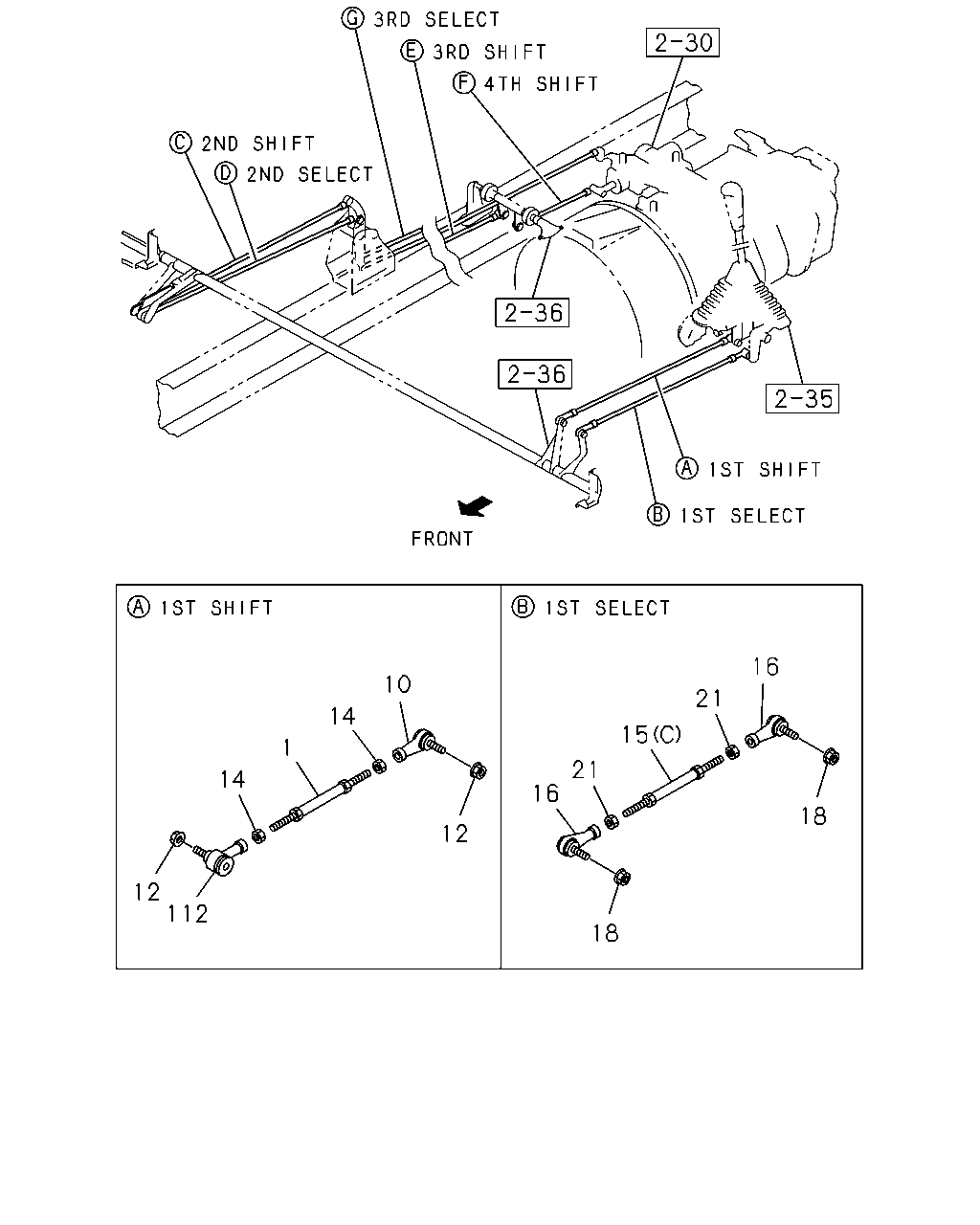

16 10 21 14 15 1 21 14 16 18 12 12 112 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	9812-9904	●	●
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	9905-	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	9812-9904	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	9905-	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9812-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9812-9904	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9905-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-0	01	1	9902-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (A) L=423	1-33652-804-1	01	1	9902-	●	●
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	9812-	●	●
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-0	01	1	9812-	●	●
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (A) L=428	1-33652-781-1	01	1	9812-	●	●
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	9812-	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9812-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9812-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9905-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	9905-	●	●
