0-55 — ECGI SYSTEM OR COMMON RAIL (#73918) — 178 parça

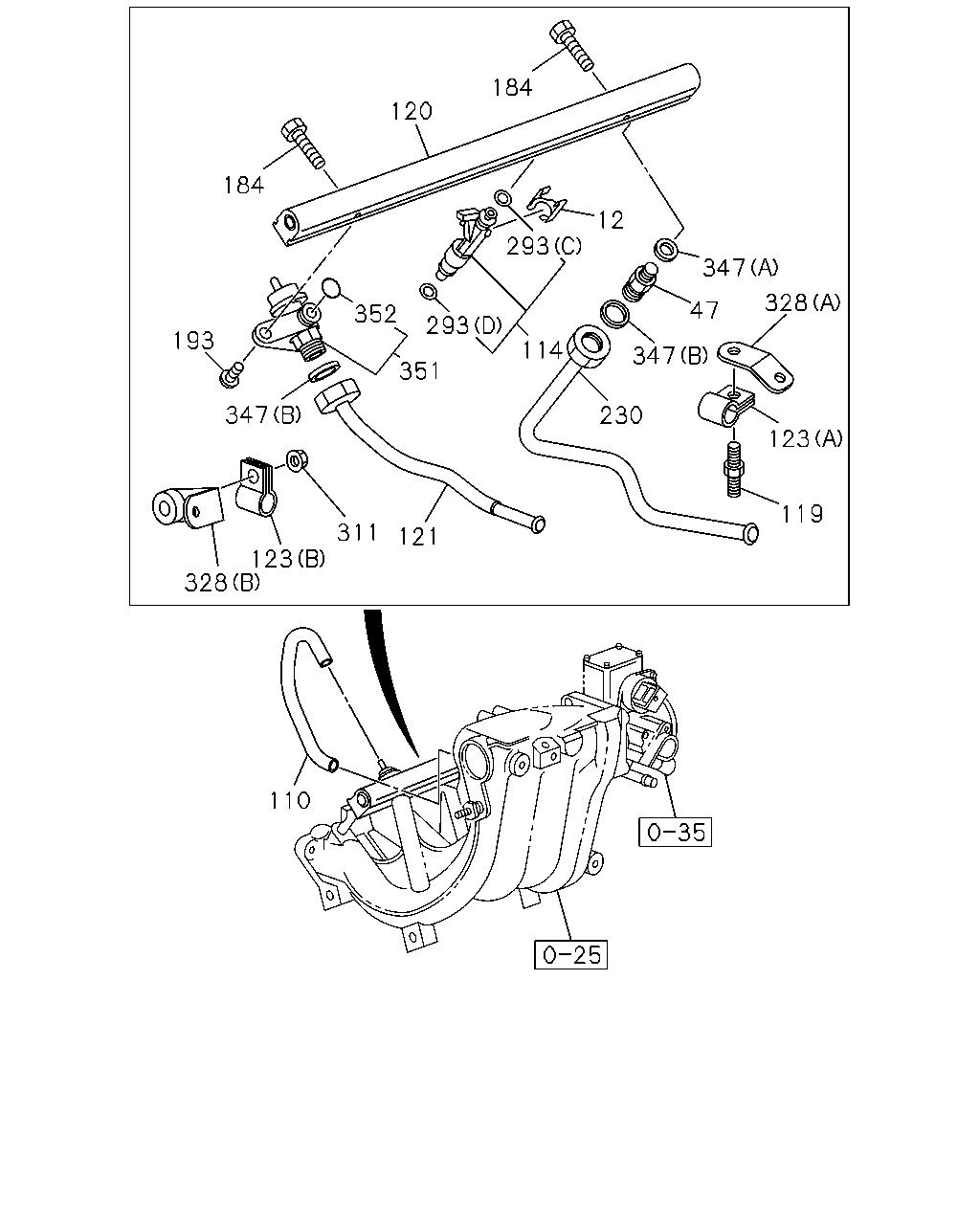

184 120 184 12 293 347 328 47 352 293 193 114 347 351 347 230 123 119 311 121 123 328 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.332 CLIP; INJECTOR	8-97324-652-0	06	1	0306-0609	●
12	03.332 CLIP; INJECTOR	8-97324-652-0	06	1	0710-1003	●
12	03.332 CLIP; INJECTOR	8-97324-652-0	06	1	1008-	●
12	03.332 CLIP; INJECTOR	8-17101-829-0	04	1	0306-1009		●
12	03.332 CLIP; INJECTOR	8-92066-468-0	04	1	1010-		●
47	03.330 CONNECTOR; CONN HOSE	8-92065-508-0	01	1	0306-		●
110	03.145 HOSE; RUBBER,PRESSURE REG	8-92065-511-0	01	1	0306-		●
114	03.300 INJECTOR; FUEL 03.330	8-17125-097-0	04	1	0306-		●
119	03.330 STUD; FUEL INJ	8-10018-812-0	01	1	0306-1009		●
120	03.330 PIPE; FUEL,INJ	8-92065-507-0	01	1	0306-		●
121	03.330 PIPE; FUEL,RETURN	8-92066-354-0	01	1	0306-		●
123	03.901 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0306-0609	●
123	03.901 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0710-1003	●
123	03.901 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1008-	●
123	03.901 CLIP; FUEL HOSE (A)	8-92063-664-0	01	1	0306-		●
123	03.901 CLIP; FUEL HOSE (B)	8-92063-665-0	01	1	0306-		●
184	03.330 BOLT; FUEL RAIL 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0306-0512	●
184	03.330 BOLT; FUEL RAIL 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-0609	●
184	03.330 BOLT; FUEL RAIL 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0710-1003	●
184	03.330 BOLT; FUEL RAIL 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1008-	●
184	03.330 BOLT; FUEL RAIL	8-92065-433-0	02	1	0306-		●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	0306-0609	●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	0710-1003	●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	1008-	●
193	03.330 BOLT; PRESSURE REG	8-92065-436-0	01	1	0306-1009		●
193	03.330 BOLT; PRESSURE REG 00.685	8-92138-321-0	01	1	1010-		●
230	03.330 PIPE; FUEL	8-97245-278-1	01	1	0306-0609	●
230	03.330 PIPE; FUEL	8-97245-278-1	01	1	0710-1003	●
230	03.330 PIPE; FUEL	8-97245-278-1	01	1	1008-	●
230	03.330 PIPE; FUEL	8-92066-353-0	01	1	0306-		●
293	03.304 GASKET; FUEL INJECTOR (A)	8-97325-474-0	06	1	0306-0609	●
293	03.304 GASKET; FUEL INJECTOR (A)	8-97325-474-0	06	1	0710-1003	●
293	03.304 GASKET; FUEL INJECTOR (A)	8-97325-474-0	06	1	1008-	●
293	03.304 GASKET; FUEL INJECTOR (B)	8-97325-475-0	06	1	0306-0609	●
293	03.304 GASKET; FUEL INJECTOR (B)	8-97325-475-0	06	1	0710-1003	●
293	03.304 GASKET; FUEL INJECTOR (B)	8-97325-475-0	06	1	1008-	●
293	03.304 GASKET; FUEL INJECTOR (D)	8-17106-005-0	04	1	0306-		●
293	03.304 GASKET; FUEL INJECTOR (C)	8-25169-195-0	04	1	0306-1009		●
311	03.901 NUT; CLIP 00.004	8-92066-006-0	01	1	0306-1009		●
328	03.306 BRACKET; ENG HARNESS (A)	8-92065-416-0	01	1	0306-1009		●
328	03.306 BRACKET; ENG HARNESS (B)	8-92065-427-0	01	1	0306-1009		●
347	03.304 GASKET; PIPE (A)	8-92065-509-0	01	1	0306-		●
347	03.304 GASKET; PIPE (B)	8-96114-707-0	02	1	0306-		●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	0306-0609	●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	0710-1003	●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	1008-	●
351	03.335 VALVE; PRESSURE RELIEF 03.330	8-17091-410-0	01	1	0306-		●
352	03.306 WASHER; RELIEF VLV	8-17081-434-0	01	1	0306-1009		●

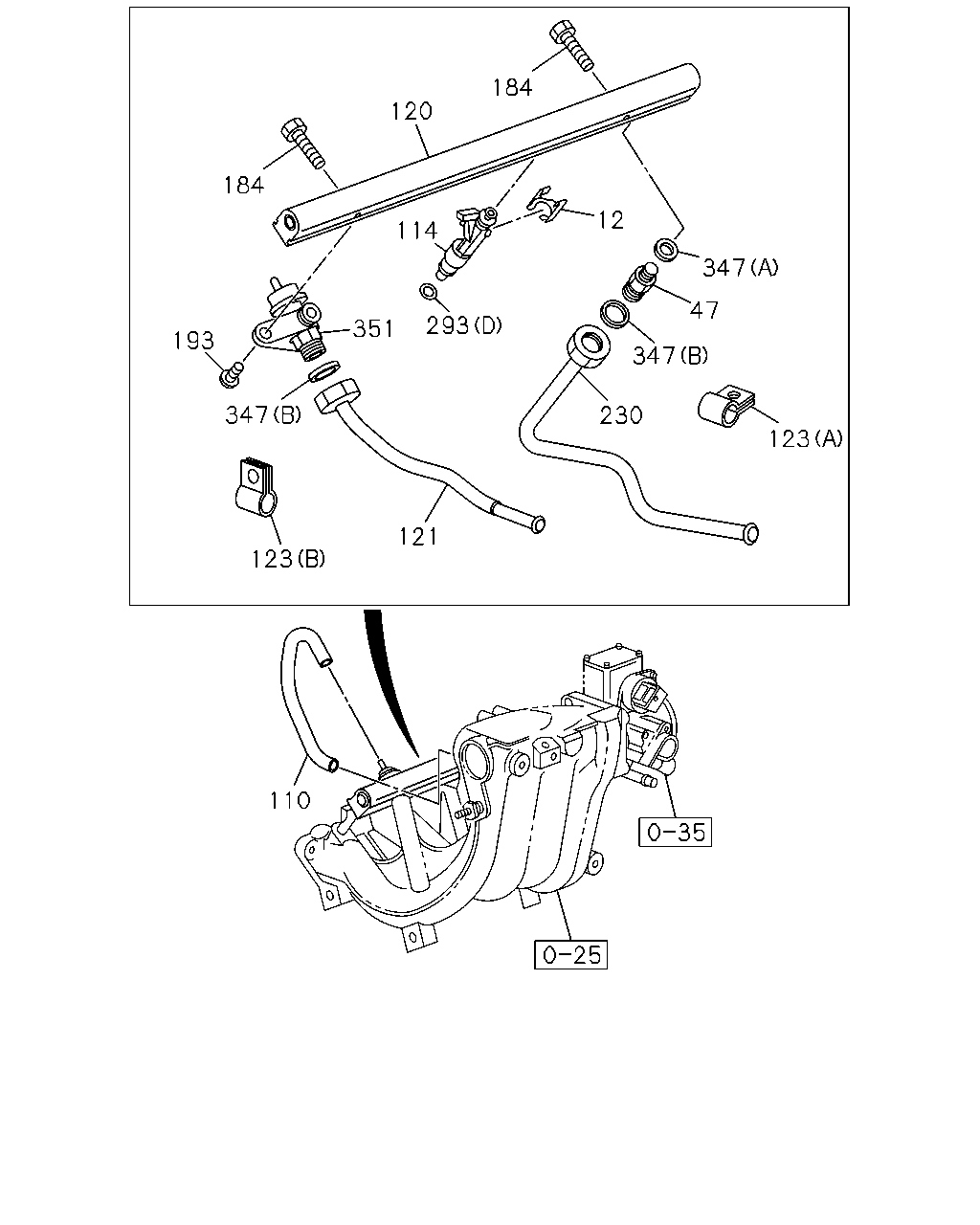

184 120 184 12 114 347 47 293 351 193 347 347 230 123 121 123 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.332 CLIP; INJECTOR	8-97324-652-0	06	1	0306-0609	●
12	03.332 CLIP; INJECTOR	8-97324-652-0	06	1	0710-1003	●
12	03.332 CLIP; INJECTOR	8-97324-652-0	06	1	1008-	●
12	03.332 CLIP; INJECTOR	8-17101-829-0	04	1	0306-1009		●
12	03.332 CLIP; INJECTOR	8-92066-468-0	04	1	1010-		●
47	03.330 CONNECTOR; CONN HOSE	8-92065-508-0	01	1	0306-		●
110	03.145 HOSE; RUBBER,PRESSURE REG	8-92065-511-0	01	1	0306-		●
114	03.300 INJECTOR; FUEL 03.330	8-17125-097-0	04	1	0306-		●
120	03.330 PIPE; FUEL,INJ	8-92065-507-0	01	1	0306-		●
121	03.330 PIPE; FUEL,RETURN	8-92066-354-0	01	1	0306-		●
123	03.901 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0306-0609	●
123	03.901 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0710-1003	●
123	03.901 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1008-	●
123	03.901 CLIP; FUEL HOSE (A)	8-92063-664-0	01	1	0306-		●
123	03.901 CLIP; FUEL HOSE (B)	8-92063-665-0	01	1	0306-		●
184	03.330 BOLT; FUEL RAIL 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0306-0512	●
184	03.330 BOLT; FUEL RAIL 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-0609	●
184	03.330 BOLT; FUEL RAIL 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0710-1003	●
184	03.330 BOLT; FUEL RAIL 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1008-	●
184	03.330 BOLT; FUEL RAIL	8-92065-433-0	02	1	0306-		●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	0306-0609	●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	0710-1003	●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	1008-	●
193	03.330 BOLT; PRESSURE REG	8-92065-436-0	01	1	0306-1009		●
193	03.330 BOLT; PRESSURE REG 00.685	8-92138-321-0	01	1	1010-		●
230	03.330 PIPE; FUEL	8-97245-278-1	01	1	0306-0609	●
230	03.330 PIPE; FUEL	8-97245-278-1	01	1	0710-1003	●
230	03.330 PIPE; FUEL	8-97245-278-1	01	1	1008-	●
230	03.330 PIPE; FUEL	8-92066-353-0	01	1	0306-		●
293	03.304 GASKET; FUEL INJECTOR (A)	8-97325-474-0	06	1	0306-0609	●
293	03.304 GASKET; FUEL INJECTOR (A)	8-97325-474-0	06	1	0710-1003	●
293	03.304 GASKET; FUEL INJECTOR (A)	8-97325-474-0	06	1	1008-	●
293	03.304 GASKET; FUEL INJECTOR (B)	8-97325-475-0	06	1	0306-0609	●
293	03.304 GASKET; FUEL INJECTOR (B)	8-97325-475-0	06	1	0710-1003	●
293	03.304 GASKET; FUEL INJECTOR (B)	8-97325-475-0	06	1	1008-	●
293	03.304 GASKET; FUEL INJECTOR (D)	8-17106-005-0	04	1	0306-		●
293	03.304 GASKET; FUEL INJECTOR (C)	8-25169-195-0	04	1	0306-1009		●
347	03.304 GASKET; PIPE (A)	8-92065-509-0	01	1	0306-		●
347	03.304 GASKET; PIPE (B)	8-96114-707-0	02	1	0306-		●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	0306-0609	●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	0710-1003	●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	1008-	●
351	03.335 VALVE; PRESSURE RELIEF 03.330	8-17091-410-0	01	1	0306-		●

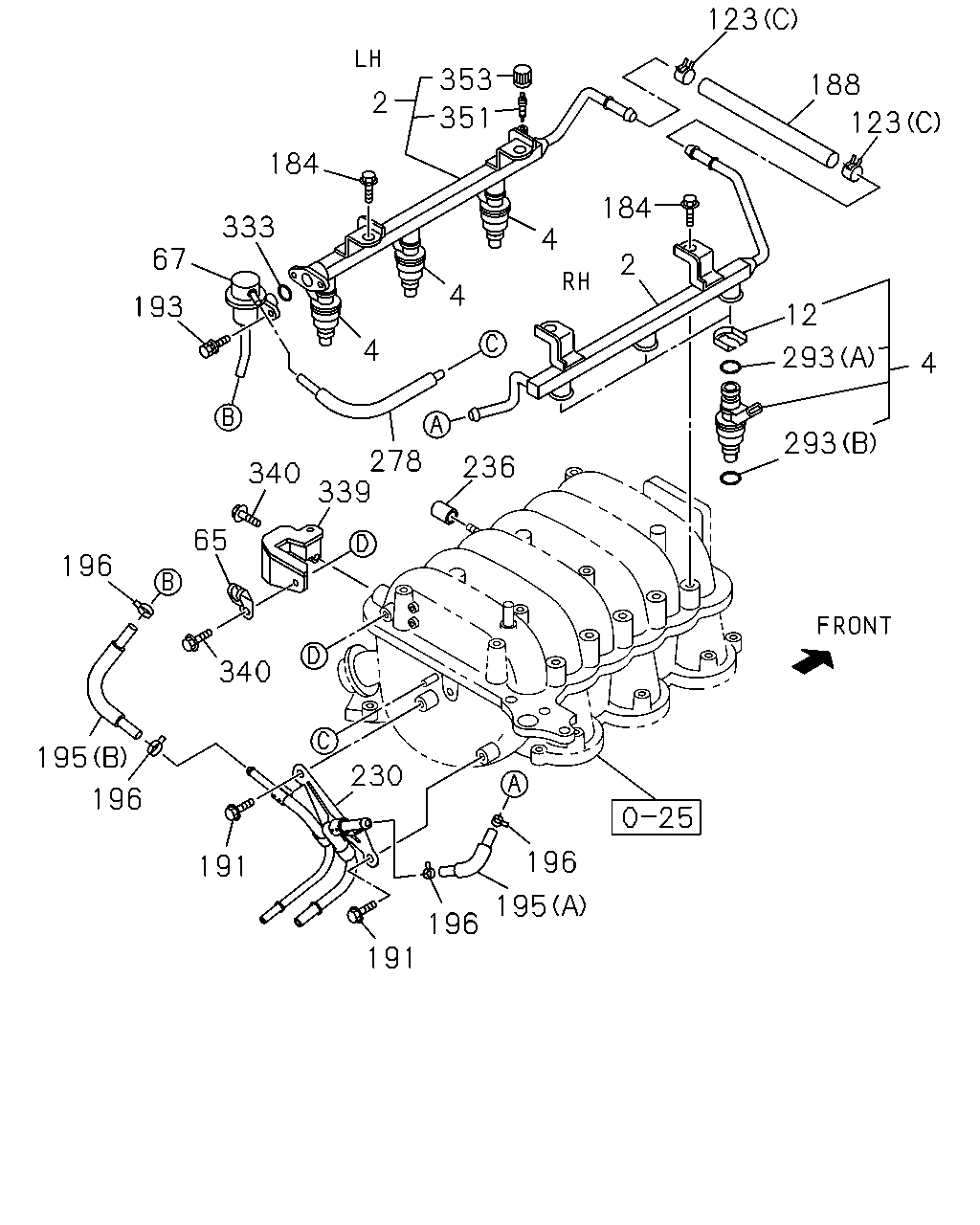

123 353 188 2 351 123 184 184 333 4 67 2 4 193 12 4 293 4 293 278 339 236 340 65 196 340 195 230 196 196 191 195 196 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97318-622-1	01	1	0306-0609	●
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97318-622-1	01	1	0710-1003	●
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97318-622-1	01	1	1008-	●
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97318-621-1	01	1	0306-0609	●
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97318-621-2	01	1	0710-1003	●
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97318-621-2	01	1	1008-	●
4	03.332 INJECTOR ASM	8-97318-620-0	06	1	1008-	●
4	03.332 INJECTOR ASM	8-97318-620-0	06	1	0306-0609	●
4	03.332 INJECTOR ASM	8-97318-620-0	06	1	0710-1003	●
12	03.332 CLIP; INJECTOR	8-97324-652-0	06	1	0306-0609	●
12	03.332 CLIP; INJECTOR	8-97324-652-0	06	1	0710-1003	●
12	03.332 CLIP; INJECTOR	8-97324-652-0	06	1	1008-	●
12	03.332 CLIP; INJECTOR	8-17101-829-0	04	1	0306-1009		●
12	03.332 CLIP; INJECTOR	8-92066-468-0	04	1	1010-		●
65	03.330 CLIP; HOSE 02.559 ID=12	5-09700-331-0	01	1	0306-0609	●
65	03.330 CLIP; HOSE 02.559 ID=12	5-09700-331-0	01	1	0710-0801	●
65	03.330 CLIP; HOSE 01.150 ID=12	8-97367-983-1	01	1	0802-1003	●
65	03.330 CLIP; HOSE 01.150 ID=12	8-97367-983-1	01	1	1008-	●
67	03.330 REGULATOR; PRESSURE	8-97254-845-0	01	1	0306-0609	●
67	03.330 REGULATOR; PRESSURE	8-97254-845-0	01	1	0710-1003	●
67	03.330 REGULATOR; PRESSURE	8-97254-845-0	01	1	1008-	●
123	03.901 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0306-0609	●
123	03.901 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0710-1003	●
123	03.901 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1008-	●
123	03.901 CLIP; FUEL HOSE (A)	8-92063-664-0	01	1	0306-		●
123	03.901 CLIP; FUEL HOSE (B)	8-92063-665-0	01	1	0306-		●
184	03.330 BOLT; FUEL RAIL 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0306-0512	●
184	03.330 BOLT; FUEL RAIL 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0601-0609	●
184	03.330 BOLT; FUEL RAIL 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0710-1003	●
184	03.330 BOLT; FUEL RAIL 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1008-	●
184	03.330 BOLT; FUEL RAIL	8-92065-433-0	02	1	0306-		●
188	03.901 HOSE; FUEL 03.163 L=170 SERVICED BY L=3000	0-01558-300-0	01	1	0306-0609	●
188	03.901 HOSE; FUEL 03.163 L=170 SERVICED BY L=3000	0-01558-300-0	01	1	0710-1003	●
188	03.901 HOSE; FUEL 03.163 L=170 SERVICED BY L=3000	0-01558-300-0	01	1	1008-	●
191	03.330 BOLT; FUEL PIPE 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0306-0512	●
191	03.330 BOLT; FUEL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-0609	●
191	03.330 BOLT; FUEL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0710-1003	●
191	03.330 BOLT; FUEL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1008-	●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	0306-0609	●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	0710-1003	●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	1008-	●
193	03.330 BOLT; PRESSURE REG	8-92065-436-0	01	1	0306-1009		●
193	03.330 BOLT; PRESSURE REG 00.685	8-92138-321-0	01	1	1010-		●
195	03.145 HOSE; RUBBER,FUEL (A) L=100 W/PROTECTOR	8-97349-414-0	01	1	0306-0609	●
195	03.145 HOSE; RUBBER,FUEL (A) L=100 W/PROTECTOR	8-97349-414-1	01	1	0710-1003	●
195	03.145 HOSE; RUBBER,FUEL (A) L=100 W/PROTECTOR	8-97349-414-1	01	1	1008-	●
195	03.145 HOSE; RUBBER,FUEL (B) L=140 W/PROTECTOR	8-97349-415-0	01	1	0306-0609	●
195	03.145 HOSE; RUBBER,FUEL (B) L=140 W/PROTECTOR	8-97349-415-1	01	1	0710-1003	●
195	03.145 HOSE; RUBBER,FUEL (B) L=140 W/PROTECTOR	8-97349-415-1	01	1	1008-	●
196	03.145 CLIP; RUBBER HOSE,FUEL 00.034 ID=12 WO/PVC COATING	8-94123-526-1	04	1	0306-0609	●
196	03.145 CLIP; RUBBER HOSE,FUEL 00.034 ID=12 WO/PVC COATING	8-94123-526-1	04	1	0710-1003	●
196	03.145 CLIP; RUBBER HOSE,FUEL 00.034 ID=12 WO/PVC COATING	8-94123-526-1	04	1	1008-	●
230	03.330 PIPE; FUEL	8-97245-278-1	01	1	0306-0609	●
230	03.330 PIPE; FUEL	8-97245-278-1	01	1	0710-1003	●
230	03.330 PIPE; FUEL	8-97245-278-1	01	1	1008-	●
230	03.330 PIPE; FUEL	8-92066-353-0	01	1	0306-		●
236	03.145 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0306-0609	●
236	03.145 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0710-1003	●
236	03.145 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	1008-	●
278	03.330 HOSE; PRESSURE REG L=200	8-97166-646-2	01	1	0306-0609	●
278	03.330 HOSE; PRESSURE REG L=200	8-97166-646-2	01	1	0710-1003	●
278	03.330 HOSE; PRESSURE REG L=200	8-97166-646-2	01	1	1008-	●
293	03.304 GASKET; FUEL INJECTOR (A)	8-97325-474-0	06	1	0306-0609	●
293	03.304 GASKET; FUEL INJECTOR (A)	8-97325-474-0	06	1	0710-1003	●
293	03.304 GASKET; FUEL INJECTOR (A)	8-97325-474-0	06	1	1008-	●
293	03.304 GASKET; FUEL INJECTOR (B)	8-97325-475-0	06	1	0306-0609	●
293	03.304 GASKET; FUEL INJECTOR (B)	8-97325-475-0	06	1	0710-1003	●
293	03.304 GASKET; FUEL INJECTOR (B)	8-97325-475-0	06	1	1008-	●
293	03.304 GASKET; FUEL INJECTOR (D)	8-17106-005-0	04	1	0306-		●
293	03.304 GASKET; FUEL INJECTOR (C)	8-25169-195-0	04	1	0306-1009		●
333	03.304 GASKET; FUEL RETURN	8-97179-766-0	01	1	0306-0609	●
333	03.304 GASKET; FUEL RETURN	8-97179-766-0	01	1	0710-1003	●
333	03.304 GASKET; FUEL RETURN	8-97179-766-0	01	1	1008-	●
339	03.330 PROTECTOR; PRESSURE REG	8-97321-312-0	01	1	0306-0609	●
339	03.330 PROTECTOR; PRESSURE REG	8-97321-312-0	01	1	0710-1003	●
339	03.330 PROTECTOR; PRESSURE REG	8-97321-312-0	01	1	1008-	●
340	03.330 BOLT; PROTECTOR M8X16 HEX SOCKET	0-58310-816-0	02	1	0306-0609	●
340	03.330 BOLT; PROTECTOR M8X16 HEX SOCKET	0-58310-816-0	02	1	0710-0805	●
340	03.330 BOLT; PROTECTOR 00.004 M8X16 HEX SOCKET	0-58330-816-0	02	1	0806-1003	●
340	03.330 BOLT; PROTECTOR 00.004 M8X16 HEX SOCKET	0-58330-816-0	02	1	1008-	●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	0306-0609	●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	0710-1003	●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	1008-	●
351	03.335 VALVE; PRESSURE RELIEF 03.330	8-17091-410-0	01	1	0306-		●
353	03.145 CAP; PRESSURE VLV 03.330	8-97119-713-0	01	1	0306-0609	●
353	03.145 CAP; PRESSURE VLV 03.330	8-97119-713-0	01	1	0710-1003	●
353	03.145 CAP; PRESSURE VLV 03.330	8-97119-713-0	01	1	1008-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
