◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#73917) — 696 parça

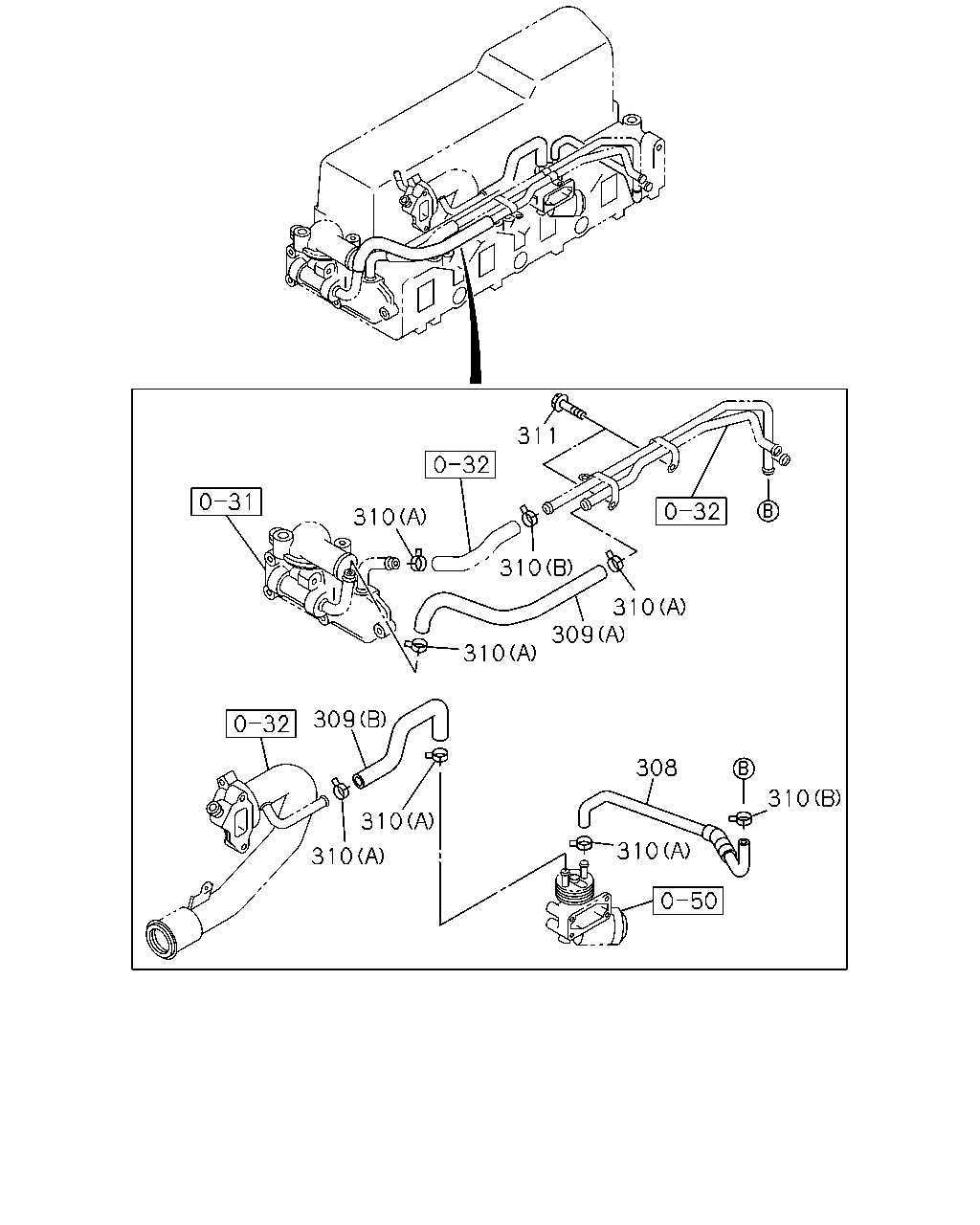

çizim 64557
311 310 310 310 309 310 309 308 310 310 310 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-1 01 1 0306-0703 ●
308 01.540 HOSE; OIL COOLER FEED
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97362-329-1 01 1 0306-0703 ●
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-3 01 1 0704- ●
308 01.540 HOSE; OIL COOLER FEED
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97362-329-3 01 1 0704- ●
308 01.540 HOSE; OIL COOLER FEED 8-97249-288-0 01 1 0306-0308 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0306-0308 ●
308 01.540 HOSE; OIL COOLER FEED 8-97331-175-0 01 1 0309-0609 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0309-0609 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0610- ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0306-0402 ● ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0403-0609 ●
309 01.540 HOSE; OIL COOLER RETURN
EXC. TURKEY EQUIPMENT(B11) (B) 		8-97213-919-2 01 1 0403-0609 ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0610- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-1 01 1 0306-0609 ● ● ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-1 01 1 0610- ● ●
309 01.540 HOSE; OIL COOLER RETURN
TURKEY EQUIPMENT(B11) (B) 		8-97920-080-2 01 1 0403-0609 ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97329-648-2 01 1 0306- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0306-0703 ●
310 01.540 CLIP; WATER HOSE FIX
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.166 (A) ID=20.8 		8-94125-862-1 06 1 0306-0703 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0704- ●
310 01.540 CLIP; WATER HOSE FIX
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.166 (A) ID=20.8 		8-94125-862-1 06 1 0704- ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0306-0609 ● ● ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0610- ● ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 08 1 0306-0609 ●
310 01.540 CLIP; WATER HOSE FIX
EURO3 SPECIFICATION<NT3> 01.166 (A) ID=20.8 		8-94125-862-1 08 1 0306-0609 ●
310 01.540 CLIP; WATER HOSE FIX
EURO3 SPECIFICATION<NT3> 01.166 (A) ID=20.8 		8-94125-862-1 08 1 0610- ●
310 01.540 CLIP; WATER HOSE FIX
08.846 (C) ID=22 		8-94382-401-0 02 1 0306-0609 ● ●
310 01.540 CLIP; WATER HOSE FIX
08.846 (C) ID=22 		8-94382-401-0 02 1 0610-1003 ●
310 01.540 CLIP; WATER HOSE FIX
03.278 (C) ID=22 		8-97359-141-0 02 1 1004- ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0306-0402 ● ● ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0403-0512 ● ●
311 01.531 BOLT; PIPE FIX
EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0403-0512 ●
311 01.531 BOLT; PIPE FIX
TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0403-0512 ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610-1007 ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1008- ● ● ●

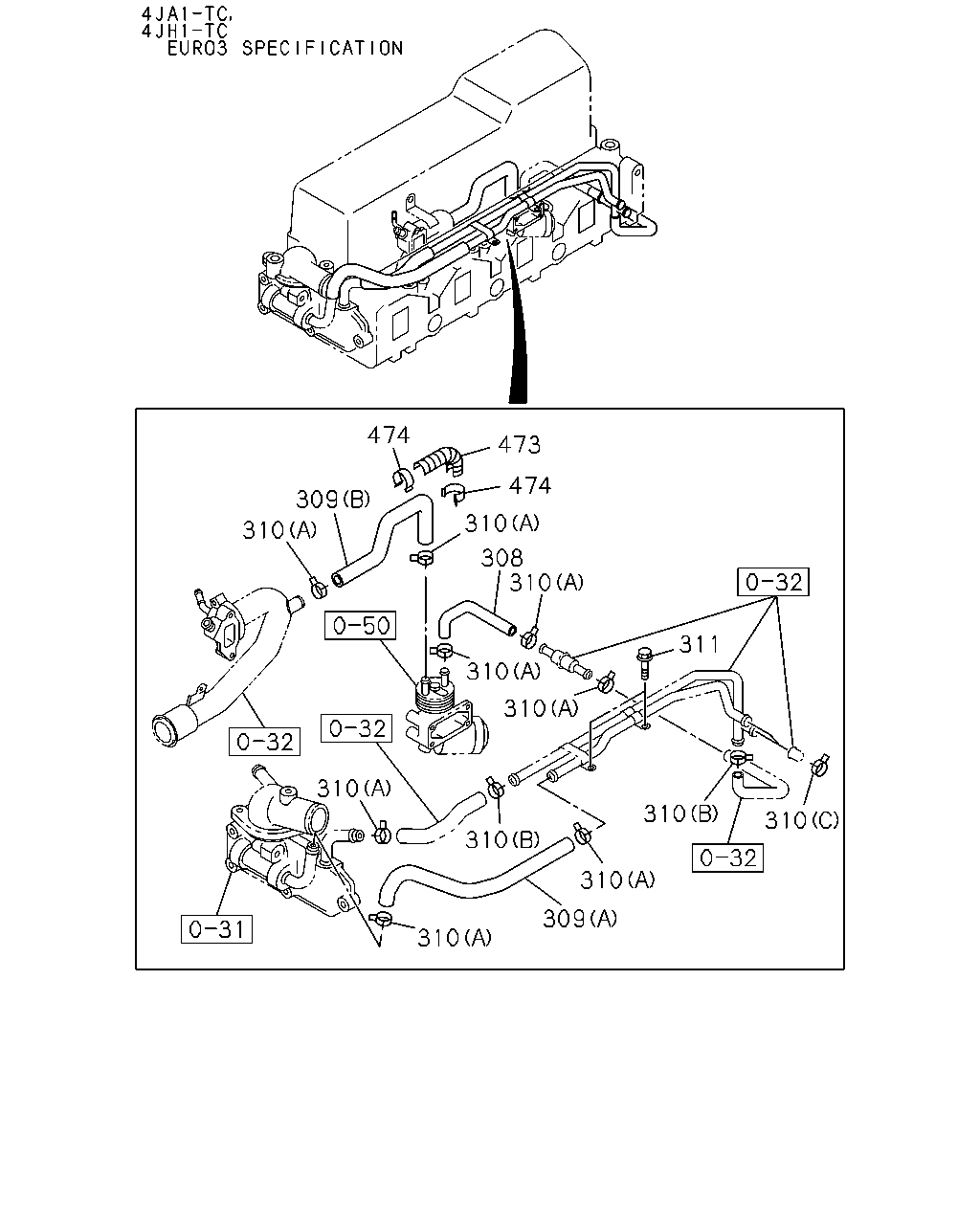

çizim 64595
474 473 474 309 310 310 308 310 311 310 310 310 310 310 310 310 309 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-1 01 1 0306-0703 ●
308 01.540 HOSE; OIL COOLER FEED
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97362-329-1 01 1 0306-0703 ●
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-3 01 1 0704- ●
308 01.540 HOSE; OIL COOLER FEED
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97362-329-3 01 1 0704- ●
308 01.540 HOSE; OIL COOLER FEED 8-97249-288-0 01 1 0306-0308 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0306-0308 ●
308 01.540 HOSE; OIL COOLER FEED 8-97331-175-0 01 1 0309-0609 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0309-0609 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0610- ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0306-0402 ● ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0403-0609 ●
309 01.540 HOSE; OIL COOLER RETURN
EXC. TURKEY EQUIPMENT(B11) (B) 		8-97213-919-2 01 1 0403-0609 ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0610- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-1 01 1 0306-0609 ● ● ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-1 01 1 0610- ● ●
309 01.540 HOSE; OIL COOLER RETURN
TURKEY EQUIPMENT(B11) (B) 		8-97920-080-2 01 1 0403-0609 ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97329-648-2 01 1 0306- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0306-0703 ●
310 01.540 CLIP; WATER HOSE FIX
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.166 (A) ID=20.8 		8-94125-862-1 06 1 0306-0703 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0704- ●
310 01.540 CLIP; WATER HOSE FIX
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.166 (A) ID=20.8 		8-94125-862-1 06 1 0704- ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0306-0609 ● ● ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0610- ● ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 08 1 0306-0609 ●
310 01.540 CLIP; WATER HOSE FIX
EURO3 SPECIFICATION<NT3> 01.166 (A) ID=20.8 		8-94125-862-1 08 1 0306-0609 ●
310 01.540 CLIP; WATER HOSE FIX
EURO3 SPECIFICATION<NT3> 01.166 (A) ID=20.8 		8-94125-862-1 08 1 0610- ●
310 01.540 CLIP; WATER HOSE FIX
08.846 (C) ID=22 		8-94382-401-0 02 1 0306-0609 ● ●
310 01.540 CLIP; WATER HOSE FIX
08.846 (C) ID=22 		8-94382-401-0 02 1 0610-1003 ●
310 01.540 CLIP; WATER HOSE FIX
03.278 (C) ID=22 		8-97359-141-0 02 1 1004- ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0306-0402 ● ● ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0403-0512 ● ●
311 01.531 BOLT; PIPE FIX
EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0403-0512 ●
311 01.531 BOLT; PIPE FIX
TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0403-0512 ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610-1007 ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1008- ● ● ●
473 01.540 INSULATOR; HOSE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97101-333-1 02 1 0306- ●
474 01.540 CLIP; INSULATOR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97101-337-0 04 1 0306- ●

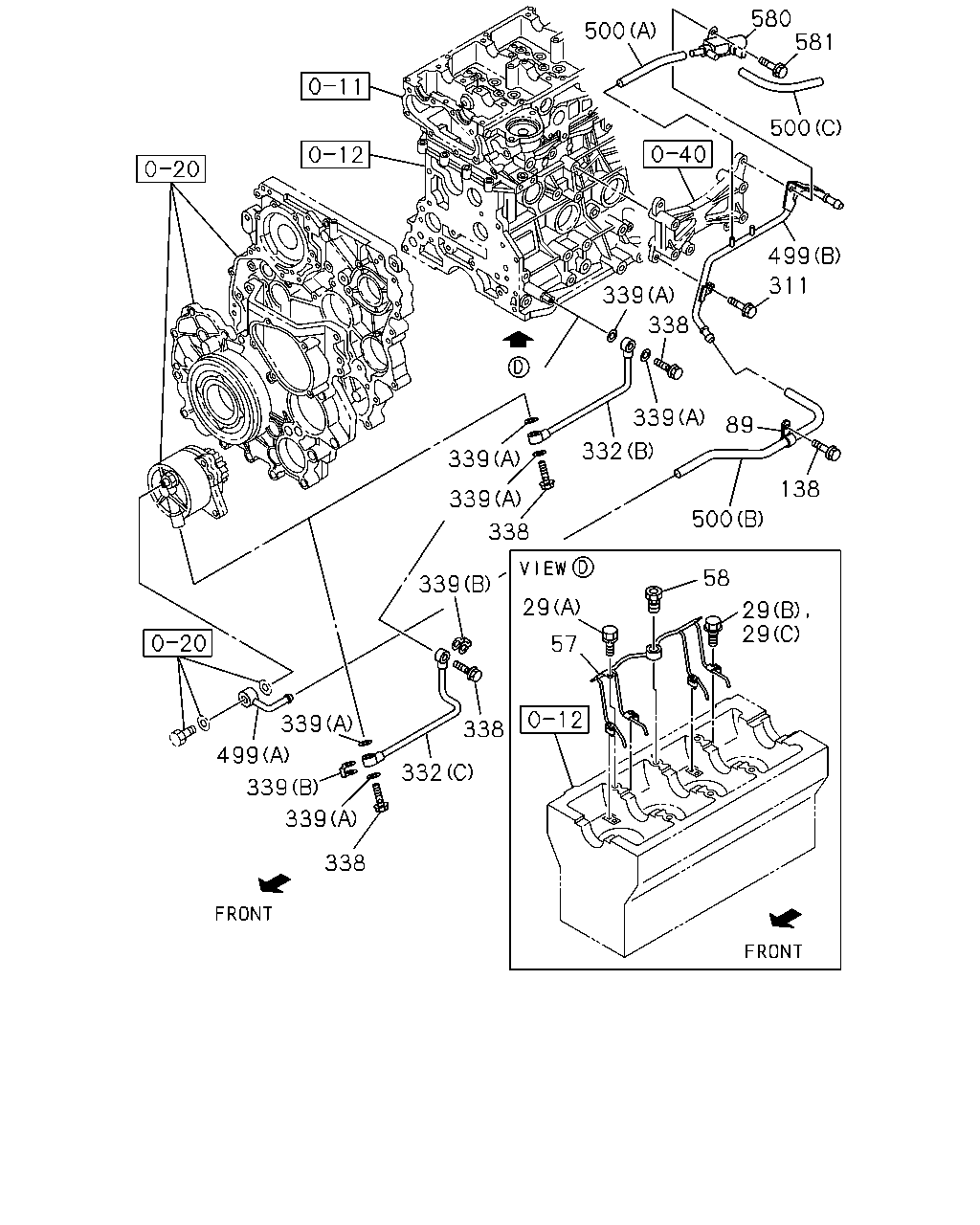

çizim 64734
580 500 500 581 499 311 339 339 338 339 332 138 89 500 339 339 338 29 58 29 29 57 338 339 499 332 339 339 338
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0306-0512 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 04 1 0601- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0306-0402 ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0403-0512 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. TURKEY EQUIPMENT(B11) 00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0403-0512 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURKEY EQUIPMENT(B11) 03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0403-0512 ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0601-0609 ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0610-1007 ● ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1008- ● ● ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURKEY EQUIPMENT(B11) (B) M6X20 		8-97920-485-0 04 1 0403-0609 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-0 04 1 0610-0610 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. EGYPT EQUIPMENT(B09) (C) M6X20 FLANGE 		8-97380-673-1 04 1 0611-1003 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-1 04 1 0611-1003 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-1 04 1 1004-1007 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. EGYPT EQUIPMENT(B09) (C) M6X20 FLANGE 		8-97380-673-1 04 1 1008- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-1 04 1 1008- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0306-0402 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. TURKEY EQUIPMENT(B11) (B) M6X20 		8-97117-298-1 04 1 0403-0609 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0403-0609 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0610-0610 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0611-0611 ●
29 01.531 BOLT; OIL PIPE,OIL JET
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> (B) M6X20 		8-97117-298-1 04 1 0611-0611 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0612-0709 ●
29 01.531 BOLT; OIL PIPE,OIL JET
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 		8-97117-298-1 04 1 0612-0709 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0710-1003 ●
29 01.531 BOLT; OIL PIPE,OIL JET
EGYPT EQUIPMENT(B09) (B) M6X20 		8-97117-298-1 04 1 0710-1003 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1004-1007 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1008-1109 ●
29 01.531 BOLT; OIL PIPE,OIL JET
EGYPT EQUIPMENT(B09) (B) M6X20 		8-97117-298-1 04 1 1008-1109 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1110- ●
29 01.531 BOLT; OIL PIPE,OIL JET
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) (B) M6X20 		8-97117-298-1 04 1 1110- ●
57 01.519 PIPE; OIL,OIL JET 8-94469-992-2 01 1 0306-0308 ●
57 01.519 PIPE; OIL,OIL JET 8-97912-536-2 01 1 0309-0309 ●
57 01.519 PIPE; OIL,OIL JET 8-94469-992-2 01 1 0310- ●
57 01.519 PIPE; OIL,OIL JET 8-97249-279-0 01 1 0306-0609 ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-2 01 1 0610-1007 ● ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1008- ● ● ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0306- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-0 01 1 0306-0402 ● ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0403-0609 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. TURKEY EQUIPMENT(B11) 		8-97239-048-1 01 1 0403-0609 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0610-0703 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-97239-048-1 01 1 0610-0703 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0704-0709 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 		8-97239-048-1 01 1 0704-0709 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0710-1003 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EGYPT EQUIPMENT(B09) 		8-97239-048-1 01 1 0710-1003 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1004-1007 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1008- ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EGYPT EQUIPMENT(B09) 		8-97239-048-1 01 1 1008- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURKEY EQUIPMENT(B11) 		8-97920-423-0 01 1 0403-0609 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. EGYPT EQUIPMENT(B09) 		8-97379-464-0 01 1 0610-1003 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 0610-1003 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 1004-1007 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. EGYPT EQUIPMENT(B09) 		8-97379-464-0 01 1 1008- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 1008- ● ●
89 04.681 CLIP; VAC HOSE
ID=16 L=20 		0-95235-536-0 01 1 0610-1007 ● ●
89 04.681 CLIP; VAC HOSE
ID=16 L=20 		0-95235-536-0 01 1 1008- ● ● ●
138 01.531 BOLT; CLIP FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610-1007 ● ●
138 01.531 BOLT; CLIP FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1008- ● ● ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0306-0402 ● ● ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0403-0512 ● ●
311 01.531 BOLT; PIPE FIX
EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0403-0512 ●
311 01.531 BOLT; PIPE FIX
TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0403-0512 ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610-1007 ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1008- ● ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EGYPT EQUIPMENT(B09) (C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-97942-810-0 01 1 0306-0609 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-97942-810-0 01 1 0610- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-97324-653-1 01 1 0306-0609 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-97324-653-1 01 1 0610- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-98038-929-0 01 1 0610-1007 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-98038-929-0 01 1 1008-1212 ● ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. EGYPT EQUIPMENT(B09) (B) 		8-98038-929-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-98038-929-0 01 1 1301- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
EGYPT EQUIPMENT(B09) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1008- ●
338 01.531 BOLT; JOINT,OIL PIPE
EXC. EGYPT EQUIPMENT(B09) M8X20 EYE-BOLT 		8-97910-296-1 02 1 0610-1003 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		8-97910-296-1 02 1 0610-1003 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		8-97910-296-1 02 1 1004-1007 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
EXC. EGYPT EQUIPMENT(B09) M8X20 EYE-BOLT 		8-97910-296-1 02 1 1008- ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		8-97910-296-1 02 1 1008- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
EGYPT EQUIPMENT(B09) M8X20 EYE-BOLT 		5-09675-018-1 02 1 0610-1003 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . EGYPT EQUIPMENT(B09) 03.332 (B) ID=8.3 OD=15.0 		8-98065-992-0 01 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . EGYPT EQUIPMENT(B09) 03.332 (B) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1303- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. EGYPT EQUIPMENT(B09) . 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1301- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1301- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 0610-1007 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1008-1212 ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . EGYPT EQUIPMENT(B09) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1301-1302 ●
499 04.681 PIPE; VACUUM
(B) 		8-98013-802-1 01 1 0610-0611 ●
499 04.681 PIPE; VACUUM
(B) 		8-98011-526-1 01 1 0612-1007 ●
499 04.681 PIPE; VACUUM
(B) 		8-98011-526-1 01 1 1008- ● ●
499 04.681 PIPE; VACUUM
(A) 		8-98011-527-1 01 1 0610-1007 ● ●
499 04.681 PIPE; VACUUM
(A) 		8-98011-527-1 01 1 1008- ● ● ●
499 04.681 PIPE; VACUUM
(B) 		8-98011-526-1 01 1 0610-0611 ●
499 04.681 PIPE; VACUUM
(B) 		8-98013-802-1 01 1 0612- ●
500 04.681 HOSE; VACUUM
(A) 		0-04420-110-0 01 1 0610-1007 ● ●
500 04.681 HOSE; VACUUM
(A) 		0-04420-110-0 01 1 1008- ● ● ●
500 04.681 HOSE; VACUUM
(B) 		0-08508-230-0 01 1 0610-1007 ● ●
500 04.681 HOSE; VACUUM
(B) 		0-08508-230-0 01 1 1008- ● ● ●
500 04.681 HOSE; VACUUM
03.675 (C) 		8-97369-589-0 01 1 0610-1007 ● ●
500 04.681 HOSE; VACUUM
03.675 (C) 		8-97369-589-0 01 1 1008- ● ● ●
580 01.531 VALVE; VAC SW
03.670 		8-97352-145-0 01 1 0610-1007 ● ●
580 01.531 VALVE; VAC SW
03.670 		8-97352-145-0 01 1 1008- ● ● ●
581 01.531 BOLT; VSV
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610-1007 ● ●
581 01.531 BOLT; VSV
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1008- ● ● ●

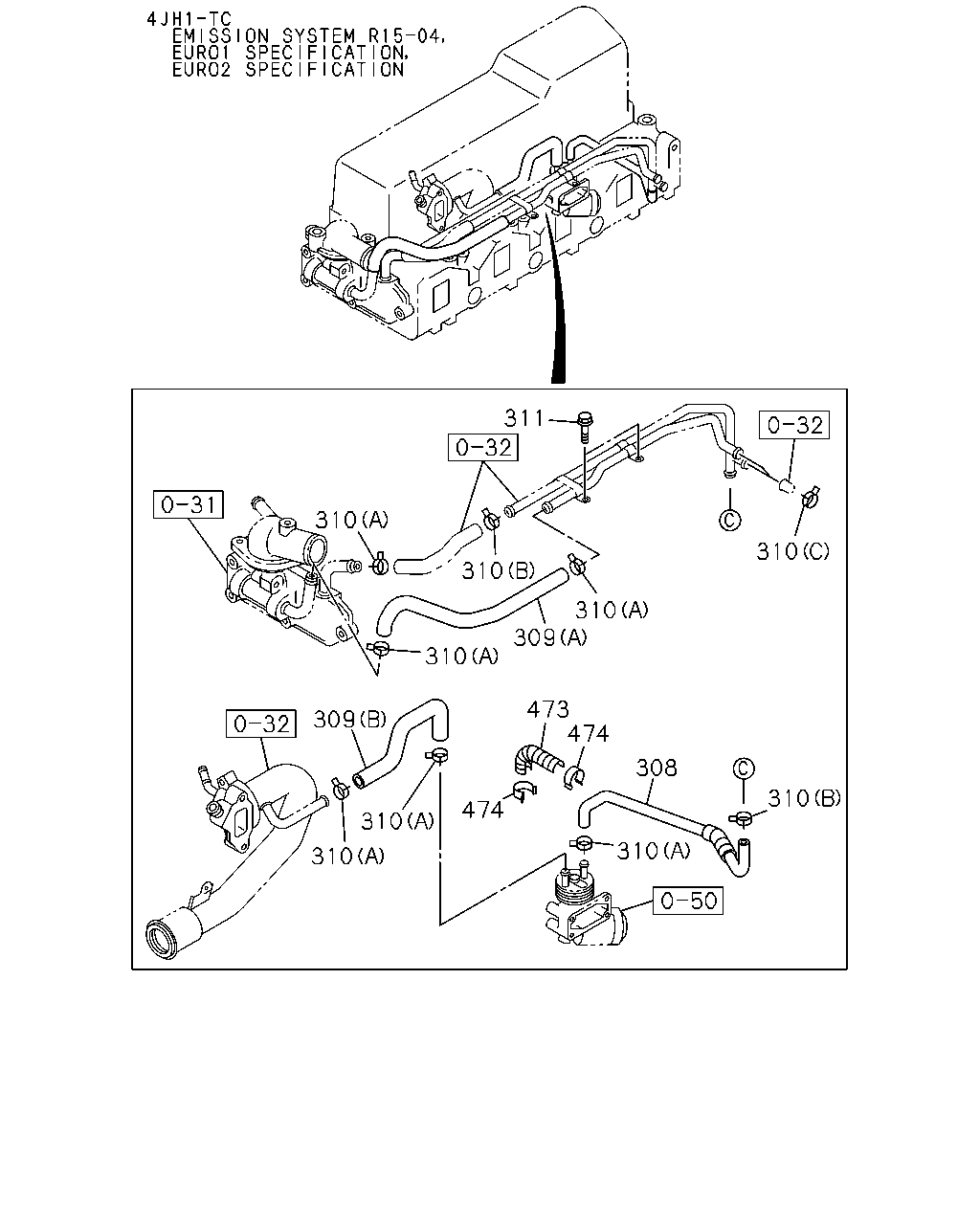

çizim 64765
311 310 310 310 310 309 310 473 474 309 308 310 474 310 310 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-1 01 1 0306-0703 ●
308 01.540 HOSE; OIL COOLER FEED
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97362-329-1 01 1 0306-0703 ●
308 01.540 HOSE; OIL COOLER FEED 8-97362-329-3 01 1 0704- ●
308 01.540 HOSE; OIL COOLER FEED
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97362-329-3 01 1 0704- ●
308 01.540 HOSE; OIL COOLER FEED 8-97249-288-0 01 1 0306-0308 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0306-0308 ●
308 01.540 HOSE; OIL COOLER FEED 8-97331-175-0 01 1 0309-0609 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0309-0609 ●
308 01.540 HOSE; OIL COOLER FEED
EURO3 SPECIFICATION<NT3> 		8-97331-175-0 01 1 0610- ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0306-0402 ● ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0403-0609 ●
309 01.540 HOSE; OIL COOLER RETURN
EXC. TURKEY EQUIPMENT(B11) (B) 		8-97213-919-2 01 1 0403-0609 ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97213-919-2 01 1 0610- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-1 01 1 0306-0609 ● ● ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97256-047-1 01 1 0610- ● ●
309 01.540 HOSE; OIL COOLER RETURN
TURKEY EQUIPMENT(B11) (B) 		8-97920-080-2 01 1 0403-0609 ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97329-648-2 01 1 0306- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0306-0703 ●
310 01.540 CLIP; WATER HOSE FIX
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.166 (A) ID=20.8 		8-94125-862-1 06 1 0306-0703 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 06 1 0704- ●
310 01.540 CLIP; WATER HOSE FIX
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.166 (A) ID=20.8 		8-94125-862-1 06 1 0704- ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0306-0609 ● ● ●
310 01.540 CLIP; WATER HOSE FIX
01.150 (B) ID=24 		8-97010-605-0 02 1 0610- ● ●
310 01.540 CLIP; WATER HOSE FIX
01.166 (A) ID=20.8 		8-94125-862-1 08 1 0306-0609 ●
310 01.540 CLIP; WATER HOSE FIX
EURO3 SPECIFICATION<NT3> 01.166 (A) ID=20.8 		8-94125-862-1 08 1 0306-0609 ●
310 01.540 CLIP; WATER HOSE FIX
EURO3 SPECIFICATION<NT3> 01.166 (A) ID=20.8 		8-94125-862-1 08 1 0610- ●
310 01.540 CLIP; WATER HOSE FIX
08.846 (C) ID=22 		8-94382-401-0 02 1 0306-0609 ● ●
310 01.540 CLIP; WATER HOSE FIX
08.846 (C) ID=22 		8-94382-401-0 02 1 0610-1003 ●
310 01.540 CLIP; WATER HOSE FIX
03.278 (C) ID=22 		8-97359-141-0 02 1 1004- ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0306-0402 ● ● ●
311 01.531 BOLT; PIPE FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0403-0512 ● ●
311 01.531 BOLT; PIPE FIX
EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0403-0512 ●
311 01.531 BOLT; PIPE FIX
TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0403-0512 ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0609 ● ● ●
311 01.531 BOLT; PIPE FIX
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610- ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610-1007 ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1008- ● ● ●
473 01.540 INSULATOR; HOSE
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97101-333-1 02 1 0306- ●
474 01.540 CLIP; INSULATOR
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> 		8-97101-337-0 04 1 0306- ●
çizim 64868
2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.531 BOLT; EYE,OIL PIPE
M10X25 FLANGE 		8-98151-063-1 01 1 1008- ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0306-0609 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0610- ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0306-0609 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0610- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-1007 ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 1008- ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0306-0609 ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 0610-1007 ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 1008- ● ● ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 02 1 0710-0809 ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 01 1 0810-1007 ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 02 1 0710-0809 ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 01 1 0810-1007 ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-2 01 1 0306-0609 ● ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-3 01 1 0610- ●
48 01.531 CLIP; OIL PIPE
(B) ID=9 & 9 L=25 		1-09701-212-2 01 1 0306- ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-843-1 01 1 0610-1007 ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-843-1 01 1 1008- ● ● ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-844-0 01 1 0610-1007 ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-844-0 01 1 1008- ● ● ●
48 01.531 CLIP; OIL PIPE
(C) ID=8 & 9 L=25 		8-97603-522-0 01 1 0610-0707 ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 01 1 0708-0709 ●
48 01.531 CLIP; OIL PIPE
(D) ID=8 & 9 L=25 		8-97603-523-0 01 1 0610-0707 ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 01 1 0708-0709 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0306-0609 ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0610- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97330-876-0 01 1 0306- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0610-0611 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-504-1 01 1 0612-1007 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98156-380-0 01 1 1008- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-504-1 01 1 0610-0611 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0612- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.358 (A) 		8-94362-672-0 01 1 0306-0402 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94362-672-1 01 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11) 03.358 (A) 		8-94362-672-1 01 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.358 (A) 		8-94362-672-1 01 1 0610- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0306-0609 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-1007 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1008- ● ● ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11) (A) 		8-97910-642-0 01 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (C) 		8-98011-505-1 01 1 0610-0611 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (D) 		8-97354-056-0 01 1 0612- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (A) ID=14 		8-97041-638-0 01 1 0306- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (D) 		8-97354-056-0 01 1 0610-0611 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (C) 		8-98011-505-1 01 1 0612-1007 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (E) 		8-98132-017-0 01 1 1008- ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EGYPT EQUIPMENT(B09) 		8-98126-827-0 01 1 1008- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98156-381-0 01 1 1008- ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EGYPT EQUIPMENT(B09) 		8-98126-827-0 01 1 0812-1003 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97333-749-1 01 1 0306- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97354-087-0 01 1 0306-0609 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98011-900-0 01 1 0610-0811 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) 		8-98011-900-0 01 1 0812-1003 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98011-900-0 01 1 1004-1007 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) 		8-98011-900-0 01 1 1008- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97245-772-3 01 1 0306- ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0306-0402 ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0403-0609 ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11) 		8-97045-326-1 01 1 0403-0609 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0610- ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11) 		8-97920-587-0 01 1 0403-0609 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97920-587-0 01 1 0610-1007 ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-98132-018-1 01 1 1008- ● ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EGYPT EQUIPMENT(B09) 03.280 M10X24 		9-09906-205-1 01 1 1008- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0306-0609 ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0610- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED 8-97305-198-1 01 1 0306- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-0 01 1 0610-0611 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) 01.531 M10X24 		8-97944-505-1 01 1 0612-0709 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. EGYPT EQUIPMENT(B09) 01.531 M10X24 		8-97944-505-1 01 1 0710-1003 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-1 01 1 1004-1007 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. EGYPT EQUIPMENT(B09) 01.531 M10X24 		8-97944-505-1 01 1 1008- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EGYPT EQUIPMENT(B09) 03.280 M10X24 		9-09906-205-1 01 1 0612-1003 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X22 		1-09675-028-0 01 1 0610-1007 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X22 		1-09675-028-0 01 1 1008- ● ●
414 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1202- ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0610-1007 ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1008-1201 ● ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1202- ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-1007 ● ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1008- ● ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 0610-1007 ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1008- ● ● ●

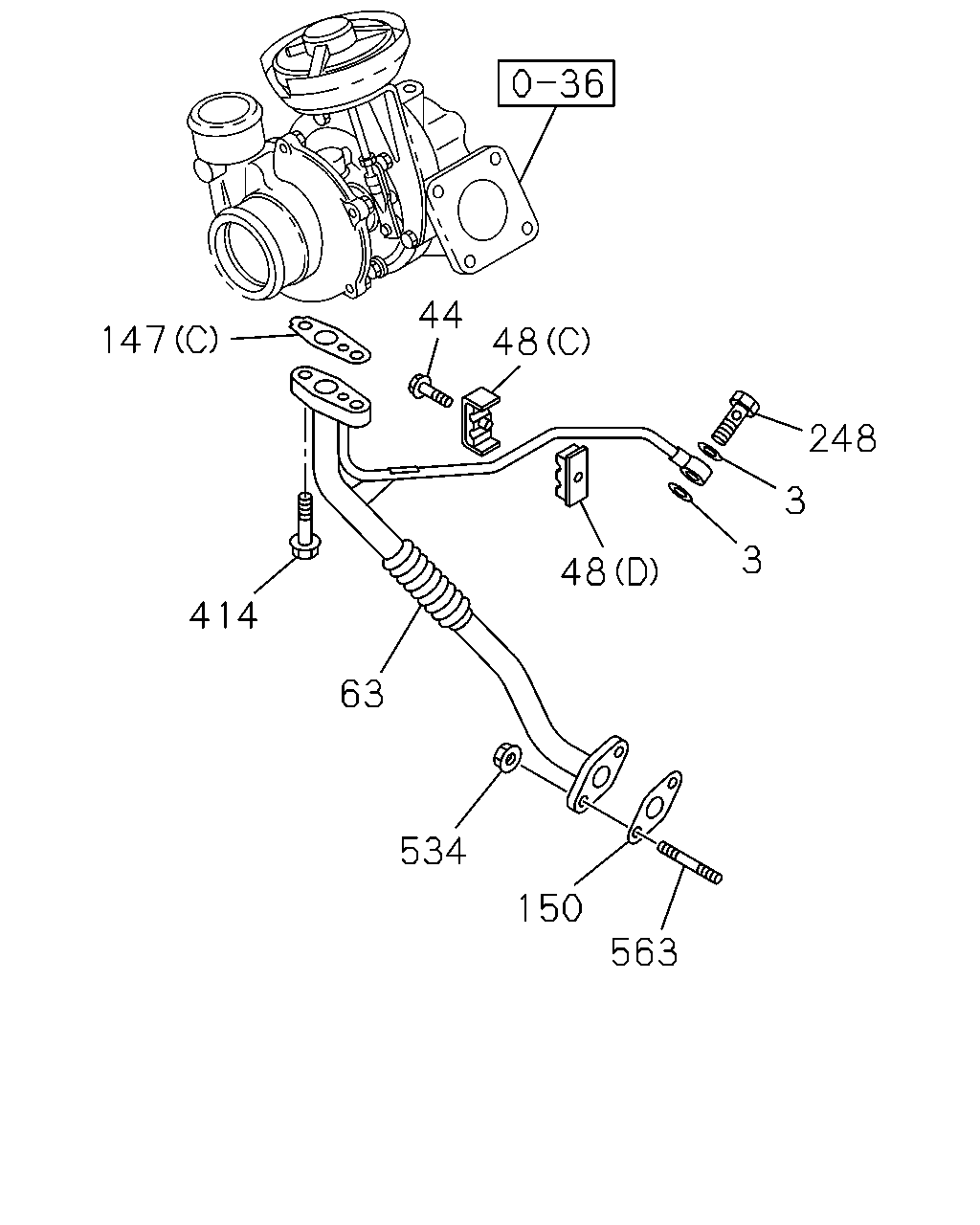

çizim 64901
44 147 48 248 3 3 48 414 63 534 150 563
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0306-0609 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0610- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-1007 ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 1008- ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0306-0609 ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 0610-1007 ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 1008- ● ● ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 02 1 0710-0809 ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 01 1 0810-1007 ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 02 1 0710-0809 ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 01 1 0810-1007 ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-2 01 1 0306-0609 ● ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-3 01 1 0610- ●
48 01.531 CLIP; OIL PIPE
(B) ID=9 & 9 L=25 		1-09701-212-2 01 1 0306- ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-843-1 01 1 0610-1007 ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-843-1 01 1 1008- ● ● ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-844-0 01 1 0610-1007 ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-844-0 01 1 1008- ● ● ●
48 01.531 CLIP; OIL PIPE
(C) ID=8 & 9 L=25 		8-97603-522-0 01 1 0610-0707 ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 01 1 0708-0709 ●
48 01.531 CLIP; OIL PIPE
(D) ID=8 & 9 L=25 		8-97603-523-0 01 1 0610-0707 ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 01 1 0708-0709 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0306-0609 ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0610- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97330-876-0 01 1 0306- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0610-0611 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-504-1 01 1 0612-1007 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98156-380-0 01 1 1008- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-504-1 01 1 0610-0611 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0612- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.358 (A) 		8-94362-672-0 01 1 0306-0402 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94362-672-1 01 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11) 03.358 (A) 		8-94362-672-1 01 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.358 (A) 		8-94362-672-1 01 1 0610- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0306-0609 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-1007 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1008- ● ● ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11) (A) 		8-97910-642-0 01 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (C) 		8-98011-505-1 01 1 0610-0611 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (D) 		8-97354-056-0 01 1 0612- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (A) ID=14 		8-97041-638-0 01 1 0306- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (D) 		8-97354-056-0 01 1 0610-0611 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (C) 		8-98011-505-1 01 1 0612-1007 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (E) 		8-98132-017-0 01 1 1008- ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0306-0402 ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0403-0609 ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11) 		8-97045-326-1 01 1 0403-0609 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0610- ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11) 		8-97920-587-0 01 1 0403-0609 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97920-587-0 01 1 0610-1007 ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-98132-018-1 01 1 1008- ● ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EGYPT EQUIPMENT(B09) 03.280 M10X24 		9-09906-205-1 01 1 1008- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0306-0609 ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0610- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED 8-97305-198-1 01 1 0306- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-0 01 1 0610-0611 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) 01.531 M10X24 		8-97944-505-1 01 1 0612-0709 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. EGYPT EQUIPMENT(B09) 01.531 M10X24 		8-97944-505-1 01 1 0710-1003 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-1 01 1 1004-1007 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. EGYPT EQUIPMENT(B09) 01.531 M10X24 		8-97944-505-1 01 1 1008- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EGYPT EQUIPMENT(B09) 03.280 M10X24 		9-09906-205-1 01 1 0612-1003 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X22 		1-09675-028-0 01 1 0610-1007 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X22 		1-09675-028-0 01 1 1008- ● ●
414 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1202- ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0610-1007 ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1008-1201 ● ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1202- ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-1007 ● ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1008- ● ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 0610-1007 ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1008- ● ● ●
çizim 64932
2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.531 BOLT; EYE,OIL PIPE
M10X25 FLANGE 		8-98151-063-1 01 1 1008- ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0306-0609 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0610- ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0306-0609 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0610- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-1007 ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 1008- ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0306-0609 ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 0610-1007 ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 1008- ● ● ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 02 1 0710-0809 ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 01 1 0810-1007 ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 02 1 0710-0809 ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 01 1 0810-1007 ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-2 01 1 0306-0609 ● ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-3 01 1 0610- ●
48 01.531 CLIP; OIL PIPE
(B) ID=9 & 9 L=25 		1-09701-212-2 01 1 0306- ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-843-1 01 1 0610-1007 ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-843-1 01 1 1008- ● ● ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-844-0 01 1 0610-1007 ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-844-0 01 1 1008- ● ● ●
48 01.531 CLIP; OIL PIPE
(C) ID=8 & 9 L=25 		8-97603-522-0 01 1 0610-0707 ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 01 1 0708-0709 ●
48 01.531 CLIP; OIL PIPE
(D) ID=8 & 9 L=25 		8-97603-523-0 01 1 0610-0707 ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 01 1 0708-0709 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0306-0609 ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0610- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97330-876-0 01 1 0306- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0610-0611 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-504-1 01 1 0612-1007 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98156-380-0 01 1 1008- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-504-1 01 1 0610-0611 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0612- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.358 (A) 		8-94362-672-0 01 1 0306-0402 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94362-672-1 01 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11) 03.358 (A) 		8-94362-672-1 01 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.358 (A) 		8-94362-672-1 01 1 0610- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0306-0609 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-1007 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1008- ● ● ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11) (A) 		8-97910-642-0 01 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (C) 		8-98011-505-1 01 1 0610-0611 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (D) 		8-97354-056-0 01 1 0612- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (A) ID=14 		8-97041-638-0 01 1 0306- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (D) 		8-97354-056-0 01 1 0610-0611 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (C) 		8-98011-505-1 01 1 0612-1007 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (E) 		8-98132-017-0 01 1 1008- ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EGYPT EQUIPMENT(B09) 		8-98126-827-0 01 1 1008- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98156-381-0 01 1 1008- ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EGYPT EQUIPMENT(B09) 		8-98126-827-0 01 1 0812-1003 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97333-749-1 01 1 0306- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97354-087-0 01 1 0306-0609 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98011-900-0 01 1 0610-0811 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) 		8-98011-900-0 01 1 0812-1003 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98011-900-0 01 1 1004-1007 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) 		8-98011-900-0 01 1 1008- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97245-772-3 01 1 0306- ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0306-0402 ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0403-0609 ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11) 		8-97045-326-1 01 1 0403-0609 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0610- ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11) 		8-97920-587-0 01 1 0403-0609 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97920-587-0 01 1 0610-1007 ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-98132-018-1 01 1 1008- ● ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EGYPT EQUIPMENT(B09) 03.280 M10X24 		9-09906-205-1 01 1 1008- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0306-0609 ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0610- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED 8-97305-198-1 01 1 0306- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-0 01 1 0610-0611 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) 01.531 M10X24 		8-97944-505-1 01 1 0612-0709 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. EGYPT EQUIPMENT(B09) 01.531 M10X24 		8-97944-505-1 01 1 0710-1003 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-1 01 1 1004-1007 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. EGYPT EQUIPMENT(B09) 01.531 M10X24 		8-97944-505-1 01 1 1008- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EGYPT EQUIPMENT(B09) 03.280 M10X24 		9-09906-205-1 01 1 0612-1003 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X22 		1-09675-028-0 01 1 0610-1007 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X22 		1-09675-028-0 01 1 1008- ● ●
414 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1202- ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0610-1007 ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1008-1201 ● ● ●
414 01.531 BOLT; OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1202- ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-1007 ● ●
534 01.531 NUT; OIL PIPE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1008- ● ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 0610-1007 ● ●
563 01.531 STUD; OIL PIPE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1008- ● ● ●

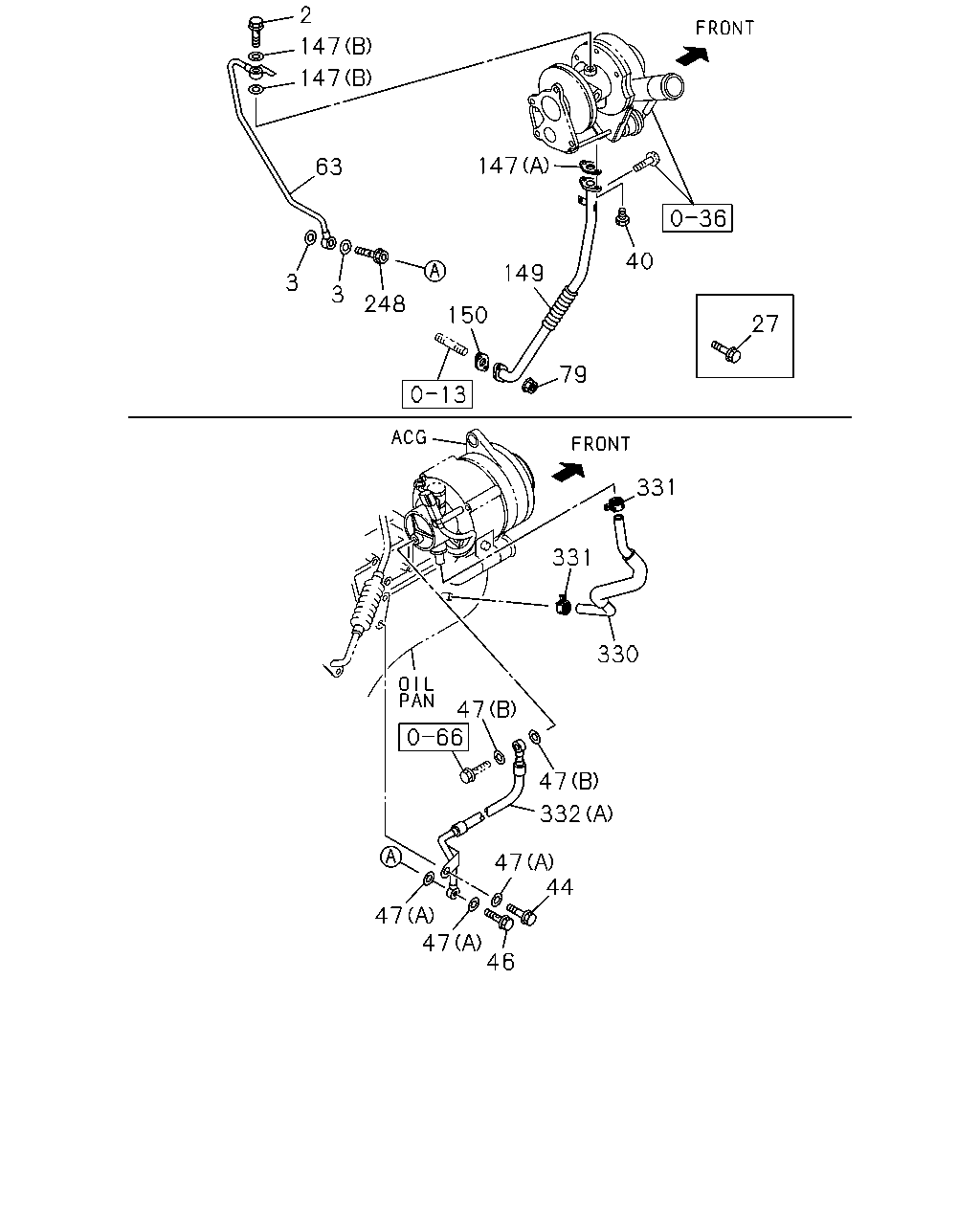

çizim 65013
2 147 147 63 147 40 149 150 248 3 3 79 27 331 331 330 47 332 47 44 46 47 47 47
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.531 BOLT; EYE,OIL PIPE
M10X25 FLANGE 		8-98151-063-1 01 1 1008- ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0306-0609 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 FLANGE 		8-94443-535-0 01 1 0610- ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0306-0609 ● ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0610- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-1007 ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 1008- ● ● ●
27 01.531 BOLT; OIL PIPE FIX
00.206 M8X10 FLANGE 		0-28080-810-0 01 1 0306-0402 ● ● ●
27 01.531 BOLT; OIL PIPE FIX
00.206 M8X10 FLANGE 		0-28080-810-0 01 1 0403-0512 ● ●
27 01.531 BOLT; OIL PIPE FIX
EXC. TURKEY EQUIPMENT(B11) 00.206 M8X10 FLANGE 		0-28080-810-0 01 1 0403-0512 ●
27 01.531 BOLT; OIL PIPE FIX
TURKEY EQUIPMENT(B11) 03.407 M8X10 FLANGE 		0-28050-810-0 01 1 0403-0512 ●
27 01.531 BOLT; OIL PIPE FIX
03.407 M8X10 FLANGE 		0-28050-810-0 01 1 0601-0609 ● ● ●
27 01.531 BOLT; OIL PIPE FIX
03.407 M8X10 FLANGE 		0-28050-810-0 01 1 0610- ● ●
40 01.531 BOLT; OIL PIPE
02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0306-0310 ● ● ●
40 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0311-0402 ● ● ●
40 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0403-0512 ● ●
40 01.531 BOLT; OIL PIPE
EXC. TURKEY EQUIPMENT(B11) 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0403-0512 ●
40 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0601-0609 ● ●
40 01.531 BOLT; OIL PIPE
EXC. TURKEY EQUIPMENT(B11) 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0601-0609 ●
40 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0610- ● ●
40 01.531 BOLT; OIL PIPE
TURKEY EQUIPMENT(B11) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0403-0609 ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0306-0609 ● ● ●
44 01.531 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0610- ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 0610-1007 ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.680 M6X30 FLANGE 		0-28650-630-0 01 1 1008- ● ● ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0306-0609 ● ● ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0610-0906 ● ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X20 FLANGE 		8-98137-710-0 01 1 0907- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) W/PLATE ID=18.2 		8-94329-964-0 02 1 1008- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0306-0609 ● ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0610- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 0306-0609 ● ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 0610- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0306-0609 ● ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) W/PLATE ID=18.2 		8-94329-964-0 02 1 0306-0609 ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) W/PLATE ID=18.2 		8-94329-964-0 02 1 0710-1003 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0306-0609 ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97350-308-0 01 1 0610- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97330-876-0 01 1 0306- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0610-0611 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-504-1 01 1 0612-1007 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98156-380-0 01 1 1008- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-504-1 01 1 0610-0611 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-98011-899-0 01 1 0612- ●
79 01.531 NUT; OIL DRAIN PIPE
00.854 M8 FLANGE 		5-09440-005-0 02 1 0306-0402 ● ● ●
79 01.531 NUT; OIL DRAIN PIPE
00.854 M8 FLANGE 		5-09440-005-0 02 1 0403-0609 ● ●
79 01.531 NUT; OIL DRAIN PIPE
EXC. TURKEY EQUIPMENT(B11) 00.854 M8 FLANGE 		5-09440-005-0 02 1 0403-0609 ●
79 01.531 NUT; OIL DRAIN PIPE
00.854 M8 FLANGE 		5-09440-005-0 02 1 0610-0805 ● ●
79 01.531 NUT; OIL DRAIN PIPE
04.634 M8 FLANGE 		8-97581-233-0 02 1 0806- ● ●
79 01.531 NUT; OIL DRAIN PIPE
TURKEY EQUIPMENT(B11) 04.634 M8 FLANGE 		8-97943-102-0 02 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.358 (A) 		8-94362-672-0 01 1 0306-0402 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-94362-672-1 01 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11) 03.358 (A) 		8-94362-672-1 01 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.358 (A) 		8-94362-672-1 01 1 0610- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0306-0609 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610-1007 ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1008- ● ● ● ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11) (A) 		8-97910-642-0 01 1 0403-0609 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (C) 		8-98011-505-1 01 1 0610-0611 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (D) 		8-97354-056-0 01 1 0612- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (A) ID=14 		8-97041-638-0 01 1 0306- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (D) 		8-97354-056-0 01 1 0610-0611 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (C) 		8-98011-505-1 01 1 0612-1007 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE) . (E) 		8-98132-017-0 01 1 1008- ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EGYPT EQUIPMENT(B09) 		8-98126-827-0 01 1 1008- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98156-381-0 01 1 1008- ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EGYPT EQUIPMENT(B09) 		8-98126-827-0 01 1 0812-1003 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97333-749-1 01 1 0306- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97354-087-0 01 1 0306-0609 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98011-900-0 01 1 0610-0811 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) 		8-98011-900-0 01 1 0812-1003 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-98011-900-0 01 1 1004-1007 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) 		8-98011-900-0 01 1 1008- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97245-772-3 01 1 0306- ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0306-0402 ● ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0403-0609 ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11) 		8-97045-326-1 01 1 0403-0609 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97045-326-1 01 1 0610- ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11) 		8-97920-587-0 01 1 0403-0609 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97920-587-0 01 1 0610-1007 ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-98132-018-1 01 1 1008- ● ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EGYPT EQUIPMENT(B09) 03.280 M10X24 		9-09906-205-1 01 1 1008- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0306-0609 ● ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M14X25 		8-94315-336-1 01 1 0610- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED 8-97305-198-1 01 1 0306- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-0 01 1 0610-0611 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) 01.531 M10X24 		8-97944-505-1 01 1 0612-0709 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. EGYPT EQUIPMENT(B09) 01.531 M10X24 		8-97944-505-1 01 1 0710-1003 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X24 		8-97944-505-1 01 1 1004-1007 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EXC. EGYPT EQUIPMENT(B09) 01.531 M10X24 		8-97944-505-1 01 1 1008- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
EGYPT EQUIPMENT(B09) 03.280 M10X24 		9-09906-205-1 01 1 0612-1003 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X22 		1-09675-028-0 01 1 0610-1007 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
01.531 M10X22 		1-09675-028-0 01 1 1008- ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97353-830-0 01 1 0306-0402 ● ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97353-830-0 01 1 0403-0609 ● ●
330 03.278 HOSE; VAC PUMP,RETURN
EXC. TURKEY EQUIPMENT(B11) 		8-97353-830-0 01 1 0403-0609 ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97353-830-0 01 1 0610- ● ●
330 03.278 HOSE; VAC PUMP,RETURN
TURKEY EQUIPMENT(B11) 		8-97322-311-2 01 1 0403-0609 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 01 1 0306-0609 ● ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 01 1 0306-0609 ● ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 01 1 0610- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 01 1 0610- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EGYPT EQUIPMENT(B09) (C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-97942-810-0 01 1 0306-0609 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-97942-810-0 01 1 0610- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-97324-653-1 01 1 0306-0609 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-97324-653-1 01 1 0610- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-98038-929-0 01 1 0610-1007 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-98038-929-0 01 1 1008-1212 ● ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. EGYPT EQUIPMENT(B09) (B) 		8-98038-929-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-98038-929-0 01 1 1301- ● ●
çizim 185236
567 458
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
458 01.426 CAP; RUBBER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75> 01.780 ID=4 		8-94217-809-0 01 1 0306-0609 ●
458 01.426 CAP; RUBBER
EMISSION SYSTEM R15-04<K75> 01.780 ID=4 		8-94217-809-0 01 1 0306-0609 ●
458 01.426 CAP; RUBBER
HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75> 01.780 ID=4 		8-94217-809-0 01 1 0610-0709 ●
458 01.426 CAP; RUBBER
EMISSION SYSTEM R15-04<K75> 01.780 ID=4 		8-94217-809-0 01 1 0610-0709 ●
458 01.426 CAP; RUBBER
HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75> 01.780 ID=4 		8-94217-809-0 01 1 0710- ●
567 01.531 CLIP; PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75> 03.145 ID=8 		8-94107-762-0 01 1 0306-0609 ●
567 01.531 CLIP; PIPE
EMISSION SYSTEM R15-04<K75> 03.145 ID=8 		8-94107-762-0 01 1 0306-0609 ●
567 01.531 CLIP; PIPE
HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75> 03.145 ID=8 		8-94107-762-0 01 1 0610-0709 ●
567 01.531 CLIP; PIPE
EMISSION SYSTEM R15-04<K75> 03.145 ID=8 		8-94107-762-0 01 1 0610-0709 ●
567 01.531 CLIP; PIPE
HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75> 03.145 ID=8 		8-94107-762-0 01 1 0710- ●
çizim 185238
58 29 29 57 26 28 28 118 313 48 48 219 219 118 313
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 0306-0308 ● ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97920-470-0 01 1 0309-0609 ● ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97920-470-0 01 1 0610-0801 ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97923-928-0 01 1 0802- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.516 ID=11 		5-09623-002-0 02 1 0306-0402 ● ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 		5-09623-002-0 02 1 0403-0609 ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11) 01.516 ID=11 		5-09623-002-0 02 1 0403-0609 ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.516 ID=11 		5-09623-002-0 02 1 0610- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11) 		8-97912-535-0 02 1 0403-0609 ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0306-0512 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER 		0-50640-625-0 04 1 0601- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0306-0402 ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0403-0512 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. TURKEY EQUIPMENT(B11) 00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0403-0512 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURKEY EQUIPMENT(B11) 03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0403-0512 ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0601-0609 ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0610-1007 ● ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1008- ● ● ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURKEY EQUIPMENT(B11) (B) M6X20 		8-97920-485-0 04 1 0403-0609 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-0 04 1 0610-0610 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. EGYPT EQUIPMENT(B09) (C) M6X20 FLANGE 		8-97380-673-1 04 1 0611-1003 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-1 04 1 0611-1003 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-1 04 1 1004-1007 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. EGYPT EQUIPMENT(B09) (C) M6X20 FLANGE 		8-97380-673-1 04 1 1008- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X20 FLANGE 		8-97380-673-1 04 1 1008- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0306-0402 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. TURKEY EQUIPMENT(B11) (B) M6X20 		8-97117-298-1 04 1 0403-0609 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0403-0609 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0610-0610 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0611-0611 ●
29 01.531 BOLT; OIL PIPE,OIL JET
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> (B) M6X20 		8-97117-298-1 04 1 0611-0611 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0612-0709 ●
29 01.531 BOLT; OIL PIPE,OIL JET
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 		8-97117-298-1 04 1 0612-0709 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0710-1003 ●
29 01.531 BOLT; OIL PIPE,OIL JET
EGYPT EQUIPMENT(B09) (B) M6X20 		8-97117-298-1 04 1 0710-1003 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1004-1007 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1008-1109 ●
29 01.531 BOLT; OIL PIPE,OIL JET
EGYPT EQUIPMENT(B09) (B) M6X20 		8-97117-298-1 04 1 1008-1109 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1110- ●
29 01.531 BOLT; OIL PIPE,OIL JET
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) (B) M6X20 		8-97117-298-1 04 1 1110- ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 02 1 0710-0809 ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 01 1 0810-1007 ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 02 1 0710-0809 ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 01 1 0810-1007 ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-2 01 1 0306-0609 ● ●
48 01.531 CLIP; OIL PIPE
(A) ID=7 & 9 L=25 		1-09701-228-3 01 1 0610- ●
48 01.531 CLIP; OIL PIPE
(B) ID=9 & 9 L=25 		1-09701-212-2 01 1 0306- ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-843-1 01 1 0610-1007 ●
48 01.531 CLIP; OIL PIPE
(E) 		8-97389-843-1 01 1 1008- ● ● ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-844-0 01 1 0610-1007 ●
48 01.531 CLIP; OIL PIPE
(F) 		8-97389-844-0 01 1 1008- ● ● ●
48 01.531 CLIP; OIL PIPE
(C) ID=8 & 9 L=25 		8-97603-522-0 01 1 0610-0707 ●
48 01.531 CLIP; OIL PIPE
(C) 		8-97946-175-0 01 1 0708-0709 ●
48 01.531 CLIP; OIL PIPE
(D) ID=8 & 9 L=25 		8-97603-523-0 01 1 0610-0707 ●
48 01.531 CLIP; OIL PIPE
(D) 		8-97946-176-0 01 1 0708-0709 ●
57 01.519 PIPE; OIL,OIL JET 8-94469-992-2 01 1 0306-0308 ●
57 01.519 PIPE; OIL,OIL JET 8-97912-536-2 01 1 0309-0309 ●
57 01.519 PIPE; OIL,OIL JET 8-94469-992-2 01 1 0310- ●
57 01.519 PIPE; OIL,OIL JET 8-97249-279-0 01 1 0306-0609 ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-2 01 1 0610-1007 ● ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1008- ● ● ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0306- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-0 01 1 0306-0402 ● ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0403-0609 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. TURKEY EQUIPMENT(B11) 		8-97239-048-1 01 1 0403-0609 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0610-0703 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-97239-048-1 01 1 0610-0703 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0704-0709 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 		8-97239-048-1 01 1 0704-0709 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0710-1003 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EGYPT EQUIPMENT(B09) 		8-97239-048-1 01 1 0710-1003 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1004-1007 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1008- ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EGYPT EQUIPMENT(B09) 		8-97239-048-1 01 1 1008- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURKEY EQUIPMENT(B11) 		8-97920-423-0 01 1 0403-0609 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. EGYPT EQUIPMENT(B09) 		8-97379-464-0 01 1 0610-1003 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 0610-1003 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 1004-1007 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. EGYPT EQUIPMENT(B09) 		8-97379-464-0 01 1 1008- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97379-464-0 01 1 1008- ● ●
118 01.531 BRACKET; CLIP,OIL PIPE
(A) 		8-97350-307-2 01 1 0306-0609 ● ●
118 01.531 BRACKET; CLIP,OIL PIPE
(A) 		8-97350-307-2 01 1 0610- ●
118 01.531 BRACKET; CLIP,OIL PIPE
(B) 		8-97328-187-0 01 1 0306- ●
219 01.531 BOLT; CLIP FIX,OIL PIPE
M6X35 FLANGE 		0-28680-635-0 01 1 0306-0512 ● ● ●
219 01.531 BOLT; CLIP FIX,OIL PIPE
TURKEY EQUIPMENT(B11) M6X35 FLANGE 		0-28680-635-0 01 1 0601-0601 ●
219 01.531 BOLT; CLIP FIX,OIL PIPE
03.162 M6X35 FLANGE 		0-28650-635-0 01 1 0601-0601 ● ●
219 01.531 BOLT; CLIP FIX,OIL PIPE
EXC. TURKEY EQUIPMENT(B11) 03.162 M6X35 FLANGE 		0-28650-635-0 01 1 0601-0601 ●
219 01.531 BOLT; CLIP FIX,OIL PIPE
03.162 M6X35 FLANGE 		0-28650-635-0 01 1 0602-0609 ● ● ●
219 01.531 BOLT; CLIP FIX,OIL PIPE
03.162 M6X35 FLANGE 		0-28650-635-0 01 1 0610- ● ●
313 01.540 BOLT; PIPE BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ●
313 01.540 BOLT; PIPE BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0403-0512 ● ●
313 01.540 BOLT; PIPE BRKT
EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0403-0512 ●
313 01.540 BOLT; PIPE BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ●
313 01.540 BOLT; PIPE BRKT
EXC. TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ●
313 01.540 BOLT; PIPE BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0610- ● ●
313 01.540 BOLT; PIPE BRKT
TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0403-0404 ●
313 01.540 BOLT; PIPE BRKT
TURKEY EQUIPMENT(B11) 03.604 M8X16 FLANGE 		0-28450-816-0 01 1 0405-0609 ●
çizim 185242
47 18 47
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
18 01.519 PIPE; OIL,OIL PUMP 8-97226-640-0 01 1 1008- ●
18 01.519 PIPE; OIL,OIL PUMP 8-97226-640-0 01 1 0306-0609 ●
18 01.519 PIPE; OIL,OIL PUMP 8-97226-640-0 01 1 0710-1003 ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) W/PLATE ID=18.2 		8-94329-964-0 02 1 1008- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0306-0609 ● ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0610- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 0306-0609 ● ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 0610- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0306-0609 ● ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610- ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) W/PLATE ID=18.2 		8-94329-964-0 02 1 0306-0609 ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) W/PLATE ID=18.2 		8-94329-964-0 02 1 0710-1003 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
