◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#73916) — 414 parça
çizim 64103
1 29 1 21 21 45 2 5 121 19 35 42 49 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.652 PUMP ASM; OIL
EGYPT EQUIPMENT(B09) 		8-98232-624-0 01 1 1304-1304 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ● ● ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 1008- ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0306-0402 ● ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0403-0407 ●
1 01.652 PUMP ASM; OIL
EXC. TURKEY EQUIPMENT(B11) 		8-97069-738-3 01 1 0403-0407 ●
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 0408-0609 ●
1 01.652 PUMP ASM; OIL
EXC. TURKEY EQUIPMENT(B11) 		8-97385-985-0 01 1 0408-0609 ●
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 0610- ●
1 01.652 PUMP ASM; OIL
TURKEY EQUIPMENT(B11) 		8-97944-159-0 01 1 0403-0510 ●
1 01.652 PUMP ASM; OIL
TURKEY EQUIPMENT(B11) 		8-97944-429-0 01 1 0511-0609 ●
1 01.652 PUMP ASM; OIL
EGYPT EQUIPMENT(B09) 		8-97381-553-3 01 1 0610-0907 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97308-113-2 01 1 0306-0407 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97385-987-0 01 1 0408- ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97308-112-2 01 1 0306-0407 ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97385-986-0 01 1 0408- ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0306-0609 ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98011-503-3 01 1 0610-0905 ●
1 01.652 PUMP ASM; OIL 8-98011-503-3 01 1 0610-0905 ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98128-134-0 01 1 0906-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0906-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0908-1007 ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1008-1303 ● ● ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98128-134-0 01 1 1304-1304 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1304-1304 ● ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0710-1003 ●
1 01.652 PUMP ASM; OIL 8-24406-585-0 01 1 0306-1009 ●
1 01.652 PUMP ASM; OIL 8-93287-137-0 01 1 1010- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0306-0609 ● ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0610- ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 0306-0609 ● ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 0610- ● ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 0306-0609 ● ● ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 0610- ● ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (A) ID=27.7 		1-09623-170-0 01 1 0306- ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (B) ID=31.2 		1-09623-220-0 01 1 0306- ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 1008- ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1008- ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0306-0402 ● ● ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0403-0512 ● ●
29 01.652 BOLT; OIL PUMP
EXC. TURKEY EQUIPMENT(B11) 01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0403-0512 ●
29 01.652 BOLT; OIL PUMP
TURKEY EQUIPMENT(B11) 03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0403-0512 ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0601-0609 ● ● ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0610- ● ●
29 01.652 BOLT; OIL PUMP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 0306-0512 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 0601-0609 ●
29 01.652 BOLT; OIL PUMP
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 0306-0512 ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0609 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 0710-1003 ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1003 ●
29 01.652 BOLT; OIL PUMP
(D) 		8-11084-962-0 06 1 0306- ●
29 01.652 BOLT; OIL PUMP
00.206 (E) M8X30 FLANGE 		0-28050-830-0 04 1 0610-1007 ● ●
29 01.652 BOLT; OIL PUMP
00.206 (E) M8X30 FLANGE 		0-28050-830-0 04 1 1008- ● ● ●
29 01.652 BOLT; OIL PUMP
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 0610-1007 ● ●
29 01.652 BOLT; OIL PUMP
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 1008- ● ● ●
35 01.657 COVER; OIL PUMP 8-97203-876-0 01 1 0306-0609 ● ● ●
35 01.657 COVER; OIL PUMP 8-97203-876-0 01 1 0610- ● ●
42 01.656 STRAINER; OIL,OIL PUMP
01.657 		8-97089-824-0 01 1 0306-0609 ● ●
42 01.656 STRAINER; OIL,OIL PUMP
4X2(TFB***) 01.657 		8-97089-824-0 01 1 0306-0609 ●
42 01.656 STRAINER; OIL,OIL PUMP
01.657 		8-97089-824-0 01 1 0610- ●
42 01.656 STRAINER; OIL,OIL PUMP
4X2(TFB***) 01.657 		8-97089-824-0 01 1 0610- ●
42 01.656 STRAINER; OIL,OIL PUMP
4X4(TFS***) 01.657 		8-97036-839-0 01 1 0306- ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 0306-0609 ● ● ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 0610- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
EGYPT EQUIPMENT(B09) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1404-1405 ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1406- ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(B) M8X25 FLANGE 		0-28080-825-0 02 1 0306-0512 ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
TURKEY EQUIPMENT(B11) (B) M8X25 FLANGE 		0-28080-825-0 02 1 0601-0601 ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0306-0512 ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
TURKEY EQUIPMENT(B11) 03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0601-0601 ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 0601-0601 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
EXC. TURKEY EQUIPMENT(B11) 03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 0601-0601 ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 0602-0609 ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 0610- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.162 (A) M8X35 FLANGE 		0-28050-835-0 02 1 0601-0601 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
EXC. TURKEY EQUIPMENT(B11) 03.162 (A) M8X35 FLANGE 		0-28050-835-0 02 1 0601-0601 ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.162 (A) M8X35 FLANGE 		0-28050-835-0 02 1 0602-0609 ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.162 (A) M8X35 FLANGE 		0-28050-835-0 02 1 0610- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0610-1007 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1008-1403 ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
EXC. EGYPT EQUIPMENT(B09) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1404-1405 ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1404-1405 ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0306-0609 ● ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0610- ● ●

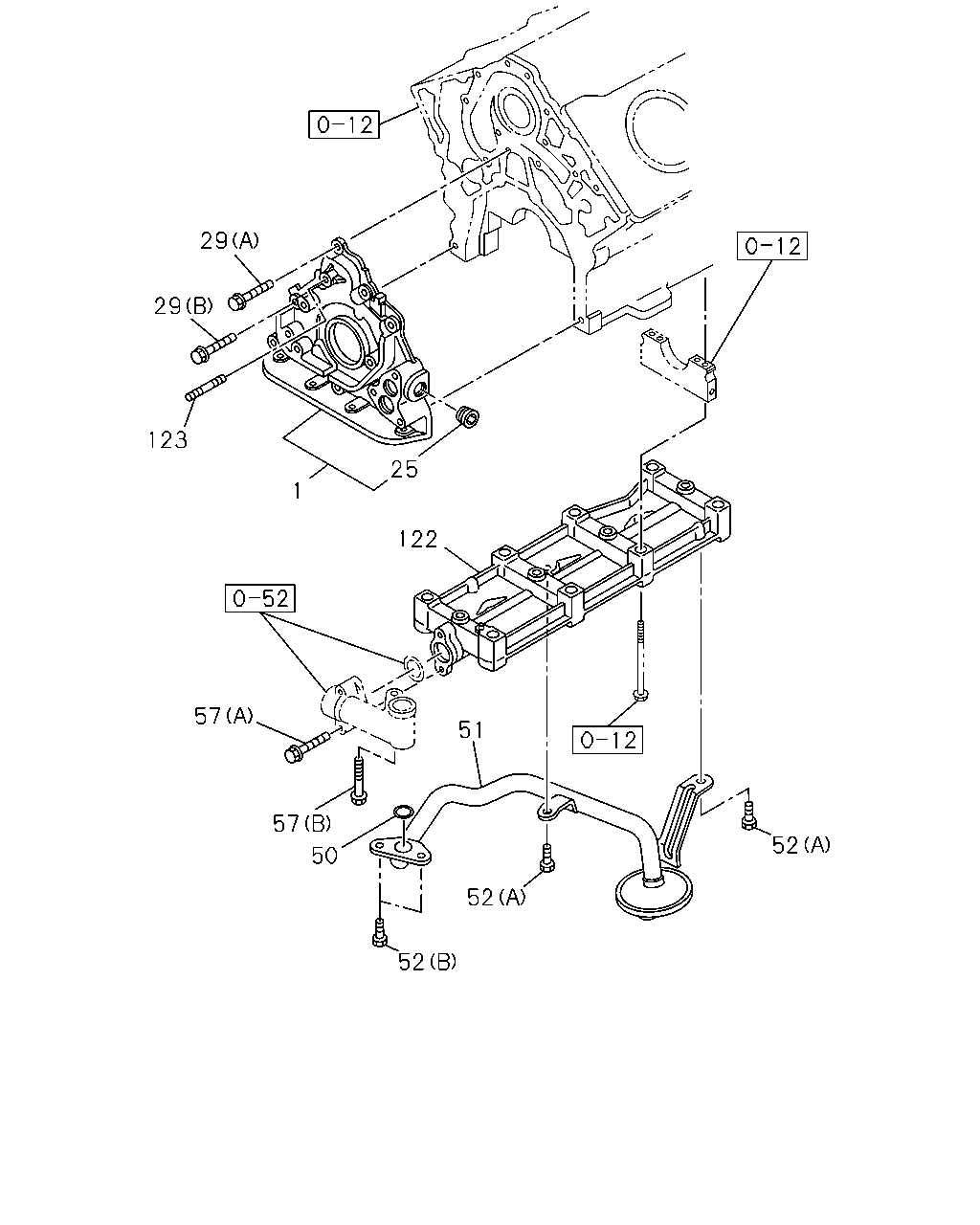

çizim 64227
29 29 123 25 1 122 57 51 57 52 50 52 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.652 PUMP ASM; OIL
EGYPT EQUIPMENT(B09) 		8-98232-624-0 01 1 1304-1304 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ● ● ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 1008- ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0306-0402 ● ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0403-0407 ●
1 01.652 PUMP ASM; OIL
EXC. TURKEY EQUIPMENT(B11) 		8-97069-738-3 01 1 0403-0407 ●
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 0408-0609 ●
1 01.652 PUMP ASM; OIL
EXC. TURKEY EQUIPMENT(B11) 		8-97385-985-0 01 1 0408-0609 ●
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 0610- ●
1 01.652 PUMP ASM; OIL
TURKEY EQUIPMENT(B11) 		8-97944-159-0 01 1 0403-0510 ●
1 01.652 PUMP ASM; OIL
TURKEY EQUIPMENT(B11) 		8-97944-429-0 01 1 0511-0609 ●
1 01.652 PUMP ASM; OIL
EGYPT EQUIPMENT(B09) 		8-97381-553-3 01 1 0610-0907 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97308-113-2 01 1 0306-0407 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97385-987-0 01 1 0408- ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97308-112-2 01 1 0306-0407 ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97385-986-0 01 1 0408- ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0306-0609 ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98011-503-3 01 1 0610-0905 ●
1 01.652 PUMP ASM; OIL 8-98011-503-3 01 1 0610-0905 ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98128-134-0 01 1 0906-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0906-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0908-1007 ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1008-1303 ● ● ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98128-134-0 01 1 1304-1304 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1304-1304 ● ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0710-1003 ●
1 01.652 PUMP ASM; OIL 8-24406-585-0 01 1 0306-1009 ●
1 01.652 PUMP ASM; OIL 8-93287-137-0 01 1 1010- ●
25 01.609 PLUG; OIL PUMP 8-97063-612-0 01 1 0306-0609 ●
25 01.609 PLUG; OIL PUMP 8-97063-612-0 01 1 0710-1003 ●
25 01.609 PLUG; OIL PUMP 8-97063-612-0 01 1 1008- ●
25 01.609 PLUG; OIL PUMP 8-90501-549-0 01 1 0306-1009 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 1008- ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1008- ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0306-0402 ● ● ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0403-0512 ● ●
29 01.652 BOLT; OIL PUMP
EXC. TURKEY EQUIPMENT(B11) 01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0403-0512 ●
29 01.652 BOLT; OIL PUMP
TURKEY EQUIPMENT(B11) 03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0403-0512 ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0601-0609 ● ● ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0610- ● ●
29 01.652 BOLT; OIL PUMP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 0306-0512 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 0601-0609 ●
29 01.652 BOLT; OIL PUMP
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 0306-0512 ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0609 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 0710-1003 ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1003 ●
29 01.652 BOLT; OIL PUMP
(D) 		8-11084-962-0 06 1 0306- ●
29 01.652 BOLT; OIL PUMP
00.206 (E) M8X30 FLANGE 		0-28050-830-0 04 1 0610-1007 ● ●
29 01.652 BOLT; OIL PUMP
00.206 (E) M8X30 FLANGE 		0-28050-830-0 04 1 1008- ● ● ●
29 01.652 BOLT; OIL PUMP
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 0610-1007 ● ●
29 01.652 BOLT; OIL PUMP
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 1008- ● ● ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE) . W/PLATE ID=18.2 		8-94329-964-0 01 1 1008- ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE) . W/PLATE ID=18.2 		8-94329-964-0 01 1 0306-0609 ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE) . W/PLATE ID=18.2 		8-94329-964-0 01 1 0710-1003 ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-90500-908-0 01 1 0306- ●
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 0306-0609 ●
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 0710-1003 ●
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 1008- ●
51 01.519 STRAINER & PIPE ASM; OIL
4X2(TFB***) 		8-92065-493-0 01 1 0306- ●
51 01.519 STRAINER & PIPE ASM; OIL
4X4(TFS***) 		8-92065-525-0 01 1 0306- ●
52 01.656 BOLT; OIL PIPE
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0306-0512 ●
52 01.656 BOLT; OIL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ●
52 01.656 BOLT; OIL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-1003 ●
52 01.656 BOLT; OIL PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 02 1 1008- ●
52 01.656 BOLT; OIL PIPE
07.010 (B) M8X20 FLANGE 		0-28080-820-0 02 1 0306-0512 ●
52 01.656 BOLT; OIL PIPE
04.338 (B) M8X20 FLANGE 		0-28050-820-0 02 1 0601-0609 ●
52 01.656 BOLT; OIL PIPE
04.338 (B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-1003 ●
52 01.656 BOLT; OIL PIPE
04.338 (B) M8X20 FLANGE 		0-28050-820-0 02 1 1008- ●
57 01.531 BOLT; OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 0306-0512 ●
57 01.531 BOLT; OIL PIPE
03.162 (A) M6X35 FLANGE 		0-28650-635-0 02 1 0601-0609 ●
57 01.531 BOLT; OIL PIPE
03.162 (A) M6X35 FLANGE 		0-28650-635-0 02 1 0710-1003 ●
57 01.531 BOLT; OIL PIPE
03.162 (A) M6X35 FLANGE 		0-28650-635-0 02 1 1008- ●
57 01.531 BOLT; OIL PIPE
(B) M6X55 FLANGE 		8-97027-257-0 01 1 0306-0609 ●
57 01.531 BOLT; OIL PIPE
(B) M6X55 FLANGE 		8-97027-257-0 01 1 0710-1003 ●
57 01.531 BOLT; OIL PIPE
(B) M6X55 FLANGE 		8-97027-257-0 01 1 1008- ●
57 01.531 BOLT; OIL PIPE
01.780 (D) 		8-11096-921-0 02 1 0306- ●
57 01.531 BOLT; OIL PIPE
(C) 		8-92064-465-0 02 1 0306-1009 ●
57 01.531 BOLT; OIL PIPE
(C) 		8-11055-131-0 02 1 1010- ●
122 01.519 GALLERY; OIL 8-97226-641-0 01 1 0306-0609 ●
122 01.519 GALLERY; OIL 8-97226-641-0 01 1 0710-1003 ●
122 01.519 GALLERY; OIL 8-97226-641-0 01 1 1008- ●
123 01.060 STUD; FAN BRKT
00.349 M8X65 L=81 		9-04020-865-0 01 1 0306-0609 ●
123 01.060 STUD; FAN BRKT
00.349 M8X65 L=81 		9-04020-865-0 01 1 0710-1003 ●
123 01.060 STUD; FAN BRKT
00.349 M8X65 L=81 		9-04020-865-0 01 1 1008- ●

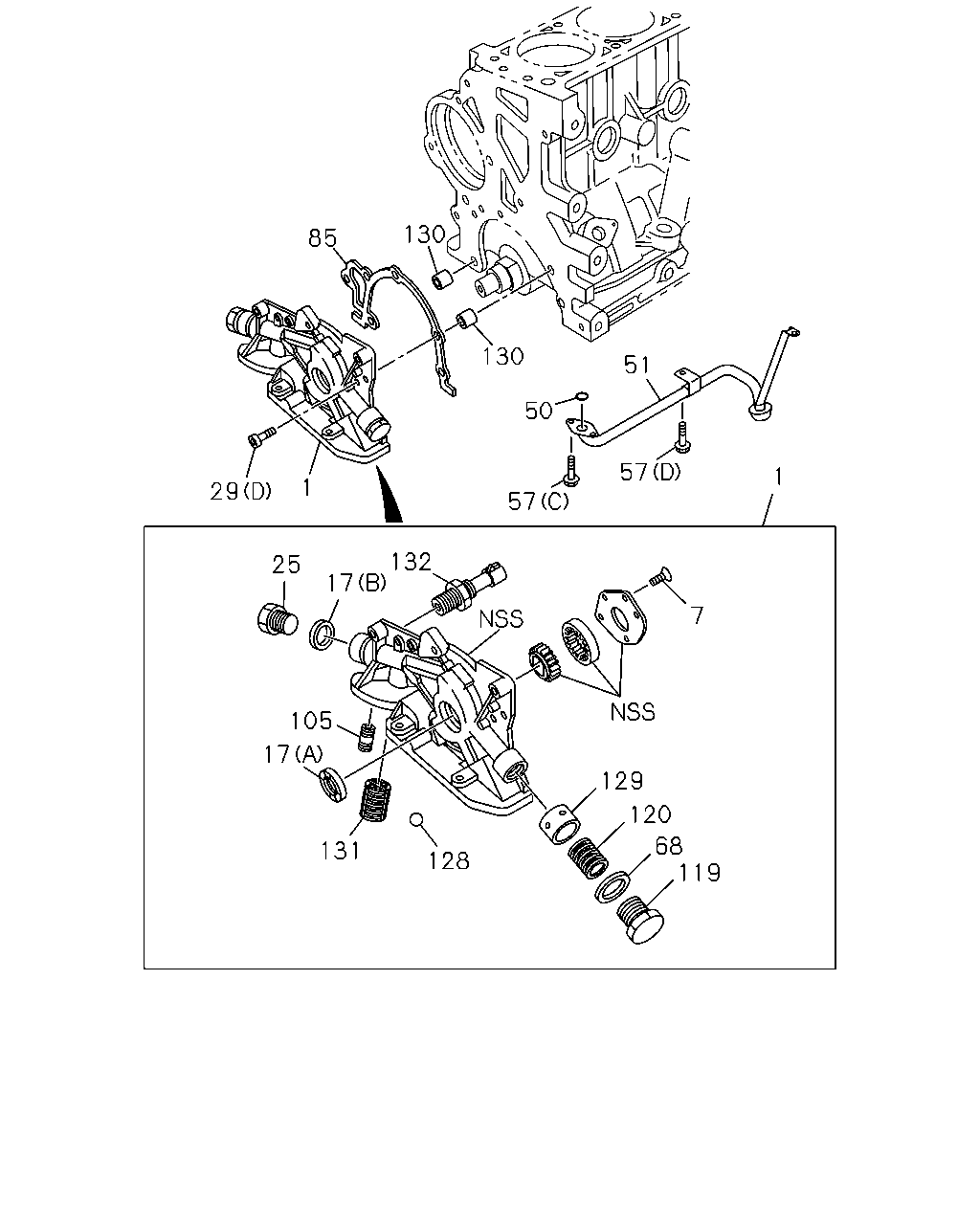

çizim 64256
130 85 130 51 50 57 1 1 29 57 132 17 25 7 105 17 129 120 68 119 131 128
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.652 PUMP ASM; OIL
EGYPT EQUIPMENT(B09) 		8-98232-624-0 01 1 1304-1304 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ● ● ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 1008- ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0306-0402 ● ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0403-0407 ●
1 01.652 PUMP ASM; OIL
EXC. TURKEY EQUIPMENT(B11) 		8-97069-738-3 01 1 0403-0407 ●
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 0408-0609 ●
1 01.652 PUMP ASM; OIL
EXC. TURKEY EQUIPMENT(B11) 		8-97385-985-0 01 1 0408-0609 ●
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 0610- ●
1 01.652 PUMP ASM; OIL
TURKEY EQUIPMENT(B11) 		8-97944-159-0 01 1 0403-0510 ●
1 01.652 PUMP ASM; OIL
TURKEY EQUIPMENT(B11) 		8-97944-429-0 01 1 0511-0609 ●
1 01.652 PUMP ASM; OIL
EGYPT EQUIPMENT(B09) 		8-97381-553-3 01 1 0610-0907 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97308-113-2 01 1 0306-0407 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97385-987-0 01 1 0408- ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97308-112-2 01 1 0306-0407 ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97385-986-0 01 1 0408- ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0306-0609 ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98011-503-3 01 1 0610-0905 ●
1 01.652 PUMP ASM; OIL 8-98011-503-3 01 1 0610-0905 ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98128-134-0 01 1 0906-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0906-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0908-1007 ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1008-1303 ● ● ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98128-134-0 01 1 1304-1304 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1304-1304 ● ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0710-1003 ●
1 01.652 PUMP ASM; OIL 8-24406-585-0 01 1 0306-1009 ●
1 01.652 PUMP ASM; OIL 8-93287-137-0 01 1 1010- ●
7 01.657 BOLT; COVER,OIL PUMP 8-11085-861-0 05 1 0306-1009 ●
17 01.657 SEAL; OIL,OIL PUMP
(B) 		8-11096-531-0 01 1 0306-1009 ●
17 01.657 SEAL; OIL,OIL PUMP
(A) 		8-90183-572-0 01 1 0306- ●
25 01.609 PLUG; OIL PUMP 8-97063-612-0 01 1 0306-0609 ●
25 01.609 PLUG; OIL PUMP 8-97063-612-0 01 1 0710-1003 ●
25 01.609 PLUG; OIL PUMP 8-97063-612-0 01 1 1008- ●
25 01.609 PLUG; OIL PUMP 8-90501-549-0 01 1 0306-1009 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 1008- ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1008- ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0306-0402 ● ● ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0403-0512 ● ●
29 01.652 BOLT; OIL PUMP
EXC. TURKEY EQUIPMENT(B11) 01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0403-0512 ●
29 01.652 BOLT; OIL PUMP
TURKEY EQUIPMENT(B11) 03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0403-0512 ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0601-0609 ● ● ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0610- ● ●
29 01.652 BOLT; OIL PUMP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 0306-0512 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 0601-0609 ●
29 01.652 BOLT; OIL PUMP
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 0306-0512 ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0609 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 0710-1003 ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1003 ●
29 01.652 BOLT; OIL PUMP
(D) 		8-11084-962-0 06 1 0306- ●
29 01.652 BOLT; OIL PUMP
00.206 (E) M8X30 FLANGE 		0-28050-830-0 04 1 0610-1007 ● ●
29 01.652 BOLT; OIL PUMP
00.206 (E) M8X30 FLANGE 		0-28050-830-0 04 1 1008- ● ● ●
29 01.652 BOLT; OIL PUMP
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 0610-1007 ● ●
29 01.652 BOLT; OIL PUMP
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 1008- ● ● ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE) . W/PLATE ID=18.2 		8-94329-964-0 01 1 1008- ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE) . W/PLATE ID=18.2 		8-94329-964-0 01 1 0306-0609 ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE) . W/PLATE ID=18.2 		8-94329-964-0 01 1 0710-1003 ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-90500-908-0 01 1 0306- ●
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 0306-0609 ●
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 0710-1003 ●
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 1008- ●
51 01.519 STRAINER & PIPE ASM; OIL
4X2(TFB***) 		8-92065-493-0 01 1 0306- ●
51 01.519 STRAINER & PIPE ASM; OIL
4X4(TFS***) 		8-92065-525-0 01 1 0306- ●
57 01.531 BOLT; OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 0306-0512 ●
57 01.531 BOLT; OIL PIPE
03.162 (A) M6X35 FLANGE 		0-28650-635-0 02 1 0601-0609 ●
57 01.531 BOLT; OIL PIPE
03.162 (A) M6X35 FLANGE 		0-28650-635-0 02 1 0710-1003 ●
57 01.531 BOLT; OIL PIPE
03.162 (A) M6X35 FLANGE 		0-28650-635-0 02 1 1008- ●
57 01.531 BOLT; OIL PIPE
(B) M6X55 FLANGE 		8-97027-257-0 01 1 0306-0609 ●
57 01.531 BOLT; OIL PIPE
(B) M6X55 FLANGE 		8-97027-257-0 01 1 0710-1003 ●
57 01.531 BOLT; OIL PIPE
(B) M6X55 FLANGE 		8-97027-257-0 01 1 1008- ●
57 01.531 BOLT; OIL PIPE
01.780 (D) 		8-11096-921-0 02 1 0306- ●
57 01.531 BOLT; OIL PIPE
(C) 		8-92064-465-0 02 1 0306-1009 ●
57 01.531 BOLT; OIL PIPE
(C) 		8-11055-131-0 02 1 1010- ●
68 01.609 WASHER; RELIEF VLV 8-11093-042-0 01 1 0306-1009 ●
85 01.655 GASKET; OIL PUMP 8-90573-825-0 01 1 0306- ●
105 01.855 CONNECTOR; OIL FILTER 8-90412-159-0 01 1 0306-1009 ●
119 01.639 PLUG; RELIEF VLV 8-03448-834-0 01 1 0306-1009 ●
120 01.639 SPRING; RELIEF VLV 8-90501-547-0 01 1 0306-1009 ●
128 01.609 BALL; BYPASS VLV,OIL PUMP 8-11055-689-0 01 1 0306-1009 ●
129 01.609 PLUNGER; RELIEF VLV 8-24402-723-0 01 1 0306-1009 ●
130 01.609 SLEEVE; OIL PUMP 8-90351-709-0 02 1 0306- ●
131 01.609 SPRING; BYPASS VLV,OIL PUMP
00.293 		8-90136-113-0 01 1 0306-1009 ●
132 01.800 SWITCH; OIL PRESSURE 8-90336-039-0 01 1 0306-1009 ●
132 01.800 SWITCH; OIL PRESSURE 8-93318-082-0 01 1 1010- ●

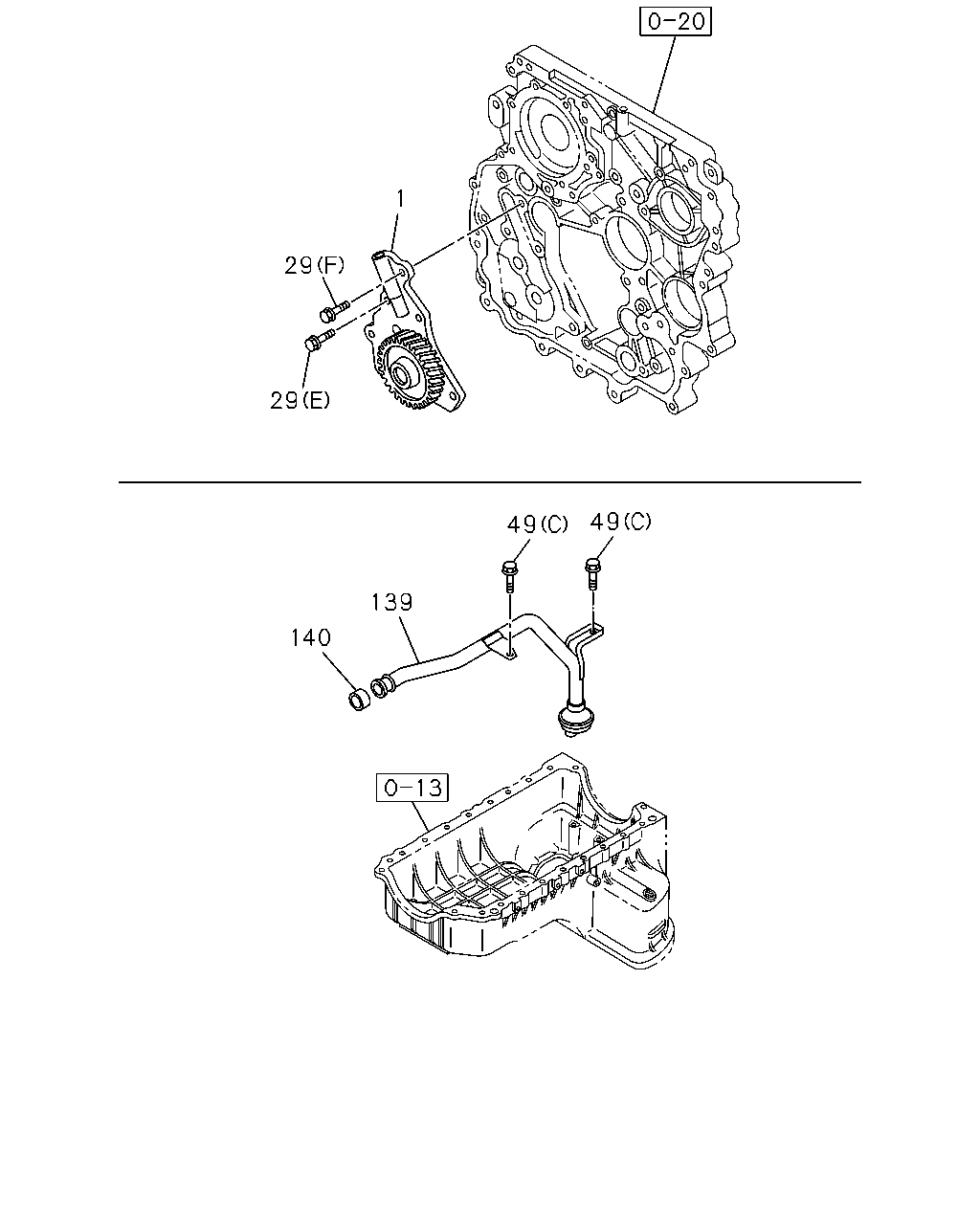

çizim 64391
1 29 29 49 49 139 140
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.652 PUMP ASM; OIL
EGYPT EQUIPMENT(B09) 		8-98232-624-0 01 1 1304-1304 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ● ● ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 1008- ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0306-0402 ● ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0403-0407 ●
1 01.652 PUMP ASM; OIL
EXC. TURKEY EQUIPMENT(B11) 		8-97069-738-3 01 1 0403-0407 ●
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 0408-0609 ●
1 01.652 PUMP ASM; OIL
EXC. TURKEY EQUIPMENT(B11) 		8-97385-985-0 01 1 0408-0609 ●
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 0610- ●
1 01.652 PUMP ASM; OIL
TURKEY EQUIPMENT(B11) 		8-97944-159-0 01 1 0403-0510 ●
1 01.652 PUMP ASM; OIL
TURKEY EQUIPMENT(B11) 		8-97944-429-0 01 1 0511-0609 ●
1 01.652 PUMP ASM; OIL
EGYPT EQUIPMENT(B09) 		8-97381-553-3 01 1 0610-0907 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97308-113-2 01 1 0306-0407 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97385-987-0 01 1 0408- ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97308-112-2 01 1 0306-0407 ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97385-986-0 01 1 0408- ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0306-0609 ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98011-503-3 01 1 0610-0905 ●
1 01.652 PUMP ASM; OIL 8-98011-503-3 01 1 0610-0905 ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98128-134-0 01 1 0906-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0906-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0908-1007 ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1008-1303 ● ● ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98128-134-0 01 1 1304-1304 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1304-1304 ● ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0710-1003 ●
1 01.652 PUMP ASM; OIL 8-24406-585-0 01 1 0306-1009 ●
1 01.652 PUMP ASM; OIL 8-93287-137-0 01 1 1010- ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 1008- ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1008- ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0306-0402 ● ● ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0403-0512 ● ●
29 01.652 BOLT; OIL PUMP
EXC. TURKEY EQUIPMENT(B11) 01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0403-0512 ●
29 01.652 BOLT; OIL PUMP
TURKEY EQUIPMENT(B11) 03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0403-0512 ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0601-0609 ● ● ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0610- ● ●
29 01.652 BOLT; OIL PUMP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 0306-0512 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 0601-0609 ●
29 01.652 BOLT; OIL PUMP
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 0306-0512 ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0609 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 0710-1003 ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1003 ●
29 01.652 BOLT; OIL PUMP
(D) 		8-11084-962-0 06 1 0306- ●
29 01.652 BOLT; OIL PUMP
00.206 (E) M8X30 FLANGE 		0-28050-830-0 04 1 0610-1007 ● ●
29 01.652 BOLT; OIL PUMP
00.206 (E) M8X30 FLANGE 		0-28050-830-0 04 1 1008- ● ● ●
29 01.652 BOLT; OIL PUMP
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 0610-1007 ● ●
29 01.652 BOLT; OIL PUMP
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 1008- ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
EGYPT EQUIPMENT(B09) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1404-1405 ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 1406- ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(B) M8X25 FLANGE 		0-28080-825-0 02 1 0306-0512 ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
TURKEY EQUIPMENT(B11) (B) M8X25 FLANGE 		0-28080-825-0 02 1 0601-0601 ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0306-0512 ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
TURKEY EQUIPMENT(B11) 03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0601-0601 ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 0601-0601 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
EXC. TURKEY EQUIPMENT(B11) 03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 0601-0601 ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 0602-0609 ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (B) M8X25 FLANGE 		0-28050-825-0 02 1 0610- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.162 (A) M8X35 FLANGE 		0-28050-835-0 02 1 0601-0601 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
EXC. TURKEY EQUIPMENT(B11) 03.162 (A) M8X35 FLANGE 		0-28050-835-0 02 1 0601-0601 ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.162 (A) M8X35 FLANGE 		0-28050-835-0 02 1 0602-0609 ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.162 (A) M8X35 FLANGE 		0-28050-835-0 02 1 0610- ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 0610-1007 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1008-1403 ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
EXC. EGYPT EQUIPMENT(B09) 02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1404-1405 ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 (C) M8X12 FLANGE 		0-28050-812-0 02 1 1404-1405 ● ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) EGYPT EQUIPMENT(B09) 		8-98149-035-0 01 1 1011- ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) EXC. EGYPT EQUIPMENT(B09), CHEVROLETEQUIPMENT(8JF) 		8-98127-248-0 01 1 0810-0812 ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) 		8-98127-248-0 01 1 0810-0812 ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) EXC. CHEVROLET EQUIPMENT(8JF) 		8-98127-248-0 01 1 0901-0912 ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) 		8-98127-248-0 01 1 0901-0912 ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) 		8-98127-248-0 01 1 1001-1007 ● ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) 		8-98127-248-0 01 1 1008- ● ● ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97312-134-3 01 1 0610-0611 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION<NT4> 		8-97312-134-3 01 1 0610-0611 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) 		8-97312-134-3 01 1 0612-0709 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION<NT4> 		8-97312-134-3 01 1 0612-0709 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) EXC. EGYPT EQUIPMENT(B09) 		8-97312-134-3 01 1 0710-0809 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) 		8-97312-134-3 01 1 0710-0809 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) EXC. EGYPT EQUIPMENT(B09), CHEVROLETEQUIPMENT(8JF) 		8-98127-247-0 01 1 0810-0901 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) 		8-98127-247-0 01 1 0810-0901 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) 		8-98127-247-0 01 1 0902-1007 ● ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) 		8-98127-247-0 01 1 1008-1010 ● ● ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) EXC. EGYPT EQUIPMENT(B09) 		8-98127-247-0 01 1 1011- ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) 		8-98127-247-0 01 1 1011- ● ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) 		8-97354-753-3 01 1 0610-0809 ● ●
139 01.639 PIPE; OIL STRAINER
4X4(TFS***) 		8-97354-753-3 01 1 0810-0812 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-98016-890-0 01 1 0610-0611 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98016-890-0 01 1 0612-0709 ●
139 01.639 PIPE; OIL STRAINER
4X2(TFB***) EGYPT EQUIPMENT(B09) 		8-98016-890-0 01 1 0710-0901 ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97356-150-0 01 1 0610-1007 ● ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97356-150-0 01 1 1008- ● ● ●

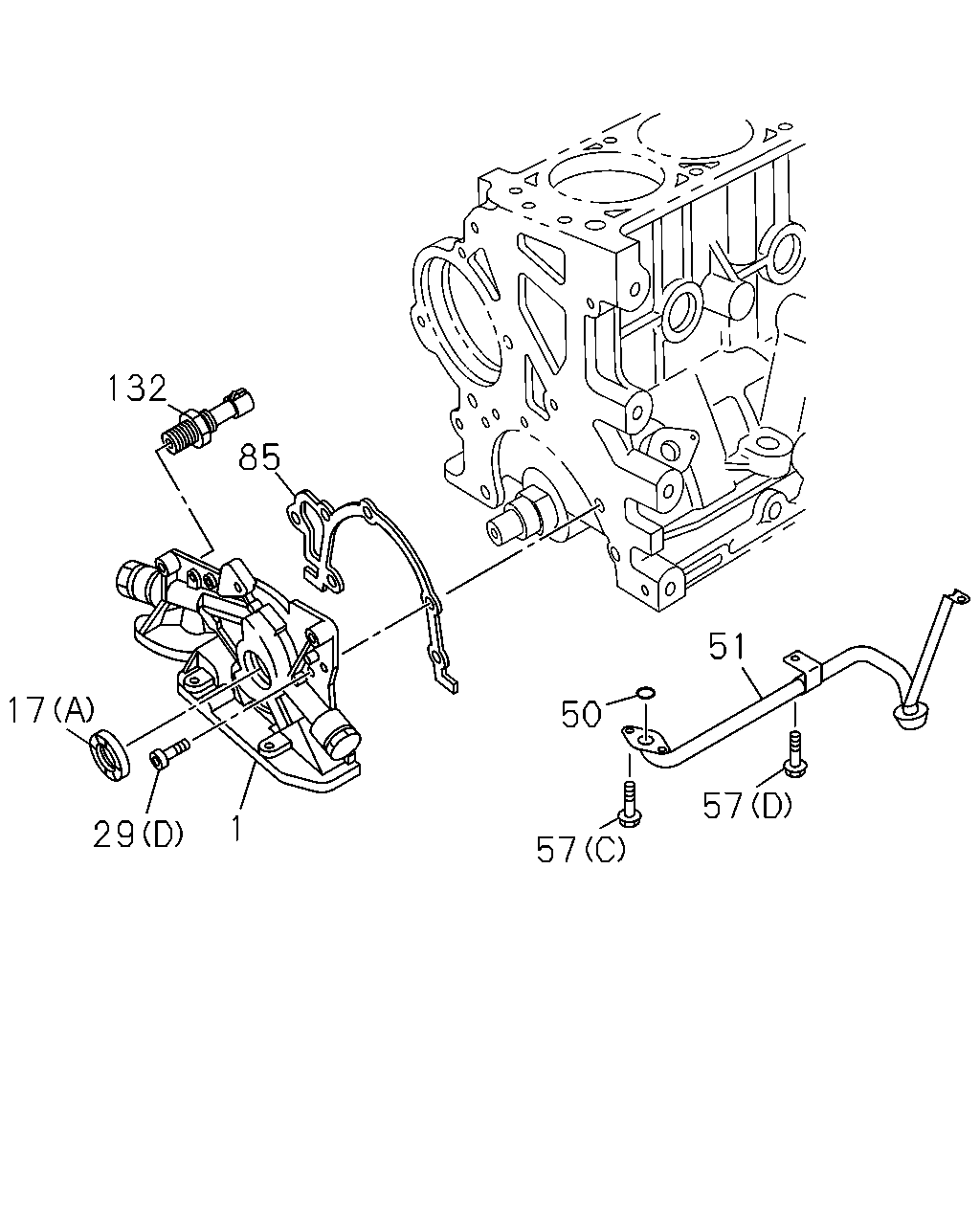

çizim 185325
132 85 51 17 50 57 1 29 57
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.652 PUMP ASM; OIL
EGYPT EQUIPMENT(B09) 		8-98232-624-0 01 1 1304-1304 ●
1 01.652 PUMP ASM; OIL 8-98232-624-1 01 1 1304- ● ● ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 1008- ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0306-0402 ● ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0403-0407 ●
1 01.652 PUMP ASM; OIL
EXC. TURKEY EQUIPMENT(B11) 		8-97069-738-3 01 1 0403-0407 ●
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 0408-0609 ●
1 01.652 PUMP ASM; OIL
EXC. TURKEY EQUIPMENT(B11) 		8-97385-985-0 01 1 0408-0609 ●
1 01.652 PUMP ASM; OIL 8-97385-985-0 01 1 0610- ●
1 01.652 PUMP ASM; OIL
TURKEY EQUIPMENT(B11) 		8-97944-159-0 01 1 0403-0510 ●
1 01.652 PUMP ASM; OIL
TURKEY EQUIPMENT(B11) 		8-97944-429-0 01 1 0511-0609 ●
1 01.652 PUMP ASM; OIL
EGYPT EQUIPMENT(B09) 		8-97381-553-3 01 1 0610-0907 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97308-113-2 01 1 0306-0407 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97385-987-0 01 1 0408- ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97308-112-2 01 1 0306-0407 ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97385-986-0 01 1 0408- ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0306-0609 ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98011-503-3 01 1 0610-0905 ●
1 01.652 PUMP ASM; OIL 8-98011-503-3 01 1 0610-0905 ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98128-134-0 01 1 0906-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0906-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0908-1007 ● ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1008-1303 ● ● ●
1 01.652 PUMP ASM; OIL
EXC. EGYPT EQUIPMENT(B09) 		8-98128-134-0 01 1 1304-1304 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 1304-1304 ● ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0710-1003 ●
1 01.652 PUMP ASM; OIL 8-24406-585-0 01 1 0306-1009 ●
1 01.652 PUMP ASM; OIL 8-93287-137-0 01 1 1010- ●
17 01.657 SEAL; OIL,OIL PUMP
(B) 		8-11096-531-0 01 1 0306-1009 ●
17 01.657 SEAL; OIL,OIL PUMP
(A) 		8-90183-572-0 01 1 0306- ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 1008- ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1008- ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0306-0402 ● ● ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0403-0512 ● ●
29 01.652 BOLT; OIL PUMP
EXC. TURKEY EQUIPMENT(B11) 01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0403-0512 ●
29 01.652 BOLT; OIL PUMP
TURKEY EQUIPMENT(B11) 03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0403-0512 ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0601-0609 ● ● ●
29 01.652 BOLT; OIL PUMP
03.275 (C) M8X25 FLANGE 		0-28050-825-0 02 1 0610- ● ●
29 01.652 BOLT; OIL PUMP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 0306-0512 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 0601-0609 ●
29 01.652 BOLT; OIL PUMP
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 0306-0512 ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0609 ●
29 01.652 BOLT; OIL PUMP
06.216 (A) M8X25 FLANGE 		0-28650-825-0 05 1 0710-1003 ●
29 01.652 BOLT; OIL PUMP
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-1003 ●
29 01.652 BOLT; OIL PUMP
(D) 		8-11084-962-0 06 1 0306- ●
29 01.652 BOLT; OIL PUMP
00.206 (E) M8X30 FLANGE 		0-28050-830-0 04 1 0610-1007 ● ●
29 01.652 BOLT; OIL PUMP
00.206 (E) M8X30 FLANGE 		0-28050-830-0 04 1 1008- ● ● ●
29 01.652 BOLT; OIL PUMP
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 0610-1007 ● ●
29 01.652 BOLT; OIL PUMP
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 1008- ● ● ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE) . W/PLATE ID=18.2 		8-94329-964-0 01 1 1008- ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE) . W/PLATE ID=18.2 		8-94329-964-0 01 1 0306-0609 ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE) . W/PLATE ID=18.2 		8-94329-964-0 01 1 0710-1003 ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-90500-908-0 01 1 0306- ●
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 0306-0609 ●
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 0710-1003 ●
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 1008- ●
51 01.519 STRAINER & PIPE ASM; OIL
4X2(TFB***) 		8-92065-493-0 01 1 0306- ●
51 01.519 STRAINER & PIPE ASM; OIL
4X4(TFS***) 		8-92065-525-0 01 1 0306- ●
57 01.531 BOLT; OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 0306-0512 ●
57 01.531 BOLT; OIL PIPE
03.162 (A) M6X35 FLANGE 		0-28650-635-0 02 1 0601-0609 ●
57 01.531 BOLT; OIL PIPE
03.162 (A) M6X35 FLANGE 		0-28650-635-0 02 1 0710-1003 ●
57 01.531 BOLT; OIL PIPE
03.162 (A) M6X35 FLANGE 		0-28650-635-0 02 1 1008- ●
57 01.531 BOLT; OIL PIPE
(B) M6X55 FLANGE 		8-97027-257-0 01 1 0306-0609 ●
57 01.531 BOLT; OIL PIPE
(B) M6X55 FLANGE 		8-97027-257-0 01 1 0710-1003 ●
57 01.531 BOLT; OIL PIPE
(B) M6X55 FLANGE 		8-97027-257-0 01 1 1008- ●
57 01.531 BOLT; OIL PIPE
01.780 (D) 		8-11096-921-0 02 1 0306- ●
57 01.531 BOLT; OIL PIPE
(C) 		8-92064-465-0 02 1 0306-1009 ●
57 01.531 BOLT; OIL PIPE
(C) 		8-11055-131-0 02 1 1010- ●
85 01.655 GASKET; OIL PUMP 8-90573-825-0 01 1 0306- ●
132 01.800 SWITCH; OIL PRESSURE 8-90336-039-0 01 1 0306-1009 ●
132 01.800 SWITCH; OIL PRESSURE 8-93318-082-0 01 1 1010- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
