0-50 — OIL COOLER AND OIL FILTER (#73915) — 174 parça

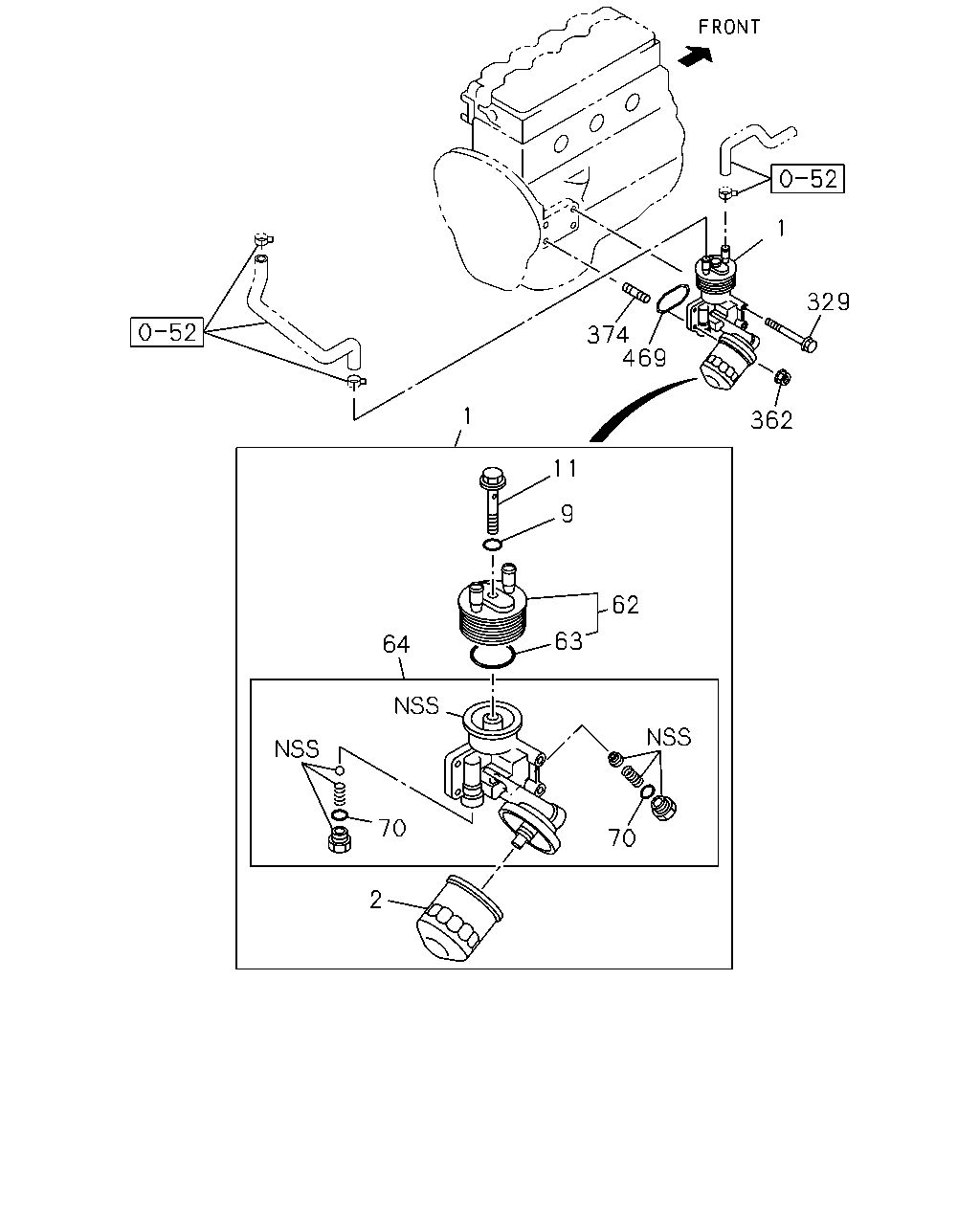

1 329 374 469 1 362 11 9 62 63 64 70 70 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.540 FILTER & COOLER ASM; OIL	8-97287-474-1	01	1	0306-0310	●	●
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-0	01	1	0311-0402	●	●
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-0	01	1	0403-0609		●
1	01.540 FILTER & COOLER ASM; OIL EXC. TURKEY EQUIPMENT(B11)	8-97373-137-0	01	1	0403-0609	●
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-1	01	1	0610-		●
1	01.540 FILTER & COOLER ASM; OIL TURKEY EQUIPMENT(B11)	8-97287-474-1	01	1	0403-0609	●
1	01.540 FILTER & COOLER ASM; OIL	8-98011-506-3	01	1	0610-0611			●
1	01.540 FILTER & COOLER ASM; OIL	8-98025-403-4	01	1	0612-1007				●
1	01.540 FILTER & COOLER ASM; OIL	8-98025-403-4	01	1	1008-				●
1	01.540 FILTER & COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98025-403-4	01	1	1008-			●
1	01.540 FILTER & COOLER ASM; OIL	8-97334-438-2	01	1	0306-					●
1	01.540 FILTER & COOLER ASM; OIL	8-98025-403-3	01	1	0610-0611				●
1	01.540 FILTER & COOLER ASM; OIL	8-98011-506-4	01	1	0612-1007			●
1	01.540 FILTER & COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98011-506-4	01	1	1008-			●			●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	1008-							●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0306-0609	●	●			●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0610-		●			●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	0306-0609							●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	0610-1007			●	●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	1008-			●	●		●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	0710-1003							●
2	01.836 ELEMENT; OIL FILTER	8-92142-009-0	01	1	0306-1009								●
2	01.836 ELEMENT; OIL FILTER	8-94632-619-0	01	1	1010-								●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97288-938-0	01	1	0306-0609	●	●			●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97288-938-0	01	1	0610-		●			●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) . 01.550 ID=26.2	9-09566-226-0	02	1	0610-1007			●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) . 01.550 ID=26.2	9-09566-226-0	02	1	1008-			●	●		●
11	01.840 BOLT; CENTER	8-97288-935-0	01	1	0306-0609	●	●
11	01.840 BOLT; CENTER	8-97288-935-0	01	1	0610-		●
11	01.840 BOLT; CENTER	8-97352-702-0	01	1	0306-					●
62	01.540 COOLER ASM; OIL	8-97943-622-0	01	1	0306-0609	●	●
62	01.540 COOLER ASM; OIL	8-97943-622-0	01	1	0610-0907		●
62	01.540 COOLER ASM; OIL	8-97319-556-1	01	1	0908-		●
62	01.540 COOLER ASM; OIL	8-97352-701-1	01	1	0306-					●
63	01.550 GASKET; COOLER TO BRKT	8-94450-917-0	01	1	0306-0609	●	●			●
63	01.550 GASKET; COOLER TO BRKT	8-94450-917-0	01	1	0610-		●			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97942-933-0	01	1	0306-0308	●	●			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97942-933-0	01	1	0309-0310	●	●
64	01.540 BODY; OIL FILTER & OIL COOLER TURKEY EQUIPMENT(B11)	8-97942-933-0	01	1	0403-0609	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97373-138-0	01	1	0309-0310					●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97373-138-0	01	1	0311-0402	●	●			●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97373-138-0	01	1	0403-0609		●			●
64	01.540 BODY; OIL FILTER & OIL COOLER EXC. TURKEY EQUIPMENT(B11)	8-97373-138-0	01	1	0403-0609	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97373-138-0	01	1	0610-		●			●
70	01.844 GASKET; PLUG,OIL FILTER	8-97914-706-0	02	1	0306-0609	●	●			●
70	01.844 GASKET; PLUG,OIL FILTER	8-97914-706-0	02	1	0610-		●			●
329	01.840 BOLT; OIL FILTER 01.062 M8X95 FLANGE	1-09044-075-1	02	1	0306-0402	●	●			●
329	01.840 BOLT; OIL FILTER 01.062 M8X95 FLANGE	1-09044-075-1	02	1	0403-0609		●			●
329	01.840 BOLT; OIL FILTER EXC. TURKEY EQUIPMENT(B11) 01.062 M8X95 FLANGE	1-09044-075-1	02	1	0403-0609	●
329	01.840 BOLT; OIL FILTER 01.062 M8X95 FLANGE	1-09044-075-1	02	1	0610-		●			●
329	01.840 BOLT; OIL FILTER TURKEY EQUIPMENT(B11) M8X95 FLANGE	8-97920-201-0	02	1	0403-0609	●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	0306-0402	●	●			●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	0403-0602		●			●
362	01.837 NUT; OIL FILTER EXC. TURKEY EQUIPMENT(B11) 07.633 M8 FLANGE	0-91150-108-0	02	1	0403-0602	●
362	01.837 NUT; OIL FILTER TURKEY EQUIPMENT(B11) 01.062 M8 FLANGE	0-91180-108-0	02	1	0403-0602	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0609	●	●			●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-		●			●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-1007			●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-			●	●		●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	0306-0402	●	●			●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	0403-0604		●			●
374	01.840 STUD; OIL FILTER EXC. TURKEY EQUIPMENT(B11) 03.901 M8X25 L=37	9-04110-825-0	02	1	0403-0604	●
374	01.840 STUD; OIL FILTER TURKEY EQUIPMENT(B11) 03.275 M8X25 L=37	0-41010-825-0	02	1	0403-0604	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37	0-41010-825-0	02	1	0605-0609	●	●			●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37	0-41010-825-0	02	1	0610-		●			●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	0610-1007			●	●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	1008-			●	●		●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.844	8-97065-983-0	01	1	0306-0402	●	●			●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97065-983-1	01	1	0403-0609		●			●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11) 01.844	8-97065-983-1	01	1	0403-0609	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.844	8-97065-983-1	01	1	0610-0706		●			●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-98087-965-0	01	1	0707-		●			●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11)	8-97912-548-0	01	1	0403-0609	●

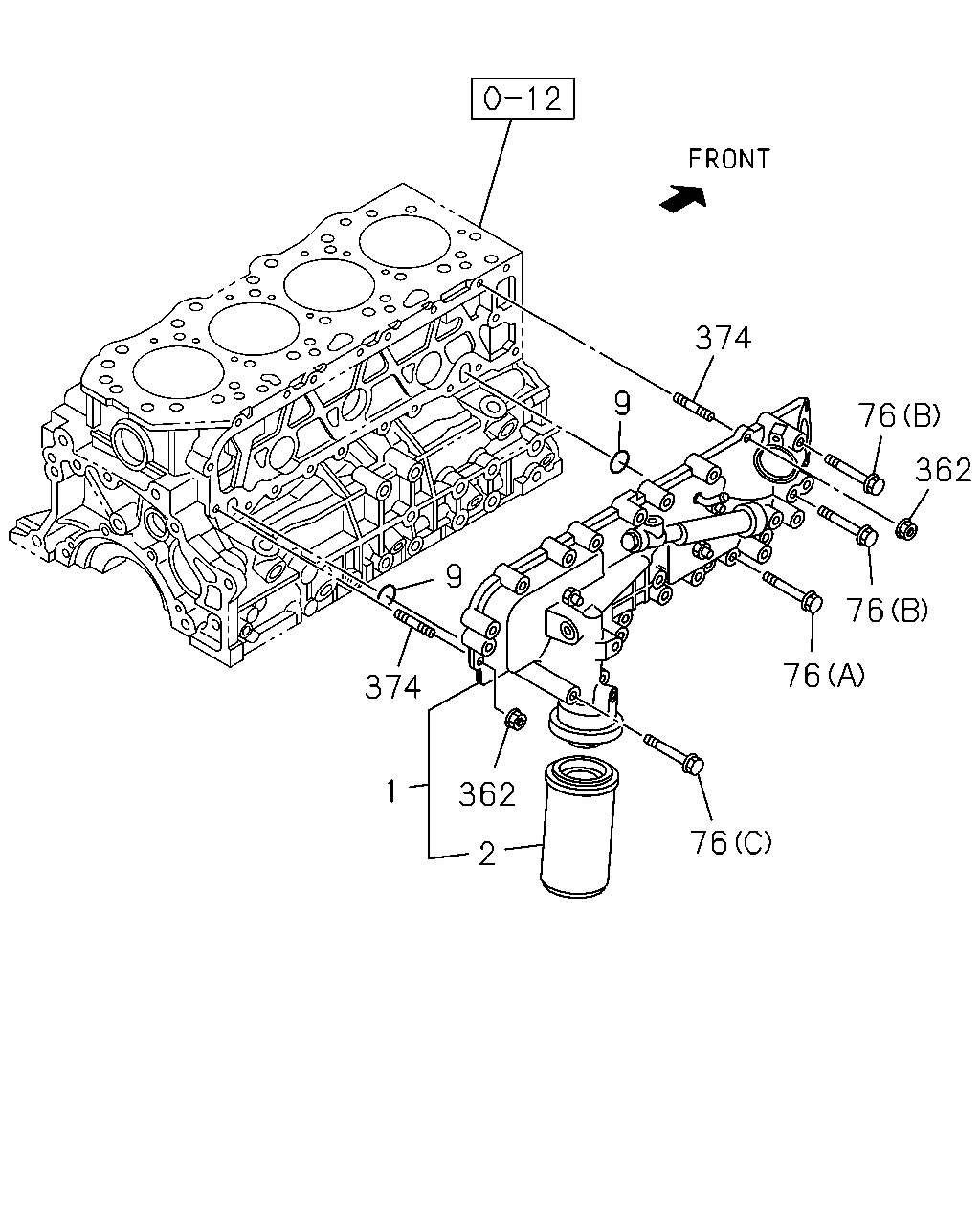

374 9 76 362 9 76 76 374 1 362 76 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.540 FILTER & COOLER ASM; OIL	8-97287-474-1	01	1	0306-0310	●	●
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-0	01	1	0311-0402	●	●
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-0	01	1	0403-0609		●
1	01.540 FILTER & COOLER ASM; OIL EXC. TURKEY EQUIPMENT(B11)	8-97373-137-0	01	1	0403-0609	●
1	01.540 FILTER & COOLER ASM; OIL	8-97373-137-1	01	1	0610-		●
1	01.540 FILTER & COOLER ASM; OIL TURKEY EQUIPMENT(B11)	8-97287-474-1	01	1	0403-0609	●
1	01.540 FILTER & COOLER ASM; OIL	8-98011-506-3	01	1	0610-0611			●
1	01.540 FILTER & COOLER ASM; OIL	8-98025-403-4	01	1	0612-1007				●
1	01.540 FILTER & COOLER ASM; OIL	8-98025-403-4	01	1	1008-				●
1	01.540 FILTER & COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98025-403-4	01	1	1008-			●
1	01.540 FILTER & COOLER ASM; OIL	8-97334-438-2	01	1	0306-					●
1	01.540 FILTER & COOLER ASM; OIL	8-98025-403-3	01	1	0610-0611				●
1	01.540 FILTER & COOLER ASM; OIL	8-98011-506-4	01	1	0612-1007			●
1	01.540 FILTER & COOLER ASM; OIL EURO4 SPECIFICATION<NT4>	8-98011-506-4	01	1	1008-			●			●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	1008-							●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0306-0609	●	●			●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0610-		●			●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	0306-0609							●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	0610-1007			●	●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	1008-			●	●		●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	0710-1003							●
2	01.836 ELEMENT; OIL FILTER	8-92142-009-0	01	1	0306-1009								●
2	01.836 ELEMENT; OIL FILTER	8-94632-619-0	01	1	1010-								●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97288-938-0	01	1	0306-0609	●	●			●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97288-938-0	01	1	0610-		●			●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) . 01.550 ID=26.2	9-09566-226-0	02	1	0610-1007			●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE) . 01.550 ID=26.2	9-09566-226-0	02	1	1008-			●	●		●
76	01.840 BOLT; OIL FILTER 09.173 (A) M8X45 FLANGE	0-28050-845-0	14	1	0610-1007			●	●
76	01.840 BOLT; OIL FILTER 09.173 (A) M8X45 FLANGE	0-28050-845-0	14	1	1008-			●	●		●
76	01.840 BOLT; OIL FILTER 00.206 (B) M8X70 FLANGE	0-28050-870-0	02	1	0610-1007			●	●
76	01.840 BOLT; OIL FILTER 00.206 (B) M8X70 FLANGE	0-28050-870-0	02	1	1008-			●	●		●
76	01.840 BOLT; OIL FILTER 03.275 (C) M8X110 FLANGE	0-28055-811-0	02	1	0610-1007			●	●
76	01.840 BOLT; OIL FILTER 03.275 (C) M8X110 FLANGE	0-28055-811-0	02	1	1008-			●	●		●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	0306-0402	●	●			●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	0403-0602		●			●
362	01.837 NUT; OIL FILTER EXC. TURKEY EQUIPMENT(B11) 07.633 M8 FLANGE	0-91150-108-0	02	1	0403-0602	●
362	01.837 NUT; OIL FILTER TURKEY EQUIPMENT(B11) 01.062 M8 FLANGE	0-91180-108-0	02	1	0403-0602	●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0609	●	●			●
362	01.837 NUT; OIL FILTER 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-		●			●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-1007			●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-			●	●		●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	0306-0402	●	●			●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	0403-0604		●			●
374	01.840 STUD; OIL FILTER EXC. TURKEY EQUIPMENT(B11) 03.901 M8X25 L=37	9-04110-825-0	02	1	0403-0604	●
374	01.840 STUD; OIL FILTER TURKEY EQUIPMENT(B11) 03.275 M8X25 L=37	0-41010-825-0	02	1	0403-0604	●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37	0-41010-825-0	02	1	0605-0609	●	●			●
374	01.840 STUD; OIL FILTER 03.275 M8X25 L=37	0-41010-825-0	02	1	0610-		●			●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	0610-1007			●	●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	1008-			●	●		●

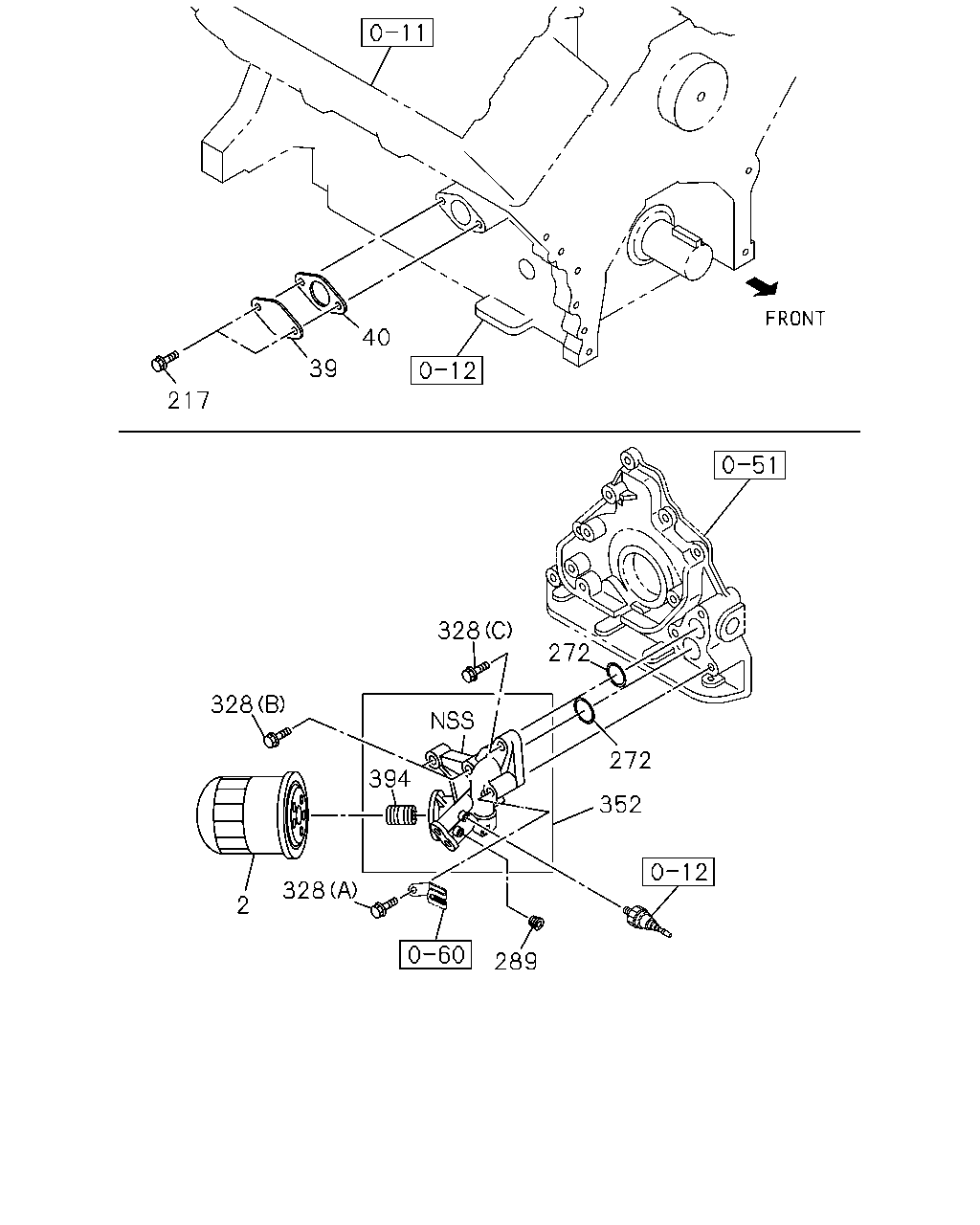

40 39 217 328 272 328 272 394 352 328 2 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	1008-							●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0306-0609	●	●			●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0610-		●			●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	0306-0609							●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	0610-1007			●	●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	1008-			●	●		●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	0710-1003							●
2	01.836 ELEMENT; OIL FILTER	8-92142-009-0	01	1	0306-1009								●
2	01.836 ELEMENT; OIL FILTER	8-94632-619-0	01	1	1010-								●
39	01.540 COVER; OIL COOLER	8-97031-507-1	01	1	0306-0609							●
39	01.540 COVER; OIL COOLER	8-97031-507-1	01	1	0710-1003							●
39	01.540 COVER; OIL COOLER	8-97031-507-1	01	1	1008-							●
40	01.550 GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97031-084-0	01	1	0306-0609							●
40	01.550 GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97031-084-0	01	1	0710-1003							●
40	01.550 GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97031-084-0	01	1	1008-							●
217	01.540 BOLT; CONNECTOR 00.738 M6X16 FLANGE	0-28080-616-0	02	1	0306-0512							●
217	01.540 BOLT; CONNECTOR 09.242 M6X16 FLANGE	0-28050-616-0	02	1	0601-0609							●
217	01.540 BOLT; CONNECTOR 09.242 M6X16 FLANGE	0-28050-616-0	02	1	0710-1003							●
217	01.540 BOLT; CONNECTOR 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1008-							●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 W/PLATE ID=18.2	8-94329-964-0	02	1	0306-0609							●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 W/PLATE ID=18.2	8-94329-964-0	02	1	0710-1003							●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 W/PLATE ID=18.2	8-94329-964-0	02	1	1008-							●
289	01.840 PLUG; ADAPTER 01.531 PT1/8	1-09605-050-0	01	1	0306-0609							●
289	01.840 PLUG; ADAPTER 01.531 PT1/8	1-09605-050-0	01	1	0710-1003							●
289	01.840 PLUG; ADAPTER 01.531 PT1/8	1-09605-050-0	01	1	1008-							●
328	01.840 BOLT; OIL FILTER 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	0306-0512							●
328	01.840 BOLT; OIL FILTER 00.386 (A) M8X100 FLANGE	0-28050-800-0	01	1	0601-0609							●
328	01.840 BOLT; OIL FILTER 00.386 (A) M8X100 FLANGE	0-28050-800-0	01	1	0710-1003							●
328	01.840 BOLT; OIL FILTER 00.386 (A) M8X100 FLANGE	0-28050-800-0	01	1	1008-							●
328	01.840 BOLT; OIL FILTER 01.540 (B) M8X45 FLANGE	0-28080-845-0	02	1	0306-0512							●
328	01.840 BOLT; OIL FILTER 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	0601-0609							●
328	01.840 BOLT; OIL FILTER 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	0710-1003							●
328	01.840 BOLT; OIL FILTER 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	1008-							●
328	01.840 BOLT; OIL FILTER (C) M8X70 FLANGE	0-28080-870-0	01	1	0306-0512							●
328	01.840 BOLT; OIL FILTER 00.206 (C) M8X70 FLANGE	0-28050-870-0	01	1	0601-0609							●
328	01.840 BOLT; OIL FILTER 00.206 (C) M8X70 FLANGE	0-28050-870-0	01	1	0710-1003							●
328	01.840 BOLT; OIL FILTER 00.206 (C) M8X70 FLANGE	0-28050-870-0	01	1	1008-							●
352	01.840 ADAPTER; OIL FILTER	8-97149-343-2	01	1	0306-0609							●
352	01.840 ADAPTER; OIL FILTER	8-97149-343-2	01	1	0710-1003							●
352	01.840 ADAPTER; OIL FILTER	8-97149-343-2	01	1	1008-							●
394	01.837 STUD; OIL FILTER	8-97022-473-0	01	1	0306-0609							●
394	01.837 STUD; OIL FILTER	8-97022-473-0	01	1	0710-1003							●
394	01.837 STUD; OIL FILTER	8-97022-473-0	01	1	1008-							●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

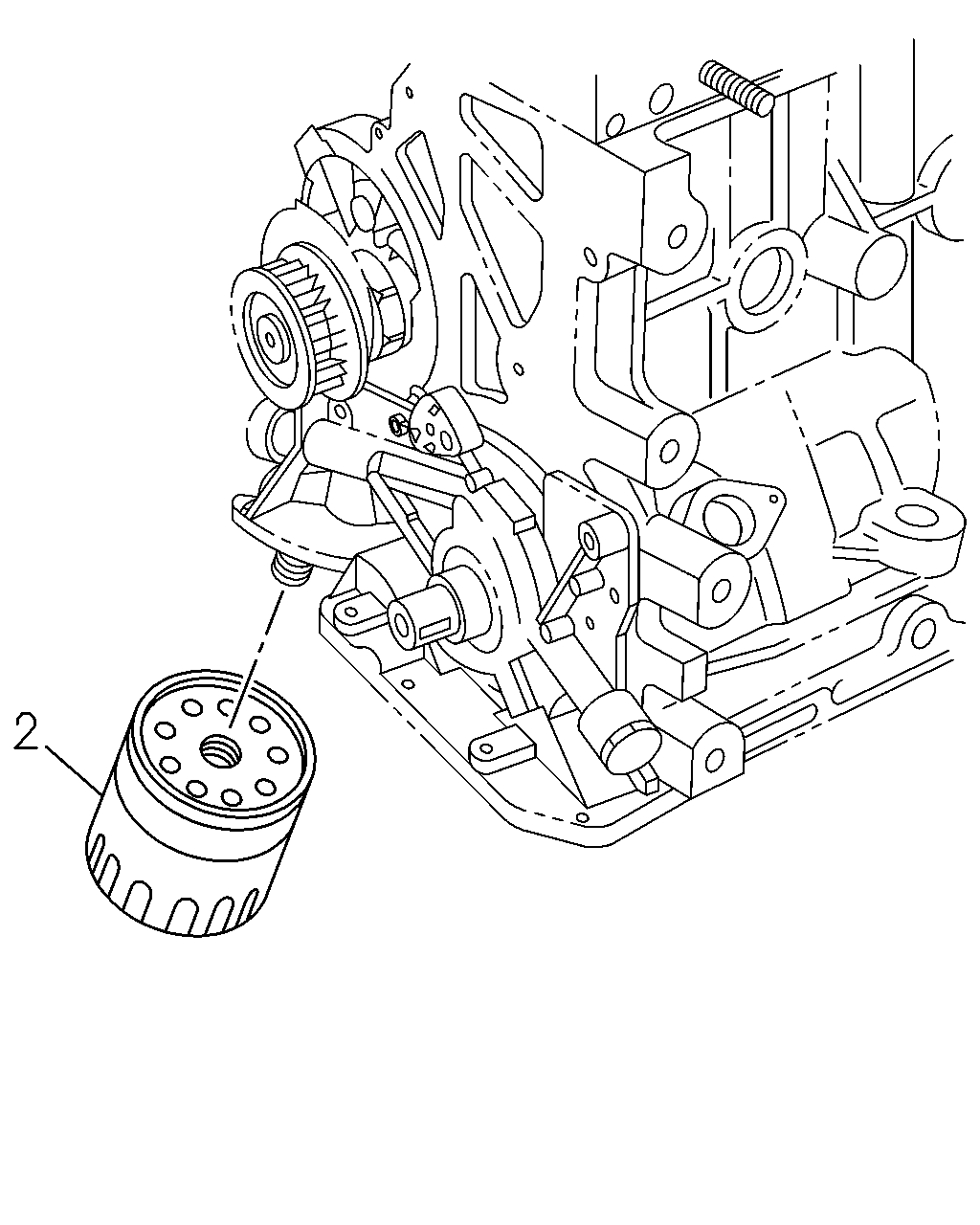

2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	1008-							●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0306-0609	●	●			●
2	01.836 ELEMENT; OIL FILTER	8-97309-927-0	01	1	0610-		●			●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	0306-0609							●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	0610-1007			●	●
2	01.836 ELEMENT; OIL FILTER	8-97358-720-0	01	1	1008-			●	●		●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	0710-1003							●
2	01.836 ELEMENT; OIL FILTER	8-92142-009-0	01	1	0306-1009								●
2	01.836 ELEMENT; OIL FILTER	8-94632-619-0	01	1	1010-								●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
