0-41 — FUEL FILTER AND BRACKET (#73913) — 209 parça

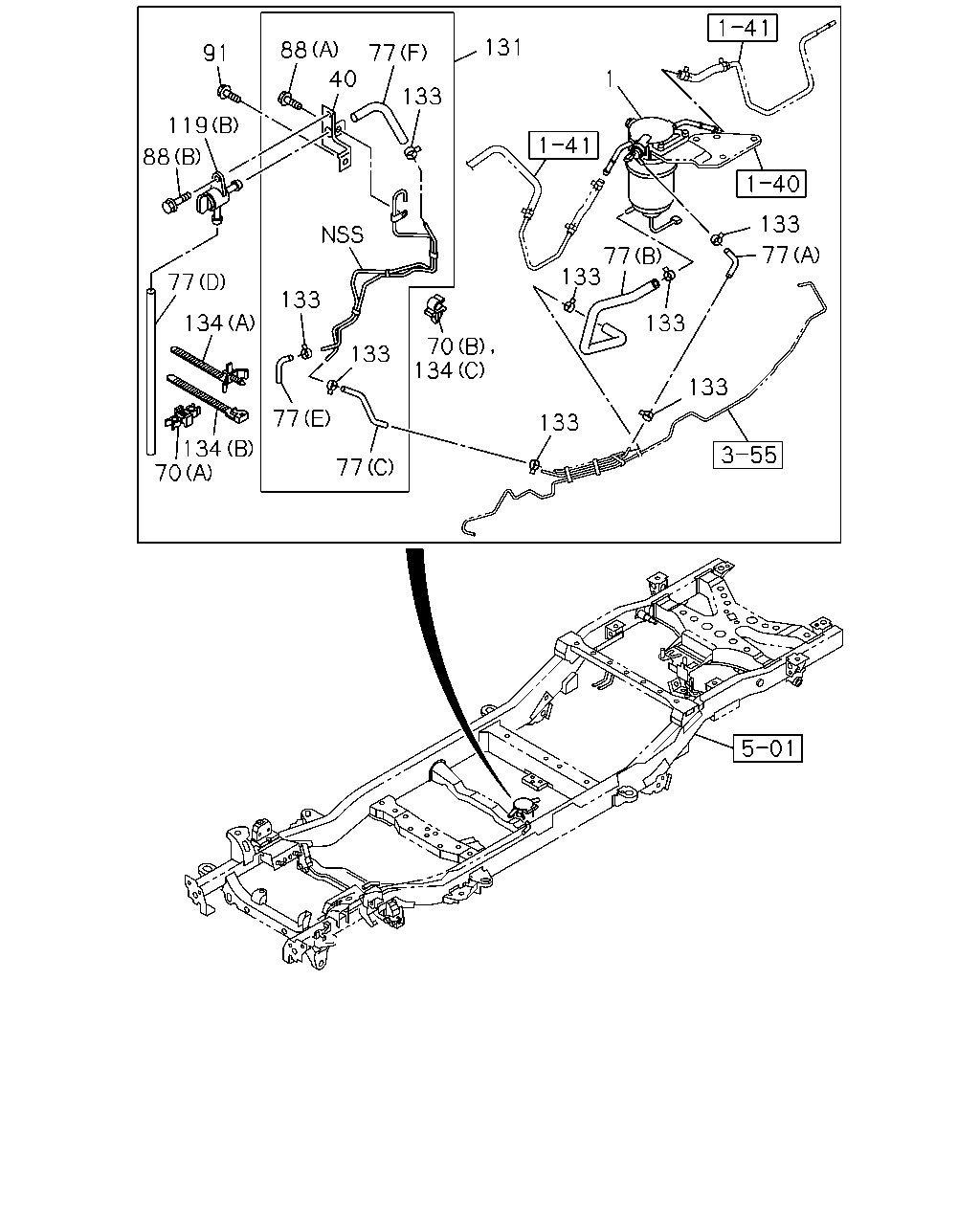

çizim 63438
131 88 77 91 40 1 133 119 88 133 77 133 77 77 133 134 133 70 134 133 133 77 133 134 70 77
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-97358-134-1 01 1 0306- ●
1 03.890 FILTER ASM; FUEL 8-97363-553-1 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO3 SPECIFICATION<NT3> 		8-97363-553-1 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO3 SPECIFICATION<NT3> 		8-97363-553-1 01 1 0610- ●
1 03.890 FILTER ASM; FUEL
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97287-518-2 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97287-518-2 01 1 0610- ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0306-0609 ● ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0610-0709 ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0710-0912 ● ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1001-1003 ● ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1004-1007 ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1008- ● ●
1 03.890 FILTER ASM; FUEL 8-98048-333-0 01 1 0610-0907 ● ●
1 03.890 FILTER ASM; FUEL 8-98150-029-0 01 1 0908-1007 ● ●
1 03.890 FILTER ASM; FUEL 8-98150-029-0 01 1 1008- ● ● ●
40 03.890 BRACKET; FUEL FILTER 8-98043-611-1 01 1 0610-1007 ● ●
40 03.890 BRACKET; FUEL FILTER 8-98043-611-1 01 1 1008- ● ● ●
70 03.330 CLIP; FUEL PIPE
03.680 (A) ID=7.5 & 7.5 		8-97019-084-0 01 1 0610-1007 ● ●
70 03.330 CLIP; FUEL PIPE
03.680 (A) ID=7.5 & 7.5 		8-97019-084-0 01 1 1008- ● ● ●
70 03.330 CLIP; FUEL PIPE
02.559 (B) ID=6.8 		8-97134-154-0 01 1 0610-1007 ● ●
70 03.330 CLIP; FUEL PIPE
02.559 (B) ID=6.8 		8-97134-154-0 01 1 1008- ● ● ●
77 03.890 HOSE; FUEL FILTER
03.163 (F) L=120 SERVICED BY L=3000 		0-01755-300-0 01 1 0610-1007 ● ●
77 03.890 HOSE; FUEL FILTER
(B) L=249 		8-98165-271-0 01 1 1008- ● ● ●
77 03.890 HOSE; FUEL FILTER
03.163 (E) L=220 SERVICED BY L=3000 		0-01755-300-0 01 1 0610-1007 ● ●
77 03.890 HOSE; FUEL FILTER
(F) L=120 		8-98165-853-0 01 1 1008- ● ● ●
77 03.890 HOSE; FUEL FILTER
08.962 (C) L=120 SERVICED BY L=3000 		0-04740-300-0 01 1 0610-1007 ● ●
77 03.890 HOSE; FUEL FILTER
08.962 (C) L=120 SERVICED BY L=3000 		0-04740-300-0 01 1 1008- ● ● ●
77 03.890 HOSE; FUEL FILTER
(A) L=78.7 		8-98034-993-0 01 1 0610-1007 ● ●
77 03.890 HOSE; FUEL FILTER
(A) L=78.7 		8-98034-993-0 01 1 1008- ● ● ●
77 03.890 HOSE; FUEL FILTER
(B) L=249 		8-98048-455-0 01 1 0610-1007 ● ●
77 03.890 HOSE; FUEL FILTER
(E) L=220 		8-98165-854-0 01 1 1008- ● ● ●
77 03.890 HOSE; FUEL FILTER
(D) L=940 		8-98049-047-0 01 1 0610-1007 ● ●
77 03.890 HOSE; FUEL FILTER
(D) L=940 		8-98049-047-0 01 1 1008- ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0610-1007 ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1008- ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
(B) M6X16 FLANGE 		8-98049-357-0 01 1 0610-1007 ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
(B) M6X16 FLANGE 		8-98049-357-0 01 1 1008- ● ● ●
91 03.890 BOLT; FUEL FILTER
4X2(TFB***) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0610-1007 ● ●
91 03.890 BOLT; FUEL FILTER
4X2(TFB***) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1008- ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(A) 		8-98048-185-0 01 1 0610-1007 ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(A) 		8-98048-185-0 01 1 1008- ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(B) 		8-98048-635-0 01 1 0610-1007 ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(B) 		8-98048-635-0 01 1 1008- ● ● ●
131 03.890 PIPE; FILTER 8-98061-142-0 01 1 0610-1007 ● ●
131 03.890 PIPE; FILTER 8-98165-832-0 01 1 1008- ● ● ●
133 03.330 CLAMP; HOSE
03.162 ID=11.5 		8-98008-096-0 02 1 0610-1007 ● ●
133 03.330 CLAMP; HOSE
ID=11.5 		8-98051-892-0 05 1 1008- ● ● ●
133 03.330 CLAMP; HOSE
03.162 ID=11.5 		8-98008-096-0 04 1 0610-1007 ● ●
133 03.330 CLAMP; HOSE
ID=11.5 		8-98051-892-0 01 1 0610-1007 ● ●
133 03.330 CLAMP; HOSE
ID=11.5 		8-98051-892-0 02 1 1008- ● ● ●
134 03.330 CLIP; FUEL HOSE
02.559 (A) L=135 		8-94473-399-0 01 1 0610-1007 ● ●
134 03.330 CLIP; FUEL HOSE
02.559 (A) L=135 		8-94473-399-0 01 1 1008- ● ● ●
134 03.330 CLIP; FUEL HOSE
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (B) L=158.7 		8-97922-209-0 01 1 0610-1007 ● ●
134 03.330 CLIP; FUEL HOSE
4X4(TFS***) 02.559 (B) L=158.7 		8-97922-209-0 01 1 0610-1007 ● ●
134 03.330 CLIP; FUEL HOSE
4X2(TFB***) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (B) L=158.7 		8-97922-209-0 01 1 1008- ● ● ●
134 03.330 CLIP; FUEL HOSE
4X4(TFS***) 02.559 (B) L=158.7 		8-97922-209-0 01 1 1008- ● ● ●
134 03.330 CLIP; FUEL HOSE
4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (C) ID=6.8 		8-97134-154-0 01 1 0610-1007 ● ●
134 03.330 CLIP; FUEL HOSE
4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (C) ID=6.8 		8-97134-154-0 01 1 1008- ● ● ●
çizim 63654
5 1 1 5 6 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-97358-134-1 01 1 0306- ●
1 03.890 FILTER ASM; FUEL 8-97363-553-1 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO3 SPECIFICATION<NT3> 		8-97363-553-1 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO3 SPECIFICATION<NT3> 		8-97363-553-1 01 1 0610- ●
1 03.890 FILTER ASM; FUEL
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97287-518-2 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97287-518-2 01 1 0610- ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0306-0609 ● ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0610-0709 ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0710-0912 ● ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1001-1003 ● ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1004-1007 ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1008- ● ●
1 03.890 FILTER ASM; FUEL 8-98048-333-0 01 1 0610-0907 ● ●
1 03.890 FILTER ASM; FUEL 8-98150-029-0 01 1 0908-1007 ● ●
1 03.890 FILTER ASM; FUEL 8-98150-029-0 01 1 1008- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97916-993-2 01 1 0306-0609 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97916-993-2 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-98036-321-0 01 1 0610-0907 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-98149-982-0 01 1 0908-1007 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-98149-982-0 01 1 1008- ● ● ●
5 03.890 BOLT; FUEL FILTER
(A) 		8-97942-945-0 01 1 0306-0609 ● ● ●
5 03.890 BOLT; FUEL FILTER
(A) 		8-97942-945-0 01 1 0610- ● ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0306-0609 ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0306-0609 ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-0709 ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-0709 ● ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-1007 ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-1007 ● ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 1008- ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 1008- ● ● ●
6 03.890 GASKET; FUEL FILTER 8-97942-938-0 01 1 0306-0609 ● ● ●
6 03.890 GASKET; FUEL FILTER 8-97942-938-0 01 1 0610- ● ●
çizim 63689
1 1 5 6 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-97358-134-1 01 1 0306- ●
1 03.890 FILTER ASM; FUEL 8-97363-553-1 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO3 SPECIFICATION<NT3> 		8-97363-553-1 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO3 SPECIFICATION<NT3> 		8-97363-553-1 01 1 0610- ●
1 03.890 FILTER ASM; FUEL
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97287-518-2 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97287-518-2 01 1 0610- ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0306-0609 ● ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0610-0709 ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0710-0912 ● ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1001-1003 ● ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1004-1007 ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1008- ● ●
1 03.890 FILTER ASM; FUEL 8-98048-333-0 01 1 0610-0907 ● ●
1 03.890 FILTER ASM; FUEL 8-98150-029-0 01 1 0908-1007 ● ●
1 03.890 FILTER ASM; FUEL 8-98150-029-0 01 1 1008- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97916-993-2 01 1 0306-0609 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97916-993-2 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-98036-321-0 01 1 0610-0907 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-98149-982-0 01 1 0908-1007 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-98149-982-0 01 1 1008- ● ● ●
5 03.890 BOLT; FUEL FILTER
(A) 		8-97942-945-0 01 1 0306-0609 ● ● ●
5 03.890 BOLT; FUEL FILTER
(A) 		8-97942-945-0 01 1 0610- ● ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0306-0609 ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0306-0609 ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-0709 ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-0709 ● ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-1007 ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-1007 ● ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 1008- ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 1008- ● ● ●
6 03.890 GASKET; FUEL FILTER 8-97942-938-0 01 1 0306-0609 ● ● ●
6 03.890 GASKET; FUEL FILTER 8-97942-938-0 01 1 0610- ● ●

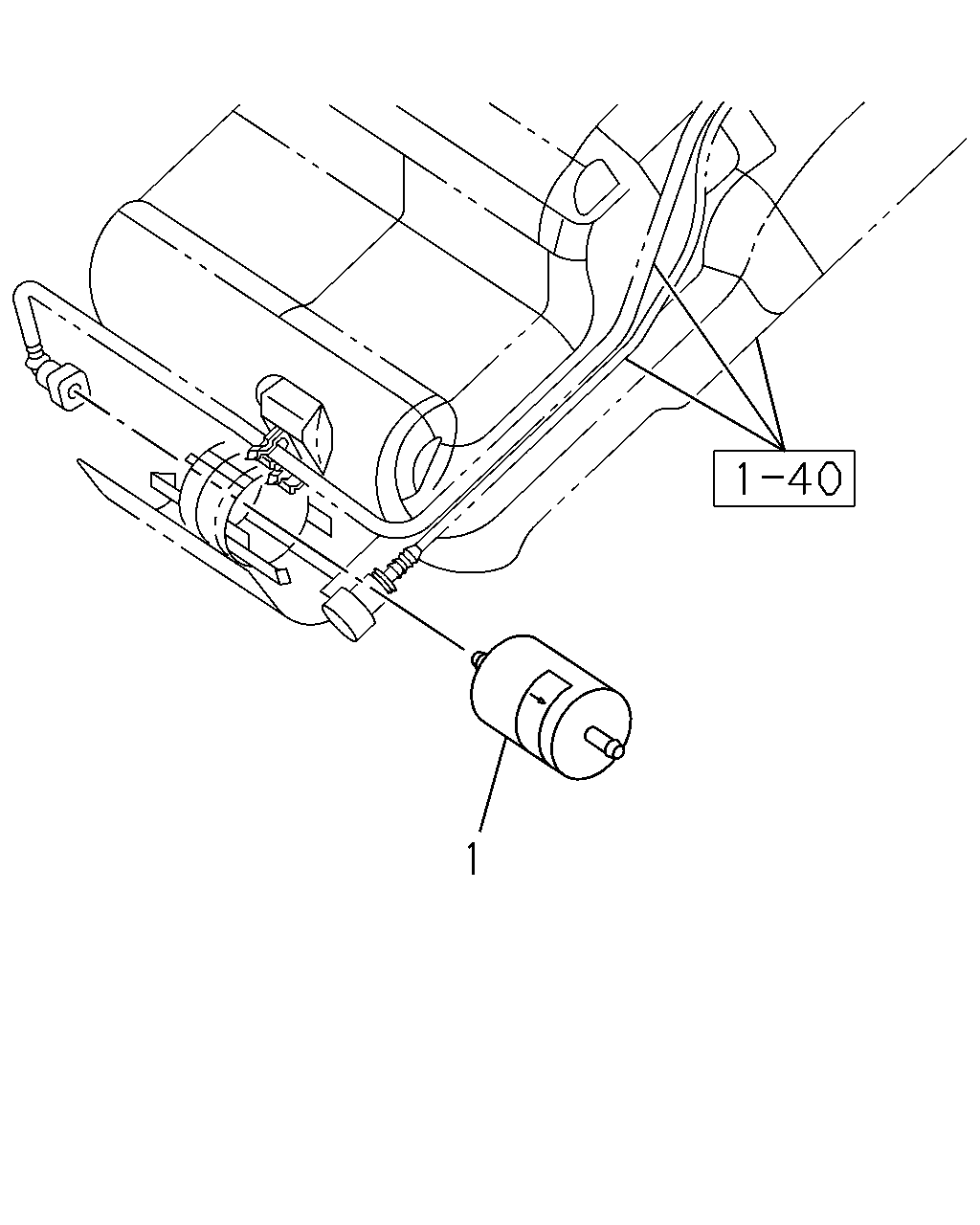

çizim 185234
1 5 6 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-97358-134-1 01 1 0306- ●
1 03.890 FILTER ASM; FUEL 8-97363-553-1 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO3 SPECIFICATION<NT3> 		8-97363-553-1 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO3 SPECIFICATION<NT3> 		8-97363-553-1 01 1 0610- ●
1 03.890 FILTER ASM; FUEL
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97287-518-2 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97287-518-2 01 1 0610- ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0306-0609 ● ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0610-0709 ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0710-0912 ● ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1001-1003 ● ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1004-1007 ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1008- ● ●
1 03.890 FILTER ASM; FUEL 8-98048-333-0 01 1 0610-0907 ● ●
1 03.890 FILTER ASM; FUEL 8-98150-029-0 01 1 0908-1007 ● ●
1 03.890 FILTER ASM; FUEL 8-98150-029-0 01 1 1008- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97916-993-2 01 1 0306-0609 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97916-993-2 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-98036-321-0 01 1 0610-0907 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-98149-982-0 01 1 0908-1007 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-98149-982-0 01 1 1008- ● ● ●
5 03.890 BOLT; FUEL FILTER
(A) 		8-97942-945-0 01 1 0306-0609 ● ● ●
5 03.890 BOLT; FUEL FILTER
(A) 		8-97942-945-0 01 1 0610- ● ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0306-0609 ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0306-0609 ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-0709 ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-0709 ● ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-1007 ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-1007 ● ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 1008- ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 1008- ● ● ●
6 03.890 GASKET; FUEL FILTER 8-97942-938-0 01 1 0306-0609 ● ● ●
6 03.890 GASKET; FUEL FILTER 8-97942-938-0 01 1 0610- ● ●
çizim 185235
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-97358-134-1 01 1 0306- ●
1 03.890 FILTER ASM; FUEL 8-97363-553-1 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO3 SPECIFICATION<NT3> 		8-97363-553-1 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO3 SPECIFICATION<NT3> 		8-97363-553-1 01 1 0610- ●
1 03.890 FILTER ASM; FUEL
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97287-518-2 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97287-518-2 01 1 0610- ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0306-0609 ● ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0610-0709 ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0710-0912 ● ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1001-1003 ● ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1004-1007 ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1008- ● ●
1 03.890 FILTER ASM; FUEL 8-98048-333-0 01 1 0610-0907 ● ●
1 03.890 FILTER ASM; FUEL 8-98150-029-0 01 1 0908-1007 ● ●
1 03.890 FILTER ASM; FUEL 8-98150-029-0 01 1 1008- ● ● ●
çizim 185322
5 1 124 119 2 105 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 03.890 FILTER ASM; FUEL 8-97358-134-1 01 1 0306- ●
1 03.890 FILTER ASM; FUEL 8-97363-553-1 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO3 SPECIFICATION<NT3> 		8-97363-553-1 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO3 SPECIFICATION<NT3> 		8-97363-553-1 01 1 0610- ●
1 03.890 FILTER ASM; FUEL
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97287-518-2 01 1 0306-0609 ●
1 03.890 FILTER ASM; FUEL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97287-518-2 01 1 0610- ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0306-0609 ● ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0610-0709 ●
1 03.890 FILTER ASM; FUEL 8-25121-074-0 01 1 0710-0912 ● ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1001-1003 ● ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1004-1007 ●
1 03.890 FILTER ASM; FUEL 8-98163-450-0 01 1 1008- ● ●
1 03.890 FILTER ASM; FUEL 8-98048-333-0 01 1 0610-0907 ● ●
1 03.890 FILTER ASM; FUEL 8-98150-029-0 01 1 0908-1007 ● ●
1 03.890 FILTER ASM; FUEL 8-98150-029-0 01 1 1008- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97916-993-2 01 1 0306-0609 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-97916-993-2 01 1 0610- ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-98036-321-0 01 1 0610-0907 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-98149-982-0 01 1 0908-1007 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER 8-98149-982-0 01 1 1008- ● ● ●
3 03.890 SENSOR ASM; FUEL FILTER 8-98047-661-0 01 1 0610-1007 ● ●
3 03.890 SENSOR ASM; FUEL FILTER 8-98047-661-0 01 1 1008- ● ● ●
5 03.890 BOLT; FUEL FILTER
(A) 		8-97942-945-0 01 1 0306-0609 ● ● ●
5 03.890 BOLT; FUEL FILTER
(A) 		8-97942-945-0 01 1 0610- ● ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0306-0609 ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0306-0609 ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-0709 ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-0709 ● ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-1007 ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-1007 ● ●
5 03.890 BOLT; FUEL FILTER
EURO3 SPECIFICATION<NT3> 03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 1008- ●
5 03.890 BOLT; FUEL FILTER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 02 1 1008- ● ● ●
105 03.890 CASE; FUEL FILTER 8-98048-537-0 01 1 0610-1007 ● ●
105 03.890 CASE; FUEL FILTER 8-98048-537-0 01 1 1008- ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(A) 		8-98048-185-0 01 1 0610-1007 ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(A) 		8-98048-185-0 01 1 1008- ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(B) 		8-98048-635-0 01 1 0610-1007 ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER
(B) 		8-98048-635-0 01 1 1008- ● ● ●
124 03.890 SWITCH; PRESSURE,FUEL FILTER 8-98036-319-0 01 1 0610-1007 ● ●
124 03.890 SWITCH; PRESSURE,FUEL FILTER 8-98036-319-0 01 1 1008- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
