◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#73912) — 1270 parça

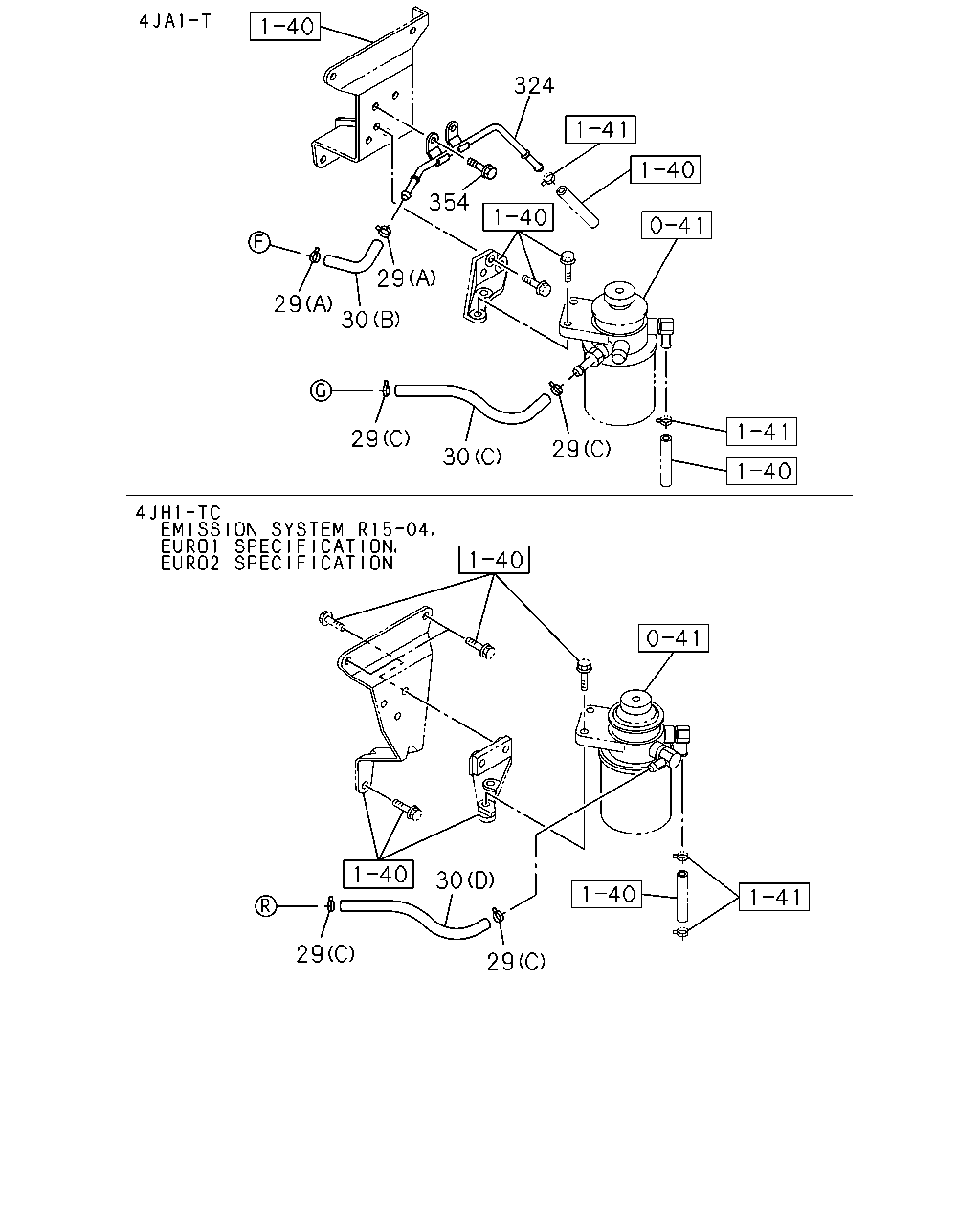

çizim 63273
324 354 29 29 30 29 29 30 30 29 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 03.162 CLIP; HOSE
EGYPT EQUIPMENT(B09) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 1008- ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0306-0703 ●
29 03.162 CLIP; HOSE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0306-0703 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0704- ●
29 03.162 CLIP; HOSE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0704- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0306- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0306-0609 ● ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0610-0703 ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0704-0709 ●
29 03.162 CLIP; HOSE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.163 (B) ID=11 		8-97173-219-0 02 1 0704-0709 ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0710- ● ●
29 03.162 CLIP; HOSE
EXC. EGYPT EQUIPMENT(B09) (D) ID=10.5 		8-97944-126-0 10 1 0610-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0610-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1004-1007 ● ●
29 03.162 CLIP; HOSE
EXC. EGYPT EQUIPMENT(B09) (D) ID=10.5 		8-97944-126-0 10 1 1008- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1008- ● ●
29 03.162 CLIP; HOSE
EGYPT EQUIPMENT(B09) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0610-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-98135-263-1 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (E) L=130 		0-01804-130-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (F) L=98 		8-97354-652-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (G) L=150 		8-97362-306-2 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (G) 		8-98112-034-0 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (G) 		8-98112-034-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0306- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0306- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0306-0609 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0610-1211 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0306-0609 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0610- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (E) L=130 		8-98053-692-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (E) L=130 		8-98053-692-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (F) L=96 		8-98053-693-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (F) L=96 		8-98053-693-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		0-01804-130-0 01 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (E) L=130 		0-01804-130-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=98 		8-97354-652-0 03 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (F) L=98 		8-97354-652-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0610-0810 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (G) L=150 		8-97362-306-2 01 1 0811-1003 ●
324 03.330 PIPE; FUEL RETURN 8-97287-516-4 01 1 0306- ●
354 03.163 BOLT; FUEL PIPE
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0306-0512 ●
354 03.163 BOLT; FUEL PIPE
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●

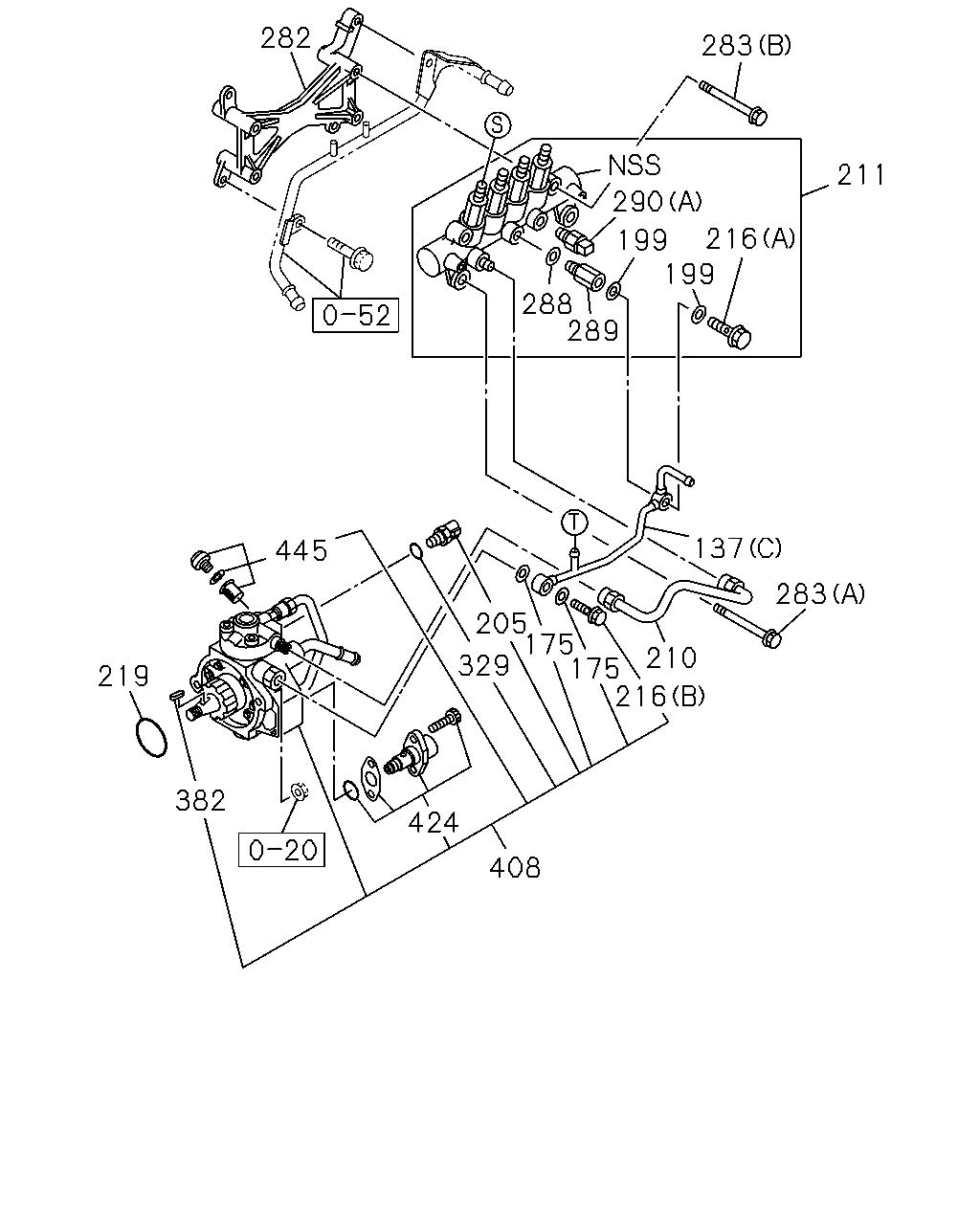

çizim 63383
408 424 382 219 445 329 205 175 175 216 210 283 137 216 211 199 199 290 289 288 283 282
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
137 03.163 PIPE ASM; LEAK OFF
EGYPT EQUIPMENT(B09) (B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
EGYPT EQUIPMENT(B09) (E) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
EGYPT EQUIPMENT(B09) (D) 		8-98036-510-0 01 1 1008- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-94467-727-3 01 1 0306-0402 ●
137 03.163 PIPE ASM; LEAK OFF
EGYPT EQUIPMENT(B09) (D) 		8-98036-510-0 01 1 0612-1003 ●
137 03.163 PIPE ASM; LEAK OFF
(E) 		8-97315-230-2 01 1 0610-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
(E) 		8-97315-230-2 01 1 1008-1101 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. EGYPT EQUIPMENT(B09) (E) 		8-97315-230-2 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(E) 		8-97315-230-2 01 1 1102- ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0610-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1008-1101 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. EGYPT EQUIPMENT(B09) (B) 		8-97315-231-2 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1102- ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0610-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 1008- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-2 01 1 0610-0611 ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. EGYPT EQUIPMENT(B09) (D) 		8-97372-938-3 01 1 0612-1003 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0612-1003 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 1004-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. EGYPT EQUIPMENT(B09) (D) 		8-97372-938-3 01 1 1008- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 1008- ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 0610-1007 ● ●
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 1008- ● ● ●
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 0610-1007 ● ●
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 1008- ● ● ●
205 03.320 SENSOR; FUEL TEMP
EXC. EGYPT EQUIPMENT(B09) 		8-98023-581-0 01 1 0612-0702 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0612-0702 ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0703-1007 ● ●
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1008- ● ● ●
205 03.320 SENSOR; FUEL TEMP
03.162 		8-97216-283-0 01 1 0610-0611 ● ●
205 03.320 SENSOR; FUEL TEMP
EGYPT EQUIPMENT(B09) 03.162 		8-97216-283-0 01 1 0612-0702 ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0610-1007 ● ●
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 1008- ● ● ●
211 03.331 RAIL ASM; COMMON
EGYPT EQUIPMENT(B09) 		8-98011-888-2 01 1 1008- ●
211 03.331 RAIL ASM; COMMON
EXC. EGYPT EQUIPMENT(B09) 		8-98052-238-0 01 1 0709-1003 ●
211 03.331 RAIL ASM; COMMON 8-98052-238-0 01 1 0709-1003 ●
211 03.331 RAIL ASM; COMMON 8-98052-238-0 01 1 1004-1007 ● ●
211 03.331 RAIL ASM; COMMON
EXC. EGYPT EQUIPMENT(B09) 		8-98052-238-1 01 1 1008- ●
211 03.331 RAIL ASM; COMMON 8-98052-238-1 01 1 1008- ● ●
211 03.331 RAIL ASM; COMMON 8-98011-888-0 01 1 0610-0708 ● ●
211 03.331 RAIL ASM; COMMON
EGYPT EQUIPMENT(B09) 		8-98011-888-1 01 1 0709-1003 ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 0810-1007 ● ●
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 1008- ● ● ●
216 03.162 BOLT; EYE
(B) 		8-98056-937-0 01 1 0610-0809 ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 0610-1007 ● ●
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 1008- ● ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=49.7 		1-09623-541-0 01 1 0610-1007 ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=49.7 		1-09623-541-0 01 1 1008- ● ● ●
282 03.163 BRACKET; COMMON RAIL 8-98011-890-1 01 1 0610-1007 ● ●
282 03.163 BRACKET; COMMON RAIL 8-98011-890-1 01 1 1008- ● ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 0610-1007 ● ●
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 1008- ● ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0610-1007 ● ●
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1008- ● ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0610-1007 ● ●
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1008- ● ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0610-1007 ● ●
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1008- ● ● ●
290 03.331 SENSOR; PRESS
EGYPT EQUIPMENT(B09) (A) 		8-98119-790-0 01 1 1008- ●
290 03.331 SENSOR; PRESS
EXC. EGYPT EQUIPMENT(B09) (A) 		8-98014-320-0 01 1 0709-1003 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 0709-1003 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 1004-1007 ● ●
290 03.331 SENSOR; PRESS
EXC. EGYPT EQUIPMENT(B09) (A) 		8-98014-320-0 01 1 1008-1208 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 1008-1208 ● ●
290 03.331 SENSOR; PRESS
EXC. EGYPT EQUIPMENT(B09) (A) 		8-98181-616-0 01 1 1209- ●
290 03.331 SENSOR; PRESS
(A) 		8-98181-616-0 01 1 1209- ● ●
290 03.331 SENSOR; PRESS
(A) 		8-97318-684-0 01 1 0610-0708 ● ●
290 03.331 SENSOR; PRESS
EGYPT EQUIPMENT(B09) (A) 		8-97318-684-0 01 1 0709-0809 ●
290 03.331 SENSOR; PRESS
EGYPT EQUIPMENT(B09) (A) 		8-98119-790-0 01 1 0810-1003 ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0610-1007 ● ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 1008- ● ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0710-1007 ● ●
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 1008- ● ● ●
382 03.162 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1008- ● ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97311-373-9 01 1 0610-1007 ● ●
408 03.306 PUMP ASM; FUEL,SUPPLY 8-98155-988-1 01 1 1008- ● ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-453-0 01 1 0610-0809 ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-0 01 1 0810-0905 ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-0 01 1 0906-1007 ● ●
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-0 01 1 1008- ● ● ●
445 03.330 SCREW; FILTER,INLET 8-98209-778-0 01 1 1008- ● ● ●

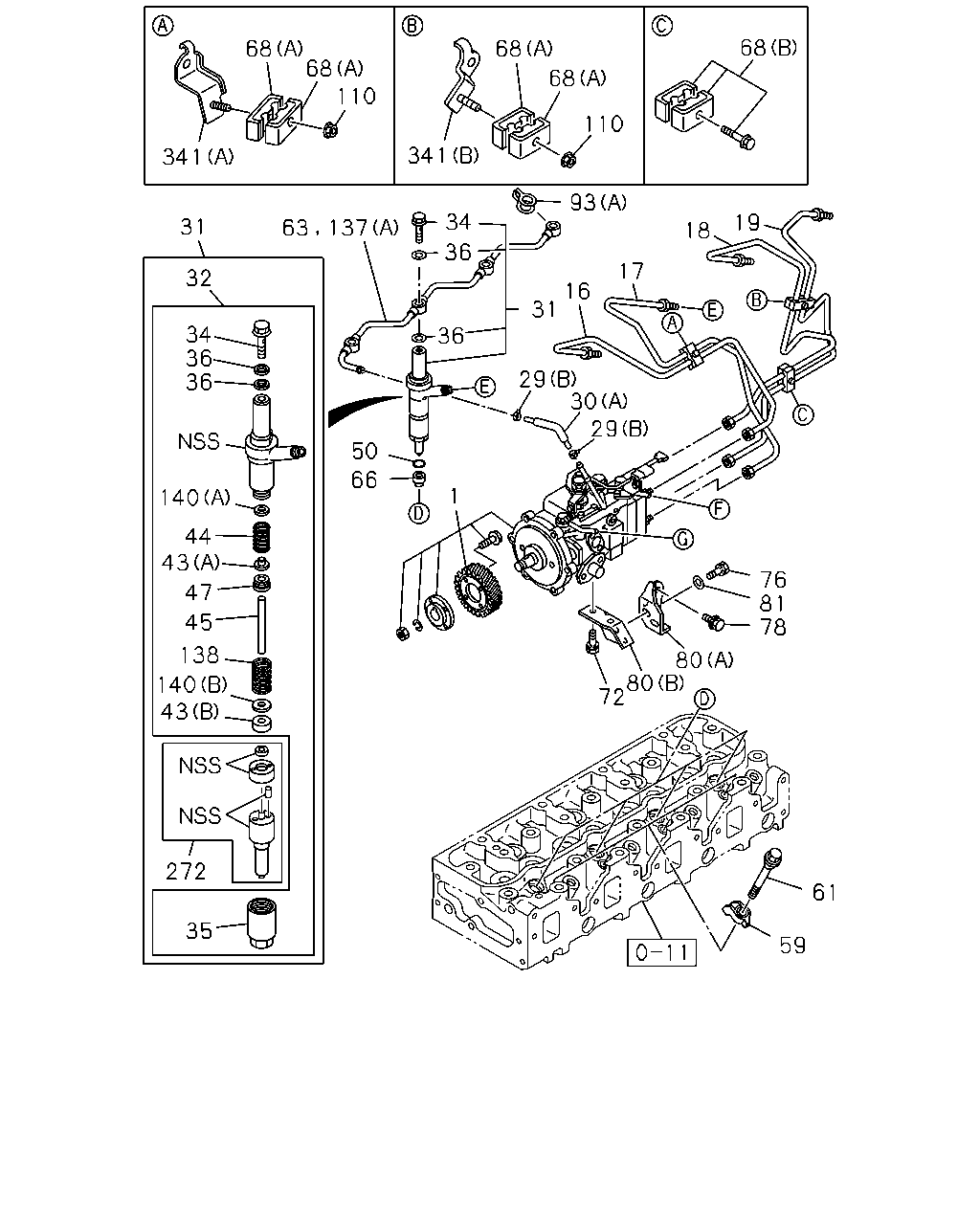

çizim 185237
68 68 68 68 110 68 110 341 341 93 34 19 31 63 137 18 36 17 32 16 31 34 36 36 36 29 30 29 50 66 1 140 44 43 76 81 78 47 45 138 80 80 72 140 43 272 61 35 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EXC. SAUDI ARABIA EQUIPMENT(GH3), TACHOMETER<U16> 		8-98180-718-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3), TACHOMETER<U16> 		8-98180-717-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) SAUDI ARABIA EQUIPMENT(GH3) EXC. TACHOMETER<U16> 		8-98180-720-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SAUDI ARABIA EQUIPMENT(GH3) EXC. TACHOMETER<U16> 		8-98180-719-0 01 1 1104- ●

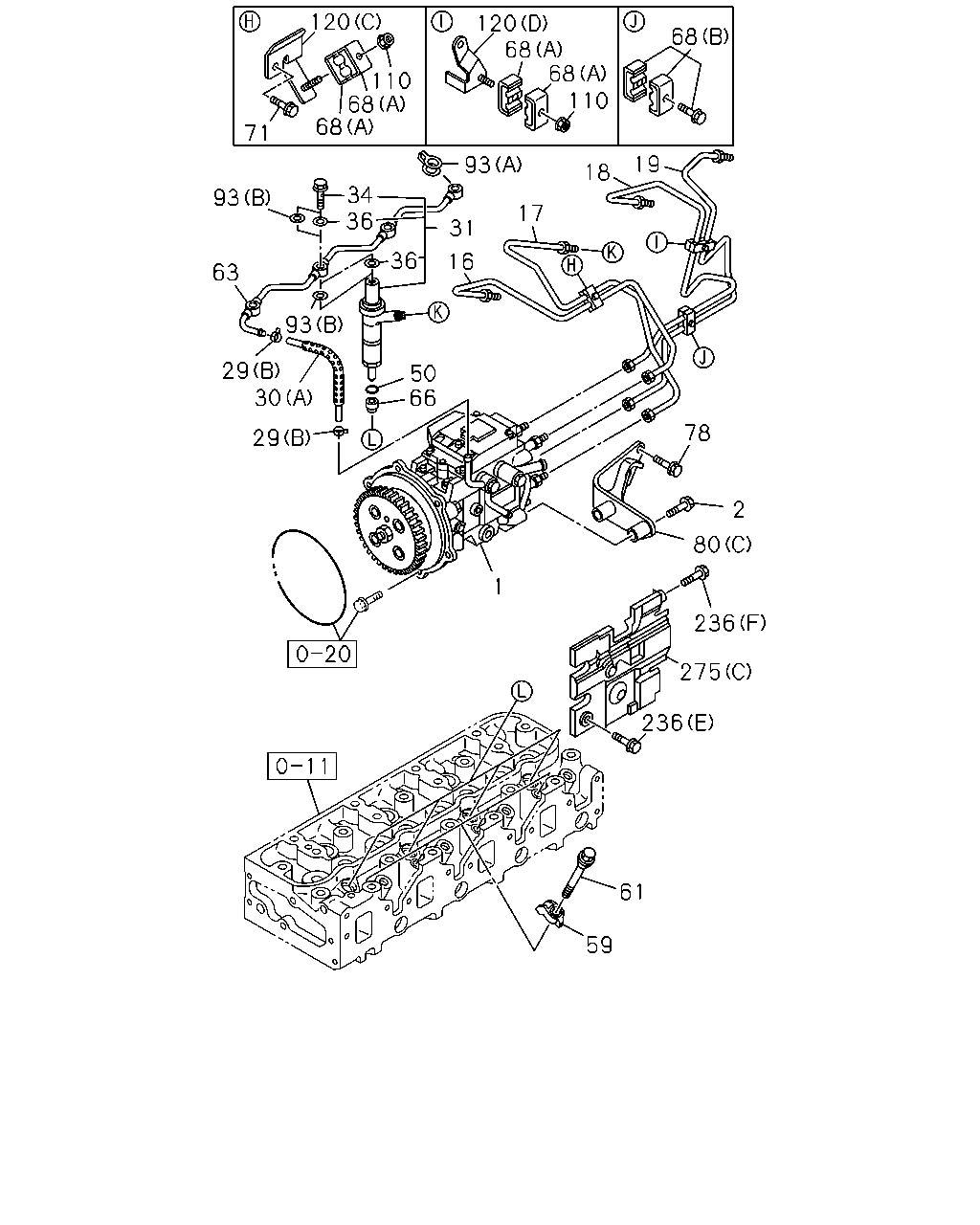

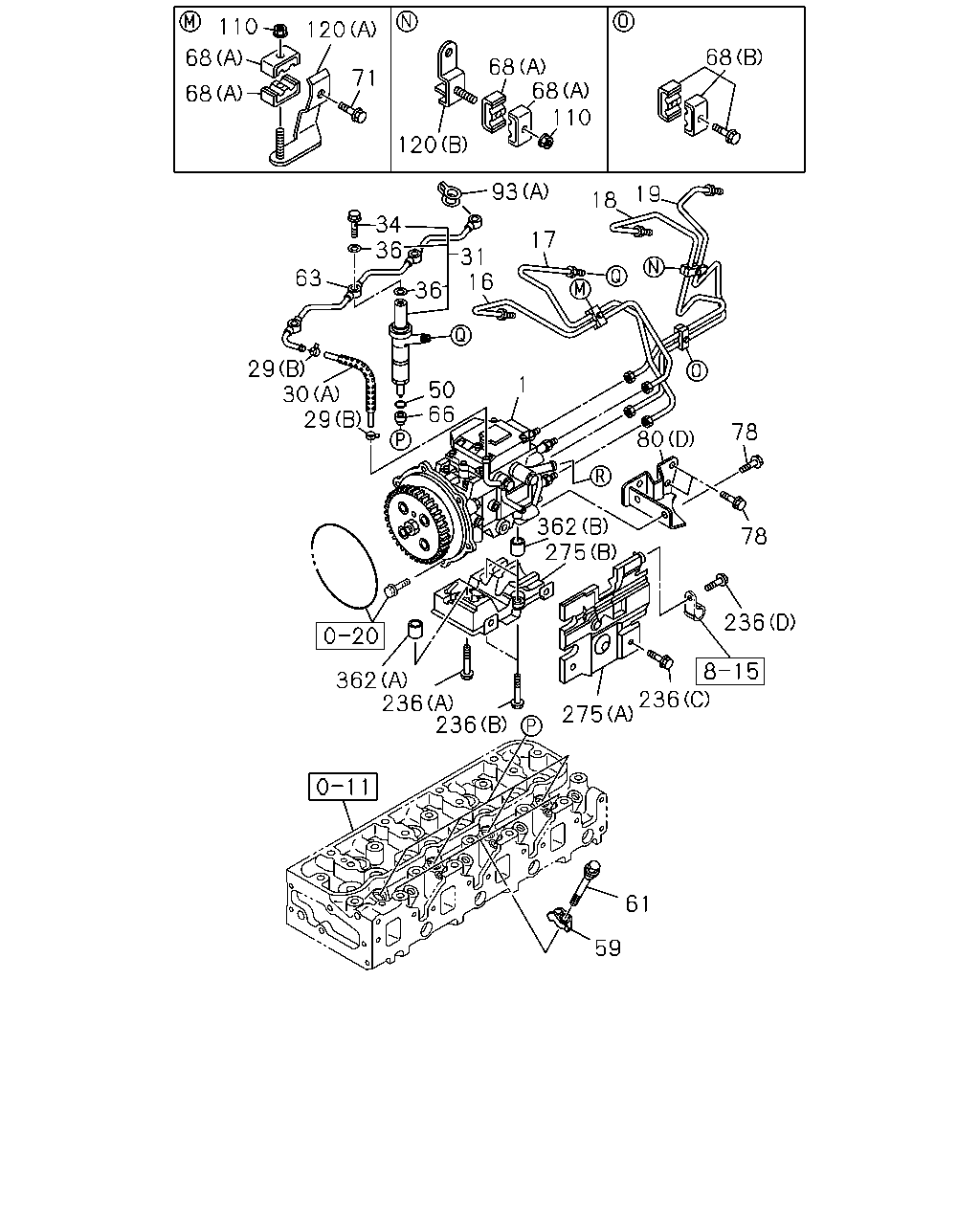

1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98002-138-0 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) 		8-98002-137-1 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) SAUDI ARABIA EQUIPMENT(GH3) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98110-564-0 01 1 0804-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) SAUDI ARABIA EQUIPMENT(GH3) TACHOMETER<U16> 		8-98110-564-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SAUDI ARABIA EQUIPMENT(GH3) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98110-563-1 01 1 0804-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SAUDI ARABIA EQUIPMENT(GH3) TACHOMETER<U16> 		8-98110-563-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 		8-97350-393-3 01 1 0306-0803 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> EXC. SAUDI ARABIA EQUIPMENT(GH3), IMMOBILIZER SYSTEM<7KC> 		8-97350-393-4 01 1 0804-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97350-393-4 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> IMMOBILIZER SYSTEM<7KC> 		8-97350-395-3 01 1 0306-0503 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> IMMOBILIZER SYSTEM<7KC> EXC. ECUADOR EQUIPMENT(E46) 		8-97350-395-3 01 1 0610-0703 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-396-3 01 1 0306-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ECUADOR EQUIPMENT(E46) 		8-97350-396-3 01 1 0502-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ECUADOR EQUIPMENT(E46), IMMOBILIZER SYSTEM<7KC> 		8-97350-396-3 01 1 0610-0709 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ECUADOR EQUIPMENT(E46) 		8-97350-396-4 01 1 0710-0905 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. VENEZUELA EQUIPMENT(E14), ECUADOR EQUIPMENT(E46) 		8-97350-396-4 01 1 0906-1003 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-396-4 01 1 1004-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. VENEZUELA EQUIPMENT(E14), ECUADOR EQUIPMENT(E46) 		8-97350-396-4 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) ECUADOR EQUIPMENT(E46) 		8-98002-137-1 01 1 0502-0905 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) 		8-98002-137-1 01 1 0906-1003 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. ECUADOR EQUIPMENT(E46) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98002-138-0 01 1 0502-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98002-138-0 01 1 0610-0905 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98002-138-0 01 1 0906-1003 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EMISSION SYSTEM R15-04<K75> FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 		8-97350-394-3 01 1 0306-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-394-3 01 1 0610-0803 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75> EXC. SAUDI ARABIA EQUIPMENT(GH3), IMMOBILIZER SYSTEM<7KC> 		8-97350-394-3 01 1 0804- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0306-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),ECUADOR EQUIPMENT(E46) 		8-97350-398-3 01 1 0502-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ECUADOR EQUIPMENT(E46), IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0610-0709 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),ECUADOR EQ UIPMENT(E46) 		8-97350-398-3 01 1 0710-0905 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0906-1003 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),IMMOBILIZE R SYSTEM<7KC> 		8-97350-398-3 01 1 1004-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 1008-1109 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EXC. VENEZUELA EQUIPMENT(E14), ECUADOR EQUIPMENT(E46) 		8-97350-398-3 01 1 1110- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EURO1 SPECIFICATION<NT1> IMMOBILIZER SYSTEM<7KC> 		8-97350-399-3 01 1 0306-0503 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. 		8-97249-238-4 01 1 0306-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EURO1 SPECIFICATION<NT1> IMMOBILIZER SYSTEM<7KC> EXC. ECUADOR EQUIPMENT(E46) 		8-97350-399-3 01 1 0610-0703 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. 		8-97326-739-3 01 1 0306- ●

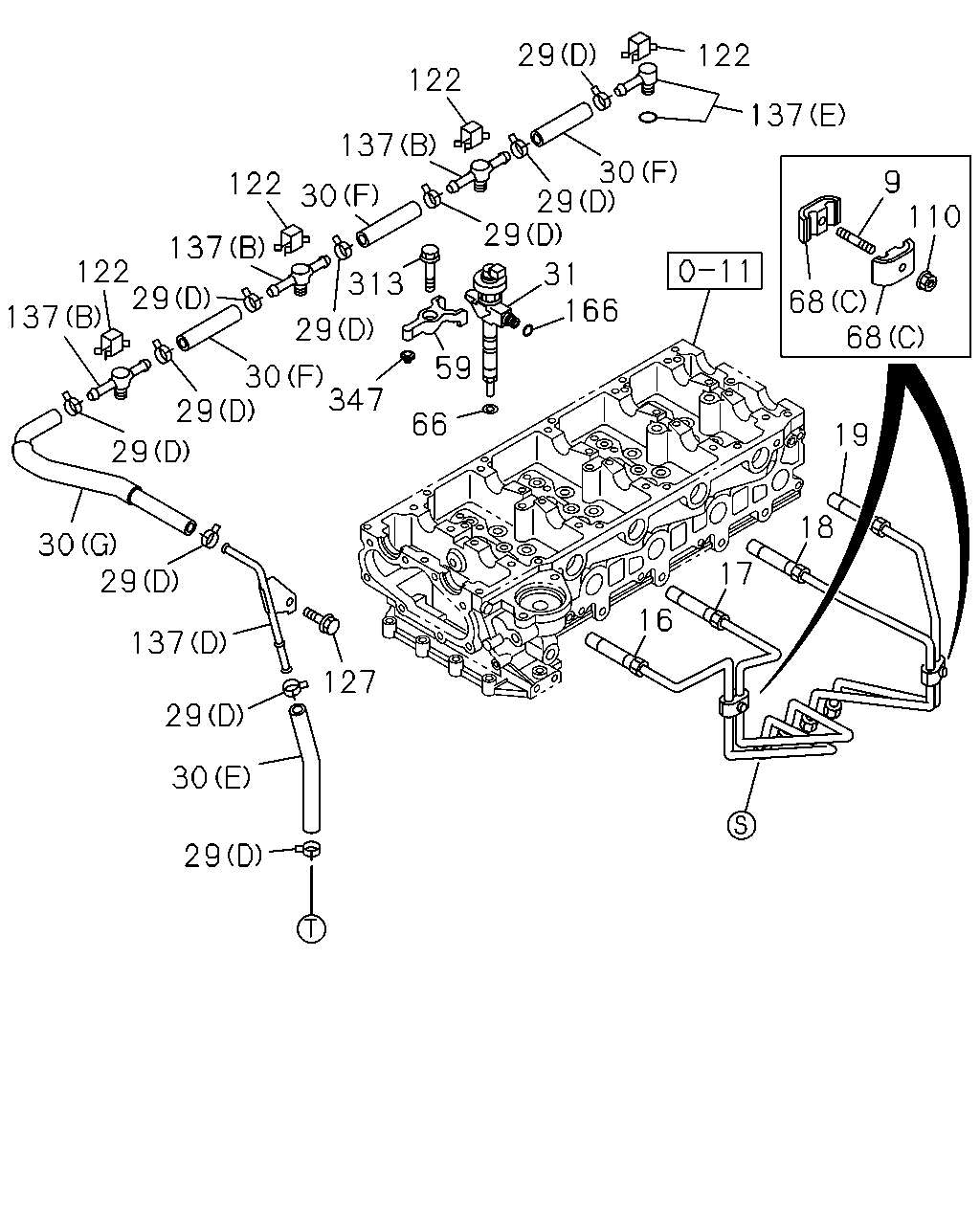

16 03.330 PIPE; INJ NO.1
EGYPT EQUIPMENT(B09) 		8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-97287-521-0 01 1 0306-0311 ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 0312- ●
16 03.330 PIPE; INJ NO.1 8-97300-013-4 01 1 0306-0609 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0610-1007 ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1008-1201 ● ● ●
16 03.330 PIPE; INJ NO.1
EXC. EGYPT EQUIPMENT(B09) 		8-98011-606-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1202- ● ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0306- ●
17 03.330 PIPE; INJ NO.2
EGYPT EQUIPMENT(B09) 		8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97287-522-0 01 1 0306-0306 ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 0307- ●
17 03.330 PIPE; INJ NO.2 8-97300-014-4 01 1 0306-0609 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0610-1007 ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1008-1201 ● ● ●
17 03.330 PIPE; INJ NO.2
EXC. EGYPT EQUIPMENT(B09) 		8-98043-684-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1202- ● ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0306- ●
18 03.330 PIPE; INJ NO.3
EGYPT EQUIPMENT(B09) 		8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97287-523-0 01 1 0306-0311 ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 0312- ●
18 03.330 PIPE; INJ NO.3 8-97300-015-4 01 1 0306-0609 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0610-1007 ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1008-1201 ● ● ●
18 03.330 PIPE; INJ NO.3
EXC. EGYPT EQUIPMENT(B09) 		8-98011-608-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1202- ● ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0306- ●
19 03.330 PIPE; INJ NO.4
EGYPT EQUIPMENT(B09) 		8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97287-524-0 01 1 0306-0311 ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 0312- ●
19 03.330 PIPE; INJ NO.4 8-97300-016-4 01 1 0306-0609 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0610-1007 ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1008-1201 ● ● ●
19 03.330 PIPE; INJ NO.4
EXC. EGYPT EQUIPMENT(B09) 		8-98011-609-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1202- ● ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0306- ●
29 03.162 CLIP; HOSE
EGYPT EQUIPMENT(B09) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 1008- ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0306-0703 ●
29 03.162 CLIP; HOSE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0306-0703 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0704- ●
29 03.162 CLIP; HOSE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0704- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0306- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0306-0609 ● ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0610-0703 ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0704-0709 ●
29 03.162 CLIP; HOSE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.163 (B) ID=11 		8-97173-219-0 02 1 0704-0709 ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0710- ● ●
29 03.162 CLIP; HOSE
EXC. EGYPT EQUIPMENT(B09) (D) ID=10.5 		8-97944-126-0 10 1 0610-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0610-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1004-1007 ● ●
29 03.162 CLIP; HOSE
EXC. EGYPT EQUIPMENT(B09) (D) ID=10.5 		8-97944-126-0 10 1 1008- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1008- ● ●
29 03.162 CLIP; HOSE
EGYPT EQUIPMENT(B09) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0610-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-98135-263-1 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (E) L=130 		0-01804-130-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (F) L=98 		8-97354-652-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (G) L=150 		8-97362-306-2 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (G) 		8-98112-034-0 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (G) 		8-98112-034-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0306- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0306- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0306-0609 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0610-1211 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0306-0609 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0610- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (E) L=130 		8-98053-692-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (E) L=130 		8-98053-692-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (F) L=96 		8-98053-693-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (F) L=96 		8-98053-693-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		0-01804-130-0 01 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (E) L=130 		0-01804-130-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=98 		8-97354-652-0 03 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (F) L=98 		8-97354-652-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0610-0810 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (G) L=150 		8-97362-306-2 01 1 0811-1003 ●
31 03.332 NOZZLE ASM; INJ 8-97217-642-0 04 1 0306-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ 8-97300-942-1 04 1 0306-0501 ●
31 03.332 NOZZLE ASM; INJ
TURKEY EQUIPMENT(B11) 		8-97300-942-1 04 1 0502-0502 ●
31 03.332 NOZZLE ASM; INJ
EXC. TURKEY EQUIPMENT(B11) 		8-97382-947-0 04 1 0502-0502 ●
31 03.332 NOZZLE ASM; INJ 8-97382-947-0 04 1 0503-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-0 04 1 0610-0704 ● ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-1 04 1 0705-0910 ● ●
31 03.332 NOZZLE ASM; INJ
EGYPT EQUIPMENT(B09) 		8-98011-604-2 04 1 0911-1003 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-5 04 1 0911-1306 ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 1307- ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-5 04 1 1008- ●
31 03.332 NOZZLE ASM; INJ 8-97306-020-1 04 1 0306-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-948-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) 		8-98055-862-3 04 1 0705-1306 ● ●
32 03.332 HOLDER ASM; NOZZLE 8-97217-835-0 04 1 0306- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0306-0609 ● ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0610- ● ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 0306- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97357-685-0 08 1 0306-0402 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0306-0402 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0403-0501 ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
TURKEY EQUIPMENT(B11) 		8-97084-347-0 08 1 0502-0502 ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.00 		8-97223-343-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.02 		8-97223-344-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.04 		8-97223-345-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.06 		8-97223-346-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.08 		8-97223-347-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.10 		8-97223-348-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.12 		8-97223-349-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.14 		8-97223-350-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.16 		8-97223-351-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.18 		8-97223-352-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.20 		8-97223-353-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.22 		8-97223-354-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.24 		8-97223-355-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.26 		8-97223-356-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.28 		8-97223-357-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.30 		8-97223-358-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.32 		8-97223-359-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.34 		8-97223-360-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.36 		8-97223-361-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.38 		8-97223-362-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.40 		8-97223-363-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.42 		8-97223-364-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.44 		8-97223-365-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.46 		8-97223-366-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.48 		8-97223-367-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.50 		8-97223-368-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.52 		8-97223-369-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.54 		8-97223-370-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.56 		8-97223-371-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.58 		8-97223-372-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.60 		8-97223-373-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.62 		8-97223-374-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.64 		8-97223-375-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.66 		8-97223-376-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.68 		8-97223-377-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.70 		8-97223-378-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.72 		8-97223-379-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.74 		8-97223-380-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.76 		8-97223-381-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.78 		8-97223-382-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.80 		8-97223-383-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.82 		8-97223-384-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.84 		8-97223-385-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.86 		8-97223-386-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.88 		8-97223-387-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.90 		8-97223-388-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.92 		8-97223-389-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.94 		8-97223-390-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.96 		8-97223-391-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=2.98 		8-97223-392-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(B) T=3.00 		8-97223-393-0 04 1 0306- ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
(A) 		8-97361-697-0 04 1 0306- ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.25 		8-97355-112-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.26 		8-97355-113-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.27 		8-97355-114-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.28 		8-97355-115-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.29 		8-97355-116-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.30 		8-97355-117-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.31 		8-97355-118-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.32 		8-97355-119-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.33 		8-97355-120-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.34 		8-97355-121-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.35 		8-97355-122-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.36 		8-97355-123-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.37 		8-97355-124-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.38 		8-97355-125-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.39 		8-97355-126-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.40 		8-97355-127-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.41 		8-97355-128-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.42 		8-97355-129-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.43 		8-97355-130-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.44 		8-97355-131-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.45 		8-97355-132-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.46 		8-97355-133-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.47 		8-97355-134-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.48 		8-97355-135-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.49 		8-97355-136-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.50 		8-97355-137-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.51 		8-97355-138-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.52 		8-97355-139-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.53 		8-97355-140-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.54 		8-97355-141-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.55 		8-97355-142-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.56 		8-97355-143-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.57 		8-97355-144-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.58 		8-97355-145-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.59 		8-97355-146-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.60 		8-97355-147-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.61 		8-97355-148-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.62 		8-97355-149-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.63 		8-97355-150-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.64 		8-97355-151-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.65 		8-97355-152-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.66 		8-97355-153-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.67 		8-97355-154-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.68 		8-97355-155-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.69 		8-97355-156-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.70 		8-97355-157-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.71 		8-97355-158-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.72 		8-97355-159-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.73 		8-97355-160-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.74 		8-97355-161-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.75 		8-97355-162-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.76 		8-97355-163-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.77 		8-97355-164-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.78 		8-97355-165-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.79 		8-97355-166-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.80 		8-97355-167-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.81 		8-97355-168-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.82 		8-97355-169-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.83 		8-97355-170-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.84 		8-97355-171-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.85 		8-97355-172-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.86 		8-97355-173-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.87 		8-97355-174-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.88 		8-97355-175-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.89 		8-97355-176-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.90 		8-97355-177-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.91 		8-97355-178-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.92 		8-97355-179-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.93 		8-97355-180-0 04 1 0306- ●
45 03.330 ROD; PUSH,NOZZLE HOLDER
L=38.94 		8-97355-182-0 04 1 0306- ●
47 03.332 SPACER; NOZZLE SPRING,NOZZLE HOL 8-97223-340-0 04 1 0306- ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-1 04 1 0306-0402 ● ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0403-0609 ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97287-402-2 04 1 0403-0609 ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0610- ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-615-0 04 1 0403-0609 ●
59 03.332 CLAMP; NOZZLE HOLDER
EGYPT EQUIPMENT(B09) 		8-98113-691-0 04 1 1008- ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. EGYPT EQUIPMENT(B09) 		8-98092-539-0 04 1 0711-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0802-1007 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. EGYPT EQUIPMENT(B09) 		8-98092-539-0 04 1 1008- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1008- ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0306-0402 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0403-0609 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. TURKEY EQUIPMENT(B11) 		8-97259-884-0 04 1 0403-0609 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0610- ● ●
59 03.332 CLAMP; NOZZLE HOLDER
TURKEY EQUIPMENT(B11) 		8-97920-006-0 04 1 0403-0609 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0610-0710 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EGYPT EQUIPMENT(B09) 		8-98011-528-2 04 1 0711-0801 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0306-0402 ● ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0403-0609 ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
EXC. TURKEY EQUIPMENT(B11) 		8-94468-020-2 04 1 0403-0609 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0610- ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
TURKEY EQUIPMENT(B11) 		8-97920-028-0 04 1 0403-0609 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
TURKEY EQUIPMENT(B11) 		8-97920-247-0 01 1 0403-0609 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0306-0402 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0403-0609 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. TURKEY EQUIPMENT(B11) 		8-94467-727-3 01 1 0403-0609 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0610- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1101-1103 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1104- ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0306-0609 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0610- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0702-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0702-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0703-1007 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 1008-1012 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EGYPT EQUIPMENT(B09) 		8-98077-165-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98057-731-0 04 1 0610-0701 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EGYPT EQUIPMENT(B09) 		8-98057-731-0 04 1 0702-0702 ●
68 03.162 CLIP; INJ PIPE
EGYPT EQUIPMENT(B09) (C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
EGYPT EQUIPMENT(B09) (C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0306-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0610-1210 ● ●
68 03.162 CLIP; INJ PIPE
03.634 (A) 		1-09701-240-0 04 1 1211- ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0306-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0610-1212 ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-98227-926-0 01 1 1301- ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0610-1007 ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1008-1201 ● ● ●
68 03.162 CLIP; INJ PIPE
EXC. EGYPT EQUIPMENT(B09) (C) 		8-97213-481-0 04 1 1202- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1202- ● ●
72 03.330 BOLT; BRKT TO INJ PUMP
01.516 M10X20 W/LK WASHER 		0-50051-020-0 02 1 0306-0512 ●
72 03.330 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER 		0-50551-020-0 02 1 0601- ●
76 03.330 BOLT; BRKT TO BRKT
01.073 M8X25 W/LK WASHER 		0-50040-825-0 02 1 0306-0512 ●
76 03.330 BOLT; BRKT TO BRKT
09.008 M8X25 W/LK WASHER 		0-50540-825-0 02 1 0601- ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0306-0402 ● ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0403-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EXC. TURKEY EQUIPMENT(B11) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0403-0512 ●
78 03.330 BOLT; BRKT TO C/BL
TURKEY EQUIPMENT(B11) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0403-0512 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0609 ● ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0610- ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 03 1 0306-0512 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
78 03.330 BOLT; BRKT TO C/BL
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0306-0311 ●
78 03.330 BOLT; BRKT TO C/BL
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0312-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ●
78 03.330 BOLT; BRKT TO C/BL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610- ●
78 03.330 BOLT; BRKT TO C/BL
EURO3 SPECIFICATION<NT3> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0312-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EURO3 SPECIFICATION<NT3> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
80 03.306 BRACKET; PUMP
(B) 		8-97942-899-0 01 1 0306-0406 ●
80 03.306 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 0407- ●
80 03.306 BRACKET; PUMP
(A) 		8-97942-900-0 01 1 0306-0410 ●
80 03.306 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 0411- ●
80 03.306 BRACKET; PUMP
(C) 		8-97328-484-0 01 1 0306-0609 ●
80 03.306 BRACKET; PUMP
(D) 		8-97287-698-3 01 1 0306- ●
81 03.330 WASHER; PL,BRKT TO PUMP
07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 0306-0605 ●
81 03.330 WASHER; PL,BRKT TO PUMP
02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 0606- ●
93 03.162 GASKET; LEAK OFF PIPE
. 		8-97375-236-0 04 1 0403-0609 ● ●
93 03.162 GASKET; LEAK OFF PIPE
EXC. TURKEY EQUIPMENT(B11) (A) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97375-236-0 04 1 0403-0609 ●
93 03.162 GASKET; LEAK OFF PIPE
(A) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97375-236-0 04 1 0610- ● ●
93 03.162 GASKET; LEAK OFF PIPE
TURKEY EQUIPMENT(B11) 03.332 (B) 		8-97084-347-0 08 1 0503-0609 ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0306-0402 ● ● ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0403-0602 ● ●
110 03.330 NUT; CLIP
EXC. TURKEY EQUIPMENT(B11) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0403-0602 ●
110 03.330 NUT; CLIP
TURKEY EQUIPMENT(B11) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0403-0602 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1007 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ● ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EGYPT EQUIPMENT(B09) (B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
EGYPT EQUIPMENT(B09) (E) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
EGYPT EQUIPMENT(B09) (D) 		8-98036-510-0 01 1 1008- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-94467-727-3 01 1 0306-0402 ●
137 03.163 PIPE ASM; LEAK OFF
EGYPT EQUIPMENT(B09) (D) 		8-98036-510-0 01 1 0612-1003 ●
137 03.163 PIPE ASM; LEAK OFF
(E) 		8-97315-230-2 01 1 0610-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
(E) 		8-97315-230-2 01 1 1008-1101 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. EGYPT EQUIPMENT(B09) (E) 		8-97315-230-2 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(E) 		8-97315-230-2 01 1 1102- ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0610-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1008-1101 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. EGYPT EQUIPMENT(B09) (B) 		8-97315-231-2 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1102- ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0610-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 1008- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-2 01 1 0610-0611 ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. EGYPT EQUIPMENT(B09) (D) 		8-97372-938-3 01 1 0612-1003 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0612-1003 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 1004-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. EGYPT EQUIPMENT(B09) (D) 		8-97372-938-3 01 1 1008- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 1008- ● ●
138 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER 8-94174-141-0 04 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=1.20 		1-15349-004-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.52 		1-15349-044-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.54 		1-15349-045-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.56 		1-15349-046-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.58 		1-15349-047-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.60 		1-15349-048-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(A) T=0.70 		1-15349-049-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.10 		8-97116-029-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.20 		8-97116-032-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.30 		8-97116-033-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.40 		8-97116-034-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.50 		8-97116-035-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.51 		8-97116-036-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.52 		8-97116-037-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.53 		8-97116-038-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.54 		8-97116-039-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.55 		8-97116-040-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.56 		8-97116-041-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.57 		8-97116-042-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.58 		8-97116-043-0 AR 1 0306- ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
(B) T=0.59 		8-97116-044-0 AR 1 0306- ●
272 03.332 NOZZLE KIT; INJ 8-97362-572-0 04 1 0306- ●
341 03.330 BRACKET; CLIP,INJ PIPE
(A) 		8-97287-511-2 01 1 0306-0306 ●
341 03.330 BRACKET; CLIP,INJ PIPE
(A) 		8-97365-211-1 01 1 0307- ●
341 03.330 BRACKET; CLIP,INJ PIPE
(B) 		8-97333-806-1 01 1 0306- ●
çizim 185239
110 120 68 68 68 68 110 71 68 120 93 19 18 34 36 17 31 16 63 36 29 30 29 1 50 66 80 78 362 275 78 236 236 362 236 236 275 61 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EXC. SAUDI ARABIA EQUIPMENT(GH3), TACHOMETER<U16> 		8-98180-718-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3), TACHOMETER<U16> 		8-98180-717-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) SAUDI ARABIA EQUIPMENT(GH3) EXC. TACHOMETER<U16> 		8-98180-720-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SAUDI ARABIA EQUIPMENT(GH3) EXC. TACHOMETER<U16> 		8-98180-719-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98002-138-0 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) 		8-98002-137-1 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) SAUDI ARABIA EQUIPMENT(GH3) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98110-564-0 01 1 0804-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) SAUDI ARABIA EQUIPMENT(GH3) TACHOMETER<U16> 		8-98110-564-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SAUDI ARABIA EQUIPMENT(GH3) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98110-563-1 01 1 0804-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SAUDI ARABIA EQUIPMENT(GH3) TACHOMETER<U16> 		8-98110-563-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 		8-97350-393-3 01 1 0306-0803 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> EXC. SAUDI ARABIA EQUIPMENT(GH3), IMMOBILIZER SYSTEM<7KC> 		8-97350-393-4 01 1 0804-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97350-393-4 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> IMMOBILIZER SYSTEM<7KC> 		8-97350-395-3 01 1 0306-0503 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> IMMOBILIZER SYSTEM<7KC> EXC. ECUADOR EQUIPMENT(E46) 		8-97350-395-3 01 1 0610-0703 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-396-3 01 1 0306-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ECUADOR EQUIPMENT(E46) 		8-97350-396-3 01 1 0502-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ECUADOR EQUIPMENT(E46), IMMOBILIZER SYSTEM<7KC> 		8-97350-396-3 01 1 0610-0709 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ECUADOR EQUIPMENT(E46) 		8-97350-396-4 01 1 0710-0905 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. VENEZUELA EQUIPMENT(E14), ECUADOR EQUIPMENT(E46) 		8-97350-396-4 01 1 0906-1003 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-396-4 01 1 1004-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. VENEZUELA EQUIPMENT(E14), ECUADOR EQUIPMENT(E46) 		8-97350-396-4 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) ECUADOR EQUIPMENT(E46) 		8-98002-137-1 01 1 0502-0905 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) 		8-98002-137-1 01 1 0906-1003 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. ECUADOR EQUIPMENT(E46) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98002-138-0 01 1 0502-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98002-138-0 01 1 0610-0905 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98002-138-0 01 1 0906-1003 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EMISSION SYSTEM R15-04<K75> FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 		8-97350-394-3 01 1 0306-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-394-3 01 1 0610-0803 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75> EXC. SAUDI ARABIA EQUIPMENT(GH3), IMMOBILIZER SYSTEM<7KC> 		8-97350-394-3 01 1 0804- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0306-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),ECUADOR EQUIPMENT(E46) 		8-97350-398-3 01 1 0502-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ECUADOR EQUIPMENT(E46), IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0610-0709 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),ECUADOR EQ UIPMENT(E46) 		8-97350-398-3 01 1 0710-0905 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0906-1003 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),IMMOBILIZE R SYSTEM<7KC> 		8-97350-398-3 01 1 1004-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 1008-1109 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EXC. VENEZUELA EQUIPMENT(E14), ECUADOR EQUIPMENT(E46) 		8-97350-398-3 01 1 1110- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EURO1 SPECIFICATION<NT1> IMMOBILIZER SYSTEM<7KC> 		8-97350-399-3 01 1 0306-0503 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. 		8-97249-238-4 01 1 0306-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EURO1 SPECIFICATION<NT1> IMMOBILIZER SYSTEM<7KC> EXC. ECUADOR EQUIPMENT(E46) 		8-97350-399-3 01 1 0610-0703 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. 		8-97326-739-3 01 1 0306- ●
16 03.330 PIPE; INJ NO.1
EGYPT EQUIPMENT(B09) 		8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-97287-521-0 01 1 0306-0311 ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 0312- ●
16 03.330 PIPE; INJ NO.1 8-97300-013-4 01 1 0306-0609 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0610-1007 ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1008-1201 ● ● ●
16 03.330 PIPE; INJ NO.1
EXC. EGYPT EQUIPMENT(B09) 		8-98011-606-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1202- ● ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0306- ●
17 03.330 PIPE; INJ NO.2
EGYPT EQUIPMENT(B09) 		8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97287-522-0 01 1 0306-0306 ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 0307- ●
17 03.330 PIPE; INJ NO.2 8-97300-014-4 01 1 0306-0609 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0610-1007 ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1008-1201 ● ● ●
17 03.330 PIPE; INJ NO.2
EXC. EGYPT EQUIPMENT(B09) 		8-98043-684-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1202- ● ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0306- ●
18 03.330 PIPE; INJ NO.3
EGYPT EQUIPMENT(B09) 		8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97287-523-0 01 1 0306-0311 ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 0312- ●
18 03.330 PIPE; INJ NO.3 8-97300-015-4 01 1 0306-0609 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0610-1007 ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1008-1201 ● ● ●
18 03.330 PIPE; INJ NO.3
EXC. EGYPT EQUIPMENT(B09) 		8-98011-608-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1202- ● ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0306- ●
19 03.330 PIPE; INJ NO.4
EGYPT EQUIPMENT(B09) 		8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97287-524-0 01 1 0306-0311 ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 0312- ●
19 03.330 PIPE; INJ NO.4 8-97300-016-4 01 1 0306-0609 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0610-1007 ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1008-1201 ● ● ●
19 03.330 PIPE; INJ NO.4
EXC. EGYPT EQUIPMENT(B09) 		8-98011-609-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1202- ● ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0306- ●
29 03.162 CLIP; HOSE
EGYPT EQUIPMENT(B09) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 1008- ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0306-0703 ●
29 03.162 CLIP; HOSE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0306-0703 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0704- ●
29 03.162 CLIP; HOSE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0704- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0306- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0306-0609 ● ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0610-0703 ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0704-0709 ●
29 03.162 CLIP; HOSE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.163 (B) ID=11 		8-97173-219-0 02 1 0704-0709 ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0710- ● ●
29 03.162 CLIP; HOSE
EXC. EGYPT EQUIPMENT(B09) (D) ID=10.5 		8-97944-126-0 10 1 0610-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0610-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1004-1007 ● ●
29 03.162 CLIP; HOSE
EXC. EGYPT EQUIPMENT(B09) (D) ID=10.5 		8-97944-126-0 10 1 1008- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1008- ● ●
29 03.162 CLIP; HOSE
EGYPT EQUIPMENT(B09) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0610-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-98135-263-1 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (E) L=130 		0-01804-130-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (F) L=98 		8-97354-652-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (G) L=150 		8-97362-306-2 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (G) 		8-98112-034-0 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (G) 		8-98112-034-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0306- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0306- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0306-0609 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0610-1211 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0306-0609 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0610- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (E) L=130 		8-98053-692-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (E) L=130 		8-98053-692-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (F) L=96 		8-98053-693-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (F) L=96 		8-98053-693-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		0-01804-130-0 01 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (E) L=130 		0-01804-130-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=98 		8-97354-652-0 03 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (F) L=98 		8-97354-652-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0610-0810 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (G) L=150 		8-97362-306-2 01 1 0811-1003 ●
31 03.332 NOZZLE ASM; INJ 8-97217-642-0 04 1 0306-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ 8-97300-942-1 04 1 0306-0501 ●
31 03.332 NOZZLE ASM; INJ
TURKEY EQUIPMENT(B11) 		8-97300-942-1 04 1 0502-0502 ●
31 03.332 NOZZLE ASM; INJ
EXC. TURKEY EQUIPMENT(B11) 		8-97382-947-0 04 1 0502-0502 ●
31 03.332 NOZZLE ASM; INJ 8-97382-947-0 04 1 0503-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-0 04 1 0610-0704 ● ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-1 04 1 0705-0910 ● ●
31 03.332 NOZZLE ASM; INJ
EGYPT EQUIPMENT(B09) 		8-98011-604-2 04 1 0911-1003 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-5 04 1 0911-1306 ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 1307- ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-5 04 1 1008- ●
31 03.332 NOZZLE ASM; INJ 8-97306-020-1 04 1 0306-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-948-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) 		8-98055-862-3 04 1 0705-1306 ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0306-0609 ● ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0610- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97357-685-0 08 1 0306-0402 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0306-0402 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0403-0501 ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
TURKEY EQUIPMENT(B11) 		8-97084-347-0 08 1 0502-0502 ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-1 04 1 0306-0402 ● ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0403-0609 ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97287-402-2 04 1 0403-0609 ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0610- ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-615-0 04 1 0403-0609 ●
59 03.332 CLAMP; NOZZLE HOLDER
EGYPT EQUIPMENT(B09) 		8-98113-691-0 04 1 1008- ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. EGYPT EQUIPMENT(B09) 		8-98092-539-0 04 1 0711-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0802-1007 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. EGYPT EQUIPMENT(B09) 		8-98092-539-0 04 1 1008- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1008- ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0306-0402 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0403-0609 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. TURKEY EQUIPMENT(B11) 		8-97259-884-0 04 1 0403-0609 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0610- ● ●
59 03.332 CLAMP; NOZZLE HOLDER
TURKEY EQUIPMENT(B11) 		8-97920-006-0 04 1 0403-0609 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0610-0710 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EGYPT EQUIPMENT(B09) 		8-98011-528-2 04 1 0711-0801 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0306-0402 ● ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0403-0609 ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
EXC. TURKEY EQUIPMENT(B11) 		8-94468-020-2 04 1 0403-0609 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0610- ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
TURKEY EQUIPMENT(B11) 		8-97920-028-0 04 1 0403-0609 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
TURKEY EQUIPMENT(B11) 		8-97920-247-0 01 1 0403-0609 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0306-0402 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0403-0609 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. TURKEY EQUIPMENT(B11) 		8-94467-727-3 01 1 0403-0609 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0610- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1101-1103 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1104- ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0306-0609 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0610- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0702-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0702-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0703-1007 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 1008-1012 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EGYPT EQUIPMENT(B09) 		8-98077-165-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98057-731-0 04 1 0610-0701 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EGYPT EQUIPMENT(B09) 		8-98057-731-0 04 1 0702-0702 ●
68 03.162 CLIP; INJ PIPE
EGYPT EQUIPMENT(B09) (C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
EGYPT EQUIPMENT(B09) (C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0306-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0610-1210 ● ●
68 03.162 CLIP; INJ PIPE
03.634 (A) 		1-09701-240-0 04 1 1211- ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0306-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0610-1212 ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-98227-926-0 01 1 1301- ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0610-1007 ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1008-1201 ● ● ●
68 03.162 CLIP; INJ PIPE
EXC. EGYPT EQUIPMENT(B09) (C) 		8-97213-481-0 04 1 1202- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1202- ● ●
71 03.162 BOLT; BRKT
TURKEY EQUIPMENT(B11) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0403-0512 ●
71 03.162 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ● ●
71 03.162 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610- ●
71 03.162 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0306-0402 ● ●
71 03.162 BOLT; BRKT
EXC. TURKEY EQUIPMENT(B11) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0403-0512 ●
71 03.162 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0403-0512 ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0306-0402 ● ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0403-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EXC. TURKEY EQUIPMENT(B11) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0403-0512 ●
78 03.330 BOLT; BRKT TO C/BL
TURKEY EQUIPMENT(B11) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0403-0512 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0609 ● ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0610- ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 03 1 0306-0512 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
78 03.330 BOLT; BRKT TO C/BL
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0306-0311 ●
78 03.330 BOLT; BRKT TO C/BL
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0312-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ●
78 03.330 BOLT; BRKT TO C/BL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610- ●
78 03.330 BOLT; BRKT TO C/BL
EURO3 SPECIFICATION<NT3> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0312-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EURO3 SPECIFICATION<NT3> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
80 03.306 BRACKET; PUMP
(B) 		8-97942-899-0 01 1 0306-0406 ●
80 03.306 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 0407- ●
80 03.306 BRACKET; PUMP
(A) 		8-97942-900-0 01 1 0306-0410 ●
80 03.306 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 0411- ●
80 03.306 BRACKET; PUMP
(C) 		8-97328-484-0 01 1 0306-0609 ●
80 03.306 BRACKET; PUMP
(D) 		8-97287-698-3 01 1 0306- ●
93 03.162 GASKET; LEAK OFF PIPE
. 		8-97375-236-0 04 1 0403-0609 ● ●
93 03.162 GASKET; LEAK OFF PIPE
EXC. TURKEY EQUIPMENT(B11) (A) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97375-236-0 04 1 0403-0609 ●
93 03.162 GASKET; LEAK OFF PIPE
(A) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97375-236-0 04 1 0610- ● ●
93 03.162 GASKET; LEAK OFF PIPE
TURKEY EQUIPMENT(B11) 03.332 (B) 		8-97084-347-0 08 1 0503-0609 ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0306-0402 ● ● ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0403-0602 ● ●
110 03.330 NUT; CLIP
EXC. TURKEY EQUIPMENT(B11) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0403-0602 ●
110 03.330 NUT; CLIP
TURKEY EQUIPMENT(B11) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0403-0602 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1007 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ● ● ● ●
120 03.330 BRACKET; INJ PIPE
(C) 		8-97255-534-0 01 1 0306-0609 ●
120 03.330 BRACKET; INJ PIPE
(D) 		8-97310-508-0 01 1 0306-0609 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-97313-942-1 01 1 0306- ●
120 03.330 BRACKET; INJ PIPE
(B) 		8-97313-943-1 01 1 0306- ●
236 03.335 BOLT; COVER
01.540 (E) M10X20 FLANGE 		0-28181-020-0 01 1 0306-0512 ●
236 03.335 BOLT; COVER
TURKEY EQUIPMENT(B11) 01.540 (E) M10X20 FLANGE 		0-28181-020-0 01 1 0601-0601 ●
236 03.335 BOLT; COVER
16.716 (F) M8X25 		8-94493-360-1 01 1 0306-0609 ●
236 03.335 BOLT; COVER
EXC. TURKEY EQUIPMENT(B11) 03.417 (E) M10X20 FLANGE 		0-28151-020-0 01 1 0601-0601 ●
236 03.335 BOLT; COVER
03.417 (E) M10X20 FLANGE 		0-28151-020-0 01 1 0602-0609 ●
236 03.335 BOLT; COVER
00.206 (C) M8X10 FLANGE 		0-28080-810-0 02 1 0306-0512 ●
236 03.335 BOLT; COVER
09.181 (C) M10X45 FLANGE 		0-28151-045-0 01 1 0601- ●
236 03.335 BOLT; COVER
09.171 (A) M10X45 FLANGE 		0-28181-045-0 01 1 0306-0512 ●
236 03.335 BOLT; COVER
03.407 (A) M8X10 FLANGE 		0-28050-810-0 02 1 0601- ●
236 03.335 BOLT; COVER
08.900 (B) M10X50 FLANGE 		0-28181-050-0 02 1 0306-0512 ●
236 03.335 BOLT; COVER
01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
236 03.335 BOLT; COVER
02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 0306-0512 ●
236 03.335 BOLT; COVER
02.042 (B) M10X50 FLANGE 		0-28151-050-0 02 1 0601- ●
275 03.335 COVER; INJ PUMP
(C) 		8-97329-015-1 01 1 0306-0609 ●
275 03.335 COVER; INJ PUMP
(A) 		8-97329-014-2 01 1 0306- ●
275 03.335 COVER; INJ PUMP
(B) 		8-97329-016-3 01 1 0306- ●
362 03.330 PIPE; GUIDE
(A) 		8-97287-007-0 01 1 0306- ●
362 03.330 PIPE; GUIDE
(B) 		8-97287-008-0 02 1 0306- ●
çizim 185240
120 120 68 68 110 68 110 68 68 71 19 93 18 34 36 93 17 31 36 16 63 93 29 30 50 66 78 29 2 80 1 236 275 236 61 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EXC. SAUDI ARABIA EQUIPMENT(GH3), TACHOMETER<U16> 		8-98180-718-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. SAUDI ARABIA EQUIPMENT(GH3), TACHOMETER<U16> 		8-98180-717-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) SAUDI ARABIA EQUIPMENT(GH3) EXC. TACHOMETER<U16> 		8-98180-720-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SAUDI ARABIA EQUIPMENT(GH3) EXC. TACHOMETER<U16> 		8-98180-719-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98002-138-0 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) 		8-98002-137-1 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) SAUDI ARABIA EQUIPMENT(GH3) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98110-564-0 01 1 0804-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) SAUDI ARABIA EQUIPMENT(GH3) TACHOMETER<U16> 		8-98110-564-0 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SAUDI ARABIA EQUIPMENT(GH3) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98110-563-1 01 1 0804-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) SAUDI ARABIA EQUIPMENT(GH3) TACHOMETER<U16> 		8-98110-563-1 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 		8-97350-393-3 01 1 0306-0803 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EMISSION SYSTEM R15-04<K75> EXC. SAUDI ARABIA EQUIPMENT(GH3), IMMOBILIZER SYSTEM<7KC> 		8-97350-393-4 01 1 0804-1103 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97350-393-4 01 1 1104- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> IMMOBILIZER SYSTEM<7KC> 		8-97350-395-3 01 1 0306-0503 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> IMMOBILIZER SYSTEM<7KC> EXC. ECUADOR EQUIPMENT(E46) 		8-97350-395-3 01 1 0610-0703 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-396-3 01 1 0306-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ECUADOR EQUIPMENT(E46) 		8-97350-396-3 01 1 0502-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ECUADOR EQUIPMENT(E46), IMMOBILIZER SYSTEM<7KC> 		8-97350-396-3 01 1 0610-0709 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ECUADOR EQUIPMENT(E46) 		8-97350-396-4 01 1 0710-0905 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. VENEZUELA EQUIPMENT(E14), ECUADOR EQUIPMENT(E46) 		8-97350-396-4 01 1 0906-1003 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-396-4 01 1 1004-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. VENEZUELA EQUIPMENT(E14), ECUADOR EQUIPMENT(E46) 		8-97350-396-4 01 1 1008- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) ECUADOR EQUIPMENT(E46) 		8-98002-137-1 01 1 0502-0905 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) 		8-98002-137-1 01 1 0906-1003 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. ECUADOR EQUIPMENT(E46) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98002-138-0 01 1 0502-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98002-138-0 01 1 0610-0905 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46) EURO1 SPECIFICATION<NT1> EXC. IMMOBILIZER SYSTEM<7KC> 		8-98002-138-0 01 1 0906-1003 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EMISSION SYSTEM R15-04<K75> FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) 		8-97350-394-3 01 1 0306-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-394-3 01 1 0610-0803 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75> EXC. SAUDI ARABIA EQUIPMENT(GH3), IMMOBILIZER SYSTEM<7KC> 		8-97350-394-3 01 1 0804- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0306-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),ECUADOR EQUIPMENT(E46) 		8-97350-398-3 01 1 0502-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. ECUADOR EQUIPMENT(E46), IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0610-0709 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),ECUADOR EQ UIPMENT(E46) 		8-97350-398-3 01 1 0710-0905 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 0906-1003 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),IMMOBILIZE R SYSTEM<7KC> 		8-97350-398-3 01 1 1004-1007 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VENEZUELA EQUIPMENT(E14),ECUADOR EQUIPMENT(E46),IMMOBILIZER SYSTEM<7KC> 		8-97350-398-3 01 1 1008-1109 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EXC. VENEZUELA EQUIPMENT(E14), ECUADOR EQUIPMENT(E46) 		8-97350-398-3 01 1 1110- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EURO1 SPECIFICATION<NT1> IMMOBILIZER SYSTEM<7KC> 		8-97350-399-3 01 1 0306-0503 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. 		8-97249-238-4 01 1 0306-0609 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. HEATER & DEFROSTER(C42),AIR CON PREPARATORY PACK(C66) EURO1 SPECIFICATION<NT1> IMMOBILIZER SYSTEM<7KC> EXC. ECUADOR EQUIPMENT(E46) 		8-97350-399-3 01 1 0610-0703 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONEN T. 		8-97326-739-3 01 1 0306- ●
2 03.330 BOLT; INJ PUMP
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 0306-0402 ●
2 03.330 BOLT; INJ PUMP
EXC. TURKEY EQUIPMENT(B11) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 0403-0512 ●
2 03.330 BOLT; INJ PUMP
TURKEY EQUIPMENT(B11) 09.173 M8X45 FLANGE 		0-28050-845-0 02 1 0403-0512 ●
2 03.330 BOLT; INJ PUMP
09.173 M8X45 FLANGE 		0-28050-845-0 02 1 0601-0609 ●
16 03.330 PIPE; INJ NO.1
EGYPT EQUIPMENT(B09) 		8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-97287-521-0 01 1 0306-0311 ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 0312- ●
16 03.330 PIPE; INJ NO.1 8-97300-013-4 01 1 0306-0609 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0610-1007 ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1008-1201 ● ● ●
16 03.330 PIPE; INJ NO.1
EXC. EGYPT EQUIPMENT(B09) 		8-98011-606-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1202- ● ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0306- ●
17 03.330 PIPE; INJ NO.2
EGYPT EQUIPMENT(B09) 		8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97287-522-0 01 1 0306-0306 ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 0307- ●
17 03.330 PIPE; INJ NO.2 8-97300-014-4 01 1 0306-0609 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0610-1007 ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1008-1201 ● ● ●
17 03.330 PIPE; INJ NO.2
EXC. EGYPT EQUIPMENT(B09) 		8-98043-684-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1202- ● ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0306- ●
18 03.330 PIPE; INJ NO.3
EGYPT EQUIPMENT(B09) 		8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97287-523-0 01 1 0306-0311 ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 0312- ●
18 03.330 PIPE; INJ NO.3 8-97300-015-4 01 1 0306-0609 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0610-1007 ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1008-1201 ● ● ●
18 03.330 PIPE; INJ NO.3
EXC. EGYPT EQUIPMENT(B09) 		8-98011-608-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1202- ● ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0306- ●
19 03.330 PIPE; INJ NO.4
EGYPT EQUIPMENT(B09) 		8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97287-524-0 01 1 0306-0311 ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 0312- ●
19 03.330 PIPE; INJ NO.4 8-97300-016-4 01 1 0306-0609 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0610-1007 ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1008-1201 ● ● ●
19 03.330 PIPE; INJ NO.4
EXC. EGYPT EQUIPMENT(B09) 		8-98011-609-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1202- ● ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0306- ●
29 03.162 CLIP; HOSE
EGYPT EQUIPMENT(B09) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 1008- ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0306-0703 ●
29 03.162 CLIP; HOSE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0306-0703 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0704- ●
29 03.162 CLIP; HOSE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0704- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0306- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0306-0609 ● ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0610-0703 ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0704-0709 ●
29 03.162 CLIP; HOSE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.163 (B) ID=11 		8-97173-219-0 02 1 0704-0709 ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0710- ● ●
29 03.162 CLIP; HOSE
EXC. EGYPT EQUIPMENT(B09) (D) ID=10.5 		8-97944-126-0 10 1 0610-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0610-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1004-1007 ● ●
29 03.162 CLIP; HOSE
EXC. EGYPT EQUIPMENT(B09) (D) ID=10.5 		8-97944-126-0 10 1 1008- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1008- ● ●
29 03.162 CLIP; HOSE
EGYPT EQUIPMENT(B09) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0610-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-98135-263-1 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (E) L=130 		0-01804-130-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (F) L=98 		8-97354-652-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (G) L=150 		8-97362-306-2 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (G) 		8-98112-034-0 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (G) 		8-98112-034-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0306- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0306- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0306-0609 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0610-1211 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0306-0609 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0610- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (E) L=130 		8-98053-692-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (E) L=130 		8-98053-692-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (F) L=96 		8-98053-693-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (F) L=96 		8-98053-693-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		0-01804-130-0 01 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (E) L=130 		0-01804-130-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=98 		8-97354-652-0 03 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (F) L=98 		8-97354-652-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0610-0810 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (G) L=150 		8-97362-306-2 01 1 0811-1003 ●
31 03.332 NOZZLE ASM; INJ 8-97217-642-0 04 1 0306-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ 8-97300-942-1 04 1 0306-0501 ●
31 03.332 NOZZLE ASM; INJ
TURKEY EQUIPMENT(B11) 		8-97300-942-1 04 1 0502-0502 ●
31 03.332 NOZZLE ASM; INJ
EXC. TURKEY EQUIPMENT(B11) 		8-97382-947-0 04 1 0502-0502 ●
31 03.332 NOZZLE ASM; INJ 8-97382-947-0 04 1 0503-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-0 04 1 0610-0704 ● ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-1 04 1 0705-0910 ● ●
31 03.332 NOZZLE ASM; INJ
EGYPT EQUIPMENT(B09) 		8-98011-604-2 04 1 0911-1003 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-5 04 1 0911-1306 ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 1307- ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-5 04 1 1008- ●
31 03.332 NOZZLE ASM; INJ 8-97306-020-1 04 1 0306-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-948-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) 		8-98055-862-3 04 1 0705-1306 ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0306-0609 ● ● ●
34 03.330 BOLT; EYE,NOZZLE HOLDER
03.306 		8-94320-307-0 04 1 0610- ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97357-685-0 08 1 0306-0402 ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0306-0402 ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE 8-97084-347-0 08 1 0403-0501 ● ● ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
TURKEY EQUIPMENT(B11) 		8-97084-347-0 08 1 0502-0502 ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-1 04 1 0306-0402 ● ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0403-0609 ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97287-402-2 04 1 0403-0609 ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0610- ● ●
50 03.332 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-615-0 04 1 0403-0609 ●
59 03.332 CLAMP; NOZZLE HOLDER
EGYPT EQUIPMENT(B09) 		8-98113-691-0 04 1 1008- ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. EGYPT EQUIPMENT(B09) 		8-98092-539-0 04 1 0711-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0802-1007 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. EGYPT EQUIPMENT(B09) 		8-98092-539-0 04 1 1008- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1008- ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0306-0402 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0403-0609 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. TURKEY EQUIPMENT(B11) 		8-97259-884-0 04 1 0403-0609 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0610- ● ●
59 03.332 CLAMP; NOZZLE HOLDER
TURKEY EQUIPMENT(B11) 		8-97920-006-0 04 1 0403-0609 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0610-0710 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EGYPT EQUIPMENT(B09) 		8-98011-528-2 04 1 0711-0801 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0306-0402 ● ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0403-0609 ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
EXC. TURKEY EQUIPMENT(B11) 		8-94468-020-2 04 1 0403-0609 ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER 8-94468-020-2 04 1 0610- ● ●
61 03.332 BOLT; CLAMP NOZZLE HOLDER
TURKEY EQUIPMENT(B11) 		8-97920-028-0 04 1 0403-0609 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
TURKEY EQUIPMENT(B11) 		8-97920-247-0 01 1 0403-0609 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0306-0402 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0403-0609 ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
EXC. TURKEY EQUIPMENT(B11) 		8-94467-727-3 01 1 0403-0609 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-94467-727-3 01 1 0610- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1101-1103 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1104- ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0306-0609 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0610- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0702-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0702-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0703-1007 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 1008-1012 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EGYPT EQUIPMENT(B09) 		8-98077-165-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98057-731-0 04 1 0610-0701 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EGYPT EQUIPMENT(B09) 		8-98057-731-0 04 1 0702-0702 ●
68 03.162 CLIP; INJ PIPE
EGYPT EQUIPMENT(B09) (C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
EGYPT EQUIPMENT(B09) (C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0306-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0610-1210 ● ●
68 03.162 CLIP; INJ PIPE
03.634 (A) 		1-09701-240-0 04 1 1211- ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0306-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0610-1212 ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-98227-926-0 01 1 1301- ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0610-1007 ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1008-1201 ● ● ●
68 03.162 CLIP; INJ PIPE
EXC. EGYPT EQUIPMENT(B09) (C) 		8-97213-481-0 04 1 1202- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1202- ● ●
71 03.162 BOLT; BRKT
TURKEY EQUIPMENT(B11) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0403-0512 ●
71 03.162 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ● ●
71 03.162 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610- ●
71 03.162 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0306-0402 ● ●
71 03.162 BOLT; BRKT
EXC. TURKEY EQUIPMENT(B11) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0403-0512 ●
71 03.162 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0403-0512 ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0306-0402 ● ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0403-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EXC. TURKEY EQUIPMENT(B11) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0403-0512 ●
78 03.330 BOLT; BRKT TO C/BL
TURKEY EQUIPMENT(B11) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0403-0512 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0609 ● ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0610- ●
78 03.330 BOLT; BRKT TO C/BL
02.664 M8X20 FLANGE 		0-28680-820-0 03 1 0306-0512 ●
78 03.330 BOLT; BRKT TO C/BL
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
78 03.330 BOLT; BRKT TO C/BL
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0306-0311 ●
78 03.330 BOLT; BRKT TO C/BL
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0312-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609 ●
78 03.330 BOLT; BRKT TO C/BL
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0610- ●
78 03.330 BOLT; BRKT TO C/BL
EURO3 SPECIFICATION<NT3> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0312-0512 ●
78 03.330 BOLT; BRKT TO C/BL
EURO3 SPECIFICATION<NT3> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
80 03.306 BRACKET; PUMP
(B) 		8-97942-899-0 01 1 0306-0406 ●
80 03.306 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 0407- ●
80 03.306 BRACKET; PUMP
(A) 		8-97942-900-0 01 1 0306-0410 ●
80 03.306 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 0411- ●
80 03.306 BRACKET; PUMP
(C) 		8-97328-484-0 01 1 0306-0609 ●
80 03.306 BRACKET; PUMP
(D) 		8-97287-698-3 01 1 0306- ●
93 03.162 GASKET; LEAK OFF PIPE
. 		8-97375-236-0 04 1 0403-0609 ● ●
93 03.162 GASKET; LEAK OFF PIPE
EXC. TURKEY EQUIPMENT(B11) (A) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97375-236-0 04 1 0403-0609 ●
93 03.162 GASKET; LEAK OFF PIPE
(A) ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-97375-236-0 04 1 0610- ● ●
93 03.162 GASKET; LEAK OFF PIPE
TURKEY EQUIPMENT(B11) 03.332 (B) 		8-97084-347-0 08 1 0503-0609 ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0306-0402 ● ● ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0403-0602 ● ●
110 03.330 NUT; CLIP
EXC. TURKEY EQUIPMENT(B11) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0403-0602 ●
110 03.330 NUT; CLIP
TURKEY EQUIPMENT(B11) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0403-0602 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1007 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ● ● ● ●
120 03.330 BRACKET; INJ PIPE
(C) 		8-97255-534-0 01 1 0306-0609 ●
120 03.330 BRACKET; INJ PIPE
(D) 		8-97310-508-0 01 1 0306-0609 ●
120 03.330 BRACKET; INJ PIPE
(A) 		8-97313-942-1 01 1 0306- ●
120 03.330 BRACKET; INJ PIPE
(B) 		8-97313-943-1 01 1 0306- ●
236 03.335 BOLT; COVER
01.540 (E) M10X20 FLANGE 		0-28181-020-0 01 1 0306-0512 ●
236 03.335 BOLT; COVER
TURKEY EQUIPMENT(B11) 01.540 (E) M10X20 FLANGE 		0-28181-020-0 01 1 0601-0601 ●
236 03.335 BOLT; COVER
16.716 (F) M8X25 		8-94493-360-1 01 1 0306-0609 ●
236 03.335 BOLT; COVER
EXC. TURKEY EQUIPMENT(B11) 03.417 (E) M10X20 FLANGE 		0-28151-020-0 01 1 0601-0601 ●
236 03.335 BOLT; COVER
03.417 (E) M10X20 FLANGE 		0-28151-020-0 01 1 0602-0609 ●
236 03.335 BOLT; COVER
00.206 (C) M8X10 FLANGE 		0-28080-810-0 02 1 0306-0512 ●
236 03.335 BOLT; COVER
09.181 (C) M10X45 FLANGE 		0-28151-045-0 01 1 0601- ●
236 03.335 BOLT; COVER
09.171 (A) M10X45 FLANGE 		0-28181-045-0 01 1 0306-0512 ●
236 03.335 BOLT; COVER
03.407 (A) M8X10 FLANGE 		0-28050-810-0 02 1 0601- ●
236 03.335 BOLT; COVER
08.900 (B) M10X50 FLANGE 		0-28181-050-0 02 1 0306-0512 ●
236 03.335 BOLT; COVER
01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
236 03.335 BOLT; COVER
02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 0306-0512 ●
236 03.335 BOLT; COVER
02.042 (B) M10X50 FLANGE 		0-28151-050-0 02 1 0601- ●
275 03.335 COVER; INJ PUMP
(C) 		8-97329-015-1 01 1 0306-0609 ●
275 03.335 COVER; INJ PUMP
(A) 		8-97329-014-2 01 1 0306- ●
275 03.335 COVER; INJ PUMP
(B) 		8-97329-016-3 01 1 0306- ●
çizim 185324
29 30 29 137 29 30 137 29 122 29 29 30 137 122 30 29 313 137 122 29 122 137 30 29 29 347 59 66 127 16 166 31 9 110 68 68 19 18 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 03.340 STUD; CLIP
EGYPT EQUIPMENT(B09) 00.413 M6X30 L=38 		0-41010-630-0 02 1 1202- ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 0610-1007 ● ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 1008-1201 ● ● ●
9 03.340 STUD; CLIP
EXC. EGYPT EQUIPMENT(B09) 03.162 M6X25 L=36 		8-97214-234-1 02 1 1202- ●
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 1202- ● ●
16 03.330 PIPE; INJ NO.1
EGYPT EQUIPMENT(B09) 		8-98203-719-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-97287-521-0 01 1 0306-0311 ●
16 03.330 PIPE; INJ NO.1 8-97373-733-0 01 1 0312- ●
16 03.330 PIPE; INJ NO.1 8-97300-013-4 01 1 0306-0609 ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0610-1007 ● ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1008-1201 ● ● ●
16 03.330 PIPE; INJ NO.1
EXC. EGYPT EQUIPMENT(B09) 		8-98011-606-0 01 1 1202- ●
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 1202- ● ●
16 03.330 PIPE; INJ NO.1 8-97255-017-2 01 1 0306- ●
17 03.330 PIPE; INJ NO.2
EGYPT EQUIPMENT(B09) 		8-98203-720-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-97287-522-0 01 1 0306-0306 ●
17 03.330 PIPE; INJ NO.2 8-97365-210-0 01 1 0307- ●
17 03.330 PIPE; INJ NO.2 8-97300-014-4 01 1 0306-0609 ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0610-1007 ● ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1008-1201 ● ● ●
17 03.330 PIPE; INJ NO.2
EXC. EGYPT EQUIPMENT(B09) 		8-98043-684-0 01 1 1202- ●
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 1202- ● ●
17 03.330 PIPE; INJ NO.2 8-97255-018-2 01 1 0306- ●
18 03.330 PIPE; INJ NO.3
EGYPT EQUIPMENT(B09) 		8-98203-721-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-97287-523-0 01 1 0306-0311 ●
18 03.330 PIPE; INJ NO.3 8-97373-734-0 01 1 0312- ●
18 03.330 PIPE; INJ NO.3 8-97300-015-4 01 1 0306-0609 ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0610-1007 ● ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1008-1201 ● ● ●
18 03.330 PIPE; INJ NO.3
EXC. EGYPT EQUIPMENT(B09) 		8-98011-608-0 01 1 1202- ●
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 1202- ● ●
18 03.330 PIPE; INJ NO.3 8-97255-019-2 01 1 0306- ●
19 03.330 PIPE; INJ NO.4
EGYPT EQUIPMENT(B09) 		8-98203-722-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-97287-524-0 01 1 0306-0311 ●
19 03.330 PIPE; INJ NO.4 8-97373-735-0 01 1 0312- ●
19 03.330 PIPE; INJ NO.4 8-97300-016-4 01 1 0306-0609 ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0610-1007 ● ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1008-1201 ● ● ●
19 03.330 PIPE; INJ NO.4
EXC. EGYPT EQUIPMENT(B09) 		8-98011-609-0 01 1 1202- ●
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 1202- ● ●
19 03.330 PIPE; INJ NO.4 8-97255-020-2 01 1 0306- ●
29 03.162 CLIP; HOSE
EGYPT EQUIPMENT(B09) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 1008- ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0306-0703 ●
29 03.162 CLIP; HOSE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0306-0703 ●
29 03.162 CLIP; HOSE
03.280 (C) ID=17.1 		8-94122-679-0 02 1 0704- ●
29 03.162 CLIP; HOSE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.280 (C) ID=17.1 		8-94122-679-0 02 1 0704- ●
29 03.162 CLIP; HOSE
01.219 (A) ID=12 		8-94238-610-0 02 1 0306- ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0306-0609 ● ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0610-0703 ● ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0704-0709 ●
29 03.162 CLIP; HOSE
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.163 (B) ID=11 		8-97173-219-0 02 1 0704-0709 ●
29 03.162 CLIP; HOSE
03.163 (B) ID=11 		8-97173-219-0 02 1 0710- ● ●
29 03.162 CLIP; HOSE
EXC. EGYPT EQUIPMENT(B09) (D) ID=10.5 		8-97944-126-0 10 1 0610-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 0610-1003 ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1004-1007 ● ●
29 03.162 CLIP; HOSE
EXC. EGYPT EQUIPMENT(B09) (D) ID=10.5 		8-97944-126-0 10 1 1008- ●
29 03.162 CLIP; HOSE
(D) ID=10.5 		8-97944-126-0 10 1 1008- ● ●
29 03.162 CLIP; HOSE
EGYPT EQUIPMENT(B09) 03.374 (D) ID=10.5 		8-97019-473-0 10 1 0610-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-98135-263-1 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (E) L=130 		0-01804-130-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (F) L=98 		8-97354-652-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (G) L=150 		8-97362-306-2 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (G) 		8-98112-034-0 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 0811-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (G) 		8-98112-034-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) 		8-98112-034-0 01 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=110 SERVICED BY L=3000 		0-01256-300-0 01 1 0306- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) L=210 SERVICED BY L=3000 		0-01262-300-0 01 1 0306- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0306-0609 ● ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 0610-1211 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=320 		8-97364-773-0 01 1 1212- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0306-0609 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (D) 		8-97352-907-0 01 1 0610- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (E) L=130 		8-98053-692-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (E) L=130 		8-98053-692-0 01 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		8-98053-692-0 01 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (F) L=96 		8-98053-693-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1004-1007 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EXC. EGYPT EQUIPMENT(B09) (F) L=96 		8-98053-693-0 03 1 1008- ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=96 		8-98053-693-0 03 1 1008- ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=130 		0-01804-130-0 01 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (E) L=130 		0-01804-130-0 01 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(F) L=98 		8-97354-652-0 03 1 0610-0611 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (F) L=98 		8-97354-652-0 03 1 0612-1003 ●
30 03.163 HOSE; RUBBER,FUEL LEAK
(G) L=150 		8-97362-306-2 01 1 0610-0810 ● ●
30 03.163 HOSE; RUBBER,FUEL LEAK
EGYPT EQUIPMENT(B09) (G) L=150 		8-97362-306-2 01 1 0811-1003 ●
31 03.332 NOZZLE ASM; INJ 8-97217-642-0 04 1 0306-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-946-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ 8-97300-942-1 04 1 0306-0501 ●
31 03.332 NOZZLE ASM; INJ
TURKEY EQUIPMENT(B11) 		8-97300-942-1 04 1 0502-0502 ●
31 03.332 NOZZLE ASM; INJ
EXC. TURKEY EQUIPMENT(B11) 		8-97382-947-0 04 1 0502-0502 ●
31 03.332 NOZZLE ASM; INJ 8-97382-947-0 04 1 0503-0609 ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-0 04 1 0610-0704 ● ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-1 04 1 0705-0910 ● ●
31 03.332 NOZZLE ASM; INJ
EGYPT EQUIPMENT(B09) 		8-98011-604-2 04 1 0911-1003 ●
31 03.332 NOZZLE ASM; INJ
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-604-5 04 1 0911-1306 ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-604-5 04 1 1307- ● ●
31 03.332 NOZZLE ASM; INJ 8-98011-605-5 04 1 1008- ●
31 03.332 NOZZLE ASM; INJ 8-97306-020-1 04 1 0306-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97382-948-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ
COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) 		8-98055-862-3 04 1 0705-1306 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EGYPT EQUIPMENT(B09) 		8-98113-691-0 04 1 1008- ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. EGYPT EQUIPMENT(B09) 		8-98092-539-0 04 1 0711-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711-0801 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0802-1007 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. EGYPT EQUIPMENT(B09) 		8-98092-539-0 04 1 1008- ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1008- ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0306-0402 ● ● ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0403-0609 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EXC. TURKEY EQUIPMENT(B11) 		8-97259-884-0 04 1 0403-0609 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-97259-884-0 04 1 0610- ● ●
59 03.332 CLAMP; NOZZLE HOLDER
TURKEY EQUIPMENT(B11) 		8-97920-006-0 04 1 0403-0609 ●
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0610-0710 ● ●
59 03.332 CLAMP; NOZZLE HOLDER
EGYPT EQUIPMENT(B09) 		8-98011-528-2 04 1 0711-0801 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1101-1103 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1104- ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0306-0609 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0610- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0702-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0702-0702 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0703-1007 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 1008-1012 ● ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EGYPT EQUIPMENT(B09) 		8-98077-165-0 04 1 1101-1103 ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98057-731-0 04 1 0610-0701 ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EGYPT EQUIPMENT(B09) 		8-98057-731-0 04 1 0702-0702 ●
68 03.162 CLIP; INJ PIPE
EGYPT EQUIPMENT(B09) (C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405 ●
68 03.162 CLIP; INJ PIPE
EGYPT EQUIPMENT(B09) (C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0306-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(A) 		1-09701-132-1 04 1 0610-1210 ● ●
68 03.162 CLIP; INJ PIPE
03.634 (A) 		1-09701-240-0 04 1 1211- ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0306-0609 ● ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-97224-041-1 01 1 0610-1212 ● ●
68 03.162 CLIP; INJ PIPE
(B) 		8-98227-926-0 01 1 1301- ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 0610-1007 ● ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1008-1201 ● ● ●
68 03.162 CLIP; INJ PIPE
EXC. EGYPT EQUIPMENT(B09) (C) 		8-97213-481-0 04 1 1202- ●
68 03.162 CLIP; INJ PIPE
(C) 		8-97213-481-0 04 1 1202- ● ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0306-0402 ● ● ●
110 03.330 NUT; CLIP
04.594 M6 FLANGE 		0-91150-106-0 02 1 0403-0602 ● ●
110 03.330 NUT; CLIP
EXC. TURKEY EQUIPMENT(B11) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0403-0602 ●
110 03.330 NUT; CLIP
TURKEY EQUIPMENT(B11) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0403-0602 ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610-1007 ● ● ● ●
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ● ● ● ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0610-1007 ● ●
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1008- ● ● ●
127 03.162 BOLT; CLIP LEAK OFF PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0610-1007 ● ●
127 03.162 BOLT; CLIP LEAK OFF PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1008- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EGYPT EQUIPMENT(B09) (B) 		8-98161-061-0 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
EGYPT EQUIPMENT(B09) (E) 		8-98161-062-0 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
EGYPT EQUIPMENT(B09) (D) 		8-98036-510-0 01 1 1008- ●
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-94467-727-3 01 1 0306-0402 ●
137 03.163 PIPE ASM; LEAK OFF
EGYPT EQUIPMENT(B09) (D) 		8-98036-510-0 01 1 0612-1003 ●
137 03.163 PIPE ASM; LEAK OFF
(E) 		8-97315-230-2 01 1 0610-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
(E) 		8-97315-230-2 01 1 1008-1101 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. EGYPT EQUIPMENT(B09) (E) 		8-97315-230-2 01 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(E) 		8-97315-230-2 01 1 1102- ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0610-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1008-1101 ● ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. EGYPT EQUIPMENT(B09) (B) 		8-97315-231-2 03 1 1102- ●
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1102- ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0610-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 1008- ● ● ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-2 01 1 0610-0611 ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. EGYPT EQUIPMENT(B09) (D) 		8-97372-938-3 01 1 0612-1003 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0612-1003 ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 1004-1007 ● ●
137 03.163 PIPE ASM; LEAK OFF
EXC. EGYPT EQUIPMENT(B09) (D) 		8-97372-938-3 01 1 1008- ●
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 1008- ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 0610-1007 ● ●
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 1008- ● ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
EGYPT EQUIPMENT(B09) M8X50 W/WASHER 		8-97372-144-0 04 1 1008- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
EXC. EGYPT EQUIPMENT(B09) M8X50 W/WASHER 		8-98095-575-0 04 1 0708-1003 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 0708-1003 ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1004-1007 ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
EXC. EGYPT EQUIPMENT(B09) M8X50 W/WASHER 		8-98095-575-0 04 1 1008- ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1008- ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 0610-0707 ● ●
313 03.330 BOLT; BRKT,INJ NOZZLE
EGYPT EQUIPMENT(B09) M8X50 W/WASHER 		8-97372-144-0 04 1 0708-1003 ●
347 03.332 PIN
EGYPT EQUIPMENT(B09) 		8-98165-035-0 04 1 1012-1012 ●
347 03.332 PIN 8-98165-035-0 04 1 1101- ● ● ●
347 03.332 PIN 8-97383-286-0 04 1 0610-1007 ● ●
347 03.332 PIN 8-97383-286-0 04 1 1008-1011 ● ● ●
347 03.332 PIN
EXC. EGYPT EQUIPMENT(B09) 		8-97383-286-0 04 1 1012-1012 ●
347 03.332 PIN 8-97383-286-0 04 1 1012-1012 ● ●
çizim 185345
411 290 410 411 290 411
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
290 03.331 SENSOR; PRESS
EGYPT EQUIPMENT(B09) (A) 		8-98119-790-0 01 1 1008- ●
290 03.331 SENSOR; PRESS
EXC. EGYPT EQUIPMENT(B09) (A) 		8-98014-320-0 01 1 0709-1003 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 0709-1003 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 1004-1007 ● ●
290 03.331 SENSOR; PRESS
EXC. EGYPT EQUIPMENT(B09) (A) 		8-98014-320-0 01 1 1008-1208 ●
290 03.331 SENSOR; PRESS
(A) 		8-98014-320-0 01 1 1008-1208 ● ●
290 03.331 SENSOR; PRESS
EXC. EGYPT EQUIPMENT(B09) (A) 		8-98181-616-0 01 1 1209- ●
290 03.331 SENSOR; PRESS
(A) 		8-98181-616-0 01 1 1209- ● ●
290 03.331 SENSOR; PRESS
(A) 		8-97318-684-0 01 1 0610-0708 ● ●
290 03.331 SENSOR; PRESS
EGYPT EQUIPMENT(B09) (A) 		8-97318-684-0 01 1 0709-0809 ●
290 03.331 SENSOR; PRESS
EGYPT EQUIPMENT(B09) (A) 		8-98119-790-0 01 1 0810-1003 ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0610-1007 ● ●
290 03.331 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 1008- ● ● ●
410 03.331 BRACKET; SENSOR 8-98013-801-1 01 1 0610- ●
411 03.331 BOLT; SENSOR
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0610- ●
411 03.331 BOLT; SENSOR
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0610-1007 ● ●
411 03.331 BOLT; SENSOR
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1008- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
