◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#73910) — 1595 parça

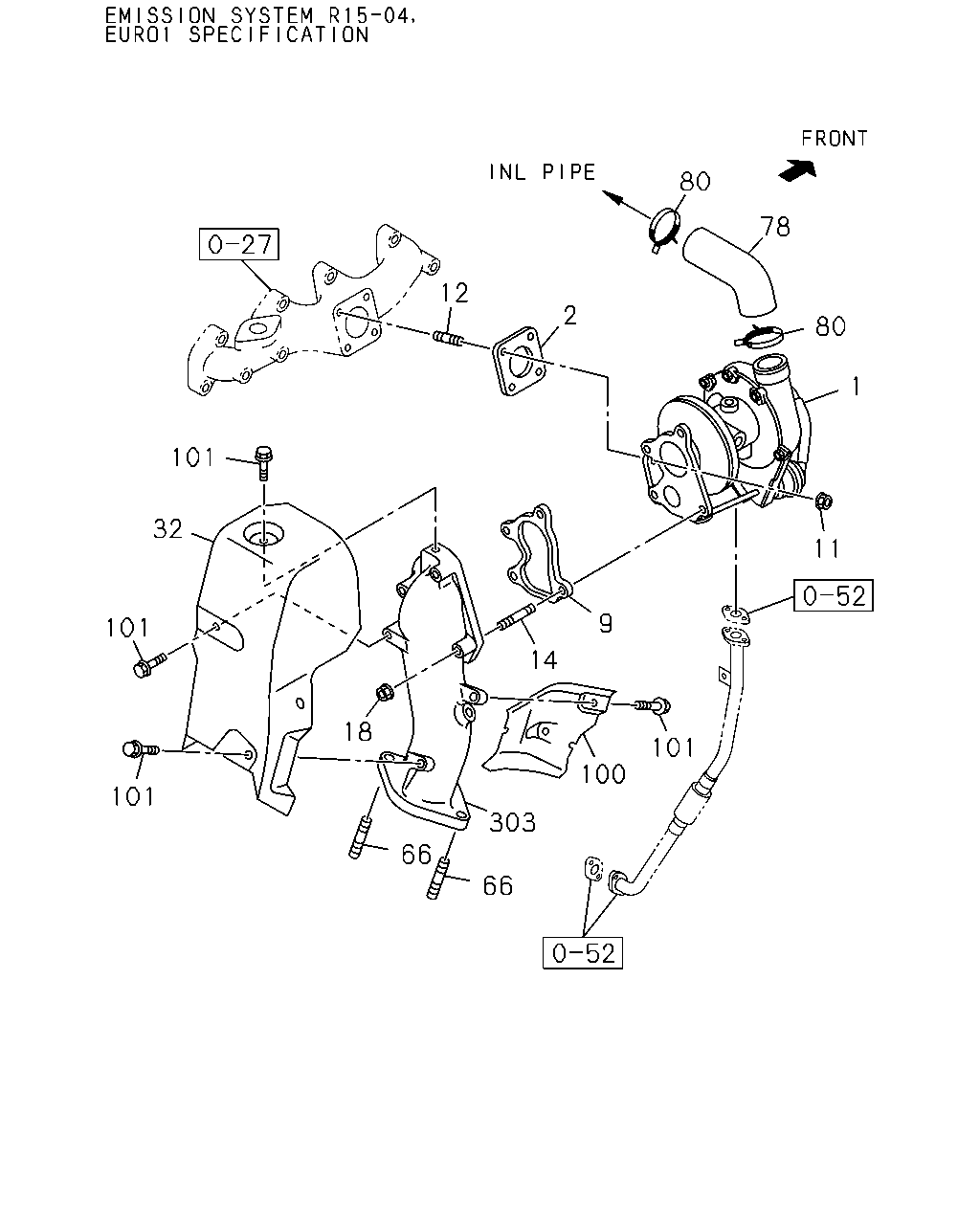

çizim 60761
80 78 12 2 80 1 101 32 11 9 101 14 18 101 100 101 303 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.342 TURBOCHARGER ASM
CHILE EQUIPMENT(KE1) 		8-98164-240-0 01 1 1008- ●
1 03.342 TURBOCHARGER ASM
EXC. CHILE EQUIPMENT(KE1) 		8-98132-070-3 01 1 1008- ●
1 03.342 TURBOCHARGER ASM 8-97240-210-2 01 1 0306- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97329-588-1 01 1 0306-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0306-0306 ●
1 03.342 TURBOCHARGER ASM
EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHI LE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0610-0706 ●
1 03.342 TURBOCHARGER ASM
EGYPT EQUIPMENT(B09) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0707-0707 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-3 01 1 0707- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0610- ●
1 03.342 TURBOCHARGER ASM 8-98011-529-7 01 1 0610-1007 ●
1 03.342 TURBOCHARGER ASM 8-98132-069-2 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98132-073-0 01 1 1008- ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0306-0402 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0610- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-716-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 1004-1007 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) 		8-97912-697-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0306-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1004-1007 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 1008- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0306-0402 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97139-726-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0610- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-775-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-604-0 01 1 0306- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97104-508-1 04 1 0306-0408 ● ● ●
12 03.342 STUD; TURBOCHARGER
TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97104-508-1 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ● ●
12 03.342 STUD; TURBOCHARGER
EXC. TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0410-0609 ● ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0610- ● ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 1008- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 08 1 0403-0406 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 04 1 0407-0408 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X41 L=52 		8-97188-452-0 04 1 0407-0408 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X41 L=52 		8-97188-452-0 04 1 0409-0411 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 08 1 0306-0402 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 04 1 0403-0406 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97104-507-1 04 1 0407-0411 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EXC. TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97104-507-1 04 1 0407-0411 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97104-507-1 04 1 0412-0607 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97104-507-1 04 1 0608-0608 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0608-0608 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EXC. TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97378-067-0 04 1 0608-0608 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0608-0609 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0610- ● ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 0610- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97087-029-0 01 1 0306- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
03.602 		8-97300-338-1 01 1 0306-0609 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.602 		8-97300-338-1 01 1 0306-0609 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO1 SPECIFICATION<NT1> 03.602 		8-97300-338-1 01 1 0610- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98057-857-0 01 1 0610-1007 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98156-389-0 01 1 1008- ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0306-0402 ● ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ● ●
66 03.342 STUD; EXH PIPE
EXC. TURKEY EQUIPMENT(B11) 03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0610- ● ●
66 03.342 STUD; EXH PIPE
TURKEY EQUIPMENT(B11) M10X30 L=45 		0-49241-030-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0610-0611 ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 0710-0809 ● ●
66 03.342 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 1004- ● ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M10X25 L=40 		0-44011-025-0 02 1 1004- ●
78 03.342 HOSE; INL PIPE,TURBOCHARGER 8-97096-628-3 01 1 0306- ●
80 03.407 CLIP; CONN HOSE,TURBOCHARGER
ID=45.5-56.5 		8-97131-943-0 02 1 0306- ●
100 03.417 PROTECTOR; HEAT,EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97038-109-1 01 1 0306-0609 ● ●
100 03.417 PROTECTOR; HEAT,EXH MANIF 8-97038-109-1 01 1 0306-0609 ●
100 03.417 PROTECTOR; HEAT,EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97038-109-1 01 1 0610- ● ●
101 03.602 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 01.428 M6X12 FLANGE 		0-28080-612-0 03 1 0306-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0601- ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0306-0402 ● ●
101 03.602 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0306-0402 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0403-0512 ● ●
101 03.602 BOLT; HEAT PROTECTOR
EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0403-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0610- ● ●
101 03.602 BOLT; HEAT PROTECTOR
TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0403-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0601-0609 ● ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0601-0609 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610-1007 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1008- ● ●
303 03.440 ADAPTER; THROTTLE BODY,EXH
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97139-725-0 01 1 0306- ●
303 03.440 ADAPTER; THROTTLE BODY,EXH
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97087-028-1 01 1 0306-0609 ●
303 03.440 ADAPTER; THROTTLE BODY,EXH
EURO1 SPECIFICATION<NT1> 		8-97087-028-1 01 1 0610- ●

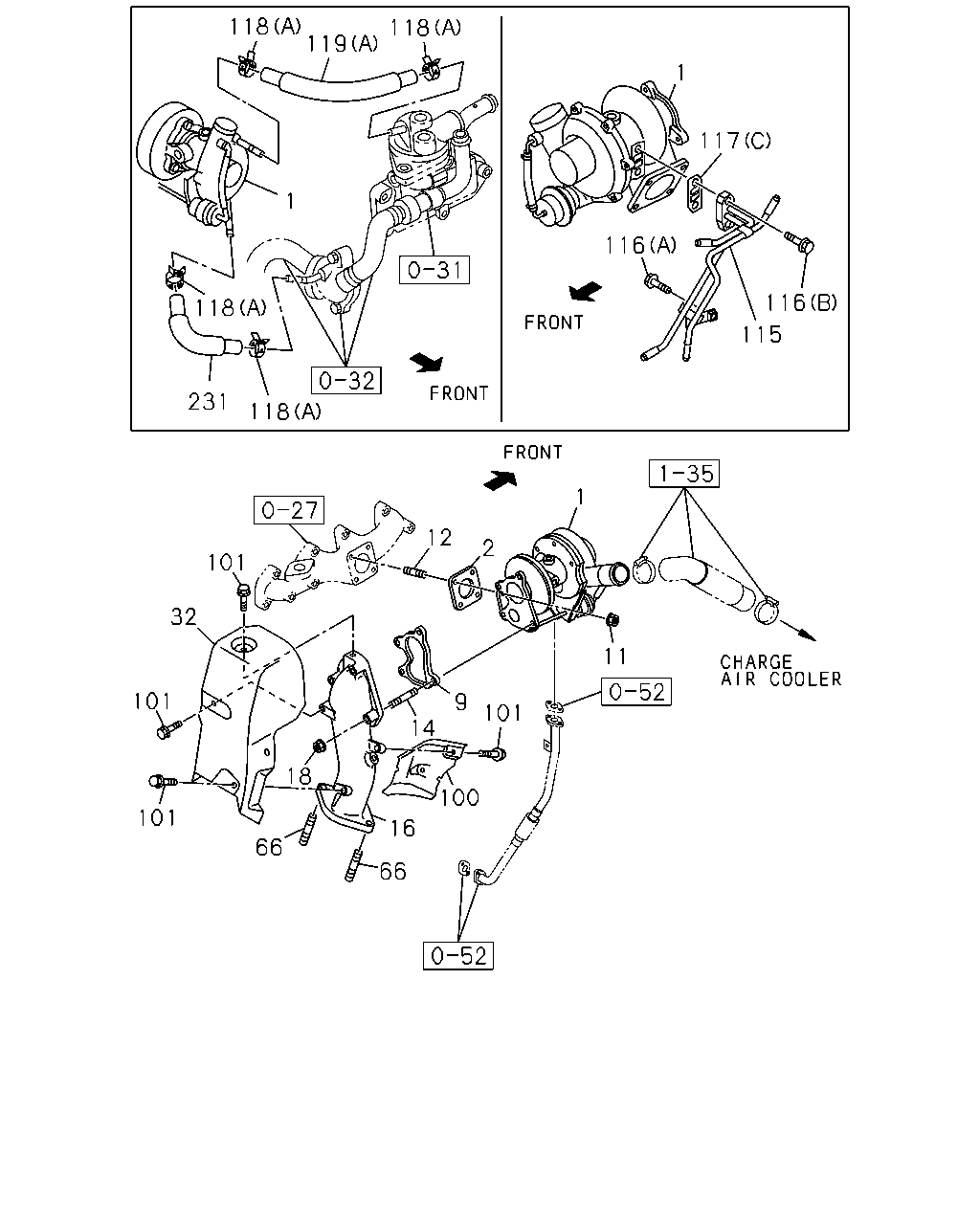

çizim 61050
118 119 118 1 117 1 116 116 118 115 231 118 1 12 2 101 32 11 101 9 101 14 18 100 101 16 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.342 TURBOCHARGER ASM
CHILE EQUIPMENT(KE1) 		8-98164-240-0 01 1 1008- ●
1 03.342 TURBOCHARGER ASM
EXC. CHILE EQUIPMENT(KE1) 		8-98132-070-3 01 1 1008- ●
1 03.342 TURBOCHARGER ASM 8-97240-210-2 01 1 0306- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97329-588-1 01 1 0306-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0306-0306 ●
1 03.342 TURBOCHARGER ASM
EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHI LE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0610-0706 ●
1 03.342 TURBOCHARGER ASM
EGYPT EQUIPMENT(B09) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0707-0707 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-3 01 1 0707- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0610- ●
1 03.342 TURBOCHARGER ASM 8-98011-529-7 01 1 0610-1007 ●
1 03.342 TURBOCHARGER ASM 8-98132-069-2 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98132-073-0 01 1 1008- ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0306-0402 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0610- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-716-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 1004-1007 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) 		8-97912-697-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0306-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1004-1007 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 1008- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0306-0402 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97139-726-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0610- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-775-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-604-0 01 1 0306- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97104-508-1 04 1 0306-0408 ● ● ●
12 03.342 STUD; TURBOCHARGER
TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97104-508-1 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ● ●
12 03.342 STUD; TURBOCHARGER
EXC. TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0410-0609 ● ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0610- ● ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 1008- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 08 1 0403-0406 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 04 1 0407-0408 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X41 L=52 		8-97188-452-0 04 1 0407-0408 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X41 L=52 		8-97188-452-0 04 1 0409-0411 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 08 1 0306-0402 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 04 1 0403-0406 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97104-507-1 04 1 0407-0411 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EXC. TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97104-507-1 04 1 0407-0411 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97104-507-1 04 1 0412-0607 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97104-507-1 04 1 0608-0608 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0608-0608 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EXC. TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97378-067-0 04 1 0608-0608 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0608-0609 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0610- ● ●
16 03.609 ADAPTER; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98011-531-1 01 1 0610- ●
16 03.609 ADAPTER; EXH PIPE
03.440 		8-97139-725-0 01 1 0306-0402 ●
16 03.609 ADAPTER; EXH PIPE
EXC. TURKEY EQUIPMENT(B11) 03.440 		8-97139-725-0 01 1 0403-0609 ●
16 03.609 ADAPTER; EXH PIPE
TURKEY EQUIPMENT(B11) 03.440 		8-97913-293-0 01 1 0403-0609 ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 0610- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97087-029-0 01 1 0306- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
03.602 		8-97300-338-1 01 1 0306-0609 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.602 		8-97300-338-1 01 1 0306-0609 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO1 SPECIFICATION<NT1> 03.602 		8-97300-338-1 01 1 0610- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98057-857-0 01 1 0610-1007 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98156-389-0 01 1 1008- ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0306-0402 ● ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ● ●
66 03.342 STUD; EXH PIPE
EXC. TURKEY EQUIPMENT(B11) 03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0610- ● ●
66 03.342 STUD; EXH PIPE
TURKEY EQUIPMENT(B11) M10X30 L=45 		0-49241-030-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0610-0611 ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 0710-0809 ● ●
66 03.342 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 1004- ● ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M10X25 L=40 		0-44011-025-0 02 1 1004- ●
100 03.417 PROTECTOR; HEAT,EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97038-109-1 01 1 0306-0609 ● ●
100 03.417 PROTECTOR; HEAT,EXH MANIF 8-97038-109-1 01 1 0306-0609 ●
100 03.417 PROTECTOR; HEAT,EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97038-109-1 01 1 0610- ● ●
101 03.602 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 01.428 M6X12 FLANGE 		0-28080-612-0 03 1 0306-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0601- ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0306-0402 ● ●
101 03.602 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0306-0402 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0403-0512 ● ●
101 03.602 BOLT; HEAT PROTECTOR
EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0403-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0610- ● ●
101 03.602 BOLT; HEAT PROTECTOR
TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0403-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0601-0609 ● ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0601-0609 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610-1007 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1008- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-97354-090-0 01 1 0306-0609 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98011-902-0 01 1 0610- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
01.097 		8-97063-234-0 01 1 0306- ●
116 03.342 BOLT; WATER PIPE
02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0306-0402 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0306-0402 ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 00.386 (B) M6X20 FLANGE 		0-28050-620-0 02 1 0601-0601 ●
116 03.342 BOLT; WATER PIPE
00.386 (B) M6X20 FLANGE 		0-28050-620-0 02 1 0602-0609 ●
116 03.342 BOLT; WATER PIPE
03.670 (B) M6X20 FLANGE 		0-28080-620-0 02 1 0306-0512 ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) 03.670 (B) M6X20 FLANGE 		0-28080-620-0 02 1 0601-0601 ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0609 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0609 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0610- ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) (A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
(A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0601-0609 ● ●
116 03.342 BOLT; WATER PIPE
(A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0610- ●
116 03.342 BOLT; WATER PIPE
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0306-0402 ● ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.374 (C) 		8-94321-135-1 01 1 0306-0609 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (E) 		8-97262-117-0 01 1 0610-0611 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (D) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0612- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . (B) T=2.5 		8-94472-584-1 01 1 0306- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0306- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (D) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0610-0611 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (E) 		8-97262-117-0 01 1 0612-1007 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0810- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 14 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
CHILE EQUIPMENT(KE1) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0810-1003 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0306-0402 ● ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0610-0806 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0807- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 04 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0710-0809 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 0810-1007 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1004-1007 ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
08.846 (B) ID=20.8 		8-97944-127-0 06 1 0610-1007 ●
118 03.342 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8 		8-97944-127-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.166 (B) ID=20.8 		8-94125-862-1 06 1 0610-0611 ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(A) 		8-97350-445-0 01 1 0306-0609 ●
119 03.342 HOSE; WATER,TURBOCHARGER
(D) 		8-97369-590-1 01 1 0610-1007 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(D) 		8-97369-590-1 01 1 1008- ● ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(B) L=250 W/INSULATOR 		8-94340-669-1 01 1 0306- ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-1007 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97325-123-0 01 1 0306-0609 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
01.097 L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-1007 ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
01.097 L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR 		8-94325-255-0 01 1 0306- ●
çizim 61088
80 80 78 12 2 101 14 1 101 11 9 14 18 99 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.342 TURBOCHARGER ASM
CHILE EQUIPMENT(KE1) 		8-98164-240-0 01 1 1008- ●
1 03.342 TURBOCHARGER ASM
EXC. CHILE EQUIPMENT(KE1) 		8-98132-070-3 01 1 1008- ●
1 03.342 TURBOCHARGER ASM 8-97240-210-2 01 1 0306- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97329-588-1 01 1 0306-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0306-0306 ●
1 03.342 TURBOCHARGER ASM
EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHI LE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0610-0706 ●
1 03.342 TURBOCHARGER ASM
EGYPT EQUIPMENT(B09) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0707-0707 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-3 01 1 0707- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0610- ●
1 03.342 TURBOCHARGER ASM 8-98011-529-7 01 1 0610-1007 ●
1 03.342 TURBOCHARGER ASM 8-98132-069-2 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98132-073-0 01 1 1008- ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0306-0402 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0610- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-716-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 1004-1007 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) 		8-97912-697-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0306-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1004-1007 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 1008- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0306-0402 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97139-726-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0610- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-775-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-604-0 01 1 0306- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97104-508-1 04 1 0306-0408 ● ● ●
12 03.342 STUD; TURBOCHARGER
TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97104-508-1 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ● ●
12 03.342 STUD; TURBOCHARGER
EXC. TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0410-0609 ● ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0610- ● ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 1008- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 08 1 0403-0406 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 04 1 0407-0408 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X41 L=52 		8-97188-452-0 04 1 0407-0408 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X41 L=52 		8-97188-452-0 04 1 0409-0411 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 08 1 0306-0402 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 04 1 0403-0406 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97104-507-1 04 1 0407-0411 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EXC. TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97104-507-1 04 1 0407-0411 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97104-507-1 04 1 0412-0607 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97104-507-1 04 1 0608-0608 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0608-0608 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EXC. TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97378-067-0 04 1 0608-0608 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0608-0609 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0610- ● ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 0610- ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0306-0402 ● ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ● ●
66 03.342 STUD; EXH PIPE
EXC. TURKEY EQUIPMENT(B11) 03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0610- ● ●
66 03.342 STUD; EXH PIPE
TURKEY EQUIPMENT(B11) M10X30 L=45 		0-49241-030-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0610-0611 ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 0710-0809 ● ●
66 03.342 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 1004- ● ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M10X25 L=40 		0-44011-025-0 02 1 1004- ●
78 03.342 HOSE; INL PIPE,TURBOCHARGER 8-97096-628-3 01 1 0306- ●
80 03.407 CLIP; CONN HOSE,TURBOCHARGER
ID=45.5-56.5 		8-97131-943-0 02 1 0306- ●
99 03.602 PROTECTOR; HEAT
EURO2 SPECIFICATION<NT2> 		8-97318-472-0 01 1 0306- ●
101 03.602 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 01.428 M6X12 FLANGE 		0-28080-612-0 03 1 0306-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0601- ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0306-0402 ● ●
101 03.602 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0306-0402 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0403-0512 ● ●
101 03.602 BOLT; HEAT PROTECTOR
EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0403-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0610- ● ●
101 03.602 BOLT; HEAT PROTECTOR
TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0403-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0601-0609 ● ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0601-0609 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610-1007 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1008- ● ●

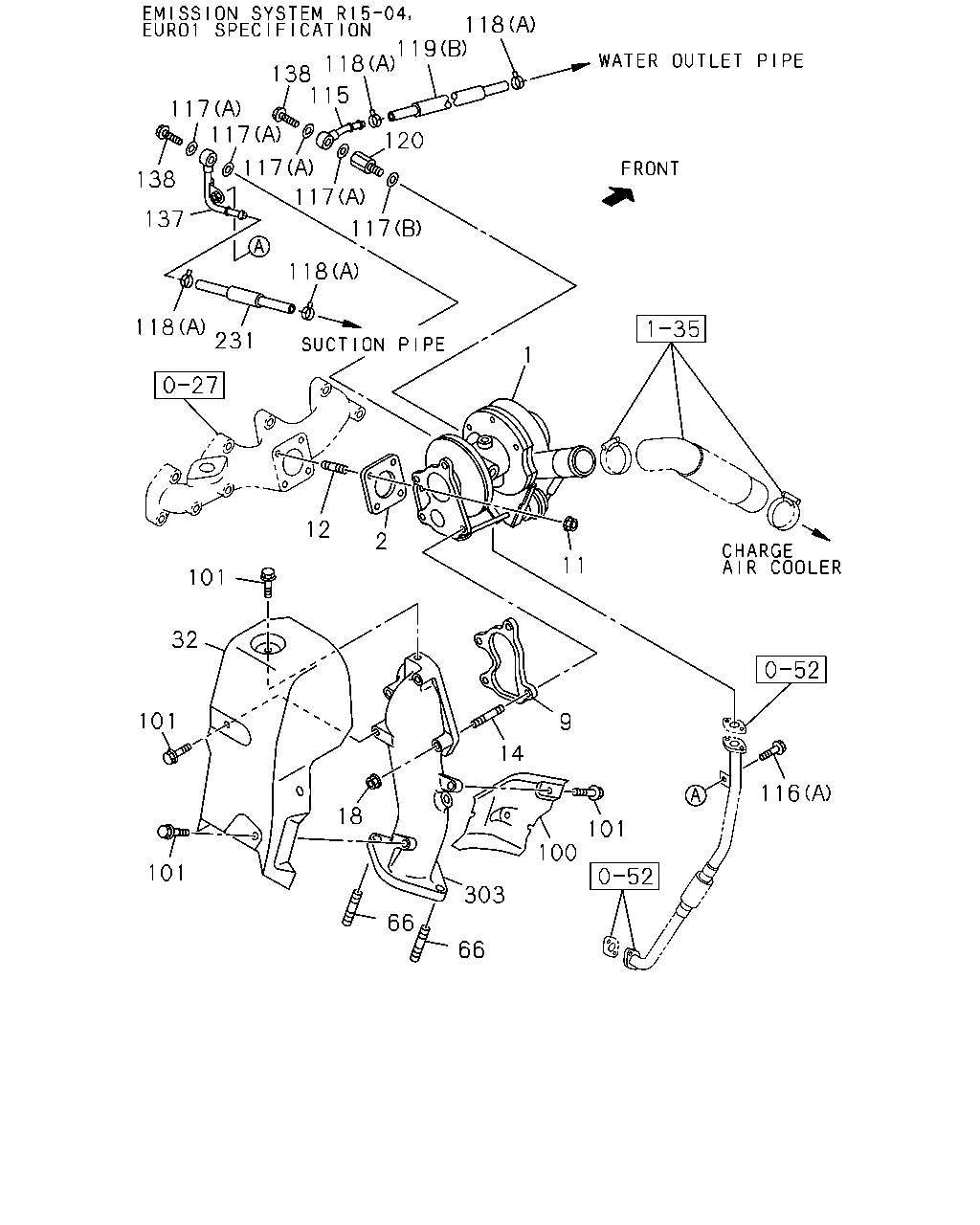

çizim 61324
118 119 118 138 115 117 117 120 117 138 117 137 117 118 118 231 1 12 2 11 101 32 101 9 14 116 18 101 100 101 303 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.342 TURBOCHARGER ASM
CHILE EQUIPMENT(KE1) 		8-98164-240-0 01 1 1008- ●
1 03.342 TURBOCHARGER ASM
EXC. CHILE EQUIPMENT(KE1) 		8-98132-070-3 01 1 1008- ●
1 03.342 TURBOCHARGER ASM 8-97240-210-2 01 1 0306- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97329-588-1 01 1 0306-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0306-0306 ●
1 03.342 TURBOCHARGER ASM
EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHI LE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0610-0706 ●
1 03.342 TURBOCHARGER ASM
EGYPT EQUIPMENT(B09) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0707-0707 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-3 01 1 0707- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0610- ●
1 03.342 TURBOCHARGER ASM 8-98011-529-7 01 1 0610-1007 ●
1 03.342 TURBOCHARGER ASM 8-98132-069-2 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98132-073-0 01 1 1008- ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0306-0402 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0610- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-716-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 1004-1007 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) 		8-97912-697-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0306-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1004-1007 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 1008- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0306-0402 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97139-726-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0610- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-775-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-604-0 01 1 0306- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97104-508-1 04 1 0306-0408 ● ● ●
12 03.342 STUD; TURBOCHARGER
TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97104-508-1 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ● ●
12 03.342 STUD; TURBOCHARGER
EXC. TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0410-0609 ● ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0610- ● ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 1008- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 08 1 0403-0406 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 04 1 0407-0408 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X41 L=52 		8-97188-452-0 04 1 0407-0408 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X41 L=52 		8-97188-452-0 04 1 0409-0411 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 08 1 0306-0402 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 04 1 0403-0406 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97104-507-1 04 1 0407-0411 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EXC. TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97104-507-1 04 1 0407-0411 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97104-507-1 04 1 0412-0607 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97104-507-1 04 1 0608-0608 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0608-0608 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EXC. TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97378-067-0 04 1 0608-0608 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0608-0609 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0610- ● ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 0610- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97087-029-0 01 1 0306- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
03.602 		8-97300-338-1 01 1 0306-0609 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.602 		8-97300-338-1 01 1 0306-0609 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO1 SPECIFICATION<NT1> 03.602 		8-97300-338-1 01 1 0610- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98057-857-0 01 1 0610-1007 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98156-389-0 01 1 1008- ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0306-0402 ● ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ● ●
66 03.342 STUD; EXH PIPE
EXC. TURKEY EQUIPMENT(B11) 03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0610- ● ●
66 03.342 STUD; EXH PIPE
TURKEY EQUIPMENT(B11) M10X30 L=45 		0-49241-030-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0610-0611 ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 0710-0809 ● ●
66 03.342 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 1004- ● ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M10X25 L=40 		0-44011-025-0 02 1 1004- ●
100 03.417 PROTECTOR; HEAT,EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97038-109-1 01 1 0306-0609 ● ●
100 03.417 PROTECTOR; HEAT,EXH MANIF 8-97038-109-1 01 1 0306-0609 ●
100 03.417 PROTECTOR; HEAT,EXH MANIF
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97038-109-1 01 1 0610- ● ●
101 03.602 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 01.428 M6X12 FLANGE 		0-28080-612-0 03 1 0306-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0601- ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0306-0402 ● ●
101 03.602 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0306-0402 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0403-0512 ● ●
101 03.602 BOLT; HEAT PROTECTOR
EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0403-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0610- ● ●
101 03.602 BOLT; HEAT PROTECTOR
TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0403-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0601-0609 ● ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0601-0609 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610-1007 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1008- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-97354-090-0 01 1 0306-0609 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98011-902-0 01 1 0610- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
01.097 		8-97063-234-0 01 1 0306- ●
116 03.342 BOLT; WATER PIPE
02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0306-0402 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0306-0402 ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 00.386 (B) M6X20 FLANGE 		0-28050-620-0 02 1 0601-0601 ●
116 03.342 BOLT; WATER PIPE
00.386 (B) M6X20 FLANGE 		0-28050-620-0 02 1 0602-0609 ●
116 03.342 BOLT; WATER PIPE
03.670 (B) M6X20 FLANGE 		0-28080-620-0 02 1 0306-0512 ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) 03.670 (B) M6X20 FLANGE 		0-28080-620-0 02 1 0601-0601 ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0609 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0609 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0610- ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) (A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
(A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0601-0609 ● ●
116 03.342 BOLT; WATER PIPE
(A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0610- ●
116 03.342 BOLT; WATER PIPE
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0306-0402 ● ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.374 (C) 		8-94321-135-1 01 1 0306-0609 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (E) 		8-97262-117-0 01 1 0610-0611 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (D) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0612- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . (B) T=2.5 		8-94472-584-1 01 1 0306- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0306- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (D) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0610-0611 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (E) 		8-97262-117-0 01 1 0612-1007 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0810- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 14 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
CHILE EQUIPMENT(KE1) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0810-1003 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0306-0402 ● ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0610-0806 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0807- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 04 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0710-0809 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 0810-1007 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1004-1007 ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
08.846 (B) ID=20.8 		8-97944-127-0 06 1 0610-1007 ●
118 03.342 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8 		8-97944-127-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.166 (B) ID=20.8 		8-94125-862-1 06 1 0610-0611 ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(A) 		8-97350-445-0 01 1 0306-0609 ●
119 03.342 HOSE; WATER,TURBOCHARGER
(D) 		8-97369-590-1 01 1 0610-1007 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(D) 		8-97369-590-1 01 1 1008- ● ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(B) L=250 W/INSULATOR 		8-94340-669-1 01 1 0306- ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-1007 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ●
120 01.097 ADAPTER; WATER 8-94472-583-0 01 1 0306- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-97086-342-0 01 1 0306- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-98011-903-0 01 1 0610- ●
138 03.342 BOLT; EYE,WATER PIPE
01.531 M12X24 EYE-BOLT 		1-09675-081-0 02 1 0306- ●
138 03.342 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT 		8-98037-067-0 02 1 0610- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97325-123-0 01 1 0306-0609 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
01.097 L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-1007 ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
01.097 L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR 		8-94325-255-0 01 1 0306- ●
303 03.440 ADAPTER; THROTTLE BODY,EXH
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97139-725-0 01 1 0306- ●
303 03.440 ADAPTER; THROTTLE BODY,EXH
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97087-028-1 01 1 0306-0609 ●
303 03.440 ADAPTER; THROTTLE BODY,EXH
EURO1 SPECIFICATION<NT1> 		8-97087-028-1 01 1 0610- ●
çizim 61532
116 116 485 118 488 118 118 380 118 118 488 485 116 118 118 487 241 426 488 118 488 118 118 486 485
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
116 03.342 BOLT; WATER PIPE
02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0306-0402 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0306-0402 ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 00.386 (B) M6X20 FLANGE 		0-28050-620-0 02 1 0601-0601 ●
116 03.342 BOLT; WATER PIPE
00.386 (B) M6X20 FLANGE 		0-28050-620-0 02 1 0602-0609 ●
116 03.342 BOLT; WATER PIPE
03.670 (B) M6X20 FLANGE 		0-28080-620-0 02 1 0306-0512 ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) 03.670 (B) M6X20 FLANGE 		0-28080-620-0 02 1 0601-0601 ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0609 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0609 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0610- ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) (A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
(A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0601-0609 ● ●
116 03.342 BOLT; WATER PIPE
(A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0610- ●
116 03.342 BOLT; WATER PIPE
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0306-0402 ● ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0810- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 14 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
CHILE EQUIPMENT(KE1) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0810-1003 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0306-0402 ● ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0610-0806 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0807- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 04 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0710-0809 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 0810-1007 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1004-1007 ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
08.846 (B) ID=20.8 		8-97944-127-0 06 1 0610-1007 ●
118 03.342 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8 		8-97944-127-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.166 (B) ID=20.8 		8-94125-862-1 06 1 0610-0611 ●
241 01.531 BOLT
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0306-0402 ●
241 01.531 BOLT
EURO3 SPECIFICATION<NT3> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0306-0402 ●
241 01.531 BOLT
EXC. TURKEY EQUIPMENT(B11) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0403-0512 ●
241 01.531 BOLT
EURO3 SPECIFICATION<NT3> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0403-0512 ●
241 01.531 BOLT
TURKEY EQUIPMENT(B11) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0403-0512 ●
241 01.531 BOLT
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601-0609 ●
241 01.531 BOLT
EURO3 SPECIFICATION<NT3> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601-0609 ●
241 01.531 BOLT
EURO3 SPECIFICATION<NT3> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0610- ●
380 03.417 HOSE; RUBBER,PIPE TO PIPE
01.097 L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
380 03.417 HOSE; RUBBER,PIPE TO PIPE
EURO3 SPECIFICATION<NT3> 01.097 L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
380 03.417 HOSE; RUBBER,PIPE TO PIPE
EURO3 SPECIFICATION<NT3> 01.097 L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0610- ●
426 03.616 BRACKET; VLV 8-97308-580-0 01 1 0306-0609 ●
426 03.616 BRACKET; VLV
EURO3 SPECIFICATION<NT3> 		8-97308-580-0 01 1 0306-0609 ●
426 03.616 BRACKET; VLV
EURO3 SPECIFICATION<NT3> 		8-97308-580-0 01 1 0610- ●
485 01.097 PIPE; WATER EGR
(A) 		8-97249-188-2 01 1 0306-0609 ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (A) 		8-97249-188-2 01 1 0306-0609 ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (A) 		8-97249-188-2 01 1 0610- ●
485 01.097 PIPE; WATER EGR
(B) 		8-97313-795-1 01 1 0306-0609 ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (B) 		8-97313-795-1 01 1 0306-0609 ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (B) 		8-97313-795-1 01 1 0610- ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (C) 		8-97353-795-1 01 1 0306- ●
485 01.097 PIPE; WATER EGR
(D) 		8-98011-517-0 01 1 0610-1007 ●
485 01.097 PIPE; WATER EGR
COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) (E) 		8-98020-208-2 01 1 0610-1007 ●
485 01.097 PIPE; WATER EGR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-98011-520-2 01 1 0610-1007 ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION<NT4> (E) 		8-98011-520-2 01 1 1008- ● ●
486 03.342 GASKET; WATER PIPE
01.531 		8-97264-168-0 01 1 0306-0609 ●
486 03.342 GASKET; WATER PIPE
EURO3 SPECIFICATION<NT3> 01.531 		8-97264-168-0 01 1 0306-0609 ●
486 03.342 GASKET; WATER PIPE
EURO3 SPECIFICATION<NT3> 01.531 		8-97264-168-0 01 1 0610- ●
487 03.342 VALVE ASM; THRMO 8-97254-150-0 01 1 0306-0609 ●
487 03.342 VALVE ASM; THRMO
EURO3 SPECIFICATION<NT3> 		8-97254-150-0 01 1 0306-0609 ●
487 03.342 VALVE ASM; THRMO
EURO3 SPECIFICATION<NT3> 		8-97254-150-1 01 1 0610- ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (E) L=220 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ●
488 03.163 HOSE; RUBBER
01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
01.097 (A) L=90 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-0809 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0810-1007 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(C) 		8-97249-211-1 01 1 0306-0407 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97249-211-1 01 1 0306-0407 ●
488 03.163 HOSE; RUBBER
TURKEY EQUIPMENT(B11) (C) 		8-97249-211-1 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
EXC. TURKEY EQUIPMENT(B11) (C) 		8-97383-706-0 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
(C) 		8-97383-706-0 01 1 0409-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0409-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (J) 		8-97329-993-1 01 1 0306- ●
488 03.163 HOSE; RUBBER
01.097 (E) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-0809 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (E) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 0810- ●
488 03.163 HOSE; RUBBER
(G) 		8-98011-632-1 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (G) 		8-98011-632-1 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(H) 		8-98011-633-1 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (H) 		8-98011-633-1 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(I) 		8-98031-860-0 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (I) 		8-98031-860-0 01 1 1008- ● ●
çizim 61664
217 101 21 526 458 217 527 32 12 118 217 119 1 66 118 12 2 118 11 118 119 118 231 118 488 488 118 118 118 118
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.342 TURBOCHARGER ASM
CHILE EQUIPMENT(KE1) 		8-98164-240-0 01 1 1008- ●
1 03.342 TURBOCHARGER ASM
EXC. CHILE EQUIPMENT(KE1) 		8-98132-070-3 01 1 1008- ●
1 03.342 TURBOCHARGER ASM 8-97240-210-2 01 1 0306- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97329-588-1 01 1 0306-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0306-0306 ●
1 03.342 TURBOCHARGER ASM
EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHI LE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0610-0706 ●
1 03.342 TURBOCHARGER ASM
EGYPT EQUIPMENT(B09) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0707-0707 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-3 01 1 0707- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0610- ●
1 03.342 TURBOCHARGER ASM 8-98011-529-7 01 1 0610-1007 ●
1 03.342 TURBOCHARGER ASM 8-98132-069-2 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98132-073-0 01 1 1008- ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0306-0402 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0610- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-716-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 1004-1007 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) 		8-97912-697-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0306-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1004-1007 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 1008- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97104-508-1 04 1 0306-0408 ● ● ●
12 03.342 STUD; TURBOCHARGER
TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97104-508-1 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ● ●
12 03.342 STUD; TURBOCHARGER
EXC. TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0410-0609 ● ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0610- ● ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 1008- ● ●
21 03.358 BOLT; PIPE
04.866 (A) M6X40 FLANGE 		0-28050-640-0 02 1 0610-1007 ●
21 03.358 BOLT; PIPE
01.652 (A) M6X45 FLANGE 		0-28050-645-0 02 1 1008- ● ●
21 03.358 BOLT; PIPE
03.162 (B) M6X20 FLANGE 		0-28650-620-0 02 1 0610-1007 ●
21 03.358 BOLT; PIPE
00.685 (C) M8X40 FLANGE 		0-28650-840-0 02 1 0610-1007 ●
21 03.358 BOLT; PIPE
EURO4 SPECIFICATION<NT4> 00.685 (C) M8X40 FLANGE 		0-28650-840-0 02 1 1008- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97087-029-0 01 1 0306- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
03.602 		8-97300-338-1 01 1 0306-0609 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.602 		8-97300-338-1 01 1 0306-0609 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO1 SPECIFICATION<NT1> 03.602 		8-97300-338-1 01 1 0610- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98057-857-0 01 1 0610-1007 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98156-389-0 01 1 1008- ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0306-0402 ● ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ● ●
66 03.342 STUD; EXH PIPE
EXC. TURKEY EQUIPMENT(B11) 03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0610- ● ●
66 03.342 STUD; EXH PIPE
TURKEY EQUIPMENT(B11) M10X30 L=45 		0-49241-030-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0610-0611 ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 0710-0809 ● ●
66 03.342 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 1004- ● ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M10X25 L=40 		0-44011-025-0 02 1 1004- ●
101 03.602 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 01.428 M6X12 FLANGE 		0-28080-612-0 03 1 0306-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0601- ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0306-0402 ● ●
101 03.602 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0306-0402 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0403-0512 ● ●
101 03.602 BOLT; HEAT PROTECTOR
EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0403-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0610- ● ●
101 03.602 BOLT; HEAT PROTECTOR
TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0403-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0601-0609 ● ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0601-0609 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610-1007 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0810- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 14 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
CHILE EQUIPMENT(KE1) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0810-1003 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0306-0402 ● ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0610-0806 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0807- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 04 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0710-0809 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 0810-1007 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1004-1007 ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
08.846 (B) ID=20.8 		8-97944-127-0 06 1 0610-1007 ●
118 03.342 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8 		8-97944-127-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.166 (B) ID=20.8 		8-94125-862-1 06 1 0610-0611 ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(A) 		8-97350-445-0 01 1 0306-0609 ●
119 03.342 HOSE; WATER,TURBOCHARGER
(D) 		8-97369-590-1 01 1 0610-1007 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(D) 		8-97369-590-1 01 1 1008- ● ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(B) L=250 W/INSULATOR 		8-94340-669-1 01 1 0306- ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-1007 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ●
217 03.417 BOLT; BRKT
04.686 M8X60 FLANGE 		0-28050-860-0 01 1 0610-1007 ●
217 03.417 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
217 03.417 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0610-1007 ●
217 03.417 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
217 03.417 BOLT; BRKT
03.670 M8X18 FLANGE 		8-97378-076-0 01 1 0610-1007 ●
217 03.417 BOLT; BRKT
03.670 M8X18 FLANGE 		8-97378-076-0 01 1 1008- ● ●
217 03.417 BOLT; BRKT
M8X28 FLANGE 		8-98041-363-0 01 1 0610-1007 ●
217 03.417 BOLT; BRKT
M8X28 FLANGE 		8-98041-363-0 01 1 1008- ● ●
217 03.417 BOLT; BRKT
EGYPT EQUIPMENT(B09) M8X28 FLANGE 		8-98043-528-0 01 1 0610-0611 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97325-123-0 01 1 0306-0609 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
01.097 L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-1007 ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
01.097 L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR 		8-94325-255-0 01 1 0306- ●
458 03.373 PIPE; WATER,TURBOCHARGER 8-98031-001-0 01 1 0610-1007 ●
458 03.373 PIPE; WATER,TURBOCHARGER 8-98132-035-2 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (E) L=220 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ●
488 03.163 HOSE; RUBBER
01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
01.097 (A) L=90 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-0809 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0810-1007 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(C) 		8-97249-211-1 01 1 0306-0407 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97249-211-1 01 1 0306-0407 ●
488 03.163 HOSE; RUBBER
TURKEY EQUIPMENT(B11) (C) 		8-97249-211-1 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
EXC. TURKEY EQUIPMENT(B11) (C) 		8-97383-706-0 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
(C) 		8-97383-706-0 01 1 0409-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0409-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (J) 		8-97329-993-1 01 1 0306- ●
488 03.163 HOSE; RUBBER
01.097 (E) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-0809 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (E) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 0810- ●
488 03.163 HOSE; RUBBER
(G) 		8-98011-632-1 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (G) 		8-98011-632-1 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(H) 		8-98011-633-1 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (H) 		8-98011-633-1 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(I) 		8-98031-860-0 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (I) 		8-98031-860-0 01 1 1008- ● ●
526 03.342 GASKET; PLATE
01.519 		8-97352-985-0 01 1 0610-1007 ●
526 03.342 GASKET; PLATE
01.519 		8-97352-985-0 01 1 1008- ● ●
527 03.373 BRACKET; TURBOCHARGER 8-98011-536-1 01 1 0610-1007 ●
527 03.373 BRACKET; TURBOCHARGER 8-98156-388-0 01 1 1008- ● ●
çizim 61683
116 118 488 118 116 485 118 380 118 118 488 115 118 487 241 426 118 118 118 488 118 488 486 485
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-97354-090-0 01 1 0306-0609 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98011-902-0 01 1 0610- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
01.097 		8-97063-234-0 01 1 0306- ●
116 03.342 BOLT; WATER PIPE
02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0306-0402 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0306-0402 ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 00.386 (B) M6X20 FLANGE 		0-28050-620-0 02 1 0601-0601 ●
116 03.342 BOLT; WATER PIPE
00.386 (B) M6X20 FLANGE 		0-28050-620-0 02 1 0602-0609 ●
116 03.342 BOLT; WATER PIPE
03.670 (B) M6X20 FLANGE 		0-28080-620-0 02 1 0306-0512 ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) 03.670 (B) M6X20 FLANGE 		0-28080-620-0 02 1 0601-0601 ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0609 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0609 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0610- ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) (A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
(A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0601-0609 ● ●
116 03.342 BOLT; WATER PIPE
(A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0610- ●
116 03.342 BOLT; WATER PIPE
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0306-0402 ● ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0810- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 14 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
CHILE EQUIPMENT(KE1) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0810-1003 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0306-0402 ● ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0610-0806 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0807- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 04 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0710-0809 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 0810-1007 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1004-1007 ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
08.846 (B) ID=20.8 		8-97944-127-0 06 1 0610-1007 ●
118 03.342 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8 		8-97944-127-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.166 (B) ID=20.8 		8-94125-862-1 06 1 0610-0611 ●
241 01.531 BOLT
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0306-0402 ●
241 01.531 BOLT
EURO3 SPECIFICATION<NT3> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0306-0402 ●
241 01.531 BOLT
EXC. TURKEY EQUIPMENT(B11) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0403-0512 ●
241 01.531 BOLT
EURO3 SPECIFICATION<NT3> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0403-0512 ●
241 01.531 BOLT
TURKEY EQUIPMENT(B11) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0403-0512 ●
241 01.531 BOLT
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601-0609 ●
241 01.531 BOLT
EURO3 SPECIFICATION<NT3> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601-0609 ●
241 01.531 BOLT
EURO3 SPECIFICATION<NT3> 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0610- ●
380 03.417 HOSE; RUBBER,PIPE TO PIPE
01.097 L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
380 03.417 HOSE; RUBBER,PIPE TO PIPE
EURO3 SPECIFICATION<NT3> 01.097 L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
380 03.417 HOSE; RUBBER,PIPE TO PIPE
EURO3 SPECIFICATION<NT3> 01.097 L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0610- ●
426 03.616 BRACKET; VLV 8-97308-580-0 01 1 0306-0609 ●
426 03.616 BRACKET; VLV
EURO3 SPECIFICATION<NT3> 		8-97308-580-0 01 1 0306-0609 ●
426 03.616 BRACKET; VLV
EURO3 SPECIFICATION<NT3> 		8-97308-580-0 01 1 0610- ●
485 01.097 PIPE; WATER EGR
(A) 		8-97249-188-2 01 1 0306-0609 ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (A) 		8-97249-188-2 01 1 0306-0609 ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (A) 		8-97249-188-2 01 1 0610- ●
485 01.097 PIPE; WATER EGR
(B) 		8-97313-795-1 01 1 0306-0609 ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (B) 		8-97313-795-1 01 1 0306-0609 ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (B) 		8-97313-795-1 01 1 0610- ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (C) 		8-97353-795-1 01 1 0306- ●
485 01.097 PIPE; WATER EGR
(D) 		8-98011-517-0 01 1 0610-1007 ●
485 01.097 PIPE; WATER EGR
COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) (E) 		8-98020-208-2 01 1 0610-1007 ●
485 01.097 PIPE; WATER EGR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-98011-520-2 01 1 0610-1007 ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION<NT4> (E) 		8-98011-520-2 01 1 1008- ● ●
486 03.342 GASKET; WATER PIPE
01.531 		8-97264-168-0 01 1 0306-0609 ●
486 03.342 GASKET; WATER PIPE
EURO3 SPECIFICATION<NT3> 01.531 		8-97264-168-0 01 1 0306-0609 ●
486 03.342 GASKET; WATER PIPE
EURO3 SPECIFICATION<NT3> 01.531 		8-97264-168-0 01 1 0610- ●
487 03.342 VALVE ASM; THRMO 8-97254-150-0 01 1 0306-0609 ●
487 03.342 VALVE ASM; THRMO
EURO3 SPECIFICATION<NT3> 		8-97254-150-0 01 1 0306-0609 ●
487 03.342 VALVE ASM; THRMO
EURO3 SPECIFICATION<NT3> 		8-97254-150-1 01 1 0610- ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (E) L=220 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ●
488 03.163 HOSE; RUBBER
01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
01.097 (A) L=90 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-0809 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0810-1007 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(C) 		8-97249-211-1 01 1 0306-0407 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97249-211-1 01 1 0306-0407 ●
488 03.163 HOSE; RUBBER
TURKEY EQUIPMENT(B11) (C) 		8-97249-211-1 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
EXC. TURKEY EQUIPMENT(B11) (C) 		8-97383-706-0 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
(C) 		8-97383-706-0 01 1 0409-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0409-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (J) 		8-97329-993-1 01 1 0306- ●
488 03.163 HOSE; RUBBER
01.097 (E) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-0809 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (E) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 0810- ●
488 03.163 HOSE; RUBBER
(G) 		8-98011-632-1 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (G) 		8-98011-632-1 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(H) 		8-98011-633-1 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (H) 		8-98011-633-1 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(I) 		8-98031-860-0 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (I) 		8-98031-860-0 01 1 1008- ● ●
çizim 61741
118 119 118 138 115 117 117 120 117 138 117 137 117 118 118 231 1 12 2 11 18 9 14 116 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.342 TURBOCHARGER ASM
CHILE EQUIPMENT(KE1) 		8-98164-240-0 01 1 1008- ●
1 03.342 TURBOCHARGER ASM
EXC. CHILE EQUIPMENT(KE1) 		8-98132-070-3 01 1 1008- ●
1 03.342 TURBOCHARGER ASM 8-97240-210-2 01 1 0306- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97329-588-1 01 1 0306-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0306-0306 ●
1 03.342 TURBOCHARGER ASM
EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHI LE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0610-0706 ●
1 03.342 TURBOCHARGER ASM
EGYPT EQUIPMENT(B09) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0707-0707 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-3 01 1 0707- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0610- ●
1 03.342 TURBOCHARGER ASM 8-98011-529-7 01 1 0610-1007 ●
1 03.342 TURBOCHARGER ASM 8-98132-069-2 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98132-073-0 01 1 1008- ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0306-0402 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0610- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-716-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 1004-1007 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) 		8-97912-697-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0306-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1004-1007 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 1008- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0306-0402 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97139-726-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97139-726-0 01 1 0610- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-775-0 01 1 0403-0609 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-604-0 01 1 0306- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97104-508-1 04 1 0306-0408 ● ● ●
12 03.342 STUD; TURBOCHARGER
TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97104-508-1 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ● ●
12 03.342 STUD; TURBOCHARGER
EXC. TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0410-0609 ● ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0610- ● ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 1008- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 08 1 0403-0406 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 04 1 0407-0408 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X41 L=52 		8-97188-452-0 04 1 0407-0408 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X41 L=52 		8-97188-452-0 04 1 0409-0411 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 08 1 0306-0402 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X41 L=52 		8-97188-452-0 04 1 0403-0406 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97104-507-1 04 1 0407-0411 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EXC. TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97104-507-1 04 1 0407-0411 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97104-507-1 04 1 0412-0607 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97104-507-1 04 1 0608-0608 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0608-0608 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EXC. TURKEY EQUIPMENT(B11) M8X43 L=54 		8-97378-067-0 04 1 0608-0608 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0608-0609 ● ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
M8X43 L=54 		8-97378-067-0 04 1 0610- ● ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 04 1 0610- ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0306-0402 ● ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ● ●
66 03.342 STUD; EXH PIPE
EXC. TURKEY EQUIPMENT(B11) 03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0610- ● ●
66 03.342 STUD; EXH PIPE
TURKEY EQUIPMENT(B11) M10X30 L=45 		0-49241-030-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0610-0611 ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 0710-0809 ● ●
66 03.342 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 1004- ● ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M10X25 L=40 		0-44011-025-0 02 1 1004- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-97354-090-0 01 1 0306-0609 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98011-902-0 01 1 0610- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
01.097 		8-97063-234-0 01 1 0306- ●
116 03.342 BOLT; WATER PIPE
02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0306-0402 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0306-0402 ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.500 (C) M6X10 FLANGE 		0-28080-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 00.386 (B) M6X20 FLANGE 		0-28050-620-0 02 1 0601-0601 ●
116 03.342 BOLT; WATER PIPE
00.386 (B) M6X20 FLANGE 		0-28050-620-0 02 1 0602-0609 ●
116 03.342 BOLT; WATER PIPE
03.670 (B) M6X20 FLANGE 		0-28080-620-0 02 1 0306-0512 ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) 03.670 (B) M6X20 FLANGE 		0-28080-620-0 02 1 0601-0601 ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0609 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0601-0609 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 03.671 (C) M6X10 FLANGE 		0-28050-610-0 02 1 0610- ●
116 03.342 BOLT; WATER PIPE
TURKEY EQUIPMENT(B11) (A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
(A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0601-0609 ● ●
116 03.342 BOLT; WATER PIPE
(A) M6X12 W/LK WASHER 		0-50540-612-0 01 1 0610- ●
116 03.342 BOLT; WATER PIPE
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0306-0402 ● ●
116 03.342 BOLT; WATER PIPE
EXC. TURKEY EQUIPMENT(B11) 00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 0403-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 08.900 (D) M8X12 FLANGE 		0-28080-812-0 02 1 0306-0512 ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION<NT3> 02.343 (D) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.374 (C) 		8-94321-135-1 01 1 0306-0609 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (E) 		8-97262-117-0 01 1 0610-0611 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (D) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0612- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . (B) T=2.5 		8-94472-584-1 01 1 0306- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0306- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (D) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0610-0611 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (E) 		8-97262-117-0 01 1 0612-1007 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0810- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 14 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
CHILE EQUIPMENT(KE1) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0810-1003 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0306-0402 ● ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0610-0806 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0807- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 04 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0710-0809 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 0810-1007 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1004-1007 ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
08.846 (B) ID=20.8 		8-97944-127-0 06 1 0610-1007 ●
118 03.342 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8 		8-97944-127-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.166 (B) ID=20.8 		8-94125-862-1 06 1 0610-0611 ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(A) 		8-97350-445-0 01 1 0306-0609 ●
119 03.342 HOSE; WATER,TURBOCHARGER
(D) 		8-97369-590-1 01 1 0610-1007 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(D) 		8-97369-590-1 01 1 1008- ● ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(B) L=250 W/INSULATOR 		8-94340-669-1 01 1 0306- ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-1007 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ●
120 01.097 ADAPTER; WATER 8-94472-583-0 01 1 0306- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-97086-342-0 01 1 0306- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-98011-903-0 01 1 0610- ●
138 03.342 BOLT; EYE,WATER PIPE
01.531 M12X24 EYE-BOLT 		1-09675-081-0 02 1 0306- ●
138 03.342 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT 		8-98037-067-0 02 1 0610- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97325-123-0 01 1 0306-0609 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
01.097 L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-1007 ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
01.097 L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR 		8-94325-255-0 01 1 0306- ●
çizim 61751
66 16 2 12 1 11 118 118 488 118 118 118 488 231 118 119 118 118 137 117 138 117 118 119 118 138 117 117 115
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.342 TURBOCHARGER ASM
CHILE EQUIPMENT(KE1) 		8-98164-240-0 01 1 1008- ●
1 03.342 TURBOCHARGER ASM
EXC. CHILE EQUIPMENT(KE1) 		8-98132-070-3 01 1 1008- ●
1 03.342 TURBOCHARGER ASM 8-97240-210-2 01 1 0306- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97329-588-1 01 1 0306-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0306-0306 ●
1 03.342 TURBOCHARGER ASM
EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHI LE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0610-0706 ●
1 03.342 TURBOCHARGER ASM
EGYPT EQUIPMENT(B09) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0707-0707 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-3 01 1 0707- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0610- ●
1 03.342 TURBOCHARGER ASM 8-98011-529-7 01 1 0610-1007 ●
1 03.342 TURBOCHARGER ASM 8-98132-069-2 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98132-073-0 01 1 1008- ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0306-0402 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0610- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-716-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 1004-1007 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) 		8-97912-697-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0306-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1004-1007 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 1008- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97104-508-1 04 1 0306-0408 ● ● ●
12 03.342 STUD; TURBOCHARGER
TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97104-508-1 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ● ●
12 03.342 STUD; TURBOCHARGER
EXC. TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0410-0609 ● ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0610- ● ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 1008- ● ●
16 03.609 ADAPTER; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98011-531-1 01 1 0610- ●
16 03.609 ADAPTER; EXH PIPE
03.440 		8-97139-725-0 01 1 0306-0402 ●
16 03.609 ADAPTER; EXH PIPE
EXC. TURKEY EQUIPMENT(B11) 03.440 		8-97139-725-0 01 1 0403-0609 ●
16 03.609 ADAPTER; EXH PIPE
TURKEY EQUIPMENT(B11) 03.440 		8-97913-293-0 01 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0306-0402 ● ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ● ●
66 03.342 STUD; EXH PIPE
EXC. TURKEY EQUIPMENT(B11) 03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0610- ● ●
66 03.342 STUD; EXH PIPE
TURKEY EQUIPMENT(B11) M10X30 L=45 		0-49241-030-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0610-0611 ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 0710-0809 ● ●
66 03.342 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 1004- ● ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M10X25 L=40 		0-44011-025-0 02 1 1004- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-97354-090-0 01 1 0306-0609 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98011-902-0 01 1 0610- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
01.097 		8-97063-234-0 01 1 0306- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.374 (C) 		8-94321-135-1 01 1 0306-0609 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (E) 		8-97262-117-0 01 1 0610-0611 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (D) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0612- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . (B) T=2.5 		8-94472-584-1 01 1 0306- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0306- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (D) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0610-0611 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (E) 		8-97262-117-0 01 1 0612-1007 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0810- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 14 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
CHILE EQUIPMENT(KE1) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0810-1003 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0306-0402 ● ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0610-0806 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0807- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 04 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0710-0809 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 0810-1007 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1004-1007 ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
08.846 (B) ID=20.8 		8-97944-127-0 06 1 0610-1007 ●
118 03.342 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8 		8-97944-127-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.166 (B) ID=20.8 		8-94125-862-1 06 1 0610-0611 ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(A) 		8-97350-445-0 01 1 0306-0609 ●
119 03.342 HOSE; WATER,TURBOCHARGER
(D) 		8-97369-590-1 01 1 0610-1007 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(D) 		8-97369-590-1 01 1 1008- ● ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(B) L=250 W/INSULATOR 		8-94340-669-1 01 1 0306- ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-1007 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-97086-342-0 01 1 0306- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-98011-903-0 01 1 0610- ●
138 03.342 BOLT; EYE,WATER PIPE
01.531 M12X24 EYE-BOLT 		1-09675-081-0 02 1 0306- ●
138 03.342 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT 		8-98037-067-0 02 1 0610- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97325-123-0 01 1 0306-0609 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
01.097 L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-1007 ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
01.097 L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR 		8-94325-255-0 01 1 0306- ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (E) L=220 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ●
488 03.163 HOSE; RUBBER
01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
01.097 (A) L=90 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-0809 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0810-1007 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(C) 		8-97249-211-1 01 1 0306-0407 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97249-211-1 01 1 0306-0407 ●
488 03.163 HOSE; RUBBER
TURKEY EQUIPMENT(B11) (C) 		8-97249-211-1 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
EXC. TURKEY EQUIPMENT(B11) (C) 		8-97383-706-0 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
(C) 		8-97383-706-0 01 1 0409-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0409-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (J) 		8-97329-993-1 01 1 0306- ●
488 03.163 HOSE; RUBBER
01.097 (E) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-0809 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (E) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 0810- ●
488 03.163 HOSE; RUBBER
(G) 		8-98011-632-1 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (G) 		8-98011-632-1 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(H) 		8-98011-633-1 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (H) 		8-98011-633-1 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(I) 		8-98031-860-0 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (I) 		8-98031-860-0 01 1 1008- ● ●
çizim 185327
217 101 32 217 21 458 527 414 118 463 12 217 119 526 66 118 12 2 1 118 11 118 119 118 231 117 485 118 21 488 118 488 530 21 529 118 530 530 529 118 118 485 530 118 488 118
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.342 TURBOCHARGER ASM
CHILE EQUIPMENT(KE1) 		8-98164-240-0 01 1 1008- ●
1 03.342 TURBOCHARGER ASM
EXC. CHILE EQUIPMENT(KE1) 		8-98132-070-3 01 1 1008- ●
1 03.342 TURBOCHARGER ASM 8-97240-210-2 01 1 0306- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97329-588-1 01 1 0306-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0306-0306 ●
1 03.342 TURBOCHARGER ASM
EXC. COLOMBIA EQUIPMENT(CB7), GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHI LE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97354-423-4 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0610-0706 ●
1 03.342 TURBOCHARGER ASM
EGYPT EQUIPMENT(B09) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-2 01 1 0707-0707 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-3 01 1 0707- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7),GUATEMALA EQUIPMENT(CE0),ARGENTINA EQUIPMENT(E06),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0307-0609 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97365-948-0 01 1 0610- ●
1 03.342 TURBOCHARGER ASM 8-98011-529-7 01 1 0610-1007 ●
1 03.342 TURBOCHARGER ASM 8-98132-069-2 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98132-073-0 01 1 1008- ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0306-0402 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 		8-97315-266-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97315-266-0 01 1 0610- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11) 		8-97912-716-0 01 1 0403-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 0610-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97912-697-0 01 1 1004-1007 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EGYPT EQUIPMENT(B09) 		8-97912-697-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0306-0609 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 		8-94433-605-0 01 1 0610-0611 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 0612-1003 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1004-1007 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94433-605-0 01 1 1008- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) 		8-94433-605-0 01 1 1008- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0306-0609 ● ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0610-0703 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ● ●
11 03.342 NUT; TURBOCHARGER
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 03.613 M8 FLANGE 		8-97161-607-0 04 1 0704-0709 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 0710-1003 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ● ●
11 03.342 NUT; TURBOCHARGER
EGYPT EQUIPMENT(B09) 03.613 M8 FLANGE 		8-97161-607-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 0610-1003 ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1004-1007 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. EGYPT EQUIPMENT(B09) M8 FLANGE 		8-97379-384-0 04 1 1008- ●
11 03.342 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97104-508-1 04 1 0306-0408 ● ● ●
12 03.342 STUD; TURBOCHARGER
TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97104-508-1 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ● ●
12 03.342 STUD; TURBOCHARGER
EXC. TURKEY EQUIPMENT(B11) M8X20 L=31 		8-97378-060-0 04 1 0409-0409 ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0410-0609 ● ● ●
12 03.342 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0610- ● ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 1008- ● ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 0610-1007 ●
12 03.342 STUD; TURBOCHARGER
03.604 M8X30 L=41 		8-97378-064-0 02 1 1008- ● ●
21 03.358 BOLT; PIPE
04.866 (A) M6X40 FLANGE 		0-28050-640-0 02 1 0610-1007 ●
21 03.358 BOLT; PIPE
01.652 (A) M6X45 FLANGE 		0-28050-645-0 02 1 1008- ● ●
21 03.358 BOLT; PIPE
03.162 (B) M6X20 FLANGE 		0-28650-620-0 02 1 0610-1007 ●
21 03.358 BOLT; PIPE
00.685 (C) M8X40 FLANGE 		0-28650-840-0 02 1 0610-1007 ●
21 03.358 BOLT; PIPE
EURO4 SPECIFICATION<NT4> 00.685 (C) M8X40 FLANGE 		0-28650-840-0 02 1 1008- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 		8-97087-029-0 01 1 0306- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
03.602 		8-97300-338-1 01 1 0306-0609 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 03.602 		8-97300-338-1 01 1 0306-0609 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO1 SPECIFICATION<NT1> 03.602 		8-97300-338-1 01 1 0610- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98057-857-0 01 1 0610-1007 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-98156-389-0 01 1 1008- ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0306-0402 ● ● ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ● ●
66 03.342 STUD; EXH PIPE
EXC. TURKEY EQUIPMENT(B11) 03.613 M10X38 L=53 		5-09302-007-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
03.613 M10X38 L=53 		5-09302-007-0 02 1 0610- ● ●
66 03.342 STUD; EXH PIPE
TURKEY EQUIPMENT(B11) M10X30 L=45 		0-49241-030-0 02 1 0403-0609 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0610-0611 ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0612-0709 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 0710-0809 ● ●
66 03.342 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> EGYPT EQUIPMENT(B09) M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3> M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M10X22 L=43 		0-43211-022-0 02 1 1004- ● ● ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0612-0809 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. EGYPT EQUIPMENT(B09) M10X25 L=40 		0-44011-025-0 02 1 0810-1003 ●
66 03.342 STUD; EXH PIPE
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> M10X25 L=40 		0-44011-025-0 02 1 1004- ●
101 03.602 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 01.428 M6X12 FLANGE 		0-28080-612-0 03 1 0306-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0601- ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0306-0402 ● ●
101 03.602 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0306-0402 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0403-0512 ● ●
101 03.602 BOLT; HEAT PROTECTOR
EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE 		0-28080-812-0 06 1 0403-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0610- ● ●
101 03.602 BOLT; HEAT PROTECTOR
TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0403-0512 ●
101 03.602 BOLT; HEAT PROTECTOR
EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1> 02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0601-0609 ● ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 06 1 0601-0609 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0610-1007 ●
101 03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1008- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 03.374 (C) 		8-94321-135-1 01 1 0306-0609 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (E) 		8-97262-117-0 01 1 0610-0611 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (D) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0612- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . (B) T=2.5 		8-94472-584-1 01 1 0306- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0306- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 (D) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0610-0611 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE) . 01.531 (E) 		8-97262-117-0 01 1 0612-1007 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> EXC. IDENTIFICATION BREAKING POINT 2008.5 M.Y.(BRL) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0810- ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0306-0402 ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 14 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
CHILE EQUIPMENT(KE1) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0710-0806 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EGYPT EQUIPMENT(B09) ELECTRONIC CONTROL<K20> EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0807-0809 ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.153 (A) ID=12.8 		8-94367-943-0 06 1 0810-1003 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0306-0402 ● ●
118 03.342 CLIP; WATER HOSE
EXC. TURKEY EQUIPMENT(B11) 01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0403-0609 ●
118 03.342 CLIP; WATER HOSE
01.153 (A) ID=12.8 		8-94367-943-0 04 1 0610-0806 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8 		8-94367-943-0 10 1 0807- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 04 1 0610-0611 ●
118 03.342 CLIP; WATER HOSE
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0612-0709 ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 04 1 0710-0809 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 0810-1007 ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> (A) ID=12.8 		8-97944-125-0 04 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 0610-1003 ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1004-1007 ● ●
118 03.342 CLIP; WATER HOSE
EXC. EGYPT EQUIPMENT(B09) (A) ID=12.8 		8-97944-125-0 06 1 1008- ●
118 03.342 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
08.846 (B) ID=20.8 		8-97944-127-0 06 1 0610-1007 ●
118 03.342 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> 08.846 (B) ID=20.8 		8-97944-127-0 06 1 1008- ● ●
118 03.342 CLIP; WATER HOSE
EGYPT EQUIPMENT(B09) 01.166 (B) ID=20.8 		8-94125-862-1 06 1 0610-0611 ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(A) 		8-97350-445-0 01 1 0306-0609 ●
119 03.342 HOSE; WATER,TURBOCHARGER
(D) 		8-97369-590-1 01 1 0610-1007 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(D) 		8-97369-590-1 01 1 1008- ● ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
(B) L=250 W/INSULATOR 		8-94340-669-1 01 1 0306- ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-1007 ● ●
119 03.342 HOSE; WATER,TURBOCHARGER
01.097 (C) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ●
217 03.417 BOLT; BRKT
04.686 M8X60 FLANGE 		0-28050-860-0 01 1 0610-1007 ●
217 03.417 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
217 03.417 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0610-1007 ●
217 03.417 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
217 03.417 BOLT; BRKT
03.670 M8X18 FLANGE 		8-97378-076-0 01 1 0610-1007 ●
217 03.417 BOLT; BRKT
03.670 M8X18 FLANGE 		8-97378-076-0 01 1 1008- ● ●
217 03.417 BOLT; BRKT
M8X28 FLANGE 		8-98041-363-0 01 1 0610-1007 ●
217 03.417 BOLT; BRKT
M8X28 FLANGE 		8-98041-363-0 01 1 1008- ● ●
217 03.417 BOLT; BRKT
EGYPT EQUIPMENT(B09) M8X28 FLANGE 		8-98043-528-0 01 1 0610-0611 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97325-123-0 01 1 0306-0609 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
01.097 L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-1007 ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
01.097 L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
L=160 W/INSULATOR 		8-94325-255-0 01 1 0306- ●
414 03.602 SPACER 8-98059-266-0 01 1 0610-1007 ●
458 03.373 PIPE; WATER,TURBOCHARGER 8-98031-001-0 01 1 0610-1007 ●
458 03.373 PIPE; WATER,TURBOCHARGER 8-98132-035-2 01 1 1008- ● ●
463 03.602 WASHER; PL,HEAT PROTECTOR
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 0610-1007 ●
485 01.097 PIPE; WATER EGR
(A) 		8-97249-188-2 01 1 0306-0609 ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (A) 		8-97249-188-2 01 1 0306-0609 ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (A) 		8-97249-188-2 01 1 0610- ●
485 01.097 PIPE; WATER EGR
(B) 		8-97313-795-1 01 1 0306-0609 ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (B) 		8-97313-795-1 01 1 0306-0609 ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (B) 		8-97313-795-1 01 1 0610- ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION<NT3> (C) 		8-97353-795-1 01 1 0306- ●
485 01.097 PIPE; WATER EGR
(D) 		8-98011-517-0 01 1 0610-1007 ●
485 01.097 PIPE; WATER EGR
COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66) (E) 		8-98020-208-2 01 1 0610-1007 ●
485 01.097 PIPE; WATER EGR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (E) 		8-98011-520-2 01 1 0610-1007 ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION<NT4> (E) 		8-98011-520-2 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (E) L=220 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ●
488 03.163 HOSE; RUBBER
01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (D) L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
01.097 (A) L=90 SERVICED BY L=3000 		0-03559-300-0 01 1 0306-0609 ●
488 03.163 HOSE; RUBBER
01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-0809 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0810-1007 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (F) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(C) 		8-97249-211-1 01 1 0306-0407 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97249-211-1 01 1 0306-0407 ●
488 03.163 HOSE; RUBBER
TURKEY EQUIPMENT(B11) (C) 		8-97249-211-1 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
EXC. TURKEY EQUIPMENT(B11) (C) 		8-97383-706-0 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0408-0408 ●
488 03.163 HOSE; RUBBER
(C) 		8-97383-706-0 01 1 0409-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0409-0609 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (C) 		8-97383-706-0 01 1 0610- ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> (J) 		8-97329-993-1 01 1 0306- ●
488 03.163 HOSE; RUBBER
01.097 (E) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-0809 ●
488 03.163 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 01.097 (E) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 0810- ●
488 03.163 HOSE; RUBBER
(G) 		8-98011-632-1 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (G) 		8-98011-632-1 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(H) 		8-98011-633-1 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (H) 		8-98011-633-1 01 1 1008- ● ●
488 03.163 HOSE; RUBBER
(I) 		8-98031-860-0 01 1 0610-1007 ●
488 03.163 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> (I) 		8-98031-860-0 01 1 1008- ● ●
526 03.342 GASKET; PLATE
01.519 		8-97352-985-0 01 1 0610-1007 ●
526 03.342 GASKET; PLATE
01.519 		8-97352-985-0 01 1 1008- ● ●
527 03.373 BRACKET; TURBOCHARGER 8-98011-536-1 01 1 0610-1007 ●
527 03.373 BRACKET; TURBOCHARGER 8-98156-388-0 01 1 1008- ● ●
529 03.374 INSULATOR; HOSE
(A) 		8-98031-883-0 01 1 0610-1007 ●
529 03.374 INSULATOR; HOSE
EURO4 SPECIFICATION<NT4> (A) 		8-98031-883-0 01 1 1008- ● ●
529 03.374 INSULATOR; HOSE
(B) 		8-98031-884-0 01 1 0610-1007 ●
529 03.374 INSULATOR; HOSE
EURO4 SPECIFICATION<NT4> (B) 		8-98031-884-0 01 1 1008- ● ●
530 03.374 CLIP; INSULATOR
01.540 		8-97101-337-0 04 1 0610-1007 ●
530 03.374 CLIP; INSULATOR
EURO4 SPECIFICATION<NT4> 01.540 		8-97101-337-0 04 1 1008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
