Sayfa 2-37B - Isuzu EPC

2-37B — MANUAL TRANSMISSION CONT; MISSION SIDE (#7391) — 47 parça

57 39 58 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9905-
57	NIPPLE; POWER ASSISTOR M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9905-
58	HOSE; FLEX,POWER ASSISTOR L=360	0-07150-360-0	01	1	9905-

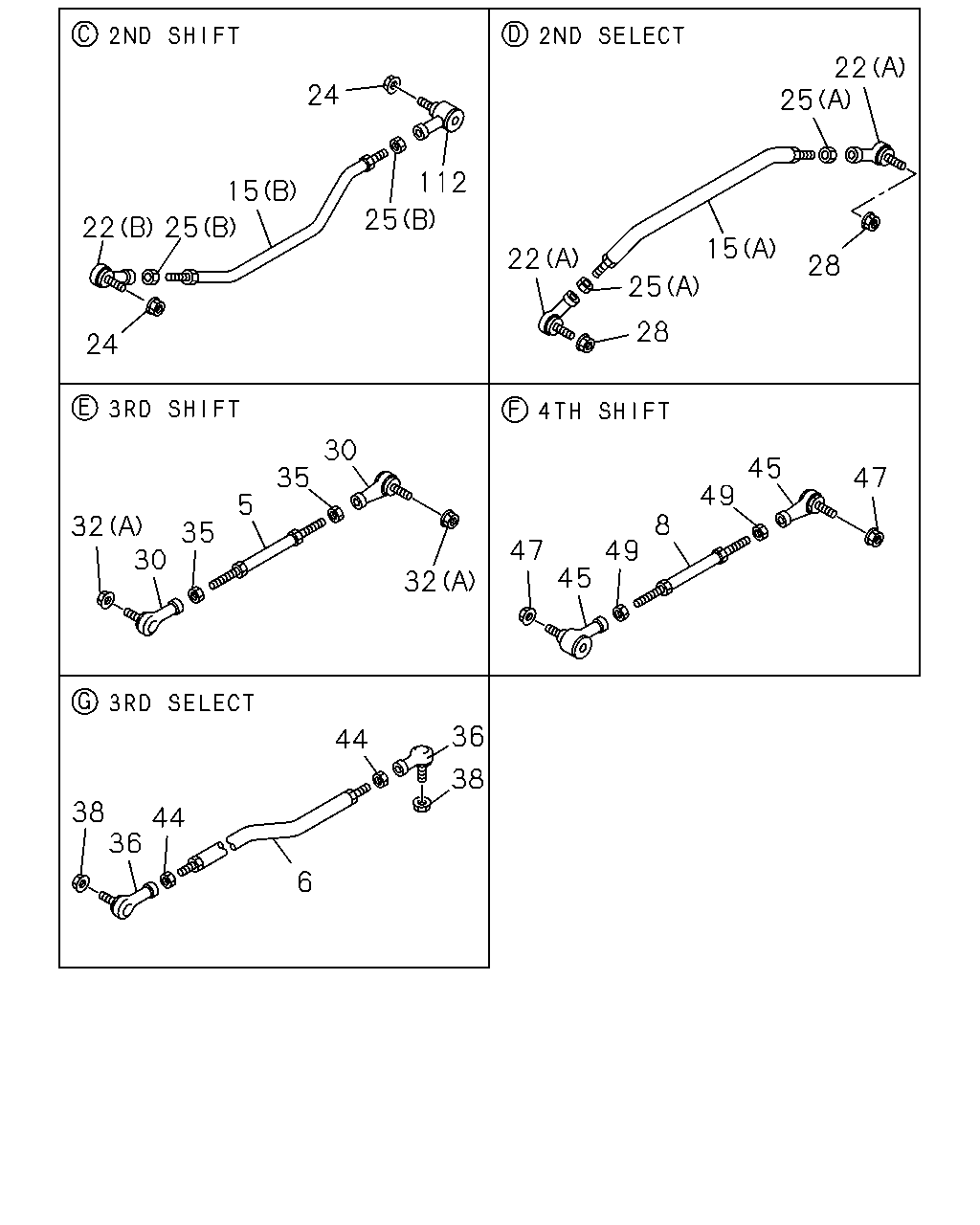

22 25 24 112 15 25 15 22 28 25 28 24 30 45 35 47 49 5 8 32 30 35 47 49 45 32 36 44 38 38 44 36 6 25 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT EXC. CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	9812-
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> L=1120	1-33652-603-0	01	1	9812-
6	ROD; LINK,3RD SELECT EXC. CAB UP +110MM<TGG> L=1624	1-33652-637-0	01	1	9905-
8	ROD; LINK,4TH SHIFT L=370	1-33652-654-1	01	1	9905-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-0	01	1	9902-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (A) L=423	1-33652-804-1	01	1	9902-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	9812-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-0	01	1	9812-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (A) L=428	1-33652-781-1	01	1	9812-
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-109-0	02	1	9902-
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-125-0	01	1	9902-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9812-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	02	1	9902-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M12	9-99111-412-0	02	1	9902-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	9812-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	9812-
32	NUT; 3RD LINK ROD (A) M10 FLANGE	1-09440-061-0	02	1	9812-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9812-
36	JOINT; BALL,RIGHT SCREW,LINK ROD EXC. CAB UP +110MM<TGG>	1-09760-109-0	02	1	9905-
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	02	1	9905-9912
44	NUT; LK,RIGHT SCREW,LINK ROD EXC. CAB UP +110MM<TGG> M10	9-09111-410-0	02	1	9905-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	9905-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	9812-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9905-
112	JOINT; RUBBER	1-33670-413-1	01	1	9905-
112	JOINT; RUBBER EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-33670-413-1	01	1	9905-

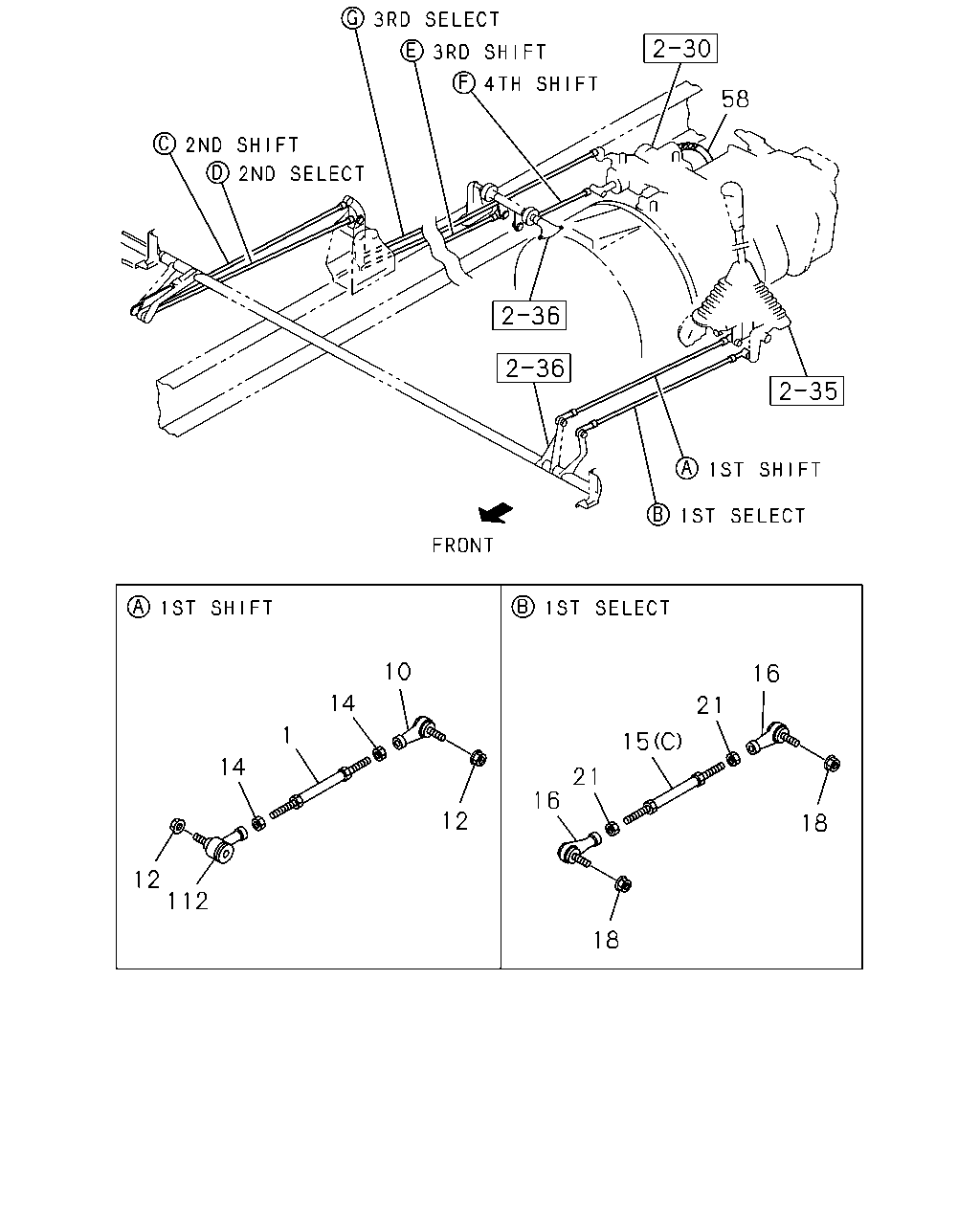

58 10 16 14 21 1 15 14 21 16 12 18 12 112 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	9812-9904
1	ROD; LINK,1ST SHIFT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=480	9-08401-248-0	01	1	9905-
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	9812-9904
10	JOINT ASM; BALL,SELECT ROD EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-09760-125-0	01	1	9905-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9812-
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9812-9904
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M12	9-99111-412-0	02	1	9905-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (B) L=474	1-33652-803-0	01	1	9902-
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> (A) L=423	1-33652-804-1	01	1	9902-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	9812-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-0	01	1	9812-
15	ROD; LINK 1ST SHIFT EXC. CAB UP +110MM<TGG> (A) L=428	1-33652-781-1	01	1	9812-
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	9812-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9812-
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9812-
58	HOSE; FLEX,POWER ASSISTOR L=360	0-07150-360-0	01	1	9905-
112	JOINT; RUBBER	1-33670-413-1	01	1	9905-
112	JOINT; RUBBER EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-33670-413-1	01	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
