◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#73909) — 56 parça

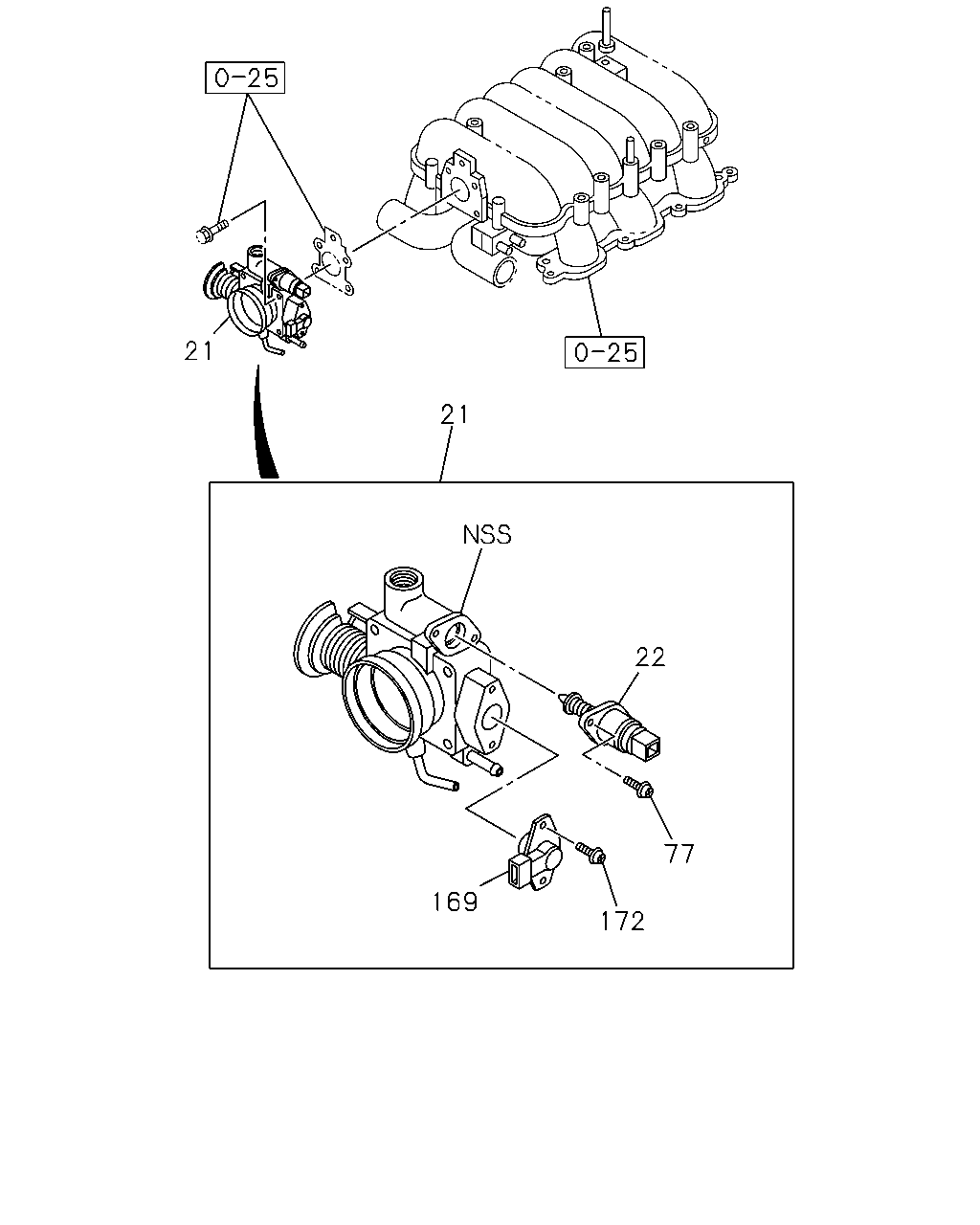

çizim 60642
21 21 22 77 169 172
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 03.440 VALVE ASM; THROTTLE 8-97315-138-0 01 1 0306-0609 ● ●
21 03.440 VALVE ASM; THROTTLE 8-97315-138-0 01 1 0610- ●
21 03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD) 		8-97232-747-0 01 1 0306-0609 ●
21 03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2> POWER STEERING<N40> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97232-747-0 01 1 0710-1003 ●
21 03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD) 		8-97232-747-0 01 1 1008- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP) 		8-97232-746-0 01 1 0306-0609 ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2> POWER STEERING<N40> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97232-746-0 01 1 0710-1003 ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97232-746-0 01 1 1008- ●
21 03.440 VALVE ASM; THROTTLE 8-92064-772-0 01 1 0306-1009 ●
21 03.440 VALVE ASM; THROTTLE 8-92066-489-0 01 1 1010- ●
22 03.440 VALVE ASM; CONT,TB 8-97181-718-0 01 1 0306-0609 ●
22 03.440 VALVE ASM; CONT,TB 8-97181-718-0 01 1 0710-1003 ●
22 03.440 VALVE ASM; CONT,TB 8-97181-718-0 01 1 1008- ●
77 03.440 SCREW; TB 8-97181-716-0 02 1 0306-0609 ●
77 03.440 SCREW; TB 8-97181-716-0 02 1 0710-1003 ●
77 03.440 SCREW; TB 8-97181-716-0 02 1 1008- ●
169 03.440 SENSOR
03.425 		8-97163-164-0 01 1 0306-0609 ● ●
169 03.440 SENSOR
03.425 		8-97163-164-0 01 1 0610- ●
169 03.440 SENSOR 8-97181-717-0 01 1 0306-0609 ●
169 03.440 SENSOR 8-97181-717-0 01 1 0710-1003 ●
169 03.440 SENSOR 8-97181-717-0 01 1 1008- ●
172 03.440 SCREW; SENSOR 8-97288-945-0 02 1 0306-0609 ● ●
172 03.440 SCREW; SENSOR 8-97288-945-0 02 1 0610- ●
172 03.440 SCREW; SENSOR 8-97181-715-0 02 1 0306-0609 ●
172 03.440 SCREW; SENSOR 8-97181-715-0 02 1 0710-1003 ●
172 03.440 SCREW; SENSOR 8-97181-715-0 02 1 1008- ●

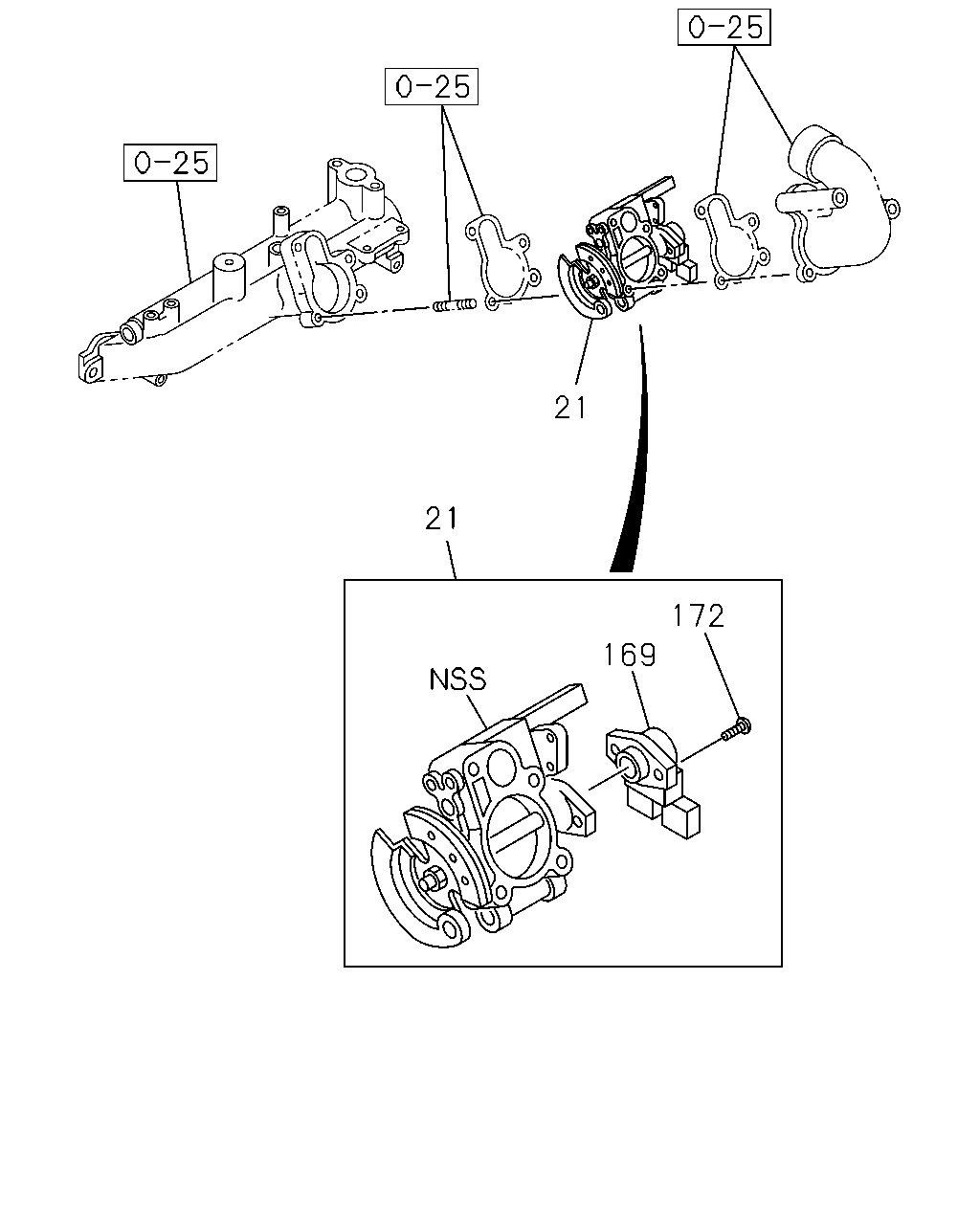

çizim 185230
21 21 172 169
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 03.440 VALVE ASM; THROTTLE 8-97315-138-0 01 1 0306-0609 ● ●
21 03.440 VALVE ASM; THROTTLE 8-97315-138-0 01 1 0610- ●
21 03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD) 		8-97232-747-0 01 1 0306-0609 ●
21 03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2> POWER STEERING<N40> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97232-747-0 01 1 0710-1003 ●
21 03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD) 		8-97232-747-0 01 1 1008- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP) 		8-97232-746-0 01 1 0306-0609 ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2> POWER STEERING<N40> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97232-746-0 01 1 0710-1003 ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97232-746-0 01 1 1008- ●
21 03.440 VALVE ASM; THROTTLE 8-92064-772-0 01 1 0306-1009 ●
21 03.440 VALVE ASM; THROTTLE 8-92066-489-0 01 1 1010- ●
169 03.440 SENSOR
03.425 		8-97163-164-0 01 1 0306-0609 ● ●
169 03.440 SENSOR
03.425 		8-97163-164-0 01 1 0610- ●
169 03.440 SENSOR 8-97181-717-0 01 1 0306-0609 ●
169 03.440 SENSOR 8-97181-717-0 01 1 0710-1003 ●
169 03.440 SENSOR 8-97181-717-0 01 1 1008- ●
172 03.440 SCREW; SENSOR 8-97288-945-0 02 1 0306-0609 ● ●
172 03.440 SCREW; SENSOR 8-97288-945-0 02 1 0610- ●
172 03.440 SCREW; SENSOR 8-97181-715-0 02 1 0306-0609 ●
172 03.440 SCREW; SENSOR 8-97181-715-0 02 1 0710-1003 ●
172 03.440 SCREW; SENSOR 8-97181-715-0 02 1 1008- ●
çizim 185231
21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 03.440 VALVE ASM; THROTTLE 8-97315-138-0 01 1 0306-0609 ● ●
21 03.440 VALVE ASM; THROTTLE 8-97315-138-0 01 1 0610- ●
21 03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD) 		8-97232-747-0 01 1 0306-0609 ●
21 03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2> POWER STEERING<N40> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97232-747-0 01 1 0710-1003 ●
21 03.440 VALVE ASM; THROTTLE
A/T AISIN(RMD) 		8-97232-747-0 01 1 1008- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP) 		8-97232-746-0 01 1 0306-0609 ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM FEDERAL,TIER 0<NA5> ,EMISSION SYSTEM FEDERAL,TIER 1<NF2> POWER STEERING<N40> EXC. IMMOBILIZER SYSTEM<7KC> 		8-97232-746-0 01 1 0710-1003 ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97232-746-0 01 1 1008- ●
21 03.440 VALVE ASM; THROTTLE 8-92064-772-0 01 1 0306-1009 ●
21 03.440 VALVE ASM; THROTTLE 8-92066-489-0 01 1 1010- ●
