◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50964 - TFR/TFS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#73908) — 303 parça

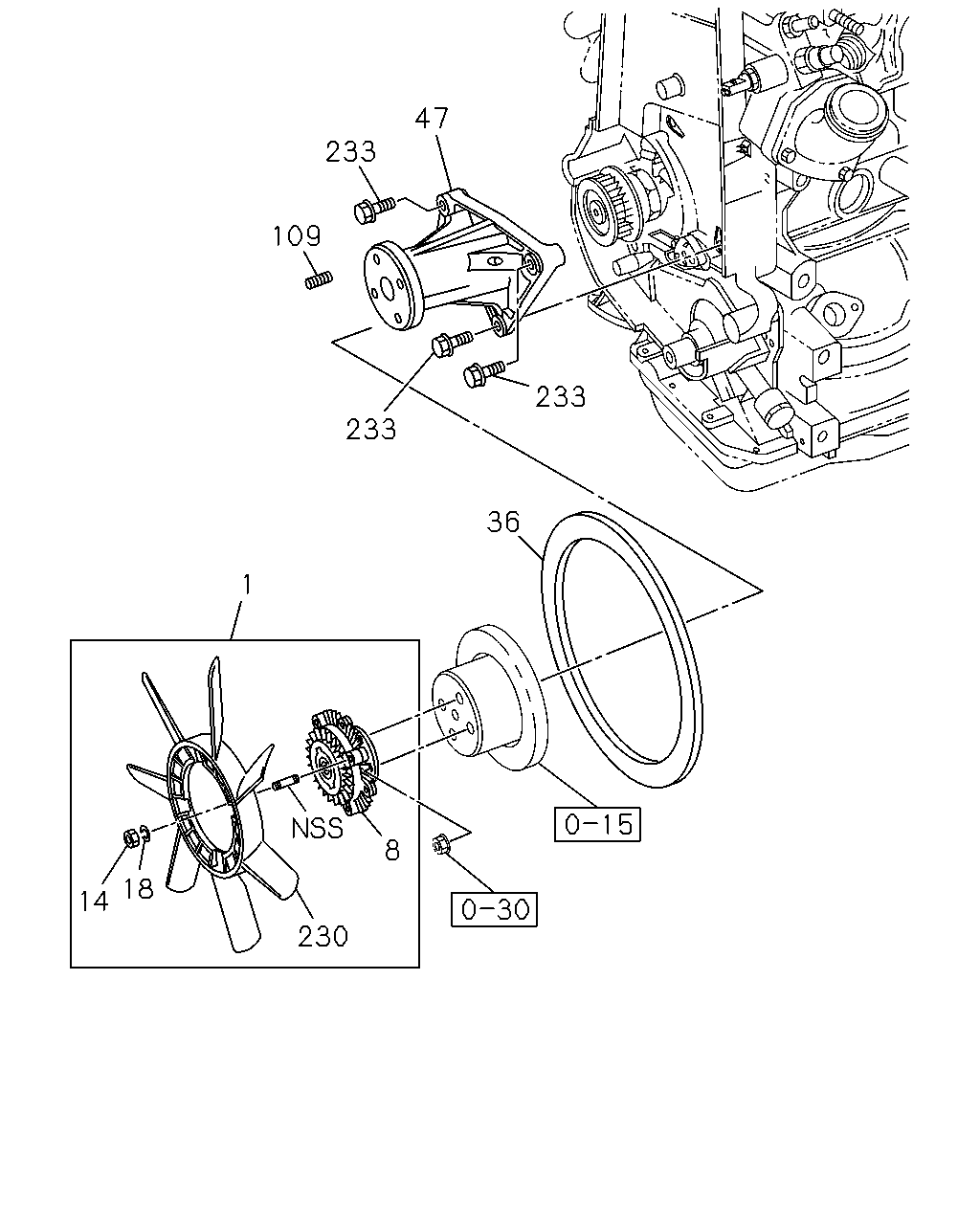

çizim 60724
47 233 109 233 233 36 1 8 18 14 230
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0306-0609 ● ● ●
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0610- ● ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0306- ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0610-1007 ● ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 1008- ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 1008- ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0306-0609 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0610- ● ●
8 01.064 CLUTCH; COOLING FAN 8-97329-954-0 01 1 0306-0405 ●
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 0406-0609 ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0610-1007 ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 1008- ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 0710-1003 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0306- ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 0509-0609 ● ● ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 0610- ● ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0306-0508 ● ● ● ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0509- ●
18 01.062 WASHER; FAN TO CLU
00.206 ID=6.1 		9-09150-506-0 04 1 0306- ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0306-0609 ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0610- ●
36 01.066 BELT; COOLING FAN
L=1025 BANDO 		8-97943-022-0 01 1 0306-0609 ●
36 01.066 BELT; COOLING FAN
L=1025 BANDO 		8-97943-022-0 01 1 0610- ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97943-173-0 01 1 0306-0609 ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97943-173-0 01 1 0610-1001 ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97947-500-0 01 1 1002- ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0306- ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0610-0611 ● ●
36 01.066 BELT; COOLING FAN
EXC. EGYPT EQUIPMENT(B09) L=1006 		8-97362-926-0 01 1 0612-0612 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0612-0612 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0612-1007 ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 1008- ● ● ●
47 01.060 BRACKET; FAN 8-97231-718-0 01 1 0306-0609 ●
47 01.060 BRACKET; FAN 8-97231-718-0 01 1 0710-1003 ●
47 01.060 BRACKET; FAN 8-97231-718-0 01 1 1008- ●
47 01.060 BRACKET; FAN 8-92064-194-0 01 1 0306- ●
109 01.062 STUD; FAN CLU 8-92064-389-0 04 1 1010- ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0306-0402 ● ● ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0403-0604 ● ●
109 01.062 STUD; FAN CLU
EXC. TURKEY EQUIPMENT(B11) 01.073 M6X18 L=27 		9-04110-618-0 04 1 0403-0604 ●
109 01.062 STUD; FAN CLU
TURKEY EQUIPMENT(B11) M6X18 L=27 		0-41010-618-0 04 1 0403-0604 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0605-0609 ● ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0610-0703 ● ●
109 01.062 STUD; FAN CLU
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> M6X18 L=27 		0-41010-618-0 04 1 0610-0703 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0704-0709 ● ●
109 01.062 STUD; FAN CLU
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> M6X18 L=27 		0-41010-618-0 04 1 0704-0709 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0710-1003 ● ●
109 01.062 STUD; FAN CLU
EGYPT EQUIPMENT(B09) M6X18 L=27 		0-41010-618-0 04 1 0710-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1004-1007 ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1008- ● ●
109 01.062 STUD; FAN CLU
EGYPT EQUIPMENT(B09) M6X18 L=27 		0-41010-618-0 04 1 1008- ●
109 01.062 STUD; FAN CLU
EXC. EGYPT EQUIPMENT(B09) M6X18 L=29 		8-97373-779-0 04 1 0610-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0610-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1004-1007 ● ●
109 01.062 STUD; FAN CLU
EXC. EGYPT EQUIPMENT(B09) M6X18 L=29 		8-97373-779-0 04 1 1008-1405 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1008-1405 ● ●
109 01.062 STUD; FAN CLU
EXC. EGYPT EQUIPMENT(B09) M6X20 L=31 		8-98256-636-0 04 1 1406- ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1406- ● ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 0306-0609 ● ● ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 0610- ● ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 0306- ●
233 01.060 BOLT; FAN BRKT
M8X98 FLANGE 		8-97182-861-0 02 1 0306-0609 ●
233 01.060 BOLT; FAN BRKT
M8X98 FLANGE 		8-97182-861-1 02 1 0710-1003 ●
233 01.060 BOLT; FAN BRKT
M8X98 FLANGE 		8-97182-861-1 02 1 1008- ●
233 01.060 BOLT; FAN BRKT 8-11082-931-0 03 1 0306-1009 ●
233 01.060 BOLT; FAN BRKT 8-93299-090-0 03 1 1010- ●

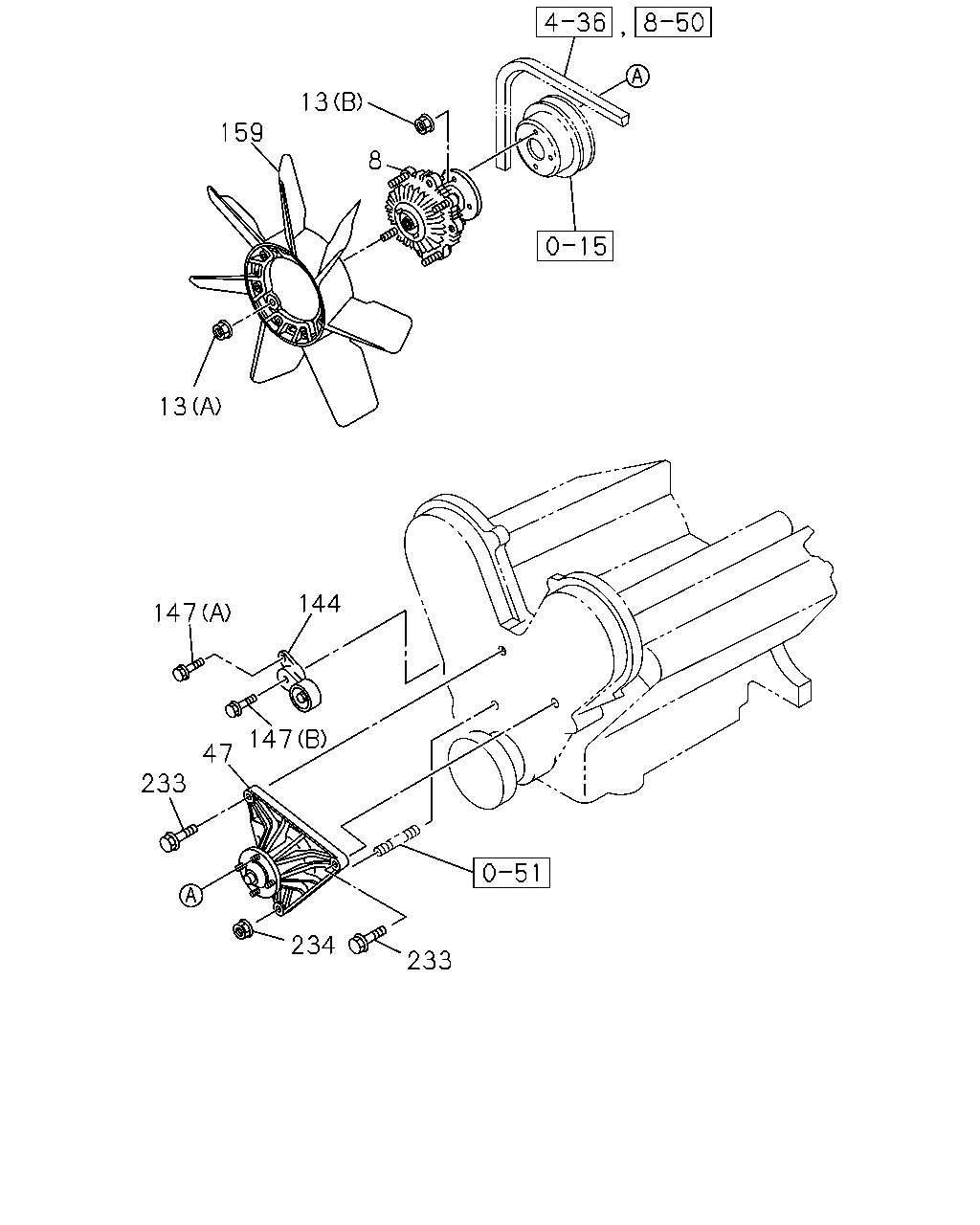

çizim 60833
13 159 8 13 144 147 147 47 233 234 233
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 1008- ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0306-0609 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0610- ● ●
8 01.064 CLUTCH; COOLING FAN 8-97329-954-0 01 1 0306-0405 ●
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 0406-0609 ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0610-1007 ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 1008- ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 0710-1003 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0306- ●
13 01.062 NUT; COOLING FAN
EGYPT EQUIPMENT(B09) 07.829 (C) M6 FLANGE 		5-09440-004-0 04 1 1008- ●
13 01.062 NUT; COOLING FAN
(A) M6 FLANGE 		0-91180-106-0 04 1 1008- ●
13 01.062 NUT; COOLING FAN
(B) M8 FLANGE 		0-91180-108-0 04 1 1008- ●
13 01.062 NUT; COOLING FAN
EXC. EGYPT EQUIPMENT(B09) 16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 0710-1003 ●
13 01.062 NUT; COOLING FAN
16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 0710-1003 ●
13 01.062 NUT; COOLING FAN
16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 1004-1007 ● ●
13 01.062 NUT; COOLING FAN
EXC. EGYPT EQUIPMENT(B09) 16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 1008- ●
13 01.062 NUT; COOLING FAN
16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 1008- ● ●
13 01.062 NUT; COOLING FAN
(A) M6 FLANGE 		0-91180-106-0 04 1 0306-0609 ●
13 01.062 NUT; COOLING FAN
EGYPT EQUIPMENT(B09) 07.829 (C) M6 FLANGE 		5-09440-004-0 04 1 0610-1003 ●
13 01.062 NUT; COOLING FAN
(B) M8 FLANGE 		0-91180-108-0 04 1 0306-0609 ●
13 01.062 NUT; COOLING FAN
EXC. EGYPT EQUIPMENT(B09) 16.320 (C) M6 FLANGE 		8-97943-101-0 04 1 0610-0704 ●
13 01.062 NUT; COOLING FAN
16.320 (C) M6 FLANGE 		8-97943-101-0 04 1 0610-0704 ●
13 01.062 NUT; COOLING FAN
EXC. EGYPT EQUIPMENT(B09) 16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 0705-0709 ●
13 01.062 NUT; COOLING FAN
16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 0705-0709 ●
13 01.062 NUT; COOLING FAN
(A) M6 FLANGE 		0-91180-106-0 04 1 0710-1003 ●
13 01.062 NUT; COOLING FAN
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-1003 ●
47 01.060 BRACKET; FAN 8-97231-718-0 01 1 0306-0609 ●
47 01.060 BRACKET; FAN 8-97231-718-0 01 1 0710-1003 ●
47 01.060 BRACKET; FAN 8-97231-718-0 01 1 1008- ●
47 01.060 BRACKET; FAN 8-92064-194-0 01 1 0306- ●
144 01.060 TENSIONER; DRIVE BELT
09.180 		8-97125-860-1 01 1 0306-0609 ●
144 01.060 TENSIONER; DRIVE BELT
09.180 		8-97125-860-1 01 1 0710-1003 ●
144 01.060 TENSIONER; DRIVE BELT
09.180 		8-97125-860-1 01 1 1008- ●
147 01.060 BOLT; BELT TENSIONER
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0306-0609 ●
147 01.060 BOLT; BELT TENSIONER
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0710-1003 ●
147 01.060 BOLT; BELT TENSIONER
(A) M8X35 FLANGE 		0-28650-835-0 01 1 1008- ●
147 01.060 BOLT; BELT TENSIONER
09.190 (B) M10X65 		9-05821-065-0 01 1 0306-0609 ●
147 01.060 BOLT; BELT TENSIONER
09.190 (B) M10X65 		9-05821-065-0 01 1 0710-0911 ●
147 01.060 BOLT; BELT TENSIONER
(B) M10X65 		8-98144-647-0 01 1 0912-1003 ●
147 01.060 BOLT; BELT TENSIONER
(B) M10X65 		8-98144-647-0 01 1 1008- ●
159 01.064 BLADE; COOLING FAN 8-97130-757-1 01 1 0306-0405 ●
159 01.064 BLADE; COOLING FAN 8-97349-762-0 01 1 0406-0609 ●
159 01.064 BLADE; COOLING FAN 8-97349-762-0 01 1 0710-1003 ●
159 01.064 BLADE; COOLING FAN 8-97349-762-0 01 1 1008- ●
233 01.060 BOLT; FAN BRKT
M8X98 FLANGE 		8-97182-861-0 02 1 0306-0609 ●
233 01.060 BOLT; FAN BRKT
M8X98 FLANGE 		8-97182-861-1 02 1 0710-1003 ●
233 01.060 BOLT; FAN BRKT
M8X98 FLANGE 		8-97182-861-1 02 1 1008- ●
233 01.060 BOLT; FAN BRKT 8-11082-931-0 03 1 0306-1009 ●
233 01.060 BOLT; FAN BRKT 8-93299-090-0 03 1 1010- ●
234 01.060 NUT; FAN BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0306-0609 ●
234 01.060 NUT; FAN BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-1003 ●
234 01.060 NUT; FAN BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1008- ●

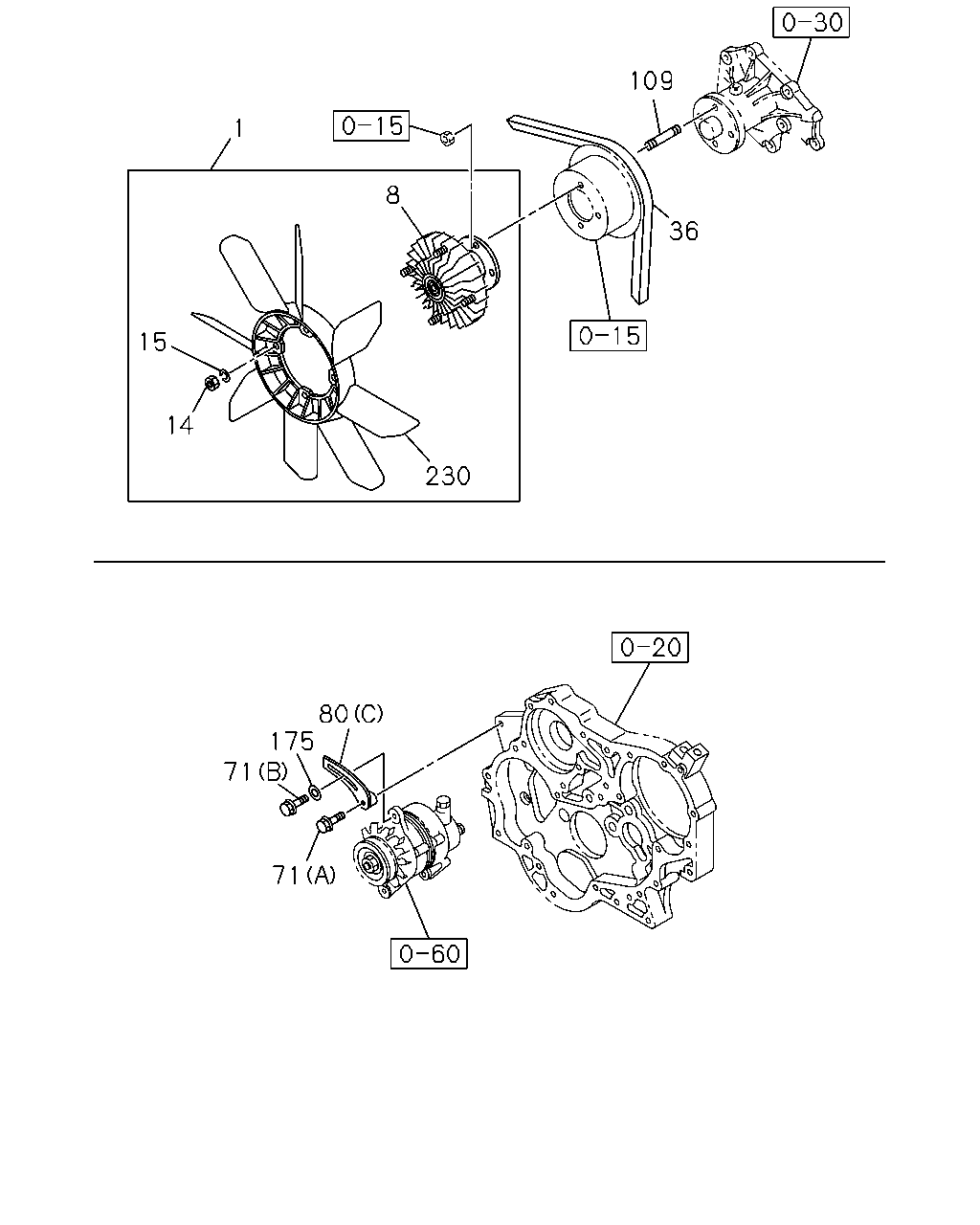

çizim 60989
109 1 8 36 15 14 230 80 175 71 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0306-0609 ● ● ●
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0610- ● ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0306- ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0610-1007 ● ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 1008- ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 1008- ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0306-0609 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0610- ● ●
8 01.064 CLUTCH; COOLING FAN 8-97329-954-0 01 1 0306-0405 ●
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 0406-0609 ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0610-1007 ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 1008- ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 0710-1003 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0306- ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 0509-0609 ● ● ●
14 01.062 NUT; FAN TO CLU 8-98012-835-0 04 1 0610- ● ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0306-0508 ● ● ● ●
14 01.062 NUT; FAN TO CLU
00.413 M6 		9-09110-506-0 04 1 0509- ●
15 01.062 WASHER; LK,COOLING FAN
00.206 ID=6.1 		9-09150-506-0 04 1 0306-0508 ● ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0306-0609 ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0610- ●
36 01.066 BELT; COOLING FAN
L=1025 BANDO 		8-97943-022-0 01 1 0306-0609 ●
36 01.066 BELT; COOLING FAN
L=1025 BANDO 		8-97943-022-0 01 1 0610- ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97943-173-0 01 1 0306-0609 ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97943-173-0 01 1 0610-1001 ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97947-500-0 01 1 1002- ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0306- ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0610-0611 ● ●
36 01.066 BELT; COOLING FAN
EXC. EGYPT EQUIPMENT(B09) L=1006 		8-97362-926-0 01 1 0612-0612 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0612-0612 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0612-1007 ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 1008- ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
EGYPT EQUIPMENT(B09) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 0306-0609 ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 0610- ● ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0306-0609 ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0610- ● ●
71 02.317 BOLT; ADJ PLATE,GEN
EGYPT EQUIPMENT(B09) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0612-1003 ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 0306-0609 ● ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 0610- ● ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-0 01 1 0610-0611 ● ●
80 02.317 PLATE; ADJ
EXC. EGYPT EQUIPMENT(B09) (B) 		8-97322-592-0 01 1 0612-0612 ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-0 01 1 0612-0612 ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 0612-1007 ● ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 1008- ● ● ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-0 01 1 0610-0611 ● ●
80 02.317 PLATE; ADJ
EXC. EGYPT EQUIPMENT(B09) (A) 		8-97944-144-1 01 1 0612-1003 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 0612-1003 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1004-1007 ● ●
80 02.317 PLATE; ADJ
EXC. EGYPT EQUIPMENT(B09) (A) 		8-97944-144-1 01 1 1008-1402 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1008-1402 ● ●
80 02.317 PLATE; ADJ
EXC. EGYPT EQUIPMENT(B09), IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97944-144-1 01 1 1403- ● ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1403- ●
109 01.062 STUD; FAN CLU 8-92064-389-0 04 1 1010- ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0306-0402 ● ● ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0403-0604 ● ●
109 01.062 STUD; FAN CLU
EXC. TURKEY EQUIPMENT(B11) 01.073 M6X18 L=27 		9-04110-618-0 04 1 0403-0604 ●
109 01.062 STUD; FAN CLU
TURKEY EQUIPMENT(B11) M6X18 L=27 		0-41010-618-0 04 1 0403-0604 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0605-0609 ● ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0610-0703 ● ●
109 01.062 STUD; FAN CLU
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> M6X18 L=27 		0-41010-618-0 04 1 0610-0703 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0704-0709 ● ●
109 01.062 STUD; FAN CLU
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> M6X18 L=27 		0-41010-618-0 04 1 0704-0709 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0710-1003 ● ●
109 01.062 STUD; FAN CLU
EGYPT EQUIPMENT(B09) M6X18 L=27 		0-41010-618-0 04 1 0710-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1004-1007 ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1008- ● ●
109 01.062 STUD; FAN CLU
EGYPT EQUIPMENT(B09) M6X18 L=27 		0-41010-618-0 04 1 1008- ●
109 01.062 STUD; FAN CLU
EXC. EGYPT EQUIPMENT(B09) M6X18 L=29 		8-97373-779-0 04 1 0610-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0610-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1004-1007 ● ●
109 01.062 STUD; FAN CLU
EXC. EGYPT EQUIPMENT(B09) M6X18 L=29 		8-97373-779-0 04 1 1008-1405 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1008-1405 ● ●
109 01.062 STUD; FAN CLU
EXC. EGYPT EQUIPMENT(B09) M6X20 L=31 		8-98256-636-0 04 1 1406- ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1406- ● ●
175 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 0306-0606 ● ● ●
175 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 0607-0609 ● ● ●
175 02.317 WASHER; PL,ADJ PLATE
02.277 ID=8.4 OD=22 		0-91614-708-0 01 1 0610- ● ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 0306-0609 ● ● ●
230 01.055 FAN; COOLING 8-97921-857-1 01 1 0610- ● ●
230 01.055 FAN; COOLING
01.604 		8-94310-517-0 01 1 0306- ●

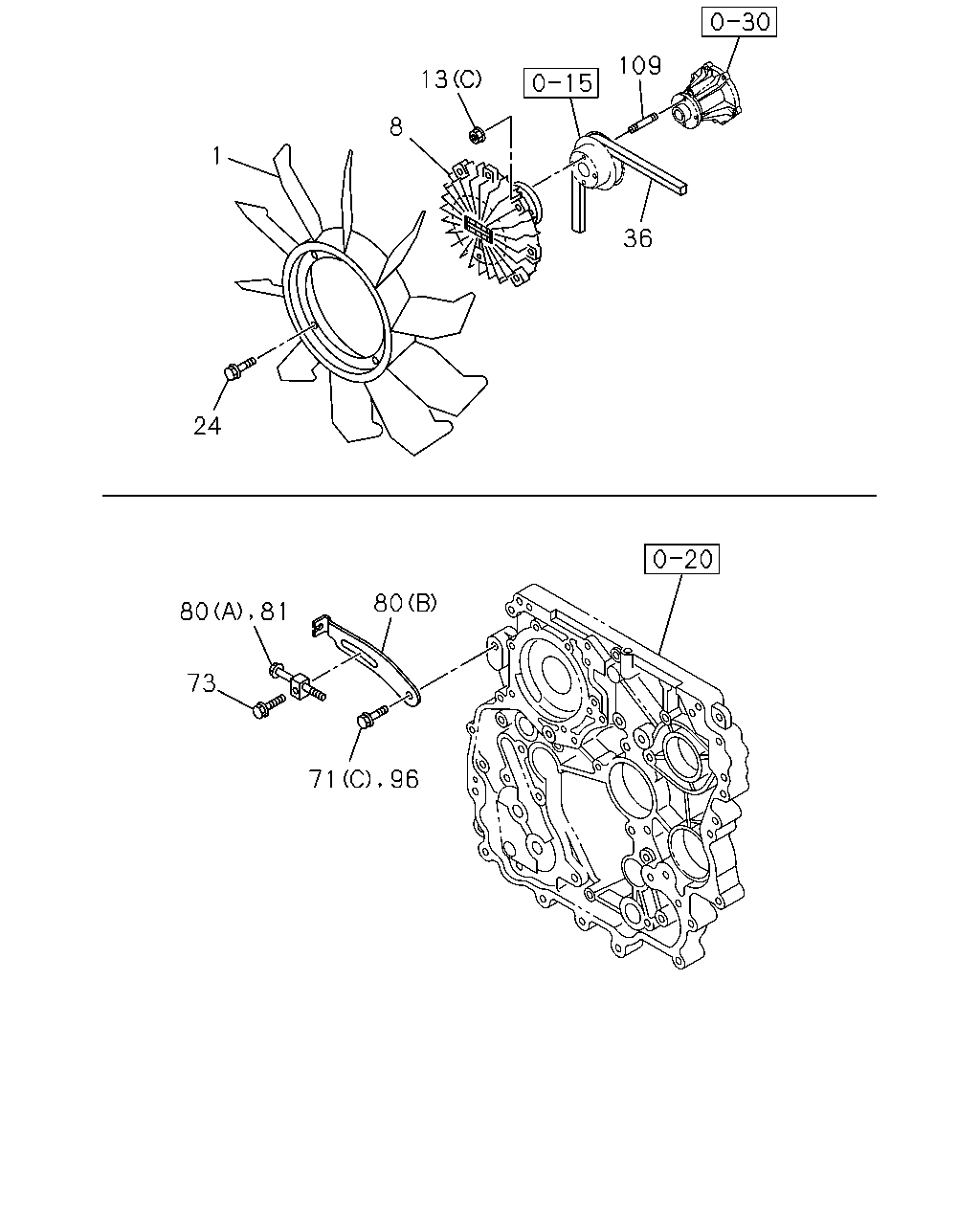

çizim 61040
109 13 8 1 36 24 80 80 81 73 71 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0306-0609 ● ● ●
1 01.064 FAN; COOLING 8-97318-963-1 01 1 0610- ● ●
1 01.064 FAN; COOLING
OD=410 		8-94454-187-0 01 1 0306- ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 0610-1007 ● ●
1 01.064 FAN; COOLING 8-97944-150-0 01 1 1008- ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 1008- ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0306-0609 ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97302-291-0 01 1 0610- ● ●
8 01.064 CLUTCH; COOLING FAN 8-97329-954-0 01 1 0306-0405 ●
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 0406-0609 ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 0610-1007 ● ●
8 01.064 CLUTCH; COOLING FAN 8-97944-149-1 01 1 1008- ● ● ●
8 01.064 CLUTCH; COOLING FAN 8-97349-761-0 01 1 0710-1003 ●
8 01.064 CLUTCH; COOLING FAN
01.066 		8-94412-030-0 01 1 0306- ●
13 01.062 NUT; COOLING FAN
EGYPT EQUIPMENT(B09) 07.829 (C) M6 FLANGE 		5-09440-004-0 04 1 1008- ●
13 01.062 NUT; COOLING FAN
(A) M6 FLANGE 		0-91180-106-0 04 1 1008- ●
13 01.062 NUT; COOLING FAN
(B) M8 FLANGE 		0-91180-108-0 04 1 1008- ●
13 01.062 NUT; COOLING FAN
EXC. EGYPT EQUIPMENT(B09) 16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 0710-1003 ●
13 01.062 NUT; COOLING FAN
16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 0710-1003 ●
13 01.062 NUT; COOLING FAN
16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 1004-1007 ● ●
13 01.062 NUT; COOLING FAN
EXC. EGYPT EQUIPMENT(B09) 16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 1008- ●
13 01.062 NUT; COOLING FAN
16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 1008- ● ●
13 01.062 NUT; COOLING FAN
(A) M6 FLANGE 		0-91180-106-0 04 1 0306-0609 ●
13 01.062 NUT; COOLING FAN
EGYPT EQUIPMENT(B09) 07.829 (C) M6 FLANGE 		5-09440-004-0 04 1 0610-1003 ●
13 01.062 NUT; COOLING FAN
(B) M8 FLANGE 		0-91180-108-0 04 1 0306-0609 ●
13 01.062 NUT; COOLING FAN
EXC. EGYPT EQUIPMENT(B09) 16.320 (C) M6 FLANGE 		8-97943-101-0 04 1 0610-0704 ●
13 01.062 NUT; COOLING FAN
16.320 (C) M6 FLANGE 		8-97943-101-0 04 1 0610-0704 ●
13 01.062 NUT; COOLING FAN
EXC. EGYPT EQUIPMENT(B09) 16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 0705-0709 ●
13 01.062 NUT; COOLING FAN
16.320 (C) M6 FLANGE 		8-98049-362-0 04 1 0705-0709 ●
13 01.062 NUT; COOLING FAN
(A) M6 FLANGE 		0-91180-106-0 04 1 0710-1003 ●
13 01.062 NUT; COOLING FAN
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-1003 ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 0610-1007 ● ●
24 01.062 BOLT; FAN
00.685 M6X25 FLANGE 		0-28650-625-0 04 1 1008- ● ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0306-0609 ● ●
36 01.066 BELT; COOLING FAN
L=1027 		8-97910-219-0 01 1 0610- ●
36 01.066 BELT; COOLING FAN
L=1025 BANDO 		8-97943-022-0 01 1 0306-0609 ●
36 01.066 BELT; COOLING FAN
L=1025 BANDO 		8-97943-022-0 01 1 0610- ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97943-173-0 01 1 0306-0609 ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97943-173-0 01 1 0610-1001 ●
36 01.066 BELT; COOLING FAN
L=1025 MITSUBOSHI 		8-97947-500-0 01 1 1002- ●
36 01.066 BELT; COOLING FAN
L=1059 		8-92063-694-0 01 1 0306- ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0610-0611 ● ●
36 01.066 BELT; COOLING FAN
EXC. EGYPT EQUIPMENT(B09) L=1006 		8-97362-926-0 01 1 0612-0612 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0612-0612 ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 0612-1007 ● ●
36 01.066 BELT; COOLING FAN
L=1006 		8-97362-926-0 01 1 1008- ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
EGYPT EQUIPMENT(B09) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 0306-0609 ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
02.277 (B) M8X40 FLANGE 		0-28050-840-0 01 1 0610- ● ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0306-0609 ● ● ●
71 02.317 BOLT; ADJ PLATE,GEN
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0610- ● ●
71 02.317 BOLT; ADJ PLATE,GEN
EGYPT EQUIPMENT(B09) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 0612-1003 ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0610-0611 ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
EXC. EGYPT EQUIPMENT(B09) 01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0612-0612 ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0612-0612 ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0612-1007 ● ●
73 02.277 BOLT; GEN TO ADJ PLATE
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 1008- ● ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 0306-0609 ● ● ●
80 02.317 PLATE; ADJ
02.277 (C) 		8-97306-546-0 01 1 0610- ● ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-0 01 1 0610-0611 ● ●
80 02.317 PLATE; ADJ
EXC. EGYPT EQUIPMENT(B09) (B) 		8-97322-592-0 01 1 0612-0612 ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-0 01 1 0612-0612 ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 0612-1007 ● ●
80 02.317 PLATE; ADJ
(B) 		8-97322-592-1 01 1 1008- ● ● ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-0 01 1 0610-0611 ● ●
80 02.317 PLATE; ADJ
EXC. EGYPT EQUIPMENT(B09) (A) 		8-97944-144-1 01 1 0612-1003 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 0612-1003 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1004-1007 ● ●
80 02.317 PLATE; ADJ
EXC. EGYPT EQUIPMENT(B09) (A) 		8-97944-144-1 01 1 1008-1402 ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1008-1402 ● ●
80 02.317 PLATE; ADJ
EXC. EGYPT EQUIPMENT(B09), IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-97944-144-1 01 1 1403- ● ●
80 02.317 PLATE; ADJ
(A) 		8-97944-144-1 01 1 1403- ●
81 02.317 PIECE; SLIDING
EGYPT EQUIPMENT(B09) 		8-97944-144-1 01 1 0612-1003 ● ●
81 02.317 PIECE; SLIDING
EGYPT EQUIPMENT(B09) 		8-97944-144-1 01 1 1008- ● ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0610-0611 ● ●
96 02.317 BOLT; ADJ PLATE
EXC. EGYPT EQUIPMENT(B09) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0612-1003 ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0612-1003 ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1004-1007 ● ●
96 02.317 BOLT; ADJ PLATE
EXC. EGYPT EQUIPMENT(B09) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1008-1402 ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1008-1402 ● ●
96 02.317 BOLT; ADJ PLATE
EXC. EGYPT EQUIPMENT(B09), IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1403- ● ●
96 02.317 BOLT; ADJ PLATE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1403- ●
109 01.062 STUD; FAN CLU 8-92064-389-0 04 1 1010- ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0306-0402 ● ● ●
109 01.062 STUD; FAN CLU
01.073 M6X18 L=27 		9-04110-618-0 04 1 0403-0604 ● ●
109 01.062 STUD; FAN CLU
EXC. TURKEY EQUIPMENT(B11) 01.073 M6X18 L=27 		9-04110-618-0 04 1 0403-0604 ●
109 01.062 STUD; FAN CLU
TURKEY EQUIPMENT(B11) M6X18 L=27 		0-41010-618-0 04 1 0403-0604 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0605-0609 ● ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0610-0703 ● ●
109 01.062 STUD; FAN CLU
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION<NT3> M6X18 L=27 		0-41010-618-0 04 1 0610-0703 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0704-0709 ● ●
109 01.062 STUD; FAN CLU
M/T MUA 5 SPEED 5H(MWQ) EGYPT EQUIPMENT(B09) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATI ON<NT2> M6X18 L=27 		0-41010-618-0 04 1 0704-0709 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0710-1003 ● ●
109 01.062 STUD; FAN CLU
EGYPT EQUIPMENT(B09) M6X18 L=27 		0-41010-618-0 04 1 0710-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1004-1007 ● ●
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 1008- ● ●
109 01.062 STUD; FAN CLU
EGYPT EQUIPMENT(B09) M6X18 L=27 		0-41010-618-0 04 1 1008- ●
109 01.062 STUD; FAN CLU
EXC. EGYPT EQUIPMENT(B09) M6X18 L=29 		8-97373-779-0 04 1 0610-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 0610-1003 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1004-1007 ● ●
109 01.062 STUD; FAN CLU
EXC. EGYPT EQUIPMENT(B09) M6X18 L=29 		8-97373-779-0 04 1 1008-1405 ●
109 01.062 STUD; FAN CLU
M6X18 L=29 		8-97373-779-0 04 1 1008-1405 ● ●
109 01.062 STUD; FAN CLU
EXC. EGYPT EQUIPMENT(B09) M6X20 L=31 		8-98256-636-0 04 1 1406- ●
109 01.062 STUD; FAN CLU
M6X20 L=31 		8-98256-636-0 04 1 1406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
