Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#73907) — 181 parça

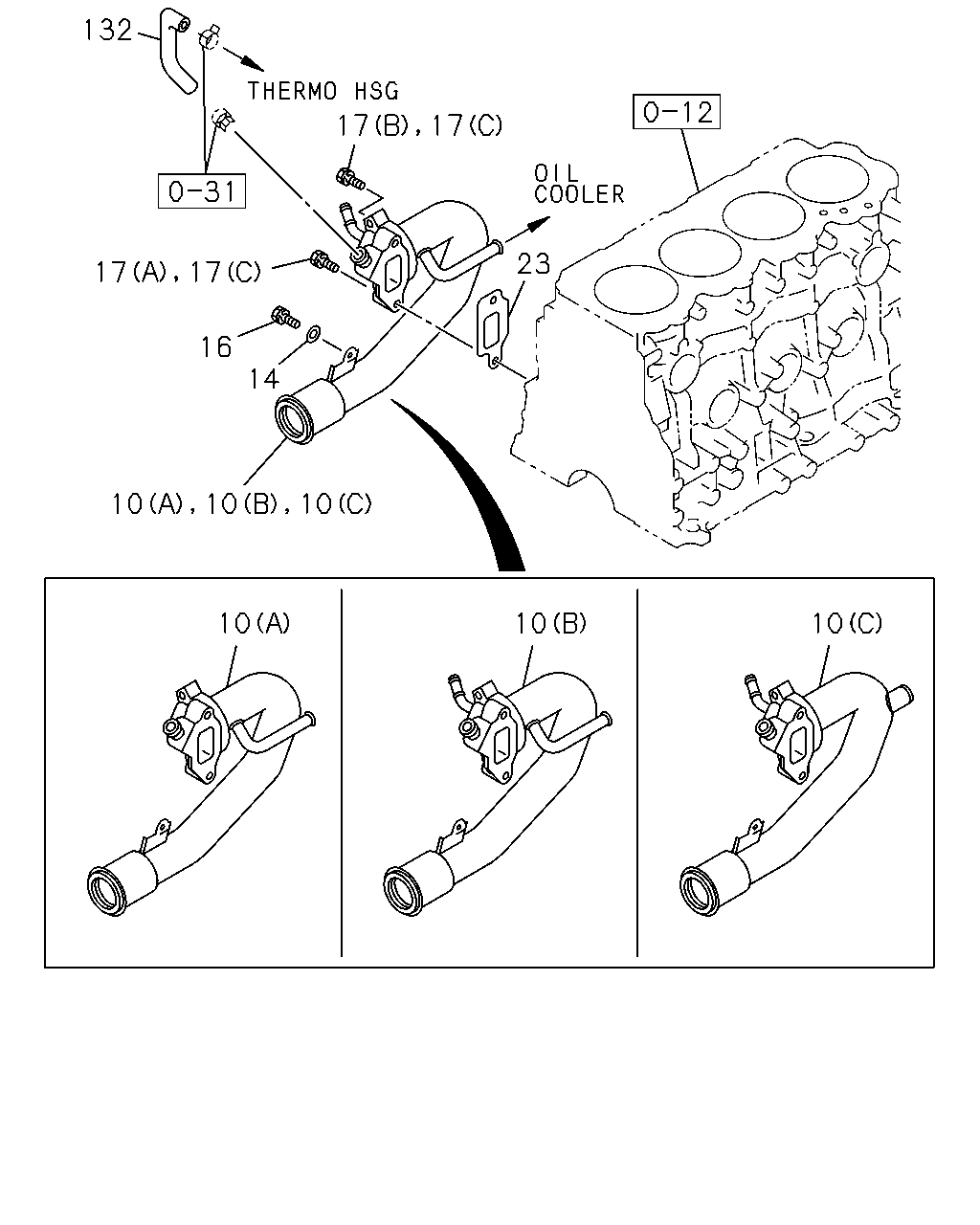

132 17 17 23 17 17 16 14 10 10 10 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	01.153 PIPE; SUCTION (A)	8-97362-302-0	01	1	0306-0407	●
10	01.153 PIPE; SUCTION (C)	8-97381-633-0	01	1	0408-	●
10	01.153 PIPE; SUCTION (C)	8-97329-656-1	01	1	0306-0609		●
10	01.153 PIPE; SUCTION EURO3 SPECIFICATION<NT3> (C)	8-97329-656-1	01	1	0306-0609			●
10	01.153 PIPE; SUCTION EURO3 SPECIFICATION<NT3> (C)	8-97329-656-1	01	1	0610-			●
10	01.153 PIPE; SUCTION EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-97328-455-1	01	1	0306-0407			●
10	01.153 PIPE; SUCTION EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C)	8-97381-632-0	01	1	0408-0609			●
10	01.153 PIPE; SUCTION EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (C)	8-97381-632-0	01	1	0610-			●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	0306-0609	●	●	●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	0610-	●		●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	0306-0402	●	●	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	0403-0609	●		●
16	01.097 BOLT; INL PIPE EXC. TURKEY EQUIPMENT(B11) 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	0403-0609		●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	0610-0909	●		●
16	01.097 BOLT; INL PIPE 00.206 M8X20 W/LK WASHER	0-50540-820-0	01	1	0910-	●		●
16	01.097 BOLT; INL PIPE TURKEY EQUIPMENT(B11) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0403-0609		●
17	01.153 BOLT; SUCTION PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0306-0307	●	●	●
17	01.153 BOLT; SUCTION PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0308-0407	●
17	01.153 BOLT; SUCTION PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0308-0407			●
17	01.153 BOLT; SUCTION PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0306-0307	●	●	●
17	01.153 BOLT; SUCTION PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0308-0407	●
17	01.153 BOLT; SUCTION PIPE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0308-0407			●
17	01.153 BOLT; SUCTION PIPE 01.531 (C) M8X50 W/LK WASHER	0-50040-850-0	02	1	0308-0402		●
17	01.153 BOLT; SUCTION PIPE EURO3 SPECIFICATION<NT3> 01.531 (C) M8X50 W/LK WASHER	0-50040-850-0	02	1	0308-0402			●
17	01.153 BOLT; SUCTION PIPE EXC. TURKEY EQUIPMENT(B11) 01.531 (C) M8X50 W/LK WASHER	0-50040-850-0	02	1	0403-0407		●
17	01.153 BOLT; SUCTION PIPE EURO3 SPECIFICATION<NT3> 01.531 (C) M8X50 W/LK WASHER	0-50040-850-0	02	1	0403-0407			●
17	01.153 BOLT; SUCTION PIPE 01.531 (C) M8X50 W/LK WASHER	0-50040-850-0	02	1	0408-0512	●		●
17	01.153 BOLT; SUCTION PIPE EXC. TURKEY EQUIPMENT(B11) 01.531 (C) M8X50 W/LK WASHER	0-50040-850-0	02	1	0408-0512		●
17	01.153 BOLT; SUCTION PIPE TURKEY EQUIPMENT(B11) 00.206 (C) M8X50 W/LK WASHER	0-50540-850-0	02	1	0403-0512		●
17	01.153 BOLT; SUCTION PIPE 00.206 (C) M8X50 W/LK WASHER	0-50540-850-0	02	1	0601-0609	●	●	●
17	01.153 BOLT; SUCTION PIPE 00.206 (C) M8X50 W/LK WASHER	0-50540-850-0	02	1	0610-	●		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0306-0402	●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0403-0609	●		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11)	8-94365-676-3	01	1	0403-0609		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0610-	●		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11)	8-97943-089-0	01	1	0403-0609		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	0-95690-338-0	01	1	0610-1007				●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	0-95690-338-0	01	1	1008-				●	●	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-246-0	01	1	0306-0402	●	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-246-0	01	1	0403-0609	●
132	01.153 HOSE; WATER PIPE EXC. TURKEY EQUIPMENT(B11) 01.097	8-94382-246-0	01	1	0403-0609		●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-246-0	01	1	0610-	●
132	01.153 HOSE; WATER PIPE TURKEY EQUIPMENT(B11)	8-97910-064-0	01	1	0403-0609		●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	0306-			●

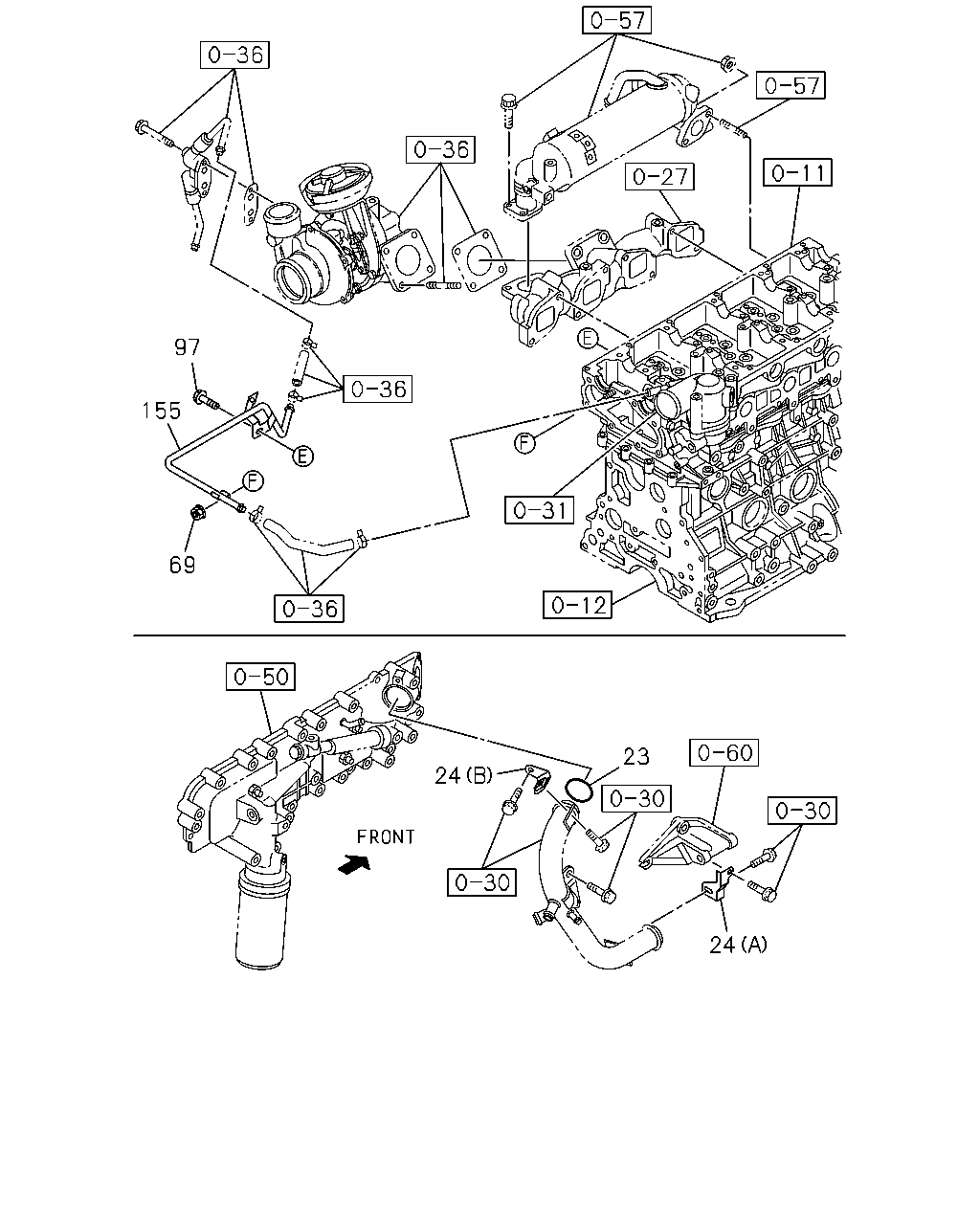

97 155 69 23 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0306-0402	●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0403-0609	●		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11)	8-94365-676-3	01	1	0403-0609		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0610-	●		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11)	8-97943-089-0	01	1	0403-0609		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	0-95690-338-0	01	1	0610-1007				●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	0-95690-338-0	01	1	1008-				●	●	●
24	01.166 BRACKET; WATER PIPE (A)	8-97375-053-1	01	1	0610-0611				●
24	01.166 BRACKET; WATER PIPE (A)	8-98039-450-0	01	1	0612-1007					●
24	01.166 BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-98039-450-0	01	1	1008-					●	●
24	01.166 BRACKET; WATER PIPE (B)	8-97377-505-1	01	1	0610-1007				●	●
24	01.166 BRACKET; WATER PIPE (B)	8-97377-505-1	01	1	1008-				●	●	●
24	01.166 BRACKET; WATER PIPE (A)	8-98039-450-0	01	1	0610-0611					●
24	01.166 BRACKET; WATER PIPE (A)	8-97375-053-2	01	1	0612-1007				●
24	01.166 BRACKET; WATER PIPE (A)	8-97375-053-2	01	1	1008-				●
24	01.166 BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97375-053-2	01	1	1008-					●
69	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	0610-1007				●	●
69	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1008-				●	●	●
97	04.866 BOLT; WATER PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-1007				●	●
97	04.866 BOLT; WATER PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1008-				●	●	●
155	01.153 PIPE ASM; WATER	8-98011-508-1	01	1	0610-1007				●	●
155	01.153 PIPE ASM; WATER	8-98011-508-1	01	1	1008-				●	●	●

2 148 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	G
2	01.097 HOSE; WATER,BY-PASS	8-97167-694-2	01	1	1008-		●
2	01.097 HOSE; WATER,BY-PASS IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL)	8-98096-991-0	01	1	0807-0809	●
2	01.097 HOSE; WATER,BY-PASS EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98096-991-0	01	1	0810-	●
2	01.097 HOSE; WATER,BY-PASS	8-97167-694-2	01	1	0306-0609		●
2	01.097 HOSE; WATER,BY-PASS	8-97167-694-2	01	1	0710-1003		●
148	01.097 CLIP; BYPASS HOSE 01.540 ID=18.9	8-94478-875-0	02	1	0306-0609		●
148	01.097 CLIP; BYPASS HOSE 01.540 ID=18.9	8-94478-875-0	02	1	0710-1003		●
148	01.097 CLIP; BYPASS HOSE 01.540 ID=18.9	8-94478-875-0	02	1	1008-		●

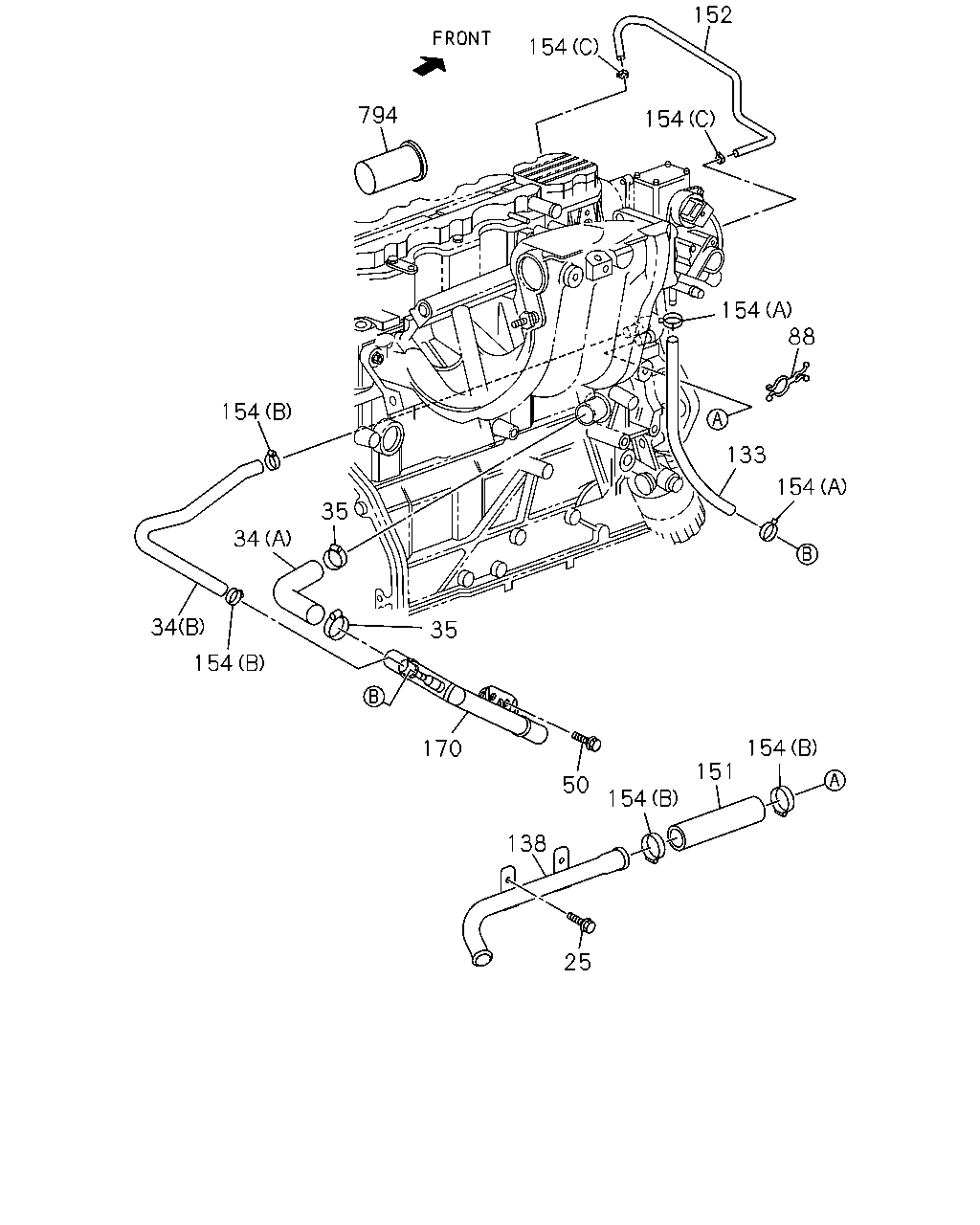

152 154 794 154 154 88 154 133 154 35 34 34 35 154 154 170 151 50 154 138 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	H
25	01.251 BOLT; WATER PIPE 03.670	8-11041-103-0	02	1	0306-1009		●
25	01.251 BOLT; WATER PIPE 00.004	8-93298-987-0	02	1	1010-		●
34	01.242 HOSE; RUBBER,WATER PIPE (A)	8-92066-042-0	01	1	0306-		●
34	01.242 HOSE; RUBBER,WATER PIPE (B)	8-92066-241-0	01	1	0306-		●
35	01.242 CLIP; RUBBER HOSE 01.153	8-92138-529-0	02	1	0306-		●
50	01.153 BOLT; WATER PIPE INL	8-11090-684-0	02	1	0306-1009		●
50	01.153 BOLT; WATER PIPE INL 02.277	8-11090-683-0	02	1	1010-		●
88	01.097 CLIP; HOSE,HTR 08.846 ID=22	8-94382-401-0	02	1	0306-0907	●
88	01.097 CLIP; HOSE,HTR	8-92063-869-0	01	1	0306-		●
133	03.276 HOSE; WATER,T/V	8-92064-835-0	01	1	0306-		●
138	01.251 PIPE; WATER	8-92065-499-0	01	1	0306-		●
151	01.153 HOSE; WATER OUTLET	8-92063-463-0	01	1	0306-		●
152	01.153 HOSE; WATER INL	8-92063-652-0	01	1	0306-		●
154	01.153 CLIP; WATER HOSE 01.166 (C)	8-90467-195-0	02	1	0306-1009		●
154	01.153 CLIP; WATER HOSE 03.417 (C)	8-90467-904-0	02	1	1010-		●
154	01.153 CLIP; WATER HOSE (B)	8-90467-519-0	04	1	0306-1009		●
154	01.153 CLIP; WATER HOSE (B)	8-92138-648-0	04	1	1010-		●
154	01.153 CLIP; WATER HOSE (A)	8-92138-530-0	02	1	0306-1009		●
170	01.159 PIPE; WATER,INL	8-92063-653-0	01	1	0306-		●
794	03.276 CONNECTOR; WATER HOSE	8-90572-544-0	01	1	0306-		●

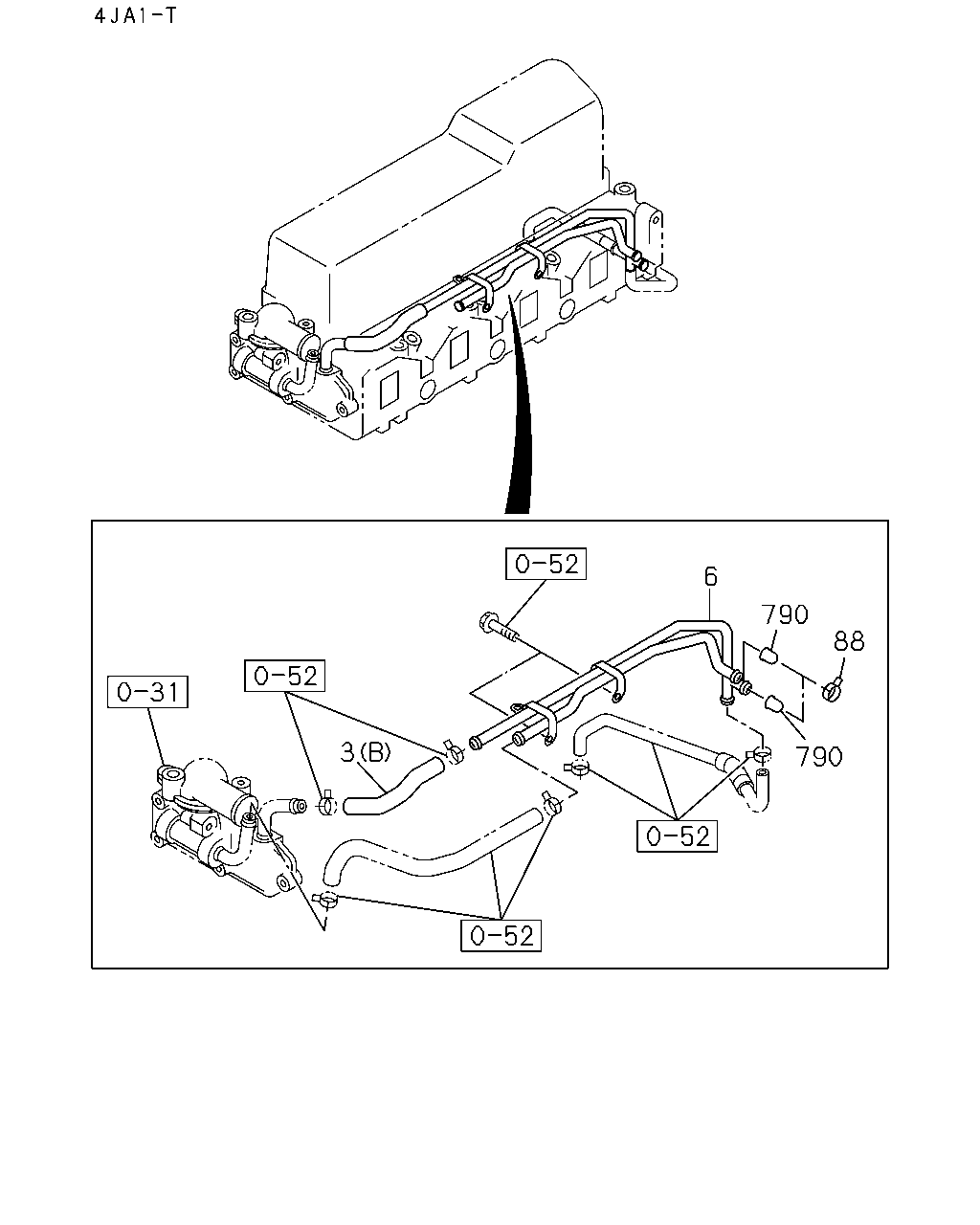

6 790 88 3 790

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	H
3	01.540 HOSE; WATER,OIL COOLER (B)	8-97354-155-1	01	1	0306-	●
3	01.540 HOSE; WATER,OIL COOLER (A)	8-97256-046-1	01	1	0306-0609		●	●
3	01.540 HOSE; WATER,OIL COOLER (A)	8-97256-046-1	01	1	0610-			●
3	01.540 HOSE; WATER,OIL COOLER EURO3 SPECIFICATION<NT3> 01.855 (C)	8-97039-420-0	01	1	0306-0402			●
3	01.540 HOSE; WATER,OIL COOLER TURKEY EQUIPMENT(B11) 01.855 (C)	8-97039-420-0	01	1	0403-0609		●
3	01.540 HOSE; WATER,OIL COOLER EURO3 SPECIFICATION<NT3> 01.855 (C)	8-97039-420-0	01	1	0403-0609			●
3	01.540 HOSE; WATER,OIL COOLER EURO3 SPECIFICATION<NT3> 01.855 (C)	8-97039-420-0	01	1	0610-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97354-122-1	01	1	0306-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97256-045-1	01	1	0306-0609		●	●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97256-045-1	01	1	0610-			●
88	01.097 CLIP; HOSE,HTR 08.846 ID=22	8-94382-401-0	02	1	0306-0907	●
88	01.097 CLIP; HOSE,HTR	8-92063-869-0	01	1	0306-				●
790	01.097 CAP	8-94414-688-0	02	1	0306-0609	●	●	●
790	01.097 CAP	8-94414-688-0	02	1	0610-0907	●		●
790	01.097 CAP	8-94414-688-0	02	1	0908-0908			●
790	01.097 CAP COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66)	8-94414-688-0	02	1	0909-	●
790	01.097 CAP	8-94414-688-0	02	1	0909-			●

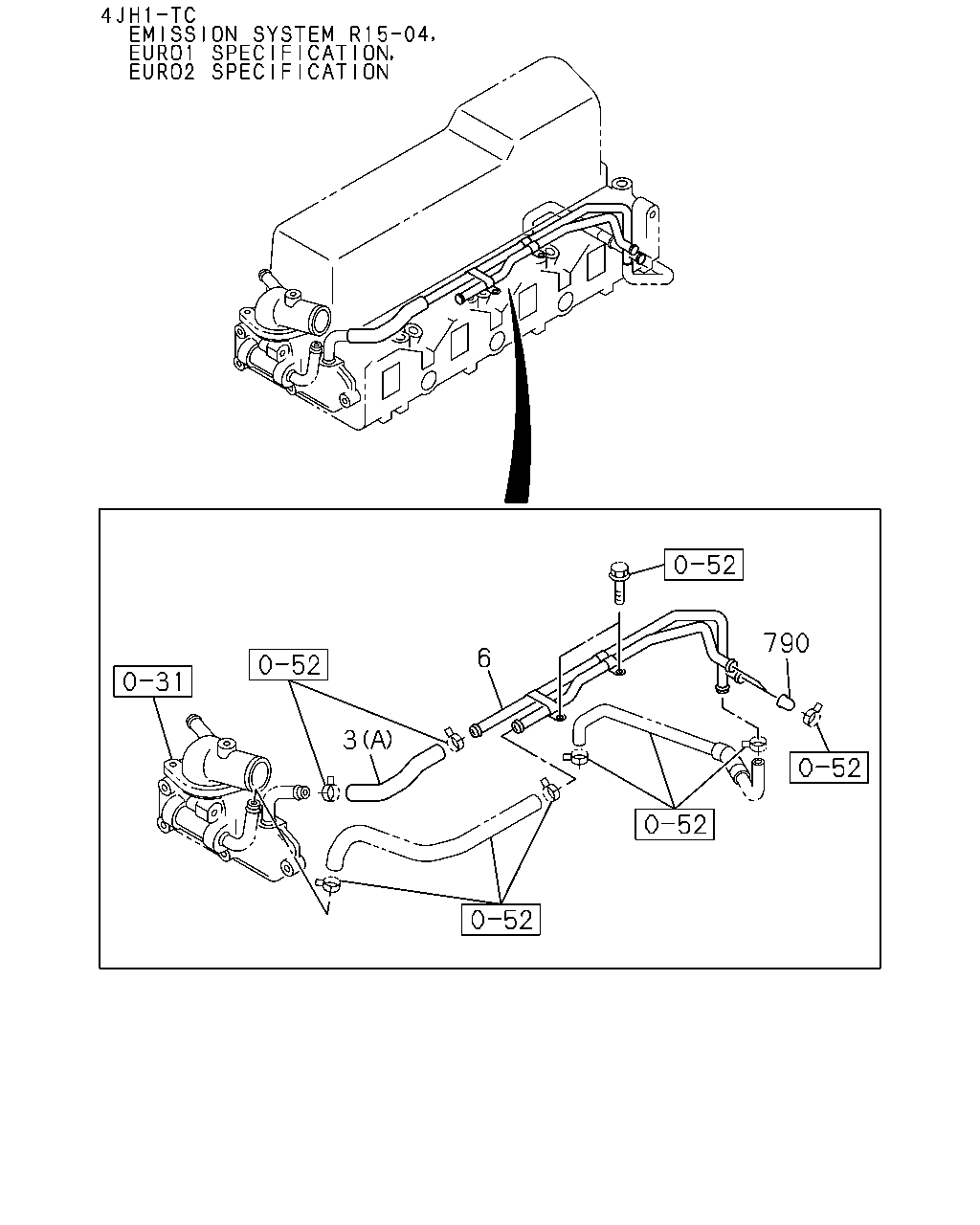

790 6 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	01.540 HOSE; WATER,OIL COOLER (B)	8-97354-155-1	01	1	0306-	●
3	01.540 HOSE; WATER,OIL COOLER (A)	8-97256-046-1	01	1	0306-0609		●	●
3	01.540 HOSE; WATER,OIL COOLER (A)	8-97256-046-1	01	1	0610-			●
3	01.540 HOSE; WATER,OIL COOLER EURO3 SPECIFICATION<NT3> 01.855 (C)	8-97039-420-0	01	1	0306-0402			●
3	01.540 HOSE; WATER,OIL COOLER TURKEY EQUIPMENT(B11) 01.855 (C)	8-97039-420-0	01	1	0403-0609		●
3	01.540 HOSE; WATER,OIL COOLER EURO3 SPECIFICATION<NT3> 01.855 (C)	8-97039-420-0	01	1	0403-0609			●
3	01.540 HOSE; WATER,OIL COOLER EURO3 SPECIFICATION<NT3> 01.855 (C)	8-97039-420-0	01	1	0610-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97354-122-1	01	1	0306-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97256-045-1	01	1	0306-0609		●	●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97256-045-1	01	1	0610-			●
790	01.097 CAP	8-94414-688-0	02	1	0306-0609	●	●	●
790	01.097 CAP	8-94414-688-0	02	1	0610-0907	●		●
790	01.097 CAP	8-94414-688-0	02	1	0908-0908			●
790	01.097 CAP COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66)	8-94414-688-0	02	1	0909-	●
790	01.097 CAP	8-94414-688-0	02	1	0909-			●

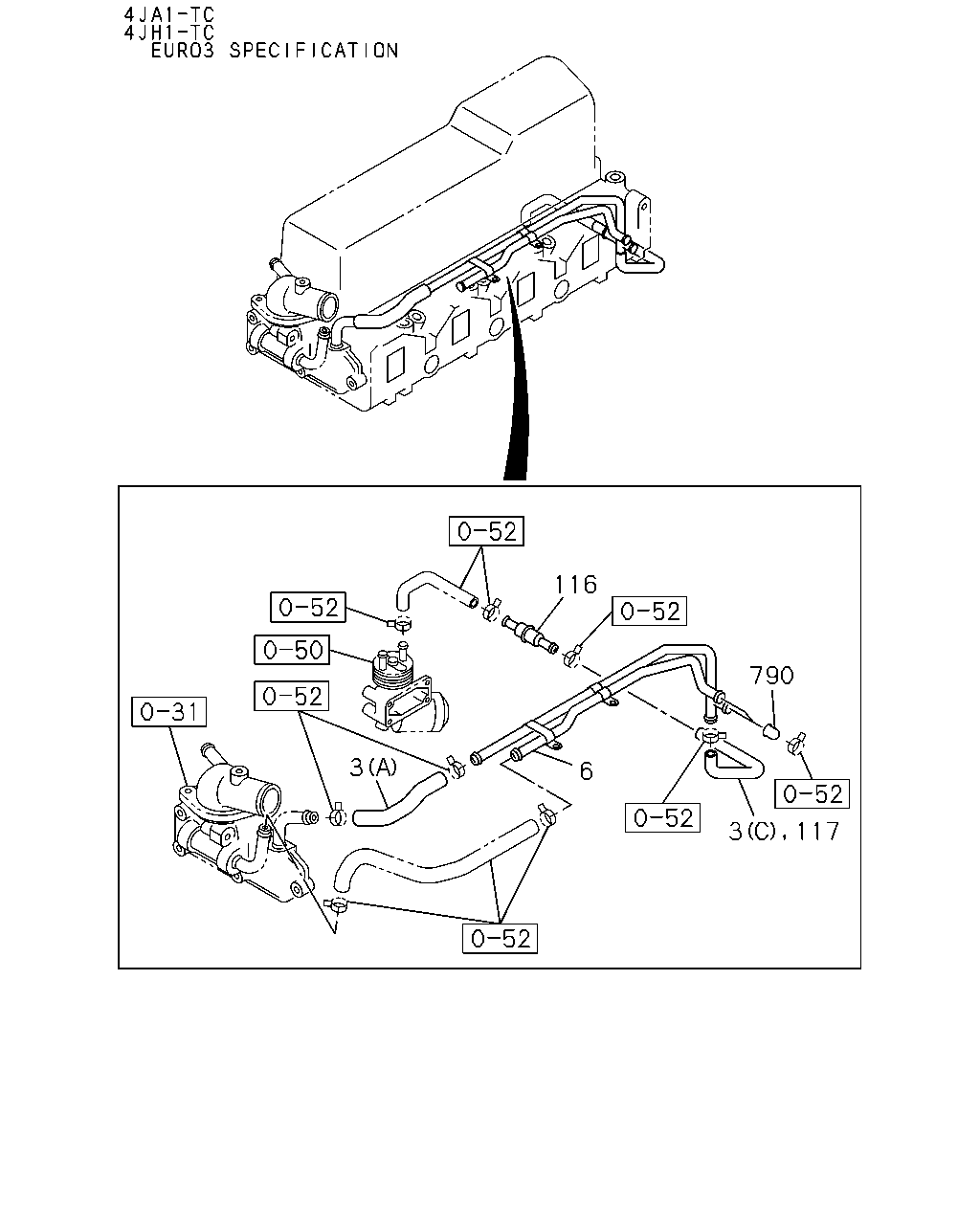

116 790 3 6 3 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	01.540 HOSE; WATER,OIL COOLER (B)	8-97354-155-1	01	1	0306-	●
3	01.540 HOSE; WATER,OIL COOLER (A)	8-97256-046-1	01	1	0306-0609		●	●
3	01.540 HOSE; WATER,OIL COOLER (A)	8-97256-046-1	01	1	0610-			●
3	01.540 HOSE; WATER,OIL COOLER EURO3 SPECIFICATION<NT3> 01.855 (C)	8-97039-420-0	01	1	0306-0402			●
3	01.540 HOSE; WATER,OIL COOLER TURKEY EQUIPMENT(B11) 01.855 (C)	8-97039-420-0	01	1	0403-0609		●
3	01.540 HOSE; WATER,OIL COOLER EURO3 SPECIFICATION<NT3> 01.855 (C)	8-97039-420-0	01	1	0403-0609			●
3	01.540 HOSE; WATER,OIL COOLER EURO3 SPECIFICATION<NT3> 01.855 (C)	8-97039-420-0	01	1	0610-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97354-122-1	01	1	0306-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97256-045-1	01	1	0306-0609		●	●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97256-045-1	01	1	0610-			●
116	01.540 VALVE ASM; THERMO,OIL COOLER	5-21770-001-2	01	1	0306-0609		●
116	01.540 VALVE ASM; THERMO,OIL COOLER EURO3 SPECIFICATION<NT3>	5-21770-001-2	01	1	0306-0609			●
116	01.540 VALVE ASM; THERMO,OIL COOLER EURO3 SPECIFICATION<NT3>	5-21770-001-3	01	1	0610-			●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM	8-97039-420-0	01	1	0306-0402		●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM EXC. TURKEY EQUIPMENT(B11)	8-97039-420-0	01	1	0403-0609		●
790	01.097 CAP	8-94414-688-0	02	1	0306-0609	●	●	●
790	01.097 CAP	8-94414-688-0	02	1	0610-0907	●		●
790	01.097 CAP	8-94414-688-0	02	1	0908-0908			●
790	01.097 CAP COOLER WO/HEATER(C65),AIR CON PREPARATORY PACK(C66)	8-94414-688-0	02	1	0909-	●
790	01.097 CAP	8-94414-688-0	02	1	0909-			●

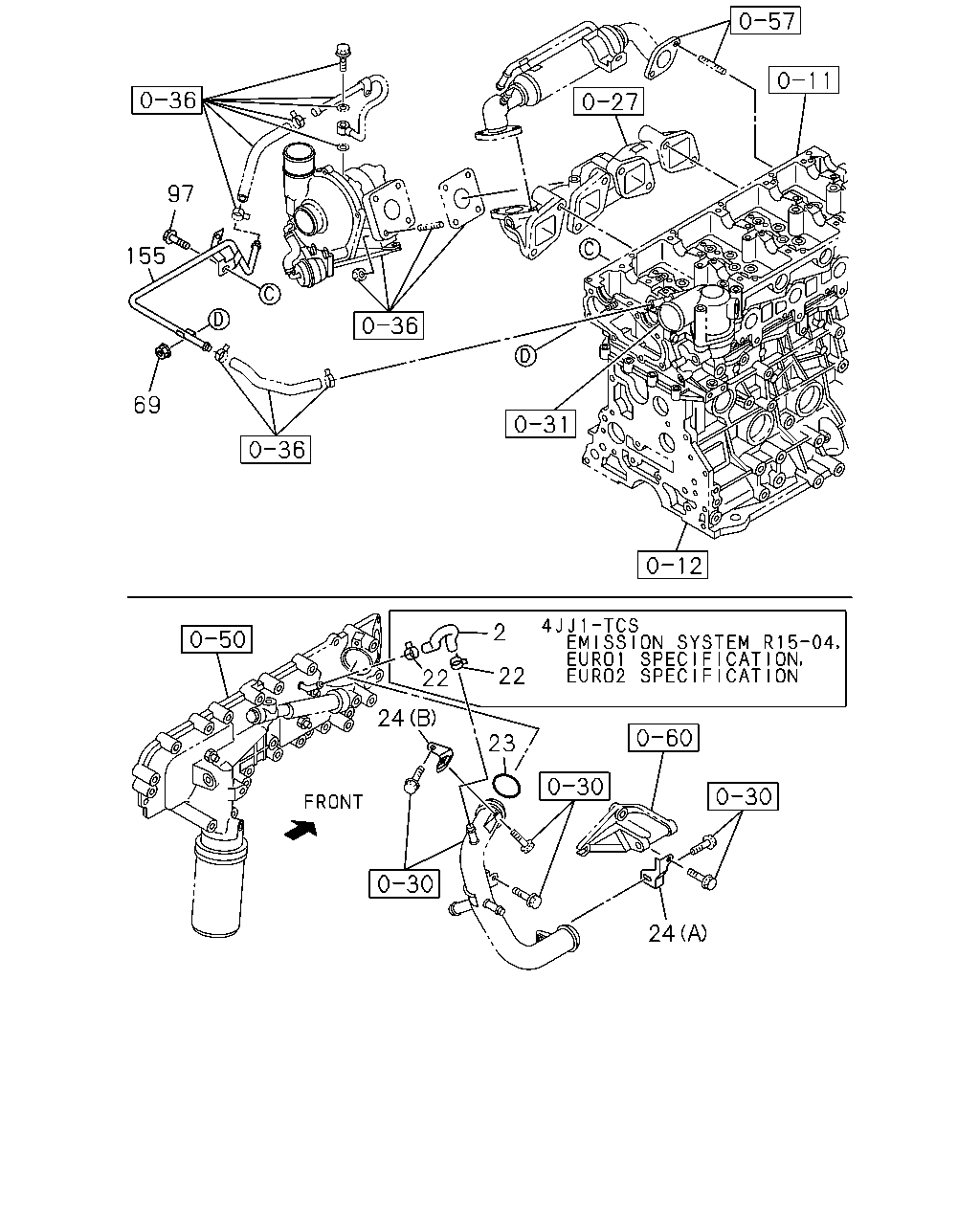

97 155 69 2 22 22 24 23 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	01.097 HOSE; WATER,BY-PASS	8-97167-694-2	01	1	1008-							●
2	01.097 HOSE; WATER,BY-PASS IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL)	8-98096-991-0	01	1	0807-0809				●
2	01.097 HOSE; WATER,BY-PASS EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>	8-98096-991-0	01	1	0810-				●
2	01.097 HOSE; WATER,BY-PASS	8-97167-694-2	01	1	0306-0609							●
2	01.097 HOSE; WATER,BY-PASS	8-97167-694-2	01	1	0710-1003							●
22	01.153 CLIP; WATER HOSE EGYPT EQUIPMENT(B09) 03.278 ID=14.2	8-97375-636-0	02	1	1008-				●
22	01.153 CLIP; WATER HOSE IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EGYPT EQUIPMENT(B09) 03.278 ID=14.2	8-97375-636-0	02	1	0807-0809				●
22	01.153 CLIP; WATER HOSE EGYPT EQUIPMENT(B09) 03.278 ID=14.2	8-97375-636-0	02	1	0810-1003				●
22	01.153 CLIP; WATER HOSE IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) EXC. EGYPT EQUIPMENT(B09) 03.162 ID=14.2	8-98035-873-0	02	1	0807-0809				●
22	01.153 CLIP; WATER HOSE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. EGYPT EQUIPMENT(B09) 03.162 ID=14.2	8-98035-873-0	02	1	0810-1003				●
22	01.153 CLIP; WATER HOSE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 03.162 ID=14.2	8-98035-873-0	02	1	1004-1007				●
22	01.153 CLIP; WATER HOSE EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> EXC. EGYPT EQUIPMENT(B09) 03.162 ID=14.2	8-98035-873-0	02	1	1008-				●
22	01.153 CLIP; WATER HOSE IDENTIFICATION BREAKING POINT 2008. 5 M.Y.(BRL) 03.162 ID=14.2	8-98035-873-0	02	1	0710-0806				●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0306-0402	●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0403-0609	●		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11)	8-94365-676-3	01	1	0403-0609		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94365-676-3	01	1	0610-	●		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11)	8-97943-089-0	01	1	0403-0609		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	0-95690-338-0	01	1	0610-1007				●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE) .	0-95690-338-0	01	1	1008-				●	●	●
24	01.166 BRACKET; WATER PIPE (A)	8-97375-053-1	01	1	0610-0611				●
24	01.166 BRACKET; WATER PIPE (A)	8-98039-450-0	01	1	0612-1007					●
24	01.166 BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4> (A)	8-98039-450-0	01	1	1008-					●	●
24	01.166 BRACKET; WATER PIPE (B)	8-97377-505-1	01	1	0610-1007				●	●
24	01.166 BRACKET; WATER PIPE (B)	8-97377-505-1	01	1	1008-				●	●	●
24	01.166 BRACKET; WATER PIPE (A)	8-98039-450-0	01	1	0610-0611					●
24	01.166 BRACKET; WATER PIPE (A)	8-97375-053-2	01	1	0612-1007				●
24	01.166 BRACKET; WATER PIPE (A)	8-97375-053-2	01	1	1008-				●
24	01.166 BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97375-053-2	01	1	1008-					●
69	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	0610-1007				●	●
69	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	1008-				●	●	●
97	04.866 BOLT; WATER PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-1007				●	●
97	04.866 BOLT; WATER PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1008-				●	●	●
155	01.153 PIPE ASM; WATER	8-98011-508-1	01	1	0610-1007				●	●
155	01.153 PIPE ASM; WATER	8-98011-508-1	01	1	1008-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
