Sayfa 0-31 - Isuzu EPC

0-31 — THERMOSTAT AND HOUSING (#73906) — 210 parça

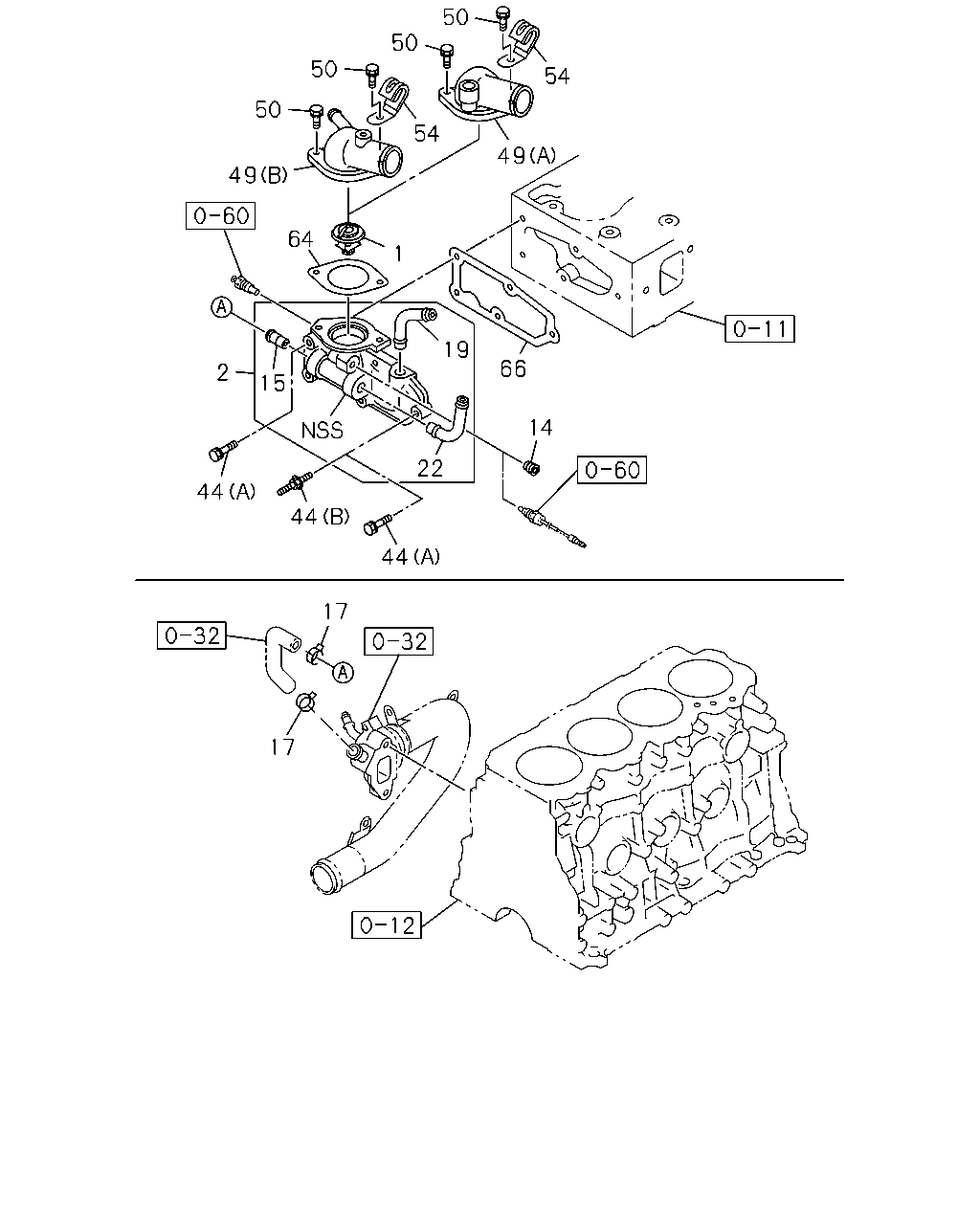

50 50 50 54 50 54 49 49 64 1 19 66 2 15 14 22 44 44 44 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	1008-	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0306-0609		●	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0610-			●	●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	0306-0609	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0610-1007					●	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	1008-					●	●	●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	0710-1003	●
1	01.246 THERMOSTAT 92 CELSIUS	8-92063-651-0	01	1	0306-0408								●
1	01.246 THERMOSTAT 92 CELSIUS	8-92067-821-0	01	1	0409-								●
2	01.251 HOUSING; THERMOSTAT	8-97117-243-0	01	1	0306-0312		●	●	●
2	01.251 HOUSING; THERMOSTAT	8-97372-994-1	01	1	0401-0609		●	●	●
2	01.251 HOUSING; THERMOSTAT	8-97372-994-1	01	1	0610-			●	●
2	01.251 HOUSING; THERMOSTAT	8-92060-793-0	01	1	0306-								●
14	01.252 PLUG; SW EMISSION SYSTEM R15-04<K75> 01.073 PT3/8	5-09605-005-0	01	1	0306-			●
15	01.251 PIPE; BYPASS	8-94343-211-1	01	1	0306-0609		●	●	●
15	01.251 PIPE; BYPASS	8-94343-211-1	01	1	0610-			●	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0610-1007					●	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	1008-					●	●	●
17	01.166 CLIP; WATER HOSE ID=20.8	8-94125-862-1	02	1	0306-0609		●	●	●
17	01.166 CLIP; WATER HOSE ID=20.8	8-94125-862-1	02	1	0610-			●	●
19	01.252 PIPE; HSG TO HTR	8-94478-870-1	01	1	0306-0609		●	●	●
19	01.252 PIPE; HSG TO HTR	8-94478-870-1	01	1	0610-			●	●
22	03.278 PIPE; HTR,RETURN	8-97321-333-1	01	1	1008-	●
22	03.278 PIPE; HTR,RETURN	8-94478-869-2	01	1	0306-0609		●	●	●
22	03.278 PIPE; HTR,RETURN	8-94478-869-2	01	1	0610-			●	●
22	03.278 PIPE; HTR,RETURN	8-97321-333-1	01	1	0306-0609	●
22	03.278 PIPE; HTR,RETURN	8-97321-333-1	01	1	0710-1003	●
44	01.252 BOLT; HSG TO HD 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	0306-0402		●	●	●
44	01.252 BOLT; HSG TO HD 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	0403-0512			●	●
44	01.252 BOLT; HSG TO HD EXC. TURKEY EQUIPMENT(B11) 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	0403-0512		●
44	01.252 BOLT; HSG TO HD (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	0306-0609		●	●	●
44	01.252 BOLT; HSG TO HD (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	0610-			●	●
44	01.252 BOLT; HSG TO HD TURKEY EQUIPMENT(B11) 09.171 (A) M8X30 W/LK WASHER	0-50540-830-0	04	1	0403-0512		●
44	01.252 BOLT; HSG TO HD 09.171 (A) M8X30 W/LK WASHER	0-50540-830-0	04	1	0601-0609		●	●	●
44	01.252 BOLT; HSG TO HD 09.171 (A) M8X30 W/LK WASHER	0-50540-830-0	04	1	0610-			●	●
44	01.252 BOLT; HSG TO HD (C)	8-11042-897-0	02	1	0306-1009								●
44	01.252 BOLT; HSG TO HD (C)	8-11042-896-0	02	1	1010-								●
49	01.153 PIPE; WATER OUTLET EXC. EGYPT EQUIPMENT(B09) (C)	8-98120-945-0	01	1	0810-0901					●
49	01.153 PIPE; WATER OUTLET (C)	8-98120-945-0	01	1	0810-0901						●
49	01.153 PIPE; WATER OUTLET (C)	8-98120-945-0	01	1	0902-1007					●	●
49	01.153 PIPE; WATER OUTLET (C)	8-98120-945-0	01	1	1008-					●	●	●
49	01.153 PIPE; WATER OUTLET (A)	8-97352-105-0	01	1	0306-			●
49	01.153 PIPE; WATER OUTLET (B)	8-97354-992-0	01	1	0306-0310		●		●
49	01.153 PIPE; WATER OUTLET (B)	8-97306-461-2	01	1	0311-0609		●		●
49	01.153 PIPE; WATER OUTLET (B)	8-97306-461-2	01	1	0610-				●
49	01.153 PIPE; WATER OUTLET (C)	8-97355-456-7	01	1	0610-0809					●	●
49	01.153 PIPE; WATER OUTLET EGYPT EQUIPMENT(B09) (C)	8-97355-456-7	01	1	0810-0901					●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0306-0402		●	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0403-0512			●	●
50	01.252 BOLT; OUTLET PIPE EXC. TURKEY EQUIPMENT(B11) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0403-0512		●
50	01.252 BOLT; OUTLET PIPE TURKEY EQUIPMENT(B11) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0403-0512		●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-0609		●	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0610-			●	●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE	0-28050-880-0	02	1	0610-1007					●	●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE	0-28050-880-0	02	1	1008-					●	●	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 01.150 ID=12	8-97367-983-0	01	1	0306-0609		●	●	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 01.150 ID=12	8-97367-983-1	01	1	0610-			●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252	8-94365-674-2	01	1	0306-0402		●	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252	8-94365-674-2	01	1	0403-0609			●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11) 01.252	8-94365-674-2	01	1	0403-0609		●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252	8-94365-674-2	01	1	0610-			●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11)	8-97943-088-0	01	1	0403-0609		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98114-587-0	01	1	0809-1007					●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98114-587-0	01	1	1008-					●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0306-0402		●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0403-0609			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11)	8-97216-156-0	01	1	0403-0609		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0610-0905			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97212-537-1	01	1	0906-			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11)	8-97920-513-1	01	1	0403-0609		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-90220-436-0	01	1	0306-1009								●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-93244-440-0	01	1	1010-								●

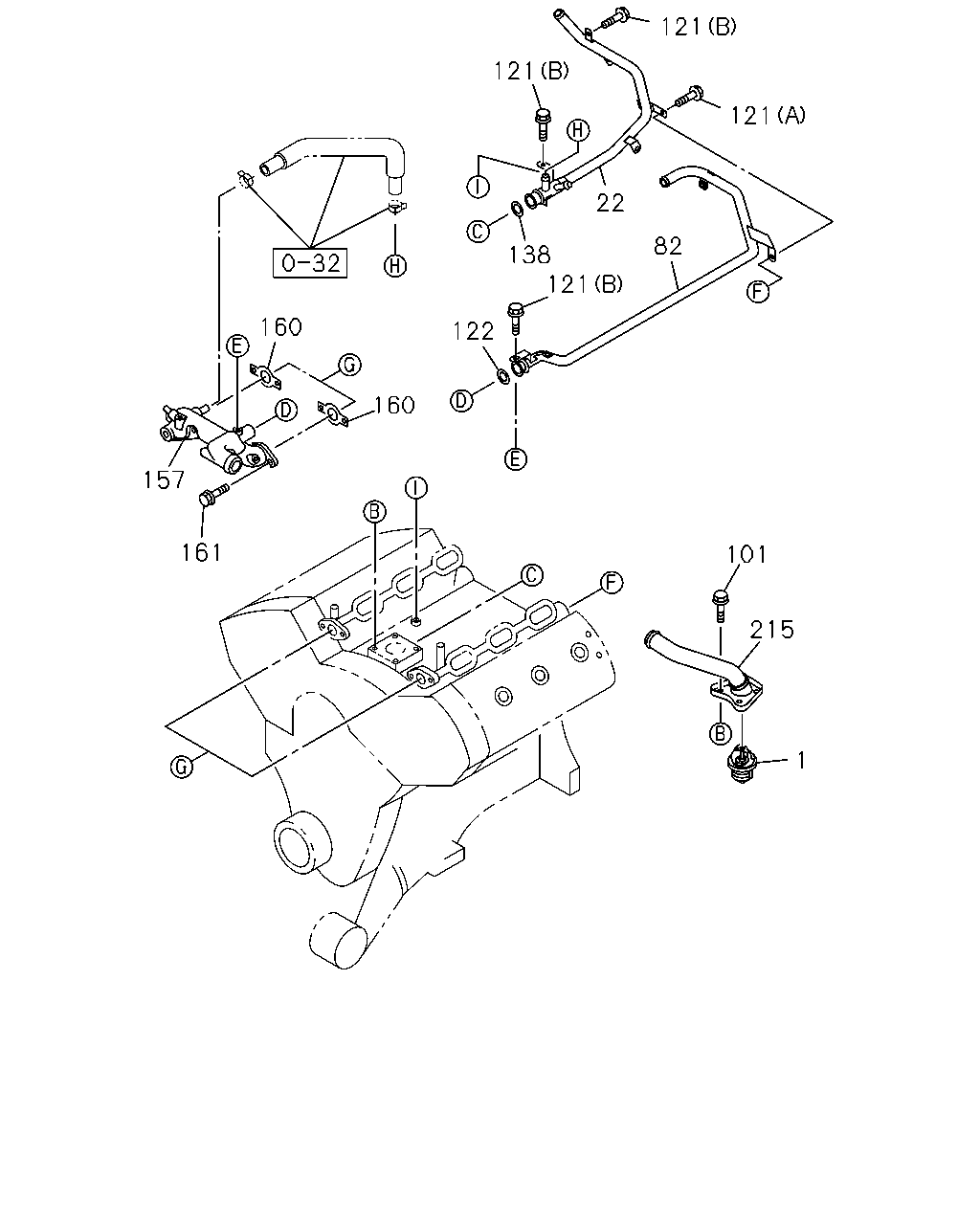

121 121 121 22 82 138 121 160 122 160 157 161 101 215 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	1008-	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0306-0609		●	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0610-			●	●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	0306-0609	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0610-1007					●	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	1008-					●	●	●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	0710-1003	●
1	01.246 THERMOSTAT 92 CELSIUS	8-92063-651-0	01	1	0306-0408								●
1	01.246 THERMOSTAT 92 CELSIUS	8-92067-821-0	01	1	0409-								●
22	03.278 PIPE; HTR,RETURN	8-97321-333-1	01	1	1008-	●
22	03.278 PIPE; HTR,RETURN	8-94478-869-2	01	1	0306-0609		●	●	●
22	03.278 PIPE; HTR,RETURN	8-94478-869-2	01	1	0610-			●	●
22	03.278 PIPE; HTR,RETURN	8-97321-333-1	01	1	0306-0609	●
22	03.278 PIPE; HTR,RETURN	8-97321-333-1	01	1	0710-1003	●
82	08.845 PIPE; WATER,HTR	8-97321-332-0	01	1	1008-	●
82	08.845 PIPE; WATER,HTR	8-97321-332-0	01	1	0306-0609	●
82	08.845 PIPE; WATER,HTR	8-97321-332-0	01	1	0710-1003	●
101	01.251 BOLT; PIPE 02.343 M8X12 FLANGE	0-28050-812-0	04	1	1008-	●
101	01.251 BOLT; PIPE 08.900 M8X12 FLANGE	0-28080-812-0	04	1	0306-0512	●
101	01.251 BOLT; PIPE 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0601-0609	●
101	01.251 BOLT; PIPE 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0710-1003	●
121	08.900 BOLT; HTR PIPE 02.343 (B) M8X12 FLANGE	0-28050-812-0	04	1	1008-	●
121	08.900 BOLT; HTR PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●
121	08.900 BOLT; HTR PIPE (B) M8X12 FLANGE	0-28080-812-0	04	1	0306-0512	●
121	08.900 BOLT; HTR PIPE 02.343 (B) M8X12 FLANGE	0-28050-812-0	04	1	0601-0609	●
121	08.900 BOLT; HTR PIPE 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0306-0512	●
121	08.900 BOLT; HTR PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0609	●
121	08.900 BOLT; HTR PIPE 02.343 (B) M8X12 FLANGE	0-28050-812-0	04	1	0710-1003	●
121	08.900 BOLT; HTR PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0710-1003	●
122	03.602 GASKET; HSG TO PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 01.154	9-09561-220-0	01	1	1008-	●
122	03.602 GASKET; HSG TO PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 01.154	9-09561-220-0	01	1	0306-0609	●
122	03.602 GASKET; HSG TO PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 01.154	9-09561-220-0	01	1	0710-1003	●
138	01.252 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 06.021	9-09561-225-0	01	1	1008-	●
138	01.252 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 06.021	9-09561-225-0	01	1	0306-0609	●
138	01.252 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE) . 06.021	9-09561-225-0	01	1	0710-1003	●
157	01.251 MANIFOLD; WATER	8-97136-345-3	01	1	1008-	●
157	01.251 MANIFOLD; WATER	8-97136-345-3	01	1	0306-0609	●
157	01.251 MANIFOLD; WATER	8-97136-345-3	01	1	0710-1003	●
160	01.252 GASKET; WATER MANIF ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97136-346-0	02	1	1008-	●
160	01.252 GASKET; WATER MANIF ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97136-346-0	02	1	0306-0609	●
160	01.252 GASKET; WATER MANIF ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97136-346-0	02	1	0710-1003	●
161	01.251 BOLT; MANIF TO HD M8X40 FLANGE	0-28660-840-0	04	1	1008-	●
161	01.251 BOLT; MANIF TO HD 16.545 M8X40 FLANGE	0-28690-840-0	04	1	0306-0512	●
161	01.251 BOLT; MANIF TO HD M8X40 FLANGE	0-28660-840-0	04	1	0601-0609	●
161	01.251 BOLT; MANIF TO HD M8X40 FLANGE	0-28660-840-0	04	1	0710-1003	●
215	01.159 PIPE; WATER,INL	8-97131-884-2	01	1	1008-	●
215	01.159 PIPE; WATER,INL	8-97131-884-2	01	1	0306-0609	●
215	01.159 PIPE; WATER,INL	8-97131-884-2	01	1	0710-1003	●

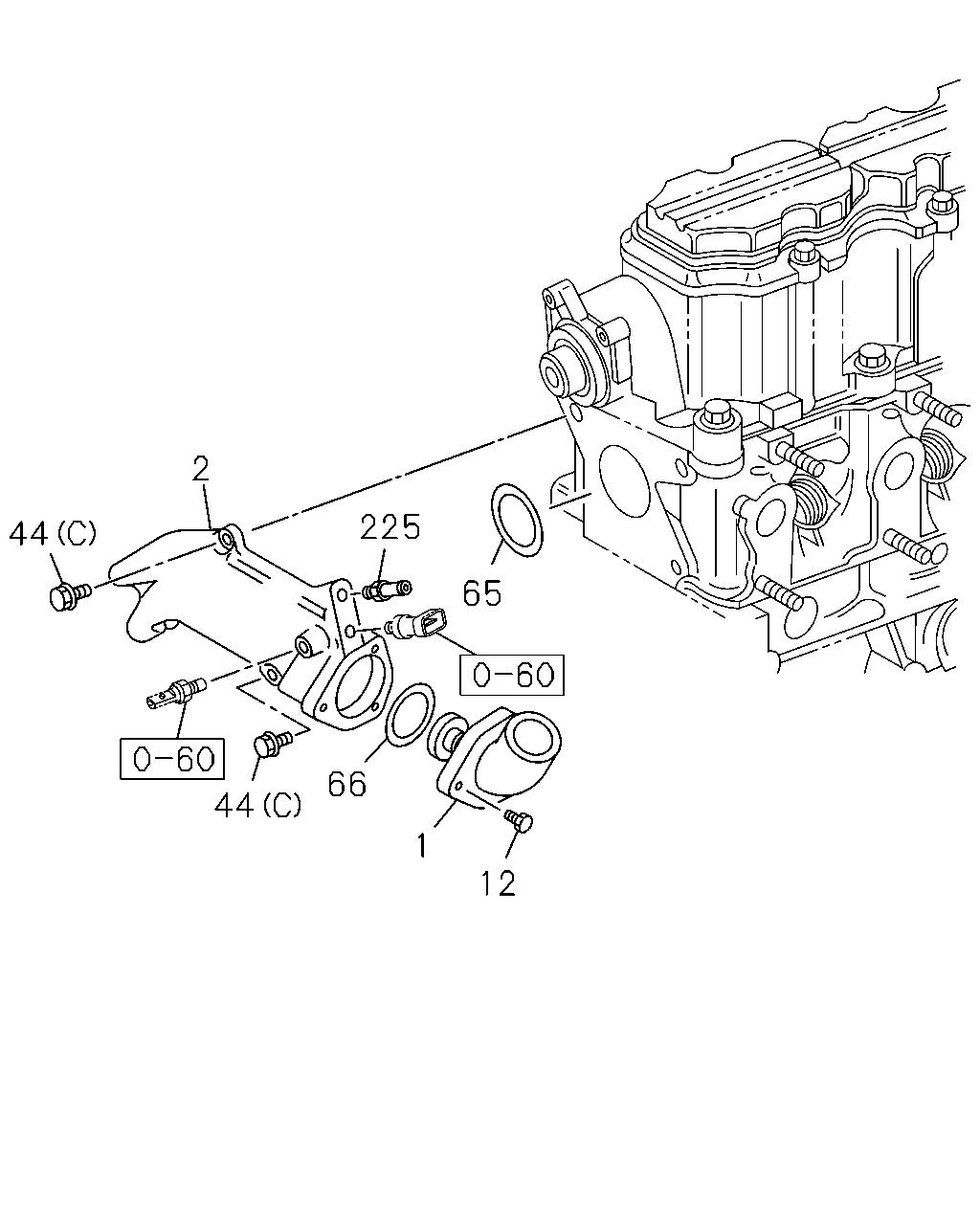

2 225 44 65 66 44 1 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	1008-	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0306-0609		●	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0610-			●	●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	0306-0609	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0610-1007					●	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	1008-					●	●	●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	0710-1003	●
1	01.246 THERMOSTAT 92 CELSIUS	8-92063-651-0	01	1	0306-0408								●
1	01.246 THERMOSTAT 92 CELSIUS	8-92067-821-0	01	1	0409-								●
2	01.251 HOUSING; THERMOSTAT	8-97117-243-0	01	1	0306-0312		●	●	●
2	01.251 HOUSING; THERMOSTAT	8-97372-994-1	01	1	0401-0609		●	●	●
2	01.251 HOUSING; THERMOSTAT	8-97372-994-1	01	1	0610-			●	●
2	01.251 HOUSING; THERMOSTAT	8-92060-793-0	01	1	0306-								●
12	01.252 BOLT; HSG	8-11013-351-0	03	1	0306-								●
44	01.252 BOLT; HSG TO HD 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	0306-0402		●	●	●
44	01.252 BOLT; HSG TO HD 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	0403-0512			●	●
44	01.252 BOLT; HSG TO HD EXC. TURKEY EQUIPMENT(B11) 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	0403-0512		●
44	01.252 BOLT; HSG TO HD (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	0306-0609		●	●	●
44	01.252 BOLT; HSG TO HD (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	0610-			●	●
44	01.252 BOLT; HSG TO HD TURKEY EQUIPMENT(B11) 09.171 (A) M8X30 W/LK WASHER	0-50540-830-0	04	1	0403-0512		●
44	01.252 BOLT; HSG TO HD 09.171 (A) M8X30 W/LK WASHER	0-50540-830-0	04	1	0601-0609		●	●	●
44	01.252 BOLT; HSG TO HD 09.171 (A) M8X30 W/LK WASHER	0-50540-830-0	04	1	0610-			●	●
44	01.252 BOLT; HSG TO HD (C)	8-11042-897-0	02	1	0306-1009								●
44	01.252 BOLT; HSG TO HD (C)	8-11042-896-0	02	1	1010-								●
65	01.252 GASKET; HSG TO HD	8-90118-437-0	01	1	0306-1009								●
65	01.252 GASKET; HSG TO HD	8-92066-121-0	01	1	1010-								●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98114-587-0	01	1	0809-1007					●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98114-587-0	01	1	1008-					●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0306-0402		●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0403-0609			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11)	8-97216-156-0	01	1	0403-0609		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0610-0905			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97212-537-1	01	1	0906-			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11)	8-97920-513-1	01	1	0403-0609		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-90220-436-0	01	1	0306-1009								●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-93244-440-0	01	1	1010-								●
225	01.153 CONNECTOR; BYPASS HSG	8-90284-423-0	01	1	0306-								●

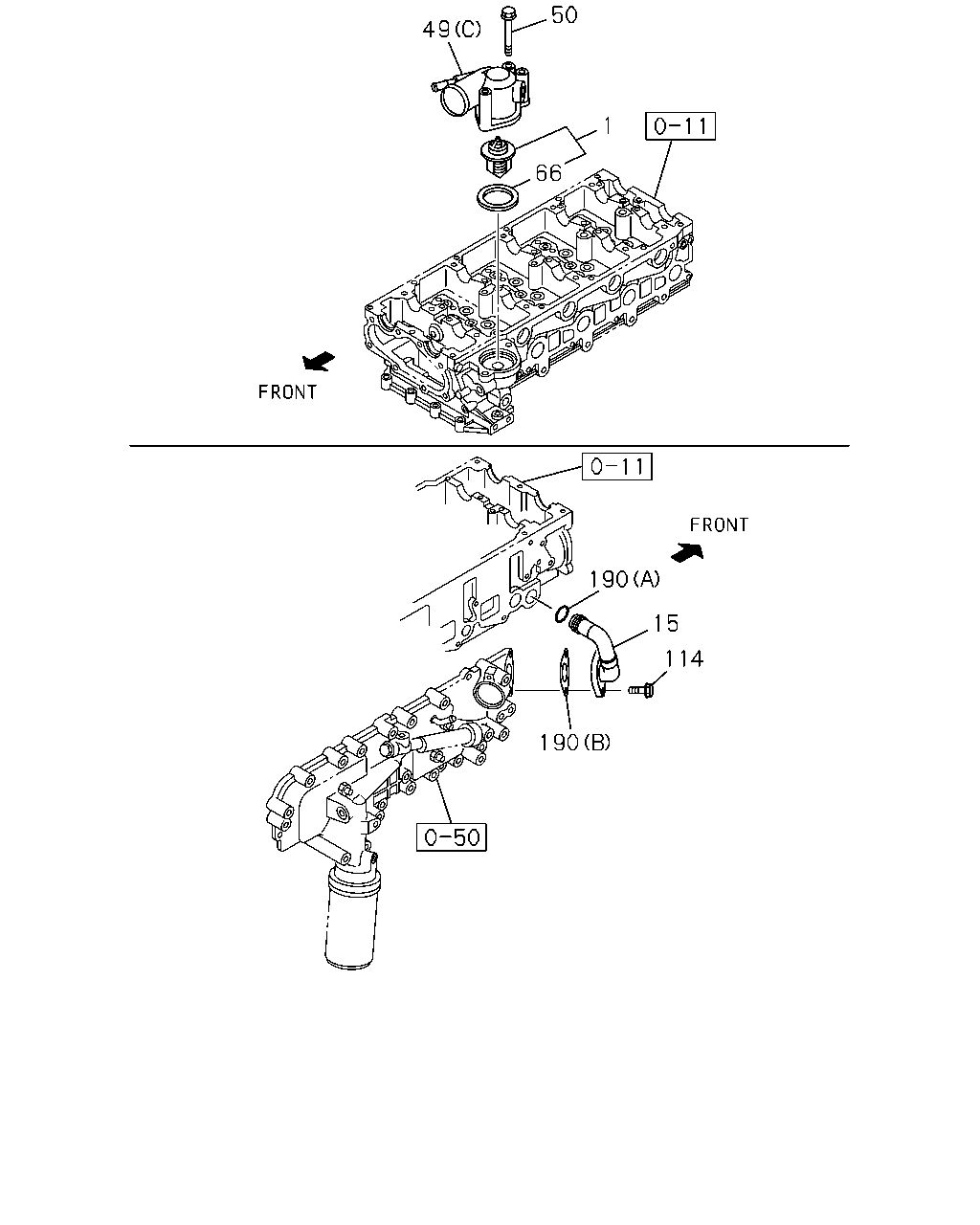

50 49 1 66 190 15 114 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	1008-	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0306-0609		●	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0610-			●	●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	0306-0609	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	0610-1007					●	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-1	01	1	1008-					●	●	●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	0710-1003	●
1	01.246 THERMOSTAT 92 CELSIUS	8-92063-651-0	01	1	0306-0408								●
1	01.246 THERMOSTAT 92 CELSIUS	8-92067-821-0	01	1	0409-								●
15	01.251 PIPE; BYPASS	8-94343-211-1	01	1	0306-0609		●	●	●
15	01.251 PIPE; BYPASS	8-94343-211-1	01	1	0610-			●	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0610-1007					●	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	1008-					●	●	●
49	01.153 PIPE; WATER OUTLET EXC. EGYPT EQUIPMENT(B09) (C)	8-98120-945-0	01	1	0810-0901					●
49	01.153 PIPE; WATER OUTLET (C)	8-98120-945-0	01	1	0810-0901						●
49	01.153 PIPE; WATER OUTLET (C)	8-98120-945-0	01	1	0902-1007					●	●
49	01.153 PIPE; WATER OUTLET (C)	8-98120-945-0	01	1	1008-					●	●	●
49	01.153 PIPE; WATER OUTLET (A)	8-97352-105-0	01	1	0306-			●
49	01.153 PIPE; WATER OUTLET (B)	8-97354-992-0	01	1	0306-0310		●		●
49	01.153 PIPE; WATER OUTLET (B)	8-97306-461-2	01	1	0311-0609		●		●
49	01.153 PIPE; WATER OUTLET (B)	8-97306-461-2	01	1	0610-				●
49	01.153 PIPE; WATER OUTLET (C)	8-97355-456-7	01	1	0610-0809					●	●
49	01.153 PIPE; WATER OUTLET EGYPT EQUIPMENT(B09) (C)	8-97355-456-7	01	1	0810-0901					●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0306-0402		●	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0403-0512			●	●
50	01.252 BOLT; OUTLET PIPE EXC. TURKEY EQUIPMENT(B11) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0403-0512		●
50	01.252 BOLT; OUTLET PIPE TURKEY EQUIPMENT(B11) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0403-0512		●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-0609		●	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0610-			●	●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE	0-28050-880-0	02	1	0610-1007					●	●
50	01.252 BOLT; OUTLET PIPE M8X80 FLANGE	0-28050-880-0	02	1	1008-					●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98114-587-0	01	1	0809-1007					●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98114-587-0	01	1	1008-					●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0306-0402		●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0403-0609			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11)	8-97216-156-0	01	1	0403-0609		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0610-0905			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97212-537-1	01	1	0906-			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11)	8-97920-513-1	01	1	0403-0609		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-90220-436-0	01	1	0306-1009								●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-93244-440-0	01	1	1010-								●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0610-1007					●	●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1008-					●	●	●
190	01.159 GASKET; BYPASS PIPE EGYPT EQUIPMENT(B09) (B)	8-98009-322-0	01	1	1008-					●
190	01.159 GASKET; BYPASS PIPE EGYPT EQUIPMENT(B09) (B)	8-98009-322-0	01	1	0612-1003					●
190	01.159 GASKET; BYPASS PIPE (A)	0-95690-226-0	01	1	0610-1007					●	●
190	01.159 GASKET; BYPASS PIPE (A)	0-95690-226-0	01	1	1008-					●	●	●
190	01.159 GASKET; BYPASS PIPE (B)	8-97318-494-2	01	1	0610-0611					●	●
190	01.159 GASKET; BYPASS PIPE EXC. EGYPT EQUIPMENT(B09) (B)	8-97318-494-2	01	1	0612-1003					●
190	01.159 GASKET; BYPASS PIPE (B)	8-97318-494-2	01	1	0612-1003						●
190	01.159 GASKET; BYPASS PIPE (B)	8-97318-494-2	01	1	1004-1007					●	●
190	01.159 GASKET; BYPASS PIPE EXC. EGYPT EQUIPMENT(B09) (B)	8-97318-494-2	01	1	1008-					●
190	01.159 GASKET; BYPASS PIPE (B)	8-97318-494-2	01	1	1008-						●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
