Sayfa 0-30 - Isuzu EPC

0-30 — WATER PUMP AND CORROSION RESISTOR (#73905) — 251 parça

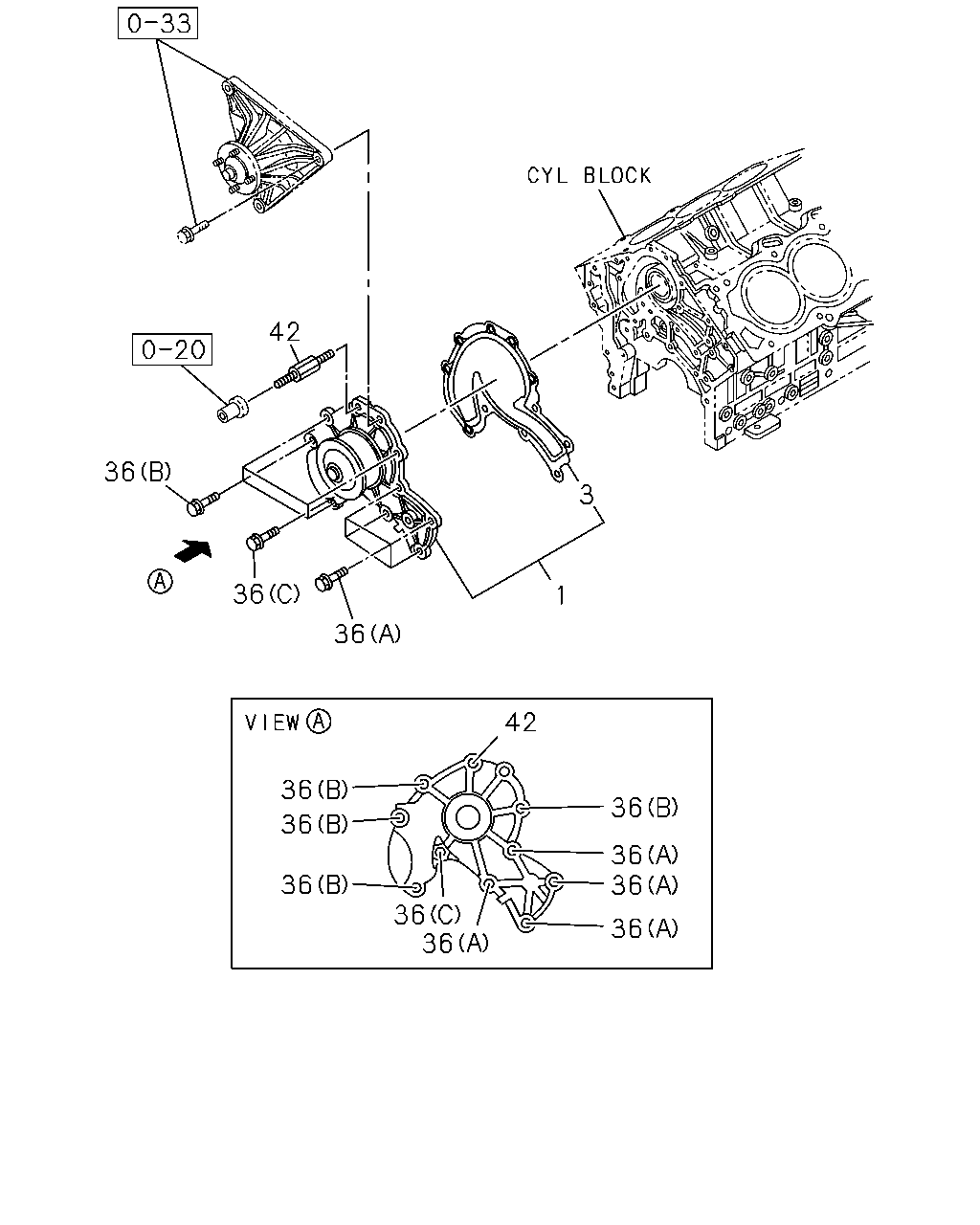

42 42 3 1 40 40 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.069 PUMP ASM; WATER,W/GASKET	8-97167-554-0	01	1	1008-	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-3	01	1	0306-0402		●	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-3	01	1	0403-0609			●	●
1	01.069 PUMP ASM; WATER,W/GASKET EXC. TURKEY EQUIPMENT(B11)	8-97105-012-3	01	1	0403-0609		●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-5	01	1	0610-			●	●
1	01.069 PUMP ASM; WATER,W/GASKET TURKEY EQUIPMENT(B11)	8-97942-972-0	01	1	0403-0609		●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97167-554-0	01	1	0306-0609	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97167-554-0	01	1	0710-1003	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97148-736-0	01	1	1008-	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-0	01	1	0710-1007			●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-0	01	1	0306-0402		●	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-0	01	1	0403-0609			●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11)	8-94178-081-0	01	1	0403-0609		●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-0	01	1	0610-0709			●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-1	01	1	0710-1007				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-1	01	1	1008-			●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11)	8-97912-600-0	01	1	0403-0609		●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97148-736-0	01	1	0306-0609	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97312-156-0	01	1	0610-1007					●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97312-156-0	01	1	1008-					●	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97148-736-0	01	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL EGYPT EQUIPMENT(B09) 04.686 (F) M8X60 FLANGE	0-28050-860-0	04	1	1008-					●
36	00.386 BOLT; WATER PUMP TO C/BL 04.338 (B) M8X20 FLANGE	0-28050-820-0	04	1	1008-	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	1008-	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	1008-	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0306-0402		●	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0403-0609			●	●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. TURKEY EQUIPMENT(B11) 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0403-0609		●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0610-			●	●
36	00.386 BOLT; WATER PUMP TO C/BL TURKEY EQUIPMENT(B11) (D) M8X55 W/LK WASHER	8-97916-380-0	05	1	0403-0609		●
36	00.386 BOLT; WATER PUMP TO C/BL 07.010 (B) M8X20 FLANGE	0-28080-820-0	04	1	0306-0512	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.338 (B) M8X20 FLANGE	0-28050-820-0	04	1	0601-0609	●
36	00.386 BOLT; WATER PUMP TO C/BL EGYPT EQUIPMENT(B09) 04.686 (F) M8X60 FLANGE	0-28050-860-0	04	1	0610-1003					●
36	00.386 BOLT; WATER PUMP TO C/BL 04.686 (A) M8X30 FLANGE	0-28680-830-0	04	1	0306-0512	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-0609	●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. EGYPT EQUIPMENT(B09) (F) M8X50 FLANGE	0-28050-850-0	04	1	0610-1003					●
36	00.386 BOLT; WATER PUMP TO C/BL (F) M8X50 FLANGE	0-28050-850-0	04	1	0610-1003						●
36	00.386 BOLT; WATER PUMP TO C/BL (F) M8X50 FLANGE	0-28050-850-0	04	1	1004-1007					●	●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. EGYPT EQUIPMENT(B09) (F) M8X50 FLANGE	0-28050-850-0	04	1	1008-					●
36	00.386 BOLT; WATER PUMP TO C/BL (F) M8X50 FLANGE	0-28050-850-0	04	1	1008-						●	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	0306-0609	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.338 (B) M8X20 FLANGE	0-28050-820-0	04	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL (E)	8-92065-461-0	03	1	0306-1009								●
36	00.386 BOLT; WATER PUMP TO C/BL (E)	8-93376-830-0	03	1	1010-								●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	0306-0402		●	●	●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	0403-0602			●	●
40	07.874 NUT; WATER PUMP EXC. TURKEY EQUIPMENT(B11) 07.633 M8 FLANGE	0-91150-108-0	02	1	0403-0602		●
40	07.874 NUT; WATER PUMP TURKEY EQUIPMENT(B11) 01.062 M8 FLANGE	0-91180-108-0	02	1	0403-0602		●
40	07.874 NUT; WATER PUMP 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0609		●	●	●
40	07.874 NUT; WATER PUMP 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-			●	●
40	07.874 NUT; WATER PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-1007					●	●
40	07.874 NUT; WATER PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-					●	●	●
42	01.073 STUD; WATER PUMP EGYPT EQUIPMENT(B09) M8X28 L=40	0-41010-828-0	02	1	1008-					●
42	01.073 STUD; WATER PUMP	8-97136-226-0	01	1	1008-	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	0306-0402		●	●	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	0403-0604			●	●
42	01.073 STUD; WATER PUMP EXC. TURKEY EQUIPMENT(B11) 09.173 M8X22 L=34	9-04110-822-0	02	1	0403-0604		●
42	01.073 STUD; WATER PUMP TURKEY EQUIPMENT(B11) M8X22 L=34	0-41010-822-0	02	1	0403-0604		●
42	01.073 STUD; WATER PUMP M8X22 L=34	0-41010-822-0	02	1	0605-0609		●	●	●
42	01.073 STUD; WATER PUMP M8X22 L=34	0-41010-822-0	02	1	0610-			●	●
42	01.073 STUD; WATER PUMP	8-97136-226-0	01	1	0306-0609	●
42	01.073 STUD; WATER PUMP EGYPT EQUIPMENT(B09) M8X28 L=40	0-41010-828-0	02	1	0610-1003					●
42	01.073 STUD; WATER PUMP	8-97136-226-0	01	1	0710-1003	●
42	01.073 STUD; WATER PUMP EXC. EGYPT EQUIPMENT(B09) M8X22 L=40	0-49140-822-0	02	1	0610-1003					●
42	01.073 STUD; WATER PUMP M8X22 L=40	0-49140-822-0	02	1	0610-1003						●
42	01.073 STUD; WATER PUMP M8X22 L=40	0-49140-822-0	02	1	1004-1007					●	●
42	01.073 STUD; WATER PUMP EXC. EGYPT EQUIPMENT(B09) M8X22 L=40	0-49140-822-0	02	1	1008-					●
42	01.073 STUD; WATER PUMP M8X22 L=40	0-49140-822-0	02	1	1008-						●	●

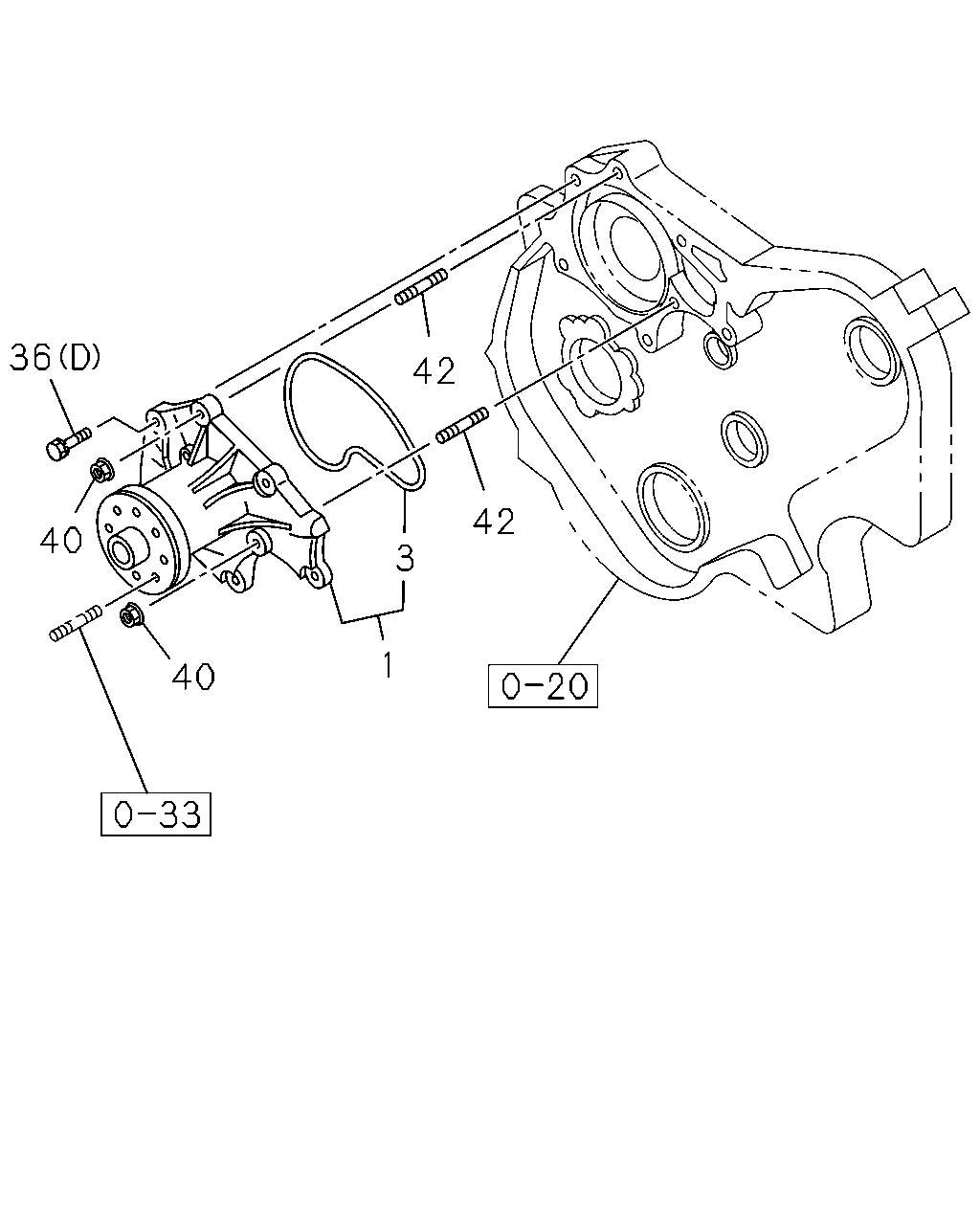

42 36 3 36 1 36 42 36 36 36 36 36 36 36 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	01.069 PUMP ASM; WATER,W/GASKET	8-97167-554-0	01	1	1008-	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-3	01	1	0306-0402		●	●	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-3	01	1	0403-0609			●	●
1	01.069 PUMP ASM; WATER,W/GASKET EXC. TURKEY EQUIPMENT(B11)	8-97105-012-3	01	1	0403-0609		●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-5	01	1	0610-			●	●
1	01.069 PUMP ASM; WATER,W/GASKET TURKEY EQUIPMENT(B11)	8-97942-972-0	01	1	0403-0609		●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97167-554-0	01	1	0306-0609	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97167-554-0	01	1	0710-1003	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97148-736-0	01	1	1008-	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-0	01	1	0710-1007			●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-0	01	1	0306-0402		●	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-0	01	1	0403-0609			●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11)	8-94178-081-0	01	1	0403-0609		●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-0	01	1	0610-0709			●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-1	01	1	0710-1007				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-1	01	1	1008-			●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11)	8-97912-600-0	01	1	0403-0609		●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97148-736-0	01	1	0306-0609	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97312-156-0	01	1	0610-1007					●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97312-156-0	01	1	1008-					●	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97148-736-0	01	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL EGYPT EQUIPMENT(B09) 04.686 (F) M8X60 FLANGE	0-28050-860-0	04	1	1008-					●
36	00.386 BOLT; WATER PUMP TO C/BL 04.338 (B) M8X20 FLANGE	0-28050-820-0	04	1	1008-	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	1008-	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	1008-	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0306-0402		●	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0403-0609			●	●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. TURKEY EQUIPMENT(B11) 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0403-0609		●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0610-			●	●
36	00.386 BOLT; WATER PUMP TO C/BL TURKEY EQUIPMENT(B11) (D) M8X55 W/LK WASHER	8-97916-380-0	05	1	0403-0609		●
36	00.386 BOLT; WATER PUMP TO C/BL 07.010 (B) M8X20 FLANGE	0-28080-820-0	04	1	0306-0512	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.338 (B) M8X20 FLANGE	0-28050-820-0	04	1	0601-0609	●
36	00.386 BOLT; WATER PUMP TO C/BL EGYPT EQUIPMENT(B09) 04.686 (F) M8X60 FLANGE	0-28050-860-0	04	1	0610-1003					●
36	00.386 BOLT; WATER PUMP TO C/BL 04.686 (A) M8X30 FLANGE	0-28680-830-0	04	1	0306-0512	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-0609	●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. EGYPT EQUIPMENT(B09) (F) M8X50 FLANGE	0-28050-850-0	04	1	0610-1003					●
36	00.386 BOLT; WATER PUMP TO C/BL (F) M8X50 FLANGE	0-28050-850-0	04	1	0610-1003						●
36	00.386 BOLT; WATER PUMP TO C/BL (F) M8X50 FLANGE	0-28050-850-0	04	1	1004-1007					●	●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. EGYPT EQUIPMENT(B09) (F) M8X50 FLANGE	0-28050-850-0	04	1	1008-					●
36	00.386 BOLT; WATER PUMP TO C/BL (F) M8X50 FLANGE	0-28050-850-0	04	1	1008-						●	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	0306-0609	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.338 (B) M8X20 FLANGE	0-28050-820-0	04	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL (E)	8-92065-461-0	03	1	0306-1009								●
36	00.386 BOLT; WATER PUMP TO C/BL (E)	8-93376-830-0	03	1	1010-								●
42	01.073 STUD; WATER PUMP EGYPT EQUIPMENT(B09) M8X28 L=40	0-41010-828-0	02	1	1008-					●
42	01.073 STUD; WATER PUMP	8-97136-226-0	01	1	1008-	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	0306-0402		●	●	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	0403-0604			●	●
42	01.073 STUD; WATER PUMP EXC. TURKEY EQUIPMENT(B11) 09.173 M8X22 L=34	9-04110-822-0	02	1	0403-0604		●
42	01.073 STUD; WATER PUMP TURKEY EQUIPMENT(B11) M8X22 L=34	0-41010-822-0	02	1	0403-0604		●
42	01.073 STUD; WATER PUMP M8X22 L=34	0-41010-822-0	02	1	0605-0609		●	●	●
42	01.073 STUD; WATER PUMP M8X22 L=34	0-41010-822-0	02	1	0610-			●	●
42	01.073 STUD; WATER PUMP	8-97136-226-0	01	1	0306-0609	●
42	01.073 STUD; WATER PUMP EGYPT EQUIPMENT(B09) M8X28 L=40	0-41010-828-0	02	1	0610-1003					●
42	01.073 STUD; WATER PUMP	8-97136-226-0	01	1	0710-1003	●
42	01.073 STUD; WATER PUMP EXC. EGYPT EQUIPMENT(B09) M8X22 L=40	0-49140-822-0	02	1	0610-1003					●
42	01.073 STUD; WATER PUMP M8X22 L=40	0-49140-822-0	02	1	0610-1003						●
42	01.073 STUD; WATER PUMP M8X22 L=40	0-49140-822-0	02	1	1004-1007					●	●
42	01.073 STUD; WATER PUMP EXC. EGYPT EQUIPMENT(B09) M8X22 L=40	0-49140-822-0	02	1	1008-					●
42	01.073 STUD; WATER PUMP M8X22 L=40	0-49140-822-0	02	1	1008-						●	●

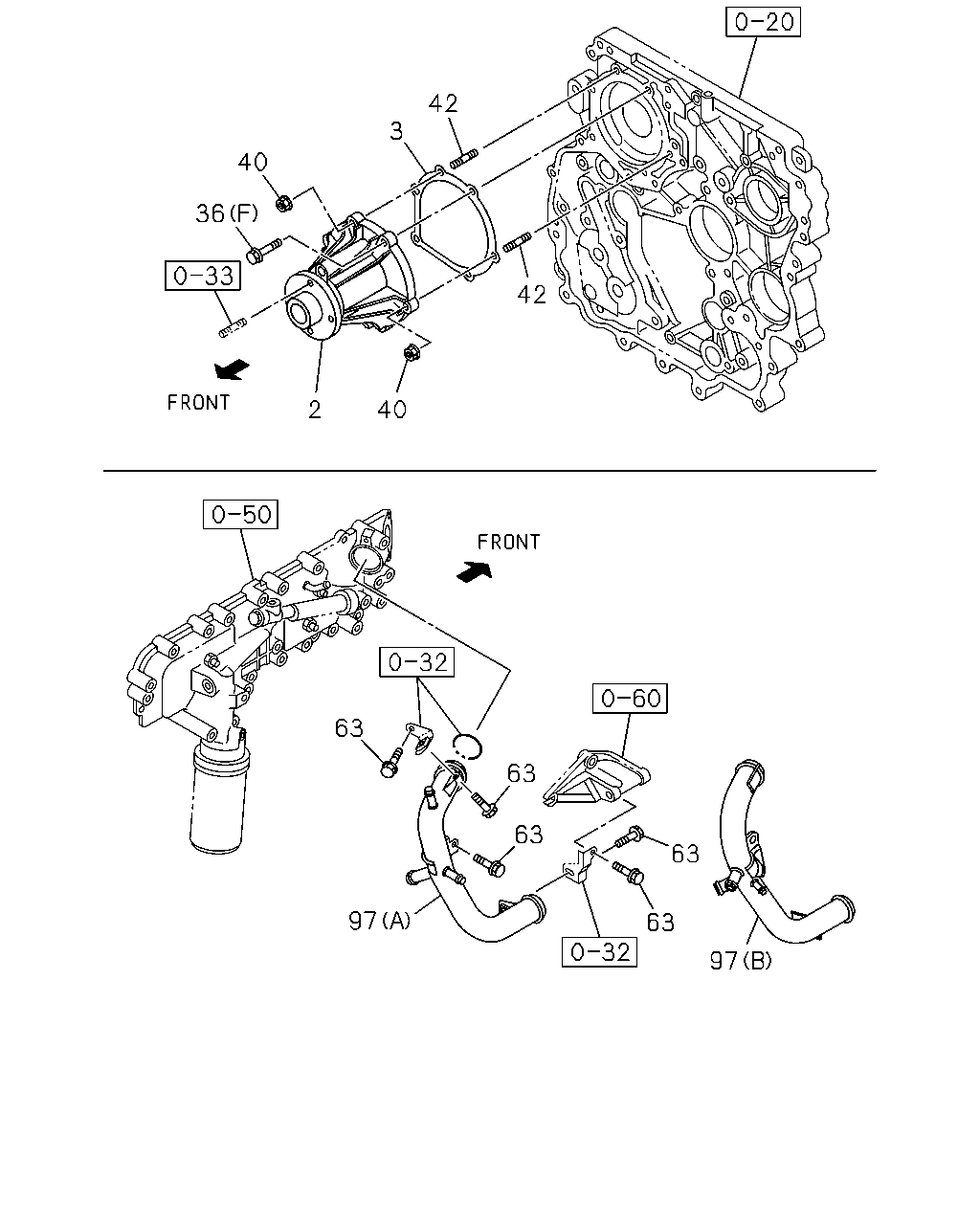

42 3 40 36 42 2 40 63 63 63 63 97 63 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	01.069 PUMP ASM; WATER EGYPT EQUIPMENT(B09)	8-98004-292-3	01	1	1008-					●
2	01.069 PUMP ASM; WATER	8-92064-391-0	01	1	0306-1009								●
2	01.069 PUMP ASM; WATER	8-93284-725-0	01	1	1010-								●
2	01.069 PUMP ASM; WATER EXC. EGYPT EQUIPMENT(B09)	8-97312-147-3	01	1	0610-1003					●
2	01.069 PUMP ASM; WATER	8-97312-147-3	01	1	0610-1003						●
2	01.069 PUMP ASM; WATER	8-97312-147-4	01	1	1004-1007					●	●
2	01.069 PUMP ASM; WATER EXC. EGYPT EQUIPMENT(B09)	8-97312-147-4	01	1	1008-					●
2	01.069 PUMP ASM; WATER	8-97312-147-4	01	1	1008-						●	●
2	01.069 PUMP ASM; WATER EGYPT EQUIPMENT(B09)	8-98004-292-2	01	1	0610-1003					●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97148-736-0	01	1	1008-	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-0	01	1	0710-1007			●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-0	01	1	0306-0402		●	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-0	01	1	0403-0609			●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. TURKEY EQUIPMENT(B11)	8-94178-081-0	01	1	0403-0609		●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-0	01	1	0610-0709			●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-1	01	1	0710-1007				●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-94178-081-1	01	1	1008-			●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) . TURKEY EQUIPMENT(B11)	8-97912-600-0	01	1	0403-0609		●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97148-736-0	01	1	0306-0609	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97312-156-0	01	1	0610-1007					●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97312-156-0	01	1	1008-					●	●	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE) .	8-97148-736-0	01	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL EGYPT EQUIPMENT(B09) 04.686 (F) M8X60 FLANGE	0-28050-860-0	04	1	1008-					●
36	00.386 BOLT; WATER PUMP TO C/BL 04.338 (B) M8X20 FLANGE	0-28050-820-0	04	1	1008-	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	1008-	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	1008-	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0306-0402		●	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0403-0609			●	●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. TURKEY EQUIPMENT(B11) 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0403-0609		●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0610-			●	●
36	00.386 BOLT; WATER PUMP TO C/BL TURKEY EQUIPMENT(B11) (D) M8X55 W/LK WASHER	8-97916-380-0	05	1	0403-0609		●
36	00.386 BOLT; WATER PUMP TO C/BL 07.010 (B) M8X20 FLANGE	0-28080-820-0	04	1	0306-0512	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.338 (B) M8X20 FLANGE	0-28050-820-0	04	1	0601-0609	●
36	00.386 BOLT; WATER PUMP TO C/BL EGYPT EQUIPMENT(B09) 04.686 (F) M8X60 FLANGE	0-28050-860-0	04	1	0610-1003					●
36	00.386 BOLT; WATER PUMP TO C/BL 04.686 (A) M8X30 FLANGE	0-28680-830-0	04	1	0306-0512	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-0609	●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. EGYPT EQUIPMENT(B09) (F) M8X50 FLANGE	0-28050-850-0	04	1	0610-1003					●
36	00.386 BOLT; WATER PUMP TO C/BL (F) M8X50 FLANGE	0-28050-850-0	04	1	0610-1003						●
36	00.386 BOLT; WATER PUMP TO C/BL (F) M8X50 FLANGE	0-28050-850-0	04	1	1004-1007					●	●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. EGYPT EQUIPMENT(B09) (F) M8X50 FLANGE	0-28050-850-0	04	1	1008-					●
36	00.386 BOLT; WATER PUMP TO C/BL (F) M8X50 FLANGE	0-28050-850-0	04	1	1008-						●	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	0306-0609	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.338 (B) M8X20 FLANGE	0-28050-820-0	04	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL (E)	8-92065-461-0	03	1	0306-1009								●
36	00.386 BOLT; WATER PUMP TO C/BL (E)	8-93376-830-0	03	1	1010-								●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	0306-0402		●	●	●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	0403-0602			●	●
40	07.874 NUT; WATER PUMP EXC. TURKEY EQUIPMENT(B11) 07.633 M8 FLANGE	0-91150-108-0	02	1	0403-0602		●
40	07.874 NUT; WATER PUMP TURKEY EQUIPMENT(B11) 01.062 M8 FLANGE	0-91180-108-0	02	1	0403-0602		●
40	07.874 NUT; WATER PUMP 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0609		●	●	●
40	07.874 NUT; WATER PUMP 01.062 M8 FLANGE	0-91180-108-0	02	1	0610-			●	●
40	07.874 NUT; WATER PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-1007					●	●
40	07.874 NUT; WATER PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	1008-					●	●	●
42	01.073 STUD; WATER PUMP EGYPT EQUIPMENT(B09) M8X28 L=40	0-41010-828-0	02	1	1008-					●
42	01.073 STUD; WATER PUMP	8-97136-226-0	01	1	1008-	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	0306-0402		●	●	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	0403-0604			●	●
42	01.073 STUD; WATER PUMP EXC. TURKEY EQUIPMENT(B11) 09.173 M8X22 L=34	9-04110-822-0	02	1	0403-0604		●
42	01.073 STUD; WATER PUMP TURKEY EQUIPMENT(B11) M8X22 L=34	0-41010-822-0	02	1	0403-0604		●
42	01.073 STUD; WATER PUMP M8X22 L=34	0-41010-822-0	02	1	0605-0609		●	●	●
42	01.073 STUD; WATER PUMP M8X22 L=34	0-41010-822-0	02	1	0610-			●	●
42	01.073 STUD; WATER PUMP	8-97136-226-0	01	1	0306-0609	●
42	01.073 STUD; WATER PUMP EGYPT EQUIPMENT(B09) M8X28 L=40	0-41010-828-0	02	1	0610-1003					●
42	01.073 STUD; WATER PUMP	8-97136-226-0	01	1	0710-1003	●
42	01.073 STUD; WATER PUMP EXC. EGYPT EQUIPMENT(B09) M8X22 L=40	0-49140-822-0	02	1	0610-1003					●
42	01.073 STUD; WATER PUMP M8X22 L=40	0-49140-822-0	02	1	0610-1003						●
42	01.073 STUD; WATER PUMP M8X22 L=40	0-49140-822-0	02	1	1004-1007					●	●
42	01.073 STUD; WATER PUMP EXC. EGYPT EQUIPMENT(B09) M8X22 L=40	0-49140-822-0	02	1	1008-					●
42	01.073 STUD; WATER PUMP M8X22 L=40	0-49140-822-0	02	1	1008-						●	●
63	01.073 BOLT; INL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	05	1	0610-1007					●	●
63	01.073 BOLT; INL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	05	1	1008-					●	●	●
97	01.097 PIPE; WATER (B)	8-98039-494-0	01	1	0610-0706						●
97	01.097 PIPE; WATER (B)	8-98090-215-0	01	1	0707-1007						●
97	01.097 PIPE; WATER EURO4 SPECIFICATION<NT4> (B)	8-98090-215-0	01	1	1008-						●	●
97	01.097 PIPE; WATER EXC. EGYPT EQUIPMENT(B09) (A)	8-98090-214-0	01	1	0707-0708					●
97	01.097 PIPE; WATER (A)	8-98090-214-0	01	1	0709-1007					●
97	01.097 PIPE; WATER (A)	8-98090-214-0	01	1	1008-					●
97	01.097 PIPE; WATER EURO3 SPECIFICATION<NT3> (A)	8-98090-214-0	01	1	1008-						●
97	01.097 PIPE; WATER (A)	8-97354-754-3	01	1	0610-0706					●
97	01.097 PIPE; WATER EGYPT EQUIPMENT(B09) (A)	8-97354-754-3	01	1	0707-0708					●

104 2 36 36 36 2 41

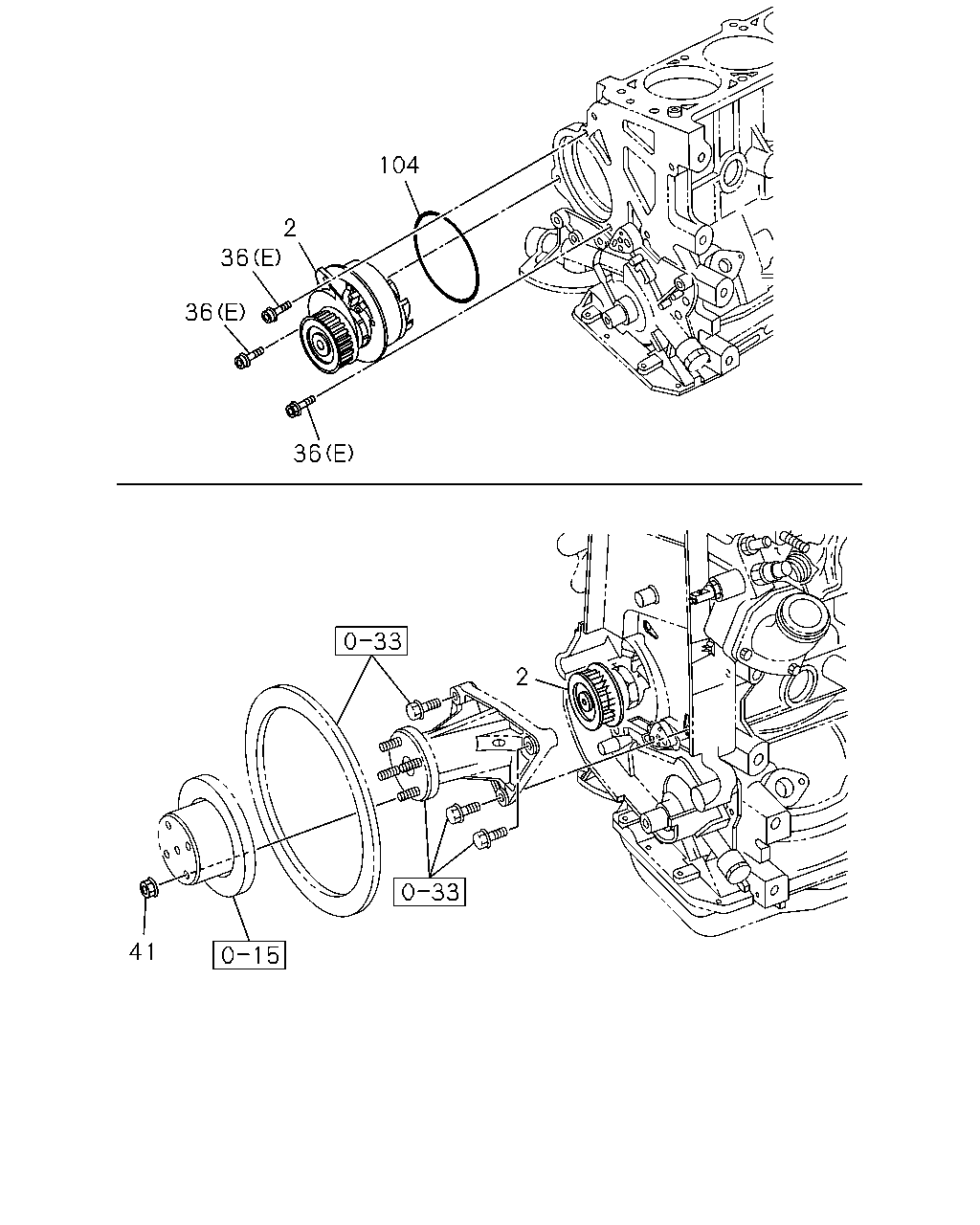

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	01.069 PUMP ASM; WATER EGYPT EQUIPMENT(B09)	8-98004-292-3	01	1	1008-					●
2	01.069 PUMP ASM; WATER	8-92064-391-0	01	1	0306-1009								●
2	01.069 PUMP ASM; WATER	8-93284-725-0	01	1	1010-								●
2	01.069 PUMP ASM; WATER EXC. EGYPT EQUIPMENT(B09)	8-97312-147-3	01	1	0610-1003					●
2	01.069 PUMP ASM; WATER	8-97312-147-3	01	1	0610-1003						●
2	01.069 PUMP ASM; WATER	8-97312-147-4	01	1	1004-1007					●	●
2	01.069 PUMP ASM; WATER EXC. EGYPT EQUIPMENT(B09)	8-97312-147-4	01	1	1008-					●
2	01.069 PUMP ASM; WATER	8-97312-147-4	01	1	1008-						●	●
2	01.069 PUMP ASM; WATER EGYPT EQUIPMENT(B09)	8-98004-292-2	01	1	0610-1003					●
36	00.386 BOLT; WATER PUMP TO C/BL EGYPT EQUIPMENT(B09) 04.686 (F) M8X60 FLANGE	0-28050-860-0	04	1	1008-					●
36	00.386 BOLT; WATER PUMP TO C/BL 04.338 (B) M8X20 FLANGE	0-28050-820-0	04	1	1008-	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	1008-	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	1008-	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0306-0402		●	●	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0403-0609			●	●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. TURKEY EQUIPMENT(B11) 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0403-0609		●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 (D) M8X55 W/LK WASHER	5-09000-084-1	05	1	0610-			●	●
36	00.386 BOLT; WATER PUMP TO C/BL TURKEY EQUIPMENT(B11) (D) M8X55 W/LK WASHER	8-97916-380-0	05	1	0403-0609		●
36	00.386 BOLT; WATER PUMP TO C/BL 07.010 (B) M8X20 FLANGE	0-28080-820-0	04	1	0306-0512	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.338 (B) M8X20 FLANGE	0-28050-820-0	04	1	0601-0609	●
36	00.386 BOLT; WATER PUMP TO C/BL EGYPT EQUIPMENT(B09) 04.686 (F) M8X60 FLANGE	0-28050-860-0	04	1	0610-1003					●
36	00.386 BOLT; WATER PUMP TO C/BL 04.686 (A) M8X30 FLANGE	0-28680-830-0	04	1	0306-0512	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-0609	●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. EGYPT EQUIPMENT(B09) (F) M8X50 FLANGE	0-28050-850-0	04	1	0610-1003					●
36	00.386 BOLT; WATER PUMP TO C/BL (F) M8X50 FLANGE	0-28050-850-0	04	1	0610-1003						●
36	00.386 BOLT; WATER PUMP TO C/BL (F) M8X50 FLANGE	0-28050-850-0	04	1	1004-1007					●	●
36	00.386 BOLT; WATER PUMP TO C/BL EXC. EGYPT EQUIPMENT(B09) (F) M8X50 FLANGE	0-28050-850-0	04	1	1008-					●
36	00.386 BOLT; WATER PUMP TO C/BL (F) M8X50 FLANGE	0-28050-850-0	04	1	1008-						●	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	0306-0609	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.338 (B) M8X20 FLANGE	0-28050-820-0	04	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL 04.012 (C) M8X20 W/THREAD LOCKING ADHESIVE	8-97021-210-0	01	1	0710-1003	●
36	00.386 BOLT; WATER PUMP TO C/BL (E)	8-92065-461-0	03	1	0306-1009								●
36	00.386 BOLT; WATER PUMP TO C/BL (E)	8-93376-830-0	03	1	1010-								●
41	01.062 NUT; PULLEY M8 FLANGE	0-91180-108-0	04	1	0306-								●
104	01.079 GASKET; WATER PUMP	8-90322-506-0	01	1	0306-1009								●
104	01.079 GASKET; WATER PUMP	8-92213-729-0	01	1	1010-								●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
