3-01 — FRONT WHEEL BRAKE (#739) — 157 parça

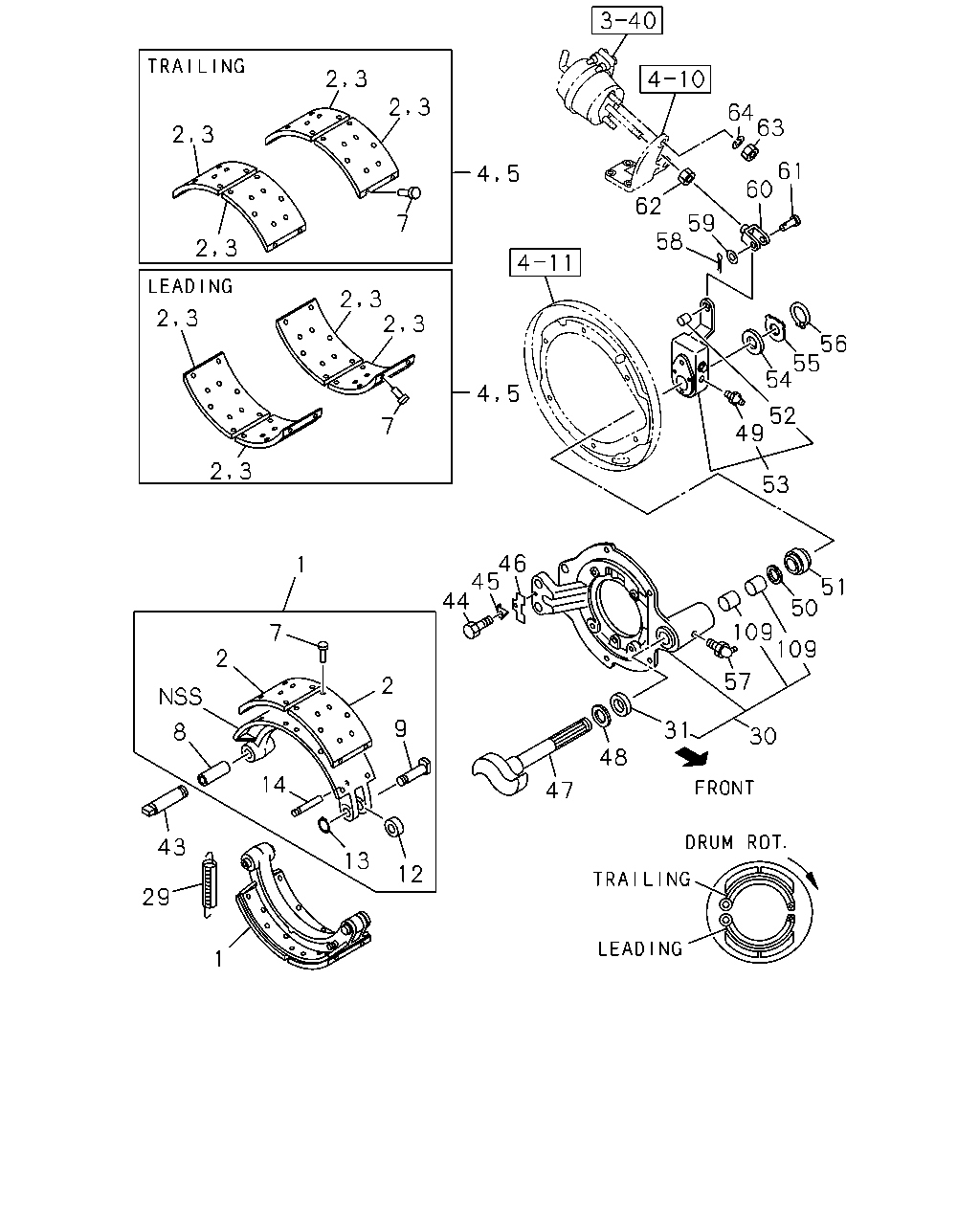

64 63 62 61 60 45 59 58 7 56 55 54 45 52 49 7 53 46 45 44 1 51 50 109 109 7 2 57 2 9 31 8 30 48 14 47 43 13 12 29 1 2 3 2 3 2 3 2 3 2 3 2 3 2 3 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT LEADING	1-47110-952-0	01	1	9204-9504
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-952-0	01	1	9505-
1	SHOE; BRK,FRT TRAILING	1-47110-953-0	01	1	9204-9504
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-953-0	01	1	9505-
1	SHOE; BRK,FRT LEADING	1-47110-956-0	01	1	9204-9504
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-956-0	01	1	9505-
1	SHOE; BRK,FRT TRAILING	1-47110-957-0	01	1	9204-9504
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-957-0	01	1	9505-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-962-0	04	1	9505-
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47115-867-0	04	1	9204-9504
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-867-0	04	1	9505-
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47115-868-0	04	1	9204-9504
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-868-0	04	1	9505-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-867-0	08	1	9505-
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47115-869-0	04	1	9204-9504
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-869-0	04	1	9505-
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47115-870-0	04	1	9204-9504
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-870-0	04	1	9505-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-869-0	08	1	9505-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9204-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9204-
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	9204-9504
9	PIN; SHOE HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-060-0	04	1	9505-
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	9204-9504
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-007-0	04	1	9505-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9204-9504
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	04	1	9505-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9204-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	9204-9504
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-185-2	02	1	9505-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-269-1	02	1	9505-
30	BRACKET; ANCHOR,FRT	1-47137-119-1	01	1	9204-9504
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-119-1	01	1	9505-
30	BRACKET; ANCHOR,FRT	1-47137-118-1	01	1	9204-9504
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-118-1	01	1	9505-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-149-0	02	1	9505-
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	9204-9504
31	SEAL; OIL,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09625-228-0	02	1	9505-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9204-
44	BOLT; LOCK,ANCHOR PIN M10X16	9-02041-016-0	02	1	9204-9204
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9205-
45	WASHER; LK	1-47133-011-0	02	1	9204-
46	PLATE; LOCK	1-47133-005-0	02	1	9204-
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	9204-9504
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-052-0	01	1	9505-
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	9204-9504
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-051-0	01	1	9505-
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	9204-9504
48	RING; SPACER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-005-0	02	1	9505-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	9204-9504
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	01	1	9505-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9204-9504
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9505-
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	9204-9504
50	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-009-0	02	1	9505-
51	COLLAR; RING,CM/SHF	1-47143-003-0	02	1	9204-9504
51	COLLAR; RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-003-0	02	1	9505-
52	BUSHING; SLACK ADJ	1-09330-041-0	02	1	9204-9504
52	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09330-041-0	02	1	9505-
53	ADJUSTER ASM; SLACK	1-48270-044-0	01	1	9204-9504
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-044-0	01	1	9505-
53	ADJUSTER ASM; SLACK	1-48270-043-0	01	1	9204-9504
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-043-0	01	1	9505-
54	SPACER; CM/SHF	1-47143-004-0	02	1	9204-9504
54	SPACER; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-004-0	02	1	9505-
55	PLATE; STOPPER,CM/SHF	1-47149-021-0	02	1	9204-9504
55	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-021-0	02	1	9505-
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	9204-9504
56	CLIP; ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09180-038-0	02	1	9505-
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	9204-9504
57	NIPPLE; GREASE,ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	02	1	9505-
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	9204-9504
58	PIN; SPLIT,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	02	1	9505-
59	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	02	1	9204-9401
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9402-9504
59	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32	9-09160-616-0	02	1	9505-
60	JOINT; JAW,POWER CHAMBER	1-09768-060-0	02	1	9204-9504
60	JOINT; JAW,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09768-060-0	02	1	9505-
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	9204-9504
61	PIN; JAW JOINT,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	02	1	9505-
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9204-9504
62	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9505-
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	9204-9504
63	NUT; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99110-416-0	04	1	9505-
64	WASHER; LK,POWER CHAMBER ID=16.2	9-09150-516-0	04	1	9204-9504
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	04	1	9505-
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	9204-9504
109	BUSHING; CM/SHF,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	04	1	9505-

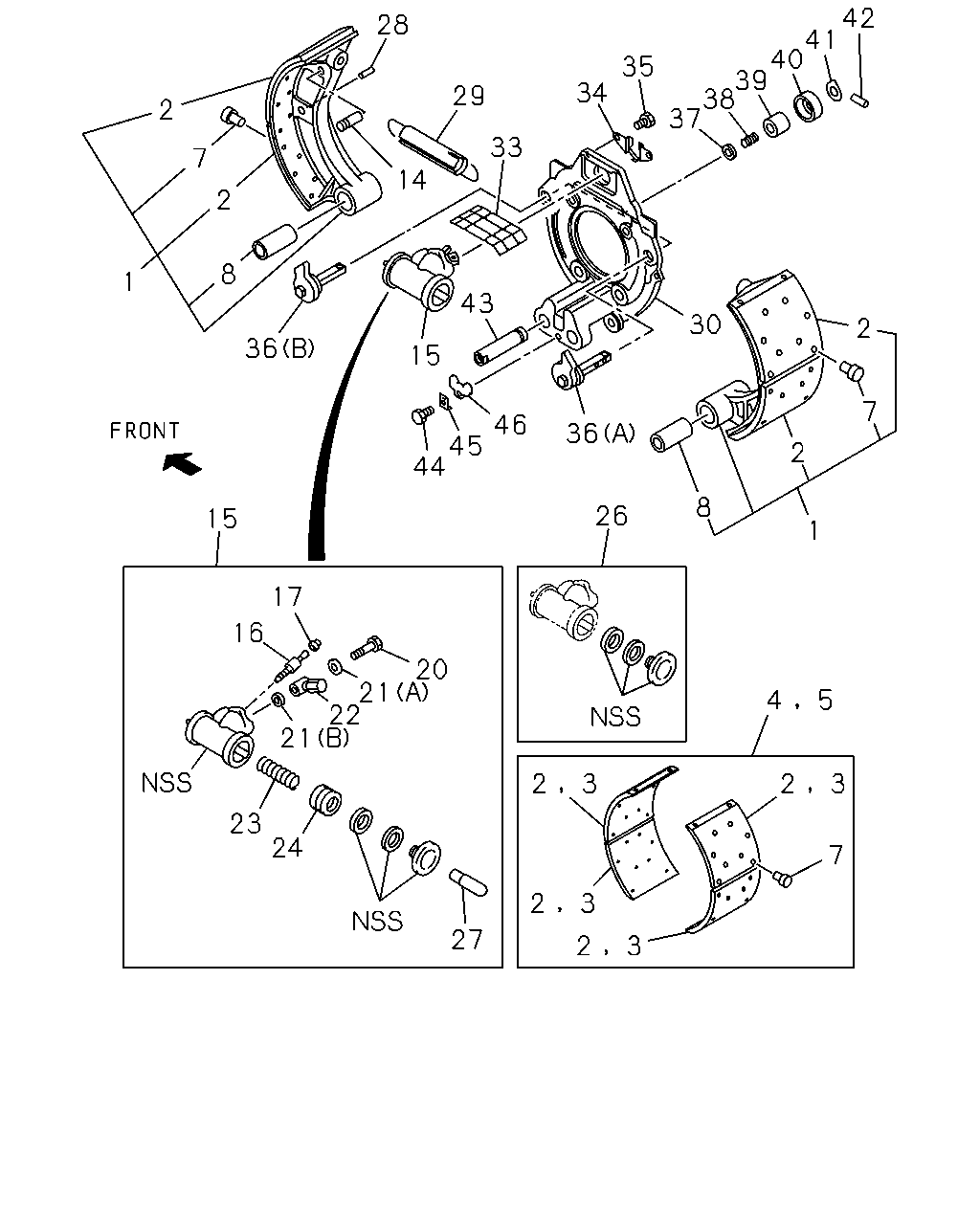

42 41 40 39 38 37 28 35 34 29 2 33 7 14 2 8 1 43 30 2 36 15 7 46 4 44 36 2 8 26 15 1 17 16 20 21 22 21 5 4 2 3 2 3 23 24 7 2 3 27 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT LEADING	1-47110-952-0	01	1	9204-9504
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-952-0	01	1	9505-
1	SHOE; BRK,FRT TRAILING	1-47110-953-0	01	1	9204-9504
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-953-0	01	1	9505-
1	SHOE; BRK,FRT LEADING	1-47110-956-0	01	1	9204-9504
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-956-0	01	1	9505-
1	SHOE; BRK,FRT TRAILING	1-47110-957-0	01	1	9204-9504
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-957-0	01	1	9505-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-962-0	04	1	9505-
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47115-867-0	04	1	9204-9504
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-867-0	04	1	9505-
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47115-868-0	04	1	9204-9504
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-868-0	04	1	9505-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-867-0	08	1	9505-
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47115-869-0	04	1	9204-9504
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-869-0	04	1	9505-
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47115-870-0	04	1	9204-9504
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-870-0	04	1	9505-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-869-0	08	1	9505-
4	LINING SET; FRT BRK,STANDARD LEADING	1-88302-956-0	01	1	9204-9504
4	LINING SET; FRT BRK,STANDARD Z06-LEADING	1-88302-956-0	01	1	9505-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) Z06-LEADING	1-88302-956-0	01	1	9505-
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88302-957-0	01	1	9204-9504
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-957-0	01	1	9505-
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-001-0	01	1	9204-9504
5	LINING SET; FRT BRK,OVER SIZE Z06-LEADING	1-88310-001-0	01	1	9505-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) Z06-LEADING	1-88310-001-0	01	1	9505-
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-002-0	01	1	9204-9504
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-002-0	01	1	9505-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9204-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9204-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9204-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-675-0	01	1	9505-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-674-0	01	1	9505-
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=66.5	1-47615-005-0	02	1	9505-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	9505-
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47634-006-0	02	1	9505-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	9505-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	9505-
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	9505-
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09940-435-0	02	1	9505-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-47624-210-0	04	1	9505-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=47.5	1-87830-521-0	02	1	9505-
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-009-0	04	1	9505-
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	04	1	9505-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	9204-9504
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-185-2	02	1	9505-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-269-1	02	1	9505-
30	BRACKET; ANCHOR,FRT	1-47137-119-1	01	1	9204-9504
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-119-1	01	1	9505-
30	BRACKET; ANCHOR,FRT	1-47137-118-1	01	1	9204-9504
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-118-1	01	1	9505-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-149-0	02	1	9505-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-080-0	02	1	9505-
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	9505-
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50051-235-0	04	1	9505-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47165-058-1	02	1	9505-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47165-059-1	02	1	9505-
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	04	1	9505-
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09941-293-0	04	1	9505-9506
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	9507-
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	04	1	9505-
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	04	1	9505-
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	04	1	9505-
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	04	1	9505-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9204-
44	BOLT; LOCK,ANCHOR PIN M10X16	9-02041-016-0	02	1	9204-9204
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9205-
46	PLATE; LOCK	1-47133-005-0	02	1	9204-
