0-13 — OIL PAN AND LEVEL GAUGE (#73897) — 583 parça

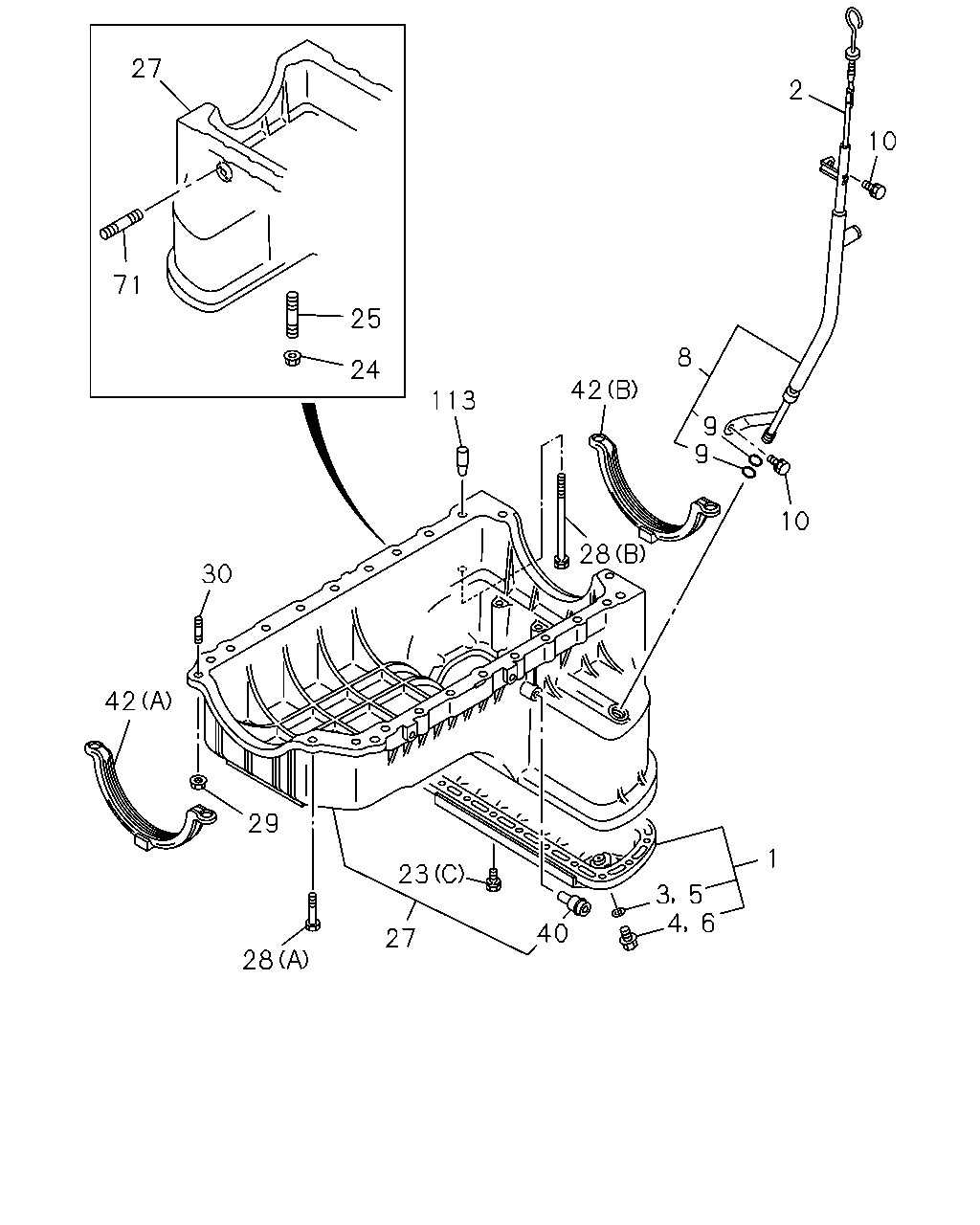

çizim 33445
27 2 10 71 25 8 24 42 113 9 9 10 28 30 42 29 1 23 40 27 28 3 5 4 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-98156-371-0 01 1 1008- ● ● ●
1 01.426 PAN ASM; OIL 8-97248-860-1 01 1 0306-0609 ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97248-860-1 01 1 0306-0609 ●
1 01.426 PAN ASM; OIL 8-97248-860-2 01 1 0610- ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97248-860-2 01 1 0610- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-97248-862-2 01 1 0306- ●
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 0306-0609 ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98013-383-1 01 1 0610-1007 ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98156-373-0 01 1 1008- ● ● ●
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 0710-1003 ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-92065-759-0 01 1 0306- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-92065-808-0 01 1 0306- ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-98011-499-0 01 1 0610-1007 ● ●
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 1008- ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-1 01 1 1008- ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0306-0609 ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0610- ● ●
2 01.516 GAUGE; OIL LEVEL 8-97148-697-2 01 1 0306-0308 ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-0 01 1 0309-0609 ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-98053-833-1 01 1 0610-1007 ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-98053-833-1 01 1 1008- ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-0 01 1 0710-1003 ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-92063-647-0 01 1 0306- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-92063-162-0 01 1 0306- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-1 01 1 0610-1007 ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-1 01 1 1008- ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1008- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0306-0609 ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0610-1007 ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1008-1008 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1008- ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0306-0609 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0710-1003 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-11023-589-0 01 1 0306- ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 1008- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0306-0609 ● ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0610-1007 ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 0306-0609 ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0610-1007 ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1008- ● ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 0710-1003 ●
4 01.453 PLUG; DRAIN,OIL 8-90409-376-0 01 1 0306-1009 ●
4 01.453 PLUG; DRAIN,OIL 8-92139-054-0 01 1 1010- ●
5 01.456 GASKET; PLUG,OIL DRAIN
ID=14.2 OD=24 		8-94158-328-0 01 1 1008- ● ●
6 01.453 PLUG; OIL DRAIN
03.001 M14X14 		8-94152-613-0 01 1 1008- ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97310-969-0 01 1 1008- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97328-532-0 01 1 0306-0706 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98067-937-0 01 1 0707- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97302-689-0 01 1 0306-0609 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97249-184-0 01 1 0306- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97132-302-2 01 1 0306-0308 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97310-969-0 01 1 0309-0609 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 0610-1007 ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 1008- ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97310-969-0 01 1 0710-1003 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . EGYPT EQUIPMENT(B09) ID=11 		1-09623-469-0 01 1 1008- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 		5-09623-002-0 02 1 0306-0609 ● ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 		5-09623-002-0 02 1 0610- ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 		5-09623-002-0 02 1 0306-0609 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. EGYPT EQUIPMENT(B09) . ID=11 OD=15.8 		8-98034-629-0 01 1 0610-1003 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 OD=15.8 		8-98034-629-0 01 1 0610-1003 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 OD=15.8 		8-98034-629-0 01 1 1004-1007 ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. EGYPT EQUIPMENT(B09) . ID=11 OD=15.8 		8-98034-629-0 01 1 1008- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 OD=15.8 		8-98034-629-0 01 1 1008- ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . EGYPT EQUIPMENT(B09) ID=11 		1-09623-469-0 01 1 0610-1003 ●
10 01.516 BOLT; GUIDE TUBE
EGYPT EQUIPMENT(B09) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1008- ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0306-0402 ● ● ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0403-0512 ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. TURKEY EQUIPMENT(B11) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0403-0512 ●
10 01.516 BOLT; GUIDE TUBE
TURKEY EQUIPMENT(B11) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0403-0512 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ● ● ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0610- ● ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0306-0512 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610-0611 ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. EGYPT EQUIPMENT(B09) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0612-0709 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0612-0709 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0710-1003 ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. EGYPT EQUIPMENT(B09) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0710-1003 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1004-1007 ● ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1008- ● ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. EGYPT EQUIPMENT(B09) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1008- ●
10 01.516 BOLT; GUIDE TUBE
EGYPT EQUIPMENT(B09) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0612-1003 ●
23 01.428 BOLT; OIL PAN
(A) 		8-11096-082-0 01 1 1010- ●
23 01.428 BOLT; OIL PAN
00.004 (D) M8X16 HEX SOCKET 		0-58330-816-0 12 1 1008- ●
23 01.428 BOLT; OIL PAN
4X4(TFS***) ISUZU BRAND<7WL> 01.267 (E) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 0810-1007 ● ●
23 01.428 BOLT; OIL PAN
4X4(TFS***) ISUZU BRAND<7WL> EXC. EGYPT EQUIPMENT(B09), PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 01.267 (E) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1008- ● ● ●
23 01.428 BOLT; OIL PAN
03.330 (D) M8X16 HEX SOCKET 		0-58310-816-0 12 1 0710-0805 ●
23 01.428 BOLT; OIL PAN
00.004 (D) M8X16 HEX SOCKET 		0-58330-816-0 12 1 0806-1003 ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0306-0402 ● ● ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0403-0609 ● ●
23 01.428 BOLT; OIL PAN
EXC. TURKEY EQUIPMENT(B11) (C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0403-0609 ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0610- ● ●
23 01.428 BOLT; OIL PAN
TURKEY EQUIPMENT(B11) (C) M6X13 		8-97916-379-0 15 1 0403-0609 ●
23 01.428 BOLT; OIL PAN
03.330 (D) M8X16 HEX SOCKET 		0-58310-816-0 12 1 0306-0609 ●
23 01.428 BOLT; OIL PAN
(A) M8X132 		8-11093-981-0 03 1 0306- ●
23 01.428 BOLT; OIL PAN
00.662 (B) M8X45 		8-11096-481-0 11 1 0306-1009 ●
23 01.428 BOLT; OIL PAN
00.662 (B) M8X45 		8-11096-481-0 10 1 1010- ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97137-836-0 02 1 0306-0609 ● ● ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97137-836-0 02 1 0610-0805 ● ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97329-622-0 02 1 0806- ● ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-1007 ● ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 1008- ● ● ●
25 01.453 STUD; OIL PAN
EGYPT EQUIPMENT(B09) 00.349 M8X20 L=31 		8-97945-022-0 02 1 1406- ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49140-630-0 01 1 1008- ●
25 01.453 STUD; OIL PAN
01.428 M6X12 L=21 		9-04110-612-0 02 1 0306-0402 ● ● ●
25 01.453 STUD; OIL PAN
01.428 M6X12 L=21 		9-04110-612-0 02 1 0403-0604 ● ●
25 01.453 STUD; OIL PAN
EXC. TURKEY EQUIPMENT(B11) 01.428 M6X12 L=21 		9-04110-612-0 02 1 0403-0604 ●
25 01.453 STUD; OIL PAN
TURKEY EQUIPMENT(B11) M6X12 L=21 		0-41010-612-0 02 1 0403-0604 ●
25 01.453 STUD; OIL PAN
M6X12 L=21 		0-41010-612-0 02 1 0605-0609 ● ● ●
25 01.453 STUD; OIL PAN
M6X12 L=21 		0-41010-612-0 02 1 0610- ● ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49740-630-0 01 1 0306-0609 ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 0610-1007 ● ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 1008-1405 ● ● ●
25 01.453 STUD; OIL PAN
EXC. EGYPT EQUIPMENT(B09) M8X16 L=28 		0-41010-816-0 02 1 1406- ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 1406- ● ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49740-630-0 01 1 0710-0804 ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49140-630-0 01 1 0805-1003 ●
27 01.426 CRANKCASE 8-97306-569-0 01 1 1008- ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0306-0609 ● ● ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0610- ● ●
27 01.426 CRANKCASE 8-97306-569-0 01 1 0306-0609 ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0610-0709 ●
27 01.426 CRANKCASE
4X2(TFB***) A/T AISIN(RMD) 		8-98013-794-1 01 1 0610-0709 ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0710-1007 ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 1008- ● ● ●
27 01.426 CRANKCASE 8-97306-569-0 01 1 0710-1003 ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 0610-1007 ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 1008- ● ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-497-2 01 1 0610- ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-498-2 01 1 0610- ●
28 01.780 BOLT; CRANKCASE TO C/BL
01.428 (C) M6X25 HEX SOCKET 		0-58330-625-0 18 1 1008- ●
28 01.780 BOLT; CRANKCASE TO C/BL
01.428 (C) M6X25 HEX SOCKET 		0-58330-625-0 18 1 0710-1003 ●
28 01.780 BOLT; CRANKCASE TO C/BL
(B) M8X120 FLANGE 		0-28085-812-0 01 1 0306-0402 ● ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
(B) M8X120 FLANGE 		0-28085-812-0 01 1 0403-0512 ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
EXC. TURKEY EQUIPMENT(B11) (B) M8X120 FLANGE 		0-28085-812-0 01 1 0403-0512 ●
28 01.780 BOLT; CRANKCASE TO C/BL
00.727 (A) M8X32 W/LK WASHER 		0-50040-832-0 19 1 0306-0402 ● ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
00.727 (A) M8X32 W/LK WASHER 		0-50040-832-0 19 1 0403-0609 ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
EXC. TURKEY EQUIPMENT(B11) 00.727 (A) M8X32 W/LK WASHER 		0-50040-832-0 19 1 0403-0609 ●
28 01.780 BOLT; CRANKCASE TO C/BL
00.727 (A) M8X32 W/LK WASHER 		0-50040-832-0 19 1 0610-0909 ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
(A) M8X32 W/LK WASHER 		0-50540-832-0 19 1 0910- ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
TURKEY EQUIPMENT(B11) (B) M8X120 FLANGE 		0-28055-812-0 01 1 0403-0512 ●
28 01.780 BOLT; CRANKCASE TO C/BL
(B) M8X120 FLANGE 		0-28055-812-0 01 1 0601-0609 ● ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
(B) M8X120 FLANGE 		0-28055-812-0 01 1 0610- ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
TURKEY EQUIPMENT(B11) 01.060 (A) M8X35 FLANGE 		0-28650-835-0 19 1 0403-0609 ●
28 01.780 BOLT; CRANKCASE TO C/BL
(C) M6X25 HEX SOCKET 		0-58310-625-0 18 1 0306-0512 ●
28 01.780 BOLT; CRANKCASE TO C/BL
01.428 (C) M6X25 HEX SOCKET 		0-58330-625-0 18 1 0601-0609 ●
29 01.426 NUT; CRANKCASE
01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ●
29 01.426 NUT; CRANKCASE
07.633 M8 FLANGE 		0-91150-108-0 02 1 0306-0402 ● ● ●
29 01.426 NUT; CRANKCASE
07.633 M8 FLANGE 		0-91150-108-0 02 1 0403-0602 ● ●
29 01.426 NUT; CRANKCASE
EXC. TURKEY EQUIPMENT(B11) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0403-0602 ●
29 01.426 NUT; CRANKCASE
TURKEY EQUIPMENT(B11) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0403-0602 ●
29 01.426 NUT; CRANKCASE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ● ●
29 01.426 NUT; CRANKCASE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
29 01.426 NUT; CRANKCASE
04.594 M6 FLANGE 		0-91150-106-0 02 1 0306-0602 ●
29 01.426 NUT; CRANKCASE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ●
29 01.426 NUT; CRANKCASE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-1003 ●
30 01.780 STUD; CRANKCASE
08.981 M8X35 L=47 		9-04110-835-0 02 1 0306-0402 ● ● ●
30 01.780 STUD; CRANKCASE
08.981 M8X35 L=47 		9-04110-835-0 02 1 0403-0604 ● ●
30 01.780 STUD; CRANKCASE
EXC. TURKEY EQUIPMENT(B11) 08.981 M8X35 L=47 		9-04110-835-0 02 1 0403-0604 ●
30 01.780 STUD; CRANKCASE
TURKEY EQUIPMENT(B11) M8X35 L=47 		0-41010-835-0 02 1 0403-0604 ●
30 01.780 STUD; CRANKCASE
M8X35 L=47 		0-41010-835-0 02 1 0605-0609 ● ● ●
30 01.780 STUD; CRANKCASE
M8X35 L=47 		0-41010-835-0 02 1 0610- ● ●
40 01.426 NIPPLE; OIL RETURN HOSE VAC PUMP
01.531 		5-11369-038-0 01 1 0306-0609 ● ● ●
40 01.426 NIPPLE; OIL RETURN HOSE VAC PUMP
01.531 		5-11369-038-0 01 1 0610- ● ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . (A) FRONT 		8-97120-933-0 01 1 0306-0609 ● ● ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . (A) FRONT 		8-97120-933-0 01 1 0610- ● ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . (B) REAR 		8-97123-342-0 01 1 0306-0609 ● ● ●
42 01.429 GASKET; CRANKCASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) . (B) REAR 		8-97123-342-0 01 1 0610- ● ●
71 01.428 STUD; OIL DRAIN PIPE
M8X18 L=30 		9-04110-818-0 02 1 0306-0402 ● ● ●
71 01.428 STUD; OIL DRAIN PIPE
M8X18 L=30 		9-04110-818-0 02 1 0403-0604 ● ●
71 01.428 STUD; OIL DRAIN PIPE
EXC. TURKEY EQUIPMENT(B11) M8X18 L=30 		9-04110-818-0 02 1 0403-0604 ●
71 01.428 STUD; OIL DRAIN PIPE
TURKEY EQUIPMENT(B11) M8X18 L=30 		0-41010-818-0 02 1 0403-0604 ●
71 01.428 STUD; OIL DRAIN PIPE
M8X18 L=30 		0-41010-818-0 02 1 0605-0609 ● ● ●
71 01.428 STUD; OIL DRAIN PIPE
M8X18 L=30 		0-41010-818-0 02 1 0610- ● ●
113 01.453 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 0306-0402 ● ● ●
113 01.453 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 0403-0609 ● ●
113 01.453 PIN; STRAIGHT
EXC. TURKEY EQUIPMENT(B11) 01.428 L=31 		9-09878-597-0 02 1 0403-0609 ●
113 01.453 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 0610- ● ●
113 01.453 PIN; STRAIGHT
TURKEY EQUIPMENT(B11) L=31 		8-97920-964-1 02 1 0403-0609 ●
113 01.453 PIN; STRAIGHT
M/T MUX 5 SPEED 5S(MZJ) 08.939 OD=10 L=32 		9-08161-032-0 02 1 0610- ●

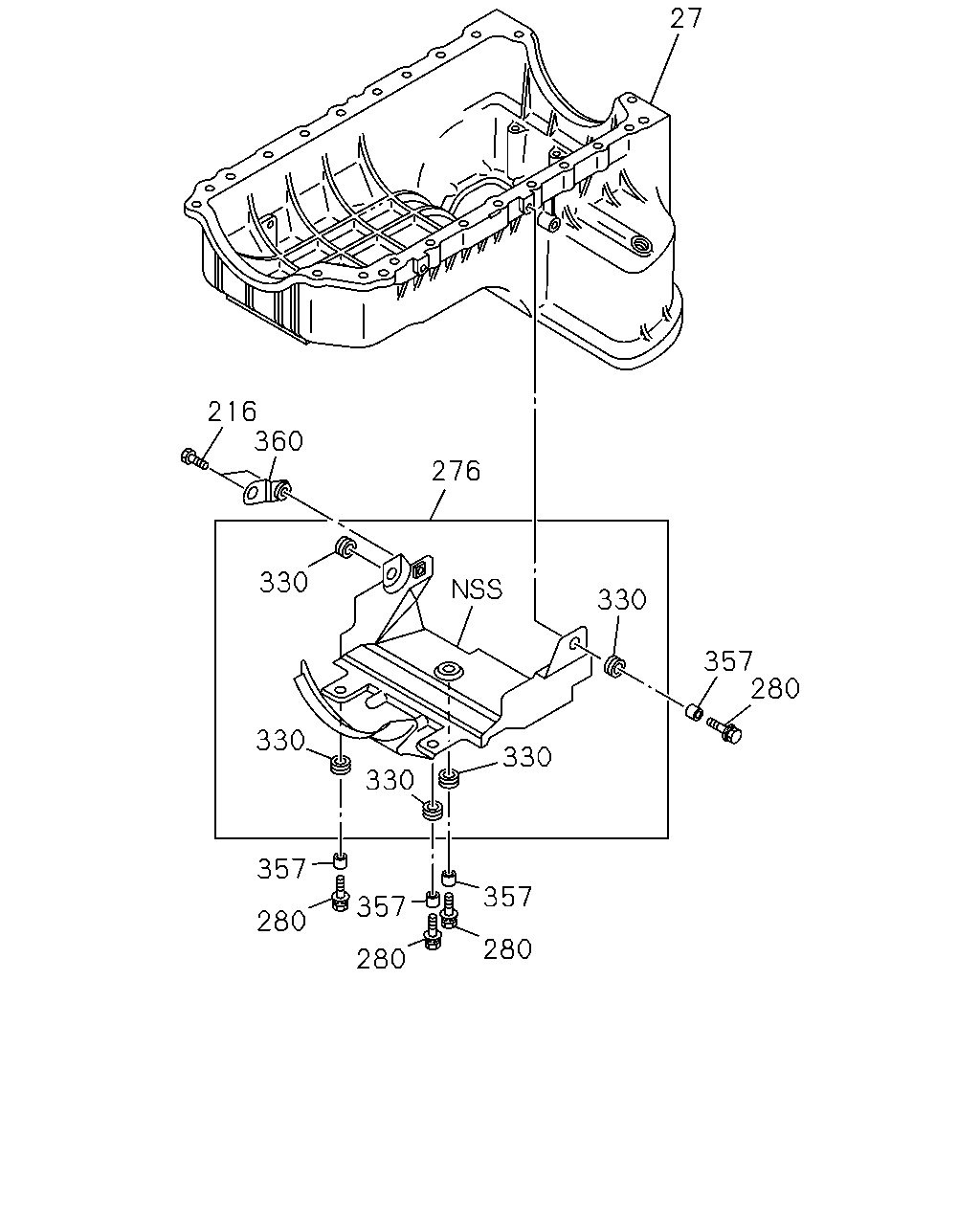

çizim 36506
27 216 360 276 330 330 357 280 330 330 330 357 357 357 280 280 280
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
27 01.426 CRANKCASE 8-97306-569-0 01 1 1008- ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0306-0609 ● ● ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0610- ● ●
27 01.426 CRANKCASE 8-97306-569-0 01 1 0306-0609 ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0610-0709 ●
27 01.426 CRANKCASE
4X2(TFB***) A/T AISIN(RMD) 		8-98013-794-1 01 1 0610-0709 ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0710-1007 ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 1008- ● ● ●
27 01.426 CRANKCASE 8-97306-569-0 01 1 0710-1003 ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 0610-1007 ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 1008- ● ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-497-2 01 1 0610- ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-498-2 01 1 0610- ●
216 01.429 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ●
216 01.429 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0403-0512 ● ●
216 01.429 BOLT; BRKT
EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0403-0512 ●
216 01.429 BOLT; BRKT
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 0306-0609 ● ● ●
216 01.429 BOLT; BRKT
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 0610- ● ●
216 01.429 BOLT; BRKT
TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0403-0512 ●
216 01.429 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0609 ● ● ●
216 01.429 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0610- ● ●
276 01.516 COVER; CRANKCASE 8-97324-158-3 01 1 0306-0309 ● ● ●
276 01.516 COVER; CRANKCASE 8-97373-085-0 01 1 0310-0609 ● ● ●
276 01.516 COVER; CRANKCASE 8-97373-085-2 01 1 0610- ● ●
280 01.430 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 0306-0309 ● ● ●
280 01.430 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0310-0609 ● ● ●
280 01.430 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0610- ● ●
330 01.516 RUBBER; MTG,CRANKCASE COVER
00.034 OD=22 		8-94140-428-1 05 1 0306-0309 ● ● ●
330 01.516 RUBBER; MTG,CRANKCASE COVER
00.034 OD=22 		8-94140-428-1 03 1 0310-0609 ● ● ●
330 01.516 RUBBER; MTG,CRANKCASE COVER
00.034 OD=22 		8-94140-428-1 03 1 0610-0905 ● ●
330 01.516 RUBBER; MTG,CRANKCASE COVER
00.413 OD=21.8 		8-97325-051-0 03 1 0906- ● ●
357 01.516 BUSHING; COVER 8-97361-926-0 04 1 0306-0308 ● ● ●
357 01.516 BUSHING; COVER 8-97371-498-0 04 1 0309-0309 ● ● ●
357 01.516 BUSHING; COVER 8-97371-498-0 03 1 0310-0609 ● ● ●
357 01.516 BUSHING; COVER 8-97371-498-0 03 1 0610- ● ●
360 01.750 BRACKET; CRANK CASE 8-97329-650-1 01 1 0306-0609 ● ● ●
360 01.750 BRACKET; CRANK CASE 8-97329-650-1 01 1 0610- ● ●

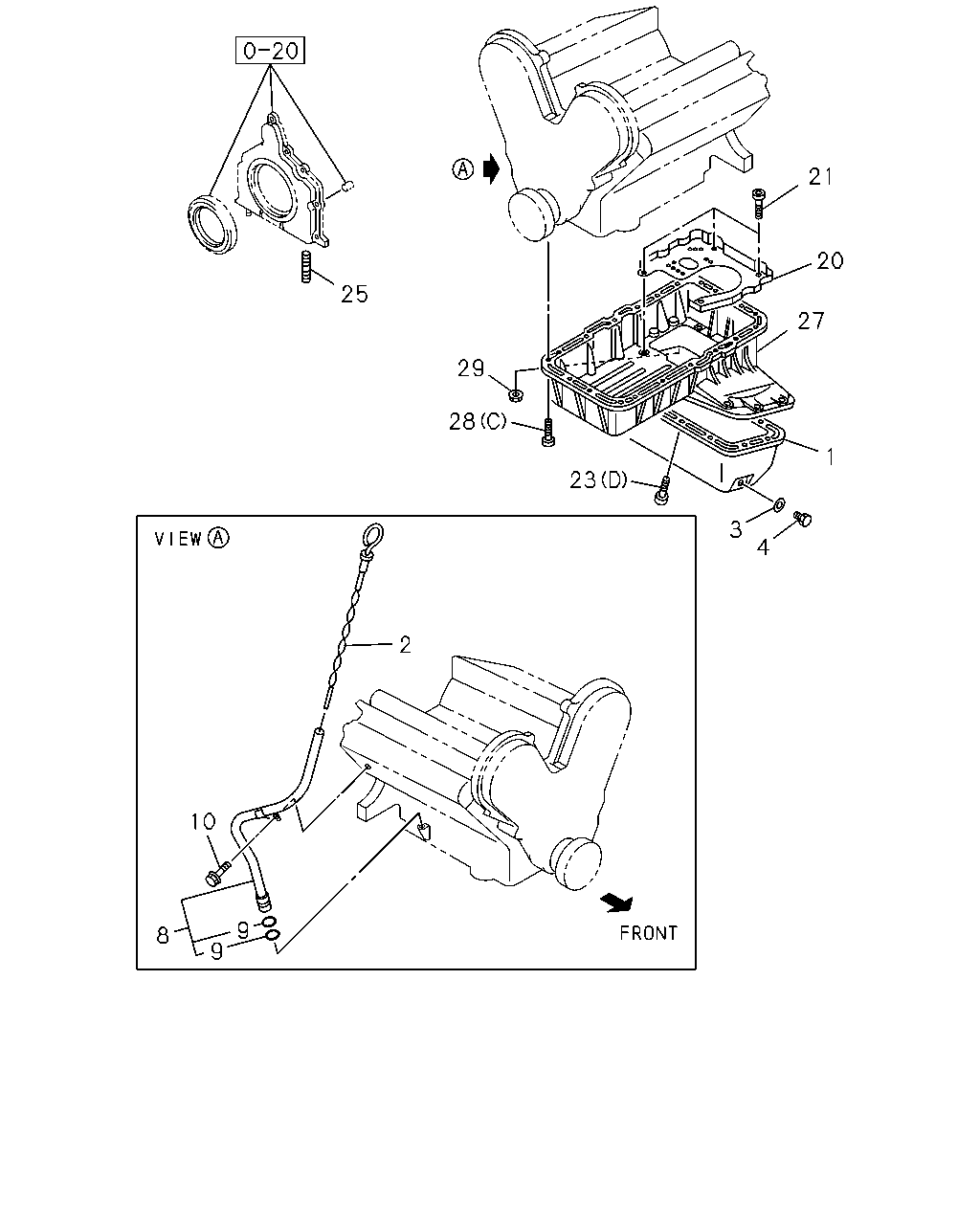

çizim 37367
21 20 25 27 29 28 1 23 3 4 2 10 9 8 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-98156-371-0 01 1 1008- ● ● ●
1 01.426 PAN ASM; OIL 8-97248-860-1 01 1 0306-0609 ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97248-860-1 01 1 0306-0609 ●
1 01.426 PAN ASM; OIL 8-97248-860-2 01 1 0610- ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97248-860-2 01 1 0610- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-97248-862-2 01 1 0306- ●
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 0306-0609 ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98013-383-1 01 1 0610-1007 ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98156-373-0 01 1 1008- ● ● ●
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 0710-1003 ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-92065-759-0 01 1 0306- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-92065-808-0 01 1 0306- ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-98011-499-0 01 1 0610-1007 ● ●
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 1008- ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-1 01 1 1008- ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0306-0609 ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0610- ● ●
2 01.516 GAUGE; OIL LEVEL 8-97148-697-2 01 1 0306-0308 ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-0 01 1 0309-0609 ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-98053-833-1 01 1 0610-1007 ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-98053-833-1 01 1 1008- ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-0 01 1 0710-1003 ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-92063-647-0 01 1 0306- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-92063-162-0 01 1 0306- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-1 01 1 0610-1007 ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-1 01 1 1008- ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1008- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0306-0609 ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0610-1007 ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1008-1008 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1008- ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0306-0609 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0710-1003 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-11023-589-0 01 1 0306- ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 1008- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0306-0609 ● ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0610-1007 ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 0306-0609 ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0610-1007 ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1008- ● ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 0710-1003 ●
4 01.453 PLUG; DRAIN,OIL 8-90409-376-0 01 1 0306-1009 ●
4 01.453 PLUG; DRAIN,OIL 8-92139-054-0 01 1 1010- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97310-969-0 01 1 1008- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97328-532-0 01 1 0306-0706 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98067-937-0 01 1 0707- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97302-689-0 01 1 0306-0609 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97249-184-0 01 1 0306- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97132-302-2 01 1 0306-0308 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97310-969-0 01 1 0309-0609 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 0610-1007 ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 1008- ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97310-969-0 01 1 0710-1003 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . EGYPT EQUIPMENT(B09) ID=11 		1-09623-469-0 01 1 1008- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 		5-09623-002-0 02 1 0306-0609 ● ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 		5-09623-002-0 02 1 0610- ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 		5-09623-002-0 02 1 0306-0609 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. EGYPT EQUIPMENT(B09) . ID=11 OD=15.8 		8-98034-629-0 01 1 0610-1003 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 OD=15.8 		8-98034-629-0 01 1 0610-1003 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 OD=15.8 		8-98034-629-0 01 1 1004-1007 ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. EGYPT EQUIPMENT(B09) . ID=11 OD=15.8 		8-98034-629-0 01 1 1008- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 OD=15.8 		8-98034-629-0 01 1 1008- ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . EGYPT EQUIPMENT(B09) ID=11 		1-09623-469-0 01 1 0610-1003 ●
10 01.516 BOLT; GUIDE TUBE
EGYPT EQUIPMENT(B09) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1008- ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0306-0402 ● ● ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0403-0512 ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. TURKEY EQUIPMENT(B11) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0403-0512 ●
10 01.516 BOLT; GUIDE TUBE
TURKEY EQUIPMENT(B11) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0403-0512 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ● ● ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0610- ● ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0306-0512 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610-0611 ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. EGYPT EQUIPMENT(B09) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0612-0709 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0612-0709 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0710-1003 ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. EGYPT EQUIPMENT(B09) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0710-1003 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1004-1007 ● ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1008- ● ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. EGYPT EQUIPMENT(B09) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1008- ●
10 01.516 BOLT; GUIDE TUBE
EGYPT EQUIPMENT(B09) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0612-1003 ●
20 01.430 PLATE; BAFFLE,CRANKCASE 8-97149-082-1 01 1 1008- ●
20 01.430 PLATE; BAFFLE,CRANKCASE 8-97149-082-1 01 1 0306-0609 ●
20 01.430 PLATE; BAFFLE,CRANKCASE 8-97149-082-1 01 1 0710-1003 ●
21 01.430 BOLT; BAFFLE PLATE,CRANKCASE
01.251 M6X12 HEX SOCKET 		0-58330-612-0 04 1 1008- ●
21 01.430 BOLT; BAFFLE PLATE,CRANKCASE
M6X12 HEX SOCKET 		0-58310-612-0 04 1 0306-0512 ●
21 01.430 BOLT; BAFFLE PLATE,CRANKCASE
01.251 M6X12 HEX SOCKET 		0-58330-612-0 04 1 0601-0609 ●
21 01.430 BOLT; BAFFLE PLATE,CRANKCASE
01.251 M6X12 HEX SOCKET 		0-58330-612-0 04 1 0710-1003 ●
23 01.428 BOLT; OIL PAN
(A) 		8-11096-082-0 01 1 1010- ●
23 01.428 BOLT; OIL PAN
00.004 (D) M8X16 HEX SOCKET 		0-58330-816-0 12 1 1008- ●
23 01.428 BOLT; OIL PAN
4X4(TFS***) ISUZU BRAND<7WL> 01.267 (E) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 0810-1007 ● ●
23 01.428 BOLT; OIL PAN
4X4(TFS***) ISUZU BRAND<7WL> EXC. EGYPT EQUIPMENT(B09), PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 01.267 (E) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1008- ● ● ●
23 01.428 BOLT; OIL PAN
03.330 (D) M8X16 HEX SOCKET 		0-58310-816-0 12 1 0710-0805 ●
23 01.428 BOLT; OIL PAN
00.004 (D) M8X16 HEX SOCKET 		0-58330-816-0 12 1 0806-1003 ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0306-0402 ● ● ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0403-0609 ● ●
23 01.428 BOLT; OIL PAN
EXC. TURKEY EQUIPMENT(B11) (C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0403-0609 ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0610- ● ●
23 01.428 BOLT; OIL PAN
TURKEY EQUIPMENT(B11) (C) M6X13 		8-97916-379-0 15 1 0403-0609 ●
23 01.428 BOLT; OIL PAN
03.330 (D) M8X16 HEX SOCKET 		0-58310-816-0 12 1 0306-0609 ●
23 01.428 BOLT; OIL PAN
(A) M8X132 		8-11093-981-0 03 1 0306- ●
23 01.428 BOLT; OIL PAN
00.662 (B) M8X45 		8-11096-481-0 11 1 0306-1009 ●
23 01.428 BOLT; OIL PAN
00.662 (B) M8X45 		8-11096-481-0 10 1 1010- ●
25 01.453 STUD; OIL PAN
EGYPT EQUIPMENT(B09) 00.349 M8X20 L=31 		8-97945-022-0 02 1 1406- ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49140-630-0 01 1 1008- ●
25 01.453 STUD; OIL PAN
01.428 M6X12 L=21 		9-04110-612-0 02 1 0306-0402 ● ● ●
25 01.453 STUD; OIL PAN
01.428 M6X12 L=21 		9-04110-612-0 02 1 0403-0604 ● ●
25 01.453 STUD; OIL PAN
EXC. TURKEY EQUIPMENT(B11) 01.428 M6X12 L=21 		9-04110-612-0 02 1 0403-0604 ●
25 01.453 STUD; OIL PAN
TURKEY EQUIPMENT(B11) M6X12 L=21 		0-41010-612-0 02 1 0403-0604 ●
25 01.453 STUD; OIL PAN
M6X12 L=21 		0-41010-612-0 02 1 0605-0609 ● ● ●
25 01.453 STUD; OIL PAN
M6X12 L=21 		0-41010-612-0 02 1 0610- ● ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49740-630-0 01 1 0306-0609 ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 0610-1007 ● ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 1008-1405 ● ● ●
25 01.453 STUD; OIL PAN
EXC. EGYPT EQUIPMENT(B09) M8X16 L=28 		0-41010-816-0 02 1 1406- ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 1406- ● ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49740-630-0 01 1 0710-0804 ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49140-630-0 01 1 0805-1003 ●
27 01.426 CRANKCASE 8-97306-569-0 01 1 1008- ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0306-0609 ● ● ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0610- ● ●
27 01.426 CRANKCASE 8-97306-569-0 01 1 0306-0609 ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0610-0709 ●
27 01.426 CRANKCASE
4X2(TFB***) A/T AISIN(RMD) 		8-98013-794-1 01 1 0610-0709 ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0710-1007 ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 1008- ● ● ●
27 01.426 CRANKCASE 8-97306-569-0 01 1 0710-1003 ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 0610-1007 ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 1008- ● ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-497-2 01 1 0610- ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-498-2 01 1 0610- ●
28 01.780 BOLT; CRANKCASE TO C/BL
01.428 (C) M6X25 HEX SOCKET 		0-58330-625-0 18 1 1008- ●
28 01.780 BOLT; CRANKCASE TO C/BL
01.428 (C) M6X25 HEX SOCKET 		0-58330-625-0 18 1 0710-1003 ●
28 01.780 BOLT; CRANKCASE TO C/BL
(B) M8X120 FLANGE 		0-28085-812-0 01 1 0306-0402 ● ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
(B) M8X120 FLANGE 		0-28085-812-0 01 1 0403-0512 ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
EXC. TURKEY EQUIPMENT(B11) (B) M8X120 FLANGE 		0-28085-812-0 01 1 0403-0512 ●
28 01.780 BOLT; CRANKCASE TO C/BL
00.727 (A) M8X32 W/LK WASHER 		0-50040-832-0 19 1 0306-0402 ● ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
00.727 (A) M8X32 W/LK WASHER 		0-50040-832-0 19 1 0403-0609 ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
EXC. TURKEY EQUIPMENT(B11) 00.727 (A) M8X32 W/LK WASHER 		0-50040-832-0 19 1 0403-0609 ●
28 01.780 BOLT; CRANKCASE TO C/BL
00.727 (A) M8X32 W/LK WASHER 		0-50040-832-0 19 1 0610-0909 ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
(A) M8X32 W/LK WASHER 		0-50540-832-0 19 1 0910- ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
TURKEY EQUIPMENT(B11) (B) M8X120 FLANGE 		0-28055-812-0 01 1 0403-0512 ●
28 01.780 BOLT; CRANKCASE TO C/BL
(B) M8X120 FLANGE 		0-28055-812-0 01 1 0601-0609 ● ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
(B) M8X120 FLANGE 		0-28055-812-0 01 1 0610- ● ●
28 01.780 BOLT; CRANKCASE TO C/BL
TURKEY EQUIPMENT(B11) 01.060 (A) M8X35 FLANGE 		0-28650-835-0 19 1 0403-0609 ●
28 01.780 BOLT; CRANKCASE TO C/BL
(C) M6X25 HEX SOCKET 		0-58310-625-0 18 1 0306-0512 ●
28 01.780 BOLT; CRANKCASE TO C/BL
01.428 (C) M6X25 HEX SOCKET 		0-58330-625-0 18 1 0601-0609 ●
29 01.426 NUT; CRANKCASE
01.062 M6 FLANGE 		0-91180-106-0 02 1 1008- ●
29 01.426 NUT; CRANKCASE
07.633 M8 FLANGE 		0-91150-108-0 02 1 0306-0402 ● ● ●
29 01.426 NUT; CRANKCASE
07.633 M8 FLANGE 		0-91150-108-0 02 1 0403-0602 ● ●
29 01.426 NUT; CRANKCASE
EXC. TURKEY EQUIPMENT(B11) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0403-0602 ●
29 01.426 NUT; CRANKCASE
TURKEY EQUIPMENT(B11) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0403-0602 ●
29 01.426 NUT; CRANKCASE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0609 ● ● ●
29 01.426 NUT; CRANKCASE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0610- ● ●
29 01.426 NUT; CRANKCASE
04.594 M6 FLANGE 		0-91150-106-0 02 1 0306-0602 ●
29 01.426 NUT; CRANKCASE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ●
29 01.426 NUT; CRANKCASE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-1003 ●

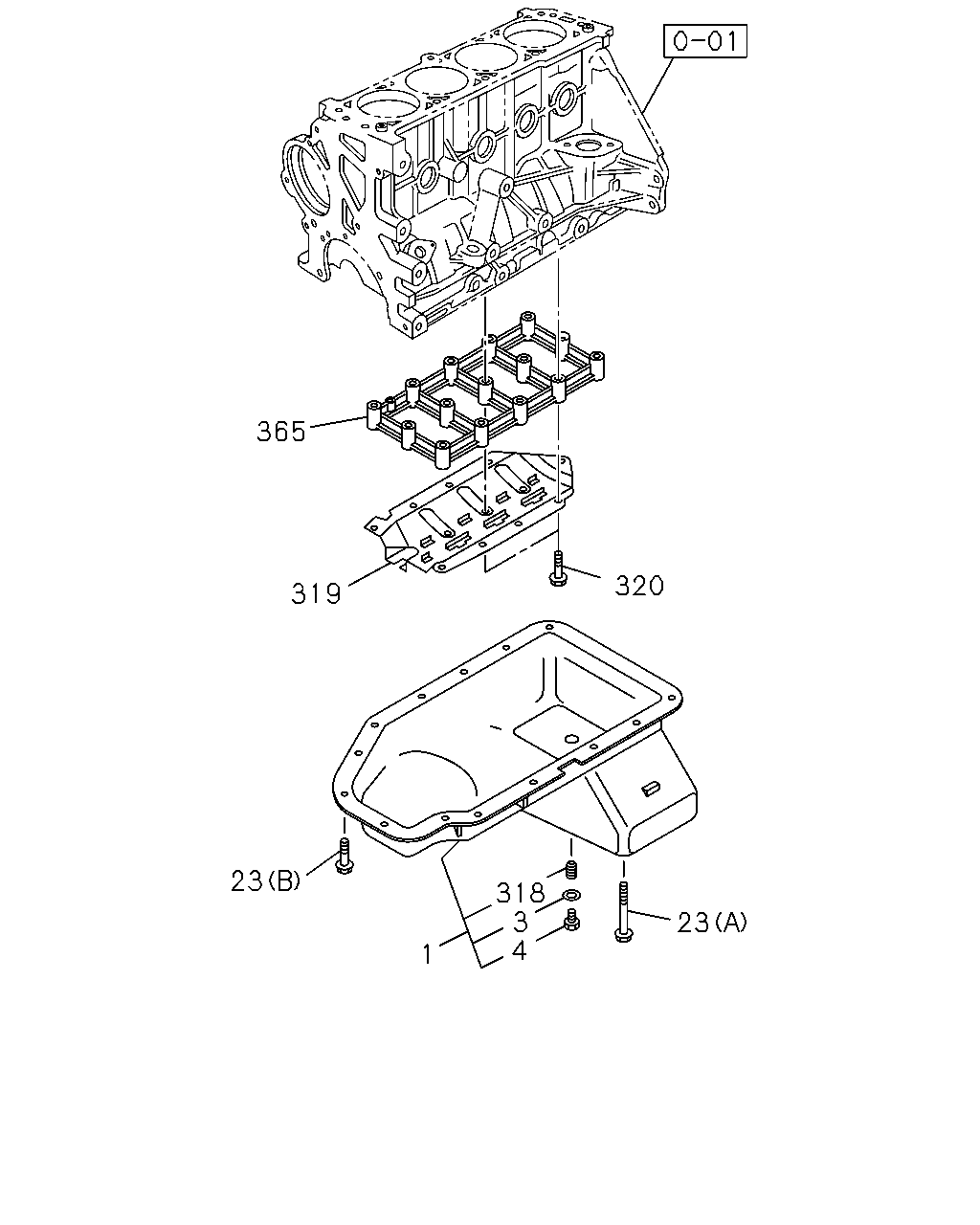

çizim 37371
365 320 319 23 318 3 4 23 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-98156-371-0 01 1 1008- ● ● ●
1 01.426 PAN ASM; OIL 8-97248-860-1 01 1 0306-0609 ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97248-860-1 01 1 0306-0609 ●
1 01.426 PAN ASM; OIL 8-97248-860-2 01 1 0610- ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97248-860-2 01 1 0610- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-97248-862-2 01 1 0306- ●
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 0306-0609 ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98013-383-1 01 1 0610-1007 ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98156-373-0 01 1 1008- ● ● ●
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 0710-1003 ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-92065-759-0 01 1 0306- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-92065-808-0 01 1 0306- ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-98011-499-0 01 1 0610-1007 ● ●
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 1008- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1008- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0306-0609 ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0610-1007 ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1008-1008 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1008- ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0306-0609 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0710-1003 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-11023-589-0 01 1 0306- ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 1008- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0306-0609 ● ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0610-1007 ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 0306-0609 ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0610-1007 ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1008- ● ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 0710-1003 ●
4 01.453 PLUG; DRAIN,OIL 8-90409-376-0 01 1 0306-1009 ●
4 01.453 PLUG; DRAIN,OIL 8-92139-054-0 01 1 1010- ●
23 01.428 BOLT; OIL PAN
(A) 		8-11096-082-0 01 1 1010- ●
23 01.428 BOLT; OIL PAN
00.004 (D) M8X16 HEX SOCKET 		0-58330-816-0 12 1 1008- ●
23 01.428 BOLT; OIL PAN
4X4(TFS***) ISUZU BRAND<7WL> 01.267 (E) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 0810-1007 ● ●
23 01.428 BOLT; OIL PAN
4X4(TFS***) ISUZU BRAND<7WL> EXC. EGYPT EQUIPMENT(B09), PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 01.267 (E) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1008- ● ● ●
23 01.428 BOLT; OIL PAN
03.330 (D) M8X16 HEX SOCKET 		0-58310-816-0 12 1 0710-0805 ●
23 01.428 BOLT; OIL PAN
00.004 (D) M8X16 HEX SOCKET 		0-58330-816-0 12 1 0806-1003 ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0306-0402 ● ● ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0403-0609 ● ●
23 01.428 BOLT; OIL PAN
EXC. TURKEY EQUIPMENT(B11) (C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0403-0609 ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0610- ● ●
23 01.428 BOLT; OIL PAN
TURKEY EQUIPMENT(B11) (C) M6X13 		8-97916-379-0 15 1 0403-0609 ●
23 01.428 BOLT; OIL PAN
03.330 (D) M8X16 HEX SOCKET 		0-58310-816-0 12 1 0306-0609 ●
23 01.428 BOLT; OIL PAN
(A) M8X132 		8-11093-981-0 03 1 0306- ●
23 01.428 BOLT; OIL PAN
00.662 (B) M8X45 		8-11096-481-0 11 1 0306-1009 ●
23 01.428 BOLT; OIL PAN
00.662 (B) M8X45 		8-11096-481-0 10 1 1010- ●
318 01.428 INSERT; OIL PAN 8-11065-809-0 01 1 0306- ●
319 01.430 SCRAPER; OIL PAN 8-92063-872-0 01 1 0306-1009 ●
319 01.430 SCRAPER; OIL PAN 8-90571-319-0 01 1 1010- ●
320 01.430 BOLT; SCRAPER
00.662 M8X45 		8-11096-481-0 13 1 0306-1009 ●
320 01.430 BOLT; SCRAPER 8-11096-482-0 13 1 1010- ●
365 01.426 BRIDGE; MAIN BEARING 8-90501-900-0 01 1 0306-1009 ●
365 01.426 BRIDGE; MAIN BEARING 8-93382-758-0 01 1 1010- ●

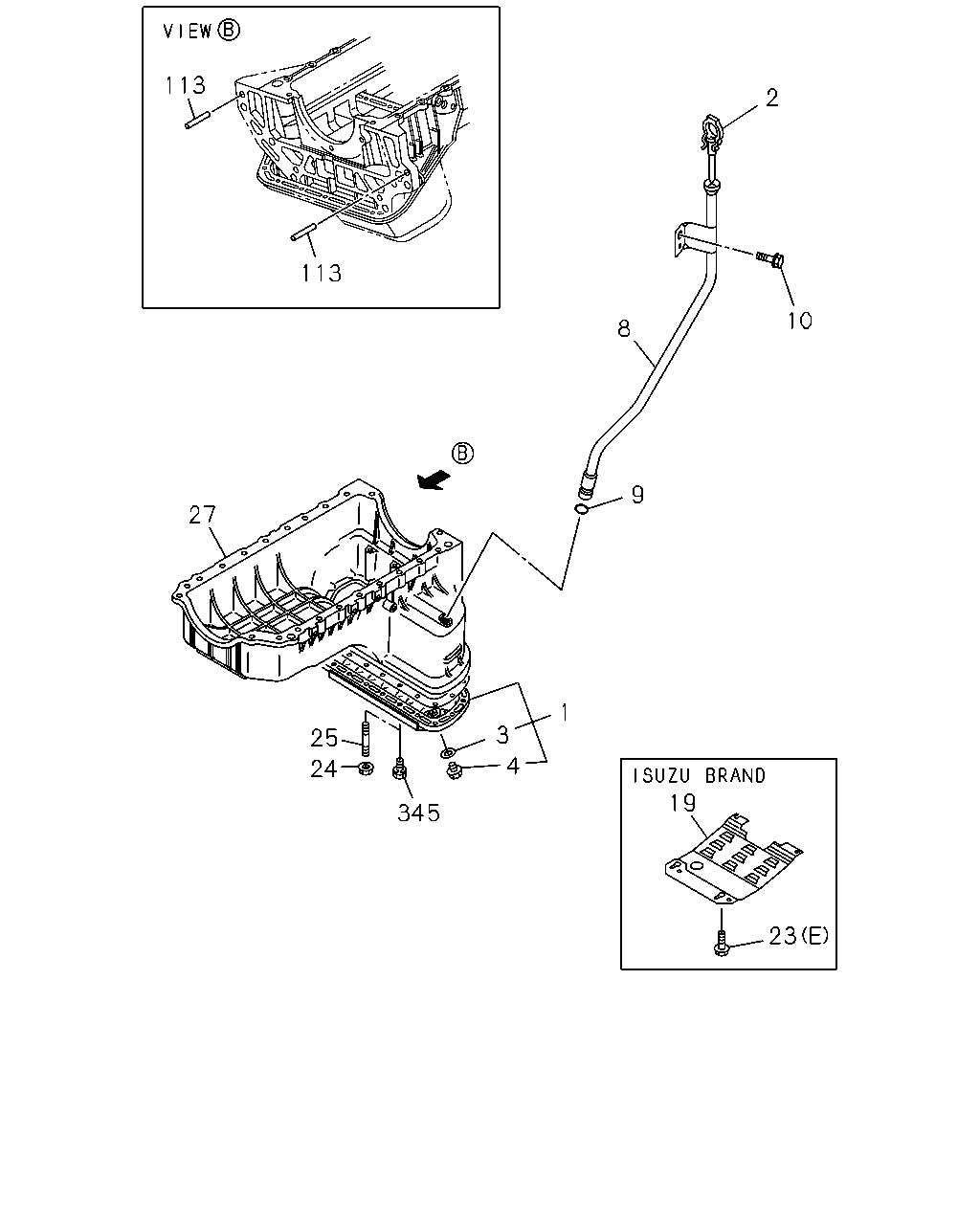

çizim 37373
113 2 113 10 8 9 27 1 3 25 4 24 19 345 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-98156-371-0 01 1 1008- ● ● ●
1 01.426 PAN ASM; OIL 8-97248-860-1 01 1 0306-0609 ● ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97248-860-1 01 1 0306-0609 ●
1 01.426 PAN ASM; OIL 8-97248-860-2 01 1 0610- ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-97248-860-2 01 1 0610- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-97248-862-2 01 1 0306- ●
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 0306-0609 ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98013-383-1 01 1 0610-1007 ● ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-98156-373-0 01 1 1008- ● ● ●
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 0710-1003 ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-92065-759-0 01 1 0306- ●
1 01.426 PAN ASM; OIL
4X4(TFS***) 		8-92065-808-0 01 1 0306- ●
1 01.426 PAN ASM; OIL
4X2(TFB***) 		8-98011-499-0 01 1 0610-1007 ● ●
1 01.426 PAN ASM; OIL 8-97264-032-0 01 1 1008- ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-1 01 1 1008- ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0306-0609 ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0610- ● ●
2 01.516 GAUGE; OIL LEVEL 8-97148-697-2 01 1 0306-0308 ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-0 01 1 0309-0609 ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-98053-833-1 01 1 0610-1007 ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-98053-833-1 01 1 1008- ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-0 01 1 0710-1003 ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-92063-647-0 01 1 0306- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-92063-162-0 01 1 0306- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-1 01 1 0610-1007 ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-1 01 1 1008- ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1008- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0306-0609 ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 0610-1007 ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1008-1008 ● ● ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=14.2 OD=24 		8-94158-328-0 01 1 1008- ● ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0306-0609 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0710-1003 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE) . 		8-11023-589-0 01 1 0306- ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 1008- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0306-0609 ● ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0610-1007 ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 0306-0609 ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0610-1007 ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1008- ● ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		9-09862-156-0 01 1 0710-1003 ●
4 01.453 PLUG; DRAIN,OIL 8-90409-376-0 01 1 0306-1009 ●
4 01.453 PLUG; DRAIN,OIL 8-92139-054-0 01 1 1010- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97310-969-0 01 1 1008- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97328-532-0 01 1 0306-0706 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98067-937-0 01 1 0707- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97302-689-0 01 1 0306-0609 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97249-184-0 01 1 0306- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97132-302-2 01 1 0306-0308 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97310-969-0 01 1 0309-0609 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 0610-1007 ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 1008- ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97310-969-0 01 1 0710-1003 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . EGYPT EQUIPMENT(B09) ID=11 		1-09623-469-0 01 1 1008- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 		5-09623-002-0 02 1 0306-0609 ● ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 		5-09623-002-0 02 1 0610- ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 		5-09623-002-0 02 1 0306-0609 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. EGYPT EQUIPMENT(B09) . ID=11 OD=15.8 		8-98034-629-0 01 1 0610-1003 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 OD=15.8 		8-98034-629-0 01 1 0610-1003 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 OD=15.8 		8-98034-629-0 01 1 1004-1007 ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . EXC. EGYPT EQUIPMENT(B09) . ID=11 OD=15.8 		8-98034-629-0 01 1 1008- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . ID=11 OD=15.8 		8-98034-629-0 01 1 1008- ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE) . EGYPT EQUIPMENT(B09) ID=11 		1-09623-469-0 01 1 0610-1003 ●
10 01.516 BOLT; GUIDE TUBE
EGYPT EQUIPMENT(B09) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1008- ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0306-0402 ● ● ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0403-0512 ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. TURKEY EQUIPMENT(B11) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0403-0512 ●
10 01.516 BOLT; GUIDE TUBE
TURKEY EQUIPMENT(B11) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0403-0512 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ● ● ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0610- ● ●
10 01.516 BOLT; GUIDE TUBE
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0306-0512 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0610-0611 ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. EGYPT EQUIPMENT(B09) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0612-0709 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0612-0709 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0710-1003 ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. EGYPT EQUIPMENT(B09) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0710-1003 ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1004-1007 ● ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1008- ● ● ●
10 01.516 BOLT; GUIDE TUBE
EXC. EGYPT EQUIPMENT(B09) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1008- ●
10 01.516 BOLT; GUIDE TUBE
EGYPT EQUIPMENT(B09) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0612-1003 ●
19 01.426 PLATE; OIL PAN FRT
4X4(TFS***) ISUZU BRAND<7WL> 		8-98116-061-0 01 1 0810-1007 ● ●
19 01.426 PLATE; OIL PAN FRT
4X4(TFS***) ISUZU BRAND<7WL> EXC. EGYPT EQUIPMENT(B09), PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 		8-98116-061-0 01 1 1008- ● ● ●
23 01.428 BOLT; OIL PAN
(A) 		8-11096-082-0 01 1 1010- ●
23 01.428 BOLT; OIL PAN
00.004 (D) M8X16 HEX SOCKET 		0-58330-816-0 12 1 1008- ●
23 01.428 BOLT; OIL PAN
4X4(TFS***) ISUZU BRAND<7WL> 01.267 (E) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 0810-1007 ● ●
23 01.428 BOLT; OIL PAN
4X4(TFS***) ISUZU BRAND<7WL> EXC. EGYPT EQUIPMENT(B09), PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),ARGENTINA EQUIPMENT(E06),VENEZUELA EQUIPMENT(E14),ECUADO R EQUIPMENT(E46),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 01.267 (E) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1008- ● ● ●
23 01.428 BOLT; OIL PAN
03.330 (D) M8X16 HEX SOCKET 		0-58310-816-0 12 1 0710-0805 ●
23 01.428 BOLT; OIL PAN
00.004 (D) M8X16 HEX SOCKET 		0-58330-816-0 12 1 0806-1003 ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0306-0402 ● ● ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0403-0609 ● ●
23 01.428 BOLT; OIL PAN
EXC. TURKEY EQUIPMENT(B11) (C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0403-0609 ●
23 01.428 BOLT; OIL PAN
(C) M6X13 W/PL WASHER 		8-97135-141-0 15 1 0610- ● ●
23 01.428 BOLT; OIL PAN
TURKEY EQUIPMENT(B11) (C) M6X13 		8-97916-379-0 15 1 0403-0609 ●
23 01.428 BOLT; OIL PAN
03.330 (D) M8X16 HEX SOCKET 		0-58310-816-0 12 1 0306-0609 ●
23 01.428 BOLT; OIL PAN
(A) M8X132 		8-11093-981-0 03 1 0306- ●
23 01.428 BOLT; OIL PAN
00.662 (B) M8X45 		8-11096-481-0 11 1 0306-1009 ●
23 01.428 BOLT; OIL PAN
00.662 (B) M8X45 		8-11096-481-0 10 1 1010- ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97137-836-0 02 1 0306-0609 ● ● ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97137-836-0 02 1 0610-0805 ● ●
24 01.453 NUT; OIL PAN
M6 W/LK WASHER 		8-97329-622-0 02 1 0806- ● ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-1007 ● ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 1008- ● ● ●
25 01.453 STUD; OIL PAN
EGYPT EQUIPMENT(B09) 00.349 M8X20 L=31 		8-97945-022-0 02 1 1406- ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49140-630-0 01 1 1008- ●
25 01.453 STUD; OIL PAN
01.428 M6X12 L=21 		9-04110-612-0 02 1 0306-0402 ● ● ●
25 01.453 STUD; OIL PAN
01.428 M6X12 L=21 		9-04110-612-0 02 1 0403-0604 ● ●
25 01.453 STUD; OIL PAN
EXC. TURKEY EQUIPMENT(B11) 01.428 M6X12 L=21 		9-04110-612-0 02 1 0403-0604 ●
25 01.453 STUD; OIL PAN
TURKEY EQUIPMENT(B11) M6X12 L=21 		0-41010-612-0 02 1 0403-0604 ●
25 01.453 STUD; OIL PAN
M6X12 L=21 		0-41010-612-0 02 1 0605-0609 ● ● ●
25 01.453 STUD; OIL PAN
M6X12 L=21 		0-41010-612-0 02 1 0610- ● ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49740-630-0 01 1 0306-0609 ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 0610-1007 ● ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 1008-1405 ● ● ●
25 01.453 STUD; OIL PAN
EXC. EGYPT EQUIPMENT(B09) M8X16 L=28 		0-41010-816-0 02 1 1406- ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 1406- ● ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49740-630-0 01 1 0710-0804 ●
25 01.453 STUD; OIL PAN
M6X30 L=41 		0-49140-630-0 01 1 0805-1003 ●
27 01.426 CRANKCASE 8-97306-569-0 01 1 1008- ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0306-0609 ● ● ●
27 01.426 CRANKCASE 8-97358-796-0 01 1 0610- ● ●
27 01.426 CRANKCASE 8-97306-569-0 01 1 0306-0609 ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0610-0709 ●
27 01.426 CRANKCASE
4X2(TFB***) A/T AISIN(RMD) 		8-98013-794-1 01 1 0610-0709 ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 0710-1007 ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-98013-794-1 01 1 1008- ● ● ●
27 01.426 CRANKCASE 8-97306-569-0 01 1 0710-1003 ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 0610-1007 ● ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97370-514-3 01 1 1008- ● ● ●
27 01.426 CRANKCASE
4X2(TFB***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-497-2 01 1 0610- ●
27 01.426 CRANKCASE
4X4(TFS***) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-498-2 01 1 0610- ●
113 01.453 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 0306-0402 ● ● ●
113 01.453 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 0403-0609 ● ●
113 01.453 PIN; STRAIGHT
EXC. TURKEY EQUIPMENT(B11) 01.428 L=31 		9-09878-597-0 02 1 0403-0609 ●
113 01.453 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 0610- ● ●
113 01.453 PIN; STRAIGHT
TURKEY EQUIPMENT(B11) L=31 		8-97920-964-1 02 1 0403-0609 ●
113 01.453 PIN; STRAIGHT
M/T MUX 5 SPEED 5S(MZJ) 08.939 OD=10 L=32 		9-08161-032-0 02 1 0610- ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X4(TFS***) 02.343 M8X12 FLANGE 		0-28050-812-0 17 1 0610-1003 ● ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X2(TFB***) 02.343 M8X12 FLANGE 		0-28050-812-0 21 1 1004-1007 ● ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X4(TFS***) 02.343 M8X12 FLANGE 		0-28050-812-0 17 1 1008- ● ● ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X2(TFB***) 02.343 M8X12 FLANGE 		0-28050-812-0 21 1 0610-1003 ● ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X4(TFS***) 02.343 M8X12 FLANGE 		0-28050-812-0 17 1 1004-1007 ● ●
345 01.516 BOLT; SENSOR,OIL LEVEL
4X2(TFB***) 02.343 M8X12 FLANGE 		0-28050-812-0 21 1 1008- ● ● ●
çizim 185213
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 01.516 GAUGE; OIL LEVEL 8-97326-997-1 01 1 1008- ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0306-0609 ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97085-167-0 01 1 0610- ● ●
2 01.516 GAUGE; OIL LEVEL 8-97148-697-2 01 1 0306-0308 ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-0 01 1 0309-0609 ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-98053-833-1 01 1 0610-1007 ● ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-98053-833-1 01 1 1008- ● ● ●
2 01.516 GAUGE; OIL LEVEL 8-97326-997-0 01 1 0710-1003 ●
2 01.516 GAUGE; OIL LEVEL
4X2(TFB***) 		8-92063-647-0 01 1 0306- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-92063-162-0 01 1 0306- ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-1 01 1 0610-1007 ● ●
2 01.516 GAUGE; OIL LEVEL
4X4(TFS***) 		8-98053-834-1 01 1 1008- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
