Sayfa 0-10 - Isuzu EPC

0-10 — CYLINDER HEAD COVER (#73894) — 341 parça

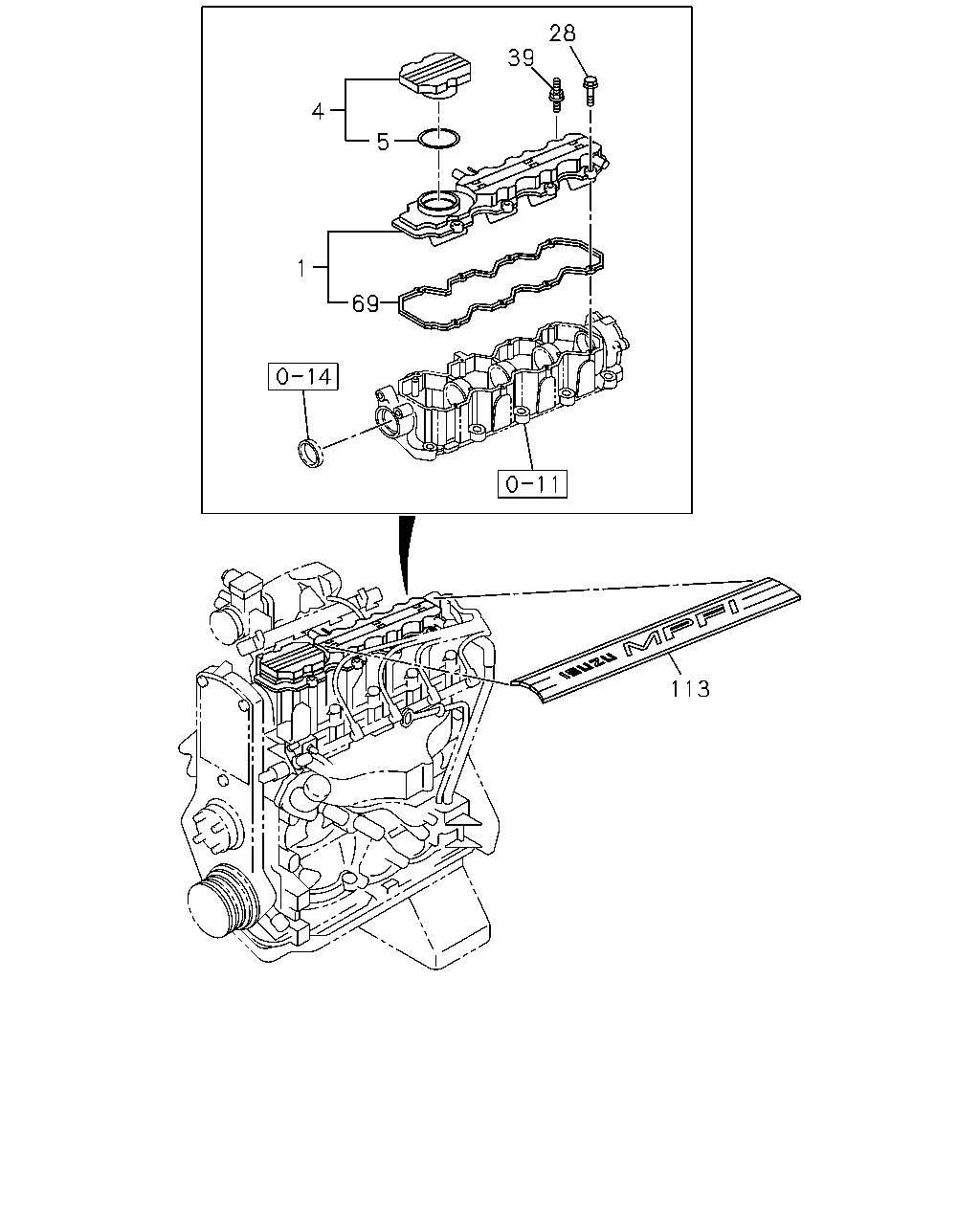

28 39 4 5 1 69 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD EXC. EGYPT EQUIPMENT(B09)	8-98156-392-0	01	1	1008-	●
1	00.386 COVER; CYL HD	8-98156-392-0	01	1	1008-		●	●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	1008-				●
1	00.386 COVER; CYL HD EGYPT EQUIPMENT(B09)	8-98156-392-0	01	1	1008-	●
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	0306-					●
1	00.386 COVER; CYL HD	8-97354-425-0	01	1	0306-0609						●	●
1	00.386 COVER; CYL HD	8-97354-425-0	01	1	0610-							●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	0306-0609				●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	0306-0609				●
1	00.386 COVER; CYL HD	8-98051-196-2	01	1	0610-1007	●		●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	1008-				●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	0710-1003				●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	0710-1003				●
1	00.386 COVER; CYL HD	8-90467-642-0	01	1	0306-1009								●
1	00.386 COVER; CYL HD	8-93317-147-0	01	1	1010-								●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	1008-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0306-					●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	0306-0609						●	●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	0610-							●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	0306-0609				●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	0610-1007	●		●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1008-	●	●	●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	0710-1003				●
4	01.758 CAP; OIL FILLER	8-90467-648-0	01	1	0306-								●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	1008-				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0509-0609					●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0306-0508					●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0509-0609						●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0610-					●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	0306-0609				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97918-298-0	01	1	0610-1007	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97918-298-0	01	1	1008-	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	0710-1003				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-90448-217-0	01	1	0306-								●
28	00.413 BOLT; HD COVER 00.386	8-97372-246-0	16	1	1008-				●
28	00.413 BOLT; HD COVER	8-97149-252-2	16	1	0306-0609				●
28	00.413 BOLT; HD COVER	8-97149-252-2	16	1	0710-0805				●
28	00.413 BOLT; HD COVER 00.386	8-97372-246-0	16	1	0806-1003				●
28	00.413 BOLT; HD COVER	8-11068-795-0	07	1	0306-1009								●
28	00.413 BOLT; HD COVER	8-93376-828-0	07	1	1010-								●
39	00.413 STUD; COVER,HD	8-92064-273-0	01	1	0306-								●
39	00.413 STUD; COVER,HD M6X30 L=38	0-41010-630-0	01	1	0610-0610	●		●
39	00.413 STUD; COVER,HD EXC. EGYPT EQUIPMENT(B09) M6X30 L=38	0-41010-630-0	01	1	0611-1003	●
39	00.413 STUD; COVER,HD M6X30 L=38	0-41010-630-0	01	1	0611-1003			●
39	00.413 STUD; COVER,HD M6X30 L=38	0-41010-630-0	01	1	1004-1007	●		●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	01	1	1008-	●	●	●
39	00.413 STUD; COVER,HD EGYPT EQUIPMENT(B09) M6X30 L=38	8-97372-795-0	01	1	0611-1003	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98156-394-0	01	1	1008-	●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0306-0402					●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0403-0609					●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11)	8-97349-416-1	01	1	0403-0609						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0610-					●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11)	8-97912-741-0	01	1	0403-0609						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	0306-0609				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	0610-1007	●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	1008-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	0710-1003				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-90467-661-0	01	1	0306-								●
113	00.386 COVER; CYL HEAD COVER	8-92063-671-0	01	1	0306-								●

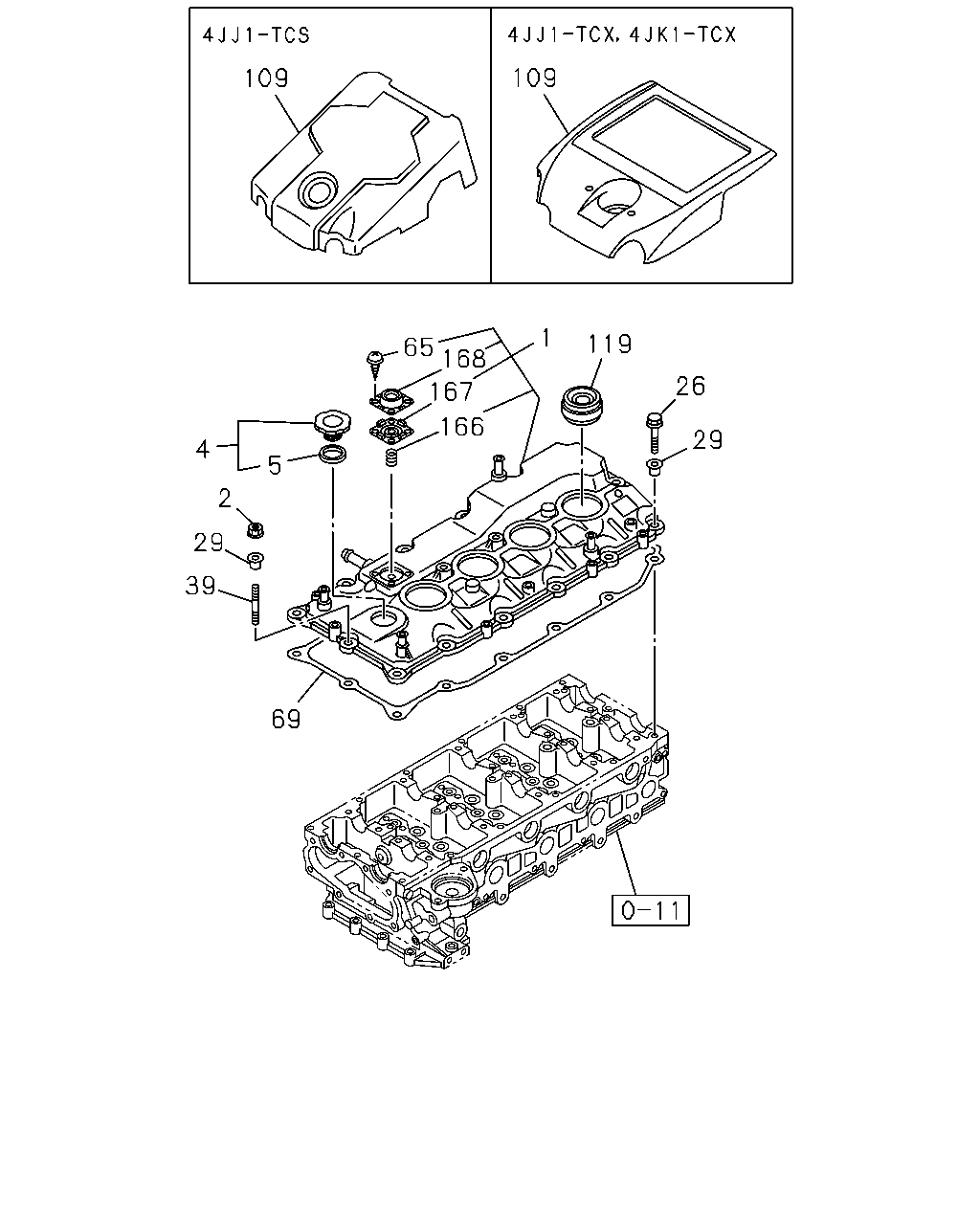

109 109 1 119 65 168 26 167 166 29 4 5 2 29 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD EXC. EGYPT EQUIPMENT(B09)	8-98156-392-0	01	1	1008-	●
1	00.386 COVER; CYL HD	8-98156-392-0	01	1	1008-		●	●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	1008-				●
1	00.386 COVER; CYL HD EGYPT EQUIPMENT(B09)	8-98156-392-0	01	1	1008-	●
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	0306-					●
1	00.386 COVER; CYL HD	8-97354-425-0	01	1	0306-0609						●	●
1	00.386 COVER; CYL HD	8-97354-425-0	01	1	0610-							●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	0306-0609				●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	0306-0609				●
1	00.386 COVER; CYL HD	8-98051-196-2	01	1	0610-1007	●		●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	1008-				●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	0710-1003				●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	0710-1003				●
1	00.386 COVER; CYL HD	8-90467-642-0	01	1	0306-1009								●
1	00.386 COVER; CYL HD	8-93317-147-0	01	1	1010-								●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	0610-1007	●		●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1008-	●	●	●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	1008-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0306-					●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	0306-0609						●	●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	0610-							●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	0306-0609				●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	0610-1007	●		●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1008-	●	●	●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	0710-1003				●
4	01.758 CAP; OIL FILLER	8-90467-648-0	01	1	0306-								●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	1008-				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0509-0609					●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0306-0508					●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0509-0609						●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0610-					●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	0306-0609				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97918-298-0	01	1	0610-1007	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97918-298-0	01	1	1008-	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	0710-1003				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-90448-217-0	01	1	0306-								●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	0610-1007	●		●
26	08.900 BOLT; CYL HD COVER 00.685 M6X25 FLANGE	0-28650-625-0	13	1	1008-	●	●	●
29	00.413 RUBBER; MTG,HD COVER	8-97149-002-2	16	1	0306-0602				●
29	00.413 RUBBER; MTG,HD COVER	8-97372-219-0	16	1	0603-0609				●
29	00.413 RUBBER; MTG,HD COVER EXC. EGYPT EQUIPMENT(B09)	8-97361-811-1	14	1	0610-1003	●
29	00.413 RUBBER; MTG,HD COVER	8-97361-811-1	14	1	0610-1003			●
29	00.413 RUBBER; MTG,HD COVER	8-97361-811-1	14	1	1004-1007	●		●
29	00.413 RUBBER; MTG,HD COVER	8-97372-219-0	16	1	1008-				●
29	00.413 RUBBER; MTG,HD COVER	8-97372-219-0	16	1	0710-1003				●
29	00.413 RUBBER; MTG,HD COVER EGYPT EQUIPMENT(B09)	8-97381-524-0	14	1	0610-1003	●
39	00.413 STUD; COVER,HD	8-92064-273-0	01	1	0306-								●
39	00.413 STUD; COVER,HD M6X30 L=38	0-41010-630-0	01	1	0610-0610	●		●
39	00.413 STUD; COVER,HD EXC. EGYPT EQUIPMENT(B09) M6X30 L=38	0-41010-630-0	01	1	0611-1003	●
39	00.413 STUD; COVER,HD M6X30 L=38	0-41010-630-0	01	1	0611-1003			●
39	00.413 STUD; COVER,HD M6X30 L=38	0-41010-630-0	01	1	1004-1007	●		●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	01	1	1008-	●	●	●
39	00.413 STUD; COVER,HD EGYPT EQUIPMENT(B09) M6X30 L=38	8-97372-795-0	01	1	0611-1003	●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	0610-1007	●		●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1008-	●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98156-394-0	01	1	1008-	●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0306-0402					●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0403-0609					●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11)	8-97349-416-1	01	1	0403-0609						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0610-					●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11)	8-97912-741-0	01	1	0403-0609						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	0306-0609				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	0610-1007	●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	1008-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	0710-1003				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-90467-661-0	01	1	0306-								●
109	00.386 COVER; ENG CHILE EQUIPMENT(KE1) CHEVROLET BRAND<RWE>	8-98175-669-0	01	1	1008-		●	●
109	00.386 COVER; ENG CHEVROLET BRAND<RWE> ENG SIGHT SHIELD<8LQ>	8-98031-431-0	01	1	0610-0710	●
109	00.386 COVER; ENG EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> CHEVROLET BRAND<RWE> ENG SIGHT SHIELD<8LQ>	8-98031-431-0	01	1	0711-1001	●
109	00.386 COVER; ENG CHEVROLET BRAND<RWE> ENG SIGHT SHIELD<8LQ>	8-98031-431-0	01	1	1002-	●
109	00.386 COVER; ENG ISUZU BRAND<7WL> ENG SIGHT SHIELD<8LQ>	8-98019-065-0	01	1	0610-0802	●
109	00.386 COVER; ENG ISUZU BRAND<7WL> ENG SIGHT SHIELD<8LQ>	8-98097-019-0	01	1	0803-1003	●
109	00.386 COVER; ENG ISUZU BRAND<7WL> ENG SIGHT SHIELD<8LQ>	8-98102-515-0	01	1	1004-	●
109	00.386 COVER; ENG ISUZU BRAND<7WL>	8-98061-176-0	01	1	0610-1003			●
109	00.386 COVER; ENG ISUZU BRAND<7WL>	8-98154-683-0	01	1	1004-1006			●
109	00.386 COVER; ENG ISUZU BRAND<7WL>	8-98175-665-0	01	1	1007-1007			●
109	00.386 COVER; ENG ISUZU BRAND<7WL>	8-98175-665-0	01	1	1008-		●	●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	0610-1007	●		●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1008-	●	●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	0610-1007	●		●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1008-	●	●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	0610-1007	●		●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1008-	●	●	●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	0610-1007	●		●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1008-	●	●	●

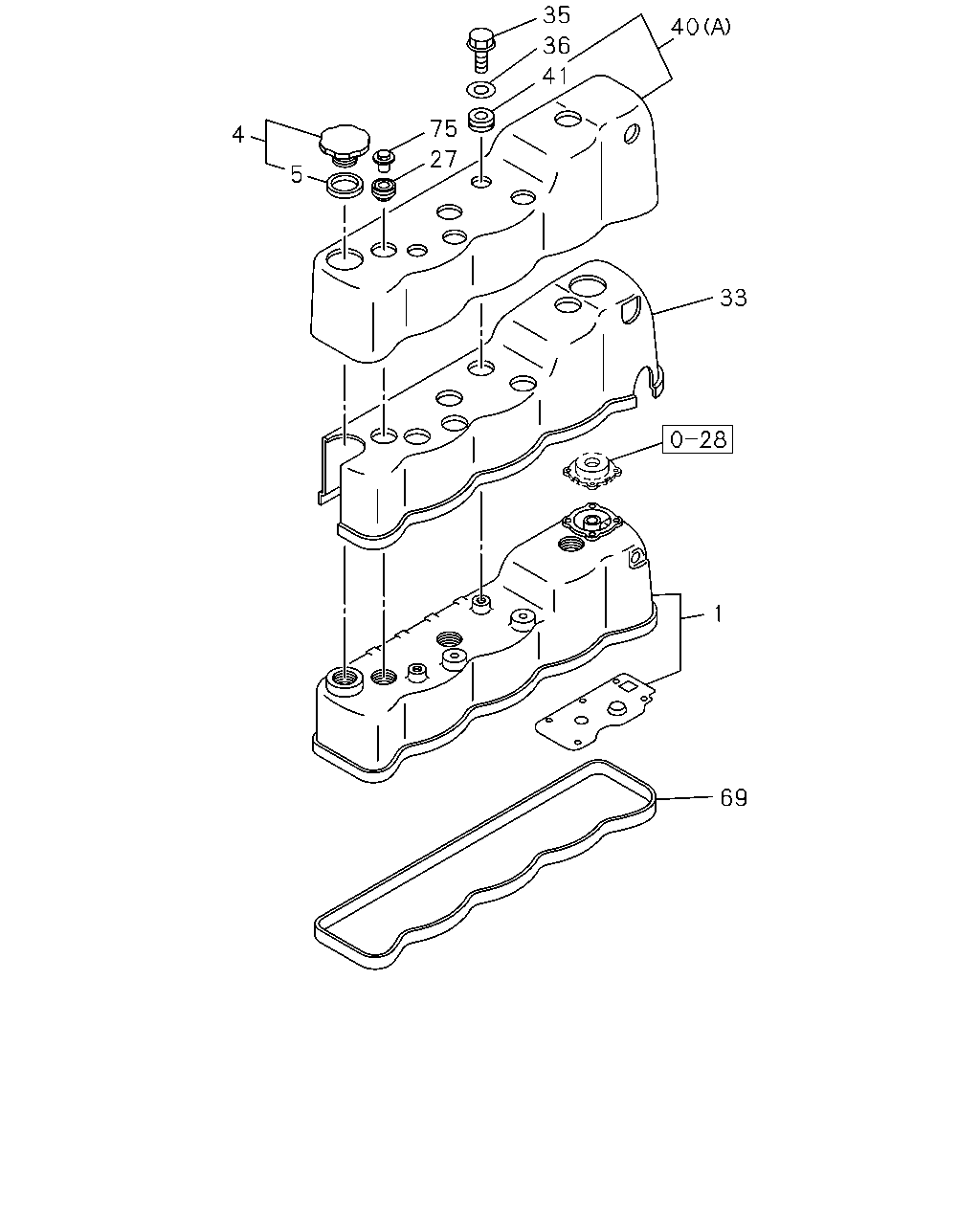

35 40 40 35 36 4 4 36 75 5 75 5 27 27 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD EXC. EGYPT EQUIPMENT(B09)	8-98156-392-0	01	1	1008-	●
1	00.386 COVER; CYL HD	8-98156-392-0	01	1	1008-		●	●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	1008-				●
1	00.386 COVER; CYL HD EGYPT EQUIPMENT(B09)	8-98156-392-0	01	1	1008-	●
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	0306-					●
1	00.386 COVER; CYL HD	8-97354-425-0	01	1	0306-0609						●	●
1	00.386 COVER; CYL HD	8-97354-425-0	01	1	0610-							●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	0306-0609				●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	0306-0609				●
1	00.386 COVER; CYL HD	8-98051-196-2	01	1	0610-1007	●		●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	1008-				●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	0710-1003				●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	0710-1003				●
1	00.386 COVER; CYL HD	8-90467-642-0	01	1	0306-1009								●
1	00.386 COVER; CYL HD	8-93317-147-0	01	1	1010-								●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	1008-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0306-					●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	0306-0609						●	●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	0610-							●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	0306-0609				●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	0610-1007	●		●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1008-	●	●	●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	0710-1003				●
4	01.758 CAP; OIL FILLER	8-90467-648-0	01	1	0306-								●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	1008-				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0509-0609					●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0306-0508					●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0509-0609						●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0610-					●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	0306-0609				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97918-298-0	01	1	0610-1007	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97918-298-0	01	1	1008-	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	0710-1003				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-90448-217-0	01	1	0306-								●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0306-0609					●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0610-					●		●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97365-746-0	01	1	0306-0405					●	●	●
33	00.386 RUBBER; SPACE,CYL HD COVER TURKEY EQUIPMENT(B11)	8-97365-746-0	01	1	0406-0609						●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0306-0402					●	●	●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0403-0512					●		●
35	00.293 BOLT; NOISE SHIELD COVER EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0403-0512						●
35	00.293 BOLT; NOISE SHIELD COVER TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0403-0512						●
35	00.293 BOLT; NOISE SHIELD COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0609					●	●	●
35	00.293 BOLT; NOISE SHIELD COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-					●		●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0306-0609					●	●	●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0610-					●		●
40	00.386 COVER (A)	8-97043-018-0	01	1	0306-					●
40	00.386 COVER (B)	8-97252-869-1	01	1	0306-0609						●
40	00.386 COVER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-97252-869-1	01	1	0306-0609							●
40	00.386 COVER EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-97252-869-1	01	1	0610-							●
40	00.386 COVER EURO3 SPECIFICATION<NT3> (C)	8-97353-821-2	01	1	0306-							●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98156-394-0	01	1	1008-	●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0306-0402					●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0403-0609					●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11)	8-97349-416-1	01	1	0403-0609						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0610-					●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11)	8-97912-741-0	01	1	0403-0609						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	0306-0609				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	0610-1007	●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	1008-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	0710-1003				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-90467-661-0	01	1	0306-								●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0306-0402					●	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0403-0609					●		●
75	00.413 NUT; CAP,HD COVER EXC. TURKEY EQUIPMENT(B11) M8 OD=19	8-94158-108-0	03	1	0403-0609						●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0610-					●		●
75	00.413 NUT; CAP,HD COVER TURKEY EQUIPMENT(B11) M8 OD=19	8-97912-654-0	03	1	0403-0609						●

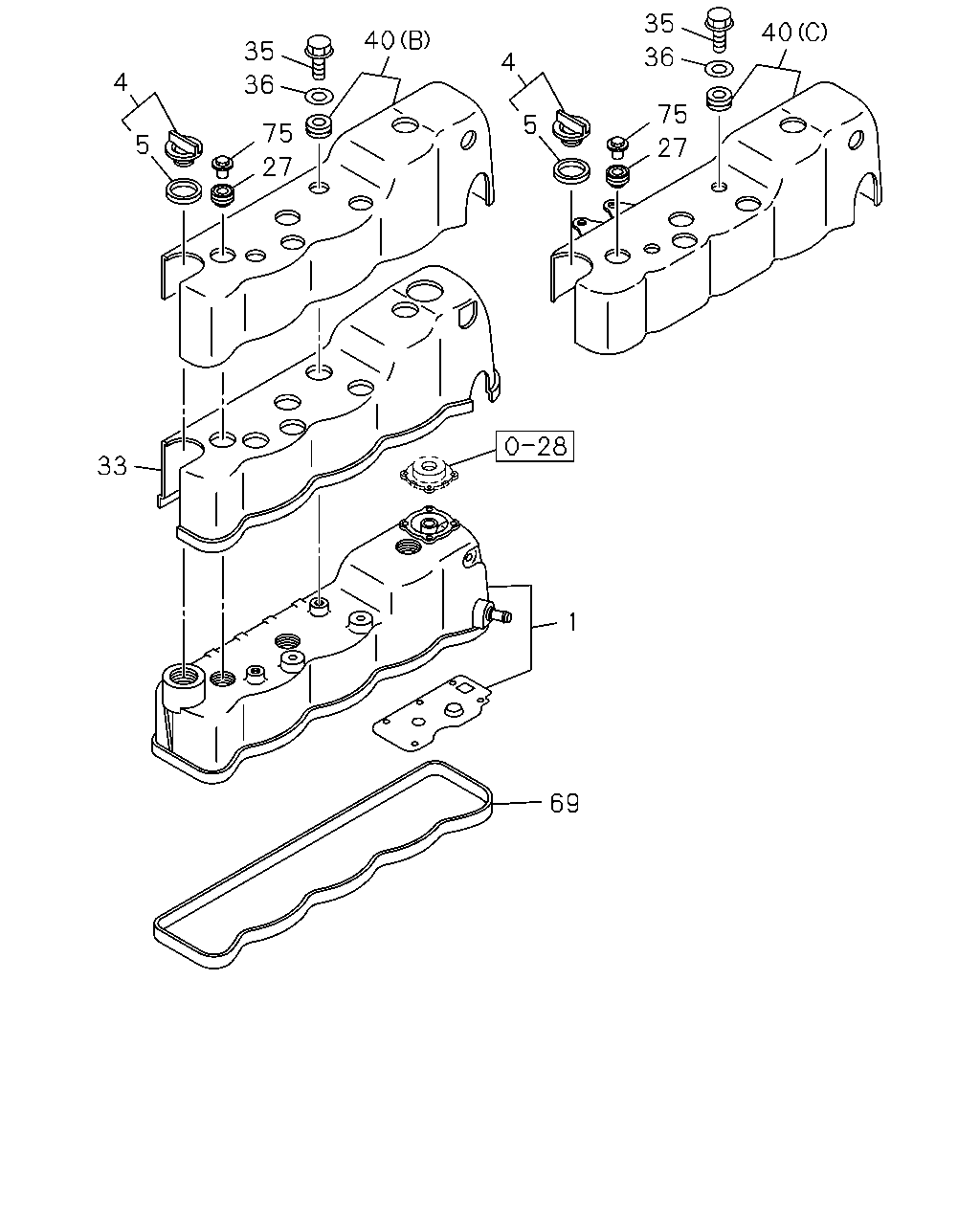

35 40 36 41 75 4 27 5 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD EXC. EGYPT EQUIPMENT(B09)	8-98156-392-0	01	1	1008-	●
1	00.386 COVER; CYL HD	8-98156-392-0	01	1	1008-		●	●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	1008-				●
1	00.386 COVER; CYL HD EGYPT EQUIPMENT(B09)	8-98156-392-0	01	1	1008-	●
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	0306-					●
1	00.386 COVER; CYL HD	8-97354-425-0	01	1	0306-0609						●	●
1	00.386 COVER; CYL HD	8-97354-425-0	01	1	0610-							●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	0306-0609				●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	0306-0609				●
1	00.386 COVER; CYL HD	8-98051-196-2	01	1	0610-1007	●		●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	1008-				●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	0710-1003				●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	0710-1003				●
1	00.386 COVER; CYL HD	8-90467-642-0	01	1	0306-1009								●
1	00.386 COVER; CYL HD	8-93317-147-0	01	1	1010-								●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	1008-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0306-					●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	0306-0609						●	●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	0610-							●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	0306-0609				●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	0610-1007	●		●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1008-	●	●	●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	0710-1003				●
4	01.758 CAP; OIL FILLER	8-90467-648-0	01	1	0306-								●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	1008-				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0509-0609					●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0306-0508					●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0509-0609						●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0610-					●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	0306-0609				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97918-298-0	01	1	0610-1007	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97918-298-0	01	1	1008-	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	0710-1003				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-90448-217-0	01	1	0306-								●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0306-0609					●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0610-					●		●
33	00.386 RUBBER; SPACE,CYL HD COVER	8-97365-746-0	01	1	0306-0405					●	●	●
33	00.386 RUBBER; SPACE,CYL HD COVER TURKEY EQUIPMENT(B11)	8-97365-746-0	01	1	0406-0609						●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0306-0402					●	●	●
35	00.293 BOLT; NOISE SHIELD COVER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0403-0512					●		●
35	00.293 BOLT; NOISE SHIELD COVER EXC. TURKEY EQUIPMENT(B11) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0403-0512						●
35	00.293 BOLT; NOISE SHIELD COVER TURKEY EQUIPMENT(B11) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0403-0512						●
35	00.293 BOLT; NOISE SHIELD COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0609					●	●	●
35	00.293 BOLT; NOISE SHIELD COVER 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-					●		●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0306-0609					●	●	●
36	00.413 WASHER; PL,NOISE SHIELD COVER 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0610-					●		●
40	00.386 COVER (A)	8-97043-018-0	01	1	0306-					●
40	00.386 COVER (B)	8-97252-869-1	01	1	0306-0609						●
40	00.386 COVER EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-97252-869-1	01	1	0306-0609							●
40	00.386 COVER EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> (B)	8-97252-869-1	01	1	0610-							●
40	00.386 COVER EURO3 SPECIFICATION<NT3> (C)	8-97353-821-2	01	1	0306-							●
41	00.413 GROMMET; HD COVER,OUTER	8-94256-959-0	02	1	0306-					●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98156-394-0	01	1	1008-	●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0306-0402					●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0403-0609					●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11)	8-97349-416-1	01	1	0403-0609						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0610-					●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11)	8-97912-741-0	01	1	0403-0609						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	0306-0609				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	0610-1007	●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	1008-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	0710-1003				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-90467-661-0	01	1	0306-								●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0306-0402					●	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0403-0609					●		●
75	00.413 NUT; CAP,HD COVER EXC. TURKEY EQUIPMENT(B11) M8 OD=19	8-94158-108-0	03	1	0403-0609						●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0610-					●		●
75	00.413 NUT; CAP,HD COVER TURKEY EQUIPMENT(B11) M8 OD=19	8-97912-654-0	03	1	0403-0609						●

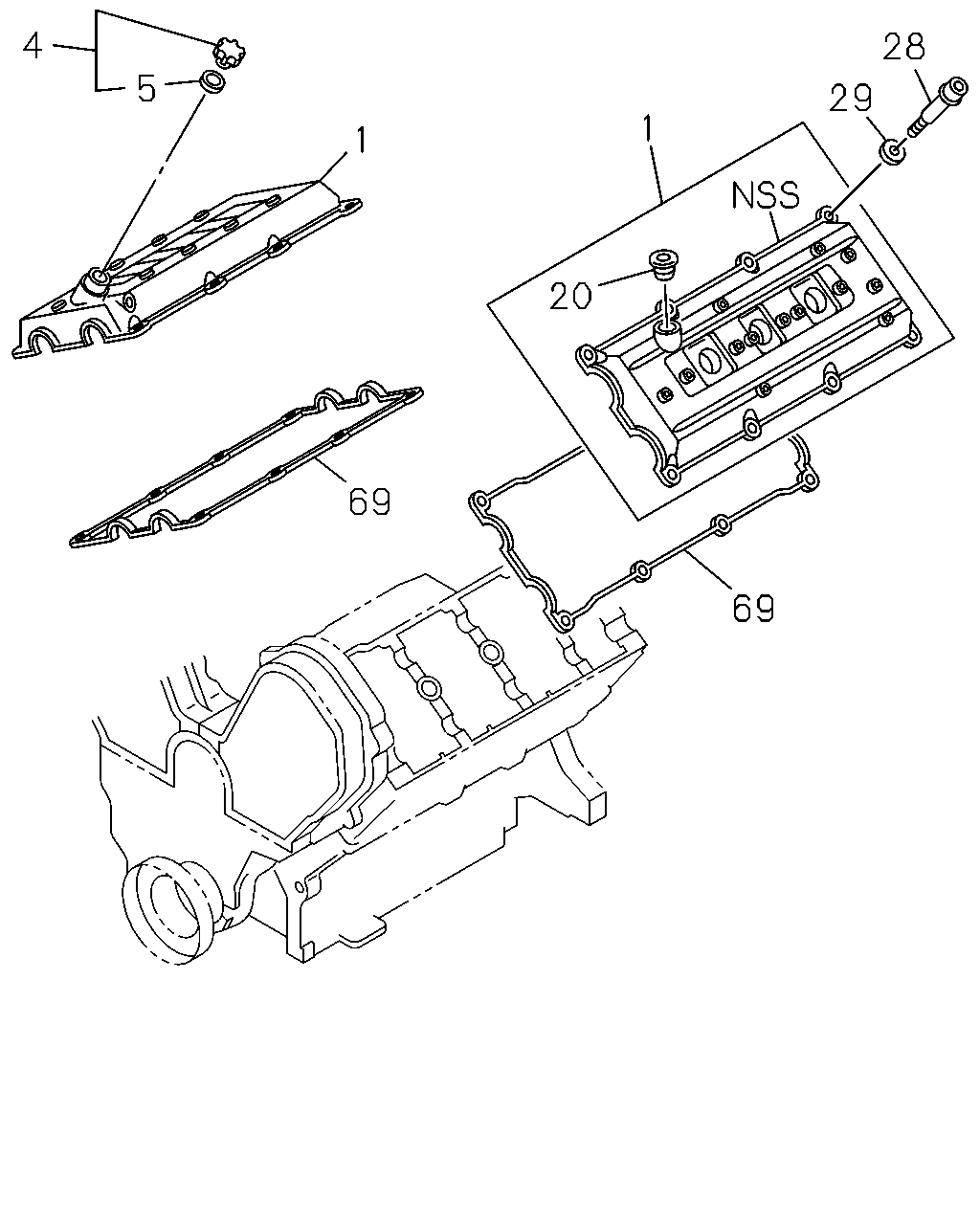

4 28 5 29 1 1 20 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	00.386 COVER; CYL HD EXC. EGYPT EQUIPMENT(B09)	8-98156-392-0	01	1	1008-	●
1	00.386 COVER; CYL HD	8-98156-392-0	01	1	1008-		●	●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	1008-				●
1	00.386 COVER; CYL HD EGYPT EQUIPMENT(B09)	8-98156-392-0	01	1	1008-	●
1	00.386 COVER; CYL HD	8-94433-742-2	01	1	0306-					●
1	00.386 COVER; CYL HD	8-97354-425-0	01	1	0306-0609						●	●
1	00.386 COVER; CYL HD	8-97354-425-0	01	1	0610-							●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	0306-0609				●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	0306-0609				●
1	00.386 COVER; CYL HD	8-98051-196-2	01	1	0610-1007	●		●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	1008-				●
1	00.386 COVER; CYL HD	8-97323-541-0	01	1	0710-1003				●
1	00.386 COVER; CYL HD	8-97321-299-0	01	1	0710-1003				●
1	00.386 COVER; CYL HD	8-90467-642-0	01	1	0306-1009								●
1	00.386 COVER; CYL HD	8-93317-147-0	01	1	1010-								●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	1008-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0306-					●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	0306-0609						●	●
4	01.758 CAP; OIL FILLER	8-94425-685-2	01	1	0610-							●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	0306-0609				●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	0610-1007	●		●
4	01.758 CAP; OIL FILLER	8-98026-084-0	01	1	1008-	●	●	●
4	01.758 CAP; OIL FILLER	8-97117-766-0	01	1	0710-1003				●
4	01.758 CAP; OIL FILLER	8-90467-648-0	01	1	0306-								●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	1008-				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0509-0609					●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0306-0508					●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0509-0609						●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . 00.413 ID=32 OD=40	8-94123-623-1	01	1	0610-					●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	0306-0609				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97918-298-0	01	1	0610-1007	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97918-298-0	01	1	1008-	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) . ID=32 OD=40	8-97136-177-0	01	1	0710-1003				●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE) .	8-90448-217-0	01	1	0306-								●
20	00.413 GROMMET; HD COVER	8-97074-653-0	01	1	1008-				●
20	00.413 GROMMET; HD COVER	8-97074-653-0	01	1	0306-0609				●
20	00.413 GROMMET; HD COVER	8-97074-653-0	01	1	0710-1003				●
28	00.413 BOLT; HD COVER 00.386	8-97372-246-0	16	1	1008-				●
28	00.413 BOLT; HD COVER	8-97149-252-2	16	1	0306-0609				●
28	00.413 BOLT; HD COVER	8-97149-252-2	16	1	0710-0805				●
28	00.413 BOLT; HD COVER 00.386	8-97372-246-0	16	1	0806-1003				●
28	00.413 BOLT; HD COVER	8-11068-795-0	07	1	0306-1009								●
28	00.413 BOLT; HD COVER	8-93376-828-0	07	1	1010-								●
29	00.413 RUBBER; MTG,HD COVER	8-97149-002-2	16	1	0306-0602				●
29	00.413 RUBBER; MTG,HD COVER	8-97372-219-0	16	1	0603-0609				●
29	00.413 RUBBER; MTG,HD COVER EXC. EGYPT EQUIPMENT(B09)	8-97361-811-1	14	1	0610-1003	●
29	00.413 RUBBER; MTG,HD COVER	8-97361-811-1	14	1	0610-1003			●
29	00.413 RUBBER; MTG,HD COVER	8-97361-811-1	14	1	1004-1007	●		●
29	00.413 RUBBER; MTG,HD COVER	8-97372-219-0	16	1	1008-				●
29	00.413 RUBBER; MTG,HD COVER	8-97372-219-0	16	1	0710-1003				●
29	00.413 RUBBER; MTG,HD COVER EGYPT EQUIPMENT(B09)	8-97381-524-0	14	1	0610-1003	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98156-394-0	01	1	1008-	●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0306-0402					●	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0403-0609					●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURKEY EQUIPMENT(B11)	8-97349-416-1	01	1	0403-0609						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0610-					●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURKEY EQUIPMENT(B11)	8-97912-741-0	01	1	0403-0609						●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	0306-0609				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	0610-1007	●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	1008-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97172-394-0	02	1	0710-1003				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-90467-661-0	01	1	0306-								●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
