◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 9 - Tools ▶ 9-33 - REAR BODY; GATE AND SIDE GUARD ▶
9-33 — REAR BODY; GATE AND SIDE GUARD (#73891) — 1229 parça

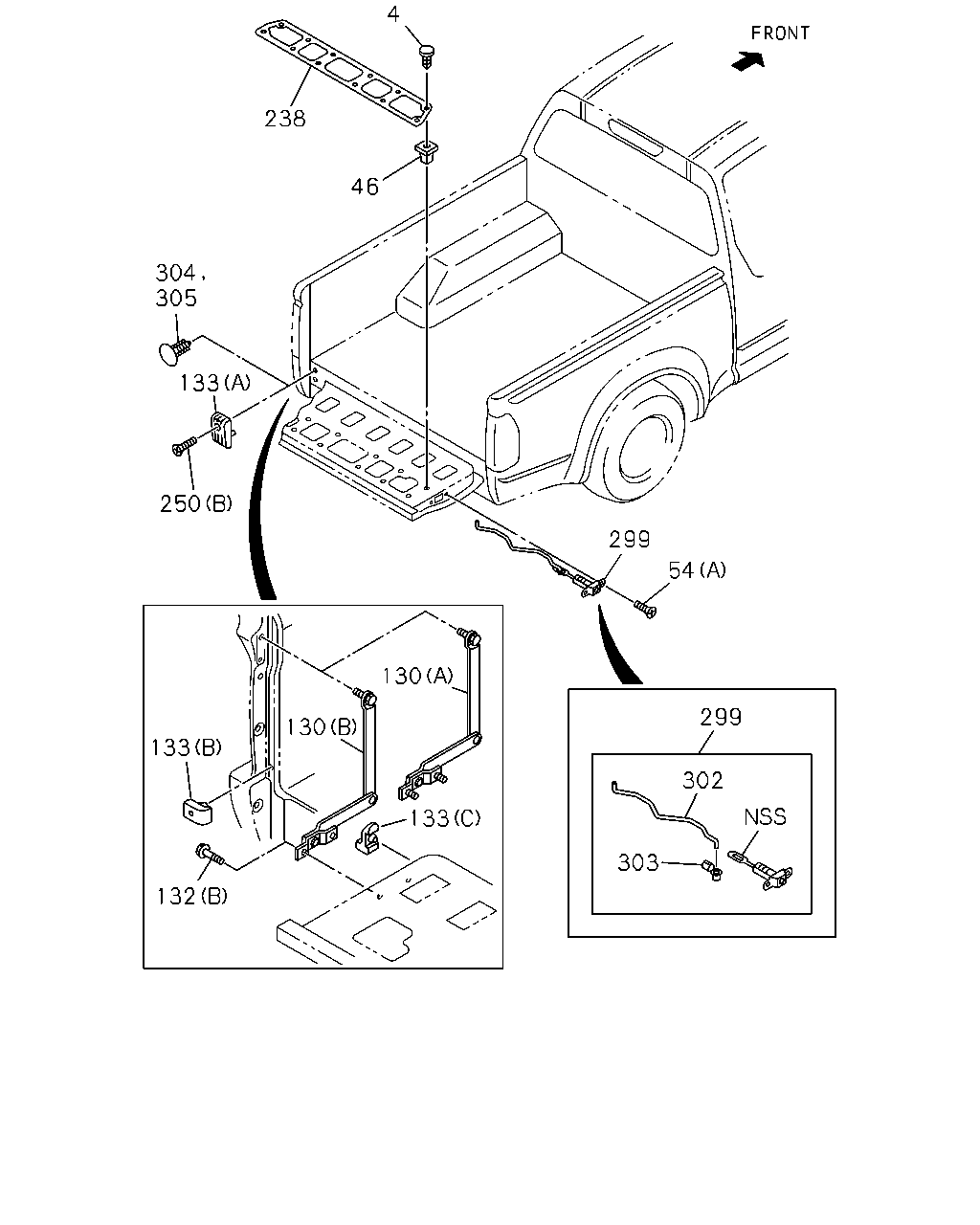

çizim 116735
4 238 46 304 305 133 250 299 54 130 299 130 133 302 133 303 132
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 SCREW; PANEL,RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M4X10 THA 		8-97043-528-0 12 1 0204-0207 ● ●
4 SCREW; PANEL,RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M4X10 THA 		8-97043-528-0 12 1 0208-0408 ● ● ● ●
4 SCREW; PANEL,RR GATE
M4X10 THA 		8-97043-528-0 12 1 0409- ● ● ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M4 THA 		5-09470-002-0 12 1 0204-0207 ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M4 THA 		5-09470-002-0 12 1 0208-0408 ● ● ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
M4 THA 		5-09470-002-0 12 1 0409- ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X22 THA 		8-94388-328-1 02 1 0204-0207 ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X22 THA 		8-94388-328-1 02 1 0204-0207 ●
54 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X22 THA 		8-94388-328-1 02 1 0208-0408 ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X22 THA 		8-94388-328-1 02 1 0208-0408 ●
54 SCREW; TAIL GATE LOCK,RR BODY
(B) M8X22 THA 		8-94388-328-1 02 1 0409-0701 ● ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
(B) M8X22 THA 		8-98050-437-0 02 1 0702- ● ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (A) M8X20 THA 		8-94446-355-1 04 1 0204-0207 ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (A) M8X20 THA 		8-94446-355-1 04 1 0208-0408 ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
(A) M8X20 THA 		8-94446-355-1 04 1 0409-0708 ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
(A) M8X20 THA 		8-97247-699-0 04 1 0709- ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97234-905-4 02 1 0204-0207 ● ●
130 LINK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97234-905-4 02 1 0204-0207 ●
130 LINK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97234-905-4 02 1 0208-0407 ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97234-905-4 02 1 0208-0407 ●
130 LINK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97379-693-0 02 1 0408-0408 ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97379-693-0 02 1 0408-0408 ●
130 LINK ASM; TAIL GATE,RR BODY
(B) THA 		8-97379-693-0 02 1 0409-0708 ● ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
(B) THA 		8-98084-431-0 02 1 0709-1005 ● ● ● ● ●
130 LINK ASM; TAIL GATE,RR BODY
(B) THA 		8-98174-085-0 02 1 1006- ● ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X20 FLANGE THA 		0-28680-820-0 04 1 0408-0408 ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X20 FLANGE THA 		0-28680-820-0 04 1 0408-0408 ●
132 BOLT; TAIL GATE LINK,RR BODY
(B) M8X20 FLANGE THA 		0-28680-820-0 04 1 0409-0601 ● ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
(B) M8X20 FLANGE THA 		0-28650-820-0 04 1 0602- ● ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0204-0207 ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0204-0207 ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0208-0408 ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0208-0408 ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97234-914-2 02 1 0204-0207 ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97234-914-2 02 1 0204-0207 ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97234-914-2 02 1 0208-0303 ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97234-914-2 02 1 0208-0303 ●
133 STOPPER; TAIL GATE LINK,RR BODY
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97234-914-2 02 1 0304-0408 ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97234-914-2 02 1 0304-0408 ●
133 STOPPER; TAIL GATE LINK,RR BODY
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> (A) THA 		8-97234-914-2 02 1 0409-0507 ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(A) THA 		8-97234-914-2 02 1 0409-0507 ●
133 STOPPER; TAIL GATE LINK,RR BODY
GRADE EXL/EX/SL/S<RBA> (A) THA 		8-97234-914-2 02 1 0409-0507 ●
133 STOPPER; TAIL GATE LINK,RR BODY
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-97234-914-2 02 1 0508-0810 ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-97234-914-2 02 1 0811-1012 ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
GRADE SLX/LS<RBD> CHROME PACKAGE<8GX> EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-97234-914-2 02 1 0811-1012 ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-97234-914-2 02 1 1101- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
GRADE EXL/EX/SL/S<RBA> (A) THA 		8-97234-914-2 02 1 1101- ●
133 STOPPER; TAIL GATE LINK,RR BODY
GRADE EXL/EX/SL/S<RBA> EXC. REAR STEP BUMPER CHROME<V42> (A) THA 		8-97234-914-2 02 1 1101- ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA 		8-97302-184-1 02 1 0204-0207 ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97302-184-1 02 1 0204-0207 ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA 		8-97302-184-1 02 1 0208-0408 ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97302-184-1 02 1 0208-0408 ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) THA 		8-97302-184-1 02 1 0409- ● ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97302-185-2 02 1 0204-0207 ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97302-185-2 02 1 0204-0207 ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97302-185-2 02 1 0208-0408 ● ● ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97302-185-2 02 1 0208-0408 ●
133 STOPPER; TAIL GATE LINK,RR BODY
(B) THA 		8-97302-185-2 02 1 0409- ● ● ● ● ●
238 COVER; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97234-909-1 01 1 0204-0207 ● ●
238 COVER; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97234-909-1 01 1 0208-0408 ● ● ● ●
238 COVER; RR GATE
THA 		8-97234-909-1 01 1 0409- ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X22 THA 		8-94388-328-1 02 1 0302-0408 ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X22 THA 		8-94388-328-1 02 1 0302-0408 ●
250 BOLT; STOPPER
(A) M8X22 THA 		8-94388-328-1 02 1 0409-0701 ● ● ● ● ●
250 BOLT; STOPPER
(A) M8X22 THA 		8-98050-437-0 02 1 0702- ● ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M6X18 THA 		8-97071-681-0 02 1 0204-0207 ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M6X18 THA 		8-97071-681-0 02 1 0204-0207 ●
250 BOLT; STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M6X18 THA 		8-97071-681-0 02 1 0208-0303 ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M6X18 THA 		8-97071-681-0 02 1 0208-0303 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M6X18 THA 		8-97071-681-0 02 1 0304-0408 ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M6X18 THA 		8-97071-681-0 02 1 0304-0408 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> (B) M6X18 THA 		8-97071-681-0 02 1 0409-0507 ● ●
250 BOLT; STOPPER
(B) M6X18 THA 		8-97071-681-0 02 1 0409-0507 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA> (B) M6X18 THA 		8-97071-681-0 02 1 0409-0507 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-97071-681-0 02 1 0508-0702 ● ● ● ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0703-0810 ● ● ● ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0811- ● ● ● ●
250 BOLT; STOPPER
GRADE SLX/LS<RBD> CHROME PACKAGE<8GX> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0811- ● ●
299 LATCH; END GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-914-3 01 1 0204-0207 ● ●
299 LATCH; END GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-914-3 01 1 0208-0408 ● ● ● ●
299 LATCH; END GATE
THA 		8-97381-273-0 01 1 0409-0708 ● ● ● ●
299 LATCH; END GATE
THA 		8-98050-281-0 01 1 0709- ● ● ● ●
299 LATCH; END GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-913-3 01 1 0204-0207 ● ●
299 LATCH; END GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-913-3 01 1 0208-0408 ● ● ● ●
299 LATCH; END GATE
THA 		8-97381-272-0 01 1 0409-0708 ● ● ● ●
299 LATCH; END GATE
THA 		8-98050-279-0 01 1 0709- ● ● ● ●
302 LINK; LATCH,END GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97349-999-0 01 1 0204-0207 ● ●
302 LINK; LATCH,END GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97349-999-0 01 1 0208-0408 ● ● ● ●
302 LINK; LATCH,END GATE
THA 		8-97381-275-0 01 1 0409-0708 ● ● ● ●
302 LINK; LATCH,END GATE
THA 		8-98056-778-0 01 1 0709- ● ● ● ●
302 LINK; LATCH,END GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97349-998-0 01 1 0204-0207 ● ●
302 LINK; LATCH,END GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97349-998-0 01 1 0208-0408 ● ● ● ●
302 LINK; LATCH,END GATE
THA 		8-97381-274-0 01 1 0409-0708 ● ● ● ●
302 LINK; LATCH,END GATE
THA 		8-98056-777-0 01 1 0709- ● ● ● ●
303 SNAP; LATCH,END GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97350-001-0 01 1 0204-0207 ● ●
303 SNAP; LATCH,END GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97350-001-0 01 1 0208-0408 ● ● ● ●
303 SNAP; LATCH,END GATE
THA 		8-97381-277-0 01 1 0409- ● ● ● ●
303 SNAP; LATCH,END GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97350-000-0 01 1 0204-0207 ● ●
303 SNAP; LATCH,END GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97350-000-0 01 1 0208-0408 ● ● ● ●
303 SNAP; LATCH,END GATE
THA 		8-97381-276-0 01 1 0409- ● ● ● ●
304 PLUG; HOLE
GRADE SLX/LS<RBD> THA 		8-97361-657-0 02 1 0409-0507 ● ● ●
304 PLUG; HOLE
THA 		8-97361-657-0 02 1 0409-0507 ●
304 PLUG; HOLE
GRADE SLX/LS<RBD> THA 		8-97361-657-0 02 1 0508-0606 ● ● ● ●
304 PLUG; HOLE
GRADE SLX/LS<RBD> EXC. REAR STEP BUMPER CHROME<V42> THA 		8-97361-657-0 02 1 0607-0810 ● ● ●
304 PLUG; HOLE
GRADE SLX/LS<RBD> EXC. REAR STEP BUMPER CHROME<V42>,CHROME PACKAGE<8GX> THA 		8-97361-657-0 02 1 0811-0906 ● ●
304 PLUG; HOLE
GRADE SLX/LS<RBD> EXC. REAR STEP BUMPER CHROME<V42> THA 		8-97361-657-0 02 1 0811-0906 ●
304 PLUG; HOLE
GRADE SLX/LS<RBD> EXC. SPECIAL EDITION<EA4>,REAR STEP BUMPER CHROME<V42>,CHROME PACKAGE<8GX> THA 		8-97361-657-0 02 1 0907-1010 ●
304 PLUG; HOLE
GRADE SLX/LS<RBD> EXC. REAR STEP BUMPER CHROME<V42>,CHROME PACKAGE<8GX> THA 		8-97361-657-0 02 1 0907-1010 ●
304 PLUG; HOLE
GRADE SLX/LS<RBD> EXC. REAR STEP BUMPER CHROME<V42> THA 		8-97361-657-0 02 1 0907-1010 ●
304 PLUG; HOLE
GRADE SLX/LS<RBD> EXC. SPECIAL EDITION<EA4>,REAR STEP BUMPER CHROME<V42>,SALES PACKAGE EQUIPMENT SPORTY<XK0>,CHR OME PACKAGE<8GX> THA 		8-97361-657-0 02 1 1011- ●
304 PLUG; HOLE
SALES PACKAGE EQUIPMENT SPORTY<XK0> EXC. SPECIAL EDITION<EA4>,REAR STEP BUMPER CHROME<V42>,HIGH RIDE SUSPENSION<7YC>,CHROME PACKAGE<8GX> THA 		8-97361-657-0 02 1 1011- ●
304 PLUG; HOLE
GRADE SLX/LS<RBD> EXC. REAR STEP BUMPER CHROME<V42>,SALES PACKAGEEQUIPMENT SPORTY<XK0>,CHROME PACKAGE<8GX> THA 		8-97361-657-0 02 1 1011- ●
304 PLUG; HOLE
SALES PACKAGE EQUIPMENT SPORTY<XK0> EXC. REAR STEP BUMPER CHROME<V42>,HIGH RIDE SUSPENSION<7YC>,CHROME PACKAGE<8GX> THA 		8-97361-657-0 02 1 1011- ●
305 CLIP; HOLE,STOPPER
GRADE SLX/LS<RBD> RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97361-657-0 02 1 0304-0408 ● ● ●
305 CLIP; HOLE,STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97361-657-0 02 1 0304-0408 ●
346 SEAL; PANEL,GATE
GRADE SLX/LS<RBD> RADIO DELETE<UL5> OD=50 T=0.08 BLACK THA 		8-94111-754-0 01 1 1011- ● ● ● ●

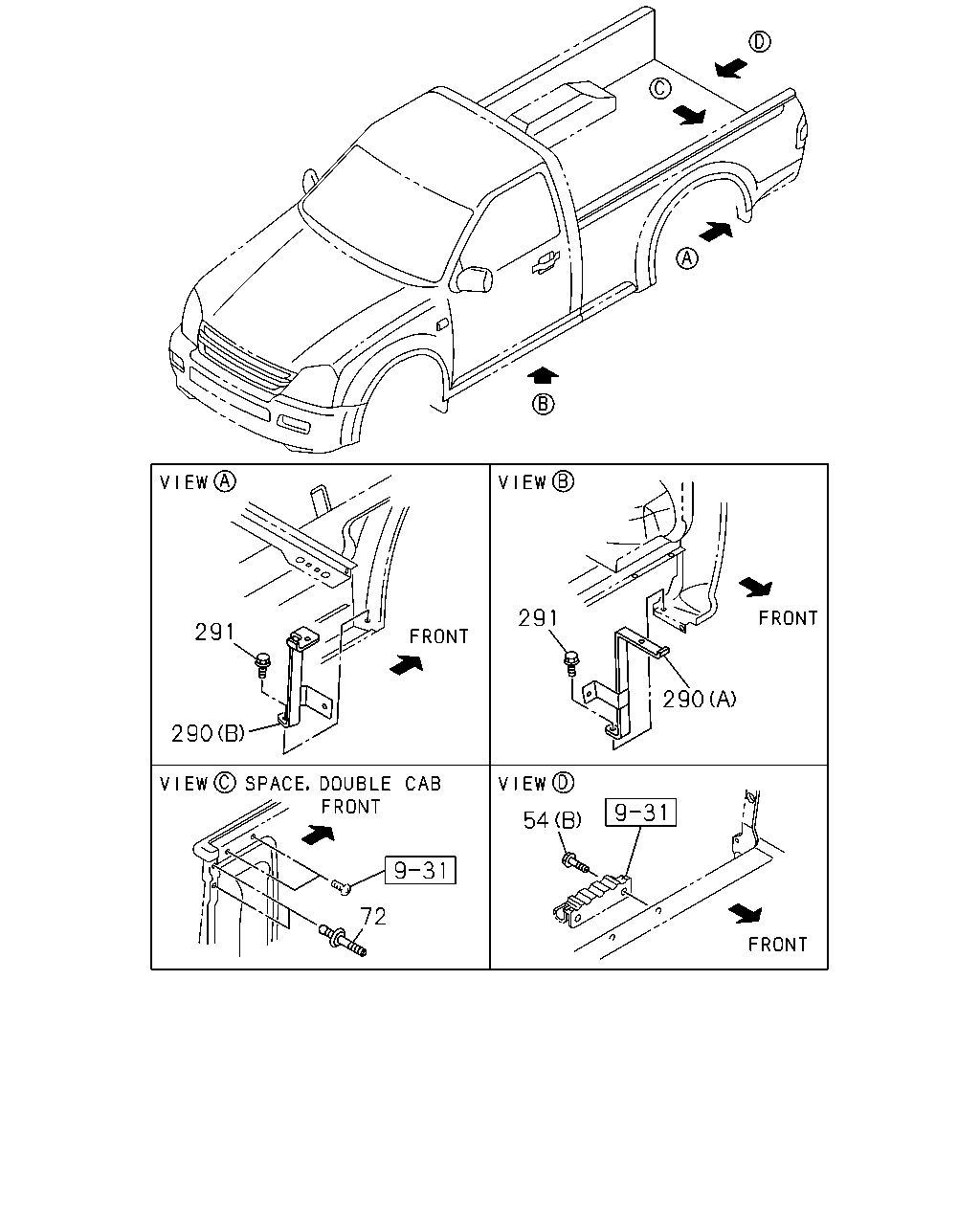

çizim 116736
291 291 290 290 54 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E
54 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X22 THA 		8-94388-328-1 02 1 0204-0207 ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X22 THA 		8-94388-328-1 02 1 0204-0207 ●
54 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X22 THA 		8-94388-328-1 02 1 0208-0408 ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X22 THA 		8-94388-328-1 02 1 0208-0408 ●
54 SCREW; TAIL GATE LOCK,RR BODY
(B) M8X22 THA 		8-94388-328-1 02 1 0409-0701 ● ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
(B) M8X22 THA 		8-98050-437-0 02 1 0702- ● ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (A) M8X20 THA 		8-94446-355-1 04 1 0204-0207 ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> (A) M8X20 THA 		8-94446-355-1 04 1 0208-0408 ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
(A) M8X20 THA 		8-94446-355-1 04 1 0409-0708 ● ● ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
(A) M8X20 THA 		8-97247-699-0 04 1 0709- ● ● ● ●
72 PIN; HINGE,CENTER POST
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97319-308-0 04 1 0204-0207 ● ●
72 PIN; HINGE,CENTER POST
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97319-308-0 04 1 0208-0408 ● ● ● ●
72 PIN; HINGE,CENTER POST
THA 		8-97319-308-0 04 1 0409-0702 ● ● ● ●
72 PIN; HINGE,CENTER POST
THA 		8-98057-864-0 04 1 0703- ● ● ● ●
290 BRACE; RR BODY
EXC. OVER FENDER<B74> (A) THA 		8-98037-404-0 01 1 0607-0906 ●
290 BRACE; RR BODY
EXC. OVER FENDER<B74>,SPECIAL EDITION<EA4> (A) THA 		8-98037-404-0 01 1 0907- ●
290 BRACE; RR BODY
EXC. OVER FENDER<B74> (A) THA 		8-98037-402-0 01 1 0607-0906 ●
290 BRACE; RR BODY
EXC. OVER FENDER<B74>,SPECIAL EDITION<EA4> (A) THA 		8-98037-402-0 01 1 0907- ●
290 BRACE; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97255-199-3 01 1 0204-0208 ● ●
290 BRACE; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97255-199-3 01 1 0204-0208 ●
290 BRACE; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97357-446-0 01 1 0209-0408 ● ●
290 BRACE; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97357-446-0 01 1 0209-0408 ●
290 BRACE; RR BODY
(A) THA 		8-97357-446-0 01 1 0409-0606 ● ● ●
290 BRACE; RR BODY
OVER FENDER<B74> (A) THA 		8-98027-495-0 01 1 0607-0906 ●
290 BRACE; RR BODY
(A) THA 		8-98027-495-0 01 1 0607-0906 ● ●
290 BRACE; RR BODY
OVER FENDER<B74> SPECIAL EDITION<EA4> (A) THA 		8-98027-495-0 01 1 0907-0907 ●
290 BRACE; RR BODY
(A) THA 		8-98027-495-0 01 1 0907-0907 ●
290 BRACE; RR BODY
OVER FENDER<B74> EXC. SPECIAL EDITION<EA4> (A) THA 		8-98027-495-0 01 1 0908- ●
290 BRACE; RR BODY
SPECIAL EDITION<EA4> (A) THA 		8-98027-495-0 01 1 0908- ●
290 BRACE; RR BODY
(A) THA 		8-98027-495-0 01 1 0908- ● ●
290 BRACE; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97255-206-2 01 1 0204-0207 ● ●
290 BRACE; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97255-206-2 01 1 0204-0207 ●
290 BRACE; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97255-206-2 01 1 0208-0208 ● ● ● ●
290 BRACE; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97255-206-2 01 1 0208-0208 ●
290 BRACE; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97357-449-0 01 1 0209-0408 ● ● ● ●
290 BRACE; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97357-449-0 01 1 0209-0408 ●
290 BRACE; RR BODY
(B) THA 		8-97357-449-0 01 1 0409- ● ● ● ● ●
290 BRACE; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97255-198-3 01 1 0204-0208 ● ●
290 BRACE; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97255-198-3 01 1 0204-0208 ●
290 BRACE; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97357-445-0 01 1 0209-0408 ● ●
290 BRACE; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA 		8-97357-445-0 01 1 0209-0408 ●
290 BRACE; RR BODY
(A) THA 		8-97357-445-0 01 1 0409-0606 ● ● ●
290 BRACE; RR BODY
OVER FENDER<B74> (A) THA 		8-98027-494-0 01 1 0607-0906 ●
290 BRACE; RR BODY
(A) THA 		8-98027-494-0 01 1 0607-0906 ● ●
290 BRACE; RR BODY
OVER FENDER<B74> SPECIAL EDITION<EA4> (A) THA 		8-98027-494-0 01 1 0907-0907 ●
290 BRACE; RR BODY
(A) THA 		8-98027-494-0 01 1 0907-0907 ●
290 BRACE; RR BODY
OVER FENDER<B74> EXC. SPECIAL EDITION<EA4> (A) THA 		8-98027-494-0 01 1 0908- ●
290 BRACE; RR BODY
SPECIAL EDITION<EA4> (A) THA 		8-98027-494-0 01 1 0908- ●
290 BRACE; RR BODY
(A) THA 		8-98027-494-0 01 1 0908- ● ●
290 BRACE; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97255-205-2 01 1 0204-0207 ● ●
290 BRACE; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97255-205-2 01 1 0204-0207 ●
290 BRACE; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97255-205-2 01 1 0208-0208 ● ● ● ●
290 BRACE; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97255-205-2 01 1 0208-0208 ●
290 BRACE; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97357-450-0 01 1 0209-0408 ● ● ● ●
290 BRACE; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97357-450-0 01 1 0209-0408 ●
290 BRACE; RR BODY
(B) THA 		8-97357-450-0 01 1 0409- ● ● ● ● ●
291 BOLT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M8X25 FLANGE THA 		0-28680-825-0 02 1 0204-0207 ● ●
291 BOLT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M8X25 FLANGE THA 		0-28680-825-0 02 1 0204-0207 ● ●
291 BOLT; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M8X25 FLANGE THA 		0-28680-825-0 02 1 0204-0207 ●
291 BOLT; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M8X25 FLANGE THA 		0-28680-825-0 02 1 0204-0207 ●
291 BOLT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M8X25 FLANGE THA 		0-28680-825-0 02 1 0208-0408 ● ● ● ●
291 BOLT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M8X25 FLANGE THA 		0-28680-825-0 02 1 0208-0408 ● ●
291 BOLT; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M8X25 FLANGE THA 		0-28680-825-0 02 1 0208-0408 ●
291 BOLT; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M8X25 FLANGE THA 		0-28680-825-0 02 1 0208-0408 ●
291 BOLT; RR BODY
M8X25 FLANGE THA 		0-28680-825-0 04 1 0409-0507 ● ● ●
291 BOLT; RR BODY
M8X12 FLANGE THA 		0-28080-812-0 04 1 0508-0601 ● ● ●
291 BOLT; RR BODY
M8X12 FLANGE THA 		0-28050-812-0 04 1 0602- ● ● ●
291 BOLT; RR BODY
M8X25 FLANGE THA 		0-28680-825-0 02 1 0409-0507 ● ●
291 BOLT; RR BODY
M8X12 FLANGE THA 		0-28080-812-0 02 1 0508-0601 ● ●
291 BOLT; RR BODY
M8X12 FLANGE THA 		0-28050-812-0 02 1 0602- ● ●
346 SEAL; PANEL,GATE
GRADE SLX/LS<RBD> RADIO DELETE<UL5> OD=50 T=0.08 BLACK THA 		8-94111-754-0 01 1 1011- ● ● ● ●

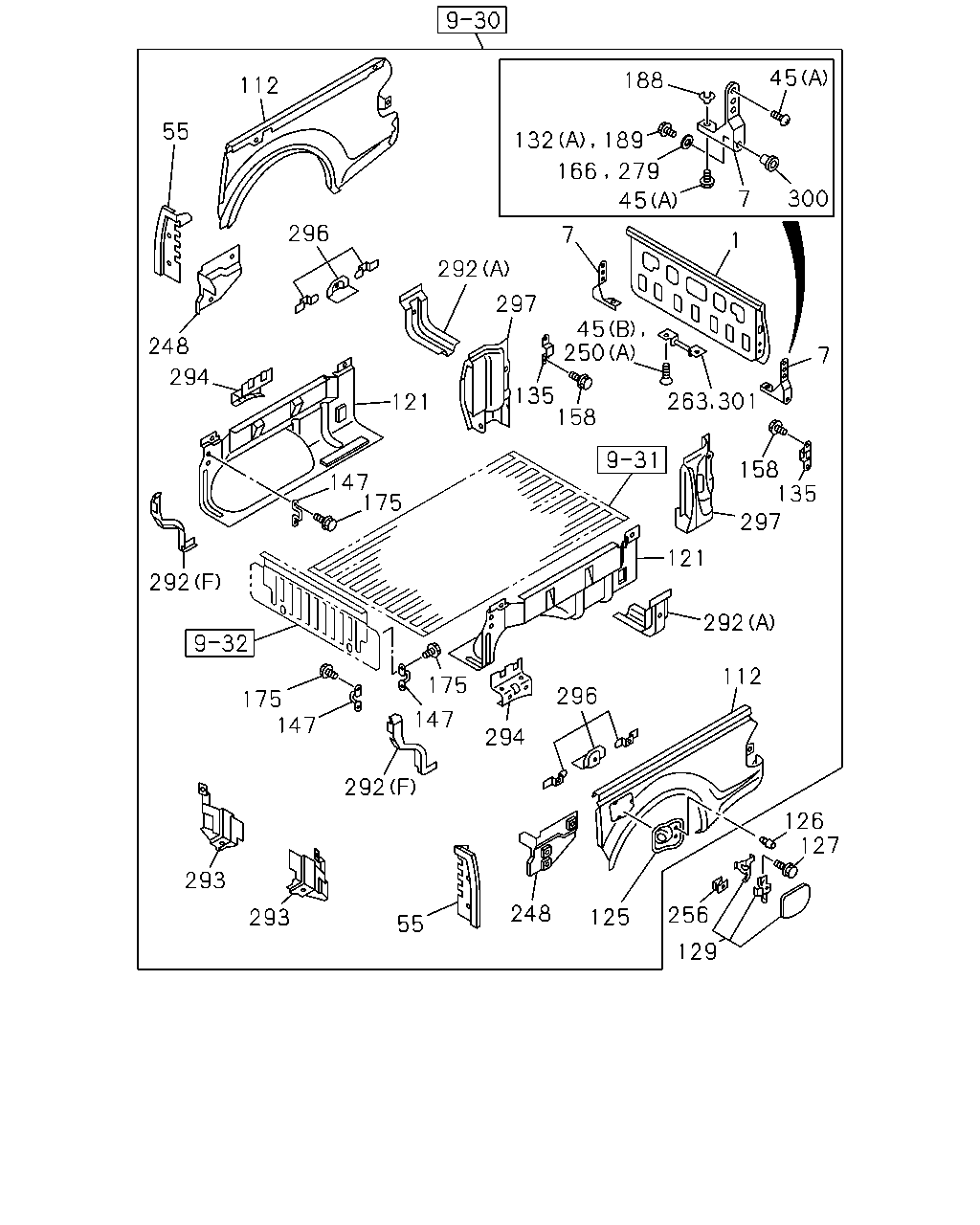

çizim 116738
45 188 112 55 132 189 300 7 45 296 7 1 292 297 45 250 248 7 294 135 158 121 158 135 147 175 297 121 292 292 112 175 296 175 147 147 294 292 126 127 293 248 256 125 293 55 129 166 279 263 301
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GATE ASM; RR
GRADE SLX/LS<RBD> RADIO DELETE<UL5> THA 		8-98173-724-0 01 1 1009- ● ● ● ●
1 GATE ASM; RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-657-5 01 1 0204-0207 ● ●
1 GATE ASM; RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-657-5 01 1 0208-0408 ● ● ● ●
1 GATE ASM; RR
THA 		8-97236-657-5 01 1 0409-0606 ● ● ● ●
1 GATE ASM; RR
THA 		8-97387-378-0 01 1 0607-1008 ● ● ● ●
1 GATE ASM; RR
GRADE SLX/LS<RBD> RADIO AM/FM W/CD,W/MP3<ULA>,RADIO AM/FM W/CD<UT3> THA 		8-97387-378-0 01 1 1009- ● ● ● ●
1 GATE ASM; RR
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> THA 		8-97387-378-0 01 1 1009- ● ● ●
1 GATE ASM; RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-656-4 01 1 0204-0408 ●
1 GATE ASM; RR
THA 		8-97236-656-4 01 1 0409- ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-770-2 01 1 0204-0207 ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-770-2 01 1 0204-0207 ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-770-2 01 1 0208-0209 ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-770-2 01 1 0208-0209 ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97360-602-0 01 1 0210-0408 ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97360-602-0 01 1 0210-0408 ●
7 HINGE ASM; RR GATE
THA 		8-97360-602-0 01 1 0409-0701 ● ● ● ● ●
7 HINGE ASM; RR GATE
THA 		8-98057-098-0 01 1 0702- ● ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-769-2 01 1 0204-0207 ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-769-2 01 1 0204-0207 ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-769-2 01 1 0208-0209 ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-769-2 01 1 0208-0209 ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97360-600-0 01 1 0210-0408 ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97360-600-0 01 1 0210-0408 ●
7 HINGE ASM; RR GATE
THA 		8-97360-600-0 01 1 0409-0701 ● ● ● ● ●
7 HINGE ASM; RR GATE
THA 		8-98057-097-0 01 1 0702- ● ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X16.5 THA 		1-09104-027-1 06 1 0204-0207 ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X16.5 THA 		1-09104-027-1 06 1 0204-0207 ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X16.5 THA 		1-09104-027-1 06 1 0208-0408 ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X16.5 THA 		1-09104-027-1 06 1 0208-0408 ●
45 BOLT; TAIL GATE TO RR BODY
(A) M8X16.5 THA 		1-09104-027-1 06 1 0409-0701 ● ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
(A) M8X16.5 THA 		8-98058-001-0 06 1 0702- ● ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X22 THA 		8-94388-328-1 02 1 0204-0207 ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X22 THA 		8-94388-328-1 02 1 0204-0207 ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X22 THA 		8-94388-328-1 02 1 0208-0301 ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X22 THA 		8-94388-328-1 02 1 0208-0301 ●
55 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-629-6 01 1 0204-0408 ● ●
55 PANEL; RR CORNER
THA 		8-97236-629-6 01 1 0409- ● ●
55 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-320-6 01 1 0204-0408 ● ●
55 PANEL; RR CORNER
THA 		8-97236-320-6 01 1 0409- ● ●
55 PANEL; RR CORNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-628-5 01 1 0204-0408 ●
55 PANEL; RR CORNER
THA 		8-97236-628-5 01 1 0409- ●
55 PANEL; RR CORNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-319-5 01 1 0204-0408 ●
55 PANEL; RR CORNER
THA 		8-97236-319-5 01 1 0409- ●
55 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93293-139-2 01 1 0208-0408 ● ●
55 PANEL; RR CORNER
THA 		8-93293-139-2 01 1 0409- ● ●
55 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93293-138-2 01 1 0208-0408 ● ●
55 PANEL; RR CORNER
THA 		8-93293-138-2 01 1 0409- ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97356-544-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97387-331-0 01 1 0607-0708 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> THA 		8-97387-331-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97356-543-0 01 1 0204-0408 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97356-543-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97356-543-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97387-330-0 01 1 0607-0808 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> THA 		8-97387-330-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97356-541-0 01 1 0204-0408 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97356-541-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97356-541-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97387-333-0 01 1 0607-0808 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97387-333-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97356-542-0 01 1 0204-0408 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97356-542-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97356-542-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97387-332-0 01 1 0607-0708 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97387-332-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97236-621-8 01 1 0204-0205 ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97360-567-0 01 1 0206-0408 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97360-567-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97360-567-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98098-357-0 01 1 0607-0707 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98098-357-0 01 1 0709-0808 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> THA 		8-98098-357-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97234-840-8 01 1 0204-0205 ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97360-566-0 01 1 0206-0408 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97360-566-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97360-566-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98098-356-0 01 1 0607-0707 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98098-356-0 01 1 0709-0808 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> THA 		8-98098-356-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97234-842-8 01 1 0204-0205 ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97360-570-0 01 1 0206-0408 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97360-570-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97360-570-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-98098-359-0 01 1 0607-0707 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-98098-359-0 01 1 0709-0808 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-98098-359-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97236-317-8 01 1 0204-0205 ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97360-569-0 01 1 0206-0408 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97360-569-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97360-569-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-98098-358-0 01 1 0607-0707 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-98098-358-0 01 1 0709-0808 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-98098-358-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> EXC. OVER FENDER<6GH> THA 		8-97236-617-6 01 1 0204-0408 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-617-6 01 1 0409-0507 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-617-6 01 1 0508-0808 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-617-6 01 1 0809-1008 ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97356-544-0 01 1 0204-0408 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97356-544-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-617-6 01 1 1009- ●
112 PANEL; SIDE GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> EXC. OVER FENDER<6GH> THA 		8-97236-313-6 01 1 0204-0408 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-313-6 01 1 0409-0507 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-313-6 01 1 0508-0808 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-313-6 01 1 0809- ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97234-844-8 01 1 0204-0408 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97234-844-8 01 1 0409-0708 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98069-802-0 01 1 0709- ● ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97234-843-9 01 1 0204-0408 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97234-843-9 01 1 0409-0708 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98069-801-0 01 1 0709- ● ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-635-4 01 1 0204-0308 ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97368-104-0 01 1 0309-0408 ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97368-104-0 01 1 0409- ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-324-4 01 1 0204-0408 ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97236-324-4 01 1 0409- ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93290-853-3 01 1 0208-0408 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-93290-853-3 01 1 0409- ● ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93290-854-3 01 1 0208-0408 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-93290-854-3 01 1 0409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97387-334-0 01 1 0607- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-755-2 01 1 0204-0308 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-755-2 01 1 0204-0308 ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97369-819-0 01 1 0309-0401 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97369-819-0 01 1 0309-0401 ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97369-819-0 01 1 0402-0408 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97369-819-0 01 1 0402-0408 ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97369-819-0 01 1 0409-0606 ● ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97369-819-0 01 1 0607- ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93367-328-4 01 1 0208-0408 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-93367-328-4 01 1 0409-0606 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97387-335-0 01 1 0607- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97166-112-0 02 1 0204-0207 ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97166-112-0 02 1 0204-0207 ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97166-112-0 02 1 0208-0408 ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97166-112-0 02 1 0208-0408 ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-97166-112-0 02 1 0409- ● ● ● ● ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M6X12 FLANGE THA 		0-28080-612-0 02 1 0204-0206 ● ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X12 FLANGE THA 		0-28080-612-0 02 1 0204-0206 ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M6X16 THA 		8-94479-534-0 02 1 0207-0207 ● ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X16 THA 		8-94479-534-0 02 1 0207-0207 ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M6X16 THA 		8-94479-534-0 02 1 0208-0408 ● ● ● ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X16 THA 		8-94479-534-0 02 1 0208-0408 ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-94479-534-0 02 1 0409-0702 ● ● ● ● ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 0703- ● ● ● ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97387-395-0 01 1 0607- ● ●
129 LID ASM; FUEL FILLER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97234-860-5 01 1 0204-0408 ● ●
129 LID ASM; FUEL FILLER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97234-860-5 01 1 0204-0408 ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97234-860-5 01 1 0409-0606 ● ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97234-860-5 01 1 0607- ●
129 LID ASM; FUEL FILLER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93297-269-2 01 1 0208-0408 ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-93297-269-2 01 1 0409-0606 ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97387-396-0 01 1 0607- ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X20 FLANGE THA 		0-28680-820-0 04 1 0408-0408 ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X20 FLANGE THA 		0-28680-820-0 04 1 0408-0408 ●
132 BOLT; TAIL GATE LINK,RR BODY
(B) M8X20 FLANGE THA 		0-28680-820-0 04 1 0409-0601 ● ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
(B) M8X20 FLANGE THA 		0-28650-820-0 04 1 0602- ● ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0204-0207 ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0204-0207 ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0208-0408 ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0208-0408 ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-401-4 01 1 0204-0207 ● ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-401-4 01 1 0208-0408 ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-97235-401-4 01 1 0409-0708 ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 0709- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-400-4 01 1 0204-0207 ● ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-400-4 01 1 0208-0408 ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-97235-400-4 01 1 0409-0708 ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 0709- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97249-565-3 01 1 0204-0408 ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-97249-565-3 01 1 0409-0701 ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-673-0 01 1 0702- ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97249-564-3 01 1 0204-0408 ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-97249-564-3 01 1 0409-0701 ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-672-0 01 1 0702- ●
147 HOOK ASM; ROPE,FRT
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97264-487-0 04 1 0204-0207 ● ●
147 HOOK ASM; ROPE,FRT
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97264-487-0 04 1 0208-0408 ● ● ● ●
147 HOOK ASM; ROPE,FRT
THA 		8-97264-487-0 04 1 0409-1012 ● ● ● ●
147 HOOK ASM; ROPE,FRT
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-97264-487-0 04 1 1101- ● ● ● ●
147 HOOK ASM; ROPE,FRT
SALES PACKAGE EQUIPMENT SPORTY<XK0> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97264-487-0 04 1 1101- ● ●
158 SCREW; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M8X20 FLANGE THA 		0-28680-820-0 04 1 0204-0207 ● ●
158 SCREW; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M8X20 FLANGE THA 		0-28680-820-0 04 1 0208-0408 ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28680-820-0 04 1 0409-0601 ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 0602- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X22 THA 		8-94388-328-1 04 1 0409-0701 ●
158 SCREW; STRIKER,TAIL GATE
M8X22 THA 		8-98050-437-0 04 1 0702- ●
166 CAP; GATE LOCK
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97357-403-0 02 1 0212-0408 ● ● ● ●
166 CAP; GATE LOCK
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97357-403-0 02 1 0212-0408 ●
175 BOLT; SET,RR GATE HOOK
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M8X16.5 THA 		1-09104-027-1 08 1 0204-0207 ● ●
175 BOLT; SET,RR GATE HOOK
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M8X16.5 THA 		1-09104-027-1 08 1 0208-0408 ● ● ● ●
175 BOLT; SET,RR GATE HOOK
M8X16.5 THA 		1-09104-027-1 08 1 0409-0701 ● ● ● ●
175 BOLT; SET,RR GATE HOOK
M8X16.5 THA 		8-98058-001-0 08 1 0702-1012 ● ● ● ●
175 BOLT; SET,RR GATE HOOK
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> M8X16.5 THA 		8-98058-001-0 08 1 1101- ● ● ● ●
175 BOLT; SET,RR GATE HOOK
SALES PACKAGE EQUIPMENT SPORTY<XK0> EXC. HIGH RIDE SUSPENSION<7YC> M8X16.5 THA 		8-98058-001-0 08 1 1101- ● ●
188 PLATE; HINGE UPR,RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97329-277-1 AR 1 0204-0207 ● ●
188 PLATE; HINGE UPR,RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97329-277-1 AR 1 0204-0207 ●
188 PLATE; HINGE UPR,RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97329-277-1 AR 1 0208-0408 ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97329-277-1 AR 1 0208-0408 ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0409- ● ● ● ● ●
189 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0409-0601 ● ● ● ● ●
189 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 0602- ● ● ● ● ●
248 PATCH; CARGO RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93332-582-3 01 1 0208-0408 ● ●
248 PATCH; CARGO RR
THA 		8-93332-582-3 01 1 0409- ● ●
248 PATCH; CARGO RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93332-584-3 01 1 0208-0408 ● ●
248 PATCH; CARGO RR
THA 		8-93332-584-3 01 1 0409- ● ●
250 BOLT; STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X22 THA 		8-94388-328-1 02 1 0302-0408 ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X22 THA 		8-94388-328-1 02 1 0302-0408 ●
250 BOLT; STOPPER
(A) M8X22 THA 		8-94388-328-1 02 1 0409-0701 ● ● ● ● ●
250 BOLT; STOPPER
(A) M8X22 THA 		8-98050-437-0 02 1 0702- ● ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M6X18 THA 		8-97071-681-0 02 1 0204-0207 ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M6X18 THA 		8-97071-681-0 02 1 0204-0207 ●
250 BOLT; STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M6X18 THA 		8-97071-681-0 02 1 0208-0303 ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M6X18 THA 		8-97071-681-0 02 1 0208-0303 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M6X18 THA 		8-97071-681-0 02 1 0304-0408 ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M6X18 THA 		8-97071-681-0 02 1 0304-0408 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> (B) M6X18 THA 		8-97071-681-0 02 1 0409-0507 ● ●
250 BOLT; STOPPER
(B) M6X18 THA 		8-97071-681-0 02 1 0409-0507 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA> (B) M6X18 THA 		8-97071-681-0 02 1 0409-0507 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-97071-681-0 02 1 0508-0702 ● ● ● ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0703-0810 ● ● ● ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0811- ● ● ● ●
250 BOLT; STOPPER
GRADE SLX/LS<RBD> CHROME PACKAGE<8GX> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0811- ● ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97251-180-1 01 1 0204-0207 ● ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97251-180-1 01 1 0204-0207 ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97251-180-1 01 1 0208-0408 ● ● ● ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97251-180-1 01 1 0208-0408 ●
256 SPRING; LID,FUEL FILLER
THA 		8-97251-180-1 01 1 0409- ● ● ● ● ●
263 SUPPORT; SIDE GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97289-536-0 01 1 0204-0207 ● ●
263 SUPPORT; SIDE GUARD
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97289-536-0 01 1 0204-0207 ●
263 SUPPORT; SIDE GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97289-536-0 01 1 0208-0301 ● ● ● ●
263 SUPPORT; SIDE GUARD
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97289-536-0 01 1 0208-0301 ●
279 SPACER
THA 		8-97357-403-0 02 1 0409- ● ● ● ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> (B) THA 		8-97375-758-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
EXC. OVER FENDER<B74> (B) THA 		8-97375-758-0 01 1 0409-0410 ●
292 EXTENSION; RR BODY
(B) THA 		8-97375-758-0 01 1 0411-0708 ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98069-803-0 01 1 0709- ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-383-5 02 1 0204-0207 ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-383-6 02 1 0208-0401 ● ● ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-383-6 02 1 0402-0402 ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-383-7 02 1 0402-0408 ● ● ● ●
292 EXTENSION; RR BODY
(A) THA 		8-97236-383-7 02 1 0409- ● ● ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97236-371-9 01 1 0204-0401 ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97375-759-0 01 1 0402-0408 ● ●
292 EXTENSION; RR BODY
(B) THA 		8-97375-759-0 01 1 0409-0708 ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98069-804-0 01 1 0709- ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97236-368-9 01 1 0204-0401 ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (B) THA 		8-97375-958-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97375-958-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
OVER FENDER<B74> (B) THA 		8-97375-958-0 01 1 0409-0410 ●
292 EXTENSION; RR BODY
(B) THA 		8-97375-958-0 01 1 0409-0410 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97236-680-5 02 1 0204-0401 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97375-757-0 02 1 0402-0408 ●
292 EXTENSION; RR BODY
(C) THA 		8-97375-757-0 02 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (D) THA 		8-97236-370-6 01 1 0204-0401 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (D) THA 		8-97375-756-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
(D) THA 		8-97375-756-0 01 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (E) THA 		8-97236-382-5 01 1 0204-0408 ●
292 EXTENSION; RR BODY
(E) THA 		8-97236-382-5 01 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (D) THA 		8-97236-367-6 01 1 0204-0401 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (D) THA 		8-97375-755-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
(D) THA 		8-97375-755-0 01 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (E) THA 		8-97308-978-4 01 1 0204-0408 ●
292 EXTENSION; RR BODY
(E) THA 		8-97308-978-4 01 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (F) THA 		8-93291-076-3 01 1 0208-0408 ● ●
292 EXTENSION; RR BODY
(F) THA 		8-93291-076-3 01 1 0409- ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (F) THA 		8-93291-077-3 01 1 0208-0408 ● ●
292 EXTENSION; RR BODY
(F) THA 		8-93291-077-3 01 1 0409- ● ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97349-440-0 01 1 0204-0408 ● ●
293 REINFORCEMENT; RR BODY
THA 		8-97349-440-0 01 1 0409- ● ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97349-439-0 01 1 0204-0408 ● ●
293 REINFORCEMENT; RR BODY
THA 		8-97349-439-0 01 1 0409- ● ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97260-383-2 01 1 0204-0408 ●
293 REINFORCEMENT; RR BODY
THA 		8-97260-383-2 01 1 0409- ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97251-646-2 01 1 0204-0408 ●
293 REINFORCEMENT; RR BODY
THA 		8-97251-646-2 01 1 0409- ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93332-593-3 01 1 0208-0408 ● ●
293 REINFORCEMENT; RR BODY
THA 		8-93332-593-3 01 1 0409- ● ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93332-594-3 01 1 0208-0408 ● ●
293 REINFORCEMENT; RR BODY
THA 		8-93332-594-3 01 1 0409- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-97236-418-3 01 1 0409- ● ● ● ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-418-3 01 1 0208-0408 ● ● ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-418-3 01 1 0208-0408 ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-420-3 01 1 0204-0207 ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-420-3 01 1 0204-0207 ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-420-3 01 1 0208-0408 ● ● ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-420-3 01 1 0208-0408 ●
294 PANEL; OUTER,RR BODY
THA 		8-97236-420-3 01 1 0409- ● ● ● ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-418-3 01 1 0204-0207 ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-418-3 01 1 0204-0207 ●
296 BRACKET; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97305-529-1 02 1 0204-0207 ● ●
296 BRACKET; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97305-529-1 02 1 0204-0207 ●
296 BRACKET; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97305-529-1 02 1 0208-0401 ● ● ● ●
296 BRACKET; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97305-529-1 02 1 0208-0401 ●
296 BRACKET; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97305-529-1 02 1 0402-0408 ● ● ● ●
296 BRACKET; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97305-529-1 02 1 0402-0408 ●
296 BRACKET; RR BODY
THA 		8-97305-529-1 02 1 0409- ● ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-478-3 01 1 0204-0207 ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-478-3 01 1 0208-0401 ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-478-4 01 1 0402-0408 ● ● ● ●
297 PANEL; CORNER,RR BODY
THA 		8-97236-478-4 01 1 0409-0606 ● ● ● ●
297 PANEL; CORNER,RR BODY
THA 		8-97387-341-1 01 1 0607- ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-476-3 01 1 0204-0207 ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-476-3 01 1 0208-0401 ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-476-4 01 1 0402-0408 ● ● ● ●
297 PANEL; CORNER,RR BODY
THA 		8-97236-476-4 01 1 0409-0606 ● ● ● ●
297 PANEL; CORNER,RR BODY
THA 		8-97387-340-1 01 1 0607- ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-477-3 01 1 0204-0408 ●
297 PANEL; CORNER,RR BODY
THA 		8-97236-477-3 01 1 0409- ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-475-3 01 1 0204-0408 ●
297 PANEL; CORNER,RR BODY
THA 		8-97236-475-3 01 1 0409- ●
300 COLLAR; GATE HINGE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97324-512-3 02 1 0204-0207 ● ●
300 COLLAR; GATE HINGE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97324-512-3 02 1 0204-0207 ●
300 COLLAR; GATE HINGE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97324-512-3 02 1 0208-0408 ● ● ● ●
300 COLLAR; GATE HINGE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97324-512-3 02 1 0208-0408 ●
300 COLLAR; GATE HINGE
THA 		8-97324-512-3 02 1 0409-0701 ● ● ● ● ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 0702- ● ● ● ● ●
301 SUPPORT; TAIL GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97289-536-0 01 1 0302-0408 ● ● ● ●
301 SUPPORT; TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97289-536-0 01 1 0302-0408 ●
301 SUPPORT; TAIL GATE
THA 		8-97289-536-0 01 1 0409-0701 ● ● ● ● ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 0702- ● ● ● ● ●
346 SEAL; PANEL,GATE
GRADE SLX/LS<RBD> RADIO DELETE<UL5> OD=50 T=0.08 BLACK THA 		8-94111-754-0 01 1 1011- ● ● ● ●
çizim 116740
188 157 45 112 293 132 189 55 7 300 45 296 297 1 7 292 294 135 45 250 295 292 121 263 301 7 134 158 134 158 135 292 293 292 297 121 157 294 295 292 292 126 127 55 296 256 125 112 129 166 279 169 262
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GATE ASM; RR
GRADE SLX/LS<RBD> RADIO DELETE<UL5> THA 		8-98173-724-0 01 1 1009- ● ● ● ●
1 GATE ASM; RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-657-5 01 1 0204-0207 ● ●
1 GATE ASM; RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-657-5 01 1 0208-0408 ● ● ● ●
1 GATE ASM; RR
THA 		8-97236-657-5 01 1 0409-0606 ● ● ● ●
1 GATE ASM; RR
THA 		8-97387-378-0 01 1 0607-1008 ● ● ● ●
1 GATE ASM; RR
GRADE SLX/LS<RBD> RADIO AM/FM W/CD,W/MP3<ULA>,RADIO AM/FM W/CD<UT3> THA 		8-97387-378-0 01 1 1009- ● ● ● ●
1 GATE ASM; RR
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> THA 		8-97387-378-0 01 1 1009- ● ● ●
1 GATE ASM; RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-656-4 01 1 0204-0408 ●
1 GATE ASM; RR
THA 		8-97236-656-4 01 1 0409- ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-770-2 01 1 0204-0207 ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-770-2 01 1 0204-0207 ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-770-2 01 1 0208-0209 ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-770-2 01 1 0208-0209 ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97360-602-0 01 1 0210-0408 ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97360-602-0 01 1 0210-0408 ●
7 HINGE ASM; RR GATE
THA 		8-97360-602-0 01 1 0409-0701 ● ● ● ● ●
7 HINGE ASM; RR GATE
THA 		8-98057-098-0 01 1 0702- ● ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-769-2 01 1 0204-0207 ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-769-2 01 1 0204-0207 ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-769-2 01 1 0208-0209 ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-769-2 01 1 0208-0209 ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97360-600-0 01 1 0210-0408 ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97360-600-0 01 1 0210-0408 ●
7 HINGE ASM; RR GATE
THA 		8-97360-600-0 01 1 0409-0701 ● ● ● ● ●
7 HINGE ASM; RR GATE
THA 		8-98057-097-0 01 1 0702- ● ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X16.5 THA 		1-09104-027-1 06 1 0204-0207 ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X16.5 THA 		1-09104-027-1 06 1 0204-0207 ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X16.5 THA 		1-09104-027-1 06 1 0208-0408 ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X16.5 THA 		1-09104-027-1 06 1 0208-0408 ●
45 BOLT; TAIL GATE TO RR BODY
(A) M8X16.5 THA 		1-09104-027-1 06 1 0409-0701 ● ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
(A) M8X16.5 THA 		8-98058-001-0 06 1 0702- ● ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X22 THA 		8-94388-328-1 02 1 0204-0207 ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X22 THA 		8-94388-328-1 02 1 0204-0207 ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X22 THA 		8-94388-328-1 02 1 0208-0301 ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X22 THA 		8-94388-328-1 02 1 0208-0301 ●
55 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-629-6 01 1 0204-0408 ● ●
55 PANEL; RR CORNER
THA 		8-97236-629-6 01 1 0409- ● ●
55 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-320-6 01 1 0204-0408 ● ●
55 PANEL; RR CORNER
THA 		8-97236-320-6 01 1 0409- ● ●
55 PANEL; RR CORNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-628-5 01 1 0204-0408 ●
55 PANEL; RR CORNER
THA 		8-97236-628-5 01 1 0409- ●
55 PANEL; RR CORNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-319-5 01 1 0204-0408 ●
55 PANEL; RR CORNER
THA 		8-97236-319-5 01 1 0409- ●
55 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93293-139-2 01 1 0208-0408 ● ●
55 PANEL; RR CORNER
THA 		8-93293-139-2 01 1 0409- ● ●
55 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93293-138-2 01 1 0208-0408 ● ●
55 PANEL; RR CORNER
THA 		8-93293-138-2 01 1 0409- ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97356-544-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97387-331-0 01 1 0607-0708 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> THA 		8-97387-331-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97356-543-0 01 1 0204-0408 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97356-543-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97356-543-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97387-330-0 01 1 0607-0808 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> THA 		8-97387-330-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97356-541-0 01 1 0204-0408 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97356-541-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97356-541-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97387-333-0 01 1 0607-0808 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97387-333-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97356-542-0 01 1 0204-0408 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97356-542-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97356-542-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97387-332-0 01 1 0607-0708 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97387-332-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97236-621-8 01 1 0204-0205 ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97360-567-0 01 1 0206-0408 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97360-567-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97360-567-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98098-357-0 01 1 0607-0707 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98098-357-0 01 1 0709-0808 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> THA 		8-98098-357-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97234-840-8 01 1 0204-0205 ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97360-566-0 01 1 0206-0408 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97360-566-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97360-566-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98098-356-0 01 1 0607-0707 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98098-356-0 01 1 0709-0808 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> THA 		8-98098-356-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97234-842-8 01 1 0204-0205 ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97360-570-0 01 1 0206-0408 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97360-570-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97360-570-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-98098-359-0 01 1 0607-0707 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-98098-359-0 01 1 0709-0808 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-98098-359-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97236-317-8 01 1 0204-0205 ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97360-569-0 01 1 0206-0408 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97360-569-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97360-569-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-98098-358-0 01 1 0607-0707 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-98098-358-0 01 1 0709-0808 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-98098-358-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> EXC. OVER FENDER<6GH> THA 		8-97236-617-6 01 1 0204-0408 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-617-6 01 1 0409-0507 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-617-6 01 1 0508-0808 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-617-6 01 1 0809-1008 ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97356-544-0 01 1 0204-0408 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97356-544-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-617-6 01 1 1009- ●
112 PANEL; SIDE GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> EXC. OVER FENDER<6GH> THA 		8-97236-313-6 01 1 0204-0408 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-313-6 01 1 0409-0507 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-313-6 01 1 0508-0808 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-313-6 01 1 0809- ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97234-844-8 01 1 0204-0408 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97234-844-8 01 1 0409-0708 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98069-802-0 01 1 0709- ● ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97234-843-9 01 1 0204-0408 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97234-843-9 01 1 0409-0708 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98069-801-0 01 1 0709- ● ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-635-4 01 1 0204-0308 ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97368-104-0 01 1 0309-0408 ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97368-104-0 01 1 0409- ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-324-4 01 1 0204-0408 ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97236-324-4 01 1 0409- ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93290-853-3 01 1 0208-0408 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-93290-853-3 01 1 0409- ● ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93290-854-3 01 1 0208-0408 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-93290-854-3 01 1 0409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97387-334-0 01 1 0607- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-755-2 01 1 0204-0308 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-755-2 01 1 0204-0308 ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97369-819-0 01 1 0309-0401 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97369-819-0 01 1 0309-0401 ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97369-819-0 01 1 0402-0408 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97369-819-0 01 1 0402-0408 ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97369-819-0 01 1 0409-0606 ● ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97369-819-0 01 1 0607- ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93367-328-4 01 1 0208-0408 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-93367-328-4 01 1 0409-0606 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97387-335-0 01 1 0607- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97166-112-0 02 1 0204-0207 ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97166-112-0 02 1 0204-0207 ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97166-112-0 02 1 0208-0408 ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97166-112-0 02 1 0208-0408 ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-97166-112-0 02 1 0409- ● ● ● ● ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M6X12 FLANGE THA 		0-28080-612-0 02 1 0204-0206 ● ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X12 FLANGE THA 		0-28080-612-0 02 1 0204-0206 ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M6X16 THA 		8-94479-534-0 02 1 0207-0207 ● ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X16 THA 		8-94479-534-0 02 1 0207-0207 ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M6X16 THA 		8-94479-534-0 02 1 0208-0408 ● ● ● ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X16 THA 		8-94479-534-0 02 1 0208-0408 ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-94479-534-0 02 1 0409-0702 ● ● ● ● ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 0703- ● ● ● ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97387-395-0 01 1 0607- ● ●
129 LID ASM; FUEL FILLER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97234-860-5 01 1 0204-0408 ● ●
129 LID ASM; FUEL FILLER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97234-860-5 01 1 0204-0408 ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97234-860-5 01 1 0409-0606 ● ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97234-860-5 01 1 0607- ●
129 LID ASM; FUEL FILLER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93297-269-2 01 1 0208-0408 ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-93297-269-2 01 1 0409-0606 ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97387-396-0 01 1 0607- ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X20 FLANGE THA 		0-28680-820-0 04 1 0408-0408 ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X20 FLANGE THA 		0-28680-820-0 04 1 0408-0408 ●
132 BOLT; TAIL GATE LINK,RR BODY
(B) M8X20 FLANGE THA 		0-28680-820-0 04 1 0409-0601 ● ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
(B) M8X20 FLANGE THA 		0-28650-820-0 04 1 0602- ● ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0204-0207 ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0204-0207 ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0208-0408 ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0208-0408 ●
134 BOLT; STRIKER,TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M8X22 THA 		8-94388-328-1 04 1 0204-0408 ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-401-4 01 1 0204-0207 ● ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-401-4 01 1 0208-0408 ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-97235-401-4 01 1 0409-0708 ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 0709- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-400-4 01 1 0204-0207 ● ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-400-4 01 1 0208-0408 ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-97235-400-4 01 1 0409-0708 ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 0709- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97249-565-3 01 1 0204-0408 ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-97249-565-3 01 1 0409-0701 ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-673-0 01 1 0702- ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97249-564-3 01 1 0204-0408 ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-97249-564-3 01 1 0409-0701 ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-672-0 01 1 0702- ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-440-2 01 1 0204-0408 ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
THA 		8-97236-440-2 01 1 0409- ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-438-2 01 1 0204-0408 ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
THA 		8-97236-438-2 01 1 0409- ●
158 SCREW; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M8X20 FLANGE THA 		0-28680-820-0 04 1 0204-0207 ● ●
158 SCREW; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M8X20 FLANGE THA 		0-28680-820-0 04 1 0208-0408 ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28680-820-0 04 1 0409-0601 ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 0602- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X22 THA 		8-94388-328-1 04 1 0409-0701 ●
158 SCREW; STRIKER,TAIL GATE
M8X22 THA 		8-98050-437-0 04 1 0702- ●
166 CAP; GATE LOCK
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97357-403-0 02 1 0212-0408 ● ● ● ●
166 CAP; GATE LOCK
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97357-403-0 02 1 0212-0408 ●
169 GROMMET; TAIL GATE INNER,RR BODY
THA 		8-97166-110-0 04 1 0409- ●
188 PLATE; HINGE UPR,RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97329-277-1 AR 1 0204-0207 ● ●
188 PLATE; HINGE UPR,RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97329-277-1 AR 1 0204-0207 ●
188 PLATE; HINGE UPR,RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97329-277-1 AR 1 0208-0408 ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97329-277-1 AR 1 0208-0408 ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0409- ● ● ● ● ●
189 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0409-0601 ● ● ● ● ●
189 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 0602- ● ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X22 THA 		8-94388-328-1 02 1 0302-0408 ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X22 THA 		8-94388-328-1 02 1 0302-0408 ●
250 BOLT; STOPPER
(A) M8X22 THA 		8-94388-328-1 02 1 0409-0701 ● ● ● ● ●
250 BOLT; STOPPER
(A) M8X22 THA 		8-98050-437-0 02 1 0702- ● ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M6X18 THA 		8-97071-681-0 02 1 0204-0207 ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M6X18 THA 		8-97071-681-0 02 1 0204-0207 ●
250 BOLT; STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M6X18 THA 		8-97071-681-0 02 1 0208-0303 ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M6X18 THA 		8-97071-681-0 02 1 0208-0303 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M6X18 THA 		8-97071-681-0 02 1 0304-0408 ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M6X18 THA 		8-97071-681-0 02 1 0304-0408 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> (B) M6X18 THA 		8-97071-681-0 02 1 0409-0507 ● ●
250 BOLT; STOPPER
(B) M6X18 THA 		8-97071-681-0 02 1 0409-0507 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA> (B) M6X18 THA 		8-97071-681-0 02 1 0409-0507 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-97071-681-0 02 1 0508-0702 ● ● ● ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0703-0810 ● ● ● ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0811- ● ● ● ●
250 BOLT; STOPPER
GRADE SLX/LS<RBD> CHROME PACKAGE<8GX> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0811- ● ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97251-180-1 01 1 0204-0207 ● ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97251-180-1 01 1 0204-0207 ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97251-180-1 01 1 0208-0408 ● ● ● ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97251-180-1 01 1 0208-0408 ●
256 SPRING; LID,FUEL FILLER
THA 		8-97251-180-1 01 1 0409- ● ● ● ● ●
262 GROMMET; TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97166-110-0 04 1 0204-0408 ●
263 SUPPORT; SIDE GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97289-536-0 01 1 0204-0207 ● ●
263 SUPPORT; SIDE GUARD
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97289-536-0 01 1 0204-0207 ●
263 SUPPORT; SIDE GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97289-536-0 01 1 0208-0301 ● ● ● ●
263 SUPPORT; SIDE GUARD
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97289-536-0 01 1 0208-0301 ●
279 SPACER
THA 		8-97357-403-0 02 1 0409- ● ● ● ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> (B) THA 		8-97375-758-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
EXC. OVER FENDER<B74> (B) THA 		8-97375-758-0 01 1 0409-0410 ●
292 EXTENSION; RR BODY
(B) THA 		8-97375-758-0 01 1 0411-0708 ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98069-803-0 01 1 0709- ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-383-5 02 1 0204-0207 ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-383-6 02 1 0208-0401 ● ● ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-383-6 02 1 0402-0402 ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-383-7 02 1 0402-0408 ● ● ● ●
292 EXTENSION; RR BODY
(A) THA 		8-97236-383-7 02 1 0409- ● ● ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97236-371-9 01 1 0204-0401 ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97375-759-0 01 1 0402-0408 ● ●
292 EXTENSION; RR BODY
(B) THA 		8-97375-759-0 01 1 0409-0708 ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98069-804-0 01 1 0709- ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97236-368-9 01 1 0204-0401 ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (B) THA 		8-97375-958-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97375-958-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
OVER FENDER<B74> (B) THA 		8-97375-958-0 01 1 0409-0410 ●
292 EXTENSION; RR BODY
(B) THA 		8-97375-958-0 01 1 0409-0410 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97236-680-5 02 1 0204-0401 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97375-757-0 02 1 0402-0408 ●
292 EXTENSION; RR BODY
(C) THA 		8-97375-757-0 02 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (D) THA 		8-97236-370-6 01 1 0204-0401 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (D) THA 		8-97375-756-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
(D) THA 		8-97375-756-0 01 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (E) THA 		8-97236-382-5 01 1 0204-0408 ●
292 EXTENSION; RR BODY
(E) THA 		8-97236-382-5 01 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (D) THA 		8-97236-367-6 01 1 0204-0401 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (D) THA 		8-97375-755-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
(D) THA 		8-97375-755-0 01 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (E) THA 		8-97308-978-4 01 1 0204-0408 ●
292 EXTENSION; RR BODY
(E) THA 		8-97308-978-4 01 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (F) THA 		8-93291-076-3 01 1 0208-0408 ● ●
292 EXTENSION; RR BODY
(F) THA 		8-93291-076-3 01 1 0409- ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (F) THA 		8-93291-077-3 01 1 0208-0408 ● ●
292 EXTENSION; RR BODY
(F) THA 		8-93291-077-3 01 1 0409- ● ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97349-440-0 01 1 0204-0408 ● ●
293 REINFORCEMENT; RR BODY
THA 		8-97349-440-0 01 1 0409- ● ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97349-439-0 01 1 0204-0408 ● ●
293 REINFORCEMENT; RR BODY
THA 		8-97349-439-0 01 1 0409- ● ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97260-383-2 01 1 0204-0408 ●
293 REINFORCEMENT; RR BODY
THA 		8-97260-383-2 01 1 0409- ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97251-646-2 01 1 0204-0408 ●
293 REINFORCEMENT; RR BODY
THA 		8-97251-646-2 01 1 0409- ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93332-593-3 01 1 0208-0408 ● ●
293 REINFORCEMENT; RR BODY
THA 		8-93332-593-3 01 1 0409- ● ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93332-594-3 01 1 0208-0408 ● ●
293 REINFORCEMENT; RR BODY
THA 		8-93332-594-3 01 1 0409- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-97236-418-3 01 1 0409- ● ● ● ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-418-3 01 1 0208-0408 ● ● ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-418-3 01 1 0208-0408 ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-420-3 01 1 0204-0207 ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-420-3 01 1 0204-0207 ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-420-3 01 1 0208-0408 ● ● ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-420-3 01 1 0208-0408 ●
294 PANEL; OUTER,RR BODY
THA 		8-97236-420-3 01 1 0409- ● ● ● ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-418-3 01 1 0204-0207 ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-418-3 01 1 0204-0207 ●
295 BRACKET; FILLER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-732-3 02 1 0204-0408 ● ●
295 BRACKET; FILLER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-732-3 02 1 0204-0408 ●
295 BRACKET; FILLER
THA 		8-97236-732-3 02 1 0409- ● ● ●
296 BRACKET; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97305-529-1 02 1 0204-0207 ● ●
296 BRACKET; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97305-529-1 02 1 0204-0207 ●
296 BRACKET; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97305-529-1 02 1 0208-0401 ● ● ● ●
296 BRACKET; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97305-529-1 02 1 0208-0401 ●
296 BRACKET; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97305-529-1 02 1 0402-0408 ● ● ● ●
296 BRACKET; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97305-529-1 02 1 0402-0408 ●
296 BRACKET; RR BODY
THA 		8-97305-529-1 02 1 0409- ● ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-478-3 01 1 0204-0207 ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-478-3 01 1 0208-0401 ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-478-4 01 1 0402-0408 ● ● ● ●
297 PANEL; CORNER,RR BODY
THA 		8-97236-478-4 01 1 0409-0606 ● ● ● ●
297 PANEL; CORNER,RR BODY
THA 		8-97387-341-1 01 1 0607- ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-476-3 01 1 0204-0207 ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-476-3 01 1 0208-0401 ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-476-4 01 1 0402-0408 ● ● ● ●
297 PANEL; CORNER,RR BODY
THA 		8-97236-476-4 01 1 0409-0606 ● ● ● ●
297 PANEL; CORNER,RR BODY
THA 		8-97387-340-1 01 1 0607- ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-477-3 01 1 0204-0408 ●
297 PANEL; CORNER,RR BODY
THA 		8-97236-477-3 01 1 0409- ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-475-3 01 1 0204-0408 ●
297 PANEL; CORNER,RR BODY
THA 		8-97236-475-3 01 1 0409- ●
300 COLLAR; GATE HINGE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97324-512-3 02 1 0204-0207 ● ●
300 COLLAR; GATE HINGE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97324-512-3 02 1 0204-0207 ●
300 COLLAR; GATE HINGE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97324-512-3 02 1 0208-0408 ● ● ● ●
300 COLLAR; GATE HINGE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97324-512-3 02 1 0208-0408 ●
300 COLLAR; GATE HINGE
THA 		8-97324-512-3 02 1 0409-0701 ● ● ● ● ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 0702- ● ● ● ● ●
301 SUPPORT; TAIL GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97289-536-0 01 1 0302-0408 ● ● ● ●
301 SUPPORT; TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97289-536-0 01 1 0302-0408 ●
301 SUPPORT; TAIL GATE
THA 		8-97289-536-0 01 1 0409-0701 ● ● ● ● ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 0702- ● ● ● ● ●
346 SEAL; PANEL,GATE
GRADE SLX/LS<RBD> RADIO DELETE<UL5> OD=50 T=0.08 BLACK THA 		8-94111-754-0 01 1 1011- ● ● ● ●
çizim 116741
170 50 215 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
50 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97309-012-4 02 1 0204-0408 ●
50 LOCK ASM; TAIL GATE,RR BODY
THA 		8-97309-012-4 02 1 0409-0701 ●
50 LOCK ASM; TAIL GATE,RR BODY
THA 		8-98061-099-0 02 1 0702- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR OMEGA WHITE PEARL<689> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97414-576-0 01 1 0803-0808 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ALPINE WHITE<877> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> WHITE THA 		8-97293-765-2 01 1 0204-0207 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ALPINE WHITE<877> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> WHITE THA 		8-97293-765-2 01 1 0208-0408 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ALPINE WHITE<877> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97293-765-2 01 1 0409-0507 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR CHAMONIX GREEN MET<644> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> GREEN THA 		8-97298-599-2 01 1 0204-0207 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR CHAMONIX GREEN MET<644> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> GREEN THA 		8-97298-599-2 01 1 0208-0307 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC GRAY MET<682> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> GRAY THA 		8-97396-067-2 01 1 0308-0408 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC GRAY MET<682> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA 		8-97396-067-2 01 1 0409-0611 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC GRAY MET<682> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA 		8-97408-207-0 01 1 0612-0703 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR COSMIC GRAY MET<682> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA 		8-97412-449-0 01 1 0704-0708 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MISTY ONYX MICA<518> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97412-963-0 01 1 0709-0808 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR FOXFIRE RED MICA<658> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> RED THA 		8-97298-603-2 01 1 0204-0207 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR FOXFIRE RED MICA<658> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> RED THA 		8-97298-603-2 01 1 0208-0408 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR FOXFIRE RED MICA<658> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97298-603-2 01 1 0409-0611 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR FOXFIRE RED MICA<658> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97408-206-0 01 1 0612-0703 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR FOXFIRE RED MICA<658> HANDLE O/S DOOR BODY COLOR<D75> RED THA 		8-97412-448-0 01 1 0704-0708 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR LAPIS BLUE MET<512> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97412-461-0 01 1 0709-0808 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR GLACIER BLUE MET<645> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> BLUE THA 		8-97298-600-2 01 1 0204-0207 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR GLACIER BLUE MET<645> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> BLUE THA 		8-97298-600-2 01 1 0208-0408 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR LT.QUARTZ GRAY MET<642> HANDLE O/S DOOR BODY COLOR<D75> LIGHT GRAY THA 		8-97298-597-2 01 1 0409-0507 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR STERLING SILVER MET<936> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97401-056-2 01 1 0508-0611 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR STERLING SILVER MET<936> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97408-211-0 01 1 0612-0703 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR STERLING SILVER MET<936> HANDLE O/S DOOR BODY COLOR<D75> SILVER THA 		8-97412-453-0 01 1 0704-0808 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR LT.QUARTZ GRAY MET<642> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> LIGHT GRAY THA 		8-97298-597-2 01 1 0204-0207 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR LT.QUARTZ GRAY MET<642> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> LIGHT GRAY THA 		8-97298-597-2 01 1 0208-0307 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR KRYPTNITE MET<683> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> LIGHT GREEN THA 		8-97396-068-2 01 1 0308-0408 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ASTRAL SILVER<718> HANDLE O/S DOOR BODY COLOR<D75> LIGHT SILVER THA 		8-97400-193-2 01 1 0409-0507 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR CRYSTAL BLUE MET<937> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97401-057-2 01 1 0508-0611 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR CRYSTAL BLUE MET<937> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97408-212-0 01 1 0612-0703 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR CRYSTAL BLUE MET<937> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97412-454-0 01 1 0704-0708 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SAHARA BEIGE MET<648> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> BEIGE THA 		8-97298-602-2 01 1 0204-0207 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SAHARA BEIGE MET<648> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> BEIGE THA 		8-97298-602-2 01 1 0208-0408 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR IMPERIAL BLOND MET<688> HANDLE O/S DOOR BODY COLOR<D75> GOLD THA 		8-97398-651-2 01 1 0409-0606 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR DUNE GRAY MET<506> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA 		8-97403-116-2 01 1 0607-0611 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR DUNE GRAY MET<506> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA 		8-97408-214-0 01 1 0612-0703 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR DUNE GRAY MET<506> HANDLE O/S DOOR BODY COLOR<D75> GRAY THA 		8-97412-456-0 01 1 0704-0808 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SANDAL WOOD MET<643> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> WHITE THA 		8-97298-598-2 01 1 0204-0207 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SANDAL WOOD MET<643> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> WHITE THA 		8-97298-598-2 01 1 0208-0408 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR SANDAL WOOD MET<643> HANDLE O/S DOOR BODY COLOR<D75> WHITE THA 		8-97298-598-2 01 1 0409-0507 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ZENITH BLUE MICA<646> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> BLUE THA 		8-97298-601-2 01 1 0204-0207 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR ZENITH BLUE MICA<646> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> BLUE THA 		8-97298-601-2 01 1 0208-0408 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR MOONSTONE BLUE MICA<687> HANDLE O/S DOOR BODY COLOR<D75> BLUE THA 		8-97398-650-2 01 1 0409-0606 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TOPAZ GOLD MET<501> HANDLE O/S DOOR BODY COLOR<D75> GOLD THA 		8-97403-117-2 01 1 0607-0611 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TOPAZ GOLD MET<501> HANDLE O/S DOOR BODY COLOR<D75> GOLD THA 		8-97408-215-0 01 1 0612-0703 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR TOPAZ GOLD MET<501> HANDLE O/S DOOR BODY COLOR<D75> GOLD THA 		8-97412-457-0 01 1 0704-0708 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR CHARDONNAY GOLD MET<511> HANDLE O/S DOOR BODY COLOR<D75> GOLD THA 		8-97412-460-0 01 1 0709-0808 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> EXC. O/S HANDLE BODY COLOR KEYED<7PT> THA 		8-97235-385-2 01 1 0204-0207 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> EXC. OUTSIDE HANDLE BRIGHT<7WM> THA 		8-97235-385-2 01 1 0204-0207 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> EXC. O/S HANDLE BODY COLOR KEYED<7PT> THA 		8-97235-385-2 01 1 0208-0408 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> EXC. OUTSIDE HANDLE BRIGHT<7WM> THA 		8-97235-385-2 01 1 0208-0408 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR BODY COLOR<D75> THA 		8-97235-385-2 01 1 0409-0608 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. OUTSIDE HANDLE CHROME<E20> THA 		8-97235-385-2 01 1 0409-0608 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR BODY COLOR<D75> THA 		8-97235-385-2 01 1 0609-0611 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. OUTSIDE HANDLE CHROME<E20> THA 		8-97235-385-2 01 1 0609-0611 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR BODY COLOR<D75> THA 		8-98050-575-0 01 1 0612-0703 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. OUTSIDE HANDLE CHROME<E20> THA 		8-98050-575-0 01 1 0612-0703 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR BODY COLOR<D75> THA 		8-98079-019-0 01 1 0704-0709 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. OUTSIDE HANDLE CHROME<E20> THA 		8-98079-019-0 01 1 0704-0709 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. HANDLE O/S DOOR BODY COLOR<D75> THA 		8-98079-019-0 01 1 0710-0808 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. OUTSIDE HANDLE CHROME<E20> THA 		8-98079-019-0 01 1 0710-0808 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. OUTSIDE HANDLE CHROME<E20> THA 		8-98079-019-0 01 1 0809- ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR STEEL BLACK MET<641> TAIL GATE CENTER PULL TYPE PLAIN<S1P> O/S HANDLE BODY COLOR KEYED<7PT> BLACK THA 		8-97396-186-2 01 1 0308-0408 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR STEEL BLACK MET<641> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97396-186-2 01 1 0409-0507 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR STARRY BLACK MICA<935> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97401-055-2 01 1 0508-0611 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR STARRY BLACK MICA<935> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97408-210-0 01 1 0612-0703 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
BODY COLOR STARRY BLACK MICA<935> HANDLE O/S DOOR BODY COLOR<D75> BLACK THA 		8-97412-452-0 01 1 0704-0808 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> OUTSIDE HANDLE BRIGHT<7WM> THA 		8-97235-386-3 01 1 0204-0207 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> OUTSIDE HANDLE BRIGHT<7WM> THA 		8-97235-386-3 01 1 0208-0408 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-386-3 01 1 0208-0408 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> THA 		8-97235-386-3 01 1 0409-0608 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
THA 		8-97235-386-3 01 1 0409-0608 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> THA 		8-97235-386-3 01 1 0609-0611 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> THA 		8-98050-576-0 01 1 0612-0703 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> THA 		8-98079-020-0 01 1 0704-0709 ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> THA 		8-98079-020-0 01 1 0710-0808 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
THA 		8-98079-020-0 01 1 0710-0808 ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> THA 		8-98079-020-0 01 1 0809- ● ● ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
THA 		8-98079-020-0 01 1 0809- ●
170 BOLT; TAIL GATE LOCK
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X20 W/WASHER THA 		8-94112-987-1 04 1 0204-0408 ●
170 BOLT; TAIL GATE LOCK
M6X20 W/WASHER THA 		8-94112-987-1 04 1 0409-0612 ●
170 BOLT; TAIL GATE LOCK
M6X20 W/WASHER THA 		8-98056-282-0 04 1 0701- ●
215 BOLT; HANDLE TO GUARD FRAME
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M6X14 FLANGE THA 		8-97247-698-0 02 1 0204-0207 ● ●
215 BOLT; HANDLE TO GUARD FRAME
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M6X14 FLANGE THA 		8-97247-698-0 02 1 0208-0408 ● ● ● ●
215 BOLT; HANDLE TO GUARD FRAME
M6X14 FLANGE THA 		8-97247-698-0 02 1 0409- ● ● ● ●
346 SEAL; PANEL,GATE
GRADE SLX/LS<RBD> RADIO DELETE<UL5> OD=50 T=0.08 BLACK THA 		8-94111-754-0 01 1 1011- ● ● ● ●
çizim 116742
45 188 112 55 189 132 45 300 7 7 1 296 292 297 45 250 295 7 294 135 158 121 158 135 297 175 147 292 292 112 175 147 121 294 296 126 127 292 293 295 293 256 125 55 129 166 279 263 301
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 GATE ASM; RR
GRADE SLX/LS<RBD> RADIO DELETE<UL5> THA 		8-98173-724-0 01 1 1009- ● ● ● ●
1 GATE ASM; RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-657-5 01 1 0204-0207 ● ●
1 GATE ASM; RR
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-657-5 01 1 0208-0408 ● ● ● ●
1 GATE ASM; RR
THA 		8-97236-657-5 01 1 0409-0606 ● ● ● ●
1 GATE ASM; RR
THA 		8-97387-378-0 01 1 0607-1008 ● ● ● ●
1 GATE ASM; RR
GRADE SLX/LS<RBD> RADIO AM/FM W/CD,W/MP3<ULA>,RADIO AM/FM W/CD<UT3> THA 		8-97387-378-0 01 1 1009- ● ● ● ●
1 GATE ASM; RR
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> THA 		8-97387-378-0 01 1 1009- ● ● ●
1 GATE ASM; RR
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-656-4 01 1 0204-0408 ●
1 GATE ASM; RR
THA 		8-97236-656-4 01 1 0409- ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-770-2 01 1 0204-0207 ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-770-2 01 1 0204-0207 ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-770-2 01 1 0208-0209 ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-770-2 01 1 0208-0209 ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97360-602-0 01 1 0210-0408 ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97360-602-0 01 1 0210-0408 ●
7 HINGE ASM; RR GATE
THA 		8-97360-602-0 01 1 0409-0701 ● ● ● ● ●
7 HINGE ASM; RR GATE
THA 		8-98057-098-0 01 1 0702- ● ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-769-2 01 1 0204-0207 ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-769-2 01 1 0204-0207 ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-769-2 01 1 0208-0209 ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-769-2 01 1 0208-0209 ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97360-600-0 01 1 0210-0408 ● ● ● ●
7 HINGE ASM; RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97360-600-0 01 1 0210-0408 ●
7 HINGE ASM; RR GATE
THA 		8-97360-600-0 01 1 0409-0701 ● ● ● ● ●
7 HINGE ASM; RR GATE
THA 		8-98057-097-0 01 1 0702- ● ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X16.5 THA 		1-09104-027-1 06 1 0204-0207 ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X16.5 THA 		1-09104-027-1 06 1 0204-0207 ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X16.5 THA 		1-09104-027-1 06 1 0208-0408 ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X16.5 THA 		1-09104-027-1 06 1 0208-0408 ●
45 BOLT; TAIL GATE TO RR BODY
(A) M8X16.5 THA 		1-09104-027-1 06 1 0409-0701 ● ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
(A) M8X16.5 THA 		8-98058-001-0 06 1 0702- ● ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X22 THA 		8-94388-328-1 02 1 0204-0207 ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X22 THA 		8-94388-328-1 02 1 0204-0207 ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X22 THA 		8-94388-328-1 02 1 0208-0301 ● ● ● ●
45 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X22 THA 		8-94388-328-1 02 1 0208-0301 ●
55 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-629-6 01 1 0204-0408 ● ●
55 PANEL; RR CORNER
THA 		8-97236-629-6 01 1 0409- ● ●
55 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-320-6 01 1 0204-0408 ● ●
55 PANEL; RR CORNER
THA 		8-97236-320-6 01 1 0409- ● ●
55 PANEL; RR CORNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-628-5 01 1 0204-0408 ●
55 PANEL; RR CORNER
THA 		8-97236-628-5 01 1 0409- ●
55 PANEL; RR CORNER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-319-5 01 1 0204-0408 ●
55 PANEL; RR CORNER
THA 		8-97236-319-5 01 1 0409- ●
55 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93293-139-2 01 1 0208-0408 ● ●
55 PANEL; RR CORNER
THA 		8-93293-139-2 01 1 0409- ● ●
55 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93293-138-2 01 1 0208-0408 ● ●
55 PANEL; RR CORNER
THA 		8-93293-138-2 01 1 0409- ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97356-544-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97387-331-0 01 1 0607-0708 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> THA 		8-97387-331-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97356-543-0 01 1 0204-0408 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97356-543-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97356-543-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97387-330-0 01 1 0607-0808 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> THA 		8-97387-330-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97356-541-0 01 1 0204-0408 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97356-541-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97356-541-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97387-333-0 01 1 0607-0808 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97387-333-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97356-542-0 01 1 0204-0408 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97356-542-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97356-542-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97387-332-0 01 1 0607-0708 ● ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97387-332-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97236-621-8 01 1 0204-0205 ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97360-567-0 01 1 0206-0408 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97360-567-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97360-567-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98098-357-0 01 1 0607-0707 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98098-357-0 01 1 0709-0808 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> THA 		8-98098-357-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97234-840-8 01 1 0204-0205 ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97360-566-0 01 1 0206-0408 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97360-566-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97360-566-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98098-356-0 01 1 0607-0707 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-98098-356-0 01 1 0709-0808 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> THA 		8-98098-356-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97234-842-8 01 1 0204-0205 ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97360-570-0 01 1 0206-0408 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97360-570-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97360-570-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-98098-359-0 01 1 0607-0707 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-98098-359-0 01 1 0709-0808 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-98098-359-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97236-317-8 01 1 0204-0205 ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> THA 		8-97360-569-0 01 1 0206-0408 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97360-569-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-97360-569-0 01 1 0508-0606 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-98098-358-0 01 1 0607-0707 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74>,OUTER ROPE HOOKS<7MZ> THA 		8-98098-358-0 01 1 0709-0808 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-98098-358-0 01 1 0809- ● ●
112 PANEL; SIDE GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> EXC. OVER FENDER<6GH> THA 		8-97236-617-6 01 1 0204-0408 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-617-6 01 1 0409-0507 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-617-6 01 1 0508-0808 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-617-6 01 1 0809-1008 ●
112 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> THA 		8-97356-544-0 01 1 0204-0408 ● ●
112 PANEL; SIDE GATE
OVER FENDER<B74> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OUTER ROPE HOOKS<7MZ> THA 		8-97356-544-0 01 1 0409-0507 ● ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-617-6 01 1 1009- ●
112 PANEL; SIDE GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> EXC. OVER FENDER<6GH> THA 		8-97236-313-6 01 1 0204-0408 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-313-6 01 1 0409-0507 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> OUTER ROPE HOOKS<7MZ> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-313-6 01 1 0508-0808 ●
112 PANEL; SIDE GATE
THAILAND EQUIPMENT<B03> REAR BODY DBL WALL CTR PULL<E63> PLANT - ISUZU,THAILAND<8KX> EXC. OVER FENDER<B74> THA 		8-97236-313-6 01 1 0809- ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97234-844-8 01 1 0204-0408 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97234-844-8 01 1 0409-0708 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98069-802-0 01 1 0709- ● ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97234-843-9 01 1 0204-0408 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97234-843-9 01 1 0409-0708 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-98069-801-0 01 1 0709- ● ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-635-4 01 1 0204-0308 ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97368-104-0 01 1 0309-0408 ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97368-104-0 01 1 0409- ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-324-4 01 1 0204-0408 ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-97236-324-4 01 1 0409- ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93290-853-3 01 1 0208-0408 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-93290-853-3 01 1 0409- ● ●
121 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93290-854-3 01 1 0208-0408 ● ●
121 PANEL; SIDE INNER,RR BODY
THA 		8-93290-854-3 01 1 0409- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97387-334-0 01 1 0607- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-755-2 01 1 0204-0308 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-755-2 01 1 0204-0308 ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97369-819-0 01 1 0309-0401 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97369-819-0 01 1 0309-0401 ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97369-819-0 01 1 0402-0408 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97369-819-0 01 1 0402-0408 ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97369-819-0 01 1 0409-0606 ● ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97369-819-0 01 1 0607- ●
125 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93367-328-4 01 1 0208-0408 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-93367-328-4 01 1 0409-0606 ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
THA 		8-97387-335-0 01 1 0607- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97166-112-0 02 1 0204-0207 ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97166-112-0 02 1 0204-0207 ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97166-112-0 02 1 0208-0408 ● ● ● ●
126 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97166-112-0 02 1 0208-0408 ●
126 RUBBER; STOPPER,FUEL FILLER LID
THA 		8-97166-112-0 02 1 0409- ● ● ● ● ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M6X12 FLANGE THA 		0-28080-612-0 02 1 0204-0206 ● ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X12 FLANGE THA 		0-28080-612-0 02 1 0204-0206 ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M6X16 THA 		8-94479-534-0 02 1 0207-0207 ● ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X16 THA 		8-94479-534-0 02 1 0207-0207 ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M6X16 THA 		8-94479-534-0 02 1 0208-0408 ● ● ● ●
127 BOLT; FUEL FILLER LID
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X16 THA 		8-94479-534-0 02 1 0208-0408 ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-94479-534-0 02 1 0409-0702 ● ● ● ● ●
127 BOLT; FUEL FILLER LID
M6X16 THA 		8-98056-287-0 02 1 0703- ● ● ● ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97387-395-0 01 1 0607- ● ●
129 LID ASM; FUEL FILLER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97234-860-5 01 1 0204-0408 ● ●
129 LID ASM; FUEL FILLER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97234-860-5 01 1 0204-0408 ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97234-860-5 01 1 0409-0606 ● ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97234-860-5 01 1 0607- ●
129 LID ASM; FUEL FILLER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93297-269-2 01 1 0208-0408 ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-93297-269-2 01 1 0409-0606 ● ●
129 LID ASM; FUEL FILLER,RR BODY
THA 		8-97387-396-0 01 1 0607- ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X20 FLANGE THA 		0-28680-820-0 04 1 0408-0408 ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X20 FLANGE THA 		0-28680-820-0 04 1 0408-0408 ●
132 BOLT; TAIL GATE LINK,RR BODY
(B) M8X20 FLANGE THA 		0-28680-820-0 04 1 0409-0601 ● ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
(B) M8X20 FLANGE THA 		0-28650-820-0 04 1 0602- ● ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0204-0207 ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0204-0207 ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0208-0408 ● ● ● ●
132 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0208-0408 ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-401-4 01 1 0204-0207 ● ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-401-4 01 1 0208-0408 ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-97235-401-4 01 1 0409-0708 ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-334-0 01 1 0709- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-400-4 01 1 0204-0207 ● ●
135 STRIKER; TAIL GATE,RR BODY
TAIL GATE CENTER PULL TYPE PLAIN<S1P> THA 		8-97235-400-4 01 1 0208-0408 ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-97235-400-4 01 1 0409-0708 ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-333-0 01 1 0709- ● ● ● ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97249-565-3 01 1 0204-0408 ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-97249-565-3 01 1 0409-0701 ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-673-0 01 1 0702- ●
135 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97249-564-3 01 1 0204-0408 ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-97249-564-3 01 1 0409-0701 ●
135 STRIKER; TAIL GATE,RR BODY
THA 		8-98050-672-0 01 1 0702- ●
147 HOOK ASM; ROPE,FRT
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97264-487-0 04 1 0204-0207 ● ●
147 HOOK ASM; ROPE,FRT
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97264-487-0 04 1 0208-0408 ● ● ● ●
147 HOOK ASM; ROPE,FRT
THA 		8-97264-487-0 04 1 0409-1012 ● ● ● ●
147 HOOK ASM; ROPE,FRT
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> THA 		8-97264-487-0 04 1 1101- ● ● ● ●
147 HOOK ASM; ROPE,FRT
SALES PACKAGE EQUIPMENT SPORTY<XK0> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97264-487-0 04 1 1101- ● ●
158 SCREW; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M8X20 FLANGE THA 		0-28680-820-0 04 1 0204-0207 ● ●
158 SCREW; STRIKER,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> M8X20 FLANGE THA 		0-28680-820-0 04 1 0208-0408 ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28680-820-0 04 1 0409-0601 ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 0602- ● ● ● ●
158 SCREW; STRIKER,TAIL GATE
M8X22 THA 		8-94388-328-1 04 1 0409-0701 ●
158 SCREW; STRIKER,TAIL GATE
M8X22 THA 		8-98050-437-0 04 1 0702- ●
166 CAP; GATE LOCK
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97357-403-0 02 1 0212-0408 ● ● ● ●
166 CAP; GATE LOCK
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97357-403-0 02 1 0212-0408 ●
175 BOLT; SET,RR GATE HOOK
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M8X16.5 THA 		1-09104-027-1 08 1 0204-0207 ● ●
175 BOLT; SET,RR GATE HOOK
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M8X16.5 THA 		1-09104-027-1 08 1 0208-0408 ● ● ● ●
175 BOLT; SET,RR GATE HOOK
M8X16.5 THA 		1-09104-027-1 08 1 0409-0701 ● ● ● ●
175 BOLT; SET,RR GATE HOOK
M8X16.5 THA 		8-98058-001-0 08 1 0702-1012 ● ● ● ●
175 BOLT; SET,RR GATE HOOK
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> M8X16.5 THA 		8-98058-001-0 08 1 1101- ● ● ● ●
175 BOLT; SET,RR GATE HOOK
SALES PACKAGE EQUIPMENT SPORTY<XK0> EXC. HIGH RIDE SUSPENSION<7YC> M8X16.5 THA 		8-98058-001-0 08 1 1101- ● ●
188 PLATE; HINGE UPR,RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97329-277-1 AR 1 0204-0207 ● ●
188 PLATE; HINGE UPR,RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97329-277-1 AR 1 0204-0207 ●
188 PLATE; HINGE UPR,RR GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97329-277-1 AR 1 0208-0408 ● ● ● ●
188 PLATE; HINGE UPR,RR GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97329-277-1 AR 1 0208-0408 ●
188 PLATE; HINGE UPR,RR GATE
THA 		8-97329-277-1 AR 1 0409- ● ● ● ● ●
189 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER THA 		0-50141-035-0 02 1 0409-0601 ● ● ● ● ●
189 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER THA 		0-50641-035-0 02 1 0602- ● ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X22 THA 		8-94388-328-1 02 1 0302-0408 ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X22 THA 		8-94388-328-1 02 1 0302-0408 ●
250 BOLT; STOPPER
(A) M8X22 THA 		8-94388-328-1 02 1 0409-0701 ● ● ● ● ●
250 BOLT; STOPPER
(A) M8X22 THA 		8-98050-437-0 02 1 0702- ● ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M6X18 THA 		8-97071-681-0 02 1 0204-0207 ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M6X18 THA 		8-97071-681-0 02 1 0204-0207 ●
250 BOLT; STOPPER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M6X18 THA 		8-97071-681-0 02 1 0208-0303 ● ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M6X18 THA 		8-97071-681-0 02 1 0208-0303 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M6X18 THA 		8-97071-681-0 02 1 0304-0408 ● ● ●
250 BOLT; STOPPER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M6X18 THA 		8-97071-681-0 02 1 0304-0408 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> (B) M6X18 THA 		8-97071-681-0 02 1 0409-0507 ● ●
250 BOLT; STOPPER
(B) M6X18 THA 		8-97071-681-0 02 1 0409-0507 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA> (B) M6X18 THA 		8-97071-681-0 02 1 0409-0507 ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-97071-681-0 02 1 0508-0702 ● ● ● ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0703-0810 ● ● ● ●
250 BOLT; STOPPER
GRADE EXL/EX/SL/S<RBA>,GRADE SX<RBB> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0811- ● ● ● ●
250 BOLT; STOPPER
GRADE SLX/LS<RBD> CHROME PACKAGE<8GX> EXC. REAR STEP BUMPER CHROME<V42> (B) M6X18 THA 		8-98056-280-0 02 1 0811- ● ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97251-180-1 01 1 0204-0207 ● ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97251-180-1 01 1 0204-0207 ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97251-180-1 01 1 0208-0408 ● ● ● ●
256 SPRING; LID,FUEL FILLER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97251-180-1 01 1 0208-0408 ●
256 SPRING; LID,FUEL FILLER
THA 		8-97251-180-1 01 1 0409- ● ● ● ● ●
263 SUPPORT; SIDE GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97289-536-0 01 1 0204-0207 ● ●
263 SUPPORT; SIDE GUARD
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97289-536-0 01 1 0204-0207 ●
263 SUPPORT; SIDE GUARD
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97289-536-0 01 1 0208-0301 ● ● ● ●
263 SUPPORT; SIDE GUARD
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97289-536-0 01 1 0208-0301 ●
279 SPACER
THA 		8-97357-403-0 02 1 0409- ● ● ● ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> EXC. OVER FENDER<6GH> (B) THA 		8-97375-758-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
EXC. OVER FENDER<B74> (B) THA 		8-97375-758-0 01 1 0409-0410 ●
292 EXTENSION; RR BODY
(B) THA 		8-97375-758-0 01 1 0411-0708 ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98069-803-0 01 1 0709- ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-383-5 02 1 0204-0207 ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-383-6 02 1 0208-0401 ● ● ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-383-6 02 1 0402-0402 ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-383-7 02 1 0402-0408 ● ● ● ●
292 EXTENSION; RR BODY
(A) THA 		8-97236-383-7 02 1 0409- ● ● ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97236-371-9 01 1 0204-0401 ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97375-759-0 01 1 0402-0408 ● ●
292 EXTENSION; RR BODY
(B) THA 		8-97375-759-0 01 1 0409-0708 ● ●
292 EXTENSION; RR BODY
(B) THA 		8-98069-804-0 01 1 0709- ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97236-368-9 01 1 0204-0401 ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> OVER FENDER<6GH> (B) THA 		8-97375-958-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA 		8-97375-958-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
OVER FENDER<B74> (B) THA 		8-97375-958-0 01 1 0409-0410 ●
292 EXTENSION; RR BODY
(B) THA 		8-97375-958-0 01 1 0409-0410 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97236-680-5 02 1 0204-0401 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA 		8-97375-757-0 02 1 0402-0408 ●
292 EXTENSION; RR BODY
(C) THA 		8-97375-757-0 02 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (D) THA 		8-97236-370-6 01 1 0204-0401 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (D) THA 		8-97375-756-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
(D) THA 		8-97375-756-0 01 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (E) THA 		8-97236-382-5 01 1 0204-0408 ●
292 EXTENSION; RR BODY
(E) THA 		8-97236-382-5 01 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (D) THA 		8-97236-367-6 01 1 0204-0401 ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (D) THA 		8-97375-755-0 01 1 0402-0408 ●
292 EXTENSION; RR BODY
(D) THA 		8-97375-755-0 01 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (E) THA 		8-97308-978-4 01 1 0204-0408 ●
292 EXTENSION; RR BODY
(E) THA 		8-97308-978-4 01 1 0409- ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (F) THA 		8-93291-076-3 01 1 0208-0408 ● ●
292 EXTENSION; RR BODY
(F) THA 		8-93291-076-3 01 1 0409- ● ●
292 EXTENSION; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (F) THA 		8-93291-077-3 01 1 0208-0408 ● ●
292 EXTENSION; RR BODY
(F) THA 		8-93291-077-3 01 1 0409- ● ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97349-440-0 01 1 0204-0408 ● ●
293 REINFORCEMENT; RR BODY
THA 		8-97349-440-0 01 1 0409- ● ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97349-439-0 01 1 0204-0408 ● ●
293 REINFORCEMENT; RR BODY
THA 		8-97349-439-0 01 1 0409- ● ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97260-383-2 01 1 0204-0408 ●
293 REINFORCEMENT; RR BODY
THA 		8-97260-383-2 01 1 0409- ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97251-646-2 01 1 0204-0408 ●
293 REINFORCEMENT; RR BODY
THA 		8-97251-646-2 01 1 0409- ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93332-593-3 01 1 0208-0408 ● ●
293 REINFORCEMENT; RR BODY
THA 		8-93332-593-3 01 1 0409- ● ●
293 REINFORCEMENT; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93332-594-3 01 1 0208-0408 ● ●
293 REINFORCEMENT; RR BODY
THA 		8-93332-594-3 01 1 0409- ● ●
294 PANEL; OUTER,RR BODY
THA 		8-97236-418-3 01 1 0409- ● ● ● ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-418-3 01 1 0208-0408 ● ● ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-418-3 01 1 0208-0408 ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-420-3 01 1 0204-0207 ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-420-3 01 1 0204-0207 ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-420-3 01 1 0208-0408 ● ● ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-420-3 01 1 0208-0408 ●
294 PANEL; OUTER,RR BODY
THA 		8-97236-420-3 01 1 0409- ● ● ● ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-418-3 01 1 0204-0207 ● ●
294 PANEL; OUTER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-418-3 01 1 0204-0207 ●
295 BRACKET; FILLER
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-732-3 02 1 0204-0408 ● ●
295 BRACKET; FILLER
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-732-3 02 1 0204-0408 ●
295 BRACKET; FILLER
THA 		8-97236-732-3 02 1 0409- ● ● ●
296 BRACKET; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97305-529-1 02 1 0204-0207 ● ●
296 BRACKET; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97305-529-1 02 1 0204-0207 ●
296 BRACKET; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97305-529-1 02 1 0208-0401 ● ● ● ●
296 BRACKET; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97305-529-1 02 1 0208-0401 ●
296 BRACKET; RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97305-529-1 02 1 0402-0408 ● ● ● ●
296 BRACKET; RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97305-529-1 02 1 0402-0408 ●
296 BRACKET; RR BODY
THA 		8-97305-529-1 02 1 0409- ● ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-478-3 01 1 0204-0207 ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-478-3 01 1 0208-0401 ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-478-4 01 1 0402-0408 ● ● ● ●
297 PANEL; CORNER,RR BODY
THA 		8-97236-478-4 01 1 0409-0606 ● ● ● ●
297 PANEL; CORNER,RR BODY
THA 		8-97387-341-1 01 1 0607- ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-476-3 01 1 0204-0207 ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-476-3 01 1 0208-0401 ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97236-476-4 01 1 0402-0408 ● ● ● ●
297 PANEL; CORNER,RR BODY
THA 		8-97236-476-4 01 1 0409-0606 ● ● ● ●
297 PANEL; CORNER,RR BODY
THA 		8-97387-340-1 01 1 0607- ● ● ● ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-477-3 01 1 0204-0408 ●
297 PANEL; CORNER,RR BODY
THA 		8-97236-477-3 01 1 0409- ●
297 PANEL; CORNER,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-475-3 01 1 0204-0408 ●
297 PANEL; CORNER,RR BODY
THA 		8-97236-475-3 01 1 0409- ●
300 COLLAR; GATE HINGE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97324-512-3 02 1 0204-0207 ● ●
300 COLLAR; GATE HINGE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97324-512-3 02 1 0204-0207 ●
300 COLLAR; GATE HINGE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97324-512-3 02 1 0208-0408 ● ● ● ●
300 COLLAR; GATE HINGE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97324-512-3 02 1 0208-0408 ●
300 COLLAR; GATE HINGE
THA 		8-97324-512-3 02 1 0409-0701 ● ● ● ● ●
300 COLLAR; GATE HINGE
THA 		8-98057-114-0 02 1 0702- ● ● ● ● ●
301 SUPPORT; TAIL GATE
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97289-536-0 01 1 0302-0408 ● ● ● ●
301 SUPPORT; TAIL GATE
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97289-536-0 01 1 0302-0408 ●
301 SUPPORT; TAIL GATE
THA 		8-97289-536-0 01 1 0409-0701 ● ● ● ● ●
301 SUPPORT; TAIL GATE
THA 		8-98053-899-0 01 1 0702- ● ● ● ● ●
346 SEAL; PANEL,GATE
GRADE SLX/LS<RBD> RADIO DELETE<UL5> OD=50 T=0.08 BLACK THA 		8-94111-754-0 01 1 1011- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
