9-32 — REAR BODY; GUARD FRAME (#73890) — 76 parça

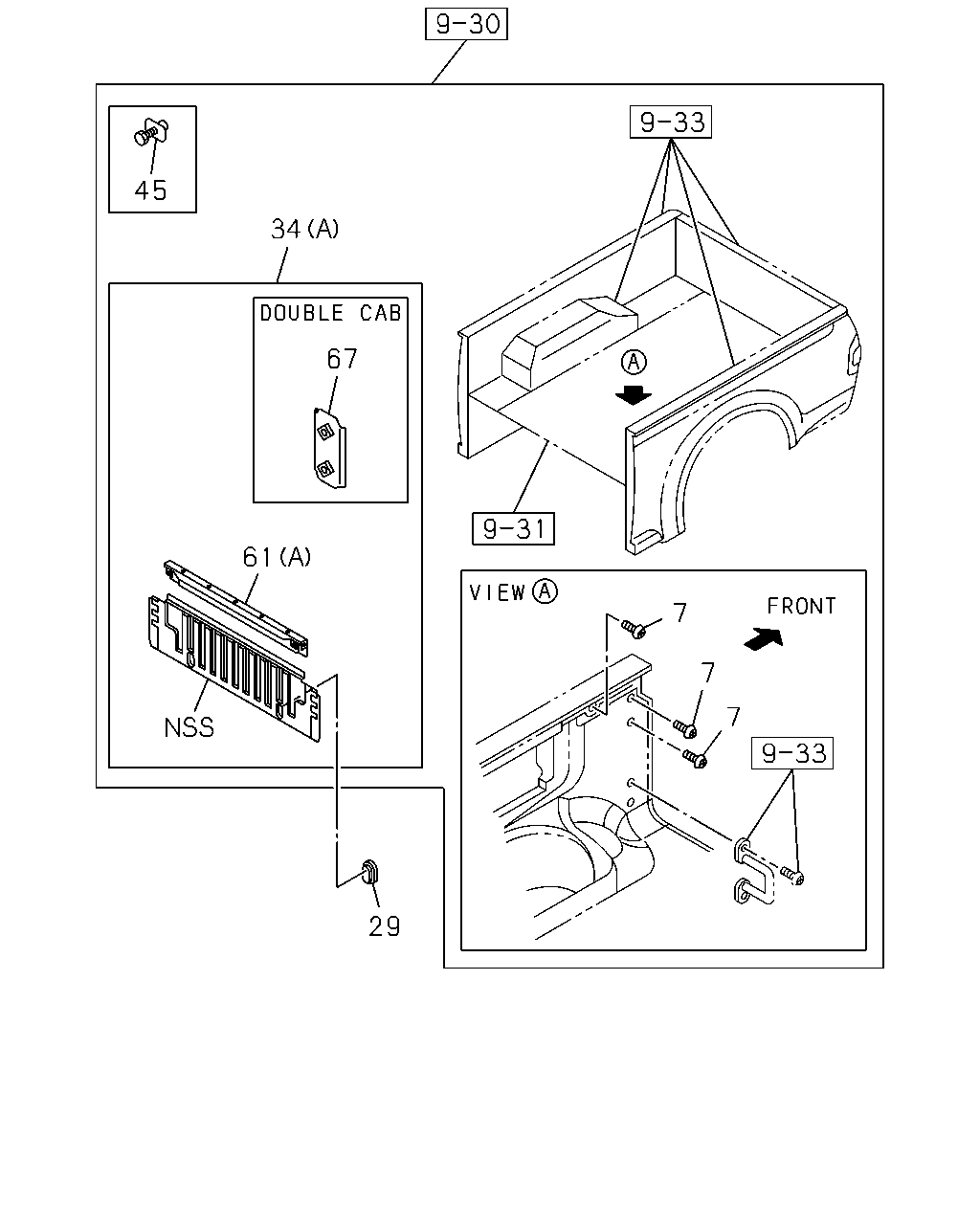

çizim 116734
45 34 67 61 7 7 7 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X16.5 THA 		8-98058-001-0 06 1 0709- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M8X16.5 THA 		1-09104-027-1 06 1 0204-0207 ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M8X16.5 THA 		1-09104-027-1 06 1 0208-0408 ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X16.5 THA 		1-09104-027-1 06 1 0409-0701 ● ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X16.5 THA 		8-98058-001-0 06 1 0702-0708 ● ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X16.5 THA 		8-98058-001-0 02 1 0709- ● ● ● ●
29 COVER; GUARD FRAME
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97918-416-0 02 1 0204-0207 ● ●
29 COVER; GUARD FRAME
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97918-416-0 02 1 0204-0207 ●
29 COVER; GUARD FRAME
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97918-416-0 02 1 0208-0408 ● ● ● ●
29 COVER; GUARD FRAME
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97918-416-0 02 1 0208-0408 ●
29 COVER; GUARD FRAME
THA 		8-97918-416-0 02 1 0409- ● ● ● ● ●
34 PANEL; FRT,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-255-2 01 1 0204-0308 ● ●
34 PANEL; FRT,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97369-725-1 01 1 0309-0408 ● ●
34 PANEL; FRT,RR BODY
(A) THA 		8-97369-725-1 01 1 0409- ● ●
34 PANEL; FRT,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97236-254-3 01 1 0204-0308 ●
34 PANEL; FRT,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97369-723-1 01 1 0309-0408 ●
34 PANEL; FRT,RR BODY
(B) THA 		8-97369-723-1 01 1 0409- ●
34 PANEL; FRT,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-93358-340-2 01 1 0208-0308 ● ●
34 PANEL; FRT,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97369-727-1 01 1 0309-0408 ● ●
34 PANEL; FRT,RR BODY
(A) THA 		8-97369-727-1 01 1 0409-0708 ● ●
34 PANEL; FRT,RR BODY
(A) THA 		8-98078-933-0 01 1 0709- ● ●
45 RIVET; DUST SHIELD COVER,RR BODY
SPECIAL EDITION<EA4> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-94221-150-0 12 1 1009- ●
45 RIVET; DUST SHIELD COVER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-94221-150-0 12 1 1009- ●
45 RIVET; DUST SHIELD COVER,RR BODY
THA 		8-94221-150-0 12 1 1009- ●
45 RIVET; DUST SHIELD COVER,RR BODY
EXC. SPECIAL EDITION<EA4>,HIGH RIDE SUSPENSION<7YC> THA 		8-94221-150-0 10 1 1009- ●
45 RIVET; DUST SHIELD COVER,RR BODY
THA 		8-94221-150-0 10 1 1009- ● ●
45 RIVET; DUST SHIELD COVER,RR BODY
THA 		8-94221-150-0 14 1 1009- ●
61 BAR ASM
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-715-0 01 1 0204-0207 ● ●
61 BAR ASM
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-715-0 01 1 0208-0408 ● ● ● ●
61 BAR ASM
(A) THA 		8-97236-715-0 01 1 0409- ● ● ● ●
61 BAR ASM
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97252-308-1 01 1 0204-0408 ●
61 BAR ASM
(B) THA 		8-97252-308-2 01 1 0409- ●
67 PLATE; RR BODY FRONT
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-93326-173-1 02 1 0208-0408 ● ●
67 PLATE; RR BODY FRONT
THA 		8-93326-173-1 02 1 0409-0708 ● ●

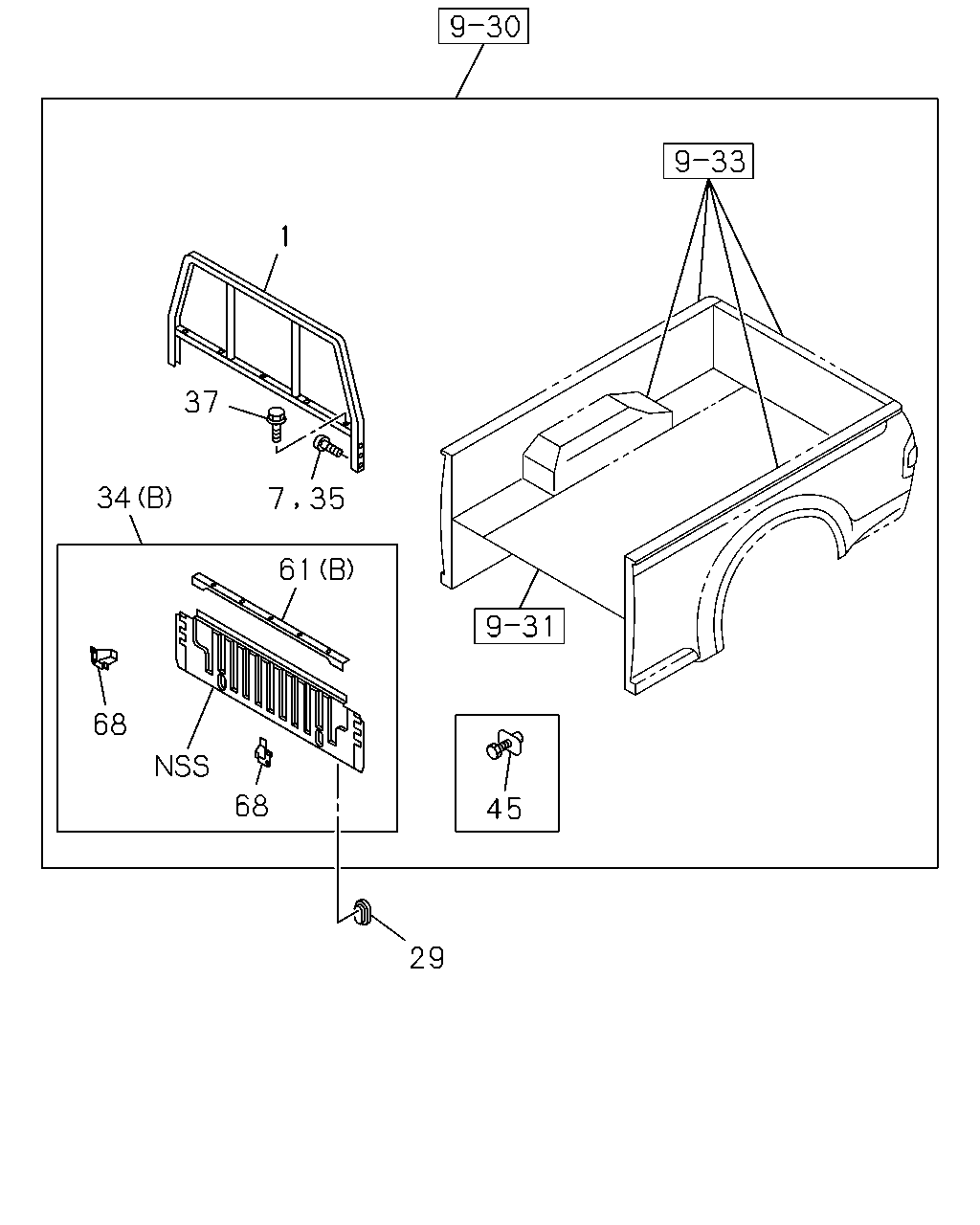

çizim 116739
1 37 34 61 68 68 45 29 7 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 FRAME; GUARD,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97236-678-5 01 1 0204-0408 ●
1 FRAME; GUARD,RR BODY
THA 		8-97236-678-5 01 1 0409- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X16.5 THA 		8-98058-001-0 06 1 0709- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M8X16.5 THA 		1-09104-027-1 06 1 0204-0207 ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> M8X16.5 THA 		1-09104-027-1 06 1 0208-0408 ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X16.5 THA 		1-09104-027-1 06 1 0409-0701 ● ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X16.5 THA 		8-98058-001-0 06 1 0702-0708 ● ● ● ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
M8X16.5 THA 		8-98058-001-0 02 1 0709- ● ● ● ●
29 COVER; GUARD FRAME
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97918-416-0 02 1 0204-0207 ● ●
29 COVER; GUARD FRAME
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97918-416-0 02 1 0204-0207 ●
29 COVER; GUARD FRAME
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA 		8-97918-416-0 02 1 0208-0408 ● ● ● ●
29 COVER; GUARD FRAME
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97918-416-0 02 1 0208-0408 ●
29 COVER; GUARD FRAME
THA 		8-97918-416-0 02 1 0409- ● ● ● ● ●
34 PANEL; FRT,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-255-2 01 1 0204-0308 ● ●
34 PANEL; FRT,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97369-725-1 01 1 0309-0408 ● ●
34 PANEL; FRT,RR BODY
(A) THA 		8-97369-725-1 01 1 0409- ● ●
34 PANEL; FRT,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97236-254-3 01 1 0204-0308 ●
34 PANEL; FRT,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97369-723-1 01 1 0309-0408 ●
34 PANEL; FRT,RR BODY
(B) THA 		8-97369-723-1 01 1 0409- ●
34 PANEL; FRT,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-93358-340-2 01 1 0208-0308 ● ●
34 PANEL; FRT,RR BODY
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97369-727-1 01 1 0309-0408 ● ●
34 PANEL; FRT,RR BODY
(A) THA 		8-97369-727-1 01 1 0409-0708 ● ●
34 PANEL; FRT,RR BODY
(A) THA 		8-98078-933-0 01 1 0709- ● ●
35 BOLT; FRT PANEL,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M8X16.5 THA 		1-09104-027-1 06 1 0204-0408 ●
37 BOLT; GUARD FRAME
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> M6X12 FLANGE THA 		0-28080-612-0 07 1 0204-0408 ●
37 BOLT; GUARD FRAME
M6X12 FLANGE THA 		0-28080-612-0 07 1 0409-0601 ●
37 BOLT; GUARD FRAME
M6X12 FLANGE THA 		0-28050-612-0 07 1 0602- ●
45 RIVET; DUST SHIELD COVER,RR BODY
SPECIAL EDITION<EA4> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-94221-150-0 12 1 1009- ●
45 RIVET; DUST SHIELD COVER,RR BODY
HIGH RIDE SUSPENSION<7YC> THA 		8-94221-150-0 12 1 1009- ●
45 RIVET; DUST SHIELD COVER,RR BODY
THA 		8-94221-150-0 12 1 1009- ●
45 RIVET; DUST SHIELD COVER,RR BODY
EXC. SPECIAL EDITION<EA4>,HIGH RIDE SUSPENSION<7YC> THA 		8-94221-150-0 10 1 1009- ●
45 RIVET; DUST SHIELD COVER,RR BODY
THA 		8-94221-150-0 10 1 1009- ● ●
45 RIVET; DUST SHIELD COVER,RR BODY
THA 		8-94221-150-0 14 1 1009- ●
61 BAR ASM
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-715-0 01 1 0204-0207 ● ●
61 BAR ASM
RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA 		8-97236-715-0 01 1 0208-0408 ● ● ● ●
61 BAR ASM
(A) THA 		8-97236-715-0 01 1 0409- ● ● ● ●
61 BAR ASM
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA 		8-97252-308-1 01 1 0204-0408 ●
61 BAR ASM
(B) THA 		8-97252-308-2 01 1 0409- ●
68 EXTENSION; FRONT,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97287-179-1 01 1 0204-0408 ●
68 EXTENSION; FRONT,RR BODY
THA 		8-97287-179-1 01 1 0409- ●
68 EXTENSION; FRONT,RR BODY
RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA 		8-97287-178-1 01 1 0204-0408 ●
68 EXTENSION; FRONT,RR BODY
THA 		8-97287-178-1 01 1 0409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
