2-36C — MANUAL TRANSMISSION CONT LINK AND CABLE (#7389) — 134 parça

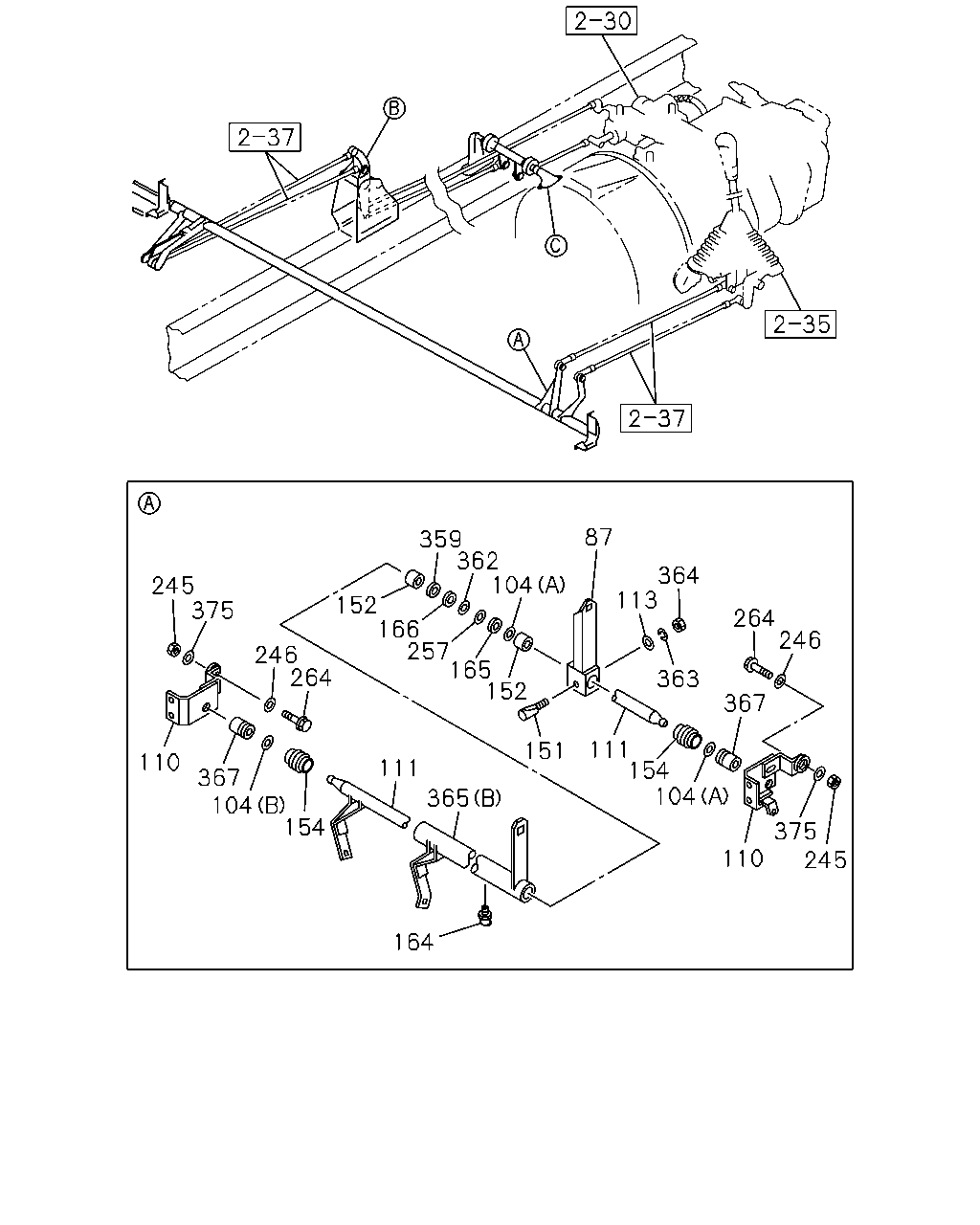

87 359 362 104 364 113 245 375 152 166 257 165 152 264 246 246 264 363 367 111 154 104 151 110 111 367 104 154 365 375 245 110 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	9812-	●	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	9812-	●	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	9812-	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	9812-	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	9812-	●	●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	9812-	●	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9812-	●	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	9812-	●	●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	9812-	●	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	9812-	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9812-	●	●
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	9812-	●	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	9812-	●	●
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	9812-	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	9812-	●	●
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	9812-	●	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	9812-	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	9812-	●	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	9812-	●	●
362	SHIM	1-09503-172-0	AR	1	9812-	●	●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	9812-	●	●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	9812-	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9812-	●	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	9812-	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9812-	●	●

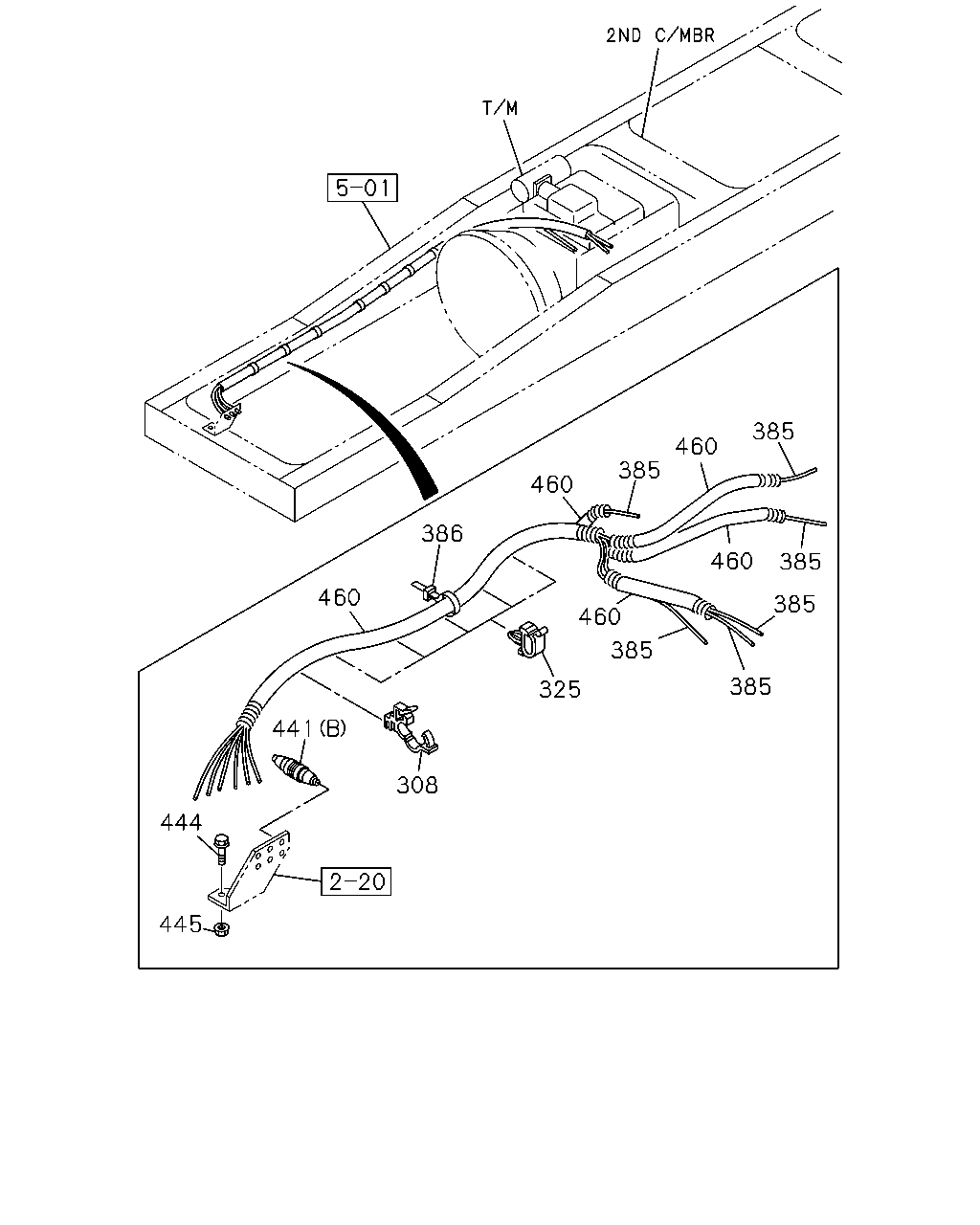

385 460 385 460 386 460 385 460 385 460 385 385 325 441 308 444 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
308	CLIP; PIPE ID=12-16 & 12-16	1-09709-191-0	01	1	9905-9910	●	●
325	CLIP; NYLON TUBE ID=9.5	5-09709-020-0	06	1	9905-9910	●	●
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> ID=9.5	5-09709-020-0	06	1	9911-	●	●
325	CLIP; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> ID=9.5	5-09709-020-0	04	1	9911-	●	●
385	TUBE; NYLON L=3800 SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-0103	●	●
385	TUBE; NYLON L=3900 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0104-	●	●
385	TUBE; NYLON L=1580 SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-	●	●
385	TUBE; NYLON L=3900 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-0103	●	●
385	TUBE; NYLON L=4000 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0104-	●	●
385	TUBE; NYLON L=1580 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-	●	●
385	TUBE; NYLON L=4300 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-0103	●	●
385	TUBE; NYLON L=4400 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0104-	●	●
385	TUBE; NYLON L=1580 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-	●	●
385	TUBE; NYLON L=3900 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-0103	●	●
385	TUBE; NYLON L=4000 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0104-	●	●
385	TUBE; NYLON L=1580 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-	●	●
385	TUBE; NYLON SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9905-0103	●	●
385	TUBE; NYLON L=3550 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0104-	●	●
385	TUBE; NYLON L=1580 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9905-	●	●
385	TUBE; NYLON SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9905-0103	●	●
385	TUBE; NYLON L=4250 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0104-	●	●
385	TUBE; NYLON L=1580 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9905-	●	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	07	1	9905-9910	●	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	11	1	9911-	●	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9905-	●	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9905-9910	●	●
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	06	1	9911-	●	●
441	CONNECTOR; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	9911-	●	●
444	BOLT; BRKT,NIPPLE M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-	●	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-	●	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-	●	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	02	1	9905-	●	●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	9905-	●	●
460	TUBE; CORRUGATE L=1030 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	9905-	●	●
460	TUBE; CORRUGATE L=3150 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	9905-0103	●	●
460	TUBE; CORRUGATE L=3250 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0104-	●	●
460	TUBE; CORRUGATE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=3150 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	9911-0103	●	●
460	TUBE; CORRUGATE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=3250 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0104-	●	●

385 385 385 385 460 387 441 501

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
385	TUBE; NYLON L=3800 SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-0103	●	●
385	TUBE; NYLON L=3900 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0104-	●	●
385	TUBE; NYLON L=1580 SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-	●	●
385	TUBE; NYLON L=3900 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-0103	●	●
385	TUBE; NYLON L=4000 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0104-	●	●
385	TUBE; NYLON L=1580 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-	●	●
385	TUBE; NYLON L=4300 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-0103	●	●
385	TUBE; NYLON L=4400 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0104-	●	●
385	TUBE; NYLON L=1580 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-	●	●
385	TUBE; NYLON L=3900 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-0103	●	●
385	TUBE; NYLON L=4000 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0104-	●	●
385	TUBE; NYLON L=1580 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-	●	●
385	TUBE; NYLON SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9905-0103	●	●
385	TUBE; NYLON L=3550 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0104-	●	●
385	TUBE; NYLON L=1580 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9905-	●	●
385	TUBE; NYLON SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9905-0103	●	●
385	TUBE; NYLON L=4250 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0104-	●	●
385	TUBE; NYLON L=1580 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9905-	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9905-	●	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9905-	●	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9905-9910	●	●
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	06	1	9911-	●	●
441	CONNECTOR; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	9911-	●	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-	●	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-	●	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-	●	●
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	02	1	9905-	●	●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	9905-	●	●
460	TUBE; CORRUGATE L=1030 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	9905-	●	●
460	TUBE; CORRUGATE L=3150 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	9905-0103	●	●
460	TUBE; CORRUGATE L=3250 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0104-	●	●
460	TUBE; CORRUGATE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=3150 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	9911-0103	●	●
460	TUBE; CORRUGATE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=3250 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0104-	●	●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9905-	●	●

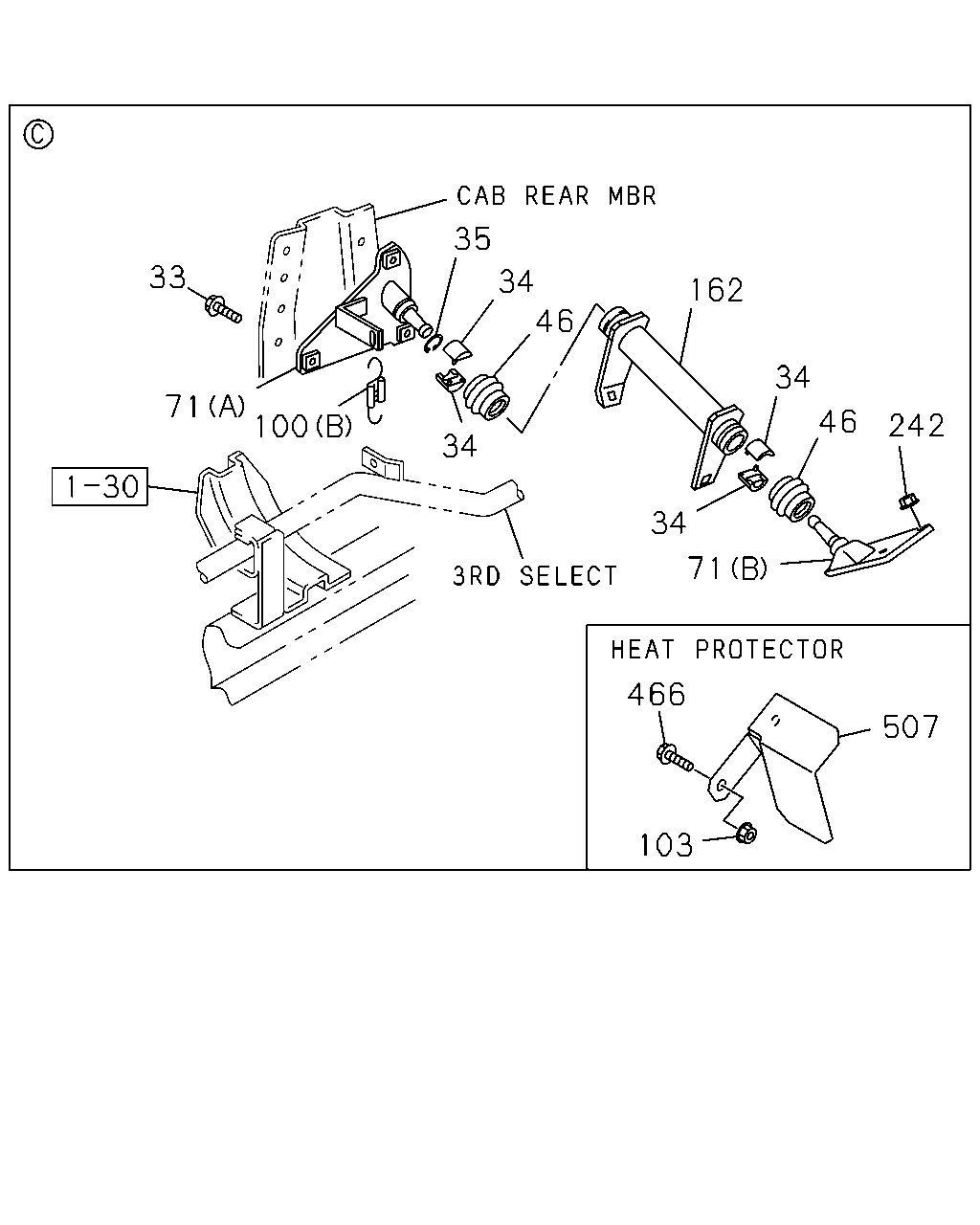

35 33 34 162 46 34 71 100 46 242 34 34 71 466 507 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	9905-	●	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	9905-	●	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	9905-	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME EXC. CAB UP +110MM<TGG> (A)	1-33657-512-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME CAB UP +110MM<TGG> (A)	1-33657-657-1	01	1	9905-	●	●
100	SPRING (B)	1-09583-319-0	01	1	9905-	●	●
100	SPRING (A)	1-09583-351-0	01	1	9812-	●	●
103	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9812-	●	●
162	LEVER; RELAY	1-33651-625-0	01	1	9905-	●	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	9905-	●	●
466	BOLT; FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9812-	●	●
507	PROTECTOR; HEAT CAB UP +110MM<TGG>	1-14181-315-0	01	1	9812-	●	●

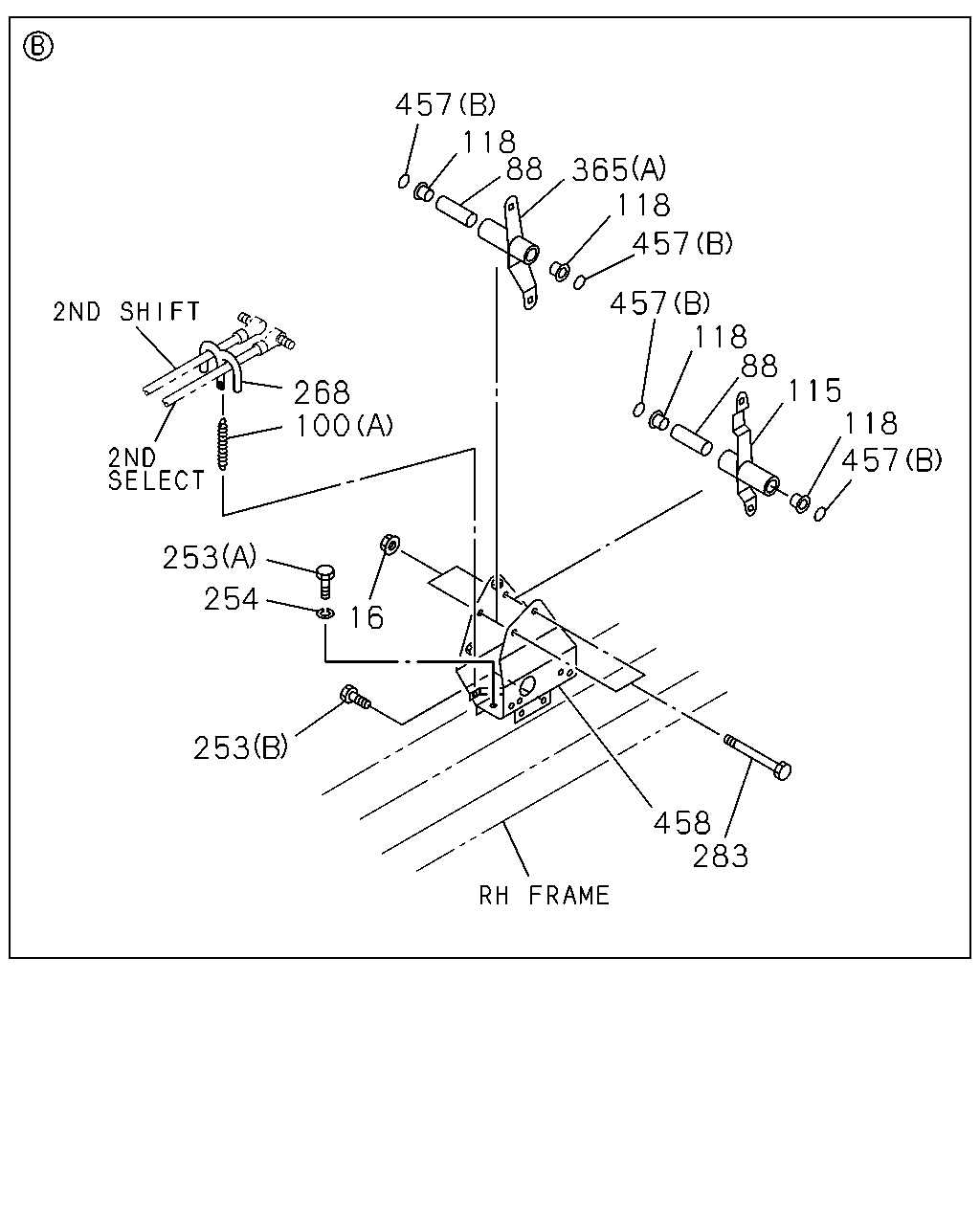

457 118 88 365 118 457 457 118 88 115 118 457 268 100 253 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9905-	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9905-	●	●
100	SPRING (B)	1-09583-319-0	01	1	9905-	●	●
100	SPRING (A)	1-09583-351-0	01	1	9812-	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9905-	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9905-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9812-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9812-	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9812-	●	●
268	BRACKET; LINK ROD	1-33657-216-0	01	1	9812-	●	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9905-	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9812-	●	●
457	GASKET (B)	1-09623-594-0	04	1	9905-	●	●
458	BRACKET; 2ND RELAY LEVER 6WG1 TC-C(72L) CAB UP +110MM<TGG>	1-33657-664-1	01	1	9812-9901	●	●
458	BRACKET; 2ND RELAY LEVER CAB UP +110MM<TGG>	1-33657-664-1	01	1	9902-	●	●
458	BRACKET; 2ND RELAY LEVER 6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9812-9901	●	●
458	BRACKET; 2ND RELAY LEVER 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9902-9904	●	●
458	BRACKET; 2ND RELAY LEVER EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9905-9906	●	●
458	BRACKET; 2ND RELAY LEVER EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9907-		●
