9-31 — REAR BODY; FLOOR AND FENDER (#73889) — 65 parça

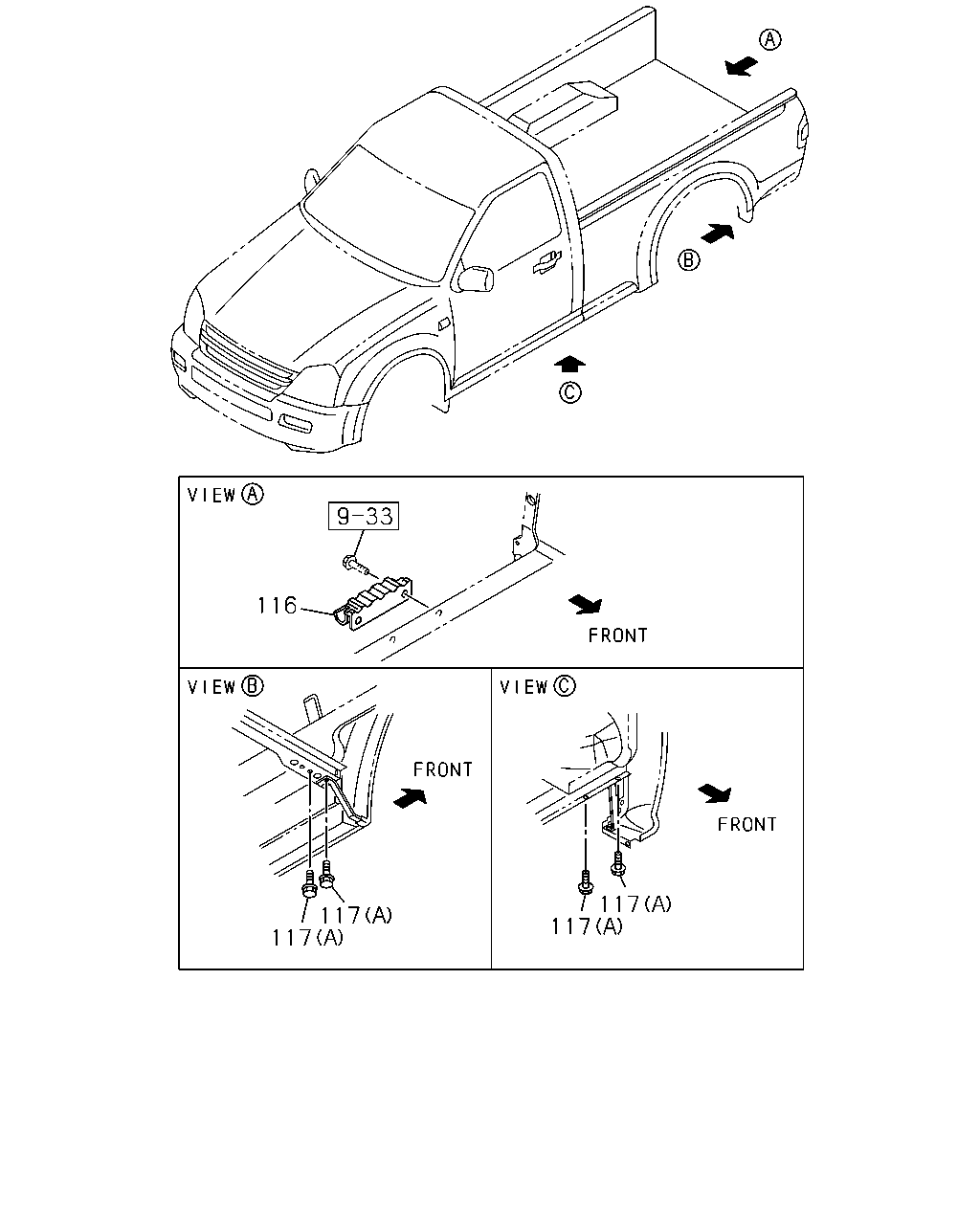

116 117 117 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
116	SUPPORT; RR BODY,SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA	8-97289-528-0	01	1	0204-0207	●	●
116	SUPPORT; RR BODY,SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA	8-97289-528-0	01	1	0204-0207			●
116	SUPPORT; RR BODY,SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA	8-97289-528-0	01	1	0208-0408	●	●		●	●
116	SUPPORT; RR BODY,SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA	8-97289-528-0	01	1	0208-0408			●
116	SUPPORT; RR BODY,SILL THA	8-97289-528-0	01	1	0409-0701	●	●	●	●	●
116	SUPPORT; RR BODY,SILL THA	8-98053-898-0	01	1	0702-	●	●	●	●	●
117	BOLT; SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0204-0207	●	●
117	BOLT; SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0204-0207	●	●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0204-0207			●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0204-0207			●
117	BOLT; SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0208-0408	●	●		●	●
117	BOLT; SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0208-0408	●	●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0208-0408			●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0208-0408			●
117	BOLT; SILL (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0409-0601	●	●	●	●	●
117	BOLT; SILL (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0409-0601	●	●	●
117	BOLT; SILL (A) M8X25 FLANGE THA	0-28650-825-0	04	1	0602-	●	●	●	●	●
117	BOLT; SILL (A) M8X25 FLANGE THA	0-28650-825-0	04	1	0602-	●	●	●
117	BOLT; SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X16.5 THA	1-09104-027-1	04	1	0204-0207	●	●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X16.5 THA	1-09104-027-1	04	1	0204-0207			●
117	BOLT; SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X16.5 THA	1-09104-027-1	04	1	0208-0408	●	●		●	●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X16.5 THA	1-09104-027-1	04	1	0208-0408			●
117	BOLT; SILL (B) M8X16.5 THA	1-09104-027-1	04	1	0409-0701	●	●	●	●	●
117	BOLT; SILL (B) M8X16.5 THA	8-98058-001-0	04	1	0702-	●	●	●	●	●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X25 FLANGE THA	0-28680-825-0	02	1	0204-0408			●
117	BOLT; SILL (A) M8X25 FLANGE THA	0-28680-825-0	02	1	0409-0601			●
117	BOLT; SILL (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0602-			●

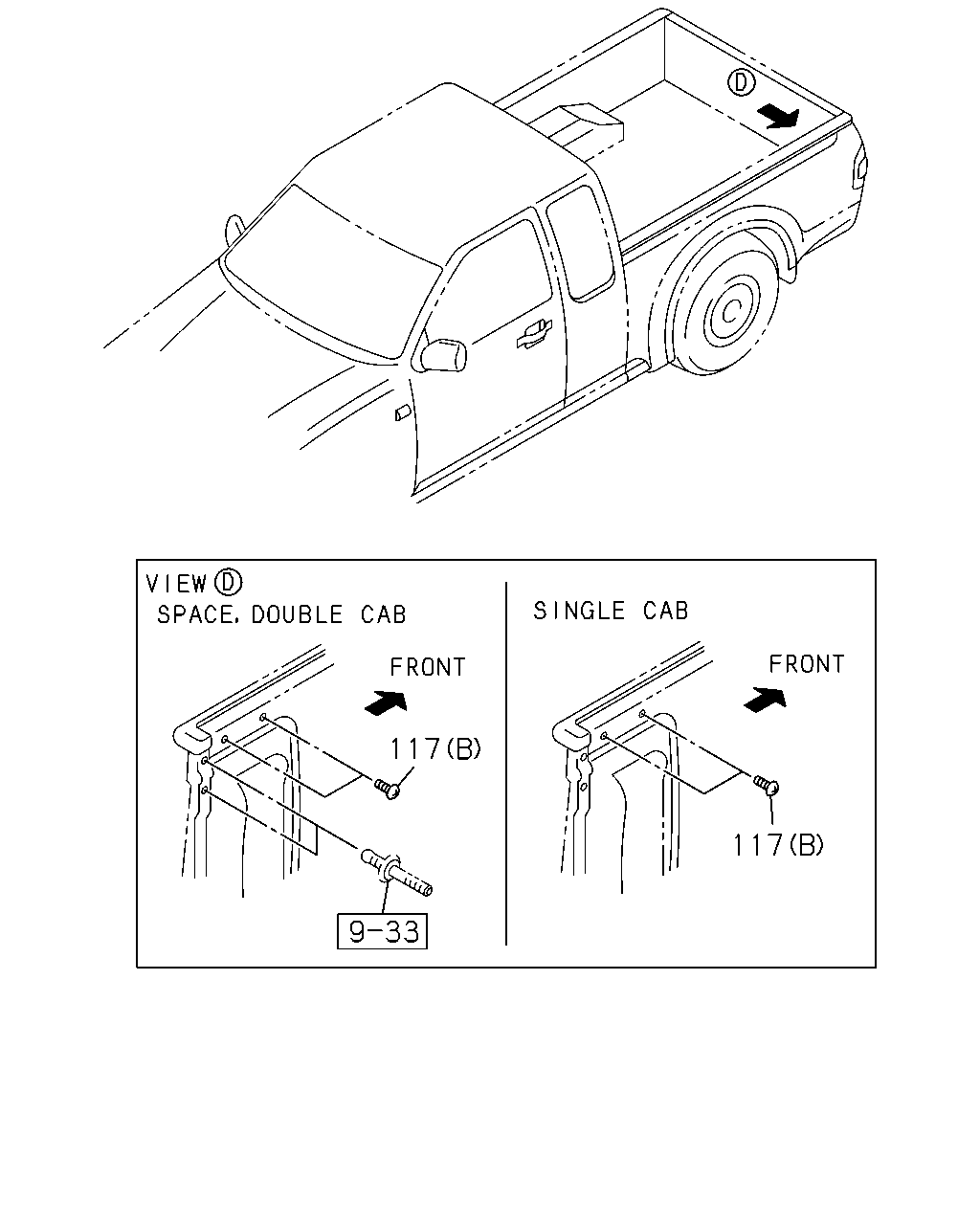

117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
117	BOLT; SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0204-0207	●	●
117	BOLT; SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0204-0207	●	●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0204-0207			●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0204-0207			●
117	BOLT; SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0208-0408	●	●		●	●
117	BOLT; SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0208-0408	●	●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0208-0408			●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0208-0408			●
117	BOLT; SILL (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0409-0601	●	●	●	●	●
117	BOLT; SILL (A) M8X25 FLANGE THA	0-28680-825-0	04	1	0409-0601	●	●	●
117	BOLT; SILL (A) M8X25 FLANGE THA	0-28650-825-0	04	1	0602-	●	●	●	●	●
117	BOLT; SILL (A) M8X25 FLANGE THA	0-28650-825-0	04	1	0602-	●	●	●
117	BOLT; SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X16.5 THA	1-09104-027-1	04	1	0204-0207	●	●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X16.5 THA	1-09104-027-1	04	1	0204-0207			●
117	BOLT; SILL RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M8X16.5 THA	1-09104-027-1	04	1	0208-0408	●	●		●	●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) M8X16.5 THA	1-09104-027-1	04	1	0208-0408			●
117	BOLT; SILL (B) M8X16.5 THA	1-09104-027-1	04	1	0409-0701	●	●	●	●	●
117	BOLT; SILL (B) M8X16.5 THA	8-98058-001-0	04	1	0702-	●	●	●	●	●
117	BOLT; SILL RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M8X25 FLANGE THA	0-28680-825-0	02	1	0204-0408			●
117	BOLT; SILL (A) M8X25 FLANGE THA	0-28680-825-0	02	1	0409-0601			●
117	BOLT; SILL (A) M8X25 FLANGE THA	0-28650-825-0	02	1	0602-			●

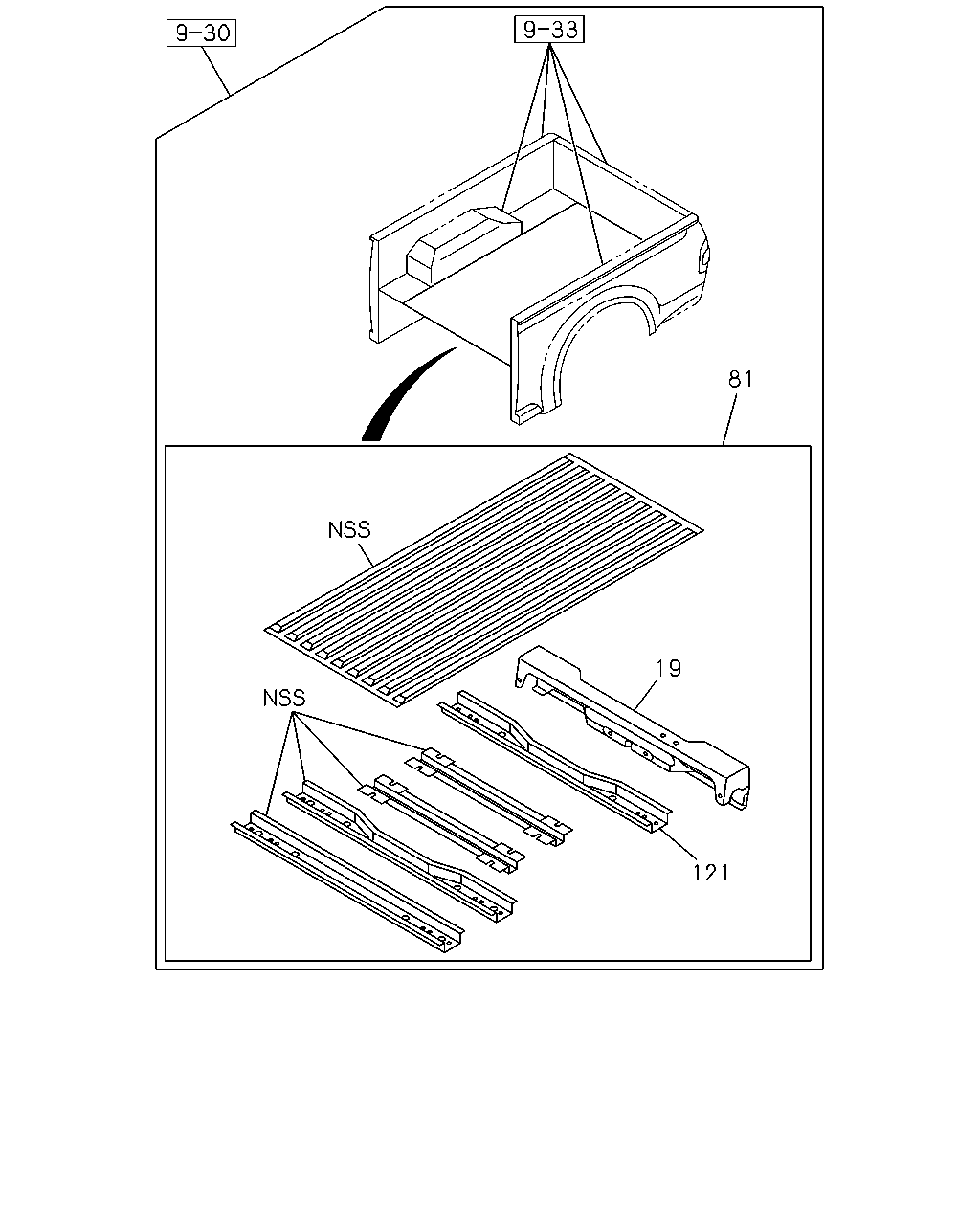

81 19 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
19	BOLSTER; RR END,RR BODY RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA	8-97251-570-6	01	1	0204-0207	●	●
19	BOLSTER; RR END,RR BODY RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA	8-97251-570-6	01	1	0204-0207			●
19	BOLSTER; RR END,RR BODY RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA	8-97251-570-7	01	1	0208-0408	●	●		●	●
19	BOLSTER; RR END,RR BODY RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA	8-97251-570-7	01	1	0208-0408			●
19	BOLSTER; RR END,RR BODY THA	8-97251-570-7	01	1	0409-	●	●	●	●	●
81	FLOOR ASM; RR BODY RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA	8-97331-571-3	01	1	0204-0408	●	●
81	FLOOR ASM; RR BODY THA	8-97331-571-3	01	1	0409-	●	●
81	FLOOR ASM; RR BODY RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA	8-97236-639-5	01	1	0204-0408			●
81	FLOOR ASM; RR BODY THA	8-97236-639-5	01	1	0409-1008			●
81	FLOOR ASM; RR BODY THA	8-97236-639-5	01	1	1009-			●
81	FLOOR ASM; RR BODY RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA	8-97331-584-3	01	1	0208-0408				●	●
81	FLOOR ASM; RR BODY THA	8-97331-584-3	01	1	0409-				●	●
121	BOLSTER; RR BODY RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA	8-97236-647-2	01	1	0204-0207	●	●
121	BOLSTER; RR BODY RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA	8-97236-647-2	01	1	0204-0207			●
121	BOLSTER; RR BODY RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> THA	8-97236-647-2	01	1	0208-0408	●	●		●	●
121	BOLSTER; RR BODY RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> THA	8-97236-647-2	01	1	0208-0408			●
121	BOLSTER; RR BODY THA	8-97236-647-2	01	1	0409-	●	●	●	●	●
