◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 9 - Tools ▶ 9-30 - REAR BODY ASM AND MOUNTING ▶

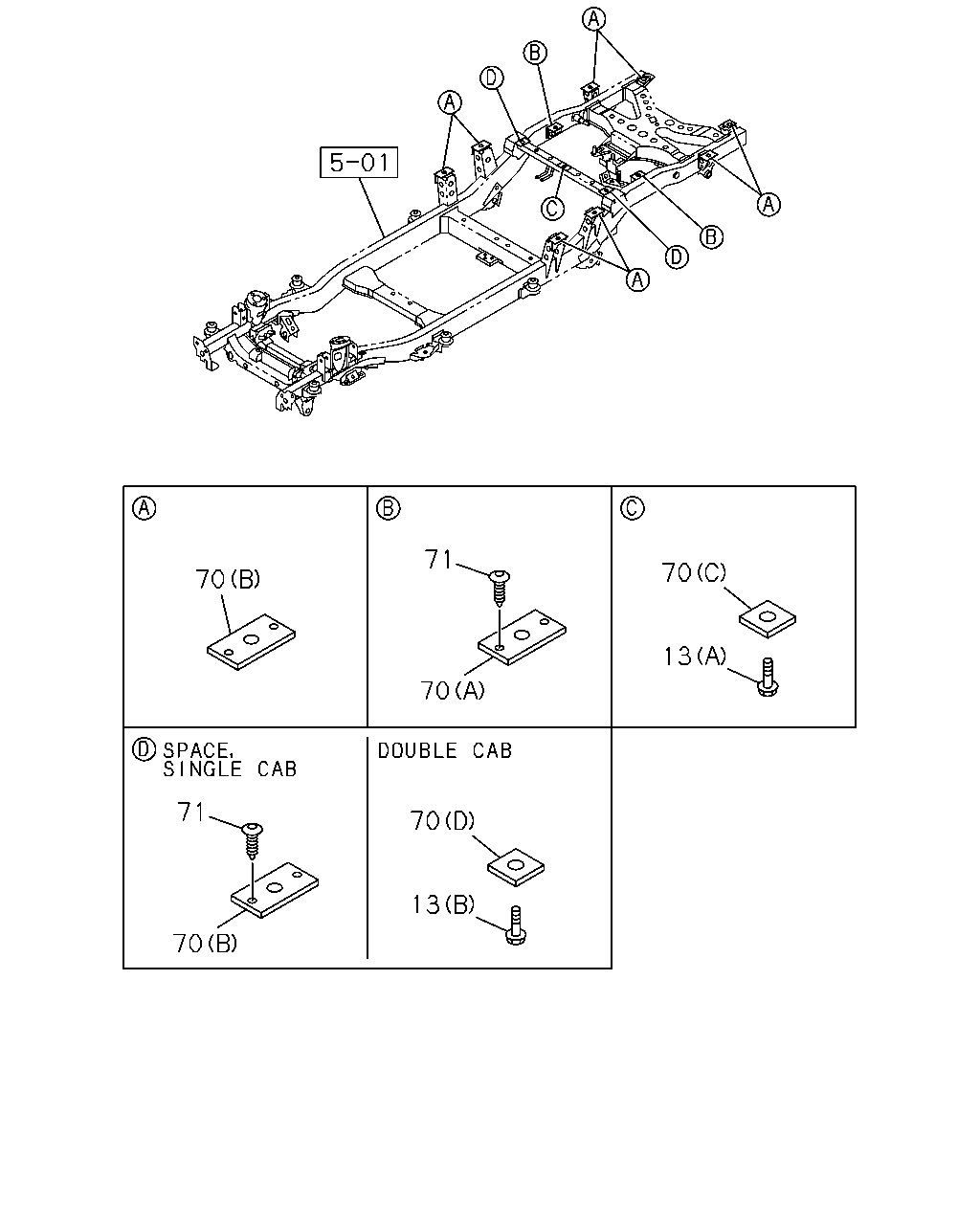

9-30 — REAR BODY ASM AND MOUNTING (#73888) — 91 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BODY ASM; REAR OVER FENDER<B74> THA	8-98090-594-0	01	1	0607-	●
1	BODY ASM; REAR THA	8-98090-594-0	01	1	0607-		●
1	BODY ASM; REAR OVER FENDER<B74> THA	8-98090-605-0	01	1	0607-			●
1	BODY ASM; REAR THA	8-98090-605-0	01	1	0607-				●
1	BODY ASM; REAR EXC. OVER FENDER<B74> THA	8-98090-604-0	01	1	0607-			●
1	BODY ASM; REAR EXC. OVER FENDER<B74> THA	8-98097-990-0	01	1	0710-	●
1	BODY ASM; REAR THA	8-98098-133-0	01	1	0710-1008					●
1	BODY ASM; REAR THA	8-98098-133-0	01	1	1009-					●
1	BODY ASM; REAR EXC. OVER FENDER<6GH> THA	8-97350-025-0	01	1	0204-0507	●	●
1	BODY ASM; REAR EXC. OVER FENDER<B74> THA	8-97350-025-0	01	1	0508-0606	●	●
1	BODY ASM; REAR OVER FENDER<6GH> THA	8-97350-026-0	01	1	0204-0507	●	●
1	BODY ASM; REAR OVER FENDER<B74> THA	8-97350-026-0	01	1	0508-0606	●	●
1	BODY ASM; REAR EXC. OVER FENDER<6GH> THA	8-97350-027-0	01	1	0208-0507			●	●
1	BODY ASM; REAR EXC. OVER FENDER<B74> THA	8-97350-027-0	01	1	0508-0606			●	●
1	BODY ASM; REAR OVER FENDER<6GH> THA	8-97350-028-0	01	1	0208-0507			●	●
1	BODY ASM; REAR OVER FENDER<B74> THA	8-97350-028-0	01	1	0508-0606			●	●
1	BODY ASM; REAR THA	8-97350-024-0	01	1	0204-0606					●
1	BODY ASM; REAR THA	8-98098-133-0	01	1	0607-0709					●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BODY ASM; REAR OVER FENDER<B74> THA	8-98090-594-0	01	1	0607-	●
1	BODY ASM; REAR THA	8-98090-594-0	01	1	0607-		●
1	BODY ASM; REAR OVER FENDER<B74> THA	8-98090-605-0	01	1	0607-			●
1	BODY ASM; REAR THA	8-98090-605-0	01	1	0607-				●
1	BODY ASM; REAR EXC. OVER FENDER<B74> THA	8-98090-604-0	01	1	0607-			●
1	BODY ASM; REAR EXC. OVER FENDER<B74> THA	8-98097-990-0	01	1	0710-	●
1	BODY ASM; REAR THA	8-98098-133-0	01	1	0710-1008					●
1	BODY ASM; REAR THA	8-98098-133-0	01	1	1009-					●
1	BODY ASM; REAR EXC. OVER FENDER<6GH> THA	8-97350-025-0	01	1	0204-0507	●	●
1	BODY ASM; REAR EXC. OVER FENDER<B74> THA	8-97350-025-0	01	1	0508-0606	●	●
1	BODY ASM; REAR OVER FENDER<6GH> THA	8-97350-026-0	01	1	0204-0507	●	●
1	BODY ASM; REAR OVER FENDER<B74> THA	8-97350-026-0	01	1	0508-0606	●	●
1	BODY ASM; REAR EXC. OVER FENDER<6GH> THA	8-97350-027-0	01	1	0208-0507			●	●
1	BODY ASM; REAR EXC. OVER FENDER<B74> THA	8-97350-027-0	01	1	0508-0606			●	●
1	BODY ASM; REAR OVER FENDER<6GH> THA	8-97350-028-0	01	1	0208-0507			●	●
1	BODY ASM; REAR OVER FENDER<B74> THA	8-97350-028-0	01	1	0508-0606			●	●
1	BODY ASM; REAR THA	8-97350-024-0	01	1	0204-0606					●
1	BODY ASM; REAR THA	8-98098-133-0	01	1	0607-0709					●

71 70 70 13 70 71 70 13 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
13	BOLT; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M12X50 FLANGE THA	8-97310-611-2	06	1	0204-0408	●	●
13	BOLT; RR BODY MTG (A) M12X50 FLANGE THA	8-97310-611-2	06	1	0409-0601	●	●
13	BOLT; RR BODY MTG (A) M12X50 FLANGE THA	8-98030-678-0	06	1	0602-	●	●
13	BOLT; RR BODY MTG RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) M12X50 FLANGE THA	8-97310-611-2	08	1	0204-0408					●
13	BOLT; RR BODY MTG (A) M12X50 FLANGE THA	8-97310-611-2	08	1	0409-0601					●
13	BOLT; RR BODY MTG (A) M12X50 FLANGE THA	8-98030-678-0	08	1	0602-					●
13	BOLT; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) M12X50 FLANGE THA	8-97310-611-2	04	1	0208-0408			●	●
13	BOLT; RR BODY MTG (A) M12X50 FLANGE THA	8-97310-611-2	04	1	0409-0601			●	●
13	BOLT; RR BODY MTG (A) M12X50 FLANGE THA	8-98030-678-0	04	1	0602-			●	●
13	BOLT; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) M12X50 FLANGE THA	8-97354-201-0	02	1	0208-0408			●	●
13	BOLT; RR BODY MTG (B) M12X50 FLANGE THA	8-97354-201-0	02	1	0409-0701			●	●
13	BOLT; RR BODY MTG (B) M12X35 FLANGE THA	8-98056-126-0	02	1	0702-			●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA	8-94331-738-1	06	1	0204-0303	●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA	8-97367-342-0	06	1	0304-0408	●	●
70	CUSHION; RR BODY MTG (B) THA	8-97367-342-0	06	1	0409-0709	●	●
70	CUSHION; RR BODY MTG (B) THA	8-98090-511-0	06	1	0710-	●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA	8-97235-199-0	05	1	0204-0206	●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA	8-97235-199-0	05	1	0204-0206					●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA	8-97235-199-0	03	1	0207-0303	●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA	8-97235-199-0	03	1	0207-0303					●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA	8-97367-343-0	03	1	0304-0408	●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (C) THA	8-97367-343-0	03	1	0304-0408					●
70	CUSHION; RR BODY MTG (C) THA	8-97367-343-0	03	1	0409-0709	●	●			●
70	CUSHION; RR BODY MTG (C) THA	8-98090-512-0	03	1	0710-	●	●			●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA	8-97354-682-0	02	1	0207-0207	●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA	8-97354-682-0	02	1	0207-0207					●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA	8-97354-682-0	02	1	0208-0303	●	●	●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA	8-97354-682-0	02	1	0208-0303					●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (A) THA	8-97367-344-0	02	1	0304-0408	●	●	●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (A) THA	8-97367-344-0	02	1	0304-0408					●
70	CUSHION; RR BODY MTG (A) THA	8-97367-344-0	02	1	0409-0709	●	●	●	●	●
70	CUSHION; RR BODY MTG (A) THA	8-98090-513-0	02	1	0710-	●	●	●	●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA	8-94331-738-1	08	1	0204-0303					●
70	CUSHION; RR BODY MTG RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> (B) THA	8-97367-342-0	08	1	0304-0408					●
70	CUSHION; RR BODY MTG (B) THA	8-97367-342-0	08	1	0409-0709					●
70	CUSHION; RR BODY MTG (B) THA	8-98090-511-0	08	1	0710-					●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (D) THA	8-94222-090-2	02	1	0208-0303			●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (D) THA	8-97367-341-0	02	1	0304-0408			●	●
70	CUSHION; RR BODY MTG (D) THA	8-97367-341-0	02	1	0409-0709			●	●
70	CUSHION; RR BODY MTG (D) THA	8-98090-510-0	02	1	0710-			●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA	8-94331-738-1	04	1	0208-0303			●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (B) THA	8-97367-342-0	04	1	0304-0408			●	●
70	CUSHION; RR BODY MTG (B) THA	8-97367-342-0	04	1	0409-0709			●	●
70	CUSHION; RR BODY MTG (B) THA	8-98090-511-0	04	1	0710-			●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA	8-97235-199-0	01	1	0208-0303			●	●
70	CUSHION; RR BODY MTG RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> (C) THA	8-97367-343-0	01	1	0304-0408			●	●
70	CUSHION; RR BODY MTG (C) THA	8-97367-343-0	01	1	0409-0709			●	●
70	CUSHION; RR BODY MTG (C) THA	8-98090-512-0	01	1	0710-			●	●
71	CLIP; CUSHION RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> ID=6 OD=16 L=18 IMA	8-94178-705-0	04	1	0204-0206	●	●
71	CLIP; CUSHION RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> ID=6 OD=16 L=18 IMA	8-94178-705-0	04	1	0204-0206					●
71	CLIP; CUSHION RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> ID=6 OD=16 L=18 IMA	8-94178-705-0	06	1	0207-0408	●	●
71	CLIP; CUSHION RR BODY DBL WALL SIDE LOCK OUTER HOOK<S7S> ID=6 OD=16 L=18 IMA	8-94178-705-0	06	1	0207-0408					●
71	CLIP; CUSHION ID=6 OD=16 L=18 IMA	8-94178-705-0	06	1	0409-	●	●			●
71	CLIP; CUSHION RR BODY DBL WALL CTR PULL WO/GUARD FRAME<S7R> ID=6 OD=16 L=18 IMA	8-94178-705-0	04	1	0208-0408			●	●
71	CLIP; CUSHION ID=6 OD=16 L=18 IMA	8-94178-705-0	04	1	0409-			●	●
