9-01 — TOOLS (#73887) — 146 parça

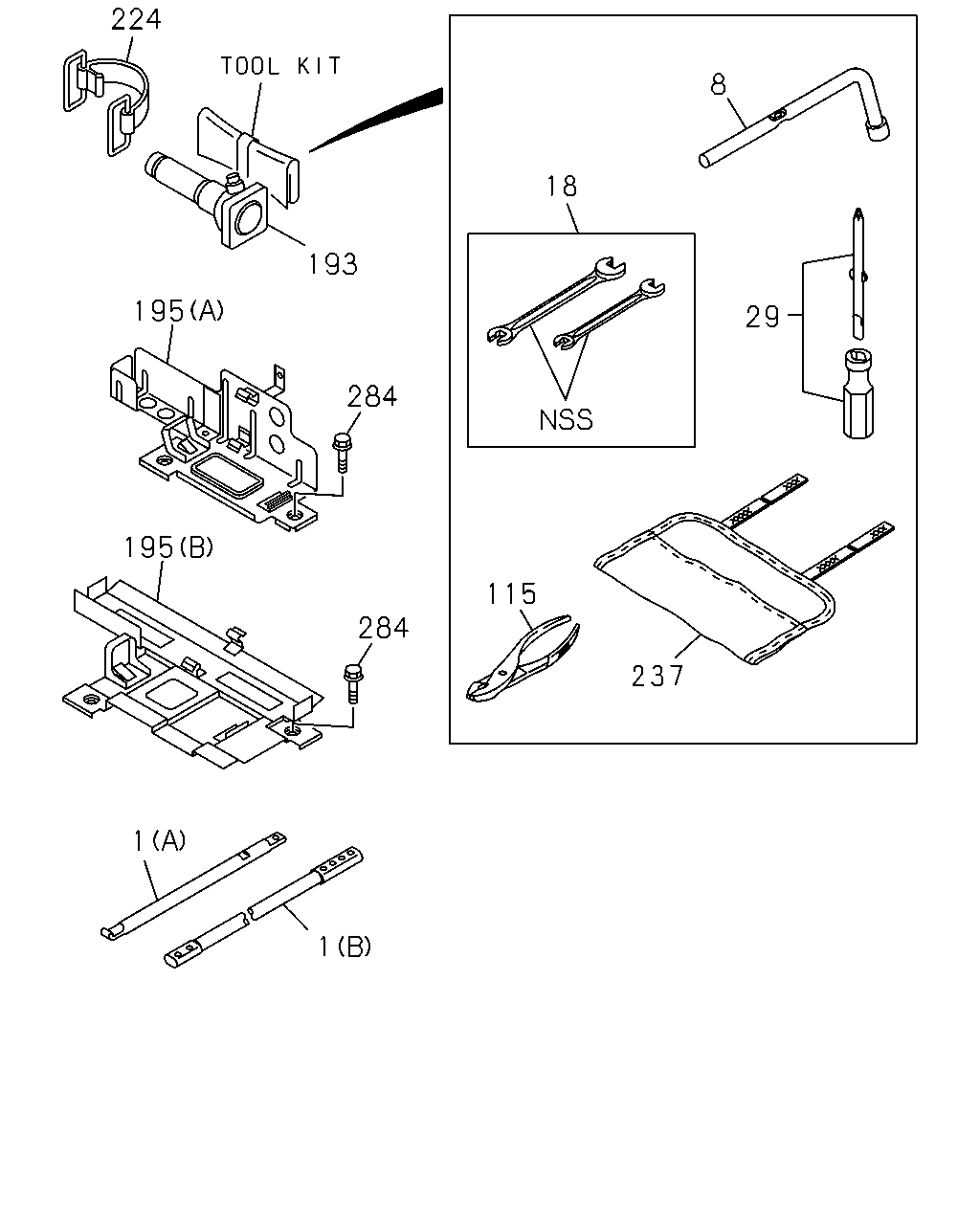

çizim 116718
224 8 18 193 195 29 284 195 115 284 237 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HANDLE; SPARE TIRE CARRIER
4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) THA 		8-97215-330-0 01 1 0204-0207 ● ●
1 HANDLE; SPARE TIRE CARRIER
(A) THA 		8-97215-330-0 01 1 0204-0207 ●
1 HANDLE; SPARE TIRE CARRIER
4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) THA 		8-97215-330-0 01 1 0208-0408 ● ● ●
1 HANDLE; SPARE TIRE CARRIER
(A) THA 		8-97215-330-0 01 1 0208-0408 ● ●
1 HANDLE; SPARE TIRE CARRIER
(A) THA 		8-97215-330-0 01 1 0409- ● ● ● ● ●
1 HANDLE; SPARE TIRE CARRIER
4JH1 ENG<RJX>,4JA1 ENG<RLE> (B) THA 		8-97215-332-0 03 1 0204-0207 ● ●
1 HANDLE; SPARE TIRE CARRIER
(B) THA 		8-97215-332-0 03 1 0204-0207 ●
1 HANDLE; SPARE TIRE CARRIER
4JH1 ENG<RJX>,4JA1 ENG<RLE> (B) THA 		8-97215-332-0 03 1 0208-0408 ● ● ●
1 HANDLE; SPARE TIRE CARRIER
(B) THA 		8-97215-332-0 03 1 0208-0408 ● ●
1 HANDLE; SPARE TIRE CARRIER
(B) THA 		8-97215-332-0 03 1 0409- ● ● ● ● ●
8 WRENCH; WHEEL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97217-790-0 01 1 0204-0207 ● ●
8 WRENCH; WHEEL
THA 		8-97217-790-0 01 1 0204-0207 ●
8 WRENCH; WHEEL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97217-790-0 01 1 0208-0408 ● ● ●
8 WRENCH; WHEEL
THA 		8-97217-790-0 01 1 0208-0408 ● ●
8 WRENCH; WHEEL
THA 		8-97217-790-0 01 1 0409-0606 ● ● ● ● ●
8 WRENCH; WHEEL
L=19 THA 		8-98027-834-0 01 1 0607- ● ● ● ● ●
18 WRENCH KIT
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-884-0 01 1 0204-0207 ● ●
18 WRENCH KIT
THA 		8-97248-884-0 01 1 0204-0207 ●
18 WRENCH KIT
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-884-0 01 1 0208-0408 ● ● ●
18 WRENCH KIT
THA 		8-97248-884-0 01 1 0208-0408 ● ●
18 WRENCH KIT
THA 		8-97248-884-0 01 1 0409-0606 ● ● ● ● ●
18 WRENCH KIT
8X10,12X14 THA 		8-97945-273-0 01 1 0607- ● ● ● ● ●
29 DRIVER; SCREW
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-870-0 01 1 0204-0207 ● ●
29 DRIVER; SCREW
THA 		8-97248-870-0 01 1 0204-0207 ●
29 DRIVER; SCREW
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-870-0 01 1 0208-0408 ● ● ●
29 DRIVER; SCREW
THA 		8-97248-870-0 01 1 0208-0408 ● ●
29 DRIVER; SCREW
THA 		8-97248-870-0 01 1 0409-0606 ● ● ● ● ●
29 DRIVER; SCREW
THA 		8-98027-833-0 01 1 0607- ● ● ● ● ●
115 PLIER
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-869-0 01 1 0204-0207 ● ●
115 PLIER
THA 		8-97248-869-0 01 1 0204-0207 ●
115 PLIER
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-869-0 01 1 0208-0408 ● ● ●
115 PLIER
THA 		8-97248-869-0 01 1 0208-0408 ● ●
115 PLIER
THA 		8-97248-869-0 01 1 0409-0606 ● ● ● ● ●
115 PLIER
THA 		8-98027-832-0 01 1 0607-0912 ● ● ● ● ●
115 PLIER
THA 		8-98099-659-0 01 1 1001- ● ● ● ● ●
193 JACK ASM
THA 		8-97217-789-1 01 1 0204-0207 ●
193 JACK ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97217-789-1 01 1 0204-0207 ●
193 JACK ASM
THA 		8-97217-789-1 01 1 0208-0307 ●
193 JACK ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97217-789-1 01 1 0208-0307 ● ●
193 JACK ASM
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97217-789-1 01 1 0308- ● ● ●
193 JACK ASM
THA 		8-97217-788-1 01 1 0204-0207 ●
193 JACK ASM
THA 		8-97217-788-1 01 1 0208-0307 ● ●
193 JACK ASM
HIGH RIDE SUSPENSION<7YC> THA 		8-97217-788-1 01 1 0308- ● ●
193 JACK ASM
THA 		8-97217-788-1 01 1 0308- ● ●
195 BRACKET; JACK
4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) THA 		8-97249-692-2 01 1 0204-0408 ●
195 BRACKET; JACK
4JA1-T ENG<LP0> (A) THA 		8-97249-692-2 01 1 0409-0412 ●
195 BRACKET; JACK
4JK1 ENG<LKZ> (A) THA 		8-97249-692-2 01 1 0501-0606 ●
195 BRACKET; JACK
4JK1 ENG<LKZ> (A) THA 		8-97249-692-2 01 1 0607- ●
195 BRACKET; JACK
4JH1 ENG<RJX>,4JA1 ENG<RLE> (B) THA 		8-97249-698-2 01 1 0208-0408 ●
195 BRACKET; JACK
(B) THA 		8-97249-698-2 01 1 0208-0408 ●
195 BRACKET; JACK
4JJ1-TCS ENG<LFB>,4JA1-T ENG<LP0> (B) THA 		8-97249-698-2 01 1 0409-0412 ●
195 BRACKET; JACK
4JJ1-TCS ENG<LFB> (B) THA 		8-97249-698-2 01 1 0409-0412 ●
195 BRACKET; JACK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97249-698-2 01 1 0501-0606 ●
195 BRACKET; JACK
4JJ1-TCS ENG<LFB> (B) THA 		8-97249-698-2 01 1 0501-0606 ●
195 BRACKET; JACK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97249-698-2 01 1 0607-0608 ●
195 BRACKET; JACK
4JJ1-TCS ENG<LFB> (B) THA 		8-97249-698-2 01 1 0607-0608 ●
195 BRACKET; JACK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97249-698-2 01 1 0609-0708 ●
195 BRACKET; JACK
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (B) THA 		8-97249-698-2 01 1 0609-0708 ●
195 BRACKET; JACK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) THA 		8-97249-698-2 01 1 0709-0709 ●
195 BRACKET; JACK
4JJ1-TCS ENG<LFB> (B) THA 		8-97249-698-2 01 1 0709-0709 ●
195 BRACKET; JACK
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> (B) THA 		8-97249-698-2 01 1 0710- ●
195 BRACKET; JACK
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (B) THA 		8-97249-698-2 01 1 0710- ●
224 BAND; RUBBER,JACK
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-864-0 01 1 0204-0207 ● ●
224 BAND; RUBBER,JACK
THA 		8-97248-864-0 01 1 0204-0207 ●
224 BAND; RUBBER,JACK
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-864-0 01 1 0208-0408 ● ● ●
224 BAND; RUBBER,JACK
THA 		8-97248-864-0 01 1 0208-0408 ● ●
224 BAND; RUBBER,JACK
THA 		8-97248-864-0 01 1 0409-0606 ● ● ● ● ●
224 BAND; RUBBER,JACK
THA 		8-98027-837-0 01 1 0607- ● ● ● ● ●
237 BAG; TOOL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-885-1 01 1 0204-0207 ● ●
237 BAG; TOOL
THA 		8-97248-885-1 01 1 0204-0207 ●
237 BAG; TOOL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-885-1 01 1 0208-0408 ● ● ●
237 BAG; TOOL
THA 		8-97248-885-1 01 1 0208-0408 ● ●
237 BAG; TOOL
THA 		8-97248-885-1 01 1 0409-0606 ● ● ● ● ●
237 BAG; TOOL
THA 		8-97945-395-0 01 1 0607- ● ● ● ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		1-09981-438-0 02 1 0607-0611 ● ● ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		8-98049-085-0 02 1 0612-0709 ● ● ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		8-98049-085-0 02 1 0710- ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		1-09981-438-0 02 1 0204-0207 ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		1-09981-438-0 02 1 0208-0606 ● ● ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		1-09981-438-0 03 1 0204-0606 ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		1-09981-438-0 03 1 0607-0611 ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		8-98049-085-0 03 1 0612- ●

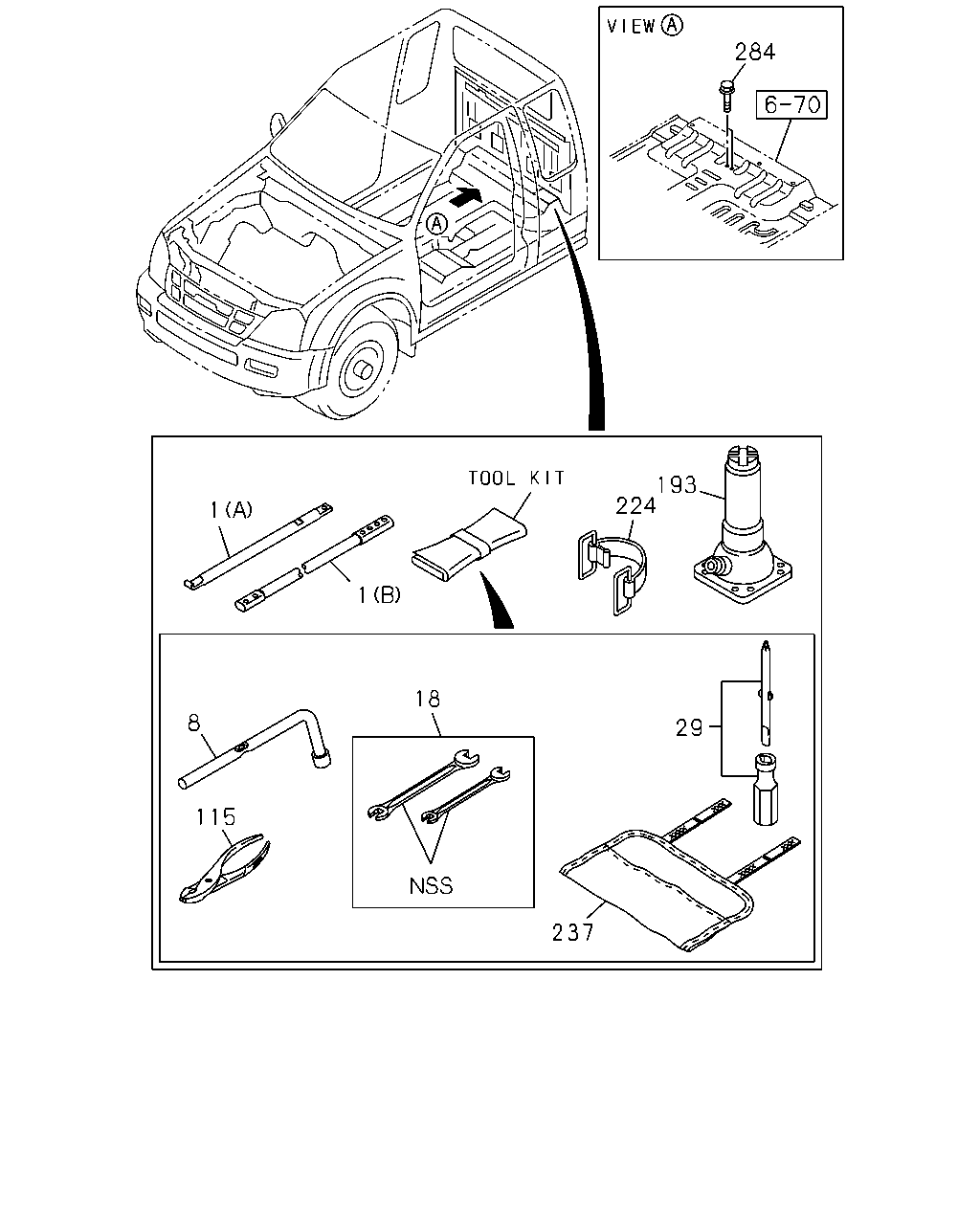

çizim 116729
284 193 224 1 1 18 8 29 115 237
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HANDLE; SPARE TIRE CARRIER
4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) THA 		8-97215-330-0 01 1 0204-0207 ● ●
1 HANDLE; SPARE TIRE CARRIER
(A) THA 		8-97215-330-0 01 1 0204-0207 ●
1 HANDLE; SPARE TIRE CARRIER
4JH1 ENG<RJX>,4JA1 ENG<RLE> (A) THA 		8-97215-330-0 01 1 0208-0408 ● ● ●
1 HANDLE; SPARE TIRE CARRIER
(A) THA 		8-97215-330-0 01 1 0208-0408 ● ●
1 HANDLE; SPARE TIRE CARRIER
(A) THA 		8-97215-330-0 01 1 0409- ● ● ● ● ●
1 HANDLE; SPARE TIRE CARRIER
4JH1 ENG<RJX>,4JA1 ENG<RLE> (B) THA 		8-97215-332-0 03 1 0204-0207 ● ●
1 HANDLE; SPARE TIRE CARRIER
(B) THA 		8-97215-332-0 03 1 0204-0207 ●
1 HANDLE; SPARE TIRE CARRIER
4JH1 ENG<RJX>,4JA1 ENG<RLE> (B) THA 		8-97215-332-0 03 1 0208-0408 ● ● ●
1 HANDLE; SPARE TIRE CARRIER
(B) THA 		8-97215-332-0 03 1 0208-0408 ● ●
1 HANDLE; SPARE TIRE CARRIER
(B) THA 		8-97215-332-0 03 1 0409- ● ● ● ● ●
8 WRENCH; WHEEL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97217-790-0 01 1 0204-0207 ● ●
8 WRENCH; WHEEL
THA 		8-97217-790-0 01 1 0204-0207 ●
8 WRENCH; WHEEL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97217-790-0 01 1 0208-0408 ● ● ●
8 WRENCH; WHEEL
THA 		8-97217-790-0 01 1 0208-0408 ● ●
8 WRENCH; WHEEL
THA 		8-97217-790-0 01 1 0409-0606 ● ● ● ● ●
8 WRENCH; WHEEL
L=19 THA 		8-98027-834-0 01 1 0607- ● ● ● ● ●
18 WRENCH KIT
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-884-0 01 1 0204-0207 ● ●
18 WRENCH KIT
THA 		8-97248-884-0 01 1 0204-0207 ●
18 WRENCH KIT
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-884-0 01 1 0208-0408 ● ● ●
18 WRENCH KIT
THA 		8-97248-884-0 01 1 0208-0408 ● ●
18 WRENCH KIT
THA 		8-97248-884-0 01 1 0409-0606 ● ● ● ● ●
18 WRENCH KIT
8X10,12X14 THA 		8-97945-273-0 01 1 0607- ● ● ● ● ●
29 DRIVER; SCREW
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-870-0 01 1 0204-0207 ● ●
29 DRIVER; SCREW
THA 		8-97248-870-0 01 1 0204-0207 ●
29 DRIVER; SCREW
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-870-0 01 1 0208-0408 ● ● ●
29 DRIVER; SCREW
THA 		8-97248-870-0 01 1 0208-0408 ● ●
29 DRIVER; SCREW
THA 		8-97248-870-0 01 1 0409-0606 ● ● ● ● ●
29 DRIVER; SCREW
THA 		8-98027-833-0 01 1 0607- ● ● ● ● ●
115 PLIER
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-869-0 01 1 0204-0207 ● ●
115 PLIER
THA 		8-97248-869-0 01 1 0204-0207 ●
115 PLIER
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-869-0 01 1 0208-0408 ● ● ●
115 PLIER
THA 		8-97248-869-0 01 1 0208-0408 ● ●
115 PLIER
THA 		8-97248-869-0 01 1 0409-0606 ● ● ● ● ●
115 PLIER
THA 		8-98027-832-0 01 1 0607-0912 ● ● ● ● ●
115 PLIER
THA 		8-98099-659-0 01 1 1001- ● ● ● ● ●
193 JACK ASM
THA 		8-97217-789-1 01 1 0204-0207 ●
193 JACK ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97217-789-1 01 1 0204-0207 ●
193 JACK ASM
THA 		8-97217-789-1 01 1 0208-0307 ●
193 JACK ASM
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97217-789-1 01 1 0208-0307 ● ●
193 JACK ASM
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97217-789-1 01 1 0308- ● ● ●
193 JACK ASM
THA 		8-97217-788-1 01 1 0204-0207 ●
193 JACK ASM
THA 		8-97217-788-1 01 1 0208-0307 ● ●
193 JACK ASM
HIGH RIDE SUSPENSION<7YC> THA 		8-97217-788-1 01 1 0308- ● ●
193 JACK ASM
THA 		8-97217-788-1 01 1 0308- ● ●
224 BAND; RUBBER,JACK
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-864-0 01 1 0204-0207 ● ●
224 BAND; RUBBER,JACK
THA 		8-97248-864-0 01 1 0204-0207 ●
224 BAND; RUBBER,JACK
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-864-0 01 1 0208-0408 ● ● ●
224 BAND; RUBBER,JACK
THA 		8-97248-864-0 01 1 0208-0408 ● ●
224 BAND; RUBBER,JACK
THA 		8-97248-864-0 01 1 0409-0606 ● ● ● ● ●
224 BAND; RUBBER,JACK
THA 		8-98027-837-0 01 1 0607- ● ● ● ● ●
237 BAG; TOOL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-885-1 01 1 0204-0207 ● ●
237 BAG; TOOL
THA 		8-97248-885-1 01 1 0204-0207 ●
237 BAG; TOOL
4JH1 ENG<RJX>,4JA1 ENG<RLE> THA 		8-97248-885-1 01 1 0208-0408 ● ● ●
237 BAG; TOOL
THA 		8-97248-885-1 01 1 0208-0408 ● ●
237 BAG; TOOL
THA 		8-97248-885-1 01 1 0409-0606 ● ● ● ● ●
237 BAG; TOOL
THA 		8-97945-395-0 01 1 0607- ● ● ● ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		1-09981-438-0 02 1 0607-0611 ● ● ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		8-98049-085-0 02 1 0612-0709 ● ● ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		8-98049-085-0 02 1 0710- ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		1-09981-438-0 02 1 0204-0207 ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		1-09981-438-0 02 1 0208-0606 ● ● ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		1-09981-438-0 03 1 0204-0606 ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		1-09981-438-0 03 1 0607-0611 ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER THA 		8-98049-085-0 03 1 0612- ●
