Sayfa 8-74 - Isuzu EPC

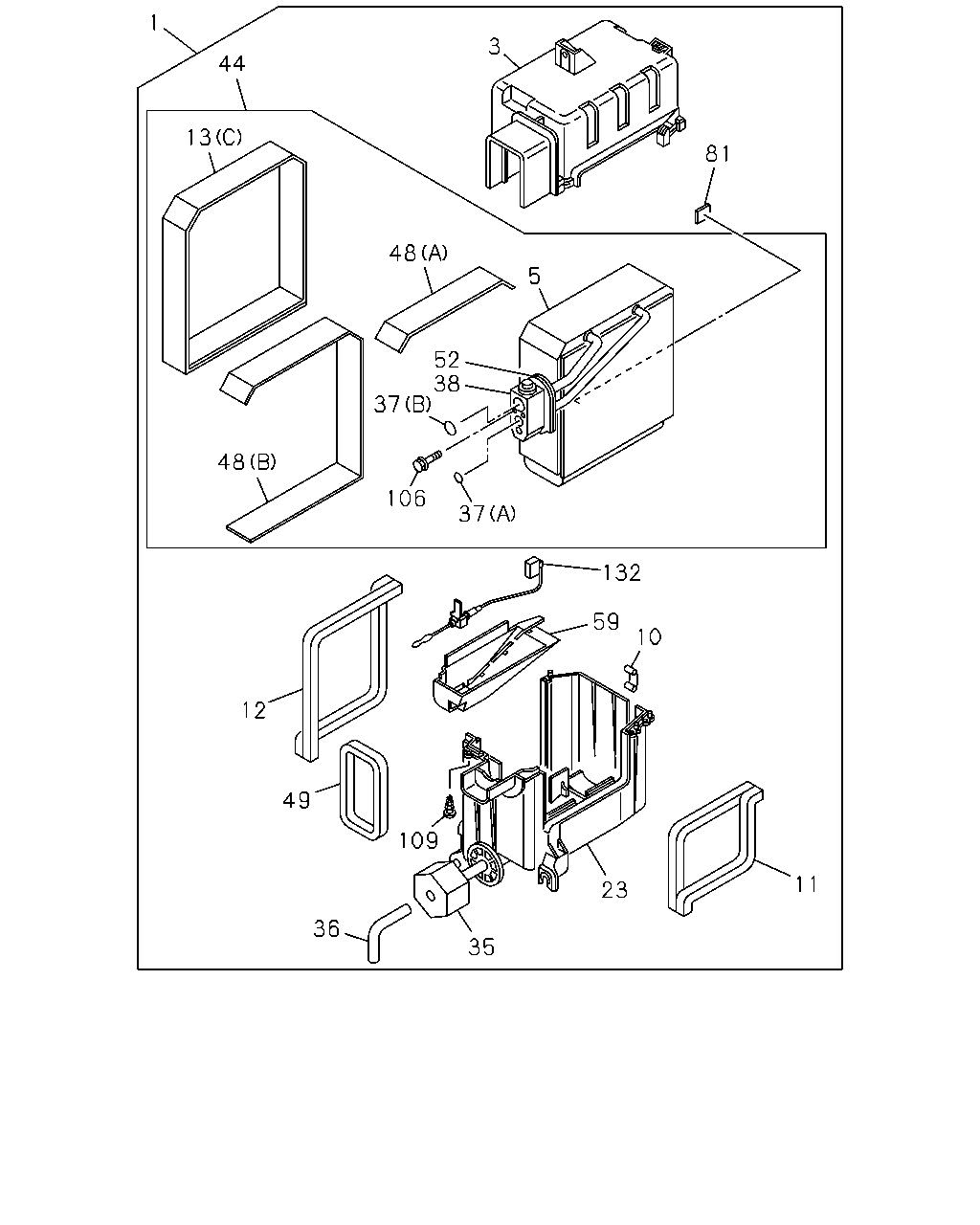

8-74 — EVAPORATOR (#73883) — 536 parça

1 3 44 13 81 48 5 52 38 37 48 106 37 132 59 10 12 49 109 11 23 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	EVAPORATOR ASM THA	8-97248-946-2	01	1	0204-0207	●
1	EVAPORATOR ASM COOLER WO/HEATER<YL1> THA	8-97248-946-2	01	1	0204-0207		●	●
1	EVAPORATOR ASM THA	8-97248-946-2	01	1	0208-0404	●			●	●
1	EVAPORATOR ASM COOLER WO/HEATER<YL1> THA	8-97248-946-2	01	1	0208-0404		●	●
1	EVAPORATOR ASM THA	8-97365-295-0	01	1	0405-0408	●			●	●
1	EVAPORATOR ASM COOLER WO/HEATER<YL1> THA	8-97365-295-0	01	1	0405-0408		●	●
1	EVAPORATOR ASM 4JA1-T ENG<LP0> THA	8-97365-295-0	01	1	0409-0412	●			●
1	EVAPORATOR ASM 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA	8-97365-295-0	01	1	0409-0412		●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB> THA	8-97388-776-0	01	1	0409-0412	●		●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97388-776-0	01	1	0501-0503	●	●	●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-98000-724-0	01	1	0504-0606	●	●	●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98045-303-0	01	1	0607-0608	●	●	●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98045-303-0	01	1	0609-0701	●	●	●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-494-0	01	1	0702-0708	●	●	●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98086-166-0	01	1	0709-0709	●	●	●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98086-166-0	01	1	0710-	●	●	●	●	●
3	CASE; EVAP,UPR THA	8-97321-144-0	01	1	0204-0207	●
3	CASE; EVAP,UPR COOLER WO/HEATER<YL1> THA	8-97321-144-0	01	1	0204-0207		●	●
3	CASE; EVAP,UPR THA	8-97321-144-0	01	1	0208-0408	●			●	●
3	CASE; EVAP,UPR COOLER WO/HEATER<YL1> THA	8-97321-144-0	01	1	0208-0408		●	●
3	CASE; EVAP,UPR THA	8-97321-144-0	01	1	0409-0412	●		●	●	●
3	CASE; EVAP,UPR COOLER WO/HEATER<C65> THA	8-97321-144-0	01	1	0409-0412		●
3	CASE; EVAP,UPR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-144-0	01	1	0501-0606	●	●	●	●	●
3	CASE; EVAP,UPR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-332-0	01	1	0607-0608	●	●	●	●	●
3	CASE; EVAP,UPR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-332-0	01	1	0609-0708	●	●	●	●	●
3	CASE; EVAP,UPR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-332-0	01	1	0709-0709	●	●	●	●	●
3	CASE; EVAP,UPR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-332-0	01	1	0710-	●	●	●	●	●
5	EVAPORATOR THA	8-97321-148-0	01	1	0204-0207	●
5	EVAPORATOR COOLER WO/HEATER<YL1> THA	8-97321-148-0	01	1	0204-0207		●	●
5	EVAPORATOR THA	8-97321-148-0	01	1	0208-0408	●			●	●
5	EVAPORATOR COOLER WO/HEATER<YL1> THA	8-97321-148-0	01	1	0208-0408		●	●
5	EVAPORATOR THA	8-97321-148-0	01	1	0409-0412	●		●	●	●
5	EVAPORATOR COOLER WO/HEATER<C65> THA	8-97321-148-0	01	1	0409-0412		●
5	EVAPORATOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-148-0	01	1	0501-0606	●	●	●	●	●
5	EVAPORATOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-342-0	01	1	0607-0608	●	●	●	●	●
5	EVAPORATOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-342-0	01	1	0609-0701	●	●	●	●	●
5	EVAPORATOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-687-0	01	1	0702-0708	●	●	●	●	●
5	EVAPORATOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98063-687-0	01	1	0709-0709	●	●	●	●	●
5	EVAPORATOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-687-0	01	1	0710-	●	●	●	●	●
10	CLIP; EVAP CASE THA	8-97321-166-0	01	1	0204-0207	●
10	CLIP; EVAP CASE COOLER WO/HEATER<YL1> THA	8-97321-166-0	01	1	0204-0207		●	●
10	CLIP; EVAP CASE THA	8-97321-166-0	01	1	0208-0408	●			●	●
10	CLIP; EVAP CASE COOLER WO/HEATER<YL1> THA	8-97321-166-0	01	1	0208-0408		●	●
10	CLIP; EVAP CASE THA	8-97321-166-0	01	1	0409-0412	●		●	●	●
10	CLIP; EVAP CASE COOLER WO/HEATER<C65> THA	8-97321-166-0	01	1	0409-0412		●
10	CLIP; EVAP CASE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-166-0	01	1	0501-0606	●	●	●	●	●
10	CLIP; EVAP CASE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-166-0	01	1	0607-0608	●	●	●	●	●
10	CLIP; EVAP CASE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-166-0	01	1	0609-0708	●	●	●	●	●
10	CLIP; EVAP CASE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98088-089-0	01	1	0709-0709	●	●	●	●	●
10	CLIP; EVAP CASE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98088-089-0	01	1	0710-	●	●	●	●	●
11	LINING; EVAP A/C THA	8-97321-159-0	01	1	0204-0207	●
11	LINING; EVAP A/C COOLER WO/HEATER<YL1> THA	8-97321-159-0	01	1	0204-0207		●	●
11	LINING; EVAP A/C THA	8-97321-159-0	01	1	0208-0408	●			●	●
11	LINING; EVAP A/C COOLER WO/HEATER<YL1> THA	8-97321-159-0	01	1	0208-0408		●	●
11	LINING; EVAP A/C THA	8-97321-159-0	01	1	0409-0412	●		●	●	●
11	LINING; EVAP A/C COOLER WO/HEATER<C65> THA	8-97321-159-0	01	1	0409-0412		●
11	LINING; EVAP A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-159-0	01	1	0501-0606	●	●	●	●	●
11	LINING; EVAP A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-159-0	01	1	0607-0608	●	●	●	●	●
11	LINING; EVAP A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-159-0	01	1	0609-0708	●	●	●	●	●
11	LINING; EVAP A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-159-0	01	1	0709-0709	●	●	●	●	●
11	LINING; EVAP A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-159-0	01	1	0710-	●	●	●	●	●
12	LINING; EVAP THA	8-97321-160-0	01	1	0204-0207	●
12	LINING; EVAP COOLER WO/HEATER<YL1> THA	8-97321-160-0	01	1	0204-0207		●	●
12	LINING; EVAP THA	8-97321-160-0	01	1	0208-0408	●			●	●
12	LINING; EVAP COOLER WO/HEATER<YL1> THA	8-97321-160-0	01	1	0208-0408		●	●
12	LINING; EVAP THA	8-97321-160-0	01	1	0409-0412	●		●	●	●
12	LINING; EVAP COOLER WO/HEATER<C65> THA	8-97321-160-0	01	1	0409-0412		●
12	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-160-0	01	1	0501-0606	●	●	●	●	●
12	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-160-0	01	1	0607-0608	●	●	●	●	●
12	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-160-0	01	1	0609-0701	●	●	●	●	●
12	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-684-0	01	1	0702-0708	●	●	●	●	●
12	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98063-684-0	01	1	0709-0709	●	●	●	●	●
12	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-684-0	01	1	0710-	●	●	●	●	●
13	SEAL; EVAP (A) THA	8-97321-150-0	01	1	0204-0207	●
13	SEAL; EVAP COOLER WO/HEATER<YL1> (A) THA	8-97321-150-0	01	1	0204-0207		●	●
13	SEAL; EVAP (A) THA	8-97321-150-0	01	1	0208-0408	●			●	●
13	SEAL; EVAP COOLER WO/HEATER<YL1> (A) THA	8-97321-150-0	01	1	0208-0408		●	●
13	SEAL; EVAP 4JA1-T ENG<LP0> (A) THA	8-97321-150-0	01	1	0409-0412	●			●
13	SEAL; EVAP 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (A) THA	8-97321-150-0	01	1	0409-0412		●
13	SEAL; EVAP (B) THA	8-97321-151-0	01	1	0204-0207	●
13	SEAL; EVAP COOLER WO/HEATER<YL1> (B) THA	8-97321-151-0	01	1	0204-0207		●	●
13	SEAL; EVAP (B) THA	8-97321-151-0	01	1	0208-0408	●			●	●
13	SEAL; EVAP COOLER WO/HEATER<YL1> (B) THA	8-97321-151-0	01	1	0208-0408		●	●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB> (A) THA	8-97370-355-0	01	1	0409-0412	●		●	●	●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (A) THA	8-97370-355-0	01	1	0501-0606	●	●	●	●	●
13	SEAL; EVAP (B) THA	8-97321-151-0	01	1	0409-0412	●		●	●	●
13	SEAL; EVAP COOLER WO/HEATER<C65> (B) THA	8-97321-151-0	01	1	0409-0412		●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (B) THA	8-97321-151-0	01	1	0501-0606	●	●	●	●	●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-98055-345-0	01	1	0607-0608	●	●	●	●	●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-98055-345-0	01	1	0609-0708	●	●	●	●	●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-98055-345-0	01	1	0709-0709	●	●	●	●	●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-98055-345-0	01	1	0710-	●	●	●	●	●
23	CASE; EVAP,LWR THA	8-97321-145-0	01	1	0204-0207	●
23	CASE; EVAP,LWR COOLER WO/HEATER<YL1> THA	8-97321-145-0	01	1	0204-0207		●	●
23	CASE; EVAP,LWR THA	8-97321-145-0	01	1	0208-0408	●			●	●
23	CASE; EVAP,LWR COOLER WO/HEATER<YL1> THA	8-97321-145-0	01	1	0208-0408		●	●
23	CASE; EVAP,LWR THA	8-97321-145-0	01	1	0409-0412	●		●	●	●
23	CASE; EVAP,LWR COOLER WO/HEATER<C65> THA	8-97321-145-0	01	1	0409-0412		●
23	CASE; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-145-0	01	1	0501-0606	●	●	●	●	●
23	CASE; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-336-0	01	1	0607-0608	●	●	●	●	●
23	CASE; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-336-0	01	1	0609-0708	●	●	●	●	●
23	CASE; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-336-0	01	1	0709-0709	●	●	●	●	●
23	CASE; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-336-0	01	1	0710-	●	●	●	●	●
35	GROMMET; EVAP,LOW THA	8-97321-157-0	01	1	0204-0207	●
35	GROMMET; EVAP,LOW COOLER WO/HEATER<YL1> THA	8-97321-157-0	01	1	0204-0207		●	●
35	GROMMET; EVAP,LOW THA	8-97321-157-0	01	1	0208-0408	●			●	●
35	GROMMET; EVAP,LOW COOLER WO/HEATER<YL1> THA	8-97321-157-0	01	1	0208-0408		●	●
35	GROMMET; EVAP,LOW THA	8-97321-157-0	01	1	0409-0412	●		●	●	●
35	GROMMET; EVAP,LOW COOLER WO/HEATER<C65> THA	8-97321-157-0	01	1	0409-0412		●
35	GROMMET; EVAP,LOW 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-157-0	01	1	0501-0606	●	●	●	●	●
35	GROMMET; EVAP,LOW 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-157-0	01	1	0607-0608	●	●	●	●	●
35	GROMMET; EVAP,LOW 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-157-0	01	1	0609-0708	●	●	●	●	●
35	GROMMET; EVAP,LOW 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-157-0	01	1	0709-0709	●	●	●	●	●
35	GROMMET; EVAP,LOW 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-157-0	01	1	0710-	●	●	●	●	●
36	HOSE; DRAIN EVAP THA	8-97324-579-0	01	1	0204-0207	●
36	HOSE; DRAIN EVAP COOLER WO/HEATER<YL1> THA	8-97324-579-0	01	1	0204-0207		●	●
36	HOSE; DRAIN EVAP THA	8-97324-579-0	01	1	0208-0408	●			●	●
36	HOSE; DRAIN EVAP COOLER WO/HEATER<YL1> THA	8-97324-579-0	01	1	0208-0408		●	●
36	HOSE; DRAIN EVAP THA	8-97324-579-0	01	1	0409-0412	●		●	●	●
36	HOSE; DRAIN EVAP COOLER WO/HEATER<C65> THA	8-97324-579-0	01	1	0409-0412		●
36	HOSE; DRAIN EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97324-579-0	01	1	0501-0606	●	●	●	●	●
36	HOSE; DRAIN EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97324-579-0	01	1	0607-0608	●	●	●	●	●
36	HOSE; DRAIN EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97324-579-0	01	1	0609-0708	●	●	●	●	●
36	HOSE; DRAIN EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97324-579-0	01	1	0709-0709	●	●	●	●	●
36	HOSE; DRAIN EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97324-579-0	01	1	0710-	●	●	●	●	●
37	GASKET; EVAP (A) THA	8-97321-154-0	01	1	0204-0207	●
37	GASKET; EVAP COOLER WO/HEATER<YL1> (A) THA	8-97321-154-0	01	1	0204-0207		●	●
37	GASKET; EVAP (A) THA	8-97321-154-0	01	1	0208-0408	●			●	●
37	GASKET; EVAP COOLER WO/HEATER<YL1> (A) THA	8-97321-154-0	01	1	0208-0408		●	●
37	GASKET; EVAP (A) THA	8-97321-154-0	01	1	0409-0412	●		●	●	●
37	GASKET; EVAP COOLER WO/HEATER<C65> (A) THA	8-97321-154-0	01	1	0409-0412		●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (A) THA	8-97321-154-0	01	1	0501-0606	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (A) THA	8-97321-154-0	01	1	0607-0608	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (A) THA	8-97321-154-0	01	1	0609-0708	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (A) THA	8-97321-154-0	01	1	0709-0709	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (A) THA	8-97321-154-0	01	1	0710-	●	●	●	●	●
37	GASKET; EVAP (B) THA	8-97321-155-0	01	1	0204-0207	●
37	GASKET; EVAP COOLER WO/HEATER<YL1> (B) THA	8-97321-155-0	01	1	0204-0207		●	●
37	GASKET; EVAP (B) THA	8-97321-155-0	01	1	0208-0408	●			●	●
37	GASKET; EVAP COOLER WO/HEATER<YL1> (B) THA	8-97321-155-0	01	1	0208-0408		●	●
37	GASKET; EVAP (B) THA	8-97321-155-0	01	1	0409-0412	●		●	●	●
37	GASKET; EVAP COOLER WO/HEATER<C65> (B) THA	8-97321-155-0	01	1	0409-0412		●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (B) THA	8-97321-155-0	01	1	0501-0606	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (B) THA	8-97321-155-0	01	1	0607-0608	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (B) THA	8-97321-155-0	01	1	0609-0708	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (B) THA	8-97321-155-0	01	1	0709-0709	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (B) THA	8-97321-155-0	01	1	0710-	●	●	●	●	●
38	VALVE; EXPANSION THA	8-97321-149-0	01	1	0204-0207	●
38	VALVE; EXPANSION COOLER WO/HEATER<YL1> THA	8-97321-149-0	01	1	0204-0207		●	●
38	VALVE; EXPANSION THA	8-97321-149-0	01	1	0208-0404	●			●	●
38	VALVE; EXPANSION COOLER WO/HEATER<YL1> THA	8-97321-149-0	01	1	0208-0404		●	●
38	VALVE; EXPANSION THA	8-97381-265-0	01	1	0405-0408	●			●	●
38	VALVE; EXPANSION COOLER WO/HEATER<YL1> THA	8-97381-265-0	01	1	0405-0408		●	●
38	VALVE; EXPANSION THA	8-97381-265-0	01	1	0409-0412	●		●	●	●
38	VALVE; EXPANSION COOLER WO/HEATER<C65> THA	8-97381-265-0	01	1	0409-0412		●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97381-265-0	01	1	0501-0503	●	●	●	●	●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97370-353-0	01	1	0504-0606	●	●	●	●	●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-344-0	01	1	0607-0608	●	●	●	●	●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-344-0	01	1	0609-0701	●	●	●	●	●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-690-0	01	1	0702-0708	●	●	●	●	●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98063-690-0	01	1	0709-0709	●	●	●	●	●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-690-0	01	1	0710-	●	●	●	●	●
44	EVAPORATOR ASM; A/C THA	8-97321-147-0	01	1	0204-0207	●
44	EVAPORATOR ASM; A/C COOLER WO/HEATER<YL1> THA	8-97321-147-0	01	1	0204-0207		●	●
44	EVAPORATOR ASM; A/C THA	8-97321-147-0	01	1	0208-0408	●			●	●
44	EVAPORATOR ASM; A/C COOLER WO/HEATER<YL1> THA	8-97321-147-0	01	1	0208-0408		●	●
44	EVAPORATOR ASM; A/C 4JA1-T ENG<LP0> THA	8-97321-147-0	01	1	0409-0412	●			●
44	EVAPORATOR ASM; A/C 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA	8-97321-147-0	01	1	0409-0412		●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB> THA	8-97381-618-0	01	1	0409-0412	●		●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97381-618-0	01	1	0501-0503	●	●	●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-98018-520-0	01	1	0504-0606	●	●	●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-340-0	01	1	0607-0608	●	●	●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-340-0	01	1	0609-0701	●	●	●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-685-0	01	1	0702-0708	●	●	●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98090-235-0	01	1	0709-0709	●	●	●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98090-235-0	01	1	0710-	●	●	●	●	●
48	INSULATOR; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (A) THA	8-98055-347-0	01	1	0607-0608	●	●	●	●	●
48	INSULATOR; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (A) THA	8-98055-347-0	01	1	0609-0708	●	●	●	●	●
48	INSULATOR; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (B) THA	8-98090-228-0	01	1	0709-0709	●	●	●	●	●
48	INSULATOR; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (B) THA	8-98090-228-0	01	1	0710-	●	●	●	●	●
48	INSULATOR; EVAP 4JJ1-TCS ENG<LFB> (A) THA	8-98000-432-0	02	1	0409-0412	●		●	●	●
48	INSULATOR; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (A) THA	8-98000-432-0	02	1	0501-0503	●	●	●	●	●
49	GROMMET; EVAP THA	8-97321-158-1	01	1	0204-0207	●
49	GROMMET; EVAP COOLER WO/HEATER<YL1> THA	8-97321-158-1	01	1	0204-0207		●	●
49	GROMMET; EVAP THA	8-97321-158-1	01	1	0208-0408	●			●	●
49	GROMMET; EVAP COOLER WO/HEATER<YL1> THA	8-97321-158-1	01	1	0208-0408		●	●
49	GROMMET; EVAP THA	8-97321-158-1	01	1	0409-0412	●		●	●	●
49	GROMMET; EVAP COOLER WO/HEATER<C65> THA	8-97321-158-1	01	1	0409-0412		●
49	GROMMET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-158-1	01	1	0501-0606	●	●	●	●	●
49	GROMMET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-158-1	01	1	0607-0608	●	●	●	●	●
49	GROMMET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-158-1	01	1	0609-0708	●	●	●	●	●
49	GROMMET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-158-1	01	1	0709-0709	●	●	●	●	●
49	GROMMET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-158-1	01	1	0710-	●	●	●	●	●
52	GROMMET; EVAP,A/C THA	8-97321-152-0	01	1	0204-0207	●
52	GROMMET; EVAP,A/C COOLER WO/HEATER<YL1> THA	8-97321-152-0	01	1	0204-0207		●	●
52	GROMMET; EVAP,A/C THA	8-97321-152-0	01	1	0208-0408	●			●	●
52	GROMMET; EVAP,A/C COOLER WO/HEATER<YL1> THA	8-97321-152-0	01	1	0208-0408		●	●
52	GROMMET; EVAP,A/C THA	8-97321-152-0	01	1	0409-0412	●		●	●	●
52	GROMMET; EVAP,A/C COOLER WO/HEATER<C65> THA	8-97321-152-0	01	1	0409-0412		●
52	GROMMET; EVAP,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-152-0	01	1	0501-0606	●	●	●	●	●
52	GROMMET; EVAP,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-152-0	01	1	0607-0608	●	●	●	●	●
52	GROMMET; EVAP,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-152-0	01	1	0609-0708	●	●	●	●	●
52	GROMMET; EVAP,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-152-0	01	1	0709-0709	●	●	●	●	●
52	GROMMET; EVAP,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-152-0	01	1	0710-	●	●	●	●	●
59	LINING; EVAP,LWR THA	8-97321-146-0	01	1	0204-0207	●
59	LINING; EVAP,LWR COOLER WO/HEATER<YL1> THA	8-97321-146-0	01	1	0204-0207		●	●
59	LINING; EVAP,LWR THA	8-97321-146-0	01	1	0208-0408	●			●	●
59	LINING; EVAP,LWR COOLER WO/HEATER<YL1> THA	8-97321-146-0	01	1	0208-0408		●	●
59	LINING; EVAP,LWR THA	8-97321-146-0	01	1	0409-0412	●		●	●	●
59	LINING; EVAP,LWR COOLER WO/HEATER<C65> THA	8-97321-146-0	01	1	0409-0412		●
59	LINING; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-146-0	01	1	0501-0606	●	●	●	●	●
59	LINING; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-146-0	01	1	0607-0608	●	●	●	●	●
59	LINING; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-146-0	01	1	0609-0708	●	●	●	●	●
59	LINING; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-146-0	01	1	0709-0709	●	●	●	●	●
59	LINING; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-146-0	01	1	0710-	●	●	●	●	●
81	CLIP; THERMOSTAT A/C THA	8-97321-161-0	01	1	0204-0207	●
81	CLIP; THERMOSTAT A/C COOLER WO/HEATER<YL1> THA	8-97321-161-0	01	1	0204-0207		●	●
81	CLIP; THERMOSTAT A/C THA	8-97321-161-0	01	1	0208-0408	●			●	●
81	CLIP; THERMOSTAT A/C COOLER WO/HEATER<YL1> THA	8-97321-161-0	01	1	0208-0408		●	●
81	CLIP; THERMOSTAT A/C THA	8-97321-161-0	01	1	0409-0412	●		●	●	●
81	CLIP; THERMOSTAT A/C COOLER WO/HEATER<C65> THA	8-97321-161-0	01	1	0409-0412		●
81	CLIP; THERMOSTAT A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-161-0	01	1	0501-0606	●	●	●	●	●
81	CLIP; THERMOSTAT A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-161-0	01	1	0607-0608	●	●	●	●	●
81	CLIP; THERMOSTAT A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-161-0	01	1	0609-0708	●	●	●	●	●
81	CLIP; THERMOSTAT A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-161-0	01	1	0709-0709	●	●	●	●	●
81	CLIP; THERMOSTAT A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-161-0	01	1	0710-	●	●	●	●	●
106	BOLT; EXPANSION VLV THA	8-97321-153-0	02	1	0204-0207	●
106	BOLT; EXPANSION VLV COOLER WO/HEATER<YL1> THA	8-97321-153-0	02	1	0204-0207		●	●
106	BOLT; EXPANSION VLV THA	8-97321-153-0	02	1	0208-0408	●			●	●
106	BOLT; EXPANSION VLV COOLER WO/HEATER<YL1> THA	8-97321-153-0	02	1	0208-0408		●	●
106	BOLT; EXPANSION VLV THA	8-97321-153-0	02	1	0409-0412	●		●	●	●
106	BOLT; EXPANSION VLV COOLER WO/HEATER<C65> THA	8-97321-153-0	02	1	0409-0412		●
106	BOLT; EXPANSION VLV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-153-0	02	1	0501-0606	●	●	●	●	●
106	BOLT; EXPANSION VLV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-153-0	02	1	0607-0608	●	●	●	●	●
106	BOLT; EXPANSION VLV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-153-0	02	1	0609-0701	●	●	●	●	●
106	BOLT; EXPANSION VLV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98072-395-0	02	1	0702-0708	●	●	●	●	●
106	BOLT; EXPANSION VLV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98072-395-0	02	1	0709-0709	●	●	●	●	●
106	BOLT; EXPANSION VLV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98072-395-0	02	1	0710-	●	●	●	●	●
109	BOLT; EVAP THA	8-97321-165-0	05	1	0204-0207	●
109	BOLT; EVAP COOLER WO/HEATER<YL1> THA	8-97321-165-0	05	1	0204-0207		●	●
109	BOLT; EVAP THA	8-97321-165-0	05	1	0208-0404	●			●	●
109	BOLT; EVAP COOLER WO/HEATER<YL1> THA	8-97321-165-0	05	1	0208-0404		●	●
109	BOLT; EVAP THA	8-97321-165-0	04	1	0405-0408	●			●	●
109	BOLT; EVAP COOLER WO/HEATER<YL1> THA	8-97321-165-0	04	1	0405-0408		●	●
109	BOLT; EVAP THA	8-97321-165-0	04	1	0409-0412	●		●	●	●
109	BOLT; EVAP COOLER WO/HEATER<C65> THA	8-97321-165-0	04	1	0409-0412		●
109	BOLT; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-165-0	04	1	0501-0606	●	●	●	●	●
109	BOLT; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-165-0	04	1	0607-0608	●	●	●	●	●
109	BOLT; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-165-0	04	1	0609-0701	●	●	●	●	●
109	BOLT; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98071-323-0	04	1	0702-0708	●	●	●	●	●
109	BOLT; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98071-323-0	04	1	0709-0709	●	●	●	●	●
109	BOLT; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98071-323-0	04	1	0710-	●	●	●	●	●
132	AMPLIFIER; EVAP THA	8-97321-163-0	01	1	0204-0207	●
132	AMPLIFIER; EVAP COOLER WO/HEATER<YL1> THA	8-97321-163-0	01	1	0204-0207		●	●
132	AMPLIFIER; EVAP THA	8-97321-163-0	01	1	0208-0408	●			●	●
132	AMPLIFIER; EVAP COOLER WO/HEATER<YL1> THA	8-97321-163-0	01	1	0208-0408		●	●
132	AMPLIFIER; EVAP THA	8-97321-163-0	01	1	0409-0412	●		●	●	●
132	AMPLIFIER; EVAP COOLER WO/HEATER<C65> THA	8-97321-163-0	01	1	0409-0412		●
132	AMPLIFIER; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-163-0	01	1	0501-0606	●	●	●	●	●
132	AMPLIFIER; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-163-0	01	1	0607-0608	●	●	●	●	●
132	AMPLIFIER; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-163-0	01	1	0609-0708	●	●	●	●	●
132	AMPLIFIER; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-163-0	01	1	0709-0709	●	●	●	●	●
132	AMPLIFIER; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-163-0	01	1	0710-	●	●	●	●	●

1 3 44 81 13 52 38 37 5 33 106 37 13 132 138 59 10 11 49 109 12 23 36 35 48 33 48 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	EVAPORATOR ASM THA	8-97248-946-2	01	1	0204-0207	●
1	EVAPORATOR ASM COOLER WO/HEATER<YL1> THA	8-97248-946-2	01	1	0204-0207		●	●
1	EVAPORATOR ASM THA	8-97248-946-2	01	1	0208-0404	●			●	●
1	EVAPORATOR ASM COOLER WO/HEATER<YL1> THA	8-97248-946-2	01	1	0208-0404		●	●
1	EVAPORATOR ASM THA	8-97365-295-0	01	1	0405-0408	●			●	●
1	EVAPORATOR ASM COOLER WO/HEATER<YL1> THA	8-97365-295-0	01	1	0405-0408		●	●
1	EVAPORATOR ASM 4JA1-T ENG<LP0> THA	8-97365-295-0	01	1	0409-0412	●			●
1	EVAPORATOR ASM 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA	8-97365-295-0	01	1	0409-0412		●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB> THA	8-97388-776-0	01	1	0409-0412	●		●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97388-776-0	01	1	0501-0503	●	●	●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-98000-724-0	01	1	0504-0606	●	●	●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98045-303-0	01	1	0607-0608	●	●	●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98045-303-0	01	1	0609-0701	●	●	●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-494-0	01	1	0702-0708	●	●	●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98086-166-0	01	1	0709-0709	●	●	●	●	●
1	EVAPORATOR ASM 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98086-166-0	01	1	0710-	●	●	●	●	●
3	CASE; EVAP,UPR THA	8-97321-144-0	01	1	0204-0207	●
3	CASE; EVAP,UPR COOLER WO/HEATER<YL1> THA	8-97321-144-0	01	1	0204-0207		●	●
3	CASE; EVAP,UPR THA	8-97321-144-0	01	1	0208-0408	●			●	●
3	CASE; EVAP,UPR COOLER WO/HEATER<YL1> THA	8-97321-144-0	01	1	0208-0408		●	●
3	CASE; EVAP,UPR THA	8-97321-144-0	01	1	0409-0412	●		●	●	●
3	CASE; EVAP,UPR COOLER WO/HEATER<C65> THA	8-97321-144-0	01	1	0409-0412		●
3	CASE; EVAP,UPR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-144-0	01	1	0501-0606	●	●	●	●	●
3	CASE; EVAP,UPR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-332-0	01	1	0607-0608	●	●	●	●	●
3	CASE; EVAP,UPR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-332-0	01	1	0609-0708	●	●	●	●	●
3	CASE; EVAP,UPR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-332-0	01	1	0709-0709	●	●	●	●	●
3	CASE; EVAP,UPR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-332-0	01	1	0710-	●	●	●	●	●
5	EVAPORATOR THA	8-97321-148-0	01	1	0204-0207	●
5	EVAPORATOR COOLER WO/HEATER<YL1> THA	8-97321-148-0	01	1	0204-0207		●	●
5	EVAPORATOR THA	8-97321-148-0	01	1	0208-0408	●			●	●
5	EVAPORATOR COOLER WO/HEATER<YL1> THA	8-97321-148-0	01	1	0208-0408		●	●
5	EVAPORATOR THA	8-97321-148-0	01	1	0409-0412	●		●	●	●
5	EVAPORATOR COOLER WO/HEATER<C65> THA	8-97321-148-0	01	1	0409-0412		●
5	EVAPORATOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-148-0	01	1	0501-0606	●	●	●	●	●
5	EVAPORATOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-342-0	01	1	0607-0608	●	●	●	●	●
5	EVAPORATOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-342-0	01	1	0609-0701	●	●	●	●	●
5	EVAPORATOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-687-0	01	1	0702-0708	●	●	●	●	●
5	EVAPORATOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98063-687-0	01	1	0709-0709	●	●	●	●	●
5	EVAPORATOR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-687-0	01	1	0710-	●	●	●	●	●
10	CLIP; EVAP CASE THA	8-97321-166-0	01	1	0204-0207	●
10	CLIP; EVAP CASE COOLER WO/HEATER<YL1> THA	8-97321-166-0	01	1	0204-0207		●	●
10	CLIP; EVAP CASE THA	8-97321-166-0	01	1	0208-0408	●			●	●
10	CLIP; EVAP CASE COOLER WO/HEATER<YL1> THA	8-97321-166-0	01	1	0208-0408		●	●
10	CLIP; EVAP CASE THA	8-97321-166-0	01	1	0409-0412	●		●	●	●
10	CLIP; EVAP CASE COOLER WO/HEATER<C65> THA	8-97321-166-0	01	1	0409-0412		●
10	CLIP; EVAP CASE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-166-0	01	1	0501-0606	●	●	●	●	●
10	CLIP; EVAP CASE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-166-0	01	1	0607-0608	●	●	●	●	●
10	CLIP; EVAP CASE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-166-0	01	1	0609-0708	●	●	●	●	●
10	CLIP; EVAP CASE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98088-089-0	01	1	0709-0709	●	●	●	●	●
10	CLIP; EVAP CASE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98088-089-0	01	1	0710-	●	●	●	●	●
11	LINING; EVAP A/C THA	8-97321-159-0	01	1	0204-0207	●
11	LINING; EVAP A/C COOLER WO/HEATER<YL1> THA	8-97321-159-0	01	1	0204-0207		●	●
11	LINING; EVAP A/C THA	8-97321-159-0	01	1	0208-0408	●			●	●
11	LINING; EVAP A/C COOLER WO/HEATER<YL1> THA	8-97321-159-0	01	1	0208-0408		●	●
11	LINING; EVAP A/C THA	8-97321-159-0	01	1	0409-0412	●		●	●	●
11	LINING; EVAP A/C COOLER WO/HEATER<C65> THA	8-97321-159-0	01	1	0409-0412		●
11	LINING; EVAP A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-159-0	01	1	0501-0606	●	●	●	●	●
11	LINING; EVAP A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-159-0	01	1	0607-0608	●	●	●	●	●
11	LINING; EVAP A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-159-0	01	1	0609-0708	●	●	●	●	●
11	LINING; EVAP A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-159-0	01	1	0709-0709	●	●	●	●	●
11	LINING; EVAP A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-159-0	01	1	0710-	●	●	●	●	●
12	LINING; EVAP THA	8-97321-160-0	01	1	0204-0207	●
12	LINING; EVAP COOLER WO/HEATER<YL1> THA	8-97321-160-0	01	1	0204-0207		●	●
12	LINING; EVAP THA	8-97321-160-0	01	1	0208-0408	●			●	●
12	LINING; EVAP COOLER WO/HEATER<YL1> THA	8-97321-160-0	01	1	0208-0408		●	●
12	LINING; EVAP THA	8-97321-160-0	01	1	0409-0412	●		●	●	●
12	LINING; EVAP COOLER WO/HEATER<C65> THA	8-97321-160-0	01	1	0409-0412		●
12	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-160-0	01	1	0501-0606	●	●	●	●	●
12	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-160-0	01	1	0607-0608	●	●	●	●	●
12	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-160-0	01	1	0609-0701	●	●	●	●	●
12	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-684-0	01	1	0702-0708	●	●	●	●	●
12	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98063-684-0	01	1	0709-0709	●	●	●	●	●
12	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-684-0	01	1	0710-	●	●	●	●	●
13	SEAL; EVAP (A) THA	8-97321-150-0	01	1	0204-0207	●
13	SEAL; EVAP COOLER WO/HEATER<YL1> (A) THA	8-97321-150-0	01	1	0204-0207		●	●
13	SEAL; EVAP (A) THA	8-97321-150-0	01	1	0208-0408	●			●	●
13	SEAL; EVAP COOLER WO/HEATER<YL1> (A) THA	8-97321-150-0	01	1	0208-0408		●	●
13	SEAL; EVAP 4JA1-T ENG<LP0> (A) THA	8-97321-150-0	01	1	0409-0412	●			●
13	SEAL; EVAP 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (A) THA	8-97321-150-0	01	1	0409-0412		●
13	SEAL; EVAP (B) THA	8-97321-151-0	01	1	0204-0207	●
13	SEAL; EVAP COOLER WO/HEATER<YL1> (B) THA	8-97321-151-0	01	1	0204-0207		●	●
13	SEAL; EVAP (B) THA	8-97321-151-0	01	1	0208-0408	●			●	●
13	SEAL; EVAP COOLER WO/HEATER<YL1> (B) THA	8-97321-151-0	01	1	0208-0408		●	●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB> (A) THA	8-97370-355-0	01	1	0409-0412	●		●	●	●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (A) THA	8-97370-355-0	01	1	0501-0606	●	●	●	●	●
13	SEAL; EVAP (B) THA	8-97321-151-0	01	1	0409-0412	●		●	●	●
13	SEAL; EVAP COOLER WO/HEATER<C65> (B) THA	8-97321-151-0	01	1	0409-0412		●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (B) THA	8-97321-151-0	01	1	0501-0606	●	●	●	●	●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-98055-345-0	01	1	0607-0608	●	●	●	●	●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-98055-345-0	01	1	0609-0708	●	●	●	●	●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-98055-345-0	01	1	0709-0709	●	●	●	●	●
13	SEAL; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-98055-345-0	01	1	0710-	●	●	●	●	●
23	CASE; EVAP,LWR THA	8-97321-145-0	01	1	0204-0207	●
23	CASE; EVAP,LWR COOLER WO/HEATER<YL1> THA	8-97321-145-0	01	1	0204-0207		●	●
23	CASE; EVAP,LWR THA	8-97321-145-0	01	1	0208-0408	●			●	●
23	CASE; EVAP,LWR COOLER WO/HEATER<YL1> THA	8-97321-145-0	01	1	0208-0408		●	●
23	CASE; EVAP,LWR THA	8-97321-145-0	01	1	0409-0412	●		●	●	●
23	CASE; EVAP,LWR COOLER WO/HEATER<C65> THA	8-97321-145-0	01	1	0409-0412		●
23	CASE; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-145-0	01	1	0501-0606	●	●	●	●	●
23	CASE; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-336-0	01	1	0607-0608	●	●	●	●	●
23	CASE; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-336-0	01	1	0609-0708	●	●	●	●	●
23	CASE; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-336-0	01	1	0709-0709	●	●	●	●	●
23	CASE; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-336-0	01	1	0710-	●	●	●	●	●
33	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (B) THA	8-98018-524-0	02	1	0504-0606	●	●	●	●	●
33	LINING; EVAP 4JJ1-TCS ENG<LFB> (A) THA	8-97368-626-0	01	1	0409-0412	●		●	●	●
33	LINING; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (A) THA	8-97368-626-0	01	1	0501-0606	●	●	●	●	●
35	GROMMET; EVAP,LOW THA	8-97321-157-0	01	1	0204-0207	●
35	GROMMET; EVAP,LOW COOLER WO/HEATER<YL1> THA	8-97321-157-0	01	1	0204-0207		●	●
35	GROMMET; EVAP,LOW THA	8-97321-157-0	01	1	0208-0408	●			●	●
35	GROMMET; EVAP,LOW COOLER WO/HEATER<YL1> THA	8-97321-157-0	01	1	0208-0408		●	●
35	GROMMET; EVAP,LOW THA	8-97321-157-0	01	1	0409-0412	●		●	●	●
35	GROMMET; EVAP,LOW COOLER WO/HEATER<C65> THA	8-97321-157-0	01	1	0409-0412		●
35	GROMMET; EVAP,LOW 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-157-0	01	1	0501-0606	●	●	●	●	●
35	GROMMET; EVAP,LOW 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-157-0	01	1	0607-0608	●	●	●	●	●
35	GROMMET; EVAP,LOW 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-157-0	01	1	0609-0708	●	●	●	●	●
35	GROMMET; EVAP,LOW 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-157-0	01	1	0709-0709	●	●	●	●	●
35	GROMMET; EVAP,LOW 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-157-0	01	1	0710-	●	●	●	●	●
36	HOSE; DRAIN EVAP THA	8-97324-579-0	01	1	0204-0207	●
36	HOSE; DRAIN EVAP COOLER WO/HEATER<YL1> THA	8-97324-579-0	01	1	0204-0207		●	●
36	HOSE; DRAIN EVAP THA	8-97324-579-0	01	1	0208-0408	●			●	●
36	HOSE; DRAIN EVAP COOLER WO/HEATER<YL1> THA	8-97324-579-0	01	1	0208-0408		●	●
36	HOSE; DRAIN EVAP THA	8-97324-579-0	01	1	0409-0412	●		●	●	●
36	HOSE; DRAIN EVAP COOLER WO/HEATER<C65> THA	8-97324-579-0	01	1	0409-0412		●
36	HOSE; DRAIN EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97324-579-0	01	1	0501-0606	●	●	●	●	●
36	HOSE; DRAIN EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97324-579-0	01	1	0607-0608	●	●	●	●	●
36	HOSE; DRAIN EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97324-579-0	01	1	0609-0708	●	●	●	●	●
36	HOSE; DRAIN EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97324-579-0	01	1	0709-0709	●	●	●	●	●
36	HOSE; DRAIN EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97324-579-0	01	1	0710-	●	●	●	●	●
37	GASKET; EVAP (A) THA	8-97321-154-0	01	1	0204-0207	●
37	GASKET; EVAP COOLER WO/HEATER<YL1> (A) THA	8-97321-154-0	01	1	0204-0207		●	●
37	GASKET; EVAP (A) THA	8-97321-154-0	01	1	0208-0408	●			●	●
37	GASKET; EVAP COOLER WO/HEATER<YL1> (A) THA	8-97321-154-0	01	1	0208-0408		●	●
37	GASKET; EVAP (A) THA	8-97321-154-0	01	1	0409-0412	●		●	●	●
37	GASKET; EVAP COOLER WO/HEATER<C65> (A) THA	8-97321-154-0	01	1	0409-0412		●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (A) THA	8-97321-154-0	01	1	0501-0606	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (A) THA	8-97321-154-0	01	1	0607-0608	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (A) THA	8-97321-154-0	01	1	0609-0708	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (A) THA	8-97321-154-0	01	1	0709-0709	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (A) THA	8-97321-154-0	01	1	0710-	●	●	●	●	●
37	GASKET; EVAP (B) THA	8-97321-155-0	01	1	0204-0207	●
37	GASKET; EVAP COOLER WO/HEATER<YL1> (B) THA	8-97321-155-0	01	1	0204-0207		●	●
37	GASKET; EVAP (B) THA	8-97321-155-0	01	1	0208-0408	●			●	●
37	GASKET; EVAP COOLER WO/HEATER<YL1> (B) THA	8-97321-155-0	01	1	0208-0408		●	●
37	GASKET; EVAP (B) THA	8-97321-155-0	01	1	0409-0412	●		●	●	●
37	GASKET; EVAP COOLER WO/HEATER<C65> (B) THA	8-97321-155-0	01	1	0409-0412		●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (B) THA	8-97321-155-0	01	1	0501-0606	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (B) THA	8-97321-155-0	01	1	0607-0608	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (B) THA	8-97321-155-0	01	1	0609-0708	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (B) THA	8-97321-155-0	01	1	0709-0709	●	●	●	●	●
37	GASKET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (B) THA	8-97321-155-0	01	1	0710-	●	●	●	●	●
38	VALVE; EXPANSION THA	8-97321-149-0	01	1	0204-0207	●
38	VALVE; EXPANSION COOLER WO/HEATER<YL1> THA	8-97321-149-0	01	1	0204-0207		●	●
38	VALVE; EXPANSION THA	8-97321-149-0	01	1	0208-0404	●			●	●
38	VALVE; EXPANSION COOLER WO/HEATER<YL1> THA	8-97321-149-0	01	1	0208-0404		●	●
38	VALVE; EXPANSION THA	8-97381-265-0	01	1	0405-0408	●			●	●
38	VALVE; EXPANSION COOLER WO/HEATER<YL1> THA	8-97381-265-0	01	1	0405-0408		●	●
38	VALVE; EXPANSION THA	8-97381-265-0	01	1	0409-0412	●		●	●	●
38	VALVE; EXPANSION COOLER WO/HEATER<C65> THA	8-97381-265-0	01	1	0409-0412		●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97381-265-0	01	1	0501-0503	●	●	●	●	●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97370-353-0	01	1	0504-0606	●	●	●	●	●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-344-0	01	1	0607-0608	●	●	●	●	●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-344-0	01	1	0609-0701	●	●	●	●	●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-690-0	01	1	0702-0708	●	●	●	●	●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98063-690-0	01	1	0709-0709	●	●	●	●	●
38	VALVE; EXPANSION 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-690-0	01	1	0710-	●	●	●	●	●
44	EVAPORATOR ASM; A/C THA	8-97321-147-0	01	1	0204-0207	●
44	EVAPORATOR ASM; A/C COOLER WO/HEATER<YL1> THA	8-97321-147-0	01	1	0204-0207		●	●
44	EVAPORATOR ASM; A/C THA	8-97321-147-0	01	1	0208-0408	●			●	●
44	EVAPORATOR ASM; A/C COOLER WO/HEATER<YL1> THA	8-97321-147-0	01	1	0208-0408		●	●
44	EVAPORATOR ASM; A/C 4JA1-T ENG<LP0> THA	8-97321-147-0	01	1	0409-0412	●			●
44	EVAPORATOR ASM; A/C 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA	8-97321-147-0	01	1	0409-0412		●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB> THA	8-97381-618-0	01	1	0409-0412	●		●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97381-618-0	01	1	0501-0503	●	●	●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-98018-520-0	01	1	0504-0606	●	●	●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98055-340-0	01	1	0607-0608	●	●	●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98055-340-0	01	1	0609-0701	●	●	●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98063-685-0	01	1	0702-0708	●	●	●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98090-235-0	01	1	0709-0709	●	●	●	●	●
44	EVAPORATOR ASM; A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98090-235-0	01	1	0710-	●	●	●	●	●
48	INSULATOR; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (A) THA	8-98055-347-0	01	1	0607-0608	●	●	●	●	●
48	INSULATOR; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (A) THA	8-98055-347-0	01	1	0609-0708	●	●	●	●	●
48	INSULATOR; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (B) THA	8-98090-228-0	01	1	0709-0709	●	●	●	●	●
48	INSULATOR; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (B) THA	8-98090-228-0	01	1	0710-	●	●	●	●	●
48	INSULATOR; EVAP 4JJ1-TCS ENG<LFB> (A) THA	8-98000-432-0	02	1	0409-0412	●		●	●	●
48	INSULATOR; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> (A) THA	8-98000-432-0	02	1	0501-0503	●	●	●	●	●
49	GROMMET; EVAP THA	8-97321-158-1	01	1	0204-0207	●
49	GROMMET; EVAP COOLER WO/HEATER<YL1> THA	8-97321-158-1	01	1	0204-0207		●	●
49	GROMMET; EVAP THA	8-97321-158-1	01	1	0208-0408	●			●	●
49	GROMMET; EVAP COOLER WO/HEATER<YL1> THA	8-97321-158-1	01	1	0208-0408		●	●
49	GROMMET; EVAP THA	8-97321-158-1	01	1	0409-0412	●		●	●	●
49	GROMMET; EVAP COOLER WO/HEATER<C65> THA	8-97321-158-1	01	1	0409-0412		●
49	GROMMET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-158-1	01	1	0501-0606	●	●	●	●	●
49	GROMMET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-158-1	01	1	0607-0608	●	●	●	●	●
49	GROMMET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-158-1	01	1	0609-0708	●	●	●	●	●
49	GROMMET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-158-1	01	1	0709-0709	●	●	●	●	●
49	GROMMET; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-158-1	01	1	0710-	●	●	●	●	●
52	GROMMET; EVAP,A/C THA	8-97321-152-0	01	1	0204-0207	●
52	GROMMET; EVAP,A/C COOLER WO/HEATER<YL1> THA	8-97321-152-0	01	1	0204-0207		●	●
52	GROMMET; EVAP,A/C THA	8-97321-152-0	01	1	0208-0408	●			●	●
52	GROMMET; EVAP,A/C COOLER WO/HEATER<YL1> THA	8-97321-152-0	01	1	0208-0408		●	●
52	GROMMET; EVAP,A/C THA	8-97321-152-0	01	1	0409-0412	●		●	●	●
52	GROMMET; EVAP,A/C COOLER WO/HEATER<C65> THA	8-97321-152-0	01	1	0409-0412		●
52	GROMMET; EVAP,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-152-0	01	1	0501-0606	●	●	●	●	●
52	GROMMET; EVAP,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-152-0	01	1	0607-0608	●	●	●	●	●
52	GROMMET; EVAP,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-152-0	01	1	0609-0708	●	●	●	●	●
52	GROMMET; EVAP,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-152-0	01	1	0709-0709	●	●	●	●	●
52	GROMMET; EVAP,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-152-0	01	1	0710-	●	●	●	●	●
59	LINING; EVAP,LWR THA	8-97321-146-0	01	1	0204-0207	●
59	LINING; EVAP,LWR COOLER WO/HEATER<YL1> THA	8-97321-146-0	01	1	0204-0207		●	●
59	LINING; EVAP,LWR THA	8-97321-146-0	01	1	0208-0408	●			●	●
59	LINING; EVAP,LWR COOLER WO/HEATER<YL1> THA	8-97321-146-0	01	1	0208-0408		●	●
59	LINING; EVAP,LWR THA	8-97321-146-0	01	1	0409-0412	●		●	●	●
59	LINING; EVAP,LWR COOLER WO/HEATER<C65> THA	8-97321-146-0	01	1	0409-0412		●
59	LINING; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-146-0	01	1	0501-0606	●	●	●	●	●
59	LINING; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-146-0	01	1	0607-0608	●	●	●	●	●
59	LINING; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-146-0	01	1	0609-0708	●	●	●	●	●
59	LINING; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-146-0	01	1	0709-0709	●	●	●	●	●
59	LINING; EVAP,LWR 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-146-0	01	1	0710-	●	●	●	●	●
81	CLIP; THERMOSTAT A/C THA	8-97321-161-0	01	1	0204-0207	●
81	CLIP; THERMOSTAT A/C COOLER WO/HEATER<YL1> THA	8-97321-161-0	01	1	0204-0207		●	●
81	CLIP; THERMOSTAT A/C THA	8-97321-161-0	01	1	0208-0408	●			●	●
81	CLIP; THERMOSTAT A/C COOLER WO/HEATER<YL1> THA	8-97321-161-0	01	1	0208-0408		●	●
81	CLIP; THERMOSTAT A/C THA	8-97321-161-0	01	1	0409-0412	●		●	●	●
81	CLIP; THERMOSTAT A/C COOLER WO/HEATER<C65> THA	8-97321-161-0	01	1	0409-0412		●
81	CLIP; THERMOSTAT A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-161-0	01	1	0501-0606	●	●	●	●	●
81	CLIP; THERMOSTAT A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-161-0	01	1	0607-0608	●	●	●	●	●
81	CLIP; THERMOSTAT A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-161-0	01	1	0609-0708	●	●	●	●	●
81	CLIP; THERMOSTAT A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-161-0	01	1	0709-0709	●	●	●	●	●
81	CLIP; THERMOSTAT A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-161-0	01	1	0710-	●	●	●	●	●
106	BOLT; EXPANSION VLV THA	8-97321-153-0	02	1	0204-0207	●
106	BOLT; EXPANSION VLV COOLER WO/HEATER<YL1> THA	8-97321-153-0	02	1	0204-0207		●	●
106	BOLT; EXPANSION VLV THA	8-97321-153-0	02	1	0208-0408	●			●	●
106	BOLT; EXPANSION VLV COOLER WO/HEATER<YL1> THA	8-97321-153-0	02	1	0208-0408		●	●
106	BOLT; EXPANSION VLV THA	8-97321-153-0	02	1	0409-0412	●		●	●	●
106	BOLT; EXPANSION VLV COOLER WO/HEATER<C65> THA	8-97321-153-0	02	1	0409-0412		●
106	BOLT; EXPANSION VLV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-153-0	02	1	0501-0606	●	●	●	●	●
106	BOLT; EXPANSION VLV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-153-0	02	1	0607-0608	●	●	●	●	●
106	BOLT; EXPANSION VLV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-153-0	02	1	0609-0701	●	●	●	●	●
106	BOLT; EXPANSION VLV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98072-395-0	02	1	0702-0708	●	●	●	●	●
106	BOLT; EXPANSION VLV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98072-395-0	02	1	0709-0709	●	●	●	●	●
106	BOLT; EXPANSION VLV 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98072-395-0	02	1	0710-	●	●	●	●	●
109	BOLT; EVAP THA	8-97321-165-0	05	1	0204-0207	●
109	BOLT; EVAP COOLER WO/HEATER<YL1> THA	8-97321-165-0	05	1	0204-0207		●	●
109	BOLT; EVAP THA	8-97321-165-0	05	1	0208-0404	●			●	●
109	BOLT; EVAP COOLER WO/HEATER<YL1> THA	8-97321-165-0	05	1	0208-0404		●	●
109	BOLT; EVAP THA	8-97321-165-0	04	1	0405-0408	●			●	●
109	BOLT; EVAP COOLER WO/HEATER<YL1> THA	8-97321-165-0	04	1	0405-0408		●	●
109	BOLT; EVAP THA	8-97321-165-0	04	1	0409-0412	●		●	●	●
109	BOLT; EVAP COOLER WO/HEATER<C65> THA	8-97321-165-0	04	1	0409-0412		●
109	BOLT; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-165-0	04	1	0501-0606	●	●	●	●	●
109	BOLT; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-165-0	04	1	0607-0608	●	●	●	●	●
109	BOLT; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-165-0	04	1	0609-0701	●	●	●	●	●
109	BOLT; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98071-323-0	04	1	0702-0708	●	●	●	●	●
109	BOLT; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98071-323-0	04	1	0709-0709	●	●	●	●	●
109	BOLT; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98071-323-0	04	1	0710-	●	●	●	●	●
132	AMPLIFIER; EVAP THA	8-97321-163-0	01	1	0204-0207	●
132	AMPLIFIER; EVAP COOLER WO/HEATER<YL1> THA	8-97321-163-0	01	1	0204-0207		●	●
132	AMPLIFIER; EVAP THA	8-97321-163-0	01	1	0208-0408	●			●	●
132	AMPLIFIER; EVAP COOLER WO/HEATER<YL1> THA	8-97321-163-0	01	1	0208-0408		●	●
132	AMPLIFIER; EVAP THA	8-97321-163-0	01	1	0409-0412	●		●	●	●
132	AMPLIFIER; EVAP COOLER WO/HEATER<C65> THA	8-97321-163-0	01	1	0409-0412		●
132	AMPLIFIER; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-163-0	01	1	0501-0606	●	●	●	●	●
132	AMPLIFIER; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-163-0	01	1	0607-0608	●	●	●	●	●
132	AMPLIFIER; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-163-0	01	1	0609-0708	●	●	●	●	●
132	AMPLIFIER; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97321-163-0	01	1	0709-0709	●	●	●	●	●
132	AMPLIFIER; EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97321-163-0	01	1	0710-	●	●	●	●	●
138	COVER; CASE THA	8-97321-156-0	01	1	0204-0207	●
138	COVER; CASE COOLER WO/HEATER<YL1> THA	8-97321-156-0	01	1	0204-0207		●	●
138	COVER; CASE THA	8-97321-156-0	01	1	0208-0408	●			●	●
138	COVER; CASE COOLER WO/HEATER<YL1> THA	8-97321-156-0	01	1	0208-0408		●	●
138	COVER; CASE THA	8-97321-156-0	01	1	0409-0412	●		●	●	●
138	COVER; CASE COOLER WO/HEATER<C65> THA	8-97321-156-0	01	1	0409-0412		●
138	COVER; CASE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> THAILAND EQUIPMENT<B03> COOLER WO/HEATER<C65> THA	8-97321-156-0	01	1	0501-0606	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
