◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#73882) — 145 parça

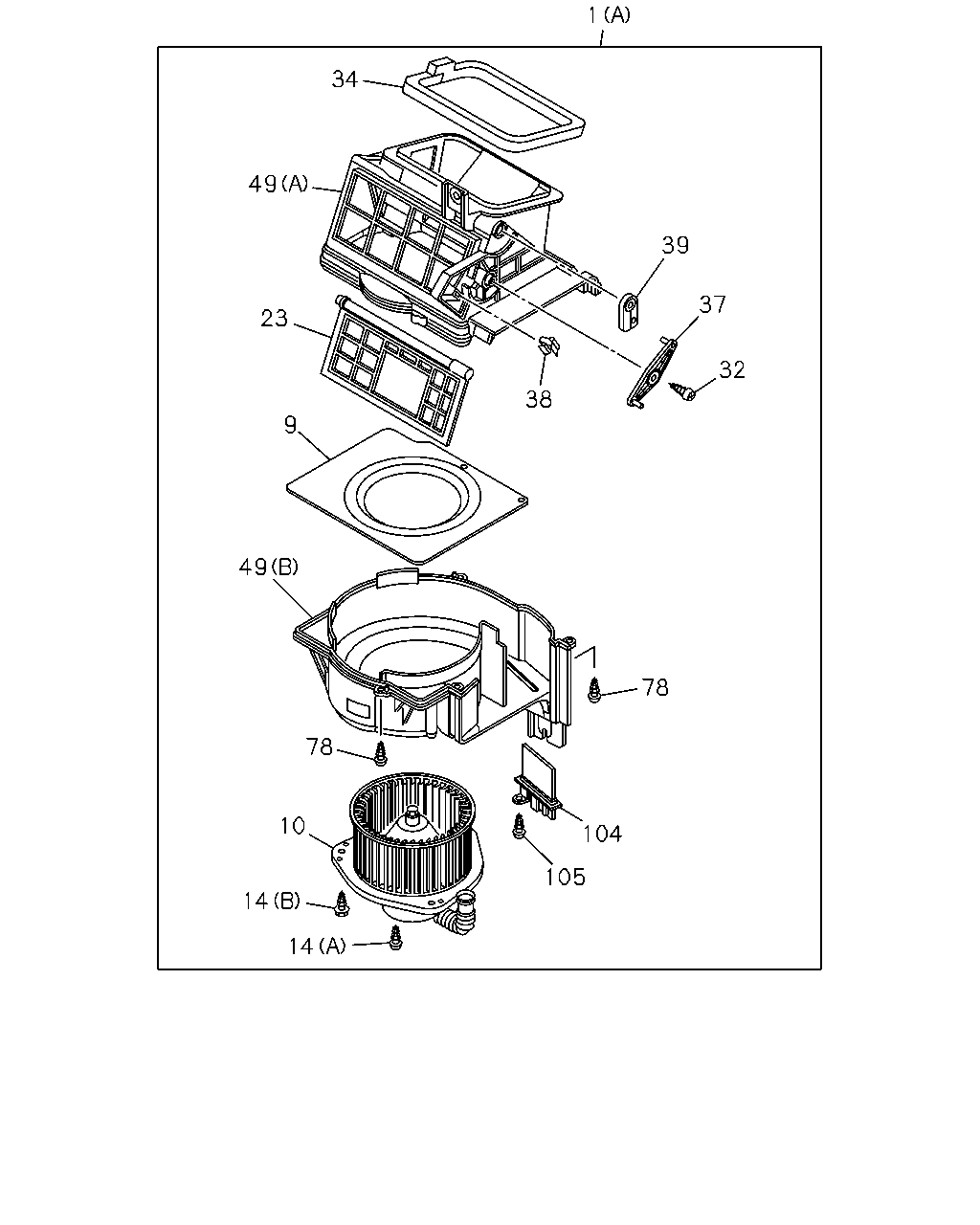

çizim 116720
1 34 49 39 37 23 32 38 9 49 78 78 10 104 105 14 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BLOWER ASM
(A) THA 		8-97234-549-1 01 1 0204-0207 ● ●
1 BLOWER ASM
COOLER WO/HEATER<YL1> (A) THA 		8-97234-549-1 01 1 0204-0207 ●
1 BLOWER ASM
(A) THA 		8-97234-549-1 01 1 0208-0308 ● ● ● ●
1 BLOWER ASM
COOLER WO/HEATER<YL1> (A) THA 		8-97234-549-1 01 1 0208-0308 ●
1 BLOWER ASM
(A) THA 		8-97369-321-1 01 1 0309-0408 ● ● ● ●
1 BLOWER ASM
COOLER WO/HEATER<YL1> (A) THA 		8-97369-321-1 01 1 0309-0408 ●
1 BLOWER ASM
(A) THA 		8-97369-321-1 01 1 0409-0412 ● ● ● ●
1 BLOWER ASM
COOLER WO/HEATER<C65> (A) THA 		8-97369-321-1 01 1 0409-0412 ●
1 BLOWER ASM
(A) THA 		8-98000-785-0 01 1 0501-0606 ● ● ● ●
1 BLOWER ASM
COOLER WO/HEATER<C65> (A) THA 		8-98000-785-0 01 1 0501-0606 ●
1 BLOWER ASM
(A) THA 		8-98034-543-0 01 1 0607-0703 ● ● ● ●
1 BLOWER ASM
COOLER WO/HEATER<C65> (A) THA 		8-98034-543-0 01 1 0607-0703 ●
1 BLOWER ASM
(A) THA 		8-98070-131-0 01 1 0704- ● ● ● ●
1 BLOWER ASM
COOLER WO/HEATER<C65> (A) THA 		8-98070-131-0 01 1 0704- ●
1 BLOWER ASM
VENTILATION RAM AIR<6TN> (B) THA 		8-97301-798-2 01 1 0204- ●
9 GUIDE; BELL MOUTH HTR
THA 		8-97321-265-0 01 1 0204-0207 ● ●
9 GUIDE; BELL MOUTH HTR
COOLER WO/HEATER<YL1> THA 		8-97321-265-0 01 1 0204-0207 ●
9 GUIDE; BELL MOUTH HTR
THA 		8-97321-265-0 01 1 0208-0408 ● ● ● ●
9 GUIDE; BELL MOUTH HTR
COOLER WO/HEATER<YL1> THA 		8-97321-265-0 01 1 0208-0408 ●
9 GUIDE; BELL MOUTH HTR
THA 		8-97321-265-0 01 1 0409-0703 ● ● ● ●
9 GUIDE; BELL MOUTH HTR
COOLER WO/HEATER<C65> THA 		8-97321-265-0 01 1 0409-0703 ●
9 GUIDE; BELL MOUTH HTR
THA 		8-98072-803-0 01 1 0704- ● ● ● ●
9 GUIDE; BELL MOUTH HTR
COOLER WO/HEATER<C65> THA 		8-98072-803-0 01 1 0704- ●
10 MOTOR ASM; FAN,BLOWER UNIT
THA 		8-97321-270-0 01 1 0204-0207 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
COOLER WO/HEATER<YL1> THA 		8-97321-270-0 01 1 0204-0207 ●
10 MOTOR ASM; FAN,BLOWER UNIT
THA 		8-97321-270-0 01 1 0208-0408 ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
COOLER WO/HEATER<YL1> THA 		8-97321-270-0 01 1 0208-0408 ●
10 MOTOR ASM; FAN,BLOWER UNIT
THA 		8-97321-270-0 01 1 0409-0412 ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
COOLER WO/HEATER<C65> THA 		8-97321-270-0 01 1 0409-0412 ●
10 MOTOR ASM; FAN,BLOWER UNIT
THA 		8-98008-893-0 01 1 0501- ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
COOLER WO/HEATER<C65> THA 		8-98008-893-0 01 1 0501- ●
14 SCREW; COVER TO CASE
(A) THA 		8-97321-165-0 01 1 0204-0207 ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<YL1> (A) THA 		8-97321-165-0 01 1 0204-0207 ●
14 SCREW; COVER TO CASE
(A) THA 		8-97321-165-0 01 1 0208-0408 ● ● ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<YL1> (A) THA 		8-97321-165-0 01 1 0208-0408 ●
14 SCREW; COVER TO CASE
(A) THA 		8-97321-165-0 01 1 0409-0703 ● ● ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> (A) THA 		8-97321-165-0 01 1 0409-0703 ●
14 SCREW; COVER TO CASE
(B) THA 		8-98070-134-0 03 1 0704- ● ● ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> (B) THA 		8-98070-134-0 03 1 0704- ●
14 SCREW; COVER TO CASE
(B) THA 		8-97321-275-0 03 1 0204-0207 ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<YL1> (B) THA 		8-97321-275-0 03 1 0204-0207 ●
14 SCREW; COVER TO CASE
(B) THA 		8-97321-275-0 03 1 0208-0408 ● ● ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<YL1> (B) THA 		8-97321-275-0 03 1 0208-0408 ●
14 SCREW; COVER TO CASE
(B) THA 		8-97321-275-0 03 1 0409-0703 ● ● ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> (B) THA 		8-97321-275-0 03 1 0409-0703 ●
14 SCREW; COVER TO CASE
(A) THA 		8-98070-135-0 01 1 0704- ● ● ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> (A) THA 		8-98070-135-0 01 1 0704- ●
14 SCREW; COVER TO CASE
VENTILATION RAM AIR<6TN> (A) THA 		8-97321-165-0 03 1 0204- ●
23 SHUTTER; BLOWER UNIT
THA 		8-97321-266-1 01 1 0204-0207 ● ● ●
23 SHUTTER; BLOWER UNIT
THA 		8-97321-266-1 01 1 0208- ● ● ● ● ●
32 SCREW; LEVER
THA 		8-97321-276-0 01 1 0204-0207 ● ● ●
32 SCREW; LEVER
THA 		8-97321-276-0 01 1 0208-0703 ● ● ● ● ●
32 SCREW; LEVER
VENTILATION RAM AIR<6TN> THA 		8-97321-276-0 01 1 0704- ●
32 SCREW; LEVER
THA 		8-98070-136-0 01 1 0704- ● ● ● ●
32 SCREW; LEVER
COOLER WO/HEATER<C65> THA 		8-98070-136-0 01 1 0704- ●
34 LINING; BLOWER UNIT
THA 		8-97321-269-0 01 1 0204-0207 ● ● ●
34 LINING; BLOWER UNIT
THA 		8-97321-269-0 01 1 0208- ● ● ● ● ●
37 LEVER; MODE LEVER
THA 		8-97321-268-0 01 1 0204-0207 ● ● ●
37 LEVER; MODE LEVER
THA 		8-97321-268-0 01 1 0208- ● ● ● ● ●
38 CLIP; BLOWER UNIT
THA 		8-97321-274-0 01 1 0204-0207 ● ● ●
38 CLIP; BLOWER UNIT
THA 		8-97321-274-0 01 1 0208- ● ● ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
THA 		8-97321-267-0 01 1 0204-0207 ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
THA 		8-97321-267-0 01 1 0208- ● ● ● ● ●
49 CASE; BLOWER UNIT
(A) THA 		8-97321-263-0 01 1 0204-0207 ● ● ●
49 CASE; BLOWER UNIT
(A) THA 		8-97321-263-0 01 1 0208- ● ● ● ● ●
49 CASE; BLOWER UNIT
(B) THA 		8-97321-264-0 01 1 0204-0207 ● ● ●
49 CASE; BLOWER UNIT
(B) THA 		8-97321-264-0 01 1 0208- ● ● ● ● ●
78 SCREW; CASE TO CASE
THA 		8-97321-165-0 05 1 0204-0207 ● ● ●
78 SCREW; CASE TO CASE
THA 		8-97321-165-0 05 1 0208-0703 ● ● ● ● ●
78 SCREW; CASE TO CASE
VENTILATION RAM AIR<6TN> THA 		8-97321-165-0 05 1 0704- ●
78 SCREW; CASE TO CASE
THA 		8-98070-135-0 05 1 0704- ● ● ● ●
78 SCREW; CASE TO CASE
COOLER WO/HEATER<C65> THA 		8-98070-135-0 05 1 0704- ●
104 RESISTOR; BLOWER UNIT
THA 		8-97321-273-0 01 1 0204-0207 ● ●
104 RESISTOR; BLOWER UNIT
COOLER WO/HEATER<YL1> THA 		8-97321-273-0 01 1 0204-0207 ●
104 RESISTOR; BLOWER UNIT
THA 		8-97321-273-0 01 1 0208-0408 ● ● ● ●
104 RESISTOR; BLOWER UNIT
COOLER WO/HEATER<YL1> THA 		8-97321-273-0 01 1 0208-0408 ●
104 RESISTOR; BLOWER UNIT
THA 		8-97321-273-0 01 1 0409-0606 ● ● ● ●
104 RESISTOR; BLOWER UNIT
COOLER WO/HEATER<C65> THA 		8-97321-273-0 01 1 0409-0606 ●
104 RESISTOR; BLOWER UNIT
THA 		8-98049-394-0 01 1 0607- ● ● ● ●
104 RESISTOR; BLOWER UNIT
COOLER WO/HEATER<C65> THA 		8-98049-394-0 01 1 0607- ●
105 SCREW; RESISTOR
THA 		8-97321-165-0 02 1 0204-0207 ● ●
105 SCREW; RESISTOR
COOLER WO/HEATER<YL1> THA 		8-97321-165-0 02 1 0204-0207 ●
105 SCREW; RESISTOR
THA 		8-97321-165-0 02 1 0208-0408 ● ● ● ●
105 SCREW; RESISTOR
COOLER WO/HEATER<YL1> THA 		8-97321-165-0 02 1 0208-0408 ●
105 SCREW; RESISTOR
THA 		8-97321-165-0 02 1 0409-0703 ● ● ● ●
105 SCREW; RESISTOR
COOLER WO/HEATER<C65> THA 		8-97321-165-0 02 1 0409-0703 ●
105 SCREW; RESISTOR
THA 		8-98070-135-0 02 1 0704- ● ● ● ●
105 SCREW; RESISTOR
COOLER WO/HEATER<C65> THA 		8-98070-135-0 02 1 0704- ●
çizim 116722
1 34 49 39 37 23 32 38 49 78 78 16 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 BLOWER ASM
(A) THA 		8-97234-549-1 01 1 0204-0207 ● ●
1 BLOWER ASM
COOLER WO/HEATER<YL1> (A) THA 		8-97234-549-1 01 1 0204-0207 ●
1 BLOWER ASM
(A) THA 		8-97234-549-1 01 1 0208-0308 ● ● ● ●
1 BLOWER ASM
COOLER WO/HEATER<YL1> (A) THA 		8-97234-549-1 01 1 0208-0308 ●
1 BLOWER ASM
(A) THA 		8-97369-321-1 01 1 0309-0408 ● ● ● ●
1 BLOWER ASM
COOLER WO/HEATER<YL1> (A) THA 		8-97369-321-1 01 1 0309-0408 ●
1 BLOWER ASM
(A) THA 		8-97369-321-1 01 1 0409-0412 ● ● ● ●
1 BLOWER ASM
COOLER WO/HEATER<C65> (A) THA 		8-97369-321-1 01 1 0409-0412 ●
1 BLOWER ASM
(A) THA 		8-98000-785-0 01 1 0501-0606 ● ● ● ●
1 BLOWER ASM
COOLER WO/HEATER<C65> (A) THA 		8-98000-785-0 01 1 0501-0606 ●
1 BLOWER ASM
(A) THA 		8-98034-543-0 01 1 0607-0703 ● ● ● ●
1 BLOWER ASM
COOLER WO/HEATER<C65> (A) THA 		8-98034-543-0 01 1 0607-0703 ●
1 BLOWER ASM
(A) THA 		8-98070-131-0 01 1 0704- ● ● ● ●
1 BLOWER ASM
COOLER WO/HEATER<C65> (A) THA 		8-98070-131-0 01 1 0704- ●
1 BLOWER ASM
VENTILATION RAM AIR<6TN> (B) THA 		8-97301-798-2 01 1 0204- ●
14 SCREW; COVER TO CASE
(A) THA 		8-97321-165-0 01 1 0204-0207 ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<YL1> (A) THA 		8-97321-165-0 01 1 0204-0207 ●
14 SCREW; COVER TO CASE
(A) THA 		8-97321-165-0 01 1 0208-0408 ● ● ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<YL1> (A) THA 		8-97321-165-0 01 1 0208-0408 ●
14 SCREW; COVER TO CASE
(A) THA 		8-97321-165-0 01 1 0409-0703 ● ● ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> (A) THA 		8-97321-165-0 01 1 0409-0703 ●
14 SCREW; COVER TO CASE
(B) THA 		8-98070-134-0 03 1 0704- ● ● ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> (B) THA 		8-98070-134-0 03 1 0704- ●
14 SCREW; COVER TO CASE
(B) THA 		8-97321-275-0 03 1 0204-0207 ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<YL1> (B) THA 		8-97321-275-0 03 1 0204-0207 ●
14 SCREW; COVER TO CASE
(B) THA 		8-97321-275-0 03 1 0208-0408 ● ● ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<YL1> (B) THA 		8-97321-275-0 03 1 0208-0408 ●
14 SCREW; COVER TO CASE
(B) THA 		8-97321-275-0 03 1 0409-0703 ● ● ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> (B) THA 		8-97321-275-0 03 1 0409-0703 ●
14 SCREW; COVER TO CASE
(A) THA 		8-98070-135-0 01 1 0704- ● ● ● ●
14 SCREW; COVER TO CASE
COOLER WO/HEATER<C65> (A) THA 		8-98070-135-0 01 1 0704- ●
14 SCREW; COVER TO CASE
VENTILATION RAM AIR<6TN> (A) THA 		8-97321-165-0 03 1 0204- ●
16 COVER; BLOWER UNIT
VENTILATION RAM AIR<6TN> THA 		8-97321-271-0 01 1 0204- ●
23 SHUTTER; BLOWER UNIT
THA 		8-97321-266-1 01 1 0204-0207 ● ● ●
23 SHUTTER; BLOWER UNIT
THA 		8-97321-266-1 01 1 0208- ● ● ● ● ●
32 SCREW; LEVER
THA 		8-97321-276-0 01 1 0204-0207 ● ● ●
32 SCREW; LEVER
THA 		8-97321-276-0 01 1 0208-0703 ● ● ● ● ●
32 SCREW; LEVER
VENTILATION RAM AIR<6TN> THA 		8-97321-276-0 01 1 0704- ●
32 SCREW; LEVER
THA 		8-98070-136-0 01 1 0704- ● ● ● ●
32 SCREW; LEVER
COOLER WO/HEATER<C65> THA 		8-98070-136-0 01 1 0704- ●
34 LINING; BLOWER UNIT
THA 		8-97321-269-0 01 1 0204-0207 ● ● ●
34 LINING; BLOWER UNIT
THA 		8-97321-269-0 01 1 0208- ● ● ● ● ●
37 LEVER; MODE LEVER
THA 		8-97321-268-0 01 1 0204-0207 ● ● ●
37 LEVER; MODE LEVER
THA 		8-97321-268-0 01 1 0208- ● ● ● ● ●
38 CLIP; BLOWER UNIT
THA 		8-97321-274-0 01 1 0204-0207 ● ● ●
38 CLIP; BLOWER UNIT
THA 		8-97321-274-0 01 1 0208- ● ● ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
THA 		8-97321-267-0 01 1 0204-0207 ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
THA 		8-97321-267-0 01 1 0208- ● ● ● ● ●
49 CASE; BLOWER UNIT
(A) THA 		8-97321-263-0 01 1 0204-0207 ● ● ●
49 CASE; BLOWER UNIT
(A) THA 		8-97321-263-0 01 1 0208- ● ● ● ● ●
49 CASE; BLOWER UNIT
(B) THA 		8-97321-264-0 01 1 0204-0207 ● ● ●
49 CASE; BLOWER UNIT
(B) THA 		8-97321-264-0 01 1 0208- ● ● ● ● ●
78 SCREW; CASE TO CASE
THA 		8-97321-165-0 05 1 0204-0207 ● ● ●
78 SCREW; CASE TO CASE
THA 		8-97321-165-0 05 1 0208-0703 ● ● ● ● ●
78 SCREW; CASE TO CASE
VENTILATION RAM AIR<6TN> THA 		8-97321-165-0 05 1 0704- ●
78 SCREW; CASE TO CASE
THA 		8-98070-135-0 05 1 0704- ● ● ● ●
78 SCREW; CASE TO CASE
COOLER WO/HEATER<C65> THA 		8-98070-135-0 05 1 0704- ●
