◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#73881) — 44 parça

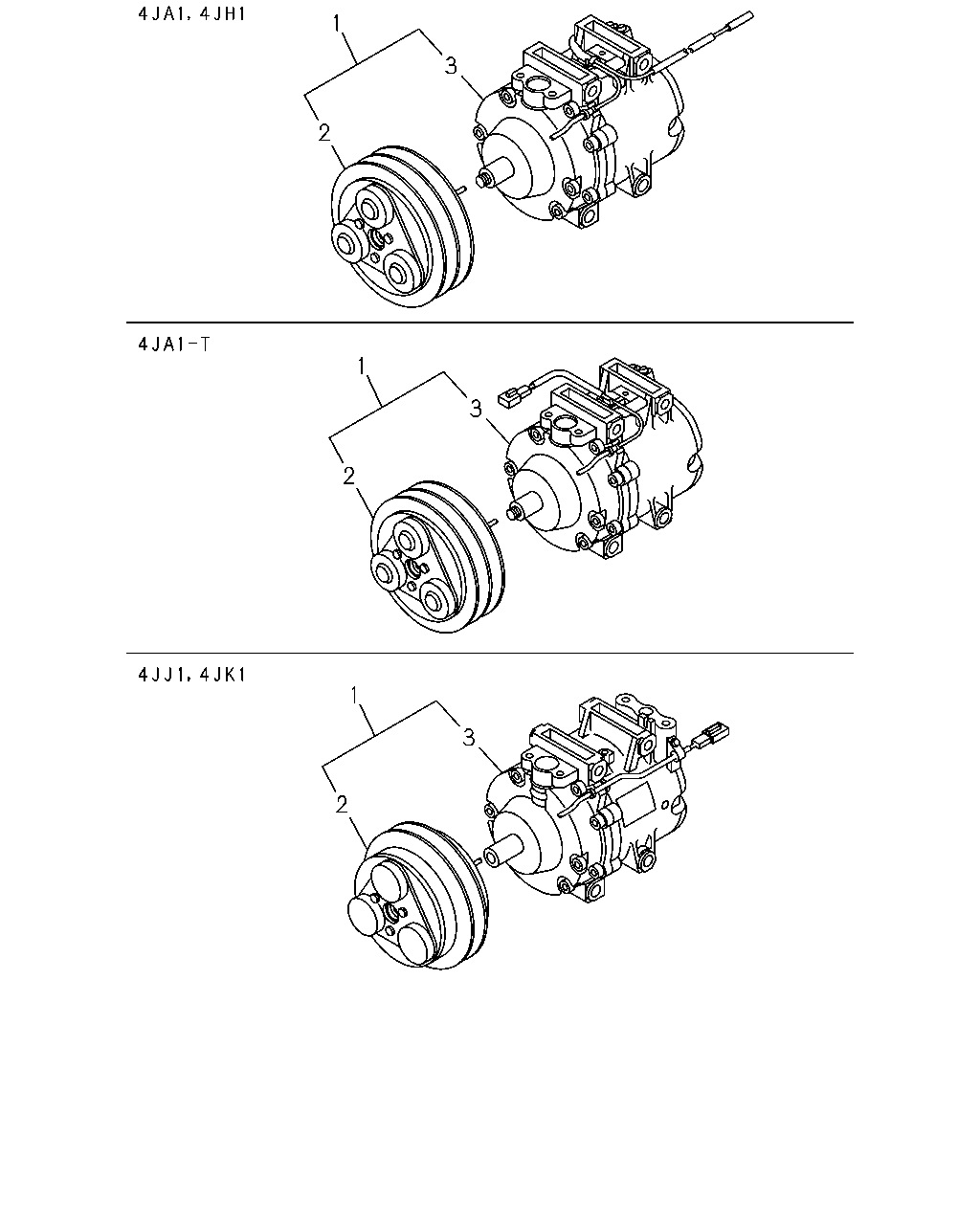

çizim 116714
1 3 2 1 3 2 1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA 		8-98102-824-1 01 1 1009- ● ● ● ●
1 COMPRESSOR ASM; A/C
4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-98102-824-1 01 1 1009- ●
1 COMPRESSOR ASM; A/C
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97236-637-1 01 1 0204-0207 ● ● ●
1 COMPRESSOR ASM; A/C
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97236-637-1 01 1 0208-0312 ● ● ● ● ●
1 COMPRESSOR ASM; A/C
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97369-415-0 01 1 0401-0408 ● ● ● ● ●
1 COMPRESSOR ASM; A/C
4JA1-T ENG<LP0> THA 		8-97369-415-0 01 1 0409-0412 ● ●
1 COMPRESSOR ASM; A/C
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA 		8-97369-415-0 01 1 0409-0412 ●
1 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB> THA 		8-97370-661-3 01 1 0409-0412 ● ● ● ●
1 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97370-661-3 01 1 0501-0608 ● ● ● ● ●
1 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-97370-661-3 01 1 0609-0708 ● ● ● ● ●
1 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97370-661-3 01 1 0709-0709 ● ● ● ● ●
1 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-97370-661-3 01 1 0710-1008 ● ● ● ● ●
1 COMPRESSOR ASM; A/C
4JK1 ENG<LKZ> THA 		8-97370-661-3 01 1 1009-1109 ● ● ●
1 COMPRESSOR ASM; A/C
4JK1 ENG<LKZ> THA 		8-98199-292-1 01 1 1110- ● ● ●
2 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA 		8-98139-936-1 01 1 1009- ● ● ● ●
2 CLUTCH; MAGNET,A/C
4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-98139-936-1 01 1 1009- ●
2 CLUTCH; MAGNET,A/C
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97333-324-0 01 1 0204-0207 ● ● ●
2 CLUTCH; MAGNET,A/C
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97333-324-0 01 1 0208-0312 ● ● ● ● ●
2 CLUTCH; MAGNET,A/C
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97371-580-0 01 1 0401-0408 ● ● ● ● ●
2 CLUTCH; MAGNET,A/C
4JA1-T ENG<LP0> THA 		8-97371-580-0 01 1 0409-0412 ● ●
2 CLUTCH; MAGNET,A/C
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA 		8-97371-580-0 01 1 0409-0412 ●
2 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG<LFB> THA 		8-97372-920-0 01 1 0409-0412 ● ● ● ●
2 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97372-920-0 01 1 0501-0608 ● ● ● ● ●
2 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-97372-920-0 01 1 0609-0708 ● ● ● ● ●
2 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97372-920-0 01 1 0709-0709 ● ● ● ● ●
2 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-97372-920-0 01 1 0710-1008 ● ● ● ● ●
2 CLUTCH; MAGNET,A/C
4JK1 ENG<LKZ> THA 		8-97372-920-0 01 1 1009-1402 ● ● ●
2 CLUTCH; MAGNET,A/C
4JK1 ENG<LKZ> THA 		8-98252-777-0 01 1 1403- ● ● ●
3 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> THA 		8-98139-935-1 01 1 1009- ● ● ● ●
3 COMPRESSOR ASM; A/C
4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-98139-935-1 01 1 1009- ●
3 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-98070-188-0 01 1 0607-0608 ● ● ● ● ●
3 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-98070-188-0 01 1 0609-0708 ● ● ● ● ●
3 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-98070-188-0 01 1 0709-0709 ● ● ● ● ●
3 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA 		8-98070-188-0 01 1 0710-1008 ● ● ● ● ●
3 COMPRESSOR ASM; A/C
4JK1 ENG<LKZ> THA 		8-98070-188-0 01 1 1009-1109 ● ● ●
3 COMPRESSOR ASM; A/C
4JK1 ENG<LKZ> THA 		8-98204-874-0 01 1 1110-1402 ● ● ●
3 COMPRESSOR ASM; A/C
4JK1 ENG<LKZ> THA 		8-98258-533-0 01 1 1403- ● ● ●
3 COMPRESSOR ASM; A/C
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97333-322-0 01 1 0204-0207 ● ● ●
3 COMPRESSOR ASM; A/C
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97333-322-0 01 1 0208-0312 ● ● ● ● ●
3 COMPRESSOR ASM; A/C
4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97371-576-0 01 1 0401-0408 ● ● ● ● ●
3 COMPRESSOR ASM; A/C
4JA1-T ENG<LP0> THA 		8-97371-576-0 01 1 0409-0412 ● ●
3 COMPRESSOR ASM; A/C
4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA 		8-97371-576-0 01 1 0409-0412 ●
3 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB> THA 		8-97372-919-0 01 1 0409-0412 ● ● ● ●
3 COMPRESSOR ASM; A/C
4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA 		8-97372-919-0 01 1 0501-0606 ● ● ● ● ●
