◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50931 - TFR/TFS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#73880) — 316 parça

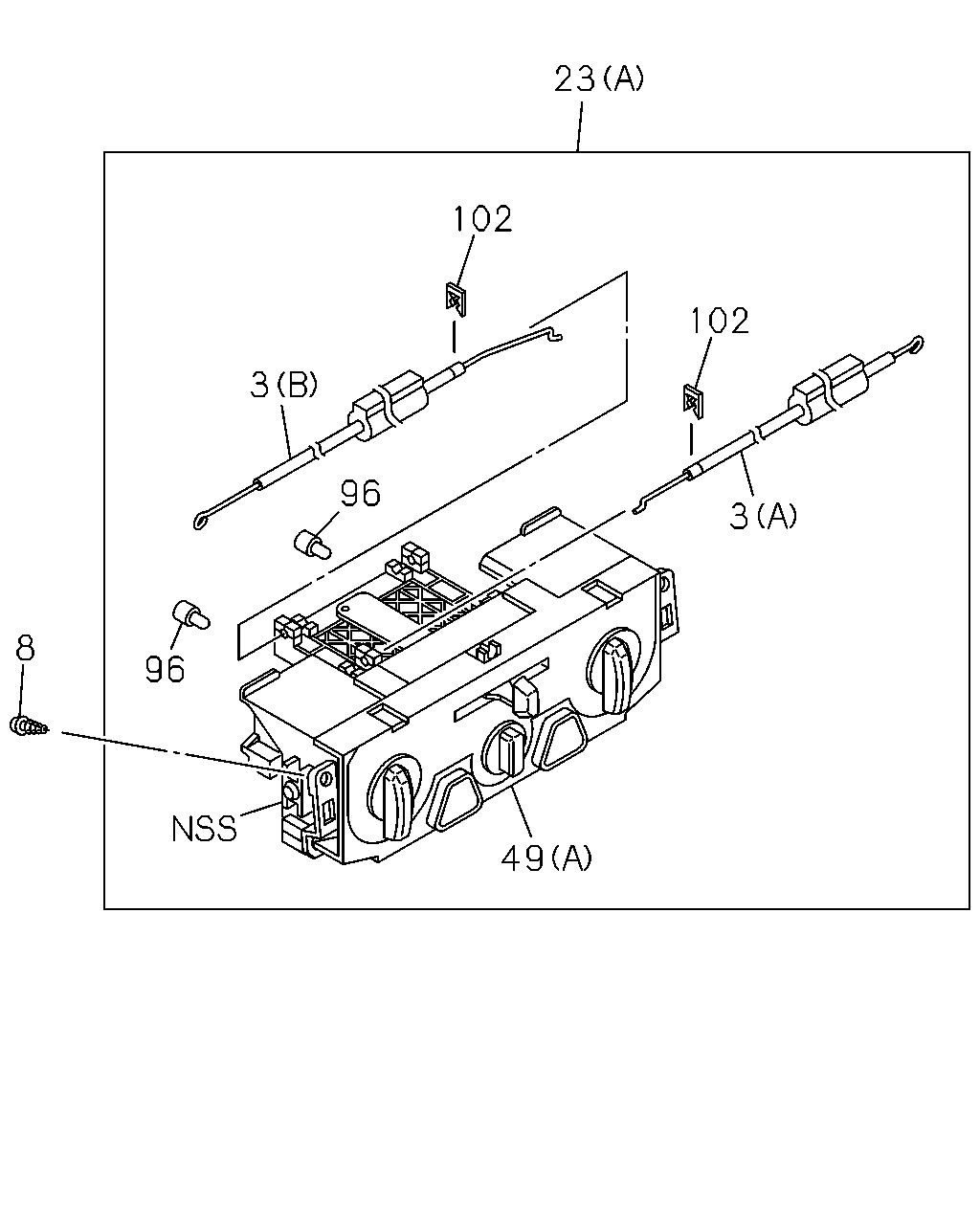

çizim 116698
23 102 102 3 96 3 8 96 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-97321-479-0 01 1 0204-0207 ● ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-97321-479-0 01 1 0208-0408 ● ● ● ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-97321-479-0 01 1 0409-0606 ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) INTAKE THA 		8-97321-479-0 01 1 0409-0606 ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-98029-145-0 01 1 0607-0810 ● ● ● ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-98029-145-0 01 1 0811- ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) INTAKE THA 		8-98029-145-0 01 1 0811- ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-97321-478-0 01 1 0204-0207 ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<YL1> (A) MODE THA 		8-97321-478-0 01 1 0204-0207 ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-97321-478-0 01 1 0208-0408 ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<YL1> (A) MODE THA 		8-97321-478-0 01 1 0208-0408 ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-97321-478-0 01 1 0409-0606 ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65> (A) MODE THA 		8-97321-478-0 01 1 0409-0606 ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-98029-143-0 01 1 0607- ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65> (A) MODE THA 		8-98029-143-0 01 1 0607- ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ● ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0702 ● ● ● ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-1005 ● ● ● ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ● ● ● ●
23 BEZEL; CONT LEVER
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> (C) THA 		8-98152-601-1 01 1 1002-1008 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> (C) THA 		8-98152-601-1 01 1 1009- ● ● ● ●
23 BEZEL; CONT LEVER
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98152-602-1 01 1 1002-1008 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98152-602-1 01 1 1009- ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (A) THA 		8-98151-400-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. REAR DEFOGGER<C49> (A) THA 		8-98151-400-0 01 1 0909-0912 ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (A) THA 		8-98151-400-0 01 1 1001-1008 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (A) THA 		8-98160-063-1 01 1 1009- ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> (A) THA 		8-98151-009-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> (A) THA 		8-98151-009-0 01 1 0909-0912 ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-98151-009-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> (A) THA 		8-98151-009-0 01 1 1001-1001 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO>,INTERIOR LUXURY<B20> (A) THA 		8-98151-009-0 01 1 1002-1008 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 0811-0907 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 0908-0908 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 0908-0908 ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 1001-1008 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98154-107-1 01 1 1009- ● ● ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-97234-571-4 01 1 0204-0207 ● ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-97234-571-4 01 1 0208-0408 ● ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-97234-571-4 01 1 0208-0408 ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-97234-571-4 01 1 0409-0501 ● ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-97234-571-4 01 1 0409-0501 ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-98006-169-0 01 1 0502-0507 ● ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-98006-169-0 01 1 0502-0507 ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-98004-356-0 01 1 0508-0606 ● ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-98004-356-0 01 1 0508-0606 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> (C) THA 		8-98038-131-0 01 1 0607-0905 ● ● ●
23 BEZEL; CONT LEVER
(C) THA 		8-98038-131-0 01 1 0607-0905 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> (C) THA 		8-98038-131-0 01 1 0906-0908 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98038-131-0 01 1 0906-0908 ●
23 BEZEL; CONT LEVER
(C) THA 		8-98038-131-0 01 1 0906-0908 ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98038-131-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98038-131-0 01 1 1001-1001 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO>,INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98038-131-0 01 1 1002-1008 ● ● ● ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-97234-572-4 01 1 0204-0207 ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<YL1> (A) THA 		8-97234-572-4 01 1 0204-0207 ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-97234-572-4 01 1 0208-0408 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<YL1> (A) THA 		8-97234-572-4 01 1 0208-0408 ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-97234-572-4 01 1 0409-0501 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (A) THA 		8-97234-572-4 01 1 0409-0501 ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-98006-170-0 01 1 0502-0507 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (A) THA 		8-98006-170-0 01 1 0502-0507 ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-98004-357-0 01 1 0508-0606 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (A) THA 		8-98004-357-0 01 1 0508-0606 ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) THA 		8-98038-114-0 01 1 0607-0905 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (C) THA 		8-98038-114-0 01 1 0607-0905 ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (C) THA 		8-98038-114-0 01 1 0906-0912 ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (C) THA 		8-98038-114-0 01 1 0906-0912 ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) THA 		8-98038-114-0 01 1 0906-0912 ● ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (C) THA 		8-98038-114-0 01 1 1001-1008 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (C) THA 		8-98038-114-0 01 1 1001-1008 ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (C) THA 		8-98154-105-1 01 1 1009- ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (C) THA 		8-98154-105-1 01 1 1009- ●
23 BEZEL; CONT LEVER
VENTILATION RAM AIR<6TN> (B) THA 		8-97301-799-3 01 1 0204-0606 ●
23 BEZEL; CONT LEVER
VENTILATION RAM AIR<6TN> (D) THA 		8-98038-118-0 01 1 0607- ●
49 PANEL; CONT
REAR DEFOGGER<C49> (A) THA 		8-97321-468-0 01 1 0204-0207 ● ●
49 PANEL; CONT
REAR DEFOGGER<C49> (A) THA 		8-97321-468-0 01 1 0208-0501 ● ● ●
49 PANEL; CONT
(A) THA 		8-97321-468-0 01 1 0208-0501 ●
49 PANEL; CONT
REAR DEFOGGER<C49> (A) THA 		8-98013-438-0 01 1 0502-0507 ● ● ●
49 PANEL; CONT
(A) THA 		8-98013-438-0 01 1 0502-0507 ●
49 PANEL; CONT
REAR DEFOGGER<C49> (A) THA 		8-98013-379-0 01 1 0508-0606 ● ● ●
49 PANEL; CONT
(A) THA 		8-98013-379-0 01 1 0508-0606 ●
49 PANEL; CONT
EXC. REAR DEFOGGER<C49> (A) THA 		8-97321-469-0 01 1 0204-0207 ● ●
49 PANEL; CONT
COOLER WO/HEATER<YL1> (A) THA 		8-97321-469-0 01 1 0204-0207 ●
49 PANEL; CONT
EXC. REAR DEFOGGER<C49> (A) THA 		8-97321-469-0 01 1 0208-0408 ● ● ●
49 PANEL; CONT
COOLER WO/HEATER<YL1> (A) THA 		8-97321-469-0 01 1 0208-0408 ●
49 PANEL; CONT
EXC. REAR DEFOGGER<C49> (A) THA 		8-97321-469-0 01 1 0409-0501 ● ● ●
49 PANEL; CONT
COOLER WO/HEATER<C65> (A) THA 		8-97321-469-0 01 1 0409-0501 ●
49 PANEL; CONT
EXC. REAR DEFOGGER<C49> (A) THA 		8-98013-439-0 01 1 0502-0507 ● ● ●
49 PANEL; CONT
COOLER WO/HEATER<C65> (A) THA 		8-98013-439-0 01 1 0502-0507 ●
49 PANEL; CONT
EXC. REAR DEFOGGER<C49> (A) THA 		8-98013-380-0 01 1 0508-0606 ● ● ●
49 PANEL; CONT
COOLER WO/HEATER<C65> (A) THA 		8-98013-380-0 01 1 0508-0606 ●
49 PANEL; CONT
VENTILATION RAM AIR<6TN> (B) THA 		8-97321-470-0 01 1 0204-0606 ●
96 BULB ASM; BEZEL
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98159-721-0 02 1 1002-1008 ● ● ● ●
96 BULB ASM; BEZEL
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> THA 		8-98159-721-0 02 1 1002-1008 ● ● ● ●
96 BULB ASM; BEZEL
THA 		8-98159-721-0 02 1 1009- ● ● ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<C65> THA 		8-98159-721-0 02 1 1009- ●
96 BULB ASM; BEZEL
THA 		8-97332-276-0 02 1 0204-0207 ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<YL1> THA 		8-97332-276-0 02 1 0204-0207 ●
96 BULB ASM; BEZEL
THA 		8-97332-276-0 02 1 0208-0408 ● ● ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<YL1> THA 		8-97332-276-0 02 1 0208-0408 ●
96 BULB ASM; BEZEL
THA 		8-97332-276-0 02 1 0409-0501 ● ● ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<C65> THA 		8-97332-276-0 02 1 0409-0501 ●
96 BULB ASM; BEZEL
THA 		8-98006-462-0 02 1 0502-0606 ● ● ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<C65> THA 		8-98006-462-0 02 1 0502-0606 ●
96 BULB ASM; BEZEL
THA 		8-98029-142-0 02 1 0607-1001 ● ● ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<C65> THA 		8-98029-142-0 02 1 0607-1001 ●
96 BULB ASM; BEZEL
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO>,INTERIOR SILVER BEZEL<BY9> THA 		8-98029-142-0 02 1 1002-1008 ● ● ● ●
96 BULB ASM; BEZEL
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO>,INTERIOR LUXURY<B20> THA 		8-98029-142-0 02 1 1002-1008 ● ● ● ●
96 BULB ASM; BEZEL
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> THA 		8-98029-142-0 02 1 1002-1008 ● ● ●
96 BULB ASM; BEZEL
EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA 		8-98029-142-0 02 1 1002-1008 ● ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<C65> THA 		8-98029-142-0 02 1 1002-1008 ●
102 RING; SNAP,CABLE
THA 		8-97321-480-0 02 1 0204-0207 ● ●
102 RING; SNAP,CABLE
COOLER WO/HEATER<YL1> THA 		8-97321-480-0 02 1 0204-0207 ●
102 RING; SNAP,CABLE
THA 		8-97321-480-0 02 1 0208-0408 ● ● ● ●
102 RING; SNAP,CABLE
COOLER WO/HEATER<YL1> THA 		8-97321-480-0 02 1 0208-0408 ●
102 RING; SNAP,CABLE
THA 		8-97321-480-0 02 1 0409-0606 ● ● ● ●
102 RING; SNAP,CABLE
COOLER WO/HEATER<C65> THA 		8-97321-480-0 02 1 0409-0606 ●
102 RING; SNAP,CABLE
VENTILATION RAM AIR<6TN> THA 		8-97321-480-0 01 1 0204-0606 ●

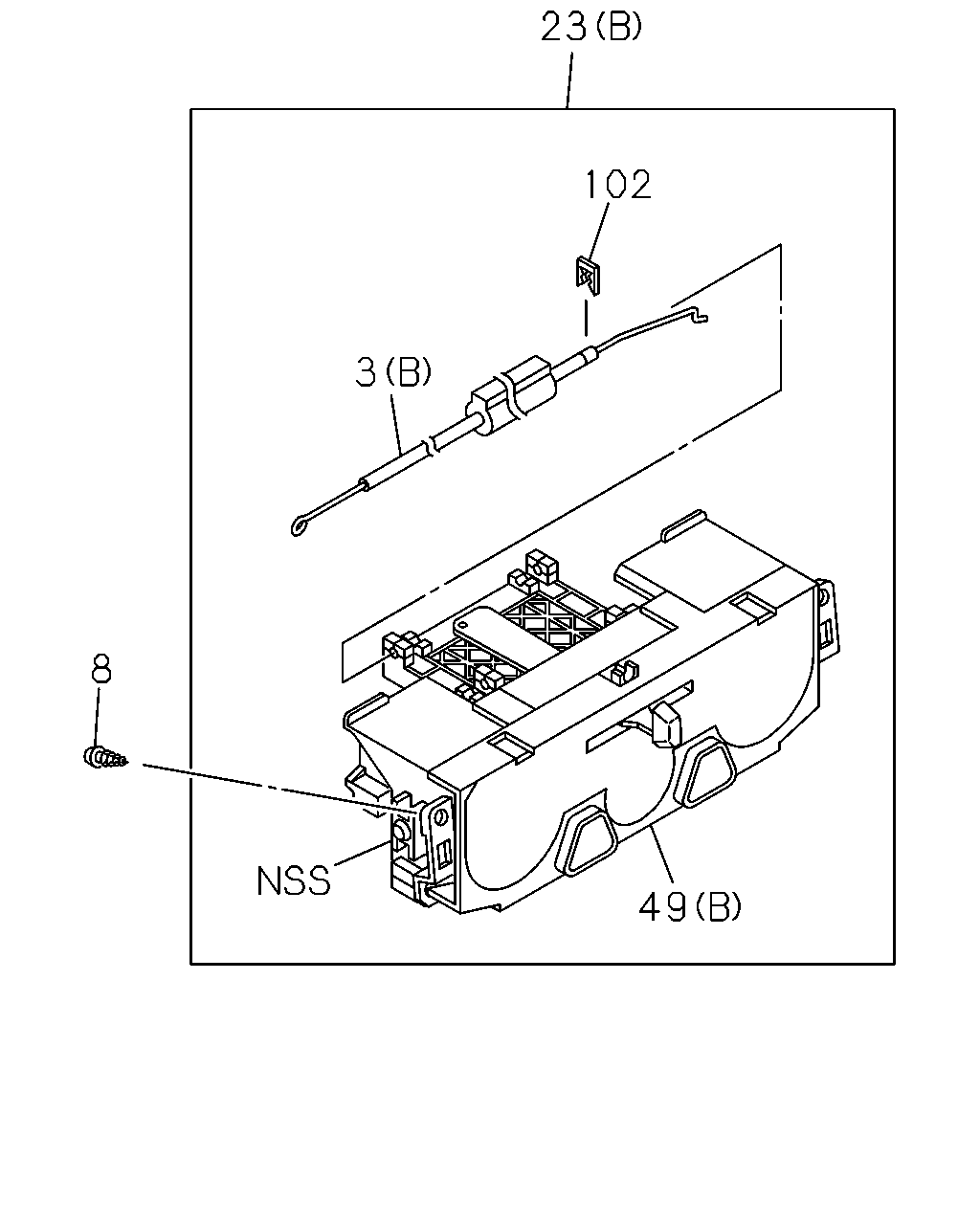

çizim 116701
23 102 3 8 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-97321-479-0 01 1 0204-0207 ● ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-97321-479-0 01 1 0208-0408 ● ● ● ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-97321-479-0 01 1 0409-0606 ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) INTAKE THA 		8-97321-479-0 01 1 0409-0606 ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-98029-145-0 01 1 0607-0810 ● ● ● ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-98029-145-0 01 1 0811- ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) INTAKE THA 		8-98029-145-0 01 1 0811- ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-97321-478-0 01 1 0204-0207 ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<YL1> (A) MODE THA 		8-97321-478-0 01 1 0204-0207 ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-97321-478-0 01 1 0208-0408 ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<YL1> (A) MODE THA 		8-97321-478-0 01 1 0208-0408 ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-97321-478-0 01 1 0409-0606 ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65> (A) MODE THA 		8-97321-478-0 01 1 0409-0606 ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-98029-143-0 01 1 0607- ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65> (A) MODE THA 		8-98029-143-0 01 1 0607- ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ● ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0702 ● ● ● ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-1005 ● ● ● ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ● ● ● ●
23 BEZEL; CONT LEVER
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> (C) THA 		8-98152-601-1 01 1 1002-1008 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> (C) THA 		8-98152-601-1 01 1 1009- ● ● ● ●
23 BEZEL; CONT LEVER
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98152-602-1 01 1 1002-1008 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98152-602-1 01 1 1009- ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (A) THA 		8-98151-400-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. REAR DEFOGGER<C49> (A) THA 		8-98151-400-0 01 1 0909-0912 ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (A) THA 		8-98151-400-0 01 1 1001-1008 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (A) THA 		8-98160-063-1 01 1 1009- ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> (A) THA 		8-98151-009-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> (A) THA 		8-98151-009-0 01 1 0909-0912 ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-98151-009-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> (A) THA 		8-98151-009-0 01 1 1001-1001 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO>,INTERIOR LUXURY<B20> (A) THA 		8-98151-009-0 01 1 1002-1008 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 0811-0907 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 0908-0908 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 0908-0908 ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 1001-1008 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98154-107-1 01 1 1009- ● ● ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-97234-571-4 01 1 0204-0207 ● ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-97234-571-4 01 1 0208-0408 ● ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-97234-571-4 01 1 0208-0408 ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-97234-571-4 01 1 0409-0501 ● ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-97234-571-4 01 1 0409-0501 ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-98006-169-0 01 1 0502-0507 ● ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-98006-169-0 01 1 0502-0507 ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-98004-356-0 01 1 0508-0606 ● ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-98004-356-0 01 1 0508-0606 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> (C) THA 		8-98038-131-0 01 1 0607-0905 ● ● ●
23 BEZEL; CONT LEVER
(C) THA 		8-98038-131-0 01 1 0607-0905 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> (C) THA 		8-98038-131-0 01 1 0906-0908 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98038-131-0 01 1 0906-0908 ●
23 BEZEL; CONT LEVER
(C) THA 		8-98038-131-0 01 1 0906-0908 ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98038-131-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98038-131-0 01 1 1001-1001 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO>,INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98038-131-0 01 1 1002-1008 ● ● ● ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-97234-572-4 01 1 0204-0207 ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<YL1> (A) THA 		8-97234-572-4 01 1 0204-0207 ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-97234-572-4 01 1 0208-0408 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<YL1> (A) THA 		8-97234-572-4 01 1 0208-0408 ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-97234-572-4 01 1 0409-0501 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (A) THA 		8-97234-572-4 01 1 0409-0501 ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-98006-170-0 01 1 0502-0507 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (A) THA 		8-98006-170-0 01 1 0502-0507 ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-98004-357-0 01 1 0508-0606 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (A) THA 		8-98004-357-0 01 1 0508-0606 ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) THA 		8-98038-114-0 01 1 0607-0905 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (C) THA 		8-98038-114-0 01 1 0607-0905 ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (C) THA 		8-98038-114-0 01 1 0906-0912 ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (C) THA 		8-98038-114-0 01 1 0906-0912 ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) THA 		8-98038-114-0 01 1 0906-0912 ● ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (C) THA 		8-98038-114-0 01 1 1001-1008 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (C) THA 		8-98038-114-0 01 1 1001-1008 ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (C) THA 		8-98154-105-1 01 1 1009- ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (C) THA 		8-98154-105-1 01 1 1009- ●
23 BEZEL; CONT LEVER
VENTILATION RAM AIR<6TN> (B) THA 		8-97301-799-3 01 1 0204-0606 ●
23 BEZEL; CONT LEVER
VENTILATION RAM AIR<6TN> (D) THA 		8-98038-118-0 01 1 0607- ●
49 PANEL; CONT
REAR DEFOGGER<C49> (A) THA 		8-97321-468-0 01 1 0204-0207 ● ●
49 PANEL; CONT
REAR DEFOGGER<C49> (A) THA 		8-97321-468-0 01 1 0208-0501 ● ● ●
49 PANEL; CONT
(A) THA 		8-97321-468-0 01 1 0208-0501 ●
49 PANEL; CONT
REAR DEFOGGER<C49> (A) THA 		8-98013-438-0 01 1 0502-0507 ● ● ●
49 PANEL; CONT
(A) THA 		8-98013-438-0 01 1 0502-0507 ●
49 PANEL; CONT
REAR DEFOGGER<C49> (A) THA 		8-98013-379-0 01 1 0508-0606 ● ● ●
49 PANEL; CONT
(A) THA 		8-98013-379-0 01 1 0508-0606 ●
49 PANEL; CONT
EXC. REAR DEFOGGER<C49> (A) THA 		8-97321-469-0 01 1 0204-0207 ● ●
49 PANEL; CONT
COOLER WO/HEATER<YL1> (A) THA 		8-97321-469-0 01 1 0204-0207 ●
49 PANEL; CONT
EXC. REAR DEFOGGER<C49> (A) THA 		8-97321-469-0 01 1 0208-0408 ● ● ●
49 PANEL; CONT
COOLER WO/HEATER<YL1> (A) THA 		8-97321-469-0 01 1 0208-0408 ●
49 PANEL; CONT
EXC. REAR DEFOGGER<C49> (A) THA 		8-97321-469-0 01 1 0409-0501 ● ● ●
49 PANEL; CONT
COOLER WO/HEATER<C65> (A) THA 		8-97321-469-0 01 1 0409-0501 ●
49 PANEL; CONT
EXC. REAR DEFOGGER<C49> (A) THA 		8-98013-439-0 01 1 0502-0507 ● ● ●
49 PANEL; CONT
COOLER WO/HEATER<C65> (A) THA 		8-98013-439-0 01 1 0502-0507 ●
49 PANEL; CONT
EXC. REAR DEFOGGER<C49> (A) THA 		8-98013-380-0 01 1 0508-0606 ● ● ●
49 PANEL; CONT
COOLER WO/HEATER<C65> (A) THA 		8-98013-380-0 01 1 0508-0606 ●
49 PANEL; CONT
VENTILATION RAM AIR<6TN> (B) THA 		8-97321-470-0 01 1 0204-0606 ●
102 RING; SNAP,CABLE
THA 		8-97321-480-0 02 1 0204-0207 ● ●
102 RING; SNAP,CABLE
COOLER WO/HEATER<YL1> THA 		8-97321-480-0 02 1 0204-0207 ●
102 RING; SNAP,CABLE
THA 		8-97321-480-0 02 1 0208-0408 ● ● ● ●
102 RING; SNAP,CABLE
COOLER WO/HEATER<YL1> THA 		8-97321-480-0 02 1 0208-0408 ●
102 RING; SNAP,CABLE
THA 		8-97321-480-0 02 1 0409-0606 ● ● ● ●
102 RING; SNAP,CABLE
COOLER WO/HEATER<C65> THA 		8-97321-480-0 02 1 0409-0606 ●
102 RING; SNAP,CABLE
VENTILATION RAM AIR<6TN> THA 		8-97321-480-0 01 1 0204-0606 ●

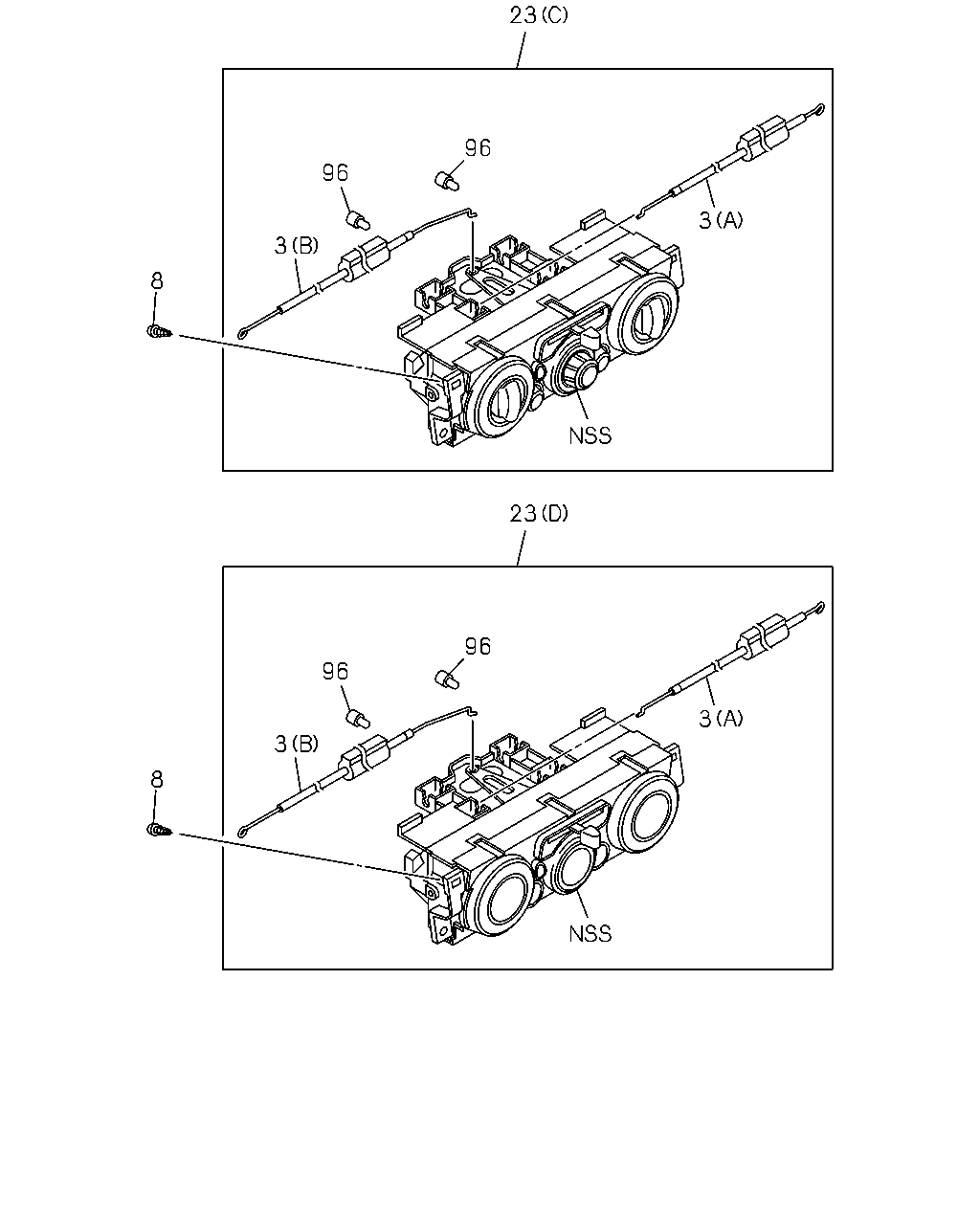

çizim 116709
23 96 96 3 3 8 23 96 96 3 3 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-97321-479-0 01 1 0204-0207 ● ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-97321-479-0 01 1 0208-0408 ● ● ● ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-97321-479-0 01 1 0409-0606 ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) INTAKE THA 		8-97321-479-0 01 1 0409-0606 ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-98029-145-0 01 1 0607-0810 ● ● ● ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE THA 		8-98029-145-0 01 1 0811- ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65>,VENTILATION RAM AIR<6TN> (B) INTAKE THA 		8-98029-145-0 01 1 0811- ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-97321-478-0 01 1 0204-0207 ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<YL1> (A) MODE THA 		8-97321-478-0 01 1 0204-0207 ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-97321-478-0 01 1 0208-0408 ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<YL1> (A) MODE THA 		8-97321-478-0 01 1 0208-0408 ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-97321-478-0 01 1 0409-0606 ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65> (A) MODE THA 		8-97321-478-0 01 1 0409-0606 ●
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-98029-143-0 01 1 0607- ● ● ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65> (A) MODE THA 		8-98029-143-0 01 1 0607- ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		9-09829-323-1 02 1 0204-0207 ● ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		9-09829-323-1 02 1 0208-0702 ● ● ● ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		8-98061-685-0 02 1 0703-1005 ● ● ● ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING THA 		8-98167-449-0 02 1 1006- ● ● ● ● ●
23 BEZEL; CONT LEVER
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> (C) THA 		8-98152-601-1 01 1 1002-1008 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> (C) THA 		8-98152-601-1 01 1 1009- ● ● ● ●
23 BEZEL; CONT LEVER
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98152-602-1 01 1 1002-1008 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98152-602-1 01 1 1009- ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (A) THA 		8-98151-400-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. REAR DEFOGGER<C49> (A) THA 		8-98151-400-0 01 1 0909-0912 ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (A) THA 		8-98151-400-0 01 1 1001-1008 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (A) THA 		8-98160-063-1 01 1 1009- ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> (A) THA 		8-98151-009-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> (A) THA 		8-98151-009-0 01 1 0909-0912 ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-98151-009-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> (A) THA 		8-98151-009-0 01 1 1001-1001 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO>,INTERIOR LUXURY<B20> (A) THA 		8-98151-009-0 01 1 1002-1008 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 0811-0907 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> EXC. REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 0908-0908 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 0908-0908 ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98038-132-0 01 1 1001-1008 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (A) THA 		8-98154-107-1 01 1 1009- ● ● ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-97234-571-4 01 1 0204-0207 ● ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-97234-571-4 01 1 0208-0408 ● ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-97234-571-4 01 1 0208-0408 ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-97234-571-4 01 1 0409-0501 ● ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-97234-571-4 01 1 0409-0501 ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-98006-169-0 01 1 0502-0507 ● ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-98006-169-0 01 1 0502-0507 ●
23 BEZEL; CONT LEVER
REAR DEFOGGER<C49> (A) THA 		8-98004-356-0 01 1 0508-0606 ● ● ●
23 BEZEL; CONT LEVER
(A) THA 		8-98004-356-0 01 1 0508-0606 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> (C) THA 		8-98038-131-0 01 1 0607-0905 ● ● ●
23 BEZEL; CONT LEVER
(C) THA 		8-98038-131-0 01 1 0607-0905 ●
23 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> (C) THA 		8-98038-131-0 01 1 0906-0908 ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98038-131-0 01 1 0906-0908 ●
23 BEZEL; CONT LEVER
(C) THA 		8-98038-131-0 01 1 0906-0908 ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98038-131-0 01 1 0909-0912 ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98038-131-0 01 1 1001-1001 ● ● ● ●
23 BEZEL; CONT LEVER
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO>,INTERIOR SILVER BEZEL<BY9> (C) THA 		8-98038-131-0 01 1 1002-1008 ● ● ● ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-97234-572-4 01 1 0204-0207 ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<YL1> (A) THA 		8-97234-572-4 01 1 0204-0207 ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-97234-572-4 01 1 0208-0408 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<YL1> (A) THA 		8-97234-572-4 01 1 0208-0408 ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-97234-572-4 01 1 0409-0501 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (A) THA 		8-97234-572-4 01 1 0409-0501 ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-98006-170-0 01 1 0502-0507 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (A) THA 		8-98006-170-0 01 1 0502-0507 ●
23 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> (A) THA 		8-98004-357-0 01 1 0508-0606 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (A) THA 		8-98004-357-0 01 1 0508-0606 ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) THA 		8-98038-114-0 01 1 0607-0905 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (C) THA 		8-98038-114-0 01 1 0607-0905 ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (C) THA 		8-98038-114-0 01 1 0906-0912 ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (C) THA 		8-98038-114-0 01 1 0906-0912 ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> (C) THA 		8-98038-114-0 01 1 0906-0912 ● ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (C) THA 		8-98038-114-0 01 1 1001-1008 ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (C) THA 		8-98038-114-0 01 1 1001-1008 ●
23 BEZEL; CONT LEVER
EXC. INTERIOR SILVER BEZEL<BY9>,INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> (C) THA 		8-98154-105-1 01 1 1009- ● ● ●
23 BEZEL; CONT LEVER
COOLER WO/HEATER<C65> (C) THA 		8-98154-105-1 01 1 1009- ●
23 BEZEL; CONT LEVER
VENTILATION RAM AIR<6TN> (B) THA 		8-97301-799-3 01 1 0204-0606 ●
23 BEZEL; CONT LEVER
VENTILATION RAM AIR<6TN> (D) THA 		8-98038-118-0 01 1 0607- ●
96 BULB ASM; BEZEL
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> THA 		8-98159-721-0 02 1 1002-1008 ● ● ● ●
96 BULB ASM; BEZEL
IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO> INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. INTERIOR LUXURY<B20> THA 		8-98159-721-0 02 1 1002-1008 ● ● ● ●
96 BULB ASM; BEZEL
THA 		8-98159-721-0 02 1 1009- ● ● ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<C65> THA 		8-98159-721-0 02 1 1009- ●
96 BULB ASM; BEZEL
THA 		8-97332-276-0 02 1 0204-0207 ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<YL1> THA 		8-97332-276-0 02 1 0204-0207 ●
96 BULB ASM; BEZEL
THA 		8-97332-276-0 02 1 0208-0408 ● ● ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<YL1> THA 		8-97332-276-0 02 1 0208-0408 ●
96 BULB ASM; BEZEL
THA 		8-97332-276-0 02 1 0409-0501 ● ● ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<C65> THA 		8-97332-276-0 02 1 0409-0501 ●
96 BULB ASM; BEZEL
THA 		8-98006-462-0 02 1 0502-0606 ● ● ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<C65> THA 		8-98006-462-0 02 1 0502-0606 ●
96 BULB ASM; BEZEL
THA 		8-98029-142-0 02 1 0607-1001 ● ● ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<C65> THA 		8-98029-142-0 02 1 0607-1001 ●
96 BULB ASM; BEZEL
INTERIOR LUXURY<B20> REAR DEFOGGER<C49> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO>,INTERIOR SILVER BEZEL<BY9> THA 		8-98029-142-0 02 1 1002-1008 ● ● ● ●
96 BULB ASM; BEZEL
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> EXC. IDENTIFICATION BREAKING POINT 2010.5 M.Y.<BSO>,INTERIOR LUXURY<B20> THA 		8-98029-142-0 02 1 1002-1008 ● ● ● ●
96 BULB ASM; BEZEL
INTERIOR SILVER BEZEL<BY9> EXC. INTERIOR LUXURY<B20>,REAR DEFOGGER<C49> THA 		8-98029-142-0 02 1 1002-1008 ● ● ●
96 BULB ASM; BEZEL
EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> THA 		8-98029-142-0 02 1 1002-1008 ● ● ●
96 BULB ASM; BEZEL
COOLER WO/HEATER<C65> THA 		8-98029-142-0 02 1 1002-1008 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
