Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#73878) — 217 parça

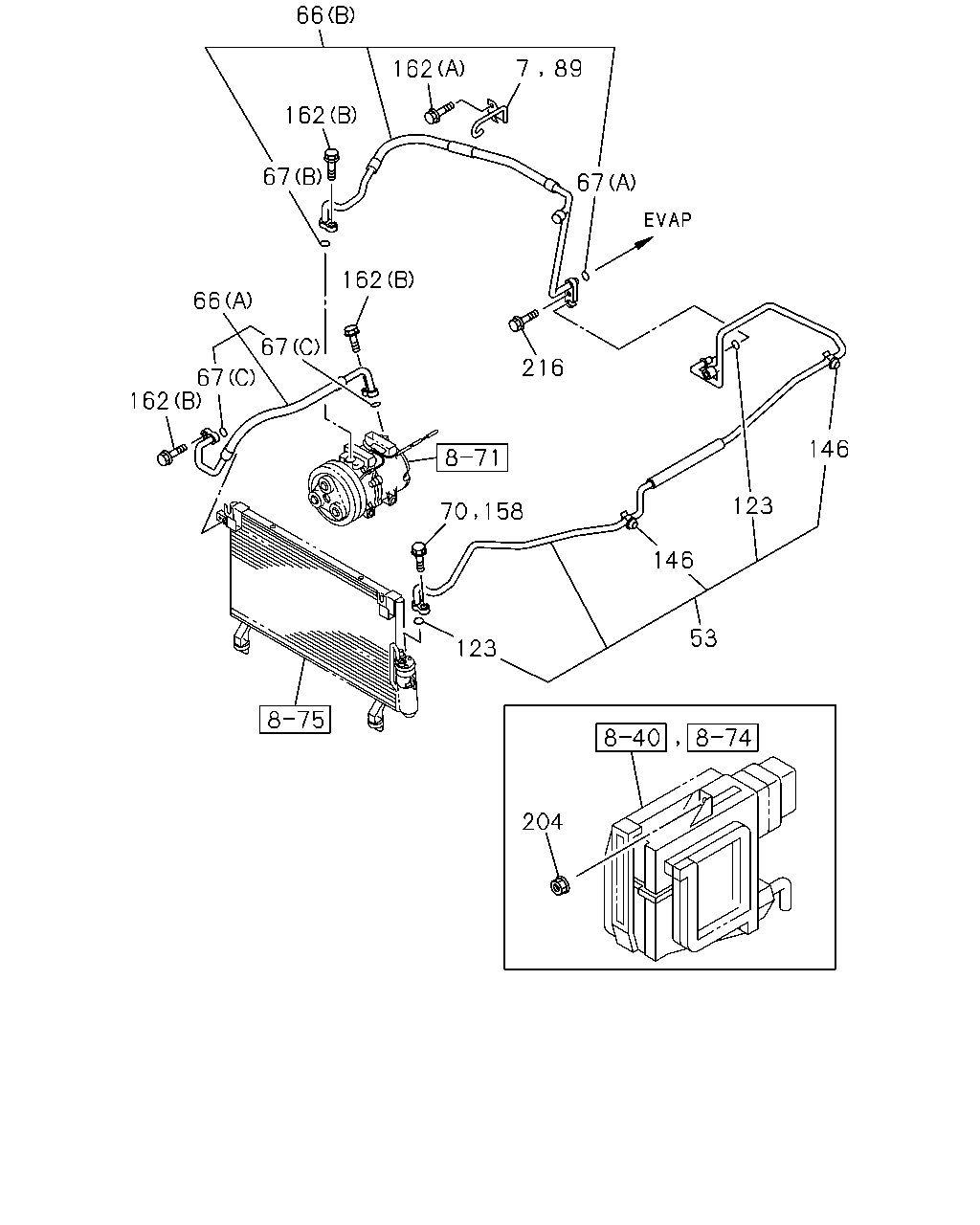

66 7 89 162 162 67 67 162 66 67 216 67 162 146 123 146 53 123 204 70 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
7	BRACKET; FLEX HOSE,A/C 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA	8-97327-938-2	01	1	0409-0412	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97261-721-1	01	1	0204-0207	●	●		●
53	PIPE; RECEIVER TANK TO EVAP 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97261-721-1	01	1	0208-0211	●	●	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97361-332-0	01	1	0212-0408	●	●	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG<LP0> THA	8-97361-332-0	01	1	0409-0412	●		●
53	PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA	8-97361-332-0	01	1	0409-0412		●
53	PIPE; RECEIVER TANK TO EVAP 4JK1 ENG<LKZ> THA	8-98020-687-0	01	1	0506-0606	●		●
53	PIPE; RECEIVER TANK TO EVAP 4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98020-687-0	01	1	0506-0606		●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> THA	8-97370-700-1	01	1	0409-0412	●		●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97370-700-1	01	1	0501-0505	●	●	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> THA	8-97370-700-1	01	1	0506-0606	●		●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98049-891-0	01	1	0607-0608	●	●	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98049-891-0	01	1	0609-0708	●	●	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98088-792-0	01	1	0709-0709	●	●	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98088-792-0	01	1	0710-	●	●	●	●	●
66	HOSE; FLEX,A/C 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA	8-97234-781-0	01	1	0204-0207	●	●		●
66	HOSE; FLEX,A/C 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA	8-97234-781-0	01	1	0208-0408	●	●	●	●	●
66	HOSE; FLEX,A/C 4JA1-T ENG<LP0> (A) THA	8-97234-781-0	01	1	0409-0412	●		●
66	HOSE; FLEX,A/C 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (A) THA	8-97234-781-0	01	1	0409-0412		●
66	HOSE; FLEX,A/C 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) THA	8-97234-785-4	01	1	0204-0207	●	●		●
66	HOSE; FLEX,A/C 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) THA	8-97234-785-4	01	1	0208-0408	●	●	●	●	●
66	HOSE; FLEX,A/C 4JA1-T ENG<LP0> (B) THA	8-97234-785-4	01	1	0409-0412	●		●
66	HOSE; FLEX,A/C 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (B) THA	8-97234-785-4	01	1	0409-0412		●
66	HOSE; FLEX,A/C 4JK1 ENG<LKZ> (D) THA	8-98020-685-0	01	1	0506-0606	●		●
66	HOSE; FLEX,A/C 4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) THA	8-98020-685-0	01	1	0506-0606		●
66	HOSE; FLEX,A/C 4JK1 ENG<LKZ> (C) THA	8-98020-686-0	01	1	0506-0606	●		●
66	HOSE; FLEX,A/C 4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-98020-686-0	01	1	0506-0606		●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (C) THA	8-97363-903-0	01	1	0409-0412	●		●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0501-0505	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (C) THA	8-97363-903-0	01	1	0506-0606	●		●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0607-0608	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0609-0708	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0709-0709	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0710-	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (D) THA	8-97363-904-1	01	1	0409-0412	●		●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) THA	8-97363-904-1	01	1	0501-0505	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (D) THA	8-97363-904-1	01	1	0506-0606	●		●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) THA	8-97363-904-1	01	1	0607-	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCX ENG<LS0> (D) THA	8-98007-108-1	01	1	0710-0802			●		●
66	HOSE; FLEX,A/C 4JJ1-TCX ENG<LS0> (D) THA	8-98007-108-1	01	1	0803-	●		●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCX ENG<LS0> (D) THA	8-98007-108-1	01	1	0609-0708					●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA	8-97321-351-0	01	1	0204-0207	●	●		●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA	8-97321-351-0	01	1	0208-0408	●	●	●	●	●
67	GASKET; FLEX HOSE (A) THA	8-97321-351-0	01	1	0409-0412	●		●	●	●
67	GASKET; FLEX HOSE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (A) THA	8-97321-351-0	01	1	0409-0412		●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (A) THA	8-97321-351-0	01	1	0501-0608	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-97321-351-0	01	1	0609-0708	●		●	●
67	GASKET; FLEX HOSE 4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (A) THA	8-97321-351-0	01	1	0609-0708		●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (A) THA	8-97321-351-0	01	1	0609-0708					●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (A) THA	8-97321-351-0	01	1	0709-0709	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (A) THA	8-97321-351-0	01	1	0710-	●	●	●	●	●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) THA	8-97321-352-0	01	1	0204-0207	●	●		●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) THA	8-97321-352-0	01	1	0208-0408	●	●	●	●	●
67	GASKET; FLEX HOSE (B) THA	8-97321-352-0	01	1	0409-0412	●		●	●	●
67	GASKET; FLEX HOSE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (B) THA	8-97321-352-0	01	1	0409-0412		●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (B) THA	8-97321-352-0	01	1	0501-0608	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) THA	8-97321-352-0	01	1	0609-0708	●		●	●
67	GASKET; FLEX HOSE 4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (B) THA	8-97321-352-0	01	1	0609-0708		●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (B) THA	8-97321-352-0	01	1	0609-0708					●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (B) THA	8-97321-352-0	01	1	0709-0709	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (B) THA	8-97321-352-0	01	1	0710-	●	●	●	●	●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) THA	8-97321-353-0	02	1	0204-0207	●	●		●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) THA	8-97321-353-0	02	1	0208-0408	●	●	●	●	●
67	GASKET; FLEX HOSE (C) THA	8-97321-353-0	02	1	0409-0412	●		●	●	●
67	GASKET; FLEX HOSE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0409-0412		●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0501-0608	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0609-0708	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0709-0709	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0710-	●	●	●	●	●
70	BOLT; PIPE TO BODY M6X25 FLANGE THA	0-28650-625-0	01	1	0204-0207	●
70	BOLT; PIPE TO BODY COOLER WO/HEATER<YL1> M6X25 FLANGE THA	0-28650-625-0	01	1	0204-0207		●		●
70	BOLT; PIPE TO BODY M6X25 FLANGE THA	0-28650-625-0	01	1	0208-0408	●		●		●
70	BOLT; PIPE TO BODY COOLER WO/HEATER<YL1> M6X25 FLANGE THA	0-28650-625-0	01	1	0208-0408		●		●
89	BRACKET; A/C PIPE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97327-938-2	01	1	0204-0207	●	●		●
89	BRACKET; A/C PIPE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97327-938-2	01	1	0208-0408	●	●	●	●	●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97919-270-0	02	1	0204-0207	●	●		●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97919-270-0	02	1	0208-0408	●	●	●	●	●
123	GASKET; RECEIVER PIPE THA	8-97919-270-0	02	1	0409-0412	●		●	●	●
123	GASKET; RECEIVER PIPE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA	8-97919-270-0	02	1	0409-0412		●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97919-270-0	02	1	0501-0608	●	●	●	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97919-270-0	02	1	0609-0708	●	●	●	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> SCAL THA	8-97919-270-0	02	1	0709-0709	●	●	●	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> SCAL THA	8-97919-270-0	02	1	0710-	●	●	●	●	●
146	CLIP; RECEIVER PIPE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97355-792-0	02	1	0204-0207	●	●		●
146	CLIP; RECEIVER PIPE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97355-792-0	02	1	0208-0408	●	●	●	●	●
146	CLIP; RECEIVER PIPE 4JA1-T ENG<LP0> THA	8-97355-792-0	02	1	0409-0412	●		●
146	CLIP; RECEIVER PIPE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA	8-97355-792-0	02	1	0409-0412		●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB> THA	8-97354-058-0	02	1	0409-0412	●		●	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97354-058-0	02	1	0501-0608	●	●	●	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97354-058-0	02	1	0609-0708	●	●	●	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97354-058-0	02	1	0709-0709	●	●	●	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97354-058-0	02	1	0710-	●	●	●	●	●
158	BOLT; PIPE FIX M6X25 FLANGE THA	0-28650-625-0	01	1	0409-	●		●	●	●
158	BOLT; PIPE FIX COOLER WO/HEATER<C65> M6X25 FLANGE THA	0-28650-625-0	01	1	0409-		●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0204-0207	●	●		●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0208-0408	●	●	●	●	●
162	BOLT; FLEX HOSE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0409-0412	●	●	●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0204-0207	●	●		●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0208-0408	●	●	●	●	●
162	BOLT; FLEX HOSE (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0409-	●		●	●	●
162	BOLT; FLEX HOSE COOLER WO/HEATER<C65> (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0409-		●
204	NUT M6 FLANGE IMA	8-98055-704-0	02	1	0809-	●	●	●	●	●
216	BOLT; HOSE FIX M6X20 FLANGE THA	0-28650-620-0	01	1	0204-0207	●
216	BOLT; HOSE FIX COOLER WO/HEATER<YL1> M6X20 FLANGE THA	0-28650-620-0	01	1	0204-0207		●		●
216	BOLT; HOSE FIX M6X20 FLANGE THA	0-28650-620-0	01	1	0208-0408	●		●		●
216	BOLT; HOSE FIX COOLER WO/HEATER<YL1> M6X20 FLANGE THA	0-28650-620-0	01	1	0208-0408		●		●
216	BOLT; HOSE FIX M6X20 FLANGE THA	0-28650-620-0	01	1	0409-	●		●	●	●
216	BOLT; HOSE FIX COOLER WO/HEATER<C65> M6X20 FLANGE THA	0-28650-620-0	01	1	0409-		●

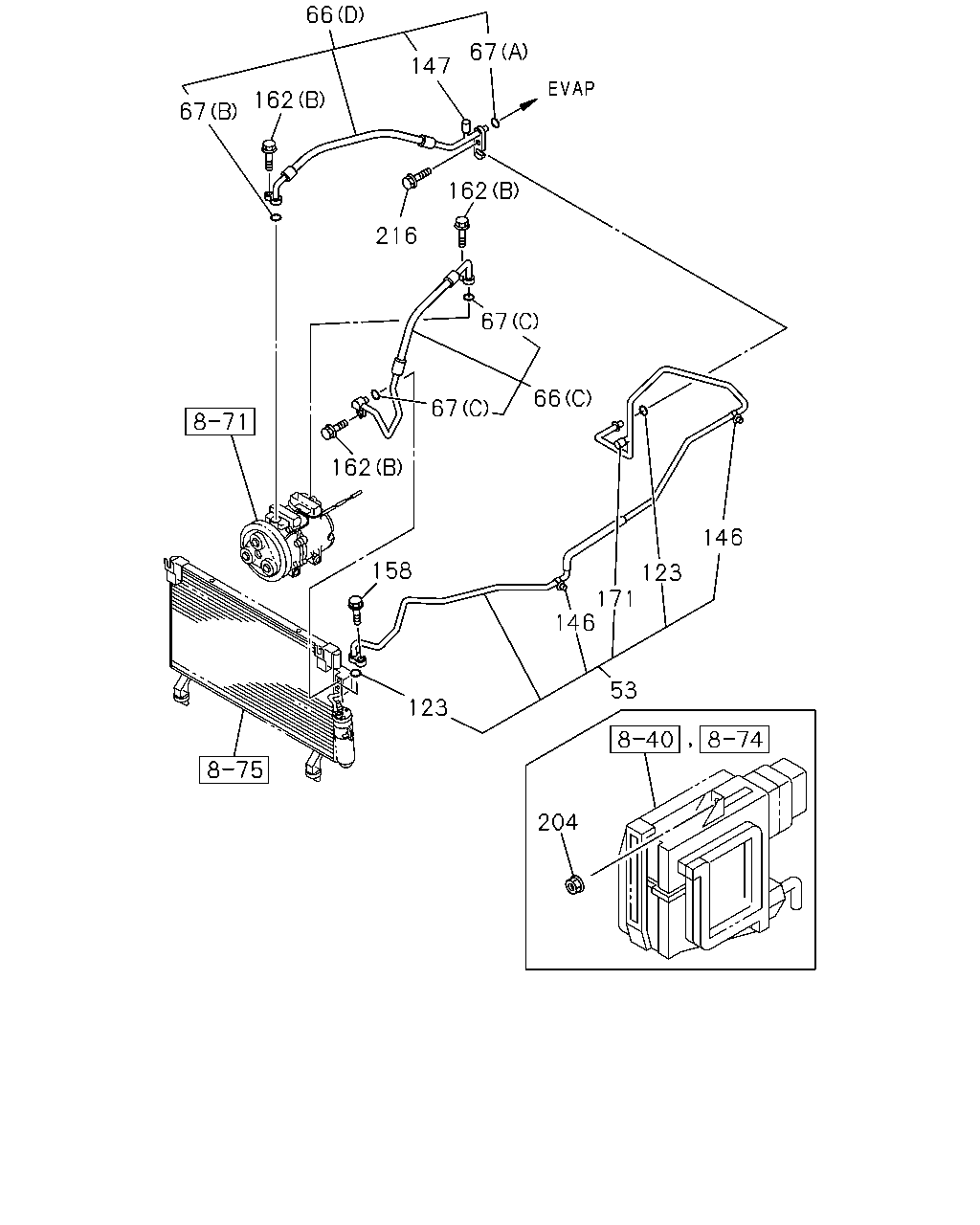

66 67 147 162 67 162 216 67 66 67 162 146 158 123 171 146 53 123 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
53	PIPE; RECEIVER TANK TO EVAP 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97261-721-1	01	1	0204-0207	●	●		●
53	PIPE; RECEIVER TANK TO EVAP 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97261-721-1	01	1	0208-0211	●	●	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97361-332-0	01	1	0212-0408	●	●	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG<LP0> THA	8-97361-332-0	01	1	0409-0412	●		●
53	PIPE; RECEIVER TANK TO EVAP 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA	8-97361-332-0	01	1	0409-0412		●
53	PIPE; RECEIVER TANK TO EVAP 4JK1 ENG<LKZ> THA	8-98020-687-0	01	1	0506-0606	●		●
53	PIPE; RECEIVER TANK TO EVAP 4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98020-687-0	01	1	0506-0606		●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> THA	8-97370-700-1	01	1	0409-0412	●		●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97370-700-1	01	1	0501-0505	●	●	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB> THA	8-97370-700-1	01	1	0506-0606	●		●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98049-891-0	01	1	0607-0608	●	●	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98049-891-0	01	1	0609-0708	●	●	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-98088-792-0	01	1	0709-0709	●	●	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-98088-792-0	01	1	0710-	●	●	●	●	●
66	HOSE; FLEX,A/C 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA	8-97234-781-0	01	1	0204-0207	●	●		●
66	HOSE; FLEX,A/C 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA	8-97234-781-0	01	1	0208-0408	●	●	●	●	●
66	HOSE; FLEX,A/C 4JA1-T ENG<LP0> (A) THA	8-97234-781-0	01	1	0409-0412	●		●
66	HOSE; FLEX,A/C 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (A) THA	8-97234-781-0	01	1	0409-0412		●
66	HOSE; FLEX,A/C 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) THA	8-97234-785-4	01	1	0204-0207	●	●		●
66	HOSE; FLEX,A/C 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) THA	8-97234-785-4	01	1	0208-0408	●	●	●	●	●
66	HOSE; FLEX,A/C 4JA1-T ENG<LP0> (B) THA	8-97234-785-4	01	1	0409-0412	●		●
66	HOSE; FLEX,A/C 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (B) THA	8-97234-785-4	01	1	0409-0412		●
66	HOSE; FLEX,A/C 4JK1 ENG<LKZ> (D) THA	8-98020-685-0	01	1	0506-0606	●		●
66	HOSE; FLEX,A/C 4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) THA	8-98020-685-0	01	1	0506-0606		●
66	HOSE; FLEX,A/C 4JK1 ENG<LKZ> (C) THA	8-98020-686-0	01	1	0506-0606	●		●
66	HOSE; FLEX,A/C 4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-98020-686-0	01	1	0506-0606		●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (C) THA	8-97363-903-0	01	1	0409-0412	●		●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0501-0505	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (C) THA	8-97363-903-0	01	1	0506-0606	●		●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0607-0608	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0609-0708	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0709-0709	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-97363-903-0	01	1	0710-	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (D) THA	8-97363-904-1	01	1	0409-0412	●		●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) THA	8-97363-904-1	01	1	0501-0505	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB> (D) THA	8-97363-904-1	01	1	0506-0606	●		●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (D) THA	8-97363-904-1	01	1	0607-	●	●	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCX ENG<LS0> (D) THA	8-98007-108-1	01	1	0710-0802			●		●
66	HOSE; FLEX,A/C 4JJ1-TCX ENG<LS0> (D) THA	8-98007-108-1	01	1	0803-	●		●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCX ENG<LS0> (D) THA	8-98007-108-1	01	1	0609-0708					●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA	8-97321-351-0	01	1	0204-0207	●	●		●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA	8-97321-351-0	01	1	0208-0408	●	●	●	●	●
67	GASKET; FLEX HOSE (A) THA	8-97321-351-0	01	1	0409-0412	●		●	●	●
67	GASKET; FLEX HOSE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (A) THA	8-97321-351-0	01	1	0409-0412		●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (A) THA	8-97321-351-0	01	1	0501-0608	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (A) THA	8-97321-351-0	01	1	0609-0708	●		●	●
67	GASKET; FLEX HOSE 4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (A) THA	8-97321-351-0	01	1	0609-0708		●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (A) THA	8-97321-351-0	01	1	0609-0708					●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (A) THA	8-97321-351-0	01	1	0709-0709	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (A) THA	8-97321-351-0	01	1	0710-	●	●	●	●	●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) THA	8-97321-352-0	01	1	0204-0207	●	●		●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) THA	8-97321-352-0	01	1	0208-0408	●	●	●	●	●
67	GASKET; FLEX HOSE (B) THA	8-97321-352-0	01	1	0409-0412	●		●	●	●
67	GASKET; FLEX HOSE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (B) THA	8-97321-352-0	01	1	0409-0412		●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (B) THA	8-97321-352-0	01	1	0501-0608	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> (B) THA	8-97321-352-0	01	1	0609-0708	●		●	●
67	GASKET; FLEX HOSE 4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (B) THA	8-97321-352-0	01	1	0609-0708		●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JJ1-TCX ENG<LS0> (B) THA	8-97321-352-0	01	1	0609-0708					●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (B) THA	8-97321-352-0	01	1	0709-0709	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (B) THA	8-97321-352-0	01	1	0710-	●	●	●	●	●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) THA	8-97321-353-0	02	1	0204-0207	●	●		●
67	GASKET; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) THA	8-97321-353-0	02	1	0208-0408	●	●	●	●	●
67	GASKET; FLEX HOSE (C) THA	8-97321-353-0	02	1	0409-0412	●		●	●	●
67	GASKET; FLEX HOSE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0409-0412		●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0501-0608	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0609-0708	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0709-0709	●	●	●	●	●
67	GASKET; FLEX HOSE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> (C) THA	8-97321-353-0	02	1	0710-	●	●	●	●	●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97919-270-0	02	1	0204-0207	●	●		●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97919-270-0	02	1	0208-0408	●	●	●	●	●
123	GASKET; RECEIVER PIPE THA	8-97919-270-0	02	1	0409-0412	●		●	●	●
123	GASKET; RECEIVER PIPE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA	8-97919-270-0	02	1	0409-0412		●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97919-270-0	02	1	0501-0608	●	●	●	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97919-270-0	02	1	0609-0708	●	●	●	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> SCAL THA	8-97919-270-0	02	1	0709-0709	●	●	●	●	●
123	GASKET; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> SCAL THA	8-97919-270-0	02	1	0710-	●	●	●	●	●
146	CLIP; RECEIVER PIPE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97355-792-0	02	1	0204-0207	●	●		●
146	CLIP; RECEIVER PIPE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97355-792-0	02	1	0208-0408	●	●	●	●	●
146	CLIP; RECEIVER PIPE 4JA1-T ENG<LP0> THA	8-97355-792-0	02	1	0409-0412	●		●
146	CLIP; RECEIVER PIPE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> THA	8-97355-792-0	02	1	0409-0412		●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB> THA	8-97354-058-0	02	1	0409-0412	●		●	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97354-058-0	02	1	0501-0608	●	●	●	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97354-058-0	02	1	0609-0708	●	●	●	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97354-058-0	02	1	0709-0709	●	●	●	●	●
146	CLIP; RECEIVER PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97354-058-0	02	1	0710-	●	●	●	●	●
147	CAP; FLEX HOSE 4JJ1-TCX ENG<LS0> THA	8-97386-623-0	01	1	0710-0802			●		●
147	CAP; FLEX HOSE 4JJ1-TCX ENG<LS0> THA	8-97386-623-0	01	1	0803-	●		●	●	●
147	CAP; FLEX HOSE 4JJ1-TCX ENG<LS0> THA	8-97386-623-0	01	1	0609-0708					●
158	BOLT; PIPE FIX M6X25 FLANGE THA	0-28650-625-0	01	1	0409-	●		●	●	●
158	BOLT; PIPE FIX COOLER WO/HEATER<C65> M6X25 FLANGE THA	0-28650-625-0	01	1	0409-		●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0204-0207	●	●		●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0208-0408	●	●	●	●	●
162	BOLT; FLEX HOSE 4JA1-T ENG<LP0> COOLER WO/HEATER<C65> (A) M6X16 FLANGE THA	0-28650-616-0	01	1	0409-0412	●	●	●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0204-0207	●	●		●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX>,4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0208-0408	●	●	●	●	●
162	BOLT; FLEX HOSE (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0409-	●		●	●	●
162	BOLT; FLEX HOSE COOLER WO/HEATER<C65> (B) M8X25 FLANGE THA	0-28650-825-0	03	1	0409-		●
171	CAP; PIPE 4JJ1-TCS ENG<LFB> THA	8-97376-622-0	01	1	0409-0412	●		●	●	●
171	CAP; PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97376-622-0	01	1	0501-0608	●	●	●	●	●
171	CAP; PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97376-622-0	01	1	0609-0708	●	●	●	●	●
171	CAP; PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ> COOLER WO/HEATER<C65> THA	8-97376-622-0	01	1	0709-0709	●	●	●	●	●
171	CAP; PIPE 4JJ1-TCS ENG<LFB>,4JK1 ENG<LKZ>,4JJ1-TCX ENG<LS0> COOLER WO/HEATER<C65> THA	8-97376-622-0	01	1	0710-	●	●	●	●	●
204	NUT M6 FLANGE IMA	8-98055-704-0	02	1	0809-	●	●	●	●	●
216	BOLT; HOSE FIX M6X20 FLANGE THA	0-28650-620-0	01	1	0204-0207	●
216	BOLT; HOSE FIX COOLER WO/HEATER<YL1> M6X20 FLANGE THA	0-28650-620-0	01	1	0204-0207		●		●
216	BOLT; HOSE FIX M6X20 FLANGE THA	0-28650-620-0	01	1	0208-0408	●		●		●
216	BOLT; HOSE FIX COOLER WO/HEATER<YL1> M6X20 FLANGE THA	0-28650-620-0	01	1	0208-0408		●		●
216	BOLT; HOSE FIX M6X20 FLANGE THA	0-28650-620-0	01	1	0409-	●		●	●	●
216	BOLT; HOSE FIX COOLER WO/HEATER<C65> M6X20 FLANGE THA	0-28650-620-0	01	1	0409-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
